| Product Type | Induction Hob |
| Model | EBK 959 |
| Dimensions (H x L x W) | 6.0 x 59.0 x 52.0 cm |
| Built-in Dimensions (L x W) | 56.0 x 49.0 cm |
| Net Weight | Approx. 10.0 kg |
| Power Supply | 220-240 V~ / 400 V 3 N~, 50/60 Hz |
| Power Consumption | 6400-7200 W / 7000 W |
| Number of Cooking Zones | 4 |
| Cooking Zone 1 (160 mm) | Max. 1500 W |
| Cooking Zone 2 (180 mm) | Max. 2000 W |
| Cooking Zone 3 (160 mm) | Max. 1500 W |
| Cooking Zone 4 (180 mm) | Max. 2000 W |
| Control Type | Touch Control with Buttons |
| Child Lock | Yes |
| Timer | Yes (up to 99 minutes) |
| Residual Heat Display | Yes (symbol "H") |
| Automatic Switch-off | Yes (after set time depending on power level) |
| Pot Detection | Yes (flashing "L" if unsuitable) |
| Overheating Protection | Yes |
| Hob Surface Material | Glass Ceramic |
| Cleaning Method | Use special glass ceramic cleaner; avoid abrasive tools |
| Installation Requirement | Worktop min. 30 mm thick, cut-out max. 560 x 490 mm |
| Warranty | 24 months |
| Reparability | Only by authorized specialist |
Frequently Asked Questions - EBK 959 BOMANN
User questions about EBK 959 BOMANN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Oven in PDF format for free! Find your manual EBK 959 - BOMANN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. EBK 959 by BOMANN.
USER MANUAL EBK 959 BOMANN
Installation- Induction Cooking
Inhalt
Einleitung....3
Installation / Einbau....6
Special safety information for this unit....13
Intended use....14
Unpacking the appliance....14
Device description 15
Installation / Fitting....16
Electrical connection....17
Startup / Operation 18
Cleaning....19
Repairs....19
Troubleshooting....20
Technical Data 20
Disposal 21
Einleitung
Thank you for choosing our product. We hope you will enjoy using the appliance.
Symbols in these Instructions for use
Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:
WARNING:
This warns you of dangers to your health and indicates possible injury risks.
CAUTION:
This refers to possible hazards to the machine or other objects.
NOTE: This highlights tips and information.
General Notes
Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, please also pass on the operating instructions.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
- Switch the device off when not in use, for cleaning or in case of failure.
• Do not operate the machine without supervision.
• For safety reasons, alterations or modifications of the device are prohibited.
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, poly-styrene etc.) out of their reach.
WARNING!
Don't let small children play with foils. There is danger of suffocation!
Special safety information for this unit
WARNING:
Danger from electrical current! Contact with live leads or components can be fatal!
- The connection of the appliance must satisfy the relevant standards and regulations and may only be performed by an authorized specialist.
• The appliance may not be used if the glass surface has cracks or is broken. - The use of high-pressure cleaners or steam jet cleaners is prohibited. Ingress of liquids can lead to electric shock. Put the unit never under water.
WARNING: Hot surface! Risk of Burning!
• Do not touch the glass-ceramic surface during operation.
- Metal objects as e.g. knives, forks, spoons and pot lids should not be placed on the hob as they may get hot.
WARNING:
Risk of Fire!
• Overheated fats and oils can ignite easily. Never walk away from fats and oil when heating them. If fat/oil ignites, never extinguish it with water. Immediately cover with a lid or a plate. Turn off the hob and allow the cookware to cool down.
• The hob should not be used as a storage area.
WARNUNG:
Potential damage of health!
• People wearing pacemakers must not use this cooker. They should keep a minimum distance of 60 cm to the appliance when it is in use. Use only after consulting with the doctor.
- Do not operate the device with an external timer or a separate remote control system.
- Do not heat empty pots on the hob as this may lead to malfunctions or dangerous overheating.
• To prevent the risk of explosion, do not heat sealed food (for example, in tins) if unopened.
- Do not store any detergents or flammable materials near the appliance.
- Make sure that with installing adequate air circulation is ensured and the ventilation slots are not blocked.
- Do not drop anything onto the glass surface. Fragile!
- Switch off the appliance after use and do not rely on automatic pot recognition (automatic switch-off).
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Keep the appliance out of reach of children less than 8 years.
• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
- Clean the hob regularly to keep the good functionality.
- Do not use harsh abrasive cleaners or sharp metal objects for cleaning the glass surface. The glass can be scratched or destroyed.
- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
Intended Use
Use the appliance only when installed!
This appliance is intended for preparing foodstuffs in induction cookware.
The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose.
Any other use is not intended and can result in damages or personal injuries.
The manufacturer assumes no liability for damages caused by improper use.
Unpacking the appliance
- Remove the appliance from its packaging.
- Remove all packaging materials such as films, filler material, cable clips and carton.
- To prevent hazards, check the appliance for any transport damage.
- In case of damage, do not put the device into operation. Contact your distributor.
i NOTE:
Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter Cleaning.
Device description

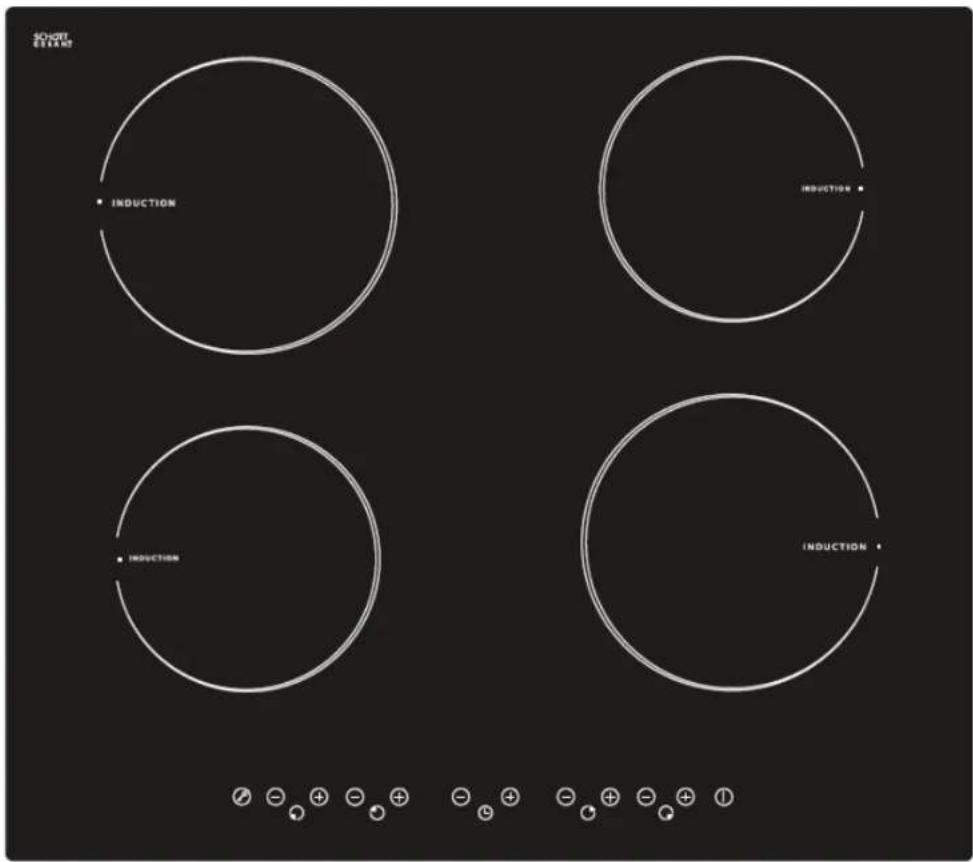

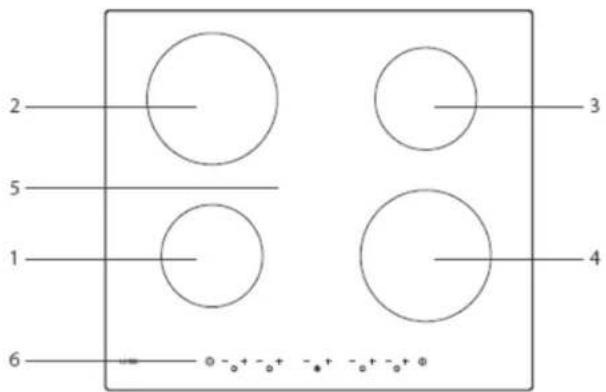

| 1 Cooking zone 1160 mm, max. 1500 W |
| 2 Cooking zone 2180 mm, max. 2000 W |
| 3 Cooking zone 3160 mm, max. 1500 W |
| 4 Cooking zone 4180 mm, max. 2000 W |
| 5 Glass ceramic plate |
| 6 Control panel |
i NOTE:
The listed performances can vary depending on material and/or size of the cookware.
Control panel
| 1 On/Off switch |
| 2 Power regulation |
| 3 Child lock |
| 4 Timer (Timer switch) |
Scope of delivery
2 x mounting clips
2 x cross-head screws
Description of the functions
Functional principle
When cooking with induction, the heat will only be created with magnetic force when cookware with a magnetizable bottom is placed onto a cooking zone which is turned on. Only the bottom of the cookware is thereby heated, but not the cooking zone itself.
Benefits: - time savings - energy-saving
- easy cleaning - controlled heat supply and safety
Pot detection
The heating function is interrupted, if:
- cookware of unsuitable size,
- of non-magnetic material (e.g. aluminum),
- or a small object (e.g. knife, fork, and bowl) is placed onto the cooling area or the cookware was removed.
The notification "L" will flash on the display of the respective cooking zone. If suitable cookware is not placed onto the respective zone within a minute, the appliance will switch to standby mode. After around another minute, the appliance will switch off automatically.
Overheating protection
A temperature sensor monitors the inside of the appliance. If the maximum temperature is exceeded, the appliance is automatically shut off to prevent damage.
Residual heat display
After shutting off the appliance, the display of the respective cooking zones shows the symbol "H" (Residual heat). This gives a warning not to touch the zone.
Automatic switch-off
The automatic switch-off is a protective function for your appliance. If a stovetop is in operation for a long period and if you do not enter anything on the control panel, the automatic switch-off will be activated. For the standard times of the different power settings, please refer to the following table:
| Power setting 1 2 3 4 5 6 7 8 9 | |||||||||
| Shut-off time (Hours) 8 8 8 4 4 4 | 2 2 2 |
Child lock
The appliance is equipped with a child lock to prevent children from turning on the appliance accidentally.
Installation / Fitting
CAUTION:
• The stovetop has to be installed so that the heat can be dissipated. Air intake and outlet may not be blocked.
• The worktop, back walls, veneers, laminates, and adhesives used must be sufficiently heat-resistant (up to 100°C).
Conditions for the installation location
• The appliance may only be installed on one side next to higher kitchen furniture, appliances, or walls.
- The appliance should not be installed directly next to refrigerators or freezers. Due to the heat dissipation, the energy consumption of the cooling appliances will increase unnecessarily.
- At least 50 mm free space must remain under the entire cut-out for the appliance. Heat-sensitive objects (base cabinet, drawer, etc.) may not be located in this area. Possibly existing side-walls or drawer cabinets must be cut out, or disassembled accordingly.
- The worktop must be at least 30 mm thick and at least 620 mm deep. It must lie horizontally and must be sealed off against overflowing liquids on the wall side.
• The stovetop must be framed by a work surface of at least 50 mm on all sides.
• The cut-out may be 560 x 490 mm at maximum.
• The appliance must be installed so that sufficient air circulation is ensured (see Fig. 1).

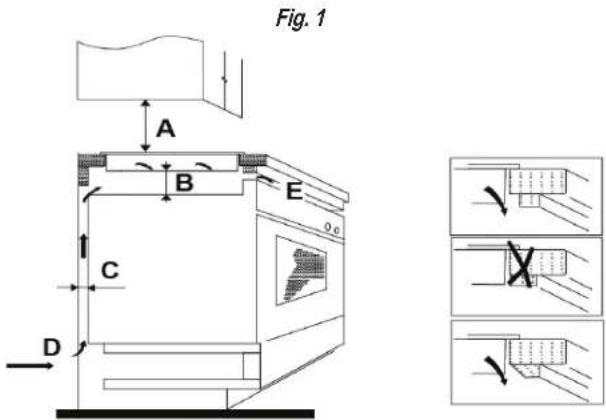

| A (mm) B (mm) C | (mm) D E | |||
| 760 min. 50 min. | 20 Air inlet Air outlet 5 mm |
Installation
i NOTE:
Prior to sawing, stick a wide adhesive tape onto the outer edge of the cut-out to prevent jigsaw marks on the worktop.

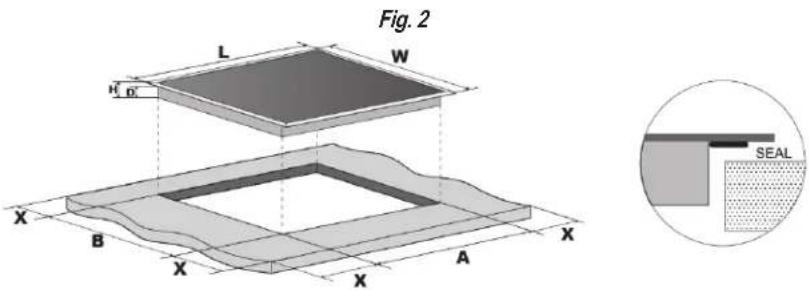

• The worktop must be cut out in accordance with Fig. 2.
| A (mm) B (mm) L (mm) W (mm) H (mm) D (mm) X (mm) | |||||
| 560^+4_+1 + 1 | 490^+4 | 590 520 60 56 min. 50 | |||
- The cut surfaces must be sealed with a special heat-resistant lacquer, silicone, or casting resin to prevent expansion of the worktop through moisture.
- Place the stovetop with the glass side onto an even surface. Avoid scratches! Place a cushioned support beneath it.
- Have the power cable connected to the appliance by a specialist as described under Electrical connection.
- The appliance must be inserted into the cut-out with the control panel towards the front. Ensure that the distances to the cut-out are the same on all four sides.

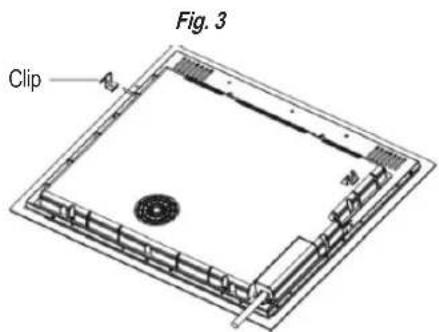

- Fasten the supplied clamps to the right and the left on the underside of the stovetop with the screws (see Fig. 3). Insert the stovetop into the prefabricated cut-out.
Electrical connection
WARNING:
- The connection to the mains may only be performed by an authorized specialist. The installation must be in accordance with the standards and regulations.
• Before the start of the work, all the terminals must be disconnected from the power supply.
• A damaged mains cable must be replaced by an authorized specialist or customer service.
Connection conditions
• Prior to connection, ensure that the power supply matches the information on the type plate on the underside of the appliance.
- The supply line to the appliance must have an all-pole circuit breaker in the panel board with a contact distance of at least 3 mm. (Fuses, circuit breakers or contactors).
• The appliance must be grounded through a protective ground.
- Contact protection must be ensured. To increase the safety, a ground fault circuit interrupter with a release current of 30 mA must be installed upstream.
- Connection to a domestic plug socket and the use of multiple sockets or extension cords is prohibited.
Mains connection
The socket must be connected to a single-pole circuit breaker as defined in the standards. The connection is shown below:
Startup / Operation
General information about the operation
• The appliance is operated through the buttons on the control panel of the appliance.
• The buttons react to the slightest touch. You do not need to apply any pressure.
• The appliance reacts best when touching the buttons with the fingertips and with dry hands.
• Once a touch has been registered, a brief beep will sound.
- Ensure that the control panel is always clean and dry. Objects or a small liquid film can impair operation.
Selecting the right cookware
Cookware made from magnetizable material is required for induction hotplates. Cookware carries the label, "suitable for induction cooking".
You can basically use all ferrous cookware. A short test will show you whether it is also magnetic:
- Set the cookware in question onto the stovetop, the stovetop will identify the cookware. If the cooking zone shows the power setting, the cookware is suitable. If the notification "L" appears on the display, the cookware is not suitable for induction cooking.
 | Only use cookware with a completely even bottom. |
 | The bottom of the cookware should sit in the center of the cooking zone and have a diameter of at least 140 mm. |
 | To prevent scratches, do not slide the cookware across the cooking zone, but lift it. |
Do not use cookware made from conventional stainless steel, glass, ceramic, copper, or aluminum.
Turning the appliance on/off
Press the on/off button on the control panel to turn on the appliance. After turning it on, a beep will sound and all the displays will show "-" or "--". The appliance is now in standby mode.
i NOTE:
• If you do not select a function within one minute, the appliance will switch off automatically.
• The cooking zone can be turned off at any time by pressing the on/off switch.
Turning a cooking zone on/off
- Place suitable cookware onto the cooking zone to be used. Ensure that the surface of the cooking zone and the bottom of the cookware are clean and dry.
- Press the button (+) or (-) on the control panel for the cooking zone on which the cookware is placed. The display shows the power setting "5".
- Set the desired heating setting from 1 to 9 with the (+) or (-) button.
- By pressing the (+) or (-) button, the setting is changed continuously.
- To turn off the cooking zone, press the (-) button until "0" appears on the display.
• You can also press the (+) and (-) buttons at the same time to reset the power to setting 0 and the cooking zone will be turned off.
i NOTE:
The power settings can be changed at any time during cooking.
Using the timer
You can use the timer to automatically turn off one hotplate after a set duration.
- Select the respective cooking zone that you would like to set the timer for. Set the desired power setting with the (+) or (-) button.
- Press the timer button (+) or (-). The display of the timer will flash "10" and the timer can be set.
• Make an adjustment of between 1 and 99 minutes with the timer button (+) or (-). - With each push of the (+) or (-) button, the set time will change by one minute. By pressing the (+) or (-) button, the set time will be changed in 10-minute increments.
- After setting the timer, the timer display will flash for a few seconds. A red dot next to the display of the cooking setting will show that a timer is set for this stovetop. The remaining time will be shown on the display.
i NOTE:
• Follow the operating sequence described above.
• The power setting of the cooking can be changed in timer mode without changing the time setting.
• The timer function is canceled with the switching off of the appliance.
• Following expiry of the set time, the cooking zone will switch off automatically. A beep will sound.
Deleting of the timer setting
Press the timer buttons (+) and (-) simultaneously to switch off the timer. The display of the timer shows "00".
The timer as a countdown timer
i NOTE:
• The countdown timer does not activate the automatic switch-off of a cooktop. It is merely a reminder function during cooking.
• The time must be set before a power setting is selected.
- At least one cooking pot must sit on one of the cooking zones.
• Turn on the appliance with the on/off switch.
• Set at least one pot on any cooking zone.
- Press the timer button (+) or (-). The timer will show "10" and the timer can be turned on.
• The setting of the timer as a countdown timer is done as described under Timer as a countdown timer.
• After expiry of the set time, a beep will sound for about 30 seconds and the display will show “--”.
Turning on the child lock
i NOTE:
When the child lock is activated, all the buttons are disabled except for the on/off button. The appliance can only be operated again after it is unlocked.
To secure it against an accidental reactivation, the appliance is equipped with a locking function.
If you press the child lock button, the appliance will be locked and the timer display will show "Lo".
Switching off the child lock
When the appliance is turned on, press the child lock button for a few seconds to cancel the lock.
Cleaning
WARNING:
- Never use high-pressure cleaners for cleaning. Ingress of liquids can reach the electrical components. Risk of electric shock! Hot steam may cause damage to the plastic parts.
• The device must be dry before you take it in operation again.
CAUTION:
• Do not use a wire brush or any abrasive items.
- Do not use harsh abrasive cleaners or sharp metal objects for cleaning the glass surface. The glass can be scratched or destroyed.
You may clean the induction hob as follows:
| Contamination Cleaning method Cleaning materials | ||
| Light Hot water and rub dry. Cleaning sponge | ||
| Dirt has accumulated Hot water and rub dry with scrubbing sponge. Special cleaning sponge for glass ceramics | ||
| Rings and lime deposits | Apply vinegar to the area, rub it off with a soft towel;alternately use a special cleaner from your specialist dealer. | Special cleaner for glass ceramic |
| Sugar, molten aluminum or plastic | Remove with a glass ceramic scraper (a plastic product is preferred for protection). | Special cleaner for glass ceramics |
Repairs
A wrong or improperly performed repair brings danger to the user.
Repairs to electrical appliances must only be carried out by an qualified specialist. A damaged power cord must be changed only by a qualified electrician.
Troubleshooting
The design of the appliance ensures a trouble-free operation and a long lifetime. If a malfunction stills occurs, then check if these may be the result of an operating error.
| Error Possible cause Remedy | ||
| The cooking hob cannot be turned on. | The power supply has been interrupted. | - Check the circuit breaker of the appliance.- Using another electrical appliance, check whether there is a problem with the power supply. |
| The buttons are no longer reacting. The child lock is active. - Unlock the control panel. | ||
| The buttons react very poorly during contact. | The button surface is damp. You are touching the button surface with your finger tips. | - Ensure that the area of the button is dry and - that you use the tip of your finger for the operation. |
| The glass surface is scratched. | You are using rough, uneven cookware and/or an aggressive abrasive cleaner or sharp metal utensils. | - Only use cookware with an even bottom, see Selectiing the right cookware.- See Cleaning. |
| A quiet humming is heard when a high power setting is selected. | That is caused by the induction technology. This does not refer to any error. The noise should disappear as soon as the power setting has been reduced. | |
| Ventilation noises can be heard. The appliance has a filter to prevent overheating of the electronics. The fan will still continue to run for a few seconds after the appliance has been shut off. | This does not refer to any error. Do not switch off the power supply while the fan is running. | |
| Cookware doesn't get hot. The appliance cannot recognize the cookware. The cookware is not suitable for induction, is too small for the cooking zone or is not centered on the cooking zone. | - Use cookware suitable for induction, see Selecting the right cookware.- Ensure that the cookware fits onto the cooking zone and that it is centered. | |
i NOTE:
Should you still have problems with your device after following the steps above, please contact your distributor or an authorized specialist.
In the case of a malfunction, the induction hob will automatically go into safety mode and the respective error code will be shown:
| Error Code Possible Cause | Remedy | |
| F0 | Fan has failed. | Consult specialist company. |
| F3-F8 | Power unit has failed. | Restart the stovetop after the temperature returns to normal.Contact a specialist company if necessary. |
| F9-FE | Temperature sensor IGBT has failed. | Restart the stovetop after the temperature returns to normal.Contact a specialized company if necessary. |
| E1/E2 | Problem with power supply. | Make sure that your supply voltage is ok.Contact specialized company if necessary. |
| E3/E4 | Overheating. | Check the pot.Restart the stovetop after the temperature returns to normal.Contact a specialized company if necessary. |
| E5/E6 | Bad heat dissipation. | Restart the stovetop after the temperature returns to normal.Contact a specialized company if necessary. |
Technical Data
Model: EBK 959
Power supply: 220-240 V\~ / 400 V 3 N\~, 50/60 Hz
Power consumption: 6400-7200 W / 7000 W
Protection class:
Unit size H x L x W: 6.0 x 59.0 x 52.0 cm
Built-in size L x W: 56.0 x 49.0 cm
Net weight: approx. 10.0 kg
The right to make technical and design modifications in the course of continuous product development remains reserved.
This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.
Disposal
Meaning of the "Dustbin" Symbol
Protect our environment, do not dispose of electrical equipment in the domestic waste.
Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.
This helps avoid the potential effects of incorrect disposal on the environment and human health.
This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.
Information concerning where the equipment can be disposed of can be obtained from your local authority.
GARANTIEKARTE
warranty card • garantiekaart • carte de garantie • scheda di garanzia • tarjeta de garantia • cartão de garantia • garantikort • karta gwarancyjna • záruční list • kartica jamstva • carte de garanție • Garancıционна карта • záručný list • garancijski list • garanciajegy • garantíйнийформуляр • Garантийный талон • نامض قاقاطب
EBK 959
24 Monate Garantie gemäß Garantieerklärung • 24 months warranty according to warranty declaration • 24 maanden garantie volgens garantieverklaring • 24 mois de garantie selon la déclaration de garantie • 24 mesi di garanzia secondo la dichiarazione di garanzia • 24 meses de garantía de acuerdo con la declaración de garantía • 24 meses de garantía, de acordo com a declaração de garantía • 24 måneders garanti i henhold til garantibetingelsene • 24 miesiące gwarancji na podstawie oświadczenia gwarancyjnego • záruka 24 měsiců podle prohlásení o záruce • 24 mjesečno jamstvo u skladu s jamstvenom deklaracijom • 24 luni garanție conform declarației de garanție • 24 месеца гаранция в съответствие с гаранционната декларация • 24-mesačná záruka podľa vyhlásenia o záruke • 24-mesečna garancija, skladno z garancijsko izjavo • 24 hónap garancia a garanciafelételekben leirtak szerint • гарантия на 24 місяці відповідно заяви про гарантию • Гарантия 24 месяца согласно заявленным гарантийным правилам • نامضرلی ناتی بیش فیف واهش 24 تقدم نامضر
Kaufdatum, Händlerstempel, Unterschrift : date of purchase, dealer stamp, signature : aankoopdatum, dealerstempel, handtekening : date d'achat, tampon du concessionnaire, signature : data di acquisto, timbro del rivenditore, firma : fecha de compra, sello del distribuidor, firma : data de compra, carimbo do distribuidor, assinatura : kjøpsdato, forhandlerstempel, signatur : data zakupu, pieczę½ sprzedawcy, podpis : datum zakoupení, razitko prodejce, podpis : datum kupovine, zig trgovca, potpis : data de achizijtle, stampila furnizorului, semnàtura : Đата на покупката, Печат на Продавача, Подпис : датум nákupu, pečiatka obchodníka/predajcu, podpis : datum nakupa, zig trgovca, podpis : vásárlás dátuma, kereskedő belyegzője, aláirás : Đата придбанки, печатка продавця, підпис : Дата приобретениям, Штамп продавца. Подпись:
BOMANN®
www.bomann.de
- Inhalt
- Einleitung
- Symbols in these Instructions for use
- WARNING:
- CAUTION:
- General Notes
- WARNING!
- Special safety information for this unit
- WARNING: Hot surface! Risk of Burning!
- Risk of Fire!
- WARNUNG:
- Potential damage of health!
- Intended Use
- Unpacking the appliance
- i NOTE:
- Device description
- Scope of delivery
- Description of the functions
- Functional principle
- Pot detection
- Overheating protection
- Residual heat display
- Automatic switch-off
- Child lock
- Installation / Fitting
- Conditions for the installation location
- Installation
- Connection conditions
- Mains connection
- Startup / Operation
- General information about the operation
- Selecting the right cookware
- Turning the appliance on/off
- Turning a cooking zone on/off
- Using the timer
- Deleting of the timer setting
- The timer as a countdown timer
- Turning on the child lock
- Switching off the child lock
- Cleaning
- Repairs
- Troubleshooting
- Technical Data
- Meaning of the "Dustbin" Symbol
- GARANTIEKARTE
- EBK 959
- BOMANN®
Brand : BOMANN
Model : EBK 959
Category : Oven
