Dell S2716DG Monitor

User's Guide

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2015 Dell Inc. All rights reserved.

This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies.

Contents

About Your Monitor .... 5

Package Contents ....5

Product Features 6

Identifying Parts and Controls ....7

Monitor Specifications ....11

Plug and Play Capability ....17

Universal Serial Bus (USB) Interface.... 18

LCD Monitor Quality and Pixel Policy 20

Maintenance Guidelines. 20

Setting Up the Monitor 21

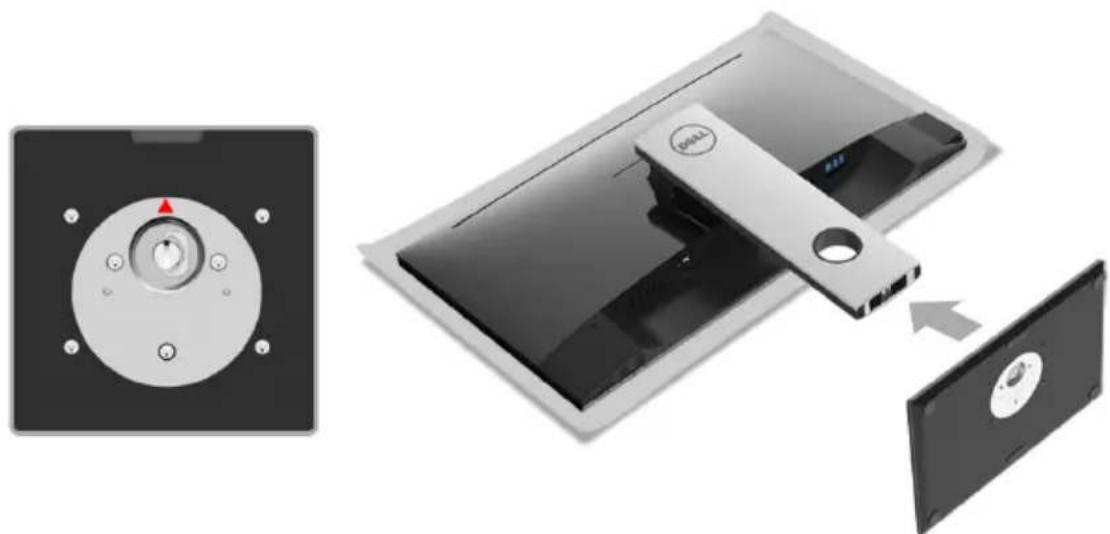

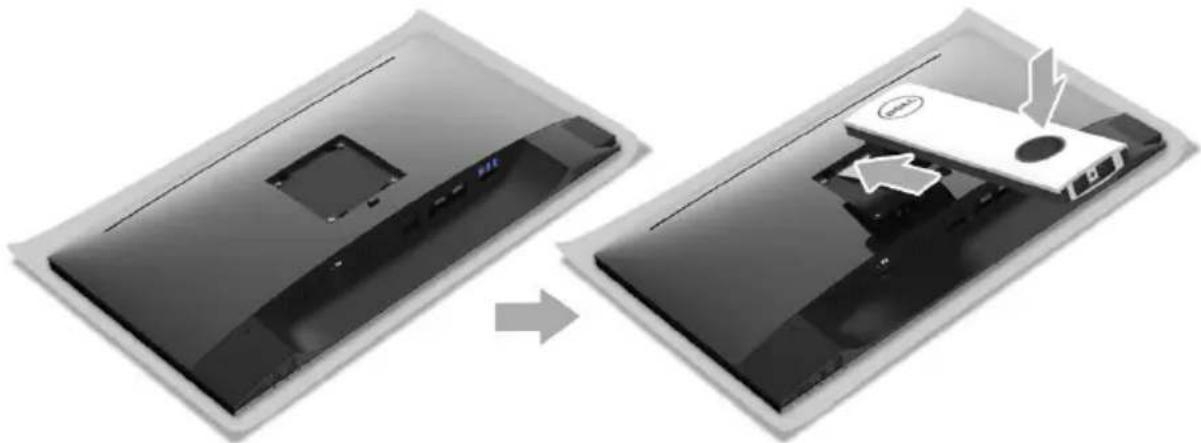

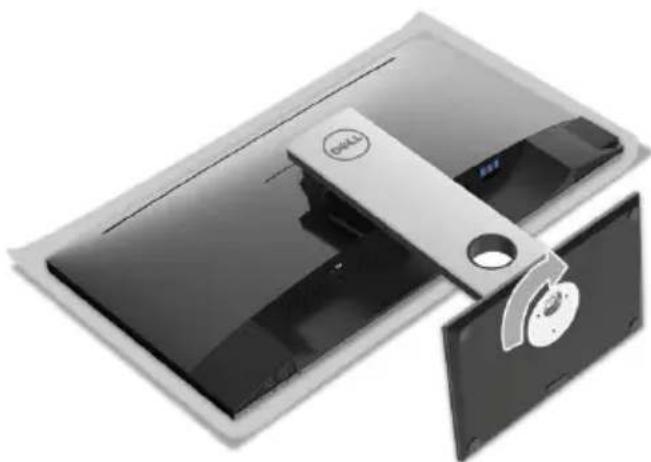

Attaching the Stand. 21

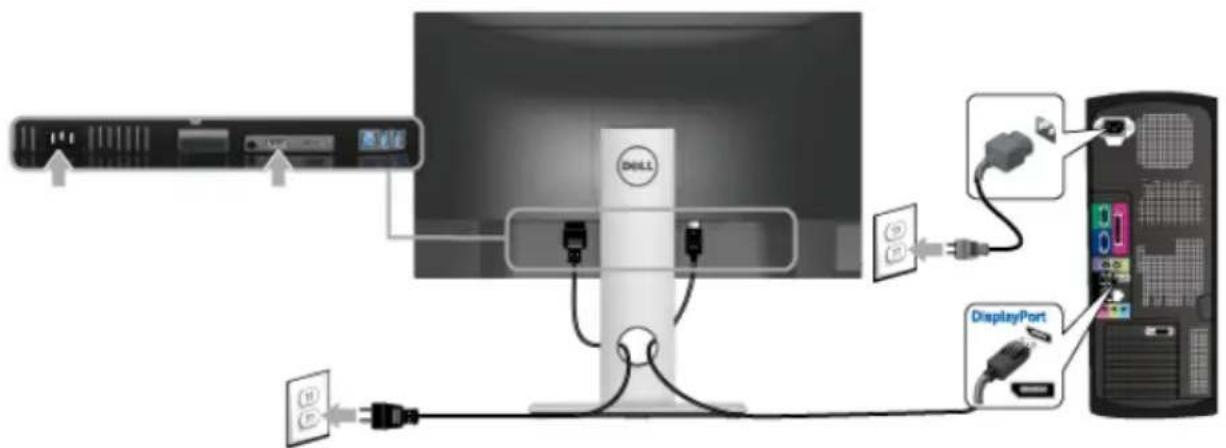

Connecting Your Monitor 23

Organizing Your Cables 24

Removing the Monitor Stand 25

Wall Mounting (Optional) 26

Operating the Monitor.... 27

Power On the Monitor 27

Using the Front-Panel Controls 27

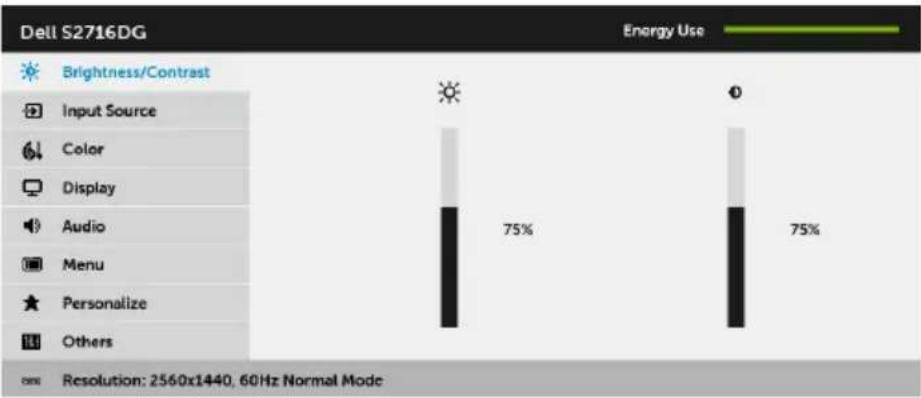

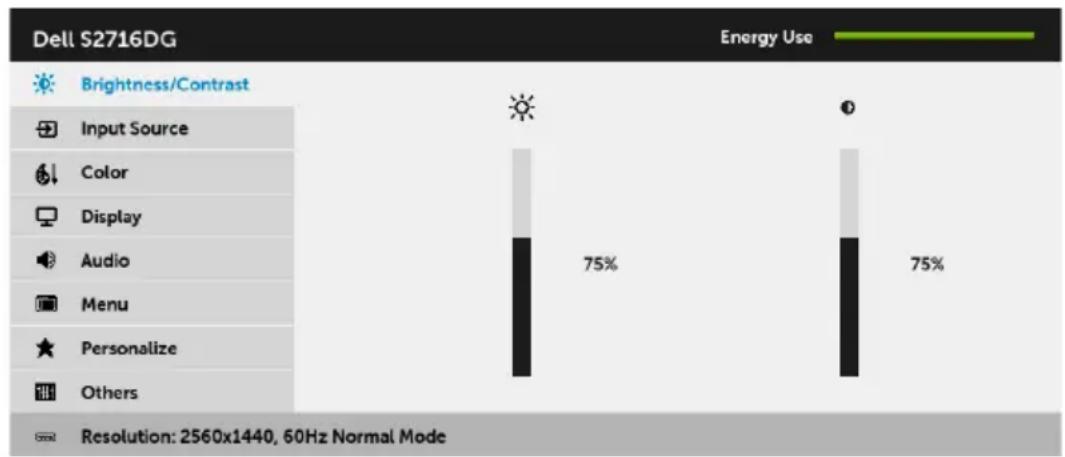

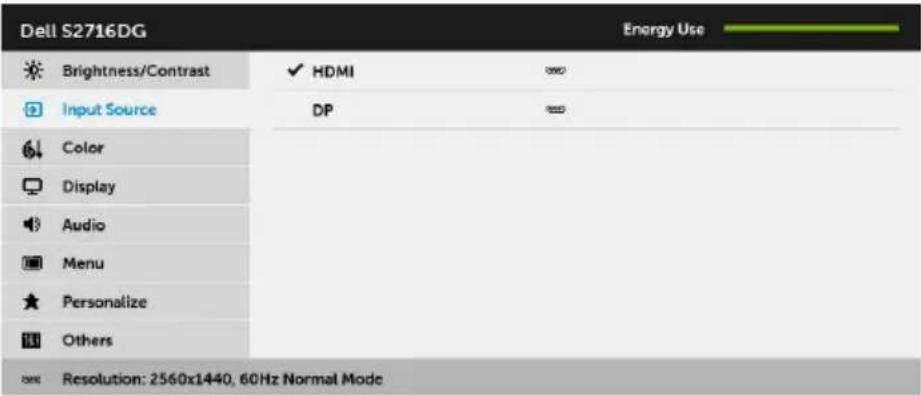

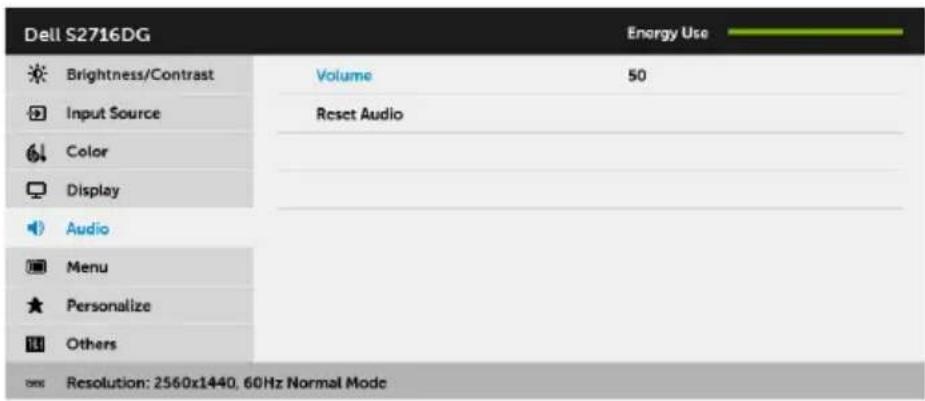

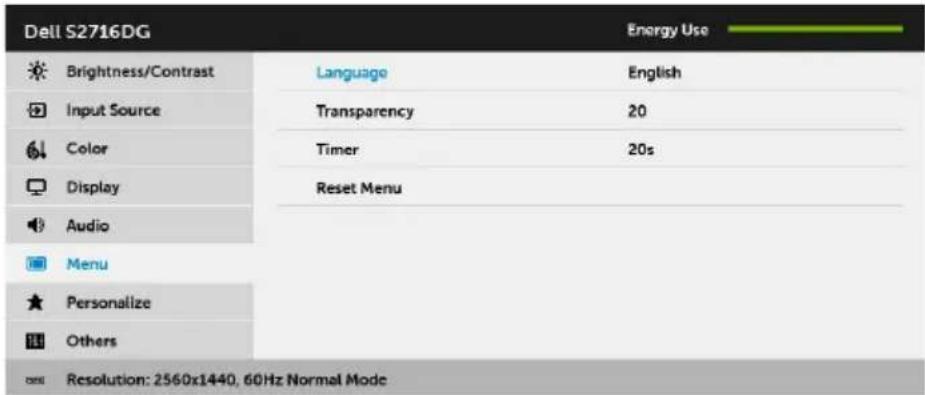

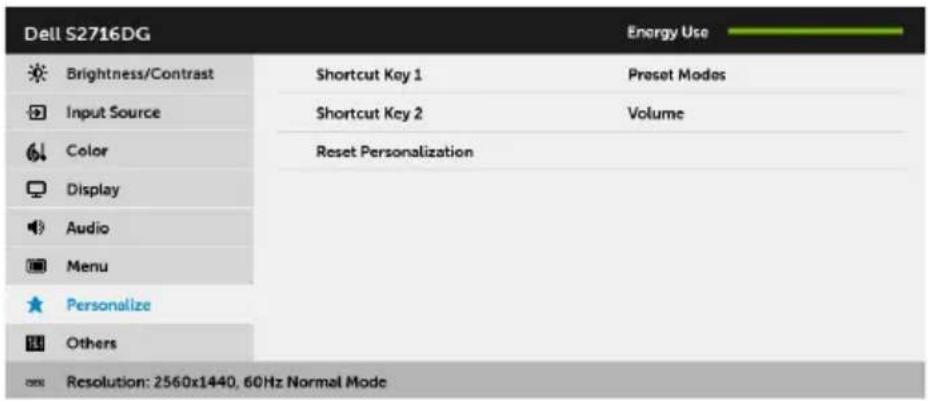

Using the On-Screen Display (OSD) Menu 29

Setting the Maximum Resolution 35

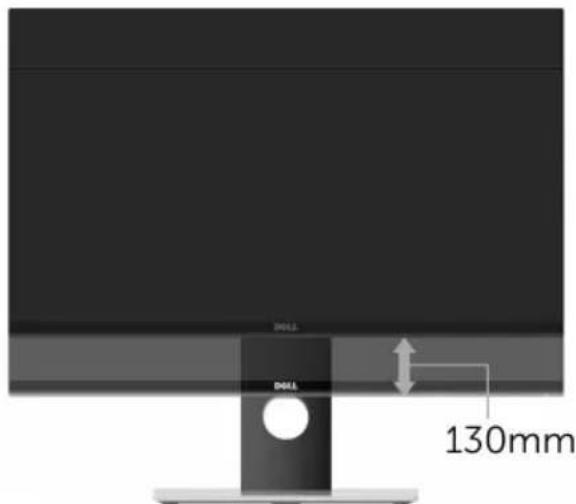

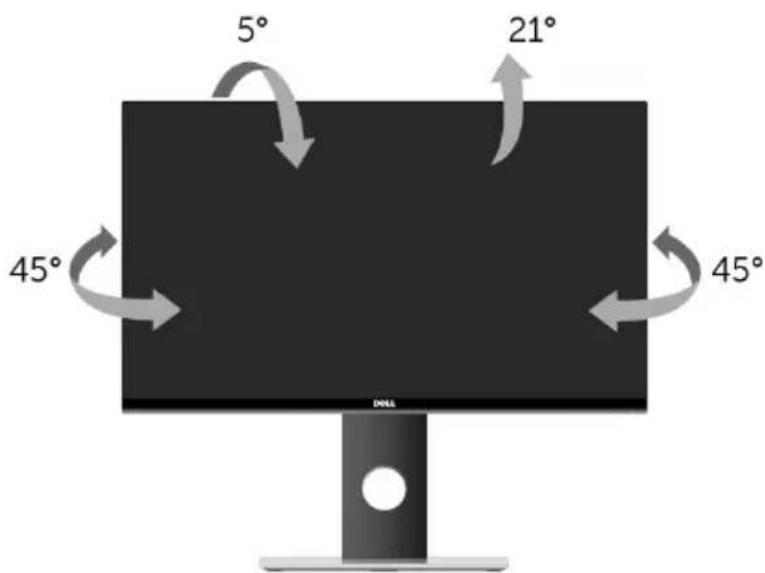

Using the Tilt, Swivel, and Vertical Extension 36

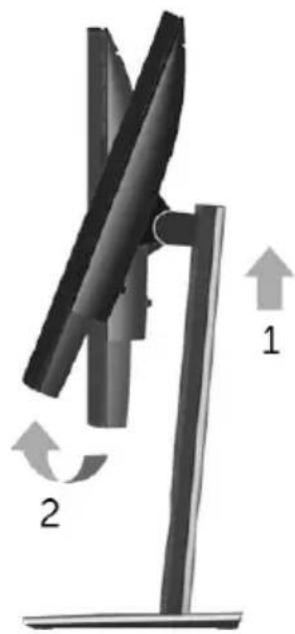

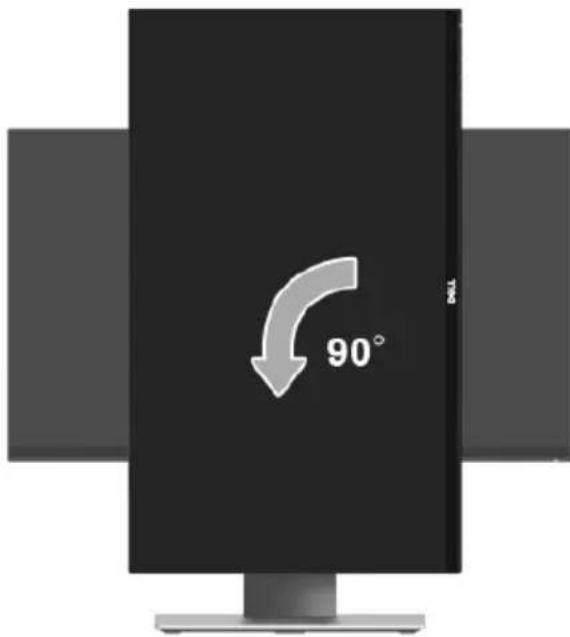

Rotating the Monitor.... 37

Adjusting the Rotation Display Settings of Your System 38

Troubleshooting 39

Self-Test 39

Built-in Diagnostics 40

Common Problems 41

Product Specific Problems 43

Universal Serial Bus (USB) Specific Problems 44

Appendix 45

FCC Notices (U.S. Only) and Other Regulatory Information ..... 45

Contact Dell.... 45

Setting Up Your Monitor 46

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and Contact Dell if something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.

NOTE: To set up with any other stand, please refer to the respective stand setup guide for setup instructions.

			Monitor
			Stand Riser
			Stand Base
			Power Cable (Varies by Countries)
			DP Cable
			USB 3.0 Upstream Cable (Enables the USB Ports on the Monitor)
			• Drivers and Documentation Media• Quick Setup Guide• Safety, Environmental, and Regulatory Information

Product Features

The Dell S2716DG flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD) and LED backlight. The monitor features include:

- 68.47 cm (27-inch) viewable area (measured diagonally). Resolution: Up to 2560 x 1440 through DisplayPort and HDMI, with full-screen support or lower resolutions.

- Nvidia G-Sync-enabled monitor, with a extremely high refresh rate of 144 Hz and a rapid response time of 1 ms.

• Color gamut of 72% NTSC.

- T ilt, swivel, height, and rotate adjustment capabilities.

- Removable standard and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.

• Digital connectivity with DisplayPort and HDMI.

• Equipped with h 1 USB upstream port and 4 USB downstream ports.

- Plug and play capability if supported by your system.

- On -Screen Display (OSD) adjustments for ease of set-up and screen optimization.

- Software and documentation media includes an Information File (INF), Image Color Matching File (ICM), and product documentation.

• Energy Star compliance.

• Security loc k slot.

- Stand lock.

• EP EAT Silver Rating.

• T CO-Certified Displays.

- Arsenic-Free glass and Mercury-Free for the panel only.

• 0 .5 W standby power when in sleep mode.

- Energy Gauge shows the energy level being consumed by the monitor in real time.

- Analog backlight dimming control for flicker-free display.

Identifying Parts and Controls

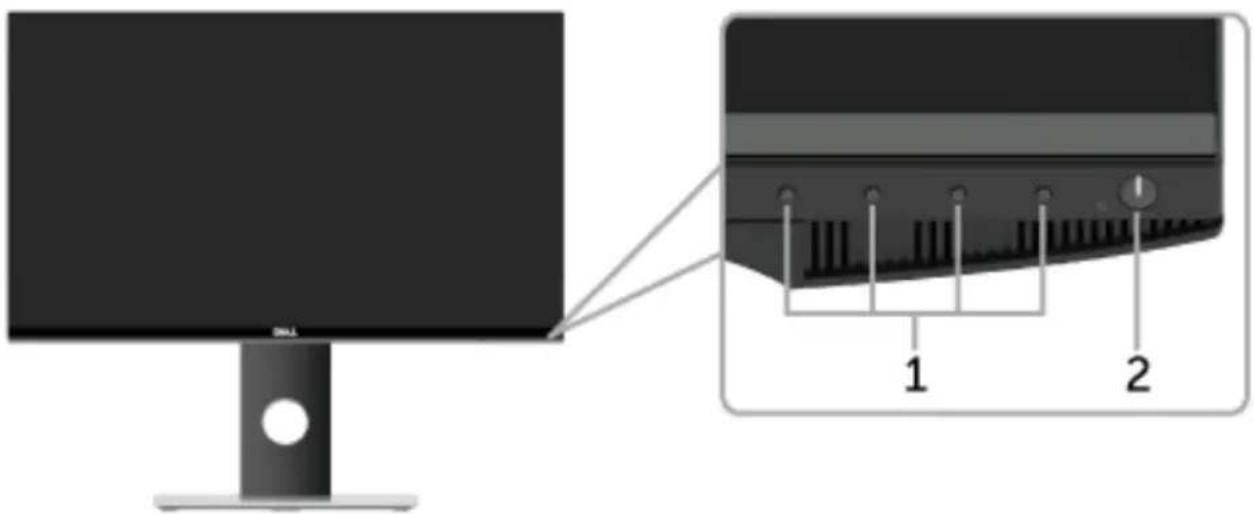

Front View

Diagram showing a computer monitor with labeled parts and an inset view of the internal structure, marked with numbers 1 and 2.

Label	Description
1 Function buttons (For more information, see Operating the Monitor)
2 Power On/Off button (with LED indicator)

NOTE: For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

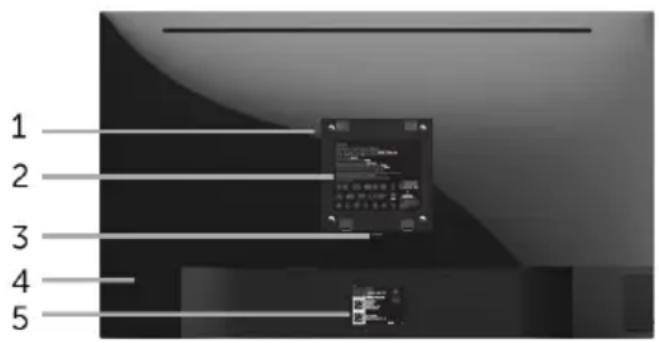

Back View

1 2 3 4 5

Exterior view of a Dell monitor stand with labeled ports and a numbered scale (no text or symbols on the device itself)

Back view with monitor stand

Label	Description Use
1 VESA mounting holes (100 mm x 100 mm - behind attached VESA Cover)		Wall mount monitor using VESA-compatible wall mount kit (100 mm x 100 mm).
2 Regulatory label Lists the regulatory approvals.
3 Stand release button Releases		stand from monitor.
4	Security lock slot	Secures monitor with security lock (security lock not included).
5 Barcode serial number label		Refer to this label if you need to contact Dell for technical support.

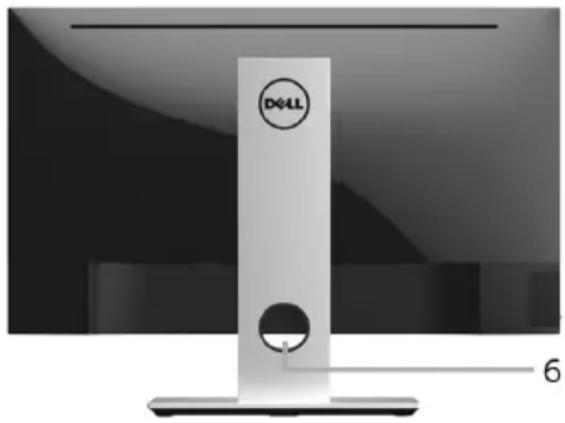

6	Cable-management slot	Use to organize cables by placing them through the slot.

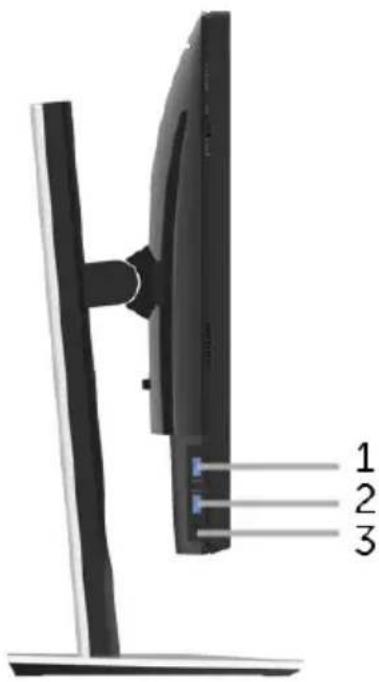

Side View

1 2 3

Label	Description Use
1 USB downstream port Connect your USB device.
2	USB charging port	Connect your USB device (also supports fast charging).
3 Headphone-out jack Connect the headphones.

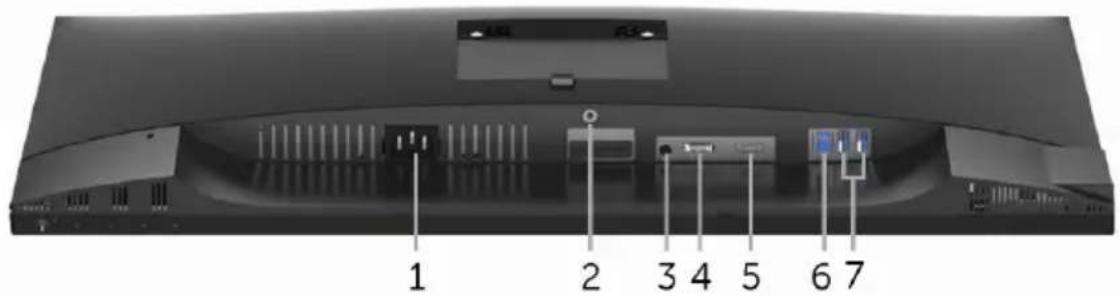

Bottom View

1 2 3 4 5 6 7

Bottom view without monitor stand

Label	Description Use
1	Power cable connector	Connect the power cable (shipped with your monitor).
2	Stand lock feature	To lock the stand to the monitor using a M3 x 6 mm screw (screw not included).
3	Line-out port Connect your speakers. NOTE: This port does not support headphones.
4	DisplayPort Connect your computer with DP cable (shipped with your monitor).
5	HDMI port Connect your computer with HDMI cable.
6	USB upstream port	Connect the USB cable (shipped with your monitor) to this port and your computer to enable the USB ports on your monitor.
7	USB downstream port Connect USB device. NOTE: To use this port, you must connect the USB cable (shipped with your monitor) to the USB-upstream port on the monitor and to your computer.

Monitor Specifications

Flat Panel Specifications

Model	S2716DG
Screen type Active matrix - TFT LCD
Panel type TN
Viewable image
Diagonal	684.67 mm (27 inches)
Horizontal, Active Area	596.74 mm (23.49 inches)
Vertical, Active Area	335.66 mm (13.21 inches)
Area	200301.74 mm^2 (310.30 inch ^2 )
Pixel pitch 0.2331 mm x 0.2331 mm
Viewing angle 160° (vertical)	typical
	170° (horizontal) typical
Luminance output 350 cd/ m^2 (typical)
Contrast ratio 1000 to 1 (typical)
Faceplate coating Anti-Glare	with 3H hardness
Backlight LED edgelight system
Response time 3 ms (typical)	for NORMAL mode
	1 ms (typical) for FAST mode
Color depth 16.7 million colors
Color gamut 72%* (CIE1931)

* Color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test standards.

Resolution Specifications

Model	S2716DG
Horizontal scan range 69.7 kHz to 250.6 kHz (automatic)
Vertical scan range	30 Hz to 145 Hz (automatic)
Maximum preset resolution	2560 x 1440 at 144 Hz

Supported Video Modes

Model S2716DG
Video display capabilities (HDMI & DP playback)	480p, 576p, 720p, 1080p, QHD

Preset Display Modes

HDMI Display Modes

Display Mode Horizontal Frequency (kHz)		Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal/ Vertical)
IBM VGA,640 x 480p	31.5 60 25.2 -/-
VESA, 720 x 480p 29	83 60 26.25 +/-
VESA, 720 x 576p 29	55 50 26	+/-
VESA, 800 x 600p	37.88 60	40	+/+
VESA, 1024 x 768p	48.36	60	65	-/-
HDTV, 1280 x 720p	37.5	50	74.25	+/+
HDTV, 1280 x 720p	45	60	74.25	+/+
HDTV, 1920 x 1080p	55.6	50	141.5	-/+
HDTV, 1920 x 1080p	67.5 60	148.5	+/+
VESA, 2560 x 1440p	88.8	60	241.5 +/-

DP Display Modes

Display Mode Horizontal Frequency (kHz)		Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal/ Vertical)
VESA, 640 x 480	31.5 60	25.2	-/-
VESA, 800 x 600	37.88 60	40	+/+
VESA, 1024 x 768	48.36	60	65	-/-
VESA, 2560 x 1440	88.8	60 241.5 +/-
VESA, 2560 x 1440	127.4	85 346.5	+/-
VESA, 2560 x 1440	150.9	100	410.5 +/-
VESA, 2560 x 1440	182.9	120	497.75 +/-
VESA, 2560 x 1440	209.5	144	569.75	+/+
VESA, 2560 x 1440	34.9	24	95	+/-

Electrical Specifications

Model S2716DG
Video input signals	HDMI 1.4, 600 mV for each differential line, 100 ohm input impedance per differential pairDisplayPort 1.2, 600 mV for each differential line, 100 ohm input impedance per differential pair
AC input voltage/frequency/current	100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.5 A (typical)
Inrush current • 120 V	: 42 A (Max.) at 0 °C (cold start)220 V: 80 A (Max.) at 0 °C (cold start)

Physical Characteristics

Model S2716DG
Connector type DP; HDMI; USB 3.0
Signal cable type • Digital:	HDMI, 19 pins (cable not included)• Digital: DisplayPort, 20 pins• Univer sal Serial Bus: USB, 9 pins
Dimensions (with stand)
Height (extended) 546.3 mm (21.51 inches)
Height (compressed) 416.3 mm (16.39 inches)
Width 612.5 mm (24.11 inches)
Depth 200.3 mm (7.89 inches)
Dimensions (without stand)
Height 362.5 mm (14.27 inches)
Width 612.5 mm (24.11 inches)
Depth 55.6 mm (2.19 inches)
Stand dimensions
Height (extended) 433.4 mm (17.06 inches)
Height (compressed) 387.2 mm (15.24 inches)
Width 292.4 mm (11.51 inches)
Depth 200.3 mm (7.89 inches)
Weight
Weight with packaging 10.10 kg (22.27 lb)
Weight with stand assembly and cables	7.20 kg (15.87 lb)
Weight without stand assembly (For wall mount or VESA mount considerations - no cables)	4.40 kg (9.70 lb)
Weight of stand assembly 2.48 kg (5.47 lb)
Front frame gloss 25+/-5

Environmental Characteristics

Model S2716DG
Temperature
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating • Storage: -20 °C to 60 °C (-4 °F to 140 °F)• Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating • Storage: 5% to 90% (non-condensing)• Sh ipping: 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation	• 307.09 BTU/hour (maximum)• 160.37 BTU/hour (typical)

Power Management Modes

If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is referred to as Power Save Mode*. If the computer detects input from the keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power saving feature.

VESA Modes	Horizontal Sync	Vertical Sync	Video Power Indicator	Power Consumption
Normal operation	Active	Active	Active	White 90 W (maximum)**47 W (typical)
Active-off mode	Inactive	Inactive	Blanked	White (blinking) Less than 0.5 W
Switch off	-	-	-	Off Less than 0.3 W

Energy Star	Power Consumption
On Mode	32.63 W***

NOTE: This monitor is ENERGY STAR ^® -compliant.

* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.

** Maximum power consumption with max luminance, and USB active.

The OSD functions only in the normal operation mode. When any button is pressed in the Active-off mode, the following message will be displayed:

*** Energy consumption (On Mode) is tested at 230 Volts / 50 Hz.

This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

Pin Assignments

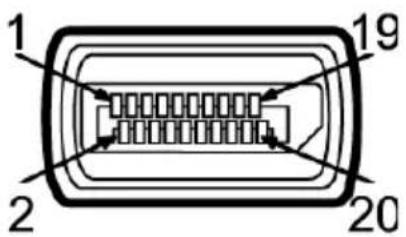

DisplayPort Connector

1 2 19 20

Pin Number	20-pin Side of the Connected Signal Cable
1	ML0(p)
2	GND
3	ML0(n)
4	ML1(p)
5	GND
6	ML1(n)
7	ML2(p)
8	GND
9	ML2(n)
10	ML3(p)
11	GND
12	ML3(n)
13	GND
14	GND
15	AUX(p)
16	GND
17	AUX(n)
18	GND
19	Re-PWR
20	+3.3 V DP_PWR

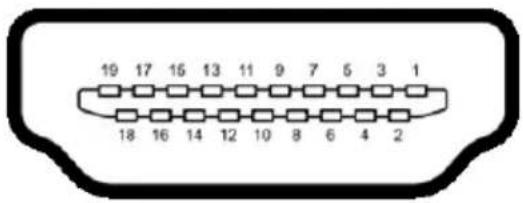

19 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2

Pin Number	19-pin Side of the Connected Signal Cable
1	TMDS DATA 2+
2	TMDS DATA 2 SHIELD
3	TMDS DATA 2-
4	TMDS DATA 1+
5	TMDS DATA 1 SHIELD
6	TMDS DATA 1-
7	TMDS DATA 0+
8	TMDS DATA 0 SHIELD
9	TMDS DATA 0-
10	TMDS CLOCK+
11	TMDS CLOCK SHIELD
12	TMDS CLOCK-
13	CEC
14	Reserved (N.C. on device)
15	DDC CLOCK (SCL)
16	DDC DATA (SDA)
17	DDC/CEC Ground
18	+5V POWER
19	HOT PLUG DETECT

Plug and Play Capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.

Universal Serial Bus (USB) Interface

This section gives you information about the USB ports that are available on the monitor.

NOTE: This monitor is Super-Speed USB 3.0 compatible.

Transfer Speed Data Rate Power Consumption*
Super-speed 5 Gbps	4.5 W (Max, each port)
High speed 480 Mbps	4.5 W (Max, each port)
Full speed 12 Mbps	4.5 W (Max, each port)

* Up to 2 A on USB downstream port (port with compliant devices or normal USB devices.

lightning icon) with BC1.2-

USB Upstream Connector

5 2 9 1 3 4

Pin Number 9-pin Side of the Connector
1	VCC
2	D-
3	D+
4	GND
5	SSTX-
6	SSTX+
7	GND
8	SSRX-
9	SSRX+

USB Downstream Connector

5 4 1 9

Pin Number 9-pin Side of the Connector
1	VCC
2 D-
3 D+
4 GND
5 SSTX-
6 SSTX+
7 GND
8 SSRX-
9 SSRX+

USB Ports

• 1 upstream - bottom
  • 2 downstream - bottom
• 2 downstream - side
• Power Charging Port - the port with Scotlanding icon; supports fast current charging capability if the device is BC1.2 compatible.

NOTE: USB 3.0 functionality requires a USB 3.0-capable computer.

NOTE: The monitor's USB interface works only when the monitor is On or in the power save mode. If you turn Off the monitor and then turn it On, the attached peripherals may take a few seconds to resume normal functionality.

LCD Monitor Quality and Pixel Policy

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/monitors.

Maintenance Guidelines

Cleaning Your Monitor

CAUTION: Read and follow the Safety Instructions before cleaning the monitor.

WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:

• To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• Use a lightly-dampened, warm cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
• If you notice white powder when you unpack your monitor, wipe it off with a cloth.
• Handle your monitor with care as a darker-colored monitor may get scratched and show white scuff marks more than a lighter-colored monitor.
• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn Off your monitor when not in use.

Attaching the Stand

NOTE: The stand is detached when the monitor is shipped from the factory.

NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for the set up instructions.

To attach the monitor stand:

1 Remove the cover and place the monitor on it.
2 Insert the two tabs on the upper part of the stand to the groove on the back of the monitor.
3 Press the stand till it snaps into place.

Two views of a computer monitor showing internal components and a close-up of the screen (no text or symbols visible)

4 Hold the stand base with the triangle mark, ▲, facing upward. Then, align the stand base protruded blocks to the matching slot on the stand.

Diagram showing a device's internal structure and assembly, including a circular dial with a red knob and a CD drive (no text or symbols present)

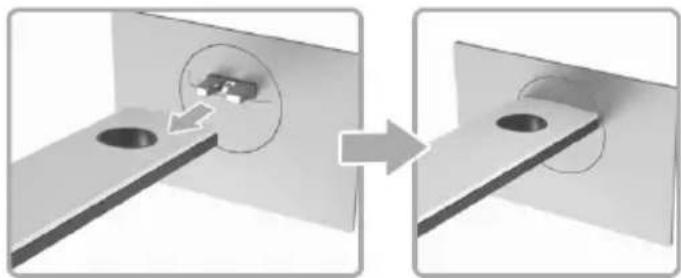

5 Insert the stand base blocks fully into the stand slot.

Diagram showing a mechanical assembly process: before and after transformation of a component into a housing (no text or symbols present)

6 Lift the screw handle and turn the screw clockwise.

3D rendering of a black electronic device with a metallic LDA logo and a circular component, showing internal structure (no text or symbols visible)

Close-up of a metallic oval mechanical component with a circular feature and mounting holes (no text or symbols visible)

7 After fully tightening the screw, fold the screw handle flat within the recess.

Connecting Your Monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

NOTE: Route the cables through the cable-management slot before connecting them.

NOTE: Do not connect all cables to the computer at the same time.

To connect your monitor to the computer:

1 T urn Off your computer and disconnect the power cable.
2 Connect the DP or HDMI cable from your monitor to the computer.

Connecting the DisplayPort (DP to DP) cable

Diagram showing connections between a computer monitor, cable, and display port with labeled components

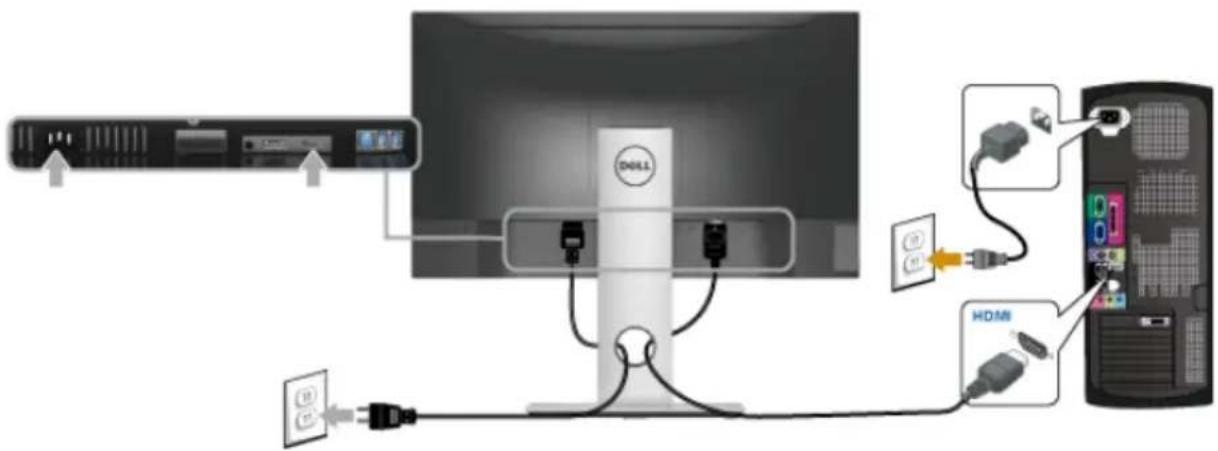

Connecting the HDMI cable (optional)

Diagram showing connection between a Dell monitor and a server via USB cable, with labeled components including HDMI and USB cable.

NOTE: The graphics are used for the purpose of illustration only. Appearance of the computer may vary.

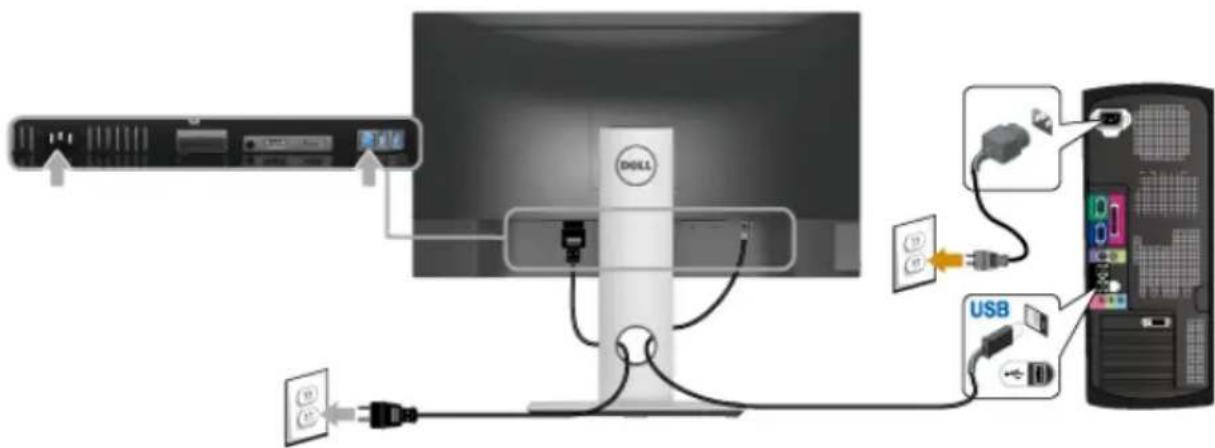

Connecting the USB 3.0 cable

After you have completed connecting the DP/HDMI cable, follow the procedures below to connect the USB 3.0 cable to the computer and complete your monitor setup:

1 Connect the upstream USB 3.0 port (cable supplied) to an appropriate USB 3.0 port on your computer. (See Bottom View for details.)
2 Connect the USB 3.0 peripherals to the downstream USB 3.0 ports on the monitor.
3 Plu g the power cables for your computer and monitor into a nearby outlet.
4 Turn On the monitor and the computer. If your monitor displays an image, installation is complete. If it does not display an image, see Universal Serial Bus (USB) Specific Problems.
5 Use the cable slot on the monitor stand to organize the cables.

Diagram showing connection between a monitor and USB drive, with labeled components including USB cable and USB port.

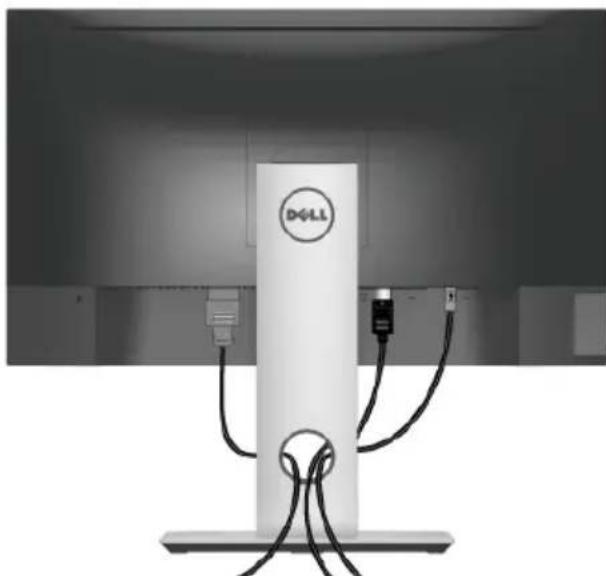

Organizing Your Cables

Exterior view of a white D4LL battery charging station with visible wiring and connections (no text or symbols on the device itself)

After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) organize all cables as shown above.

Removing the Monitor Stand

NOTE: To prevent scratches on the LCD screen while removing the stand, ensure that the monitor is placed on a soft, clean surface.

NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for the set-up instructions.

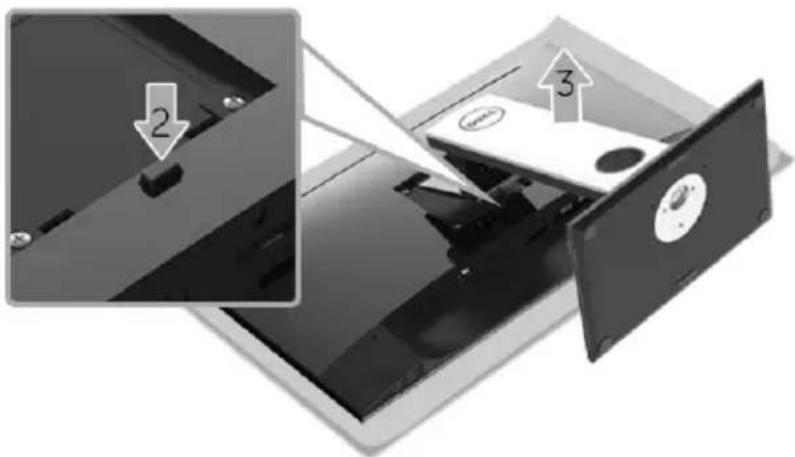

Diagram showing a device with labeled components, including a 2D inset view and numbered arrows indicating assembly or installation steps.

.To remove the stand:

1 Place the mon itor on a soft cloth or cushion.
2 Press and hold the stand release button.
3 Lif t the stand up and away from the monitor.

Wall Mounting (Optional)

Diagram showing a tablet interface with status bar and navigation arrows, alongside a digital dashboard displaying app icons and text.

(Screw dimension: M4 x 10 mm).

Refer to the instructions that come with the VESA-compatible wall mounting kit.

1 Place the monitor panel on a soft cloth or cushion on a stable, flat table.
2 Remove the stand.
3 Use a Phillips crosshead screwdriver to remove the four screws securing the plastic cover.
4 Attach the mounting bracket from the wall mounting kit to the monitor.
5 Mount the monitor on the wall by following the instructions that comes with the wall mounting kit.

NOTE: For use only with UL-listed wall mount bracket with minimum weight/load bearing capacity of 4.40 kg.

Power On the Monitor

Press the 📷 button to turn On the monitor.

Illustration of a finger pressing a button on a device panel (no text or symbols visible)

Using the Front-Panel Controls

Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls, an OSD shows the numeric values of the characteristics as they change.

1 2 3 4

The following table describes the front-panel buttons:

Front-Panel Button Description

1

Shortcut key/Preset Modes

2

Shortcut key/ Brightness/Contrast

Use this button to choose from a list of preset color modes.

Use this button to directly access the Brightness/Contrast menu.

3		Use the MENU button to launch the On-Screen Display (OSD) and select the OSD Menu. See Accessing the Menu System.
	Menu
4		Use this button to go back to the main menu or exit the OSD main menu.
	Exit
5		Use the Power button to turn the monitor On and Off.The white light indicates the monitor is On and fully functional. A blinking white light indicates the power save mode.
	Power(with power light indicator)

Front-Panel Button

Use the buttons on the front of the monitor to adjust the image settings.

Front-Panel Button Description
1		Use the Up button to adjust (increase ranges) items in the OSD menu.
	Up
2		Use the Down button to adjust (decrease ranges) items in the OSD menu.
	Down
3		Use the Select button to confirm your selection.
	Select
4		Use the Back button to go back to the previous menu.
	Back

Using the On-Screen Display (OSD) Menu

Accessing the Menu System

NOTE: If you change the settings and then either proceed to another menu or exit the OSD menu, the monitor automatically saves those changes. The changes are also saved if you change the settings and then wait for the OSD menu to disappear.

1 Press the

button to launch the OSD menu and display the main menu.

Main Menu for digital (DP) input

2 Pr ess the ▲ and ▼ buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the following table for a complete list of all the options available for the monitor.
3 Press the → button once to activate the highlighted option.
4 Pr ess the and but wns to select the desired parameter.
5 Pr ess → to enter the slide bar and then use the → and √ buttons, according to the indicators on the menu, to make your changes.
6 Select the button to return to the main menu.

Icon Menu and Submenus		Description
	Brightness/Contrast	Use this menu to activate Brightness/Contrast adjustment.
	Brightness	Brightness adjusts the luminance of the backlight. Press the ▲ button to increase the brightness and press the ▼ button to decrease the brightness (min. 0 / max. 100).
	Contrast	Adjust the Brightness first, and then adjust the Contrast only if further adjustment is necessary. Press the ▲ button to increase the contrast and press the ▼ button to decrease the contrast (min. 0 / max. 100). The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
	Input Source	Use the Input Source menu to select between the different video signals that may be connected to your monitor.
	HDMI	Select the HDMI input when you are using the HDMI connector. Press ➔ to select the HDMI input source.
	DP	Select the DP input when you are using the DisplayPort (DP) connector. Press ➔ to select the DisplayPort input source.

Color

Use Color to adjust the color setting mode.

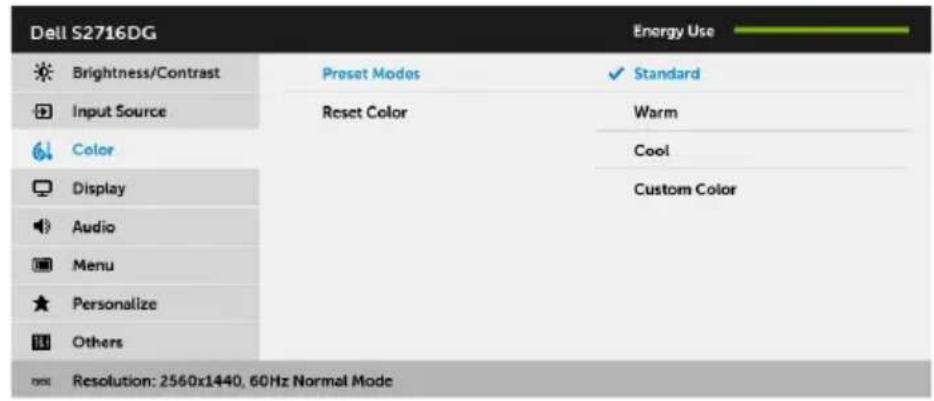

Dell S2716DG Energy Use Brightness/Contrast Preset Modes ✓ Standard Input Source Reset Color Warm Color Cool Display Custom Color Audio Menu Personalize Others Resolution: 2560x1440, 60Hz Normal Mode

Preset Modes When you select Preset Modes, you can choose Standard, Warm, Cool, or Custom Color from the list.

• Standards the monitor's default color settings. This is the default preset mode.
• War increases the color temperature. The screen appears warmer with a red/yellow tint.
• Cool: De creases the color temperature. The screen appears cooler with a blue tint.
• Custom Color: Allows you to manually adjust the color settings.

Press the ▲ and ▼ buttons to adjust the three colors (R, G, B) values and create your own preset color mode.

Reset Color Reset your monitor color settings to the factory settings.

Display

Use Display to adjust image.

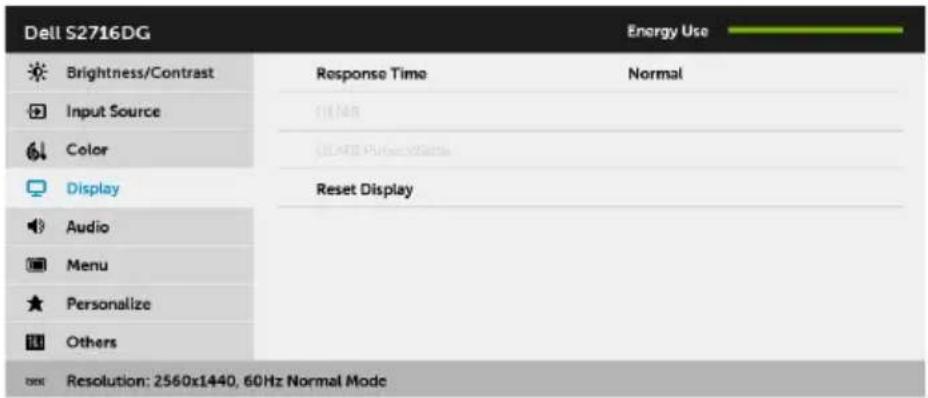

Dell S2716DG Energy Use Brightness/Contrast Response Time Normal Input Source Color (ELA) Pulse & Satellite Display Reset Display Audio Menu Personalize Others Resolution: 2560x1440, 60Hz Normal Mode

Response Time	Allows you to set the Response Time to Normal or Fast.
ULMB	ULMB (Ultra Low Motion Blur) helps have less of a motion blur effect while you are watching fast-moving images. When the graphics card supports G-SYNC, make sure that the Enable G-SYNC function is not selected in the NVIDIA Control Panel, ULMB will be automatically enabled.NOTE: This function is available when the refresh rate is 85 Hz, 100 Hz or 120 Hz.NOTE: When ULMB is enabled, the message of ULMB Mode is displayed on the lower-left corner of the OSD. When G-SYNC is enabled in the NVIDIA Control Panel, the message of G-SYNC Mode is displayed instead. If your system doesn't support G-SYNC, then the message of Normal Mode is displayed.
ULMB Pulse Width	Allows you to adjust the panel's backlight a bit, so as to reduce motion blur. Use ▲ or ▼adjust the level from 10 to 100. Smaller values decrease motion blur and brightness.
Reset Display	Select this option to restore default display settings.

Audio

Dell S2716DG Energy Use Brightness/Contrast Volume 50 Input Source Reset Audio Color Display Audio Menu Personalize Others Resolution: 2560x1440, 60Hz Normal Mode

Volume

Allows you to set the volume level of headphone output.

Use ▲ or ▼ adjust the volume level from 0 to 100.

Reset Audio

Select this option to restore default audio settings.

Menu

Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen, and so on.

Dell S2716DG Energy Use Brightness/Contrast Language English Input Source Transparency 20 Color Timer 20s Display Reset Menu Audio Menu Personalize Others Resolution: 2560x1440, 60Hz Normal Mode

Language	Language options set the OSD display to one of the eight languages (English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese).
Transparency	Select this option to change the menu transparency by pressing the ▲ and ▼ ttons (min. 0 / max. 100).
Timer	Sets the length of time the OSD will remain active after the last time you pressed a button.Use ▲ or ▼ adjust the slider in 1 second increments, from 5 to 60 seconds.
Reset Menu	Reset all OSD settings to the factory preset values.

Personalize

Users can choose a feature from Brightness/Contrast, Input Source, or Volume and set it as a shortcut key.

Dell S2716DG Brightness/Contrast Input Source Color Display Audio Menu Personalize Others Shortcut Key 1 Shortcut Key 2 Reset Personalization Energy Use Preset Modes Volume Resolution: 2560x1440, 60Hz Normal Mode

Others

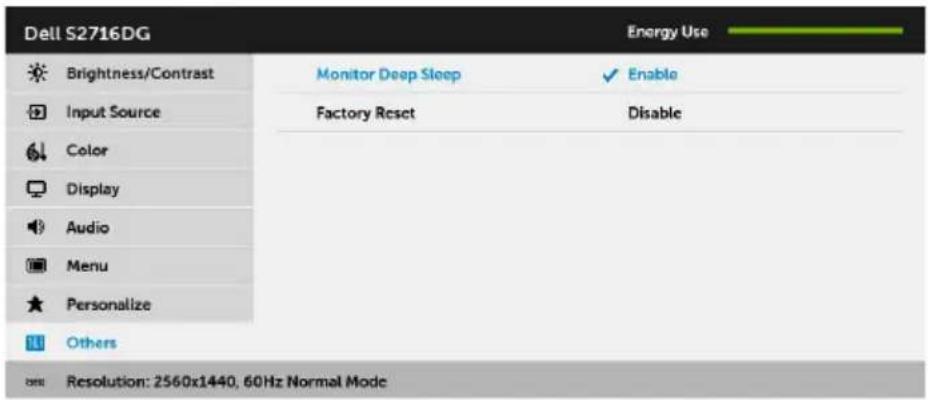

Dell S2716DG Energy Use Brightness/Contrast Monitor Deep Sleep Enable Input Source Factory Reset Disable Color Display Audio Menu Personalize Others Resolution: 2560x1440, 60Hz Normal Mode

Monitor Deep Sleep

The default setting is Enable, letting the monitor go to sleep as the system sleeps. Selecting Disable may prevent the monitor from going into deep sleep and being unable to wake up.

NOTE: Pressing any button (except the ⏻ button) on the front panel of the monitor may also wake up the monitor after it goes into deep sleep.

Factory Reset

Reset all settings to the factory preset values.

OSD Warning Message

When the monitor enters the Power Save mode, the following message appears:

Dell S2716DG Entering Power Save Mode.

See Troubleshooting for more information.

Setting the Maximum Resolution

To set the maximum resolution for the monitor:

In Windows ^® 7, Windows ^® 8, and Windows ^® 8.1:

1 For Windows ^ 8 and Windows ^ 8.1 only, select the Desktop tile to switch to classic desktop.
2 Right-click on the desktop and click Screen Resolution.
3 Click the Dropdown list of the Screen Resolution and select 2560 x 1440.
4 Click OK.

In Windows ^® 10:

1 Right-click on the desktop and click Display settings.
2 Click Advanced display settings.
3 Click the dropdown list of Resolution and select 2560 x 1440.
4 Click Apply.

If you do not see 2560 x 1440 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures:

If you have a Dell desktop or portable computer:

- Go to http://www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.

If you are using a non-Dell computer (portable or desktop):

• Go to the support site for your computer and download the latest graphic drivers.
• Go to your graphics card website and download the latest graphic drivers.

Using the Tilt, Swivel, and Vertical Extension

NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for set up instructions.

Tilt, Swivel

With the stand attached to the monitor, you can tilt and swivel the monitor for the most comfortable viewing angle.

5° 21° 45° 45° DOLL

NOTE: The stand is detached when the monitor is shipped from the factory.

Vertical Extension

NOTE: The stand extends vertically up to 130 mm. The figure below illustrates how to extend the stand vertically.

D402 D401 130mm

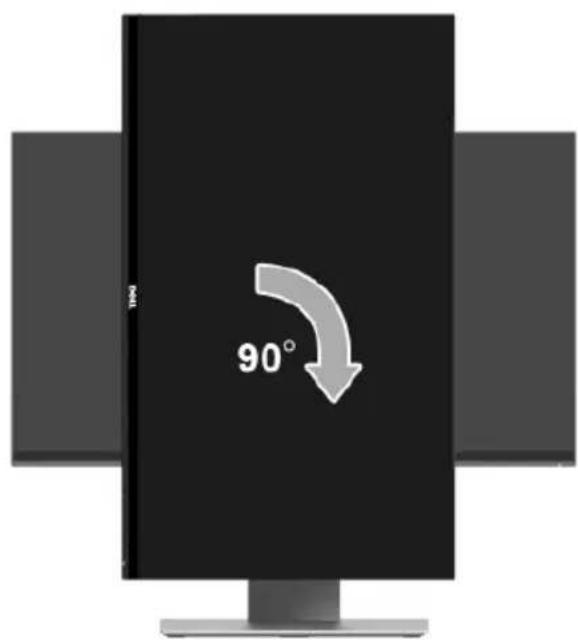

Rotating the Monitor

Before you rotate the monitor, your monitor should be fully vertically extended (Vertical Extension) and fully tilted up to avoid hitting the bottom edge of the monitor.

Diagram of a computer monitor with two directional arrows indicating rotation (no text or symbols)

Rotate clockwise

90°

Rotate counterclockwise

90°

NOTE: To use the Display Rotation function (Landscape versus Portrait view) with your Dell computer, you require an updated graphics driver that is not included with this monitor. To download the graphics driver, go to www.dell.com/support and see the Download section for Video Drivers for latest driver updates.

NOTE: When in the Portrait View Mode, you may experience performance degradation in graphic-intensive applications (3D Gaming and etc.).

Adjusting the Rotation Display Settings of Your System

After you have rotated your monitor, you need to complete the procedure below to adjust the Rotation Display Settings of your system.

NOTE: If you are using the monitor with a non-Dell computer, you need to go the graphics driver website or your computer manufacturer website for information on rotating the 'contents' on your display.

To adjust the Rotation Display Settings:

1 Right-click on the desktop and click Properties.
2 Select the Settings tab and click Advanced.
3 If you have an ATI graphics card, select the Rotation tab and set the preferred rotation.
4 If you have an nVidia graphics card, click the nVidia tab, in the left-hand column select NVRotate, and then select the preferred rotation.
5 If you have an Intel ^ graphics card, select the Intel graphics tab, click Graphic Properties, select the Rotation tab, and then set the preferred rotation.

NOTE: If you do not see the rotation option or it is not working correctly, go to www.dell.com/support and download the latest driver for your graphics card.

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-Test

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1 T urn off both your computer and the monitor.
2 Unp lug the video cable from the back of the computer. To ensure proper Self-Test operation, remove all digital cables from the back of computer.
3 Turn on the monitor.

NOTE: A dialog box should appear on-screen (against a black background), if the monitor cannot sense a video signal and is working correctly. While in self-test mode, the power LED blinks white.

Dell S2716DG Entering Power Save Mode.

NOTE: This box also appears during normal system operation, if the video cable becomes disconnected or damaged.

4 Turn Off your monitor and reconnect the video cable; then turn On both your computer and the monitor.

If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning properly.

Built-in Diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

1 2 3 4

To run the built-in diagnostics:

1 Ensur e that the screen is clean (no dust particles on the surface of the screen).

2 Unp lug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.

3 Press and hold Button 1 and Button 4 on the front panel simultaneously for 2 seconds. A gray screen appears.

4 Care fully inspect the screen for abnormalities.

5 Press Button 4 on the front panel again. The color of the screen changes to red.

6 Inspect the display for any abnormalities.

7 Repeat ste ps 5 and 6 to inspect the display in green, blue, black, and white screens. The test is complete when the white screen appears. To exit, press Button 4 again.

If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common Problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Common Symptoms	What You Experience	Possible Solutions
No Video/Power LED off	No picture	·Ensure that the video cable connecting the monitor and the computer is properly connected and secure.·Verify that the power outlet is functioning properly using any other electrical equipment.·Ensure that the power button is depressed fully.·Ensure that the correct input source is selected in the Input Source menu.
No Video/Power LED on	No picture or no brightness	·Increase brightness & contrast controls via OSD.·Perform monitor self-test feature check.·Check for bent or broken pins in the video cable connector.·Run the built-in diagnostics.·Ensure that the correct input source is selected in the Input Source menu.
Poor Focus Picture is fuzzy, blurry, or ghosting		·Eliminate video extension cables.·Reset the monitor to factory settings.·Change the video resolution to the correct aspect ratio.
Shaky/Jittery Video	Wavy picture or fine movement	·Reset the monitor to factory settings.·Check environmental factors.·Relocate the monitor and test in another room.
Missing Pixels LCD screen has spots		·Cycle power On-Off.·Pixel that is permanently Off is a natural defect that can occur in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/monitors.
Stuck-on Pixels LCD screen has bright spots		·Cycle power On-Off.·Pixel that is permanently off is a natural defect that can occur in LCD technology.·For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: http://www.dell.com/support/monitors.
Brightness Problems	Picture too dim or too bright	·Reset the monitor to factory settings.·Adjust brightness & contrast controls via OSD.
Geometric Distortion	Screen not centered correctly	·Reset the monitor to factory settings.
Horizontal/Vertical Lines	Screen has one or more lines	Reset the monitor to factory settings.Perform monitor self-test feature check and determine if these lines are also in self-test mode.Check for bent or broken pins in the video cable connector.Run the built-in diagnostics.
Synchronization Problems	Screen is scrambled or appears torn	Reset the monitor to factory settings.Perform monitor self-test feature check to determine if the scrambled screen appears in self-test mode.Check for bent or broken pins in the video cable connector.Restart the computer in the safe mode.
Safety Related Issues	Visible signs of smoke or sparks	Do not perform any troubleshooting steps.Contact Dell immediately.
Intermittent Problems	Monitor malfunctions on & off	Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Reset the monitor to factory settings.Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color Picture missing color		Perform monitor self-test feature check.Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Check for bent or broken pins in the video cable connector.
Wrong Color Picture color not good		Change the settings of the Preset Modes in the Color menu OSD depending on the application.Adjust R/G/B value under Custom Color in Color menu OSD.Run the built-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Faint shadow from the static image displayed appears on the screen	Use the Power Management feature to turn off the monitor at all times when not in use (for more information, see Power Management Modes).Alternatively, use a dynamically changing screensaver.

Product Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
Screen image is too small	Image is centered on scre en, but does not fill entire viewing area	Reset the monitor to factory settings.
Cannot adjust the monitor with the buttons on the front panel	OSD does not appear on the screen	Turn Off the monitor, unplug the power cord, plug it back, and then turn On the monitor.
No Input Signal when user controls are pressed	No picture, the LED light is white	Check the signal source. Ensure the computer is not in the power saving mode by moving the mouse or pressing any key on the keyboard.Check whether the signal cable is plugged in properly. Replug the signal cable if necessary.Reset the computer or video player.
The picture does not fill the entire screen	The picture cannot fill the height or width of the screen	Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.Run t he built-in diagnostics.

Universal Serial Bus (USB) Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
USB interface is not working	USB peripherals are not working	Check that your monitor is turned On.Reconnect the up stream cable to your computer.Reconnect the USB p eripherals (downstream connector).Switch Off and then turn On the monitor again.Reboot the computer.Some USB devices like external portable HDD require higher electric current; connect the device directly to the computer system.
High Speed USB 3.0 interface is slow	High Speed USB 3.0 peripherals working slowly or not working at all	Check that your computer is USB 3.0-capable.Some computers have USB 3.0, USB 2.0, and USB 1.1 ports.Ensure that the correct USB port is used.Ensure that the correct USB port is used.Reconnect the up stream cable to your computer.Reconnect the USB p eripherals (downstream connector).Reboot the computer.
Wireless USB peripherals stop working when a USB 3.0 device is plugged in	Wireless USB peripherals responding slowly or only working as the distance between itself and its receiver decreases	Increase the distance between the USB 3.0 peripherals and the wireless USB receiver.Position your wireless USB receiver as close as possible to the wireless USB peripherals.Use a USB-extender cable to position the wireless USB receiver as far away as possible from the USB 3.0 port.

WARNING: Safety Instructions

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Product Information Guide.

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance.

Contact Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

• Online technical assistance – www.dell.com/support/monitors
- Contacting Dell — www.dell.com/contactdell

Setting Up Your Monitor

Setting the display resolution

For maximum display performance with Microsoft ^® Windows ^® operating systems, set the display resolution to 2560 x 1440 pixels by performing the following steps:

In Windows ^® 7, Windows ^® 8, and Windows ^® 8.1:

1 For Windows ^® 8 and Windows ^® 8.1 only, select the Desktop tile to switch to classic desktop.
2 Right-click on the desktop and click Screen Resolution.
3 Click the Dropdown list of the Screen Resolution and select 2560 x 1440.
4 Click OK.

In Windows ^® 10:

1 Right-click on the desktop and click Display settings.
2 Click Advanced display settings.
3 Click the dropdown list of Resolution and select 2560 x 1440.
4 Click Apply.

If you do not see the recommended resolution as an option, you may need to update your graphics driver. Please choose the scenario below that best describes the computer system you are using, and follow the given steps.

If you have a Dell™ desktop or a Dell™ portable computer with internet access

1 Go to www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.
2 After installing the drivers for your graphics adapter, attempt to set the resolution to 2560 x 1440 again.

NOTE: If you are unable to set the resolution to 2560 x 1440, please contact Dell™ to inquire about a graphics adapter that supports these resolutions.

If you have a non Dell™ desktop, portable computer, or graphics card

In Windows ^® 7, Windows ^® 8, and Windows ^® 8.1:

1 For Windows ^® 8 and Windows ^® 8.1 only, select the Desktop tile to switch to classic desktop.
2 Right-click on the desktop and click Personalization.
3 Click Change Display Settings.
4 Click Advanced Settings.
5 Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).

6 Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com).
7 After installing the drivers for your graphics adapter, attempt to set the resolution to 2560 x 1440 again.

In Windows ^® 10:

1 Right-click on the desktop and click Display settings.
2 Click Advanced display settings.
3 Click the dropdown list of Resolution and select 2560 x 1440.
4 Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5 Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com).
6 After installing the drivers for your graphics adapter, attempt to set the resolution to 2560 x 1440 again.

NOTE: If you are unable to set the recommended resolution, please contact the manufacturer of your computer or consider purchasing a graphics adapter that will support the video resolution.
