Product Type	Car Stereo
Brand	AEG
Model	CS FMP 200
Dimensions (W x H x D)	178 x 50 x 165 mm
Weight	1.2 kg
Power Supply	12V DC (car battery)
Radio Bands	FM, AM
Frequency Range FM	87.5 – 108 MHz
Frequency Range AM	522 – 1620 kHz
Max Power Output	4 x 50W (peak)
RMS Power Output	4 x 20W
CD Player	Yes
AUX Input	3.5 mm front
USB Port	Yes (for playback)
Display Type	LCD
Remote Control	Included
Impedance	4 Ohms
Signal-to-Noise Ratio	60 dB
Detachable Faceplate	Yes
Preset Stations	30 (FM), 10 (AM)
Equalizer Presets	5 (Rock, Pop, Classic, Jazz, Flat)
Maintenance	Clean with a dry, soft cloth. Do not use solvents.
Safety	Turn off the device before cleaning. Use only in 12V negative ground vehicles.
Spare Parts	Contact AEG customer service for replacement faceplates or knobs.
Repair	Refer to an authorized AEG service center.

Frequently Asked Questions - CS FMP 200 AEG

How do I install the AEG CS FMP 200 car stereo?

First, disconnect the car battery. Then, remove the old stereo and connect the wiring harness to the vehicle's ISO connectors. Slide the unit into the dashboard until it clicks. Finally, reconnect the battery and test.

What should I do if the stereo does not turn on?

Check the car fuse and the stereo's internal fuse. Ensure the wiring harness is securely connected. Also verify that the ignition key is in the accessory position.

How can I reset the AEG CS FMP 200?

Press the reset button located on the front panel using a pointed object, such as a paperclip. This restores factory settings.

What audio formats does the USB port support?

The USB port supports MP3 and WMA files. The device can handle up to 255 folders and 512 files per folder.

Can I connect my smartphone via Bluetooth?

No, the AEG CS FMP 200 does not have built-in Bluetooth. Use the AUX input or a Bluetooth adapter connected to the AUX port.

How do I set radio stations?

Tune to the desired station manually or by auto search. Press and hold one of the preset buttons (1-6) for about 2 seconds until a beep confirms storage.

What is the maximum power output of the stereo?

The maximum peak power output is 4 x 50W. RMS power is 4 x 20W at 4 ohms.

Why is the sound distorted?

Distortion may occur if the volume is too high, the speakers are not compatible (impedance below 4 ohms), or the equalizer settings are extreme. Lower the volume or adjust the EQ.

How do I clean the faceplate?

Remove the faceplate and gently wipe it with a dry, soft microfiber cloth. Avoid liquid cleaners, as they may damage the electronics.

Where can I find the user manual?

The user manual is available for free download on notice-facile.com in PDF format. Search for 'AEG CS FMP 200'.

USER MANUAL CS FMP 200 AEG

REPARATURANSCHRIFT 30

INDEX 31

AEG

Technical line drawing of a mechanical component with internal channels and a labeled section (2a), no readable text or symbols present.

Technical diagram showing a mechanical assembly with a tool inserted into a housing (no text or symbols present)

Diagram showing a mechanical device being cut with a tool, illustrating the process (no text or symbols present)

Die Anschlüsse

TP – Traffic Programme

Simple line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Was ist zu beachten

Formate CD, CDR, CDRW, MP3

ENDSTUFE

Symbol of a trash bin crossed with diagonal lines, no text or labels present

AEG

Garantie

Bedienteil 9, 10, 20, 23, 24, 26

D

Display 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 24

E

Technical line drawing of a device rear panel with buttons and ventilation slots (no text or symbols)

• PLL Synthesizer Stereo Radio
• RDS (Radio Data System) Operation
• Digital Compact Disc Player
• Automatically Memory Storing
• Mechanical Detachable Panel
- Preset Equalization

Contens

Installation---- 3

Take out screw before installation--- 3

DIN Front-Mount (Method A)---- 3

Installing the unit---- 3

Removing the unit---- 4

DIN Rear-Mount (Method B)---- 5

Using the detachable Front panel---- 6

Wiring Convection---- 7

Operation---- 8

Switching ON / OF the unit---- 9

Faceplate release---- 9

Sound adjustment---- 9

Loudnes 10

Display---- 10

Equalization---- 10

Liquid crystal display---- 10

Reset function---- 11

Radio operation---- 11

Switching to radio mode---- 11

Selecting the frequency band---- 11

Selecting station---- 11

Local / distand---- 11

Automatic memory storing & program scanning---- 11

Station storing---- 11

RDS operation---- 11

CD operation---- 13

Switching to CD mode---- 13

Selecting tracks---- 13

Pausing playing---- 13

Previewing all track---- 13

Repeating the same track---- 13

Playing all track in random 13

Ejecting a disc---- 13

MP3 operation---- 13

Switch to CD (MP3) mode---- 13

Ejecting a disc 14

Selecting tracks in single step---- 14

Selecting directory up / down---- 14

Pausing playing---- 14

Previewing all track---- 14

Repeating the same track---- 14

Playing all tracks in random---- 14

Selecting tracks by AMS / MP3 button 14

Display information---- 15

Disc notes---- 15

Specification---- 17

Trouble shooting---- 18

Warranty---- 19

EC Type-Approval certificate---- 19

Service address and hotline---- 20

Retraction of old devices---- 20

Notes:

• Choose the mounting location where the unit will not interfere with the normal driving function of the driver.
• Before finally installing the unit, connect the wiring temporarily and make sure it is all connected up properly and the unit and the system work properly.
• Use only the parts included with the unit to ensure proper installation. The use of unauthorized parts can cause malfunctions.
• Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Install the unit where it does not get in the driver's way and cannot injure the passenger if there is a sudden stop, like an emergency stop.
• If installation angle exceeds 30° from horizontal, the unit might not give its optimum performance.

Avoid installing the unit where it would be subject to high temperature, such as from direct sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit be can properly installed either from "Front"(conventional DIN

Front-mount) or "Rear"(DIN Rear-mount installation, utilizing threaded screw holes at the sides of the unit chassis). For details, refer to the following illustrated installation methods.

TAKE OUT SCREW BEFORE INSTALLATION

Before install the unit, please remove the two screws.

Take out screw before installation

Simple line drawing of a lamp on a base with an inset showing the tip and base (no text or symbols)

DIN FRONT-MOUNT (Method A) Installation Opening

This unit can be installed in any dashboard having an opening as show below:

Installing the unit

Be sure you test all connections first, and then follow these steps to install the unit.

1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery's negative (-) terminal.
2. Disconnect the wire harness and the antenna.
3. Press the release button on the front panel and remove the control panel (see the steps of "removing the front panel").
4. Lift the top of the outer trim ring then pull it out to remove it.
5. The two supplied keys release tabs inside the unit's sleeve so you can remove it. Insert the keys as far as they will go (with the notches facing up) into the appropriate slots at the

middle left and right sides of the unit. Then slide the sleeve off the back of the unit.

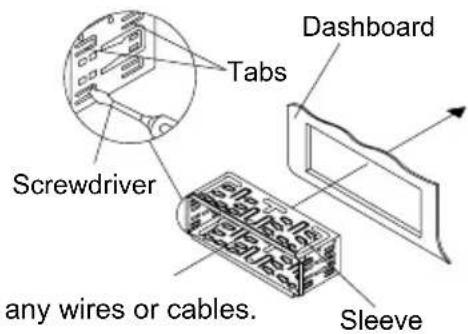

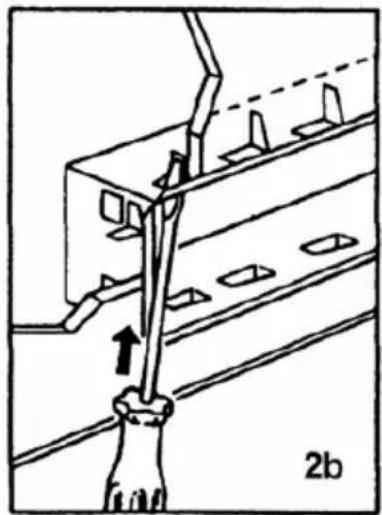

1. Mount the sleeve by inserting the sleeve into the opening of the dashboard and bend open the tabs located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so examine which ones will be most effective. Bending open the appropriate tabs behind the dashboard to secure the sleeve in place.

1. Reconnect the wire harness and the antenna and be careful not to pinch any wires or cables.

2. Slide the unit into the sleeve until it Locks into place.

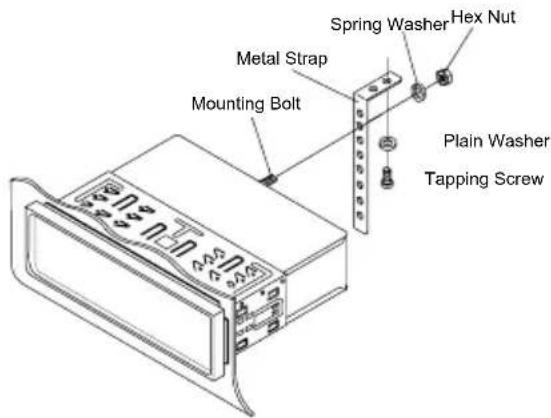

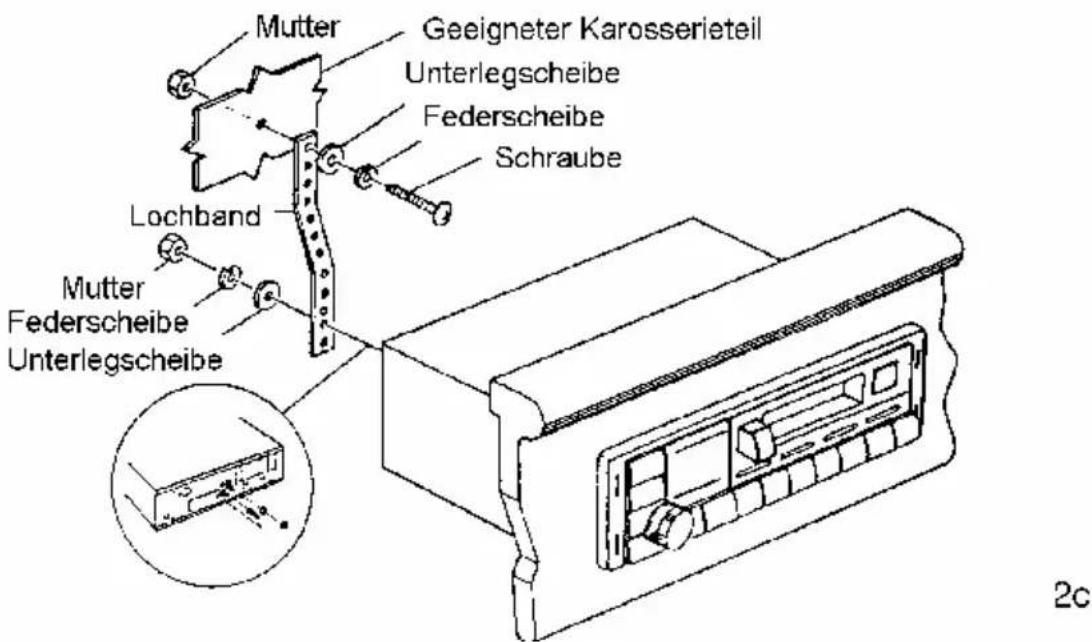

3. To further secure the unit, use the supplied metal strap to secure the back of the unit in place. Use the supplied hardware (Hex Nut (5mm) and Spring Washer) to attach one end of the strap to the mounting bolt on the back of the unit. If necessary, bend the metal strap to fit your vehicle's mounting area. Then use the supplied hardware

(Tapping Screw (5x25mm) and Plain Washer) to attach the other end of metal strap to a solid metal part of the vehicle under the dashboard. This strap also helps ensure proper electrical grounding of the unit.

1. Reconnect the cable to the vehicle battery's negative (-) terminal. Then replace the out trim ring and install the unit's front panel (see the step of "installing the front panel").

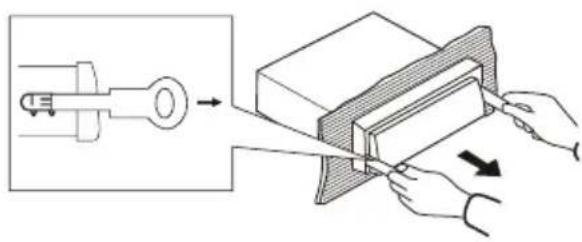

Removing the unit

1. Make sure the ignition is turned off, then disconnect the cable from the vehicle battery's negative (-) terminal.
2. Remove the metal strap attached the back of the unit (if attached).
3. Press the release button to remove the front panel.
4. Lift the top of the outer trim ring then pull it out to remove it.

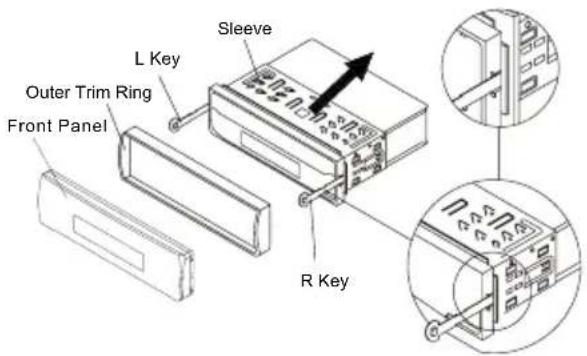

5. Insert both of the supplied keys into the slots at the middle left and right sides of the unit, then pull the unit out of the dashboard.

Diagram showing a tool interacting with a mechanical component, illustrating the process (no text or symbols present)

1. Align the screw holes on the bracket with the screw holes on the unit, and then tighten the screws (5x5mm) on each side.

Note: the outer trim ring, sleeve and the metal strap are not used for method B installation.

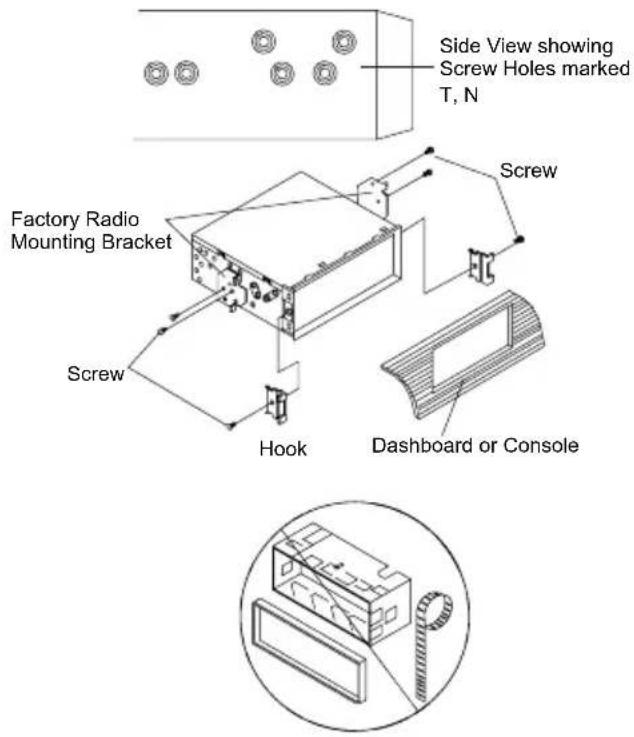

DIN REAR-MOUNT (Method B)

If your vehicle is a Nissan, Toyota, follow these mounting instructions.

Use the screw holes marked T (Toyota), N (Nissan) located on both sides of the unit to fasten the unit to the factory radio mounting brackets supplied with your vehicle.

To fasten the unit to the factory radio mounting brackets.

1. Use a screwdriver to loose the hook's screws on the front left and right sides of the unit and remove the hooks.

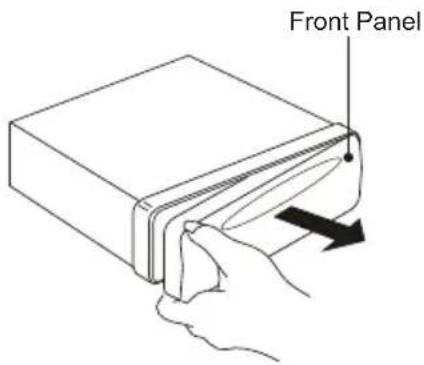

REMOVING THE FRONT PANEL

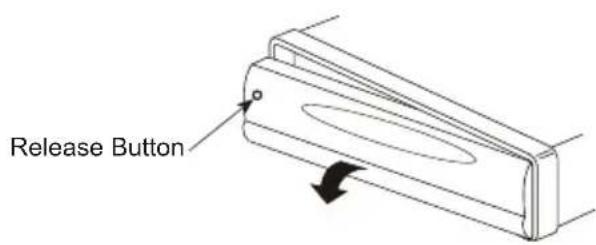

1. Press the release button (open) on the front panel and pull of the front panel.

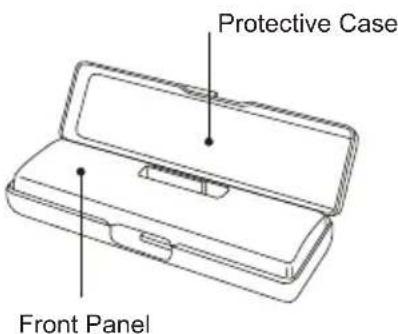

1. Keep front panel into the case

INSTALLING THE FRONT PANEL

To install the front panel, insert the panel into the housing and make sure the panel is properly installed. Otherwise, abnormality occurs on the display or some keys will not function properly

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

Precautions when handling

1. Do not drop the front panel.
2. Do not put pressure on the display or control buttons when removing or installing the front panel.
3. Do not touch the contacts on the front panel or on the main unit body. It may result in poor electrical contact.
4. If any dirt or foreign substances adhered on the contacts, they can be removed with a clean and dry cloth.
5. Do not expose the front panel to high temperatures or direct sunlight in anywhere.
6. Keep away any volatile agents (e.g. benzene, thinner, or insecticides) from touching the surface of the front panel
7. Do not attempt to disassemble the front panel.

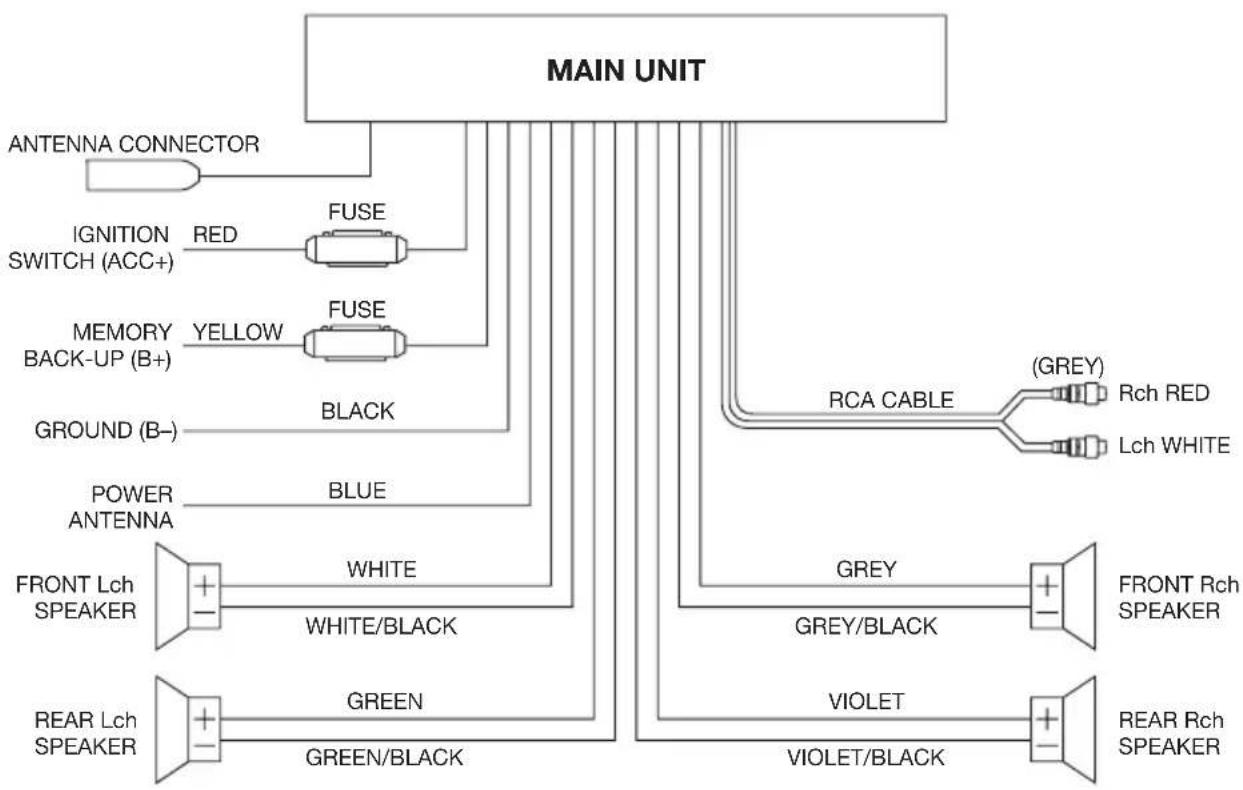


    B --> I["FUSE"]
    I --> J["RED"]

    C --> K["FUSE"]
    K --> L["YELLOW"]

    D --> M["BLACK"]
    M --> N["BLUE"]

    E --> O["WHITE"]
    O --> P["WHITE/BLACK"]

    F --> Q["BLUE"]

    G --> R["GREEN"]
    R --> S["GREEN/BLACK"]

    H --> T["VIOLET"]
    T --> U["VIOLET/BLACK"]

    V["RCA CABLE"] --> W["(GREY)"]
    V --> X["Rch RED"]
    V --> Y["Lch WHITE"]

    Z["GREY"] --> AA["+"]
    AB["GREY/BLACK"] --> AC["+"]
    AD["FRONT Rch SPEAKER"] --> AE["+"]
    AF["REAR Rch SPEAKER"] --> AG["+"]

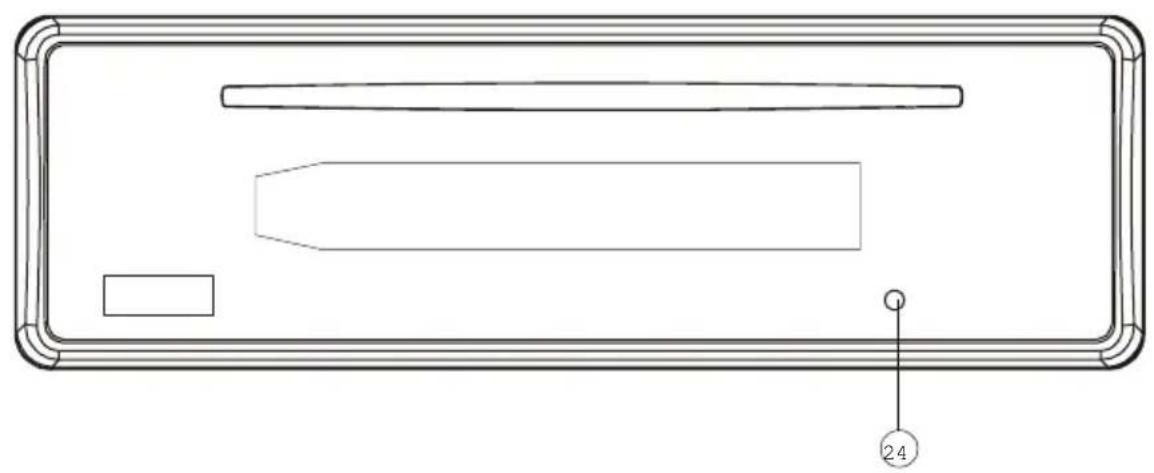

Technical line drawing of a rectangular device with internal components and a numbered label (24) at the bottom right corner.

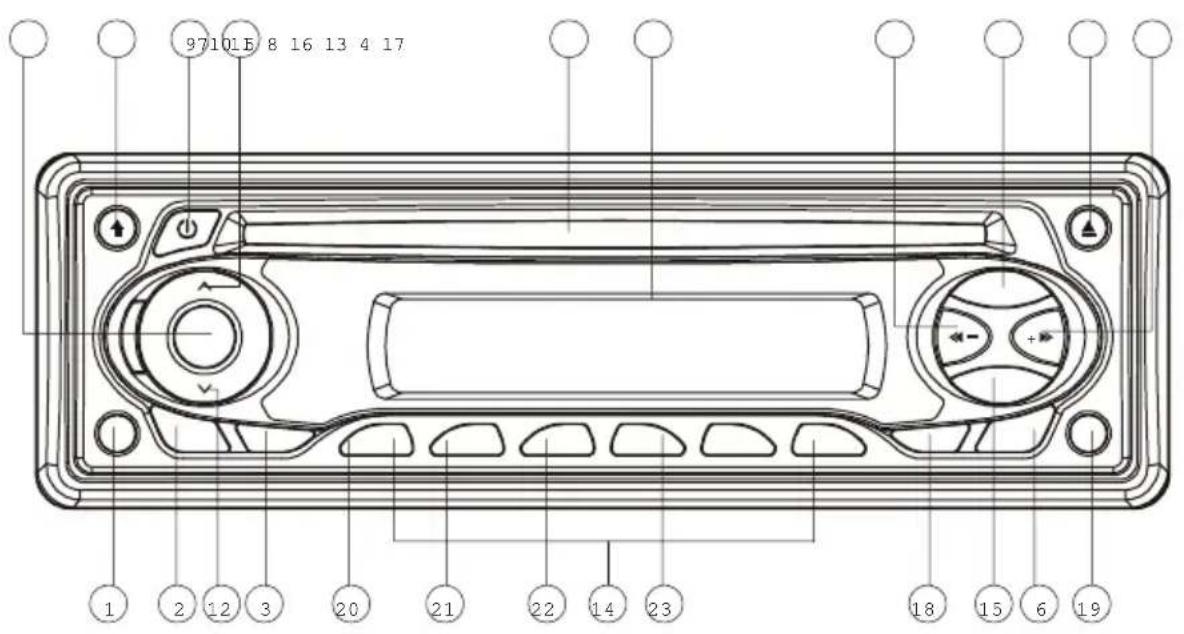

SWITCHING ON/OFF THE UNIT Switch on the unit by pressing any button [except OPEN button (7) and ▲ button (4)]. When system is on ,press ⏻ button (9) to turn off the unit.

FACEPLATE RELEASE

Press OPEN button (7) to detach the removable faceplate.

SOUND ADJUSTMENT

Press SEL button (10) to select the desired adjustment mode. The adjustment mode will change in the following order:

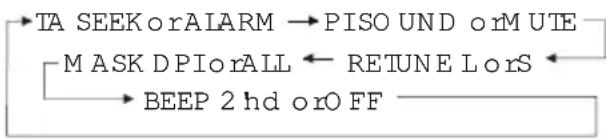

By pressing the volume up button ^▲ (11) or volume down button √ (12), it is possible Press SEL button (10) for several seconds, it is activated as cyclical mode of following functions for user's selection.

a) TA SEEK OR TA ALARM

- TA SEEK mode:

When newly tuned station does not receive TP information for several seconds, the radio retunes to next station which has not the same station (PI) as the last station, but has the TP information. When TP information gets lost at the current station for retune time which is set by RETUNE SHORT (30 sec.) or RETUNE LONG (90 sec.), the radio start to retune to next same PI station. When same PI station does not catch in 1 cyclic search, the radio retunes to next station with TP information.

- TA ALARM mode:

When this mode is selected, any automatic retune mode is not activated. Only double beep sound (ALARM) is output.

When newly tuned station does not

have TP information for several seconds, beeps come out. When TP information gets lost at the current station for retune time, the beep sound is out-putted. When newly tuned station has no RDS signal, "PI SEEK" is suppressed somewhat.

b) PI SOUND or PI MUTE

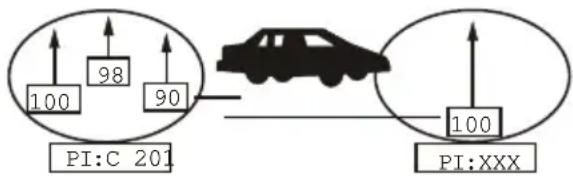

While AF switching is implemented in C201 station, AF can switch to 100 MHz, which is non genuine AF (where, different PI with same AF) in short "DIP".

If a car cruises that critical area back and forth, an oscillation phenomenon can be occurred, because the different PI code can be received from 100 MHz with "XXX"PI. The car radio has special procedure to reduce even this kind of unavoidable situation however there is a limit to be escaped from this serious case perfectly.

In that serious case, 2 mode is selectable as follows:

• PI SOUND mode:
  When above different PI sound (DIP) is heard once in a while, the DIP's sound will be heard for a short time.
• PI MUTE mode:
  Under above same situation, a mute sound will be heard for a short time.

c) RETUNE L or RETUNE S mode The initial time of automatic TA search or PI search modes is selected.

When PI information is not caught for retune time, the radio starts to retune to next same PI station.

When same PI station does not catch 1 cyclic search, the radio goes to last station and waits for several minutes until PI code is received.

• RETUNE L mode: Selected as 90 seconds.
• RETUNE S mode: Selected as 30 seconds.

d) MASK DPI or MASK ALL mode The AF frequency (which has different PI or NO RDS signal with high field strength) is masked during checking PI when the unit searches AF. The unit doesn't search this AF (DIP) for few minutes. In the case of the AF of NO RDS signal with high field strength, if the real AF is wrongly masked as DIP by some interference, the unit hesitates to search real Afs. For this reason, the unit has the user option (MASK DPI) which doesn't mask the AF of NO RDS signal with high field strength. In MASK DPI mode, the wrong sound or long mute (according to PI SOUND or PI MUTE) can be heard from the AF station which has NO RDS signal and of which the field strength is higher than that of the currently tuning AF (station). But, these phenomenons are rare and the user will hardly hear the wrong sound in whole Europe.

- MASK DPI mode: Masked only the AF which has different PI.

- MASK ALL mode: Masked the AF which has different PI and NO RDS signal with high field strength.

e) BEEP 2'ND, BEEP ALL, BEEP OFF mode The situation of beep sound is selected. The 3 mode is selected as also by pressing the volume up button ^▲ (11) or volume down button ^▼ (12).

- BEEP 2'nd mode: The beep is only generated when all allowed double key is pressed long (1 sec). e.g. When preset button (14) is pressed. When BAD/LOU button (13) is pressed.

When AMS button (18) is pressed.
- BEEP ALL mode: The beep is generated when every key is pressed.
- BEEP OFF mode: The beep is disabled.

LOUDNESS

Press BND /LOU button (13) for several seconds to reinforce the bass output. Press it for several seconds again to release this function.

DISPLAY

Press DSP button (15) to operate as the conversion of each display mode as follows:

• In case of receiving a RDS station In radio mode:
  ->PS ->CT ->FREQ ->PTY -> In CD mode:
  ->CD ->CT ->PS ->FREQ ->PTY ->
• In case of no receiving CT or PTY information, the display shows as "NO CLOCK" or "NO PTY".
• In case of receiving a non RDS station In radio mode:
  ->"NO CLOCK" ->FREQ -> "NO PTY" -> In CD mode:
  -> CD -> CT -> FREQ -> "NO PTY" ->
  Each displaying time is several seconds, and come back to 1^st position after several seconds.

Notes:

- CT = clock time

- FREQ = frequency

EQUALIZATION

Press EQ button (19) to turn on equalization function and to select desired audio mode. There are five kinds of mode as below:

LIQUID CRYSTAL DISPLAY

Exhibit current frequency and activated functions on the display (8).

RESET FUNCTION

RESET button (24) must be activated with either a ballpoint pen or thin metal object.

The RESET button is to be activated for the following reasons:

• Initial installation of the unit when all wiring is completed.
• All the function buttons do not operate.
• Error symbol on the display.

Note: if press RESET button (24), the unit can't work yet, please use a cotton swab socked in isopropyl alcohol to clean the socket on the front panel.

RADIO OPERATION

• SWITCHING TO RADIO MODE

Press MOD button (6) shortly to select radio mode, the radio mode appears in the display together with the memory band an frequency.

- SELECTING THE FREQUENCY BAND

At radio mode, press BND/LOU button (13) shortly to select the desired band. The reception band will change in the following order:

- SELECTING STATION

Press +▶ button(17) or button ←—(16) shortly to activate automatic seek function. Press for several seconds until "MANUAL" appears on the display, the manual tuning mode is selected. If both buttons have not been pressed for several seconds, they will return to seek turning mode and "AUTO" appears on the display.

• AUTOMATIC MEMORY STORING & PROGRAM SCANNING

- Automatic memory storing Press AMS button (18) for several seconds, the radio searches from the current frequency and checks the signal strength until one cycle

search is finished, And then 6 strongest stations are stored into the corresponding preset number button.

- Program scanning

Press AMS button (18) shortly to scan preset station, When the field strength level is more than the threshold level of stop level, the radio is holding at that preset number for several seconds with release mute, then searches again.

- STATION STORING

Press any one of the preset buttons (14) (1 to 6) to select a station, which had been stored in the memory. Press this button for several seconds (until 2ND beeps come out), current station is stored into the number button.

- Setting RDS mode Press AF button (3) and release immediately to switch on or off RDS mode. Whenever RDS is switch on, symbol "AF" appears on the display. Program name is displayed on receiving a RDS station. "AF" starts blinking if the broadcasting signal getting worse. "ALARM" will be displayed when an emergency broadcasting is received, meanwhile sound output level will be adjusted to the preset output level automatically when the volume control is set at minimum.

- Regional Program Operation Press AF button (3) for several seconds to switch on or off region mode.

Some broadcasting stations change their program from normal broadcasting to regional

broadcasting for a certain time period. When region is on, the current listening program remains unchanged. When region is off, it allows the reception moves to the regional station.

- Using PTY to Select Program PTY button (1) is operated as follows:

▶PTY MUSIC group→PTY SPEECH group PTY off

While selecting PTY engagement, its selection is implemented by preset buttons as described in notes. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

If corresponding PTY information is not existed any more, PTY engaging is automatically exit to normal mode. Notes:

When PTY mode is engaged, the PTY switch is shared as follows:

▶ PTY MUSIC group → PTY SPEECH group PTY off

According to above 2 allotted group, the preset number is used for PTY selection as follows:

MUSIC group

* POP M, ROCK M

*EASY M, LIGHT M

*CLASSICS, OTHER M

*JAZZ, COUNTRY

*NATION M, OLDIES

*FOLK M SPEECH group

*NEWS, AFFAIRS, INFO

*SPORT, EDUCATE, DRAMA

*CULTURE, SCIENCE, VARIED

*WEATHER, FINANCE, CHILDREN

*SOCIAL, RELIGION, PHONE IN

*TRAVEL, LEISURE, DOCUMENT

- Listening to Traffic Announcement TA button (2) is operated as follows: When pressed short, it is engaging whether TA mode on or off.

When TA mode is on and a traffic announcement is transmitted:

When the unit was in CD (MP3), it will switch temporarily to radio mode.

Temporary switch over to an EON linked station when EON detects a traffic announcement on that other program.

If the volume level was under the threshold point it will be raised to the threshold point. But the user changed the volume level, which was more than the threshold point (min. TA volume level), it will be set to the last level.

When TA mode is on, TA of individual segment is turned on.

When a TP station is received, TP of individual segment is turned on.

TA interruption function

The current traffic announcement is cancelled by pressing this key.

But the TA mode will not be off.

When pressed long, it is selected EON TA LOCAL/EON TA DISTANCE mode.

The purpose of this key is to reduce unwanted EON TA switching, which EON TA information was received from current station and the radio switched to that EON linked station, but no information could not be received because the EON linked station is located too far from that area. So the radio is switched back to current station again. In above operation, a customer listens to a wrong program or mute sound for a while.

EON TA LOCAL mode

When the filed strength level of EON linked is less than threshold level, the radio does not switch that station, and a customer can hardly listen to any disturbances.

When EON TA LOCAL mode is selected, "EON TA LO" on numeric display is indicated for a few seconds.

EON TA DISTANCE mode

EON TA switch is tried to implemented by the information of current station.

When EON TA DISTANCE mode is selected, "EON TA DX" on numeric display is indicated for a few seconds.

The RDS data used are the PI, PS,

AF, TP, TA, EON and PTY data.

PI: Program Identification code Code for identifying programs

PS: Program Service Name Broadcast station name data expressed in alphanumerically characters

AF: Alternative Frequencies Frequency list of broadcasting stations transmitting the same program

TP: Traffic Program Identification Identification data for traffic information-broadcasting station

TA: Traffic Announcement Identification Identification data showing traffic information is being transmitted or not

EON: Enhanced Other Networks Information Broadcasting information on PI, AF, TP, TA, etc, relating to networks other than the network used for current reception

PTY: Program Type Code Contents of programs such as news, light music, sports etc.

CD OPERATION

• SWITCHING TO CD MODE

If there is no CD inserted in the driver: Gently insert the CD with the printed side uppermost into the CD compartment until you feel some resistance,. The CD is drawn into the driver automatically, CD playback begins.

If a CD is already inserted in the driver: Keep pressing MOD button (6) shortly until the CD mode display appears.

- SELECTING TRACKS

Press ← button (16) or +▶ button (17) to move to the previous track or the following track. Track number shows on display.

Hold ← button (16) or +▶ button (17) to fast reverse of fast forward, CD play starts from when you release the button.

• PAUSING PLAYING

Press PAU button (20) to pause CD player, Press it again to resume play.

• PREVIEWING ALL TRACKS

Press SCN button (21) to play first several seconds of each track on the current disc. Press again to stop intro and listen to track.

• REPEATING THE SAME TRACK

Press RPT button (22) to continuously repeat the same track. Press it again to stop repeat.

- PLAYING ALL TRACKS IN RANDOM

Press SHF button (23) to play all tracks on CD in random order. Press again to cancel the function.

- EJECTING A DISC

Press ▲ button (4) to stop CD playing and eject the disc from the disc slot (5).

MP3 OPERATION

• SWITCHING TO CD (MP3) MODE

If there is no MP3 disc inserted in the driver:

Gently insert the MP3 disc with the printed side uppermost into the disc slot (5) until you feel some resistance. The MP3 disc is drawn into the driver automatically. The MP3 playback begins.

If a MP3 disc is already inserted in the driver:

Keep pressing MOD button (6) shortly until the CD (MP3) mode display appears.

- EJECTING A DISC

Press ▲ button (4) to stop MP3 playing and eject the disc from the disc slot (5)

- EJECTING TRACKS IN SINGLE STEP

Press ← button(16) or +▶ button (17) to move to the previous track or the following track, Track number shows on display.

• PAUSING PLAYING

Press PAU button (20) to pause MP3 player, Press it again to resume play.

• PREVIEWING ALL TRACKS

Press SCN button (21) to play first several seconds of each track on the current disc. Press again to stop intro and listen to track.

• PREVIEWING THE SAME TRACK

Press RPT button (22) to continuously repeat the same track, Press it again to stop repeat.

- PLAYING ALL TRACK IN RANDOM

Press SHF button (23) to play all tracks on MP3 disc in random order. Press again to cancel the function.

- SELECTING TRACK BY AMS/MP3 BUTTON

AMS button is assigned as Digital Audio Mode selection button in MP3 operation. When pressed, it is activated as selecting each mode of Digital Audio. "Searching track directly" => "Searching Directory or File Name" => "Navigation" from root by MANU/SKIP UP/DOWN buttons => "Navigation" from current directory by MANU/SKIP UP/DOWN buttons.

- Searching Track Directly Press AMS(MP3) button for one time. It enters into "Searching track directly" in Digital Audio CD. The unit searches the track

selected by following direct numeric buttons:

M1-M6, MOD (7), MANU/SKIP DOWN(8), MANU/SKIP UP (9), DSP(0).

If selected three digits, the unit searches the track at once. if selected one or two digits, the unit wait for ENTER (BND/LOU) button for seconds. The unit searches the track after few seconds, even if the enter button is not pressed.

- Searching Directory or file Name Press AMS (MP3) button for two times. It enters into "Searching Directory or File Name" in Digital Audio CD.

The unit searches files and directories that have the same character which is inputted by the user pressing the corresponding buttons listed on the Table 1 below. Explain as follows:

• Use the corresponding buttons to select the characters A to Z, blank, 0-9, _, -, +.
• Press SEL button to confirm entry of each characters.
• Press BND /LOU (ENTER) button to start the title search,

In case the selected title is a directory name, display will show(''), then

• Use the MANU/SKIP UP/DOWN button to list all songs under this directory and select the title.
• Press BND/LOU (ENTER) button to confirm and start the play.
• Repeat the above steps if the newly selected title is again a directory.

- Searching From Root Directory Press AMS (MP3) button for three times. The unit searches fire or directory from root by MANU/SKIP UP/DOWN buttons (D-DIR icon

turns on if the name is directory). Display will list all available directories and songs. Select the desired directory/songs by using MANU/SKIP UP/ DOWN button and BND/LOU (ENTER) button to confirm. If the selected title is a song, it starts to play. If the selected title is a directory name, display will show (''), then

• Use the MANU/SKIP UP/DOWN buttons to list all songs under this directory and select the title.
• Press BND/LOU (ENTER) button to confirm and start the play.
• Repeat the above steps if the newly selected title is again a directory.

- Searching From Current Directory Press AMS (MP3) button for four times. The unit searches fire or directory from current directory by MANU/SKIP UP/DOWN buttons. (D-DIR icon turns on if the name is directory). The current directory name is displayed for a second and the currently playing file name is displayed (selected). The user can select the directory or file in the directory by MANU/SKIP UP/DOWN buttons. The selected file can be played by pressing BND/LOU (ENTER) button.

"MP3" icon turns on when MP3 disc is played and blinks when it is in navigation mode.

• DISPLAY INFORMATION

Press DSP button to show the following information, such as the clock, ID3 TAG (if available: song title directory name, artist name, other contents...) and other information.

KEY Assigned IN Searching mode (Table 1)

AMS	Mode Select
BND/LOU	ENTER
M1	A, B, C, 1
M2	D, E, F, 2
M3	G, H, I, 3
M4	J, K, L, 4
M5	M, N, O, 5/DirectotY DOWN
M6	P, Q, R, 6/Directory UP
MOD	S, T, U, 7
MANU/SKIP DOWN	V, W, X, 8
MANU/SKIP UP	Y, Z, SPACE, 9
SEL	CHARACTER SHIFT RIGHT
DSP	_,-,+,0
VOLUME UP /DOWN	CHARACTER SELECT (A, B~8,9,0)

VOLUME UP/DOWN & MANU/SKIP UP /DOWN buttons:

Searching file and directory during Navigation.

DISC NOTES

A. Notes on discs:

1. Attempting to use non-standard shape discs (e.g. square, start, heart) may damage the unit. Be sure to use round shape CD discs only for this unit.
2. Do not stick paper or tape, etc, onto the label side or the recording side of any discs, as it may cause a malfunction.
3. Dirt, dust, scratches and warping discs will cause misoperation.

B. Notes on CD-Rs (recordable CDs)/CD-RWs (rewritable CDs):

1. Be sure to use discs with following marks only for the unit to play:

1. The unit cannot play a CD-R and CD-RW that is not finalized. (Please refer to the manual of your CD-R/CD-RW recorder or CD-R/CD-RW software for more information on finalization process).

2. Depending on the recording status, conditions of the disc and the equipment used for the recording, some CD-Rs/CD-RWs may not be played on this unit. (see *1)

*1: To have more reliable play back, please see following recommendations:

a: Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x.
b. Use CD-Rs with speed 1x to 8x and write with speed 1x to 2x.
c. Do not play a CD-RW which has been written for more than 5 times.

C. Notes on MP3 files (MP3 Version Only):

1. The disc must be in the ISO9660 level 1 or level 2 format, or Joliet or Romeo in the expansion format.
2. When naming a MP3 file, be sure the file name extension is ".MP3".
3. For a non-MP3 file, even though the file name extension is ".MP3", the unit cannot recognize it.

GENERAL

Power Supply Requirements	: DC 12 Volts, Negative Ground
Chassis Dimensions	: 178 (W) x 160 (D) x 50 (H)

Tone Controls

- Bass (at 100 Hz)	: 10 dB
- Treble (at 10 kHz)	: 10 dB

Maximum Output Power	: 4x50 watts
Current Drain	: 5 ampere (max.)

CD PLAYER

Signal to Noise Ratio	: More than 55 dB
Channel Separation	: More than 45 dB
Frequency Response	: 40Hz - 18 kHz

RADIO

	FM
Frequency Coverage	: 87.5 to 108 Mhz
I.F.	: 10.7 Mhz
Sensitivity (S/N=30dB) : 4 V	μ
Stereo Separation	: >25 dB

Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer.

Symptom Cause Solution
No power. The car ignition switch is If the power supply is properly not on. connected to the car accessory circuits, but the engine is not running, switch the ignition key to "ACC"
Disc cannot be Presence of CD disc inside Remove the disc in the player, loaded or ejected. the player. then put a new one.
No sound. Volume is in minimum.		Adjust volume to a desired level.
		Check wiring connection.
Sound skips.	The installation angle is more than 30 degrees.	Adjust the installation angle less than 30 degrees.
	The disc is extremely dirty or defective disc.	Clean the compact disc, or try to play a new one.
The operation keys do not work.	The built-in microcomputer is not operating properly due to noise.	Press the RESET button. Front panel is not properly fix into its place.
The radio does not work. The radio station automatic selection does not work.	The antenna cable is not connected.	Insert the antenna cable firmly.
	The signals are too weak.	Select a station manually.

Warranty

This device is covered by a 24-month warranty. The warranty starts with the date of purchase. In order to proof the date of purchase, we advise to keep the receipt. If articles are returned without receipt, repairs can only be executed on payment of additional costs. This arrangement also applies for inadequately packed articles.

Within the warranty period, all imperfections which are due to defective material or production procedures will be remedied free of charge. Within the warranty period the device will be repaired or replaced on discretion of the Service or ITM Technology AG.

Replaced parts/devices which are replaced become property of ITM Technology AG. The replacement of the device does not automatically renew or extend the warranty. The primal warranty period of the original device remains same and ends after 24 month. Damages which are due to improper use, wear, tear interference of a third party or circumstances beyond our control are not covered by the warranty. Consumables such as batteries, packing material etc. and imperfections which hardly reduce the value or serviceability of the device are not covered by the warranty. Claims for damages which are not based on a deliberate act or a grossly negligence of the producer, are exempted. Our customer service naturally remains at your disposal after the period of warranty. After expiration of the warranty or in case of damages for which we can not accept warranty you will not receive an estimate.

EC Type-Approval Certificate

Communication concerning the e1 type-approval of a type of component with regard to Directive 72/245/EEC, as last amended by Directive 95/94/EC.

e 1

Hotline

*Hotline number: 01805 880606 (0,12€ / Minute)

*Valid for Germany only

Business hours:

Monday to Thursday from 08:00 am to 05:00 pm

Friday from 08:00 am to 04:00 pm

We offer you qualified advice, should you encounter problems during the installation or the operation of your unit.

* This hotline number is valid for the federal republic of Germany only

Retraction of old devices

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment.

Symbol of a trash bin crossed with no text or labels
