USER MANUAL 20V1M DAEWOO

Important safeguards 1

Before Operation 2

Connecting external equipment 3

Identification of Controls 5

Daily use 6

Menus 8

Teletext (Option) 14

The othello game 16

Specifications 18

Troubleshooting 19

This information is placed by The law of RF on Protection of the Consumer Rights and the Governmental Resolution of RF No.720.

The working life of this set is 7 years since its production date. After the working life, this set may be not work properly and cause damage to the life of the customer or his property.

©

©

Connecting external equipment

TV AND AV

Use the TV/AV( ) button on the remote control or on the front of the set to select one of the three options. Whenever the TV/AV ( ) button is pressed, the on-screen display will be changed as shown: AV(S-VHS is Russia only) → GAME → TV If you push the PR UP/DOWN buttons in AV mode, the on-screen display will be changed TV mode.

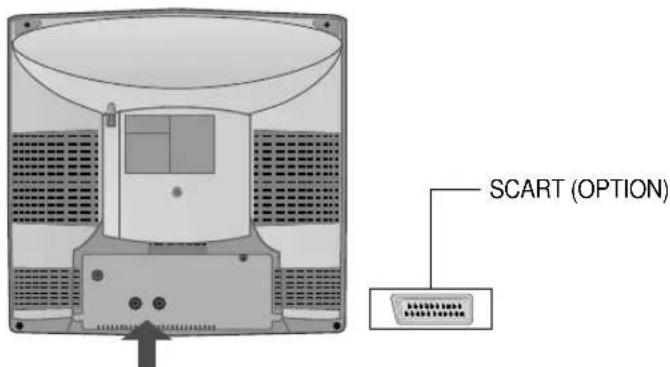

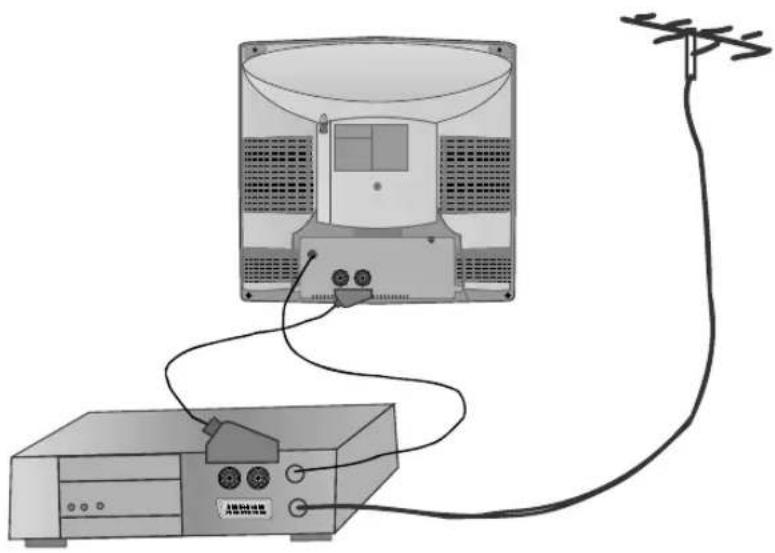

RCA JACK AV (BACK)

SCART (OPTION)

This is used to connect a VCR, a Camcorder, a S-VHS VCR, a PERI-TV decoder or a video game console.

In most cases, the set changes automatically to AV when the VCR connected is in display mode. If not, press the TV/AV(☐/☐) button on the remote control unit or on the front of the set.

You must turn the external equipment off or press the TV/AV button to return to the TV mode.

Diagram of a vintage television connected to a power supply via a cable, with an antenna nearby (no text or symbols present)

RCA JACK AV (FRONT)

Connect the AV (Audio/Video) socket with an appropriate cable to the corresponding socket of the external equipment. Select AV mode by pressing the TV/AV( ) button.

Press the TV/AV() or PR UP/DOWN buttons to return to the TV mode.

NOTE: If two apparatus are connected, one to the front AV Jack and the other to the rear SCART Jack, you can play only one apparatus. one of the them must be switched off.

Illustration of a flat-screen TV connected to an earphone (no text or symbols present)

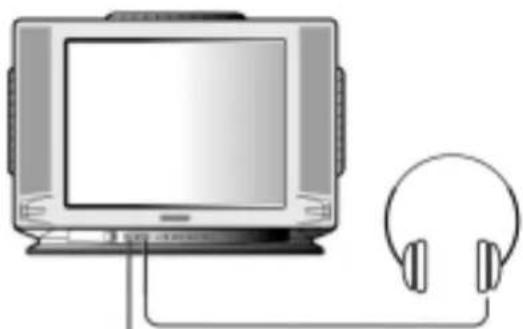

HEADPHONE JACK

Insert the headphone plug(3,5mm) into the headphone socket. The sound from the speaker will be cut off.

CAMCORDER

OR

VIDEO GAME

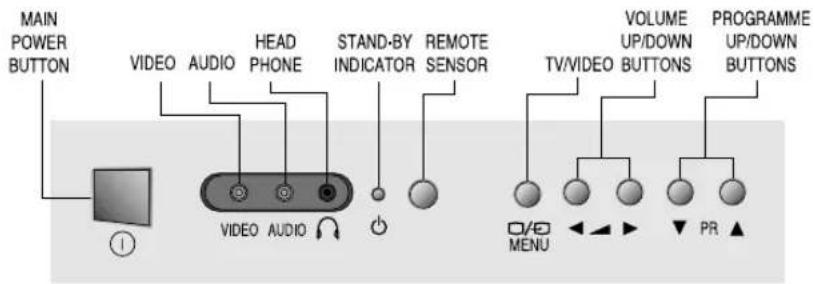

LOCAL CONTROL

Front

MAIN POWER BUTTON VIDEO AUDIO HEAD PHONE STAND-BY REMOTE SENSOR VIDEO AUDIO VOLUME UP/DOWN BUTTONS PROGRAMME UP/DOWN BUTTONS 0/0 MENU PR

ON/OFF

VIDEO AUDIO

[Non-Text]

。

MENU

The image is too blurry to recognize any text content.

◀ ▶

[NO TEXT]

▼

C

R ▲

。

ON/OFF

PROGRAMME DOWN/UP BUTTONS

VOLUME DOWN/UP BUTTONS

TV/AV MENU BUTTO

STAND-BY INDICATOR

REMOTE VID SENSOR INF

AUDIO HEAD INPUT PHONE

Identification of Controls

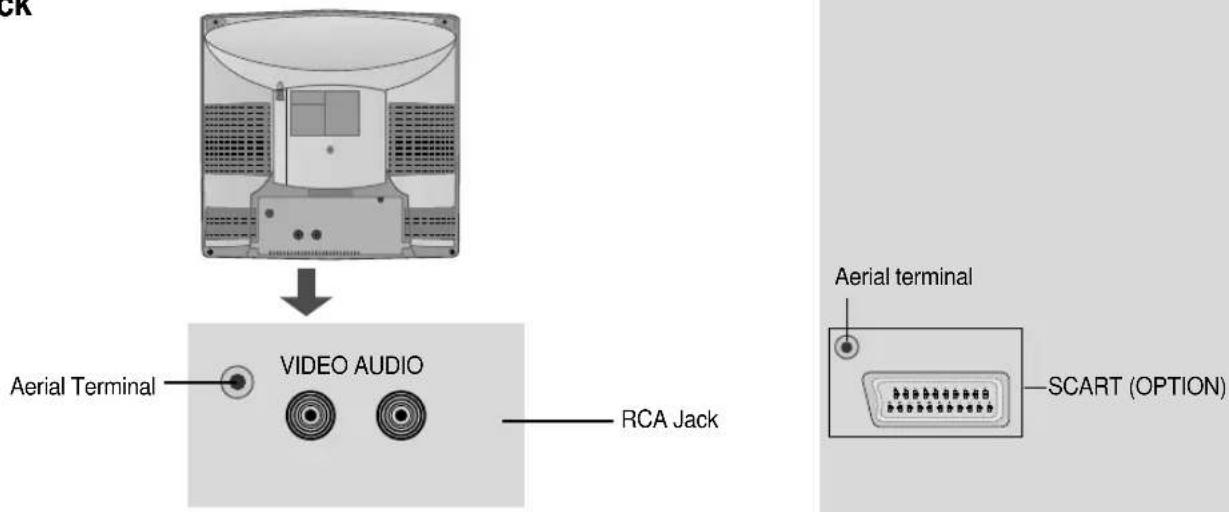

Back

Aerial Terminal VIDEO AUDIO RCA Jack Aerial terminal SCART (OPTION)

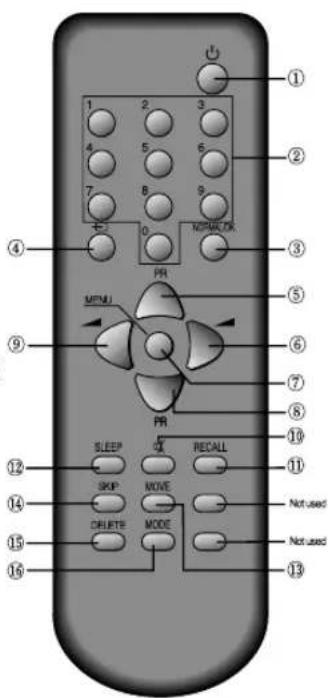

REMOTE CONTROL

TTW mode

① POWER
② NUMBER 0-9
③ NORMAL/OK
④ AV
⑤ PR (CURSOR) UP
⑥ VOLUME UP (CURSOR RIGHT)
⑦ MENU
⑧ PR (CURSOR) DOWN
⑨ VOLUME DOWN (CURSOR LEFT)
⑩ MUTE
⑪ RECALL
⑫ SLEEP
⑬ MOVE
⑭ SKIP
⑮ DELETE
⑯ Not used

1 2 3 4 5 6 7 8 9 0 NOPATION ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ SLEEP OK RECALL ⑪ SKIP MOVE Not used ⑫ DRLETE MODE Not used ⑬ ⑭

1 2 3 4 5 6 7 8 9 0 NORMAL-OK PR MENU PR SLEEP ALL OK MOVESKIP DELETE MODE

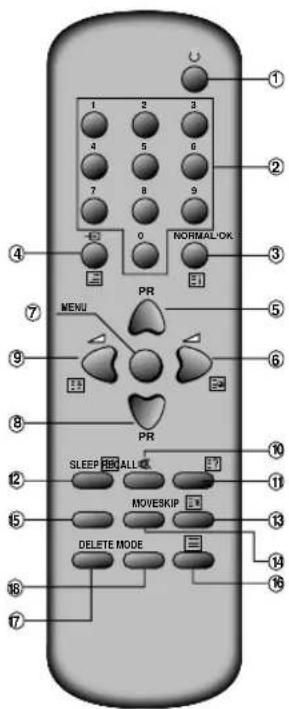

T E L E T E X T m o d e ( ( O p t i i o n ) )

① ON/OFF
② NUMBER 0-9
③ INDEX
④ MIX
⑤ PAGE UP
⑥ SUBPAGE
⑦ MENU
⑧ PAGE DOWN
⑨ HOLD
⑩ MUTE
⑪ REVEAL
⑫ SIZE
⑬ CANCEL
⑭ Green Key
⑮ Red Key
⑯ TV/TEXT
⑰ Yellow Key
⑱ Cyan Key

DAILY USE

PROGRAMME SELECTION

Direct selection

Use remote control NUMBER 0...9 buttons.

For two or three digits programme numbers, press the button for the next digit within 2.5 seconds.

Up/Down moves

Use PR UP/DOWN buttons of the remote control unit or on the front of the set.

SOUND CONTROL

Volume adjustment

Use VOLUME UP/DOWN buttons of the remote control unit or on the front of the set.

Mute

Get sound off by pressing the remote control MUTE ( ) button. Then, logo ( ) is displayed. Sound returns by pressing the same button again.

PICTURE CONTROL

You can choose between three picture settings, using repeatedly remote control NORMAL/OK button :

Normal I (standard hard picture)

Normal II (standard soft picture)

Favourite (you can adjust picture setting as you want, using Picture menu).

For other adjustments : Brightness, contrast, colour, sharpness, see Picture menu. (page 9)

SLEEP FUNCTION

Pressing repetitively the remote control SLEEP button, you can enter one of the following settings :

OFF > 30 min > 60 min > 90 min > 120 min > OFF

The set will be turned off after the time you set.

The remaining time before TV turn-off is displayed on programme status.

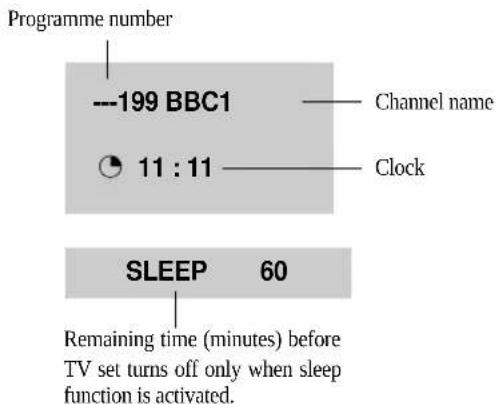

PROGRAMME STATUS DISPLAY

Accessed by the Remote Control RECALL button.

Programme number ---199 BBC1 11 : 11 Channel name Clock SLEEP 60 Remaining time (minutes) before TV set turns off only when sleep function is activated.

Pressing repetitively the RECALL button, you can change channel digit as follow.

\* NOTE

Language selection

Child lock, Clock setting and wake time setting are available in features menu.

MAIN MENU

All menus are removed within 25 seconds if you don't press any button.

Direct selection

Press remote control MENU button to display main menu.

Then, you have the choice among several sub-menus.

If you want to cancel immediately main menu, press MENU button once more.

To select one of the sub-menus, use remote control CURSOR buttons UP, DOWN, LEFT, RIGHT.

To enter the selected sub-menu, press remote control NORMAL/OK button.

HOW TO USE SUB MENUS

* The following is applied to all of the sub-menus.

Select the function you want to change using Remote control CURSOR UP or DOWN button.

Confirm (if needed) by pressing Remote control NORMAL/OK button.

Adjust the function using Remote control CURSOR LEFT or RIGHT button.

Then Return to main menu pressing MENU button.


FEATURES

INSTALL

©

©

MANUAL CHANNEL SETTINGS

Choose starting point

Select with "PROGRAM" function the programme from which you want to start manual tuning. Then, the channel number, the frequency, the name and the programme number of this programme are displayed in the install menu.

Channel searching

Select "FREQ." function.

Press the remote the remote control CURSOR RIGHT / LEFT buttons for more than 3 seconds to start (up / down) manual tuning.

After searching, tuning will stop automatically to the next channel. (To stop searching press the remote control MENU button)

Fine Tuning

If you are unable to get a good picture or sound because of a poor broadcasting signal, it is possible to fine tune a signal.

Select channel frequency ("FREQ.") function.

Press and release the remote control CURSOR

RIGHT/LEFT buttons to fine tune a signal.

Enter station name

Select "NAME" function.

Use the CURSOR RIGHT/LEFT buttons to select the character (letter) you want to modify.

To modify this letter press the CURSOR UP/DOWN buttons until the desired letter is displayed.

Store programme in memory

Select "STORE TO" function

Adjust the programme number you want to store and confirm by pressing the remote control " NORMAL/OK" button.

Remarks: This function can be also used if you want to copy a programme already memorized to another programme number.

MANUAL CHANNEL SETTINGS

You can call up the MENU without the remote control unit. You can enter the MENU directly by pressing the MENU button. If you press the ( ) button over 1 sec, the MENU will be displayed on the screen. : If you press the ( ) button less than 1 sec, the screen will be converted to AV mode.

Move the cursor to the SUB MENU you want by using the PR UP/DOWN buttons and press the VOL UP button, then the SUB MENU will be displayed on the screen. When the SUB MENU is displayed on the screen you can set it by using the PR UP/DOWN or the VOL UP/DOWN buttons. Press the MENU button to return to the previous Menu.

At the EDIT mode, you can't use the MOVE function and DELETE function

Remarks: This function can't be AUTO SETUP.

©

©

The othello game

1. Introduction

Othello is a two player strategy game. Othello is player on an 8 x 8 square board, one taking yellow while the other taking green. The object of Othello is to flip as many of your opponents discs to your color as possible without opponent flipping your discs.

2. The Rules

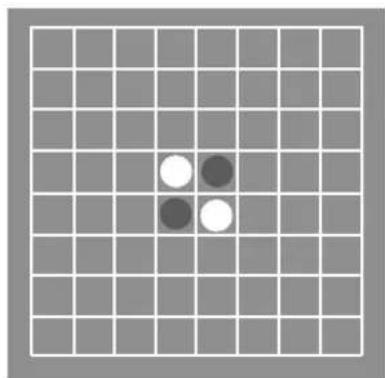

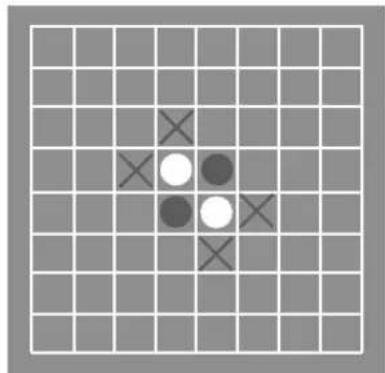

The initial configuration, before the game starts, is:

Grid pattern with four white and two dark circles in the center (no text or symbols)

Green starts playing first. Each player puts one disc on the board at each turn, unless: either no one can move, or one player cannot move, and then the other player can play again. The game ends when no player can move, and the one who has the most discs of his own colors has won. Now how to put a disc on the board? The idea is one can put a disc of his own color at a square, if and only if there is at least one disc of the opposite color immediately surrounding it, and at the extension of this line there is a disc of his own color. For example, at the beginning of the game, green can play at the following squares marked with an X:

Chessboard position with black and white stones arranged in a grid pattern

3. How to Play

1. Press the TV/AV(€) button to open the Game mode RF → AV → S-VHS(Russia option) → GAME

2. Select Opponent This option allow you to choice opponent. You can select Man vs Man or Man vs TV. If you choose Man vs Man, game start directly.

3. Move to your choice :

4. Select your opponent :OK button

5. Select TV level (When opponent is TV) You can change the difficulty level of the TV player. You can select Easy, Medium or Hard.

6. Move to your choice :

7. Select level of the TV :OK button

8. Start game When game is started, the player1(Man) plays green and the player2(Man or TV) yellow. The player1 plays first.

9. Move to your disc :
   Use the Program Up/Down & Volume Up/Down button.

10. Place your disc : Press the OK button.
11. Restart game : Press the MENU button.
12. Quit game : Press the TV/AV button.

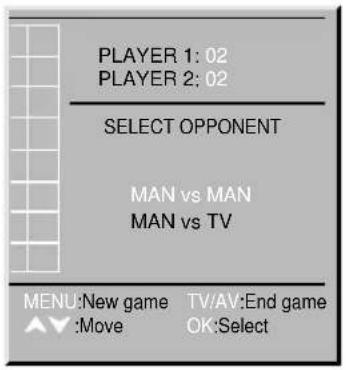

PLAYER 1: 02 PLAYER 2: 02 SELECT OPPONENT MAN vs MAN MAN vs TV MENU: New game TV/AV: End game Move OK: Select

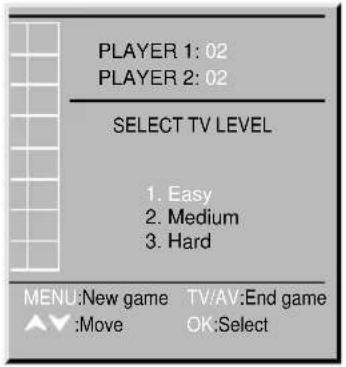

PLAYER 1: 02 PLAYER 2: 02 SELECT TV LEVEL 1. Easy 2. Medium 3. Hard MENU: New game TV/AV: End game ✓: Move OK: Select

※Owing to our policy of continuous product improvement, specifications may change.

Troubleshooting

Sometimes some performance problems can be easily solved by checking seemingly apparent but often overlooked possibilities. Before asking for service, to check these items could save your time and money.

SYMPTOM CHECK
No picture or sound. • Check the TV set is plugged in.• Check the volume, Brightness and Contrast controls are set to the minimum positions.
Picture is OK, but No Sound • Check the Volume control is set to the minimum position.
Sound is OK, but No Picture • Check the Brightness and Contrast controls are set to the minimum position.
No Colour • Check the Colour control is set to the minimum position.
Excessive noise in picture • Check the Antenna Cable is broken or disconnected or damaged.
Diagonal stripes appear on • It may be affected by interfering signal.picture (ex. from nearby amateur radio transmitter or another TV set.)• The interference can be reduced to some extent by adjusting the direction or height of the antenna.(If the twin lead antenna cable is used, replace it with a coaxial cable.)
Picture has "Snow"	• Check the Antenna cable is broken or disconnected or damaged.• Small dot on the screen caused by a weak aerial signal.
Ghost images appear. • Check the Antenna direction has changed after storm or strong wind etc..• Ghost images are caused by a signal reflected from a hill or large building etc..• The direction or height of the antenna should be chosen well in order to minimize the ghost images.
