USER MANUAL KBC 08122.1 Kernau

Interior view of a white refrigerator with open doors and ventilation grilles (no visible text or symbols)

www.kernau.com

SZANOWNY KLIENCIE

Illustration of three hands performing a manual labor technique with a tool, showing different hand positions (no text or symbols present)

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

INSTALACJA I UŻYTKOWANIE WASZEJ LODÓWKI

Cartoon illustration of a distressed refrigerator with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram showing two curved heat exchanger-like structures with a cube inside, each with directional arrows indicating motion (no text or symbols)

CZEŚĆ 2. INFORMACJE O UŻYTKOWANIU

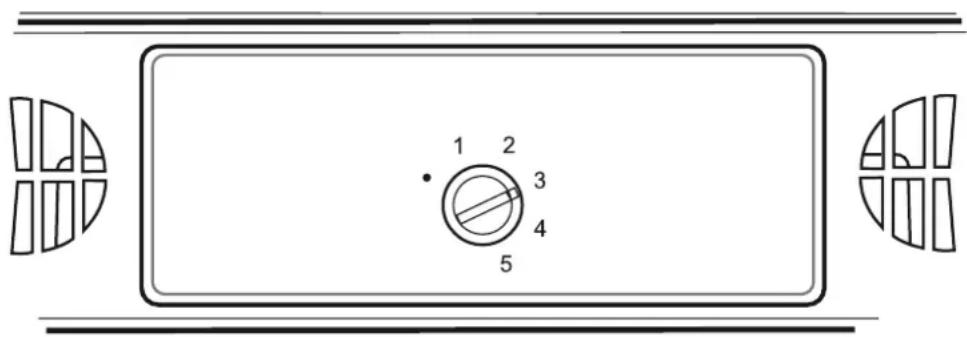

PANEL STEROWANIA

1 2 3 4 5

Cartoon illustration of a smiling refrigerator with thumbs up and a mortar, no text or symbols present

Cartoon illustration of a smiling book character and two baby pills (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand holding a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand pressing down on a rectangular object (no text or symbols)

Rysunek 1

Technical line drawing of two mechanical components: a coiled spring and a housing (no text or symbols)

Rysunek 2

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Diagram of a refrigerator interior with numbered parts for identification

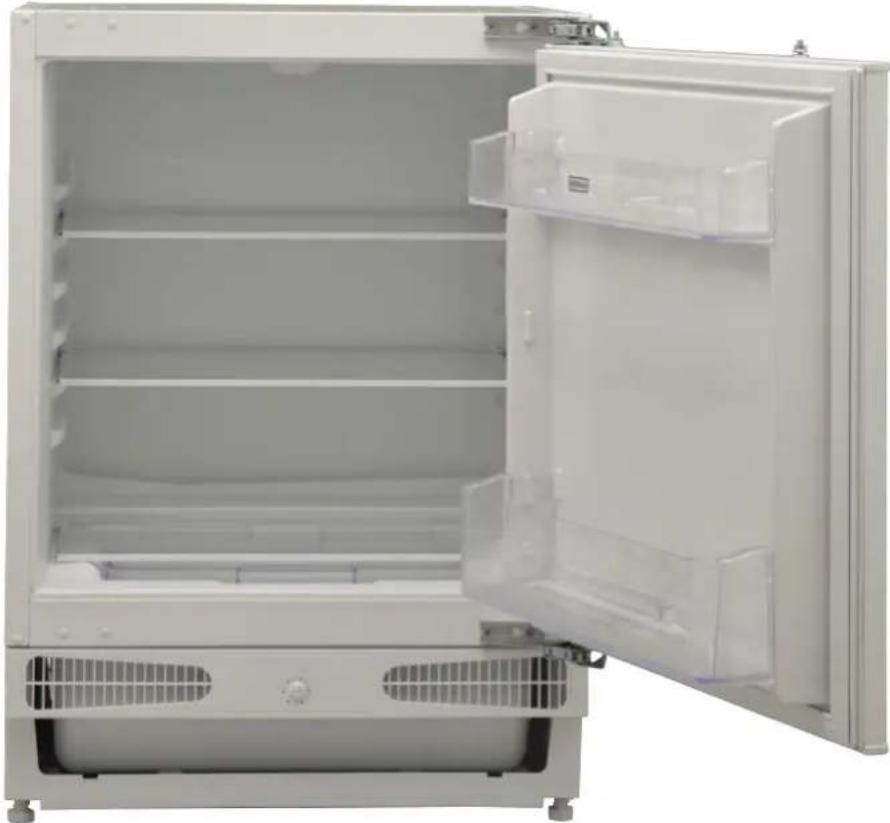

INSTRUCTION BOOKLET BUILD-IN FRIDGE KBC 08122.1

Interior view of a white refrigerator with open door and ventilation grilles (no visible text or symbols)

www.kernau.com

INDEX

PART 1. BEFORE USING THE APPLIANCE ...... 20

GENERAL WARNINGS 20

SAFETY WARNINGS 21

INSTALLING AND OPERATING YOUR FRIDGE 23

PART 2. USING THE APPLIANCE ...... 25

CONTROL PANEL 25

PART 3. FOOD STORAGE 27

PART 4. CLEANING AND MAINTENANCE ...... 28

REPLACING LIGHTBULB 29

PART 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 30

PART 6. BEFORE CALLING FOR AFTER SALES SERVICE .... 31

RECOMMENDATIONS 31

TIPS FOR SAVING ENERGY 32

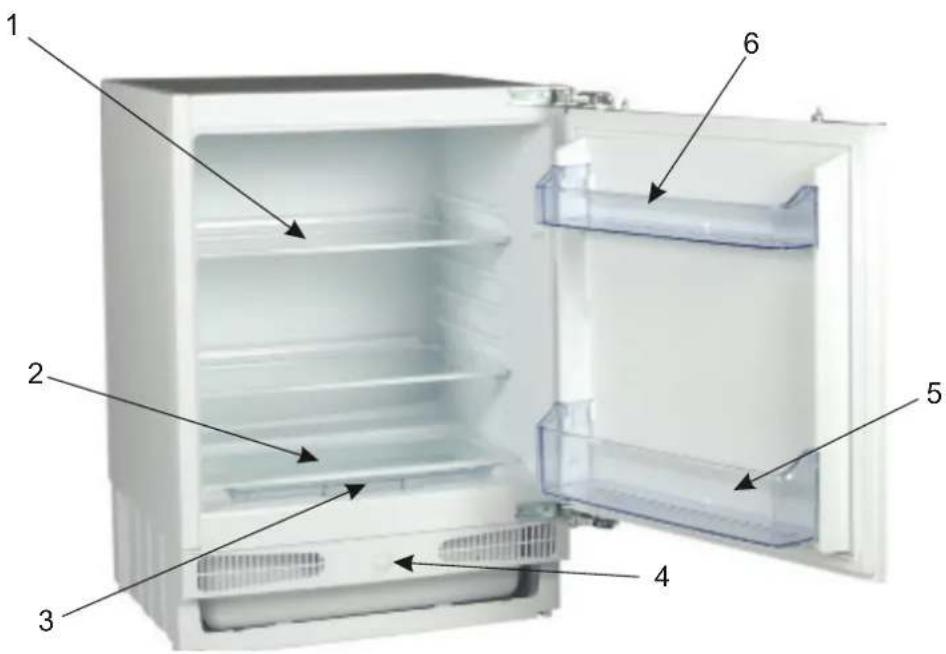

PART 7. PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 33

PART 8. DISPOSAL OF USED EQUIPMENT 34

PART 1. BEFORE USING THE APPLIANCE

GENERAL WARNINGS

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

ISO 7010 W021

WARNING: Fire risk

- If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to home use only.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

NOTES:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

SAFETY WARNINGS

- Do not connect your fridge to the mains electricity supply using an extension lead.

• Do not use damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

Illustration showing three different techniques for using a tool to interact with a cable or wire (no text or symbols present)

• Do not use plug adapter.

- This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.

- Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

- Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

- When the door of the fridge is closed, a vacuum seal will form. Wait for 1 minute before reopening it.

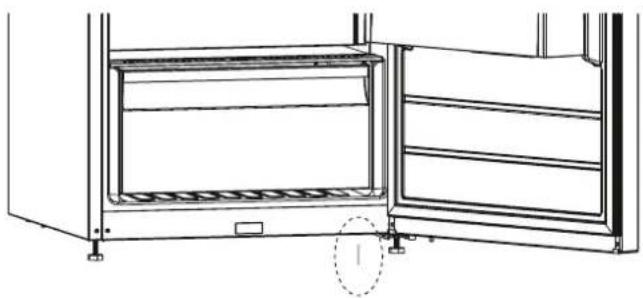

- This application is optional for easy opening of the door. With this application, a little condensation may occur around this area and you may remove it.

Line drawing of a refrigerator interior showing the door, front panel, and side shelves (no text or symbols)

INSTALLING AND OPERATING YOUR FRIDGE

Before starting to use your fridge freezer, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
- Your fridge may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge starts to cool.
- Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
- The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
- Place your fridge where it will not be exposed to direct sunlight.
- Your fridge must never be used outdoors or exposed to rain.
- Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
- If your fridge is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.
- Do not cover the body or top of fridge with lace. This will affect the performance of your fridge.
- Clearance of at least 150 mm is required at the top of your appliance. Do not place anything on top of your appliance.
- Do not place heavy items on the appliance.
- Clean the appliance thoroughly before use (see Cleaning and Maintenance).
- Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge after cleaning.
- Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This must be done before placing food in the appliance.
- Install the two plastic distance guides (the parts on the black vanes -condenser- at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.
- The distance between the appliance and back wall must be a maximum of 75 mm.

Cartoon illustration of a distressed refrigerator with arms and legs, showing facial expressions (no text or symbols)

Diagram showing two curved heat exchanger-like structures with directional arrows indicating flow or movement (no text or symbols)

• When using your fridge freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.
• Your fridge freezer may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

PART 2. USING THE APPLIANCE

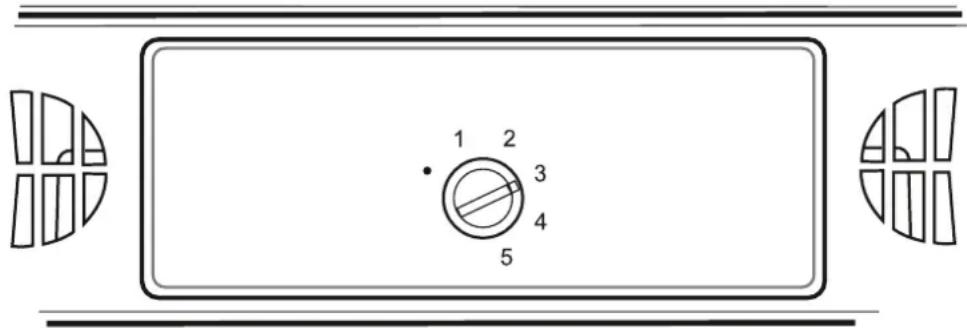

CONTROL PANEL

1 2 3 4 5

The fridge thermostat automatically regulates the temperature of the compartment. Fridge temperatures can be obtained by rotating the knob to higher numbers, 1 to 5.

Important note: Do not try to rotate the knob beyond position 1, it will stop your appliance from working.

• Set the knob to a low/medium position, up to 3, for short-term storage of food in the appliance.
• Set the knob to a medium position, 3 or 4, for long-term storage of food in the appliance.
• For long-term storage of food in the refrigerator, you can set knop maximum position (4 - 5).

Larders (coolers) have not any freezer compartment but can cool up to 4 - 6 °C.

TEMPERATURE SETTINGS WARNINGS

• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the fridge. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10^ C in terms of its efficiency.
• When setting the thermostat, take into consideration how often the appliance door is opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• When the appliance is first switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.
• Unplug your appliance during a power cut to prevent damage to the compressor. Once power is restored, delay plugging in your appliance for 5 to 10 minutes. This will help prevent damage to the appliance's components.
• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.
• Larders (coolers) have not any freezer compartment but can cool up to 4 - 6^ .
• Your appliance is designed to operate in the ambient temperature (SN = 10°C -32°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

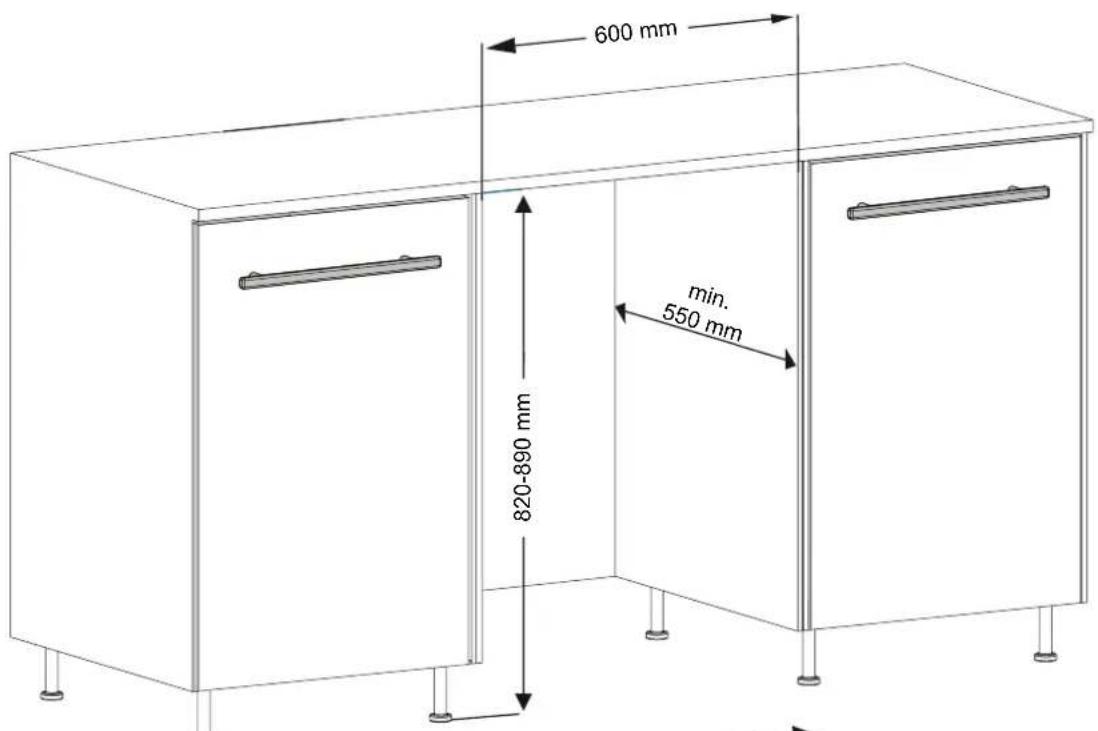

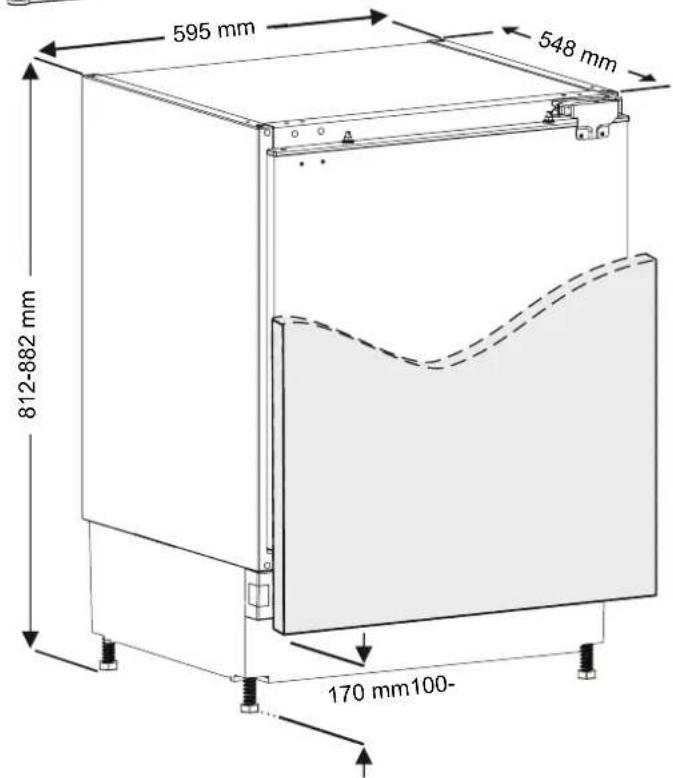

Dimensions

600 mm 820-890 mm min. 550 mm

595 mm 548 mm 812-882 mm 170 mm100-

PART 3. FOOD STORAGE

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.
• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
  • To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

FOOD	MAXIMUM STORING TIME	WHERE TO PLACE IN THE FRIDGE DEPARTMENT
Vegetables and fruits	1 week Vegetable bin
Meat and fish	2 - 3 Days	Wrapped in plastic foil or bags or in a meat container (on the glass shelf)
Fresh cheese	3 - 4 Days	In special door shelf
Butter and margarine	1 week	In special door shelf
Bottled products milk and yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs	1 month	In the egg shelf
Cooked food	—	All shelves

PART 4. CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not clean the appliance by pouring water.

Make sure that no water enters the lamp housing and other electrical components.

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of cleaning items (no text or symbols)

The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

Clean the accessories separately with soap and water Do not clean them in the dishwasher.

Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

THE POWER SUPPLY MUST BE DISCONNECTED DURING CLEANING AND MAINTENANCE.

DEFROSTING

• Defrosting occurs automatically in the refrigerator compartment during operation. The water is collected by the evaporation tray and evaporates automatically.

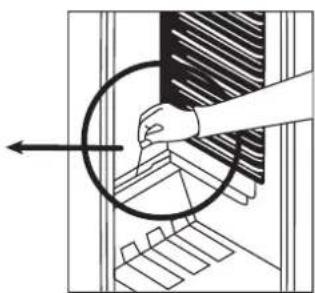

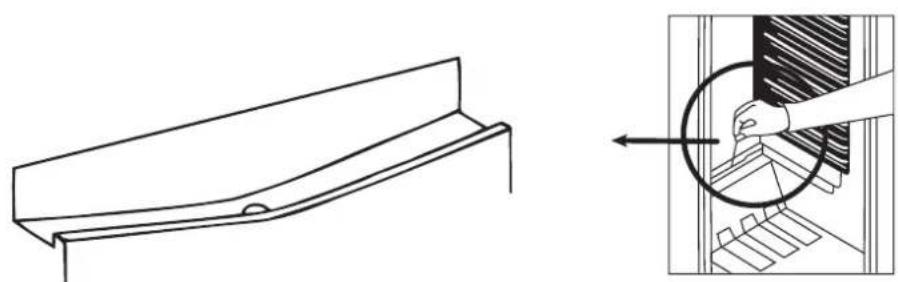

• The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out.
• You can also clean the drain hole by pouring half a glass of water down it.

Technical line drawing of a mechanical component with an inset showing a magnified view of a gear or workpiece (no text or symbols present)

REPLACING THE LIGHT BULB

Important note: Unplug the unit from the power supply before start the process.

1. Unplug the unit from the power supply,

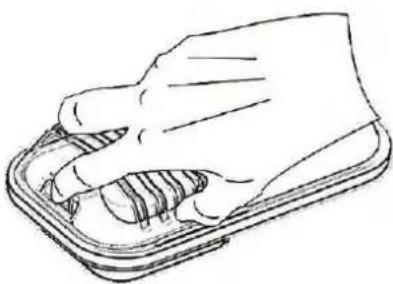

2. . Press the hook in front of the lig cover as in Figure 1 and remove the light cover,

3. . Chang the present light bulb with a new one of not more than 15 W.

4. . Replac the light cover and after waiting 5 minutes plug the unit.

Line drawing of a hand holding a tray with a striped pattern (no text or symbols)

Figure 1

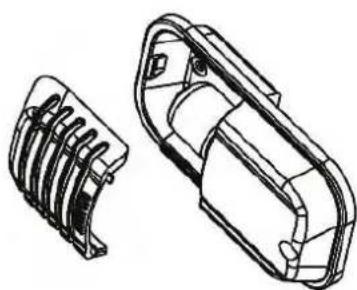

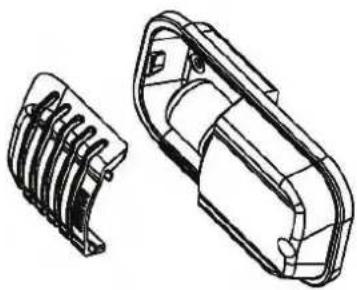

Technical line drawing of two mechanical components: a coiled spring and a housing (no text or symbols)

Figure 2

REPLACING LED LIGHTING

If your appliance has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

• The original packages and foamed polystyrene (PS) can be retained if required.
- During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.
- Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Carry your fridge in the upright position.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

PART 6. BEFORE CALLING FOR AFTER SALES SERVICE

Your fridge will warn you if the temperatures for the cooler is at improper levels or if a problem occurs with the appliance.

The appliance does not operate.

Check if

• There is power
• The plug is correctly connected to the socket
  • The plug or mains fuse has blown

- The socket is faulty. Examine this by plugging your fridge into a working socket.

What to do if your appliance performs poorly.

Check that:

• The appliance is overloaded
• The doors are closed properly
• There is any dust on the condenser
- There is enough space near the rear and side walls.

Normal Noises:

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash: Due to the flow of the refrigerant in the tubes of the system.

Air blowing noise: Indicates normal operation of the system due to the circulation of air.

There is a build-up of humidity inside the cooler

Check if:

• All food is packed properly. Containers must be dry before being placed in the fridge.
• The fridge door is opened frequently. Humidity of the room enters the fridge when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.

The door is not opening and closing properly

Check if:

• There is food or packaging preventing the door from closing
• The door compartments, shelves and drawers are placed properly
• The door joints are broken or torn
- Your fridge is level.

RECOMMENDATIONS

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.

• If you will not use your fridge for a long time (e.g. in summer holidays) unplug it. Clean your fridge according to chapter cleaning and leave the door open to prevent humidity and smell.

• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.

• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
4. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
5. Keep the covers of the different temperature compartments ( such as the crisper and chiller) closed.

6. The door gasket must be clean and pliable. In case of wear, if your gasket is detachable, replace the gasket. If not detachable, you have to replace the door.

7. The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks.

8. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.
   • Repairs may be carried out by technicians only.
9. If a component has to be replaced, ensure that only original spare parts are used.
10. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.
11. Contact information for your customer service can be found on the back of this document.
12. Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Customer service

PL: [phone]

Mon 7:00 - 17:00

Tue-Fri 9:00 - 17:00

[e-mail]

PART 7. PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Diagram of a refrigerator interior with numbered parts for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Refrigerator shelves
2) Crisper cover
3) Crisper
4) Thermostat knob
5) Bottle shelf
6) Egg holder

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

PART 8. DISPOSAL OF USED EQUIPMENT

Fig. A
Fig. B

This device has been designed and manufactured of high-quality reusable materials and components. The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. A crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment. Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials.

Penalties may be imposed in accordance with national legislation for improper disposal of this product.

If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device.

Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

NVOD K OBSLUZE VESTAVĚNÝ CHLADIČ KBC 08122.1

Interior view of a white refrigerator with open doors and ventilation grilles (no visible text or symbols)

www.kernau.com

OBSAH

ČÁST 1. PŘED POUŽITÍM SPOTŘEBIČE ...... 36

VŠEOBECNÁ UPOZORNĚNÍ 36

VAROVÁNÍ 38

INSTALACE A PROVOZ VAŠÍ CHLADNIČKY 39

PŘED POUŽITÍM VAŠÍ CHLADNIČKY 39

ČÁST 2. INFORMACE O POUŽITÍ ...... 41

OVLÁDACÍ PANEL 41

ČÁST 3. ROZMÍSTĚNÍ POTRAVIN VE SPOTŘEBIČI 42

ČÁST 4. ČIŠTĚNÍ A ÚDRŽBA 43

VÝMĚNA LED OSVĚTLENÍ 44

ČÁST 5. PŘEPRAVA A ZMĚNA MÍSTA INSTALACE ...... 45

ČÁST 6. NEŽ KONTAKTUJETE ZÁKAZNICKÝ SERVIS ...... 46

DOPORUČENÍ 47

TIPY PRO ÚSPORU ENERGIE 47

ČÁST 7. ČÁSTI A SOUČÁSTI ZAŘÍZENÍ 48

ČÁST 8. LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ ...... 49

ČÁST 1. PŘED POUŽITÍM SPOTŘEBIČE

VŠEOBECNÁ UPOZORNĚNÍ

Illustration showing three different hand positions (no text or symbols present)

Line drawing of an open refrigerator with a dashed oval highlighting the door (no text or symbols)

INSTALACE A PROVOZ VAŠÍ CHLADNIČKY

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

Diagram showing two curved heat exchanger-like structures with internal components and directional arrows indicating flow or movement (no text or symbols)

PŘED POUŽITÍM VAŠÍ CHLADNIČKY

Cartoon illustration of a smiling refrigerator with thumbs up and a mortar, no text or symbols present

Simple line drawing of a structural beam or support component (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

KERNAU

Cartoon illustration of a smiling rectangular box with two baby bottles beside it (no text or symbols)

VÝMĚNA OSVĚTLOVACÍ ŽÁROVKY

Line drawing of a hand holding a tray with a striped pattern (no text or symbols)

Obr. 1

Technical line drawing of two mechanical components, one with ribbed metal and the other a curved housing (no text or symbols)

Obr. 2

VÝMĚNA LED OSVĚTLENÍ

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Labeled diagram of a refrigerator interior showing six numbered compartments and storage areas

Interior view of a white refrigerator with open doors and ventilation grilles (no visible text or symbols)

www.kernau.com

3MICT

Illustration showing three hands performing a cable or wire manipulation technique (no text or symbols present)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Cartoon illustration of a distressed refrigerator with arms and legs, holding a paper labeled 'KG' (no text or symbols on the refrigerator itself)

Diagram showing two curved heat exchanger-like structures with directional arrows indicating flow or movement (no text or symbols)

Cartoon illustration of a smiling refrigerator with a toothbrush and a mortar, holding a toothbrush (no text or symbols)

Illustration of various household cleaning and cleaning tasks including hand, toilet, refrigerator, laptop, and bag (no text or symbols)

Simple line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Line drawing of a hand holding a tray with striped contents (no text or symbols)

Рисунок 1

Technical line drawing of two mechanical components, one with ribbed end and the other a curved housing (no text or symbols)

Рисунок 2

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Diagram of a refrigerator interior with numbered parts for identification
