Product Type	Freestanding Cooker
Brand	Guzzanti
Model	GZ-8401SE
Dimensions (HxWxD)	85 cm x 60 cm x 60 cm
Weight	55 kg
Power Supply	230 V, 50 Hz, 12 kW
Energy Source	Electric / Gas (check manual)
Hob Type	4 Gas Burners
Oven Type	Electric Fan Oven
Oven Functions	Conventional, Grill, Fan Assisted, Defrost
Grill	Yes, with adjustable power
Cleaning Method	Enamel interior, easy clean
Safety Features	Flame failure device, child lock
Control Type	Knobs and digital timer
Display	Digital LED
Number of Oven Shelves	2
Accesories Included	Baking tray, grill rack, manual
Spare Parts Availability	Yes, through authorized service
Reparability	Modular design, serviceable by professional
Energy Efficiency Class	A (typical)
Noise Level	< 65 dB
Warranty	2 years

Frequently Asked Questions - GZ-8401SE Guzzanti

How do I install the cooker?

Ensure the cooker is placed on a flat, stable surface and connected to the appropriate gas/electric supply by a qualified technician. Refer to the installation section in the manual for clearances and ventilation.

What is the best way to clean the oven?

Use a damp cloth with mild detergent for the enamel interior. Avoid abrasive cleaners. For stubborn stains, use oven cleaner spray. The drip tray and burners can be removed and washed separately.

How do I set the timer?

Press the timer button, then use the +/- keys to set the desired minutes. The timer will count down and beep when finished. Some models have an auto-shutoff feature.

What should I do if the oven is not heating?

First, check if the power supply is connected and the main fuse is intact. Ensure the oven function selector is set to a heating mode. If still not heating, the heating element may be faulty; contact service.

Can I use aluminum foil in the oven?

Yes, but avoid covering the entire rack or touching the heating elements. Aluminum foil can reflect heat and cause uneven cooking or damage if placed incorrectly.

How do I replace a gas burner cap?

Ensure the burner is cool. Simply lift off the old cap and place the new one centrally on the burner head. Check that it sits flat and the flame ports are aligned.

What does the flame failure device do?

The flame failure device automatically cuts off gas supply if the flame goes out, preventing gas leaks. It is a safety feature that activates within a few seconds.

How do I remove the oven door for cleaning?

Open the door fully, then lift the hinge locks and close the door partially until it can be lifted off. Reverse the process to reattach. Refer to manual for specific instructions.

Where can I download the user manual?

You can download the manual for the Guzzanti GZ-8401SE for free from notice-facile.com or the official Guzzanti website. Manual is available in PDF format.

How do I activate the child lock?

Press and hold the child lock button (usually with a padlock icon) for 3-5 seconds until the indicator lights up. To deactivate, repeat the same action.

USER MANUAL GZ-8401SE Guzzanti

Pure electrical circuit lines without any symbols

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Gebrauchsanleitung Instruction manual

OBSAH

BEZPEČNOSTNÍ POKYNY 3

POPIS SPOTŘEBIČE 8

Pohled seshora....8

Ovládací panel 8

Pure electrical circuit lines without any symbols

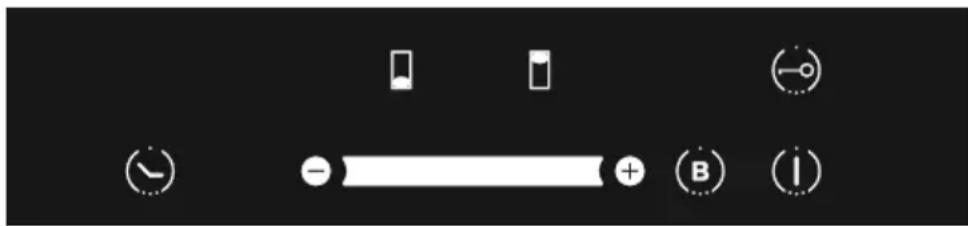

Ovládací panel

Mobile phone status bar with icons for time, battery, and function buttons

Diagram of a machine with steam rising, showing motion lines and control buttons (no text or symbols)

Diagram showing two hand positions with checkmark and cross symbols, likely illustrating correct and incorrect movement.

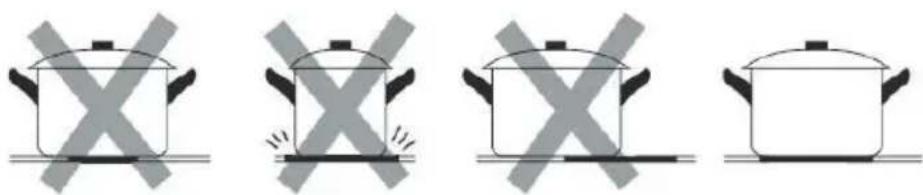

VÝBĚR SPRÁVNÉ VARNÉ NÁDOBY

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Four identical cooking pots with crossed-out X marks, shown in a row (no text or symbols)

Two cooking pots with directional arrows indicating heating or cooling (no text or symbols)

POUŽÍVÁNÍ INDUKČNÍ VARNÉ DESKY

Začínáme vařit

Simple line drawing of a hand pointing upward with a circular symbol on the index finger (no text or labels)

Line drawing of a cooking pot on a stand (no text or symbols)

Two identical black circular objects with plus signs placed side by side within a dashed border (no text or symbols)

Simple diagram of a large black sphere with two side handles, enclosed by a dashed rectangular border (no text or symbols)

Simple diagram of a sphere with two side handles, enclosed in a dashed rectangular border (no text or symbols)

Gray rectangular button with plus and minus signs, enclosed in a dashed border (no text or symbols)

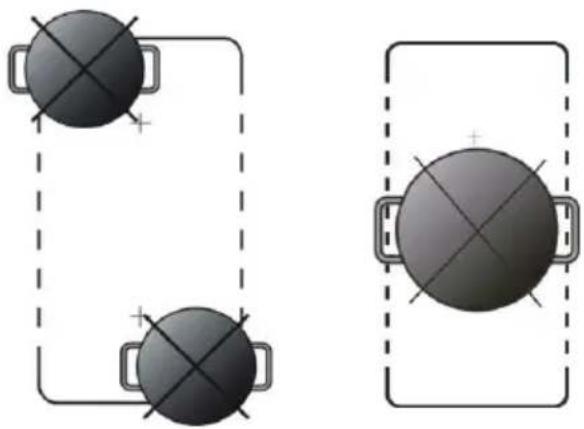

Two identical diagrams showing a circular object with cross marks inside dashed rectangular boundaries, no text or symbols present.

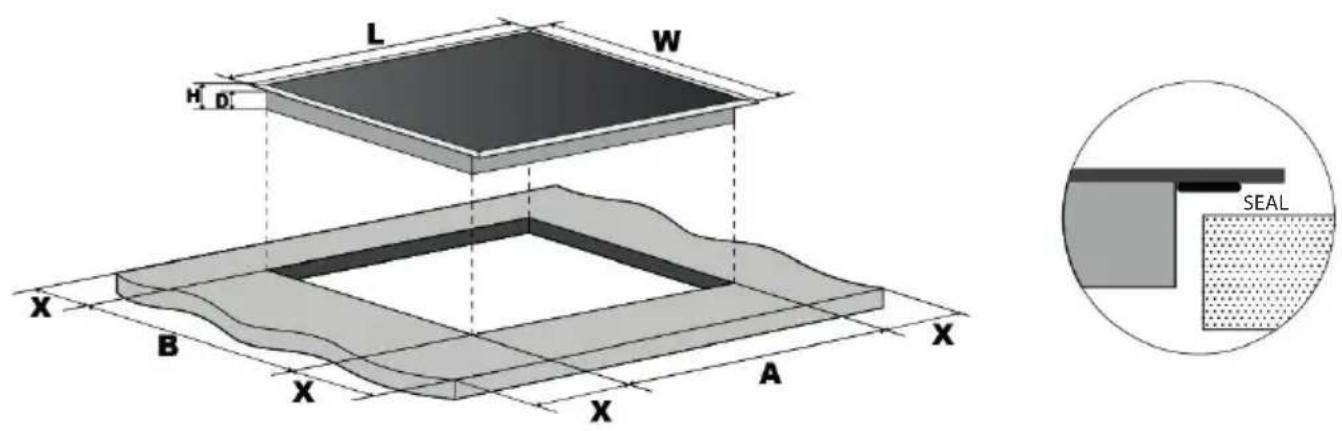

L W H D X B X A X TÉSNÉNÍ

L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
290	520	60	55	265	495	50	mini

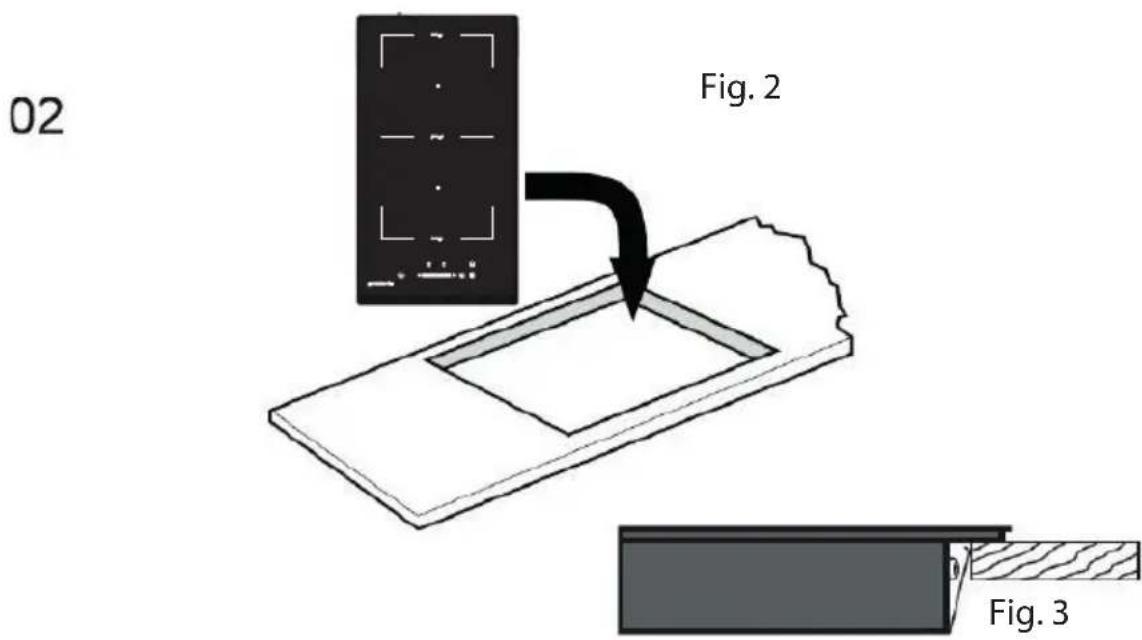

02 Obr. 2 Obr. 3

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Pure electrical circuit lines without any symbols

Mobile phone status bar with icons for time, battery, and function buttons

Diagram of a conveyor belt system with steam rising, showing motion arrows and control buttons (no text or symbols)

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand movement.

VOL'BA SPRÁVNEJ VARNEJ NÁDOBY

Simple line drawing of a cooking pot with a U-shaped tube attached (no text or symbols)

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Four identical cooking pots with crossed-out X marks, shown in a row (no text or symbols)

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or heating conditions.

POUŽITIE INDUKČNEJ VARNEJ DOSKY

Začíname varit'

Simple line drawing of a hand pointing upward with a circular symbol on the index finger (no text or labels)

Line drawing of a cooking pot on a stand (no text or symbols)

Two identical black circular objects with plus signs placed side by side within a dashed border (no text or symbols)

Simple diagram of a large black sphere with two side handles, enclosed by a dashed rectangular border (no text or symbols)

Simple diagram of a sphere with two side handles, enclosed in a dashed rectangular border (no text or symbols)

Gray rectangular button with plus and minus signs, enclosed in a dashed border (no text or symbols)

Two identical diagrams showing a circular object with cross marks inside dashed rectangular boundaries, no text or symbols present.

L W H D X B X A X TESNENIE

L (mm) W (mm) H (mm) D (mm) A (mm) B (mm) X (mm)
290	520	60	55	265	495	50	mini

02 Obr. 2 Obr. 3

Symbol of a trash bin crossed with no visible text or labels

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Pure electrical circuit lines without any symbols

Mobile phone status bar with icons for time, battery, and function buttons

Diagram of a coal cart with steam rising, showing motion lines and control buttons (no text or symbols)

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

WYBÓR ODPOWIEDNIEGO NACZYNIA DO GOTOWANIA

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Four identical cooking pots with crossed-out X marks, arranged horizontally (no text or symbols)

Two cooking pots with crossed arrows indicating heating or cooling (no text or symbols)

KORZYSTANIE Z PŁYTY INDUKCYJNEJ

Zaczynamy gotować

Simple line drawing of a hand with a circular mark on the index finger (no text or symbols)

Line drawing of a cooking pot on a stand (no text or symbols)

Two circular objects with cross marks inside dashed rectangular boundaries, no text or symbols present.

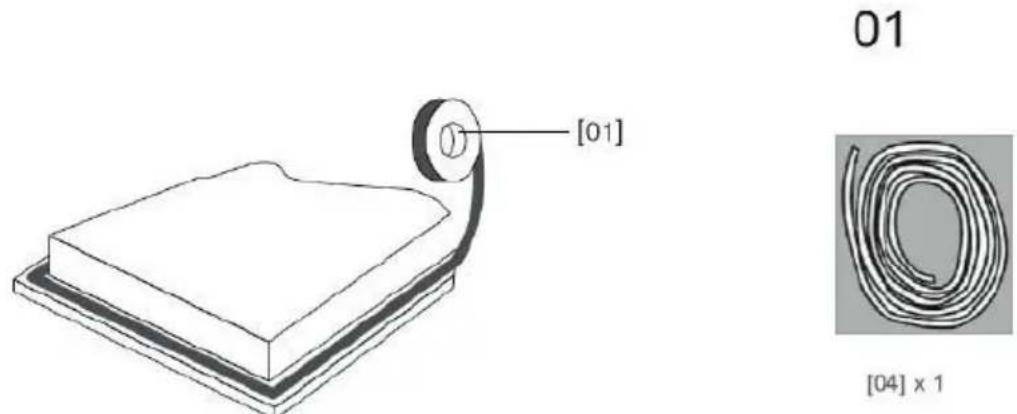

Diagram of a mechanical component with a labeled part [01] and a curved arm (no text or symbols beyond label)

Hand-drawn spiral line drawing with no text or symbols, labeled '01' and '[04] x 1' below (no other readable text or symbols)

Three-panel diagram showing a mechanical or electrical component with checkmark indicators and cross symbols, likely illustrating inspection or modification steps.

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Digital display screen with white control buttons and status bar at bottom

User interface icons including phone, battery, clock, and navigation buttons

Diagram of a machine with steam rising, showing motion lines and control buttons (no text or symbols)

Acél főzőedény

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand movement.

A MEGFELELŐ EDÉNY VÁLASZTÁSA

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Three identical cooking pots with crossed X marks on their bases, placed horizontally (no text or symbols)

Four identical cooking pots with crossed-out X marks, shown in sequence (no text or symbols)

Two cooking pots with directional arrows indicating heating or cooling (no text or symbols)

AZ INDUKCIÓS FÓZÓLAP HASZNÁLATA

A főzés kezdete

Simple line drawing of a hand pointing upward with a circular symbol on the index finger (no text or labels)

Line drawing of a cooking pot on a stand (no text or symbols)

Two identical dark circular objects with plus signs placed side by side within a dashed border (no text or symbols)

Simple diagram of a black circular object with two side handles, enclosed by a dashed rectangular border (no text or symbols)

Simple diagram of a black sphere with two side handles, enclosed in a dashed rectangular border (no text or symbols)

Gray rectangular button with plus and minus signs, enclosed in a dashed border (no text or symbols)

Two identical diagrams showing a circular object with cross marks inside dashed rectangular boundaries, no text or symbols present.

Diagram of a mechanical component with a labeled part [01] and a curved arm (no text or symbols beyond label)

Schematic diagram of a coiled wire or coil with no text or symbols, labeled '01' and '(04) x 1' below (no readable labels or symbols within the diagram itself)

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing environmental hazard (no text present)

FLEXIBLE KOCHZONE 15

Pure electrical circuit lines without any symbols

Bedienblende

Mobile phone status bar with icons for start, stop, battery, and alarm

Diagram of a conveyor belt system with steam rising, showing motion arrows and components (no text or symbols)

Stahlkochgeschirr

Magnetischer Kreis

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand positioning.

AUSWAHL EINES GEEIGNETEN KOCHGESCHIRRS

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Four identical cooking pots with crossed X marks, no text or symbols present

Diagram showing two cooking pots with crossed arrows indicating opposing pressure or heating conditions.

Simple line drawing of a hand pointing upward with a circular icon on the index finger (no text or symbols)

Line drawing of a cooking pot on a stand (no text or symbols)

Two identical black circular objects with plus signs placed vertically, enclosed in a dashed border (no text or symbols)

Simple diagram of a pot with two handles, enclosed in a dashed rectangular frame (no text or symbols)

Simple diagram of a sphere with two side handles, enclosed in a dashed rectangular border (no text or symbols)

Simple gray rectangular shape with plus and minus signs inside, enclosed by a dashed border (no text or symbols)

Two identical diagrams showing a circular object with cross marks inside dashed rectangular boundaries, no text or symbols present.

Three-panel diagram showing a mechanical or electrical component with checkmark indicators and cross symbols, likely illustrating inspection or modification steps.

Symbol of a trash bin crossed with two crossed arms, no text or labels present

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

SAFETY WARNINGS....3

PRODUCT OVERVIEW 8

Top View 8

User interface 8

Heating Zone Power 9

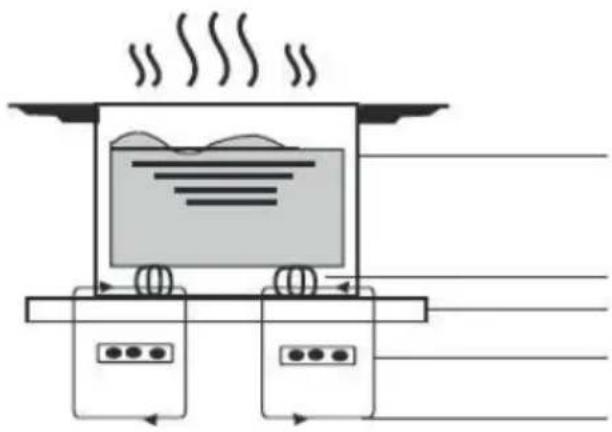

A WORD ON INDUCTION COOKING ....10

BEFORE USING YOUR NEW INDUCTION HOB 10

USING YOUR INDUCTION HOB 12

To start cooking....12

When you have finished cooking....13

Using the Boost function 13

USING CHILD LOCK FUNCTION ....14

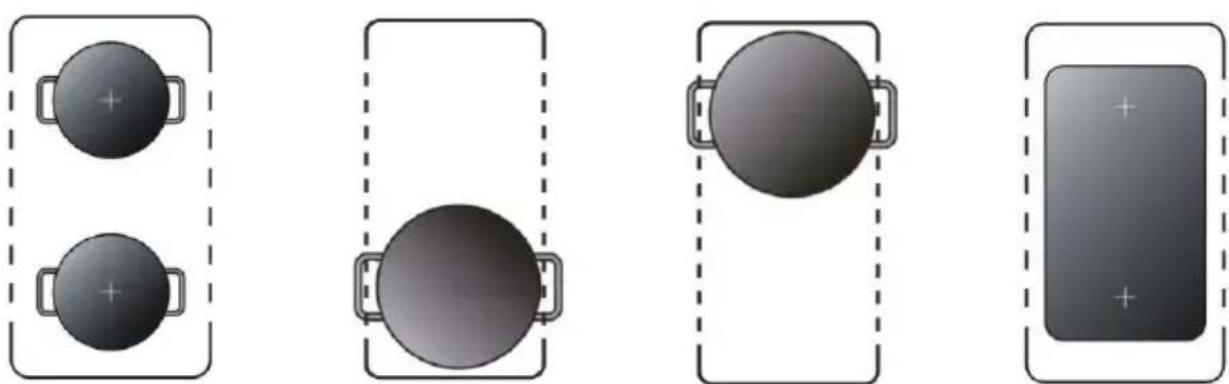

FLEXIBLE AREA....14

OVER-TEMPERATURE PROTECTION ....16

DETECTION OF SMALL ARTICLES....16

AUTO SHUTDOWN PROTECTION ...... 16

USING THE TIMER....17

Using the Timer as a Minute Minder....17

Setting the timer to turn one or more cooking zones off....18

FAILURE DISPLAY AND INSPECTION 19

TECHNICAL SPECIFICATION ....20

INSTALLATION....21

Selection of installation equipment....21

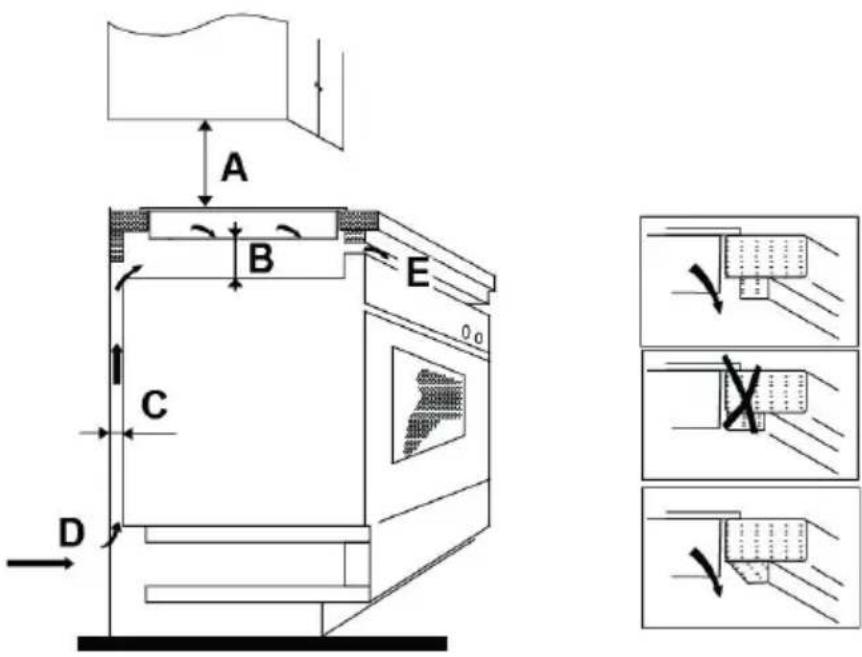

locating the fixing brackets....21

Before you install the hob, make sure that....23

When you have installed the hob, make sure that 24

Connecting the hob to the mains power supply 24

SAFETY WARNINGS

Your safety is important to us. Please read this information before using your cooktop.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a good earth wiring system is essential and mandatory.
  • Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

Important safety instructions

• Read these instructions carefully before installing or using this appliance.
• No combustible material or products should be placed on this appliance at any time.
• Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.
• In order to avoid a hazard, this appliance must be installed according to these instructions for installation.

• This appliance is to be properly installed and earthed only by a suitably qualified person.

• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.

• Failure to install the appliance correctly could invalidate any warranty or liability claims.

Operation and maintenance Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface should break or crack, switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

• This appliance complies with electromagnetic safety standards.
• However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be affected by the electromagnetic field.
• Failure to follow this advice may result in death.

Hot Surface Hazard

- During use, accessible parts of this appliance will become hot enough to cause burns.

• Do not let your body, clothing or any item other than suitable cookware contact the Induction glass until the surface is cool.
  • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot
• Keep children away.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

- The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.

- Failure to use caution could result in injury or cuts.

Important safety instructions

- Never leave the appliance unattended when in use. Boilover causes smoking and greasy spillovers that may ignite.

• Never use your appliance as a work or storage surface.

• Never leave any objects or utensils on the appliance.

- Do not place or leave any magnetisable objects (e.g. credit cards, memory cards) or electronic devices (e.g. computers, MP3 players) near the appliance, as they may be affected by its electromagnetic field.

• Never use your appliance for warming or heating the room.

• After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.

• Do not allow children to play with the appliance or sit, stand, or climb on it.
• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Children or persons with a disability which limits their ability to use the appliance should have a responsible and competent person to instruct them in its use. The instructor should be satisfied that they can use the appliance without danger to themselves or their surroundings.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
  • Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the Induction glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the Induction glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

- WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. •WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.

• A steam cleaner is not to be used.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Congratulations on the purchase of your new Induction Hob.

We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it.

For installation, please read the installation section.

Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

PRODUCT OVERVIEW

Top View

Pure electrical circuit lines without any symbols

User interface

Mobile phone status bar with icons for start, stop, battery, and alarm

Reference Description
A		Zone select key
B		Child lock key
C		ON/OFF key
D Power/Timer slider regulating key
E		Boost control key
F		Timer key

Heating Zone Power

Heating Zone Max. Power (220-240V- 50/60 Hz)
	2000 W/2800 W (Booster)
	1500 W/2000 W (Booster)
Total Rating Power 3500 W

A WORD ON INDUCTION COOKING

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Diagram of a machine with steam rising, showing motion lines and control buttons (no text or symbols)

iron pot

magnetic circuit ceramic glass plate

induction coil

induced currents

BEFORE USING YOUR NEW INDUCTION HOB

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your Induction hob.

• The controls respond to touch, so you don't need to apply any pressure.
• Use the ball of your finger, not its tip.
• You will hear a beep each time a touch is registered.
- Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand positions on a line with checkmark and cross symbols, likely illustrating correct and incorrect hand movement.

CHOOSING THE RIGHT COOKWARE

• Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.

• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.
  • If you do not have a magnet:

• Put some water in the pan you want to check.

• 4 does not flash in the display and the water is heating, the pan is suitable.

• Cookware made from the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Simple line drawing of a cooking pot with a U-shaped tube attached to its side (no text or symbols)

Do not use cookware with jagged edges or a curved base.

Three identical cooking pots with crossed X marks on their bases, no text or symbols present

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Use pans whose diameter is as large as the graphic of the zone selected. Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm could be undetected by the hob. Always centre your pan on the cooking zone.

Four identical cooking pots with crossed-out X marks, shown in a row (no text or symbols)

Always lift pans off the Induction hob - do not slide, or they may scratch the glass.

Two cooking pots with crossed arrows indicating heating or cooling (no text or symbols)

USING YOUR INDUCTION HOB

To start cooking

1. Touch the ON/OFF control.

After power on, the buzzer beeps once, all displays show “-”, indicating that the induction hob has entered the state of standby mode.

Simple line drawing of a hand pointing upward with a circular mark on the index finger (no text or symbols)

1. Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

Line drawing of a cooking pot on a stand (no text or symbols)

1. According to the heating zone where the pan is placed, select a relevant zone select key by pressing key (A). The symbol 0. selected will stay fully it.

2. Adjust heat setting by touching the slider regulating key (D) control.

POWER DOWN

POWER UP

• If you don't choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1.
  • You can modify the heat setting at any time during cooking.

If the display flashes alternately with the heat setting

This means that:

• You have not placed a pan on the correct cooking zone or,
- The pan you're using is not suitable for induction cooking or,
- The pan is too small or not properly centred on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically turn off after 1 minute if no suitable pan is placed on it.

When you have finished cooking

1. Touching the relevant zone select key (A) that you wish to switch off.
2. Press the slider regulating key (D) control to "0" level.
3. Beware of hot surfaces "H" will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Using the Boost function

Activated the boost function

1. Select the heating zone by touching the zone select key (A).
2. Touching the boost control key (B), the zone indicator show "P." and the power reach Max.

Cancel the Boostr function

1. Touching the relevant zone select key (A) that you wish to cancel.
2. Touching the slider regulating key (D) to cancel the Boost function, then the cooking zone will revert to level 9.

• The function can work in any cooking zone.

• The cooking zone returns to level 9 after 5 minutes.

USING CHILD LOCK FUNCTION

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the OFF control are disabled.

To lock the controls

Touch the keylock control for 3 seconds. The timer indicator will show "Lo".

To unlock the controls

1. Make sure the Induction hob is turned on.
2. Touch and hold the keylock control for a while.
3. You can now start using your Induction hob.

When the hob is in the lock mode, all the controls are disable except OFF, you can always turn the hob off with the OFF control in an emergency, but you shall unlock the hob first in the next operation.

FLEXIBLE AREA

• This area can be used as a single zone, accordingly to the cooking needs anytime.
- Flexible area is made of two independent inductors that can be controlled separately. When working as a single zone, a cookware is moved from one zone to the other one within the flexible area keeping the same power level of the zone where the cookware originally was placed, and the part that is not covered by cookware is automatically switched off.
- Important: Make sure to place the cookwares centered on the single cooking zone. The ideal recipe is an oval or rectangular saucepan, or a saucepan.

Examples of good pot placement and bad pot placement.

Two identical diagrams showing a circular object with cross marks inside dashed rectangular boundaries, no text or symbols present.

1. To activate the flexible area as a single big zone, press the zone selected key at the same time for the left or press the zone selected key at the same time for the right.

2. The flexible zone indicator and next to the power lever indicator will be light up.

9 n 9 u

1. According to the heating zone where the pan is placed, adjust heat setting by touching the front left zone slider regulating key (E) control.

POWER DOWN

POWER UP

1. If the pot is moved from the front to the rear part (or viceversa), the flexible area detects automatically the new position, keeping the same power.

OVER-TEMPERATURE PROTECTION

A temperature sensor equipped can monitor the temperature inside the Induction hob. When an excessive temperature is monitored, the Induction hob will stop operation automatically.

DETECTION OF SMALL ARTICLES

When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute.

AUTO SHUTDOWN PROTECTION

Auto shut down is a safety protection function for your induction hob. It shut down automatically if ever you forget to turn off your cooking. The default working times for various power levels are shown in the below table:

Power level 1~3 4~6 7~8 9
Default working timer (min) 240 180 120 90

When the pot is removed, the induction hob can stop heating immediately and the hob automatically switch off after 2 minute.

People with a heart pace maker should consult with their doctor before using this unit.

USING THE TIMER

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
  • You can set it to turn one cooking zone off after the set time is up.
  • You can set the timer for up to 99 minutes.

Using the Timer as a Minute Minder

If you are not selecting any cooking zone

1. Make sure the cooktop is turned on.

Note: you can use the minute minder even if you're not selecting any cooking zone.

1. Touch the Timer key (F). The minder indicator will start flashing "10", and you can set the timer at this point.

1=0

1. Using the "+" or "-" buttons, you can realize the setting of timing from 1 to 99 minutes.

Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute.

Touch and hold the "-" or "+" control of the timer to decrease or increase by 10 minutes.

Touching the "-" and "+" together, the timer is cancelled, and the. timer indicator will turn off.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time.
2. Buzzer will bips for 30 seconds and the timer indicator will turn off when the setting time finished.

Note: minute minder only work at normal model.

Setting the timer to turn one or more cooking zones off

If the timer is set on one zone:

1. Select the relevant cooking zone which is working by touching the zone select key

(A)

1. Press the Timer key (F), the minder indicator will start flashing "10", and you can set the timer at this point.

10

1. Using the "+" or "-" buttons, you can realize the setting of timing from 1 to 99 minutes.

Hint: Touch the “-” or “+” control of the timer once to decrease or increase by 1 minute.

Touch and hold the “-” or “+” control of the timer to decrease or increase by 10 minutes.

Touching the "-" and "+" together, the timer is cancelled, and the. timer indicator will turn off.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator flash for 5 seconds.

NOTE: The red dot next to power level indicator will illuminate indicating that zone is selected.

1. When cooking timer expires, the corresponding cooking zone will be switch off automatically.

Other cooking zone will keep operating if they are turned on previously.

1. When using "the timer as an alarm" and "the timer to switch off the zones" together, the display will show the remaining time of alarm as first priority. Press cooking zone to show the remaining time of switch off timer.

FAILURE DISPLAY AND INSPECTION

If an abnormality comes up, the induction hob will enter the protective state automatically and display corresponding protective codes:

Error Message	Possible Cause What to do
U	No pot or pot not suitable. Replace the pot.
ER03	Water or pot on the glass over the control.	Clean the user interface.
FI	The connection between the display board and the mainboard is fail.	1. Connection cable not correctly plugged or defective.2. Replace the coil sensor if connection cable is ok.3. Replace the mainboard or power if coil sensor are OK.
F3E	Coil temperature sensor failure, (the cooking zone which indicator showing “E”).	Replace the coil sensor.
F4E	Mainboard temperature sensor failure, (the cooking zone which indicator showing “E”).	Replace the mainboard.
E1E	Temperature sensor of the ceramic glass plate is high.	Please restart after the induction hob cools down.
E2 E	Temperature sensor of the IGBT is high.	Please restart after the induction hob cools down.
E3 E	Abnormal supply voltage (too high).	Please inspect whether power supply is normal. Power on after the power supply is normal.
E4 E	Abnormal supply voltage (too low).	Please inspect whether power supply is normal. Power on after the power supply is normal.
E5 E	Temperature sensor failure (the cooking zone which indicator showing “E”).	Connection cable not correctly plugged or assemble defective.

The above are the judgment and inspection of common failures.

Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob and please contact the supplier.

TECHNICAL SPECIFICATION

Cooking Zones

2 Zones

Supply Voltage 220-240 V\~

Installed Electric Power 3500 W

Product Size L x W x H (mm) 290 x 520 x 60

Building-in Dimensions A x B (mm) 265 x 495

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

INSTALLATION

Selection of installation equipment

Cut out the work surface according to the sizes shown in the drawing.

For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole.

Be sure the thickness of the work surface is at least 30 mm. Please select heat-resistant work surface material to avoid larger deformation caused by the heat radiation from the hotplate. As shown below:

L W H D X B X A X SEAL

L (mm) W (mm) H (mm)				D (mm) A (mm) B (mm)			X (mm)
290	520	60	55	265	495	50 mini

locating the fixing brackets

- The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob.

Fig. 1

[01] 01 [04] x 1

Stretch out the supplied along the underside edge of the hob, ensuring the ends overlap.

02 Fig. 2 Fig. 3

Do not use adhesive to fix the hob into the worktop. Once the seal is fitted position the hob into the cutout in the worktop. Apply gentle downwards pressure onto the hob to push it into the worktop ensuring a good seal around the outer edge (fig.3).

Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below.

Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm.

A B E C D 0.0

Before you install the hob, make sure that

• The work surface is square and level, and no structural members interfere with space requirements.
  • The work surface is made of a heat-resistant material.
  • If the hob is installed above an oven, the oven has a built-in cooling fan.
• The installation will comply with all clearance requirements and applicable standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring, mounted and positioned to comply with the local wiring rules and regulations.

The isolating switch must be of an approved type and provide a 3 mm air gap contact separation in all poles (or in all active [phase] conductors if the local wiring rules allow for this variation of the requirements).

• The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation.
- You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of fresh air from outside the cabinetry to the base of the hob.
- If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

Cautions

1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself.
2. The hob will not be installed directly above a dishwasher, fridge, freezer, washing machine or clothes dryer, as the humidity may damage the hob electronics.
3. The induction hotplate shall be installed such that better heat radiation can be ensured to enhance its reliability.
4. The wall and induced heating zone above the table surface shall withstand heat.
5. To avoid any damage, the sandwich layer and adhesive must be resistant to heat.

Connecting the hob to the mains power supply

This hob must be connected to the mains power supply only by a suitably qualified person.

Before connecting the hob to the mains power supply, check that:

1. The domestic wiring system is suitable for the power drawn by the hob.
2. The voltage corresponds to the value given in the rating plate
3. The power supply cable sections can withstand the load specified on the rating plate.

To connect the hob to the mains power supply, do not use adapters, reducers, or branching devices, as they can cause overheating and fire.

The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75^ C at any point.

Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician.

	220-240V~	220-240V~

• If the cable is damaged or to be replaced, the operation must be carried out the by after-sale agent with dedicated tools to avoid any accidents.
• If the appliance is being connected directly to the mains an omnipolar circuit-breaker must be installed with a minimum opening of 3mm between contacts.
• The installer must ensure that the correct electrical connection has been made and that it is compliant with safety regulations.
  • The cable must not be bent or compressed.
  • The cable must be checked regularly and replaced by authorised technicians only.

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recover and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
