Product Type	Multimeter with Thermal Imaging
Brand	FLIR
Model	IM75
Measuring Functions	AC/DC Voltage, AC/DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode Test, Continuity, Temperature (Type K), Thermal Imaging
Display	3.5-inch color LCD with thermal overlay
Thermal Resolution	80x60 pixels
Temperature Measurement Range (Thermal)	-10°C to 400°C
Voltage Measurement Range	0.1 mV to 1000 V AC/DC
Current Measurement Range	0.1 µA to 20 A AC/DC
Resistance Range	0.1 Ω to 40 MΩ
Safety Rating	CAT IV 600V, CAT III 1000V
Power Source	9V alkaline battery (1 included)
Dimensions (HxWxD)	190 x 85 x 45 mm
Weight	350 g (with battery)
Accessories Included	Test leads, alligator clips, Type K thermocouple, battery, user manual
Maintenance and Cleaning	Wipe with a damp cloth; do not use solvents or abrasives
Reparability	No user-serviceable parts; contact FLIR service for repairs
Certifications	CE, UL, RoHS

Frequently Asked Questions - IM75 FLIR

How do I replace the battery in the FLIR IM75?

Turn off the meter. Open the battery compartment on the back. Remove the old 9V battery and insert a new one, observing polarity. Close the compartment securely.

Can I measure AC and DC current with the same input?

Yes, the FLIR IM75 measures both AC and DC current. Select the appropriate function using the rotary switch and connect the leads in series with the circuit.

What is the thermal imaging resolution?

The thermal imaging resolution is 80x60 pixels, allowing you to detect hot spots and temperature differences.

How do I perform a diode test?

Set the rotary switch to the diode symbol. Connect the red lead to the anode and black lead to the cathode. The display shows the forward voltage drop. A good diode typically reads 0.5-0.8V.

What does CAT IV 600V safety rating mean?

CAT IV 600V means the meter can be used on circuits rated up to 600V with high transient overvoltage, such as main service entrances and utility equipment.

How do I clean the FLIR IM75?

Use a soft, damp cloth with mild soap. Do not use solvents, abrasives, or immerse in water. Dry thoroughly before use.

What is the maximum voltage I can measure?

The maximum voltage is 1000V for both AC and DC. Always ensure the leads and meter are rated for the voltage level.

Can I use the meter with a thermal camera?

The FLIR IM75 itself includes a built-in thermal camera. It does not require an external unit. The thermal image is displayed on the screen with visual overlays.

How do I measure temperature with a thermocouple?

Plug the Type K thermocouple into the dedicated input (often COM and V/Ω/Hz). Set the rotary switch to temperature (C/F). Touch the probe to the object and read the display.

What should I do if the meter does not turn on?

Check the battery: replace if low. Ensure the rotary switch is not between positions. If still no power, remove the battery for a minute and reinsert. If problem persists, contact FLIR support.

USER MANUAL IM75 FLIR

1.1 Copyright 4
1.2 Quality Assurance 4
1.3 Documentaon 4
1.4 Disposal of Electronic Waste 4

2. SAFETY 5

2.1 FCC Compliance 6
2.2 Industry Canada Compliance 7

3. INTRODUCTION 8

3.1 Key Features 8

4. METER DESCRIPTION 9

4.1 Meter Secons 9
4.2 Funcon Switch Posions 10
4.3 Funcon Buons, Selector Pad, and Rotary Switch 10
4.3.1 Selector Pad 11
4.3.2 Rotary Switch 11
4.4 Display Descripon 12
4.5 Display Icons and Indicators 13

5. OPERATION 14

5.1 Powering the Meter 14
5.1.1 Auto Power O 14
5.2 Manual AC/DC Selecon 14
5.3 Auto Range 14
5.4 'Smart' Out-of-Range Warnings 14
5.5 Data Hold and Auto-Hold Modes 14
5.5.1 Data Hold Mode 14
5.6 Voltage Measurements 15
5.7 Insulaon Resistance Measurements 15
5.7.1 PI/DAR Test 15
5.8 Earth Bond Resistance Measurements (ZERO Ω) 16
5.9 Connuity Test 16

5.10 Diode Test 17
5.11 Capacitance Measurements 17
5.12 Extended Funconality 18

5.12.1 Selecng Modes 18
5.12.2 VFD Mode (ACV only) 18
5.12.3 Frequency Mode (ACV only) 18
5.12.4 Pass/Fail Mode (COMPARE) 18
5.12.5 Setup Ulity 18
5.12.6 Silent Mode 19
5.12.7 Data Recording Mode (99-point) 19

5.13 Keypad Lockout 19
5.14 Streaming Measurement Data using Bluetooth® 20

5.14.1 General 20
5.14.2 Procedure for Camera pairing 20
5.14.3 Procedure for FLIR TOOLS App 20

6. MAINTENANCE 21

6.1 Cleaning and Storage 21
6.2 Baery Replacement 21
6.3 Fuse Replacement 21
6.4 Disposal of Electronic Waste 21

7. SPECIFICATIONS 22

7.1 General specicaons 22
7.2 Electrical Range Specicaons 23
7.3 Input Specicaons 26

8. TECHNICAL SUPPORT 27

9. WARRANTIES 27

9.1 FLIR Global Limited Lifetime Warranty 27
9.2 FLIR Test and Measurement Limited 2 Year Warranty 28

1.1 Copyright

© 2014-2017, FLIR Systems, Inc. All rights reserved worldwide. No parts of the soware including source code may be reproduced, transmied, transcribed or translated into any language or computer language in any form or by any means, electronic, magnec, opcal, manual or otherwise, without the prior written permission of FLIR Systems.

The documentaon must not, in whole or part, be copied, photocopied, reproduced, translated or transmied to any electronic medium or machine readable form without prior consent, in wring, from FLIR Systems.

Names and marks appearing on the products herein are either registered trademarks or trademarks of FLIR Systems and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are used for idencaon only and are the property of their respective owners.

1.2 Quality Assurance

The Quality Management System under which these products are developed and manufactured has been cered in accordance with the ISO 9001 standard.

FLIR Systems is commied to a policy of connuous development; therefore, we reserve the right to make changes and improvements on any of the products without prior noce.

1.3 Documentaon

To access the latest manuals and nocaons, go to the Download tab at: hp://support.ir.com. It only takes a few minutes to register online. In the download area you will also nd the latest releases of manuals for our other products, as well as manuals for our historical and obsolete products.

1.4 Disposal of Electronic Waste

As with most electronic products, this equipment must be disposed of in an environmentally friendly way, and in accordance with existing regulations for electronic waste.

Please contact your FLIR Systems representave for more details.

Safety Notes

• Before operang the device, you must read, understand, and follow all instrucons, dangers, warnings, cauons, and notes.
• FLIR Systems reserves the right to disconnue models, parts or accessories, and other items, or to change specicaons at any me without prior noce.
• Remove the baeries if the device is not used for an extended period of me.

Warning Statements

• Do not operate the device if you do not have the correct knowledge. Formal qualicaons and/or naonal legislaon for the electrical inspecons can apply. Incorrect operaon of the device can cause damage, shock, injury or death to persons.
• Do not start the measuring procedure before you have set the funcon switch to the correct posion. This can cause damage to the instrument and can cause injury to persons.
• Do not change to resistance when you measure the voltage. This can cause damage to the instrument and can cause injury to persons.
• You must disconnect the test leads from the circuit that you did a test on before you change the range. If you do not do this, damage to the instrument and injury to persons can occur.
• Do not replace the baeries before you remove the test leads. This can cause damage to the instrument and can cause injury to persons.
• Do not use the device if the test leads and/or the device show signs of damage. Injury to persons can occur.
• Be careful when you do the measurements if the voltages are more than 25 VAC rms or 35 VDC. There is a risk of shock from these voltages. Injury to persons can occur.
• Do not do diode, resistance or connuity tests before you have removed the power from capacitors and other devices under test during a measurement. Injury to persons can occur.
• Do not use the device as a tool to identify live terminals. You must use the correct tools. Injury to persons can occur if you do not use the correct tools.
• Make sure that children cannot touch the device. The device contains dangerous objects and small parts that children can swallow. If a child swallows an object or a part, speak with a physician immediately. Injury to persons can occur.
• Do not let children play with the baeries and/or the packing material. These can be dangerous for children if they use them as toys.
• Do not touch expired or damaged baeries without gloves. Injury to persons can occur.
• Do not cause a short-circuit of the baeries. This can cause damage to the instrument and can cause injury to persons.
• Do not put the baeries into a re. Injury to persons can occur.

Cauons

Do not use the device for a procedure that it is not made for. This can cause damage to the protecon.

	This symbol, adjacent to another symbol or terminal, indicates that the user must refer to the manual for further informaon.
	This symbol, adjacent to a terminal, indicates that, under normal use, hazardous voltages may be present.
	Double insulaon.

UL lisng is not an indicaon or a vericaon of the accuracy of the meter

2.1 FCC Compliance

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference in a residential installaon. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucons, may cause harmful interference to radio communicaons. However, there is no guarantee that interference will not occur in a parcular installaon. If this equipment does cause harmful interference to radio or television recepon, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separaon between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

WARNING

Changes or modicaons not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

2.2 Industry Canada Compliance

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

This device complies with Industry Canada license-exempt RSS standard(s). Operaon is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operaon of the device.

3. Introducon

Thank you for selecng the FLIR IM75 Insulaon MulMeter. This device is shipped fully tested and calibrated and, with proper use, will provide years of reliable service.

3.1 Key Features

• 4000 count extra-large digital dual display with backlighng
  • Auto Range with smart over-range indicacn
  • Auto Hold and Standard Data Hold features
• On-screen menu selecon and navigator key drive
  • Variable-frequency drive mode (low-pass Iter)
• Front panel insulaon resistance test voltage selector
  • COMPARE feature with front panel color coded PASS/FAIL LED indicacn
  • 0.1% DCV accuracy
  • 99-record data record/recall memory
  • High power built-in work lights
• Bluetooth® interface
  • Safety Category Rang: CAT IV-600V, CAT III-1000V

4. Meter Descripon

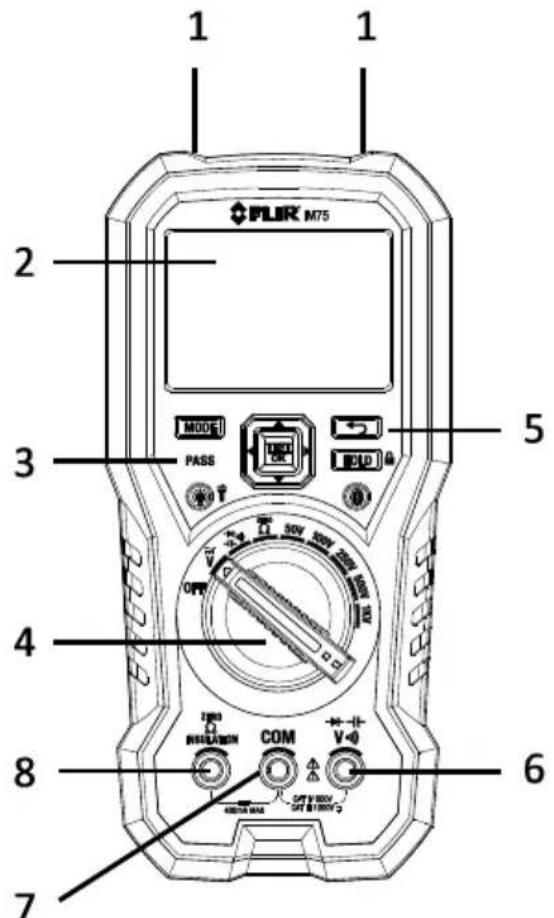

4.1 Meter Secons

1. Courtesy Work lights
2. LCD Display
3. Pass-Fail (green/red) LED
4. Rotary Funcon Switch
5. Funcon Buons (detailed below)
6. Posive (+) probe input jack for Voltage, Capacitance, Diode, & Connuity
7. COM (negave - ) probe input jack
8. Posive (+) probe input jack for insulaon resistance and earth bond resistance

Fig 4-1 Front View

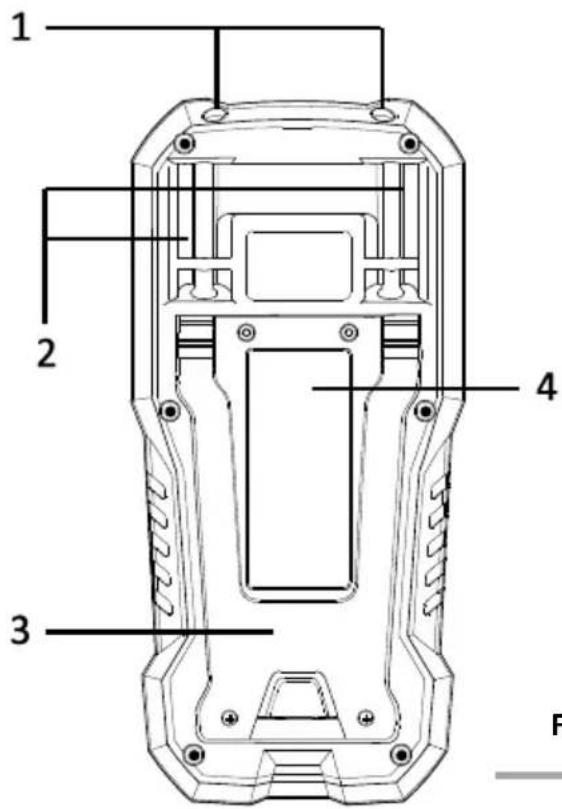

1. Courtesy Work Lights
2. Test Probe Holders
3. Tilt Stand
4. Baery and Fuse Access

Fig 4-2 Rear View

4.2 Funcon Switch Posions

OFF	The meter is switched OFF and in full power-saving mode.
	The meter can measure voltage (V) through the probe inputs.
	The meter can measure capacitance, diode polarity or connuity through the probe inputs. The type of measurement is chosen by the MODE buon.
ZERO Ω	Earth Bond Resistance tesng mode.
50V, 100V, 250V, 500V, 1KV: Insulaon resistance test voltage selecons

4.3 Funcon Buons, Selector Pad, and Rotary Switch

	Use this buon to change the operang mode of the meter (ex: AC vs. DC)Also selects Insulaon Resistance values to compare for PASS/FAIL tesng
	Press to HOLD readings on the display during normal DMM measuring modes (see Secon 5.5 Data Hold and Auto-Hold Modes). Press and hold for Keypad lockout mode (see Secon 5.13 Keypad Lockout).In INSULATION TESTING MODE this buon will serve to enable the test lock funcon for connuous insulaon resistance tesng. See Secon 5.7 Insulaon Resistance Measurements for further informaon.
	Use this Selector Pad to start/stop Insulaon Resistance Tests, to enable extended funconality modes, and to navigate mode menu opons. Further details provided in Secon 4.3.1 Selector Pad
	The Rotary Switch is used to select a measurement funcon. Details are provided in Secon 4.3.2 Rotary Switch
	Press this buon to exit an extended funconality mode.
	Press this buon to enable/disable the display backlight.Press and hold the buon for 2 seconds to enable/disable the work light.
	Press to enable/disable METERLiNK® (Bluetooth) communicaon, see secon 5.14 Streaming measurement data using Bluetooth®

4.3.1 Selector Pad

There are ve (5) 'so' funcon buons arranged in a square, as shown below. The funcons change depending on the sub-funcon chosen at the me. Generally the arrow buons are used for navigaon and the TEST-OK buon is used for selecng an object or starng a test. Detailed informaon below:

Fig 4-3 Selector Pad

Pressing the TEST OK buon selects a menu-driven opon. The TEST OK buon is also used to enter the sub-menus for selecon screens.

NOTE: When in INSULATION TESTING MODE pressing and holding TEST-OK outputs a test voltage (unl the buon is manually released). In Test Lock mode this buon (used in conjuncon with the HOLD/LOCK buon) is used to Start and Stop connuous Insulaon Resistance tests. See Secon 5. Insulaon Resistance Measurements for further details. Do not confuse the Insulaon Resistance test lock feature with the Keypad Lockout feature (secon 5.13).

The LEFT (←) buon scrolls to previous choices in the current level of the menu. When reaching the start of a group of selecons, further presses of the LEFT buon wraps to the end of the list.

The RIGHT ( ) buon scrolls to next choices in the current level of the menu. When reaching the end of a group of selecons, further presses of the RIGHT buon wraps to the start of the list.

The UP (↑) buon scrolls to previous selectable opons in the current level of the menu. When reaching the start of a group of selecons, further presses of the UP buon are ignored. The DOWN (↓) buon scrolls to previous selectable opons in the current level of the menu. When reaching the end of a group of selecons, further presses of the DOWN buon are ignored.

4.3.2 Rotary Switch

There are nine (9) dedicated Rotary Switch posions:

• OFF: The meter is switched OFF.

- AC/DC VOLTAGE: The meter can measure voltage through the probe inputs. The type of measurement (AC/DC) is chosen by the MODE buon. The default measurement is AC voltage.

- CAPACITANCE/DIODE/CONTINUITY: The meter can measure capacitance, diode polarity or connuity through the probe inputs. The type of measurement is chosen by the MODE buon.

- Zero : The meter can measure earth-bond resistance, through the probe inputs. The measurement unit is Ohms ( ).

- 50V: The meter can source a 50VDC TEST Voltage and measure Insulaon Resistance through the Zero Ω/Insulaon and COM probe inputs.

- 100V: The meter can source a 100VDC TEST Voltage and measure Insulaon Resistance through the Zero Ω/Insulaon and COM probe inputs.

- 250V: The meter can source a 250VDC TEST Voltage and measure Insulaon Resistance through the Zero Ω/Insulaon and COM probe inputs.

- 500V: The meter can source 500VDC TEST Voltage and measure Insulaon Resistance through the Zero Ω/Insulaon and COM probe inputs.

- 1000V: The meter can source 1000VDC TEST Voltage and measure Insulaon Resistance through the Zero Ω/Insulaon and COM probe inputs.

4.4 Display Descripon

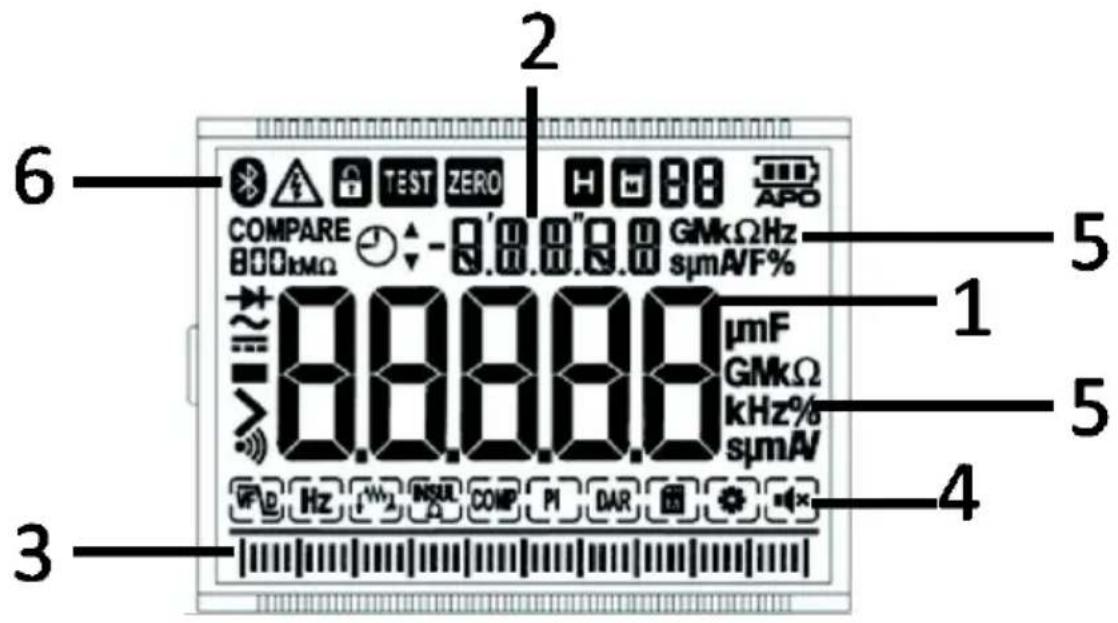

Fig 4-4 Display snapshot

1. Main display area

2. Secondary display area

3. Bar graph (matches the reading on the main display)

4. Modes of operaon (detailed later in this guide)

5. Units of measure for primary and secondary displays

6. Alerts and status icons (detailed below)

4.5 Display Icons and Indicators

	Indicates that Bluetooth® communicaon is acve
TEST	Indicates an Insulaon Test in progress and test voltage is present
[BY33]	Indicates that the measured voltage is greater than 30 V (AC or DC)
H	Indicates that the meter is in Hold mode (solid H) or auto hold (ashing H)
	Indicates that the meter is in locked mode
	Memory icon shown with the acve memory locaon (1-99)
	Indicates the baery voltage status
APO	Indicates that the auto power o funcon is enabled
	Indicates that the meter is measuring AC voltage
	Indicates that the meter is measuring DC voltage
[DSZ7]	Analog bar graph
	VFD (variable frequency drive) mode icon
[KST8]	Frequency mode icon
	Earth Bond Resistance icon
	Insulaon Resistance icon
	Compare (Pass/Fail) icon
	Polarizaon Index icon
	Dielectric Absorpon Rao icon
	Sengs mode icon
	Silent mode icon

5. Operaon

Note: Before operang the device, you must read, understand, and follow all instrucons, dangers, warnings, cauons, and notes.

Note: When the meter is not in use, the funcon switch should be set to the OFF posion.

Note: When connecng the probe leads to the device under test, connect the COM (negave) lead before connecng the posive lead. When removing the probe leads, remove the posive lead before removing the COM (negave) lead.

5.1 Powering the Meter

1. Set the funcon switch to any posion to switch on the meter.
2. If the baery indicator shows that the baery voltage is low or if the meter does not power on, replace the baery. See secon 6.2 Baery Replacement.

5.1.1 Auto Power O

The meter enters sleep mode aer 30 minutes of inactivity. The meter beeps three mes 20 seconds before powering o. Press any buon or turn the Rotary Switch to prevent the meter from powering o. The auto power o me-out is then reset. To disable auto power o (APO) press the MODE buon while turning on the meter. To change the APO me, read secon 5.12.6 Setup Ulity

5.2 Manual AC/DC Selecon

When measuring voltage, press the MODE buon to select AC or DC voltage.

5.3 Auto Range

Auto-Range is the only mode of operaon for Capacitance; ranges are automacally selected by the meter. Insulaon and Earth Bond Resistance tests allow for voltage test selecon using the rotary switch.

5.4 'Smart' Out-of-Range Warnings

If the input is over/under the full-scale range, the display will show >x or <x, where x is the high or low end of the full-scale range.

5.5 Data Hold and Auto-Hold Modes

These two modes are discussed in detail below. In the Sengs menu, if Auto-Hold is set to OFF, the meter will operate in the standard Hold mode. If Auto-Hold is set to ON in the sengs menu, the meter will operate in the Auto-Hold mode.

5.5.1 Data Hold Mode

In Data Hold mode, press the HOLD buon to capture the measurement that is shown on the main display. The captured reading will be displayed in the secondary, upper display area (the main display will then funcon normally). The 'H' display icon will appear solid on the LCD in the Hold mode. To exit the Hold mode, press the HOLD buon again.

5.5.2 Auto-Hold mode

If Auto-Hold mode is switched ON in the sengs menu, press the HOLD buon to acvate Auto-Hold mode (the 'H' display icon will appear ashing). In Auto-Hold mode readings are captured in the say way as in standard Hold mode. The dherence is that the captured reading, displayed on the smaller, secondary display digits, will update whenever a reading 50 units higher or lower than the captured reading is measured. To exit the Auto-Hold mode press the HOLD buon.

5.6 Voltage Measurements

1. Set the funcon switch to the posion.
2. Insert the black probe lead into the COM terminal and red probe lead into the V terminal.

3. Use the MODE buon to select AC or DC voltage measurements.

4. The indicator will be displayed for AC measurements.

5. The indicator will be displayed for DC measurements.

6. Connect the probe leads in parallel to the part under test

7. Read the voltage value on the display

5.7 Insulaon Resistance Measurements

1. Use the rotary switch to select the insulaon voltage (50V, 100V, 250V, 500V, or 1kV).
2. Insert the black probe lead into the COM terminal and red probe lead into the Insulaon terminal.
3. Select INSUL to enable the Insulaon Resistance Funcon mode as described in secon 5.12.1 Selectng modes.
4. During the Test, the insulaon voltage will appear in the secondary (upper) reading area. The resistance will be shown in the main reading area.
5. Press TEST OK to start test.
6. To lock the test for connuous tesng, press the HOLD/LOCK buon (lock icon will appear) and then press TEST OK to test connuously.
7. The TEST icon on the LCD will be shown while the voltage is outpued.
8. Press TEST OK again to stop the test

NOTE: The 99-point Data Record memory funcon cannot be acvated in the usual way while using the Insulaon Resistance funcon (since the TEST OK buon is used for tesng in this case and not for saving readings). The last reading, however, is held on the display and can then be saved in the normal way as described in the Extended Funconality secon below under Secon 5.12.7 Data Record Mode.

5.7.1 PI/DAR Test

Note: PI (Polarizaon Index); DAR (Dielectric Absorpon Rao)

1. Select the PI or DAR test as described in secon 5.12.1 Selecng modes.
2. Press the TEST OK buon to test.
3. Press the MODE buon to show the test me at the upper reading area. (LCD will show CLOCK icon and the elapsed me). PI is a ten-minute test and DAR is a one-minute test.
4. The test will stop automacally and the result (rao) will be shown on the main display area. The PASS/FAIL LED will indicate the test result (Green for PASS, and Red for FAIL).

5.8 Earth Bond Resistance Measurements (ZERO Ω)

1. Move the funcon dial to the Earth-bond resistance posion (ZERO ); the Earth-bond resistance icon will appear.
2. Insert the black probe lead into the COM terminal and red probe lead into the ZERO/Ohm/Insulaon terminal.
3. Before tesng, short the ends of the probes and press the MODE buon. The ZERO icon will appear on the display and the oset value will be stored. If the test leads are not shorted or if there is residual resistance, the display will show the >2.00 ohms (this indicaon could be due to faulty leads, improper test lead inseron, or meter problem. Tests should not be aempted unl root cause of the high resistance is determined.
4. Connect the test leads to the Device under test.
5. Press TEST OK to run a test.
6. To lock the test ON, press the HOLD/LOCK buon (the LOCK icon will appear) and then press TEST OK to test connuously.
7. Press TEST OK again to stop the test.
8. Note that the Earth Bond Resistance Measurement mode can also be used to measure standard resistance to 40kohms

NOTE: The 99-point Data Record memory funcon cannot be acvated in the usual way while using the Earth Bond Resistance funcon (since the TEST OK buon is used for tesng in this case and not for saving readings). The last reading, however, is held on the display and can then be saved as described in the Extended Funconality secon below under Secon 5.12.7 Data Recording Mode.

5.9 Connuity Test

Warning: Do not do diode, resistance or connuity tests before removing the power from capacitors and other devices under test during a measurement. Injury to persons can occur.

1. Set the funcon switch to the position.

2. Insert the black probe lead into the COM terminal and red probe lead into the V terminal.

3. Use the MODE buon to select connuity measurement. The indicator will be displayed.
4. Insert the black probe lead into the COM (negave) terminal and the red probe lead into the positive terminal.
5. Touch the ps of the probe across the circuit or component under test.
6. If the resistance is 30 ± 5 Ω (nominal) or less, the meter will beep.

Note: This threshold is user selectable in the SET UP menu under the Cnn (connuity) seng: Range: 10-50 Ω; Increment: 1; Default: 30 Ω.

5.10 Diode Test

Warning: Do not do diode, resistance or connuity tests before you have removed the power from capacitors and other devices under test during a measurement. Injury to persons can occur.

1. Set the funcon switch to the piston.
2. Use the MODE buon to select the diode test funcon. The indicator will be displayed.
3. Insert the black probe lead into the COM (negave) terminal and the red probe lead into the positive V terminal.
4. Touch the ps of the probe across the diode or semiconductor juncon under test. Make a note of the value on the display.
5. Reverse the polarity of the probes, by interchanging the probe test locaons.
6. Touch the ps of the probe across the diode or semiconductor juncon under test. Make a note of the new value on the display
7. The diode or semiconductor juncon can be evaluated as follows:

If one of the readings displays a value (Typically 0.400 to 0.900V) and the other reading displays a value (-0.400 to -0.900V), the component is good.

If both readings display OL, the component is either open or shorted.

Use Connuity mode to determine if it is open or shorted.

5.11 Capacitance Measurements

Warning: Do not do capacitance tests before removing the power to the capacitor or other devices under test during a measurement. Injury to persons can occur.

1. Set the funcon switch to the (posion) .
2. Use the MODE buon to select the capacitance measurement. The F (Farad) unit will be displayed.
3. Insert the black probe lead into the COM (negave) terminal and the red probe lead into the positive terminal.
4. Touch the ps of the probe across the part under test.
5. Read the capacitance value on the display.

Note: For very large capacitance values, it may take several seconds for the measurement to sele and the nal reading to stabilize.

5.12 Extended Funconality

A variety of modes are available that provide extended funconality as detailed below.

5.12.1 Selecng Modes

The mode icons applicable for the selected measurement type are displayed in the lower part of the display. When a mode is enabled, the icon is framed.

Fig 5-1 Mode Icons

Use the le/right arrow buons to navigate to the desired mode icon. The currently selected icon will ash.

1. Press the TEST OK buon to enable the selected (ashing) mode.
2. Use the up/down arrow buons to step through the mode opons (if any). Refer to the secon related to the specic mode for detailed instrucons.
3. Press the TEST OK buon to disable the selected (ashing) mode.

5.12.2 VFD Mode (ACV only)

In VFD (variable-frequency drive) mode, high-frequency noise is eliminated from the voltage measurement through the use of a low-pass Iter. VFD mode is available when measuring ACV.

1. Select VF\D and then press the TEST OK buon to enable the selected (ashing) mode.

5.12.3 Frequency Mode (ACV only)

In Frequency mode, the frequency is displayed in the main display and the period is displayed in the secondary display. Frequency mode is available when measuring AC voltage.

1. Select Hz and enable Frequency mode as described in secon 5.12.1, Selecng modes.

5.12.4 Pass/Fail Mode (COMPARE)

1. Select the desired insulaon voltage value using the rotary switch.
2. Select COMP and enable the Pass/Fail Funcon mode as described in secon 5.12.1 Selectng modes.
3. Use the MODE buon to select the resistance value to compare. (There are resistance value segments and a COMPARE icon on the LCD, the resistance value opons are 100kohm, 200kohm, 500kohm, 1Mohm, 2Mohm, 5Mohm, 10Mohm, 20Mohm, 50Mohm)
4. Press TEST to start the process.
5. Observe the green light / red light for PASS / FAIL indicaon.

5.12.5 Setup Utility

In Setup, dene the sengs for various meter opons:

- Auto power o (indicated by the text APO): A mode where the me period aer which the meter enters sleep mode can be set. The range is 1 to 30 minutes, or OFF. The factory default is 10 minutes.

• Auto backlight o (indicated by the text b.Lit): A mode where the me period aer which the backlight turns o can be set. The range is 1 to 30 minutes, or OFF. The factory default is 5 minutes.
• Connuity threshold (indicated by the text Cnn): A mode where the threshold for connuity tests can be set.

• Auto hold (indicated by the text A.Hold): Select Auto hold mode ON (Auto hold mode acve) or OFF (Data hold mode acve). For more informaon, see secon 5.5 Data hold mode and Auto hold mode.

• Select ⚙ and enable Setup mode as described in secon 5.12.1 Selecng modes.

• Use the up/down arrows buon to cycle through the mode opons APO, b.Lit, Cnn, A.Hold, and RESET shown on the secondary display.

• Press the TEST OK buon to acvate the displayed opon.

• APO: Use the le/right arrow buons to change the auto power o me.

• b.Lit: Use the le/right arrow buons to change the auto backlight o me.
• A.Hold: Use the le/right arrow buons to congregate auto hold/data hold. On indicates that the auto hold mode is acve. O indicates that the data hold mode is acve.
• Cnn: Use the le/right arrow buons to change the connuity threshold.
• RESET: Press the TEST OK buon to reset the sengs to the factory default.

5.12.6 Silent Mode

In Silent mode, the alert beeper is disabled. Silent mode does not act the connuity beeper.

Select and enable Silent mode as described in secon 5.12.1 Selectng modes.

5.12.7 Data Recording Mode (99-point)

The meter has 99 memory locaons for the storage of measurement data.

Select and enable MEM mode as described in secon 5.12.1 Selectng modes.

Use the arrow keys to cycle through the mode opons: SAVE, LOAD, and CLEAR shown on the secondary display.

SAVE: The data on the main display is saved to a memory locaon indicated by the '88' in the upper display area.

LOAD: The data stored in the memory locaon (idened by the '88' indicator) is displayed.

Use arrow keys to scroll the memory locaons. Use the button to exit the LOAD mode.

CLEAR: The data in all memory locaons is erased.

5.13 Keypad Lockout

In Lockout mode the meter ignores all buon presses except HOLD. The auto power o funcon, see secon 5.1.1 Auto Power o, is disabled in Lockout mode.

Press and hold the HOLD/LOCK buon for 3 seconds to enter/exit the lockout mode. In lockout mode, the lock indicator is displayed. Do not confuse Lockout mode with the test lock feature used for connuous Insulaon Resistance tesng (see Secon 5.7 Insulaon Resistance Measurements).

5.14 Streaming Measurement Data using Bluetooth®

5.14.1 General

Some IR cameras from FLIR Systems support Bluetooth communicaon, and to those cameras you can stream measurement data from the meter. The data is then merged into the resultant table in the IR image. This is further facilitated through a FLIR soware tool known as METERLiNK®. To stream data to an iOS/Android device, download the applicaon FLIR TOOLS™ and follow the applicaon on-screen prompts.

Streaming measurement data is a convenient way to add important informaon to an IR image. For example, when identifying an overheated cable conncon, you may want to know its voltage. The Bluetooth range is 10m (32) maximum.

5.14.2 Procedure for Camera pairing

1. Turn on the camera and then turn on the meter.

2. Press the ✝ buon on the meter to enable Bluetooth. The Bluetooth icon will appear ashing in the upper le hand corner of the meter display.

3. Pair the IR camera with the instrument. Refer to the camera manual for informaon on how to pair Bluetooth devices.

4. Choose the variable that you want to use (voltage, bond resistance, etc.). Results from the meter will now automatically be displayed in the resultant table in the top le corner of the IR camera screen.

5.14.3 Procedure for FLIR TOOLS App

1. Power up the tablet, smartphone or computer and start the FLIR TOOLS App.
2. Turn the meter on and set the rotary switch to the desired seng posion.
3. On the meter, press the Bluetooth buon.
4. Pair the meter with your FLIR TOOLS app under 'Instruments'.
5. Switch the FLIR TOOLS App to view Measurements.
6. Connect the meter to the circuit under test.
7. The measurements will be visible on the FLIR TOOLS App. *

6. Maintenance

6.1 Cleaning and Storage

Clean the meter with a damp cloth and mild detergent; do not use abrasives or solvents.

If the meter is not to be used for an extended period, remove the baeries and store them separately.

6.2 Baery Replacement

The Baery symbol ashes with no ‘bars’ when the baeries have reached a crical level of 7.0V. The symbol stays acve and visible while the LCD is powered.

The meter displays readings within specicaons while the low baery indicator is on. When this is no longer possible, the display must be blanked. The meter powers o before it displays an out of tolerance voltage.

1. To avoid electrical shock, disconnect the meter if connected to a circuit, remove the probe from the terminals, and set the funcon switch to the OFF posion before aempng to replace the baeries.
2. Unscrew and remove the baery compartment cover.
3. Replace the six standard AAA baeries, observing correct polarity.
4. Secure the baery compartment cover.

6.3 Fuse Replacement

The fuse accessed via the baery compartment cover. The fuse is rated 440mA/1000V, ceramic fast blow with a minimum Interrupt Rang of 10kA.

6.4 Disposal of Electronic Waste

As with most electronic products, this equipment must be disposed of in an environmentally friendly way, and in accordance with exisng regulaons for electronic waste. Please contact your FLIR Systems representave for more details.

7. Specicaons

7.1 General specicaons

Display	4,000-count with bar graph
Controls	9-posion rotary switch
	4-way Selector Pad with center OK/TEST buon
	LED: Pass (Green), Fail (Red)
	(5) dedicated funcon buons: Mode, Cancel, Hold/Lock, Bluetooth, Backlight
Backlight	White LED
Work Lights	White LED array
Measurement Rate	2 samples per second, nominal
Display Rate	2 mes per second
Input Impedance	3MΩ VDC/VAC <100pF,
AC Voltage Bandwidth	50Hz – 500Hz
Power Supply	6 x 'AAA' (LR03) baeries
Baery Life Consideraons	The meter can perform 1200 Earth-Bond resistance measurements with new alkaline baeries. These are standard tests of 1Ω with a duty cycle of 5 seconds ON and 25 seconds OFF.Insulaon Resistance: The meter can perform 300 Insulaon Resistance tests with new alkaline baeries. These are standard tests of 1MΩ with a duty cycle of 5 seconds ON and 25 seconds OFF. This does not include Bluetooth or Backlight use.
Auto Power O (APO)	User programmable OFF to 30 minutes in 1 minute increments, with audible pre-alert (20 seconds)
Measurement Types	True RMS AC Volts, DC Volts, Earth Bond Resistance, Insulaon Resistance, Capacitance, Diode, and Connuity
Over-current Protecon (fuse)	440mA/1000V, ceramic fast blow fuse with a minimum Interrupt Rang of 10kA
Polarizaon Index and Dielectric Absorpon Rao Tests	PI (Polarizaon Index) = R10-min/R1-minDAR (Dielectric Absorpon Raons)=R1-min/R30-secWhere R10-min: The insulaon resistance measured at the 10 minute point aer pressing the TEST buon.R1-min: The insulaon resistance measured at the 1 minute point aer pressing the TEST buon.R30-sec: The insulaon resistance measured at the 30 second point aer pressing the TEST buon.
Other Indicaons	Progressive Low Baery, Over Range
Internal Memory	(99) storage locaons
Operang Temperature	32 to 122°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Operang Humidity	Max 80% up to 95°F (35°C) decreasing linearly to 60% at 113°F (45°C)
Storage Humidity	80% maximum
Indoor use only
Altude	6561' (2000m)
Dimensions	3.7" x 8.1" x 2.0" (95mm x 207mm x 52mm)
Weight	1.4lb (630g), including baeries
Agency Approvals	FCC Class B, CE, UL/CSA, EN61557

7.2 Electrical Range Specicaons

Note: Accuracy is stated at 65^ F to 83^ F ( 18^ C to 28^ C and less than 75% RH)

Funcon	Range	Resoluon	Accuracy of Reading
DC Voltage	1000.0V	0.1V	± (0.1% + 5 digits)
AC Voltage	1000.0V	0.1V	50Hz – 60Hz ± (1.5% +5 digits);61Hz – 500Hz ± (2.0% + 5 digits);
VFD AC Voltage	1000.0V	0.1V	50Hz – 60Hz ± (1.5% +5 digits);61Hz – 500Hz ± (5.0% + 5 digits);

Notes: 1. Measurement start-voltage: <50V for VAC (add 20 digits for accuracy)
2. VFD/LPF Cuto = 800Hz (-3dB point)
3. Input Impedance 3MΩ// less than 100pF

Funcon	Range	Resoluon	Accuracy of Reading
Earth-Bond Resistance	40.00 Ω	0.01Ω	± (1.5% + 5 digits)*
	400.0 Ω	0.1Ω	± (1.5% + 3 digits)
	4000Ω	1Ω
	40.00kΩ	0.01KΩ

Notes: 1. * ≤ 1.00Ω add 3 digits.
2. Open Circuit Test Voltage: >4.0V, <8V
3. Short Circuit Current ≥ 200.0mA

1. Live Circuit Detecon if Greater than or equal to 2V @AC/DC Inputs test inhibited

The top LCD will display the actual live voltage sensed.

Funcon	Range	Resoluon	Accuracy of Reading
Connuity	400.0Ω	0.1 Ω	± (0.5% + 2 digits)
Diode	2.000V	0.001V	± (1.5% + 2 digits)

Notes:
Connuity: Built-in buzzer sounds when measured resistance threshold is met (adjustable from 10Ω to 50Ω, default is 30Ω).
Connuity MAX Test Current: 1mA
Connuity MAX Open Circuit Voltage >3.0V
Diode MAX Test Current: 1mA
Diode MAX Open Circuit Voltage: 3.0V
Overload Protecon: 1000V AC rms or DC

Funcon	Range	Resoluon	Accuracy of Reading
Capacitance	1000 μF	1μF	± (1.2% + 2 digits)
	10.00mF	0.01mF	± (1.2% + 20 digits)

Notes: 1. Overload Protecon: 1000V AC rms or DC

Funcon	Range	Resoluon	Accuracy of Reading
Frequency (ACV)	400.0Hz	0.1Hz	± 5 digits
	4.000kHz	0.001kHz	± 5 digits
	40.00kHz	0.01kHz	± 5 digits
Funcon	Resistance Range	Resoluon	Accuracy of Reading
Insulaon Resistance	4.000MΩ	0.001MΩ	± (1.5% + 5 digits)
	40.00 MΩ	0.01MΩ
	400.0MΩ	0.1MΩ	± (3.0% + 5 digits)
	4000 MΩ	1MΩ
	4.1GΩ-20.0GΩ	0.1GΩ	± (10.0% + 3 digits)
	Test voltages	Min. Resistance	Max. Resistance
	50V	50kΩ	50.0MΩ
	100V	100kΩ	100.0MΩ
	250V	250kΩ	250.0MΩ
	500V	500kΩ	500.0MΩ
	1000V	1MΩ	20GΩ

Notes: 1. Test Current = 1 mA
2. Test Voltage Accuracy = 0%, +20% Short Circuit Test Current = 1mA (nominal)
3. Auto Discharge Funcon: Discharge me <1 second for Cap. <1μF
4. Max. Capacive Load: Operable with up to 1 F load.
5. Live Circuit Detecon: If >2V AC/DC detected test inhibited
The top LCD will display the actual live voltage sensed.

7.3 Input Specicaons

Funcon	Maximum Input
AC Voltage, DC Voltage	1000V DC/AC
Insulaon Test	No LIVE Voltage IN - Protected

8. Technical Support

Main Website	hp://www.ir.com/test
Technical Support Website	hp://support.ir.com
Technical support Email	[e-mail]
Service/Repair Service Email	[e-mail]
Support Telephone number	[phone] (toll-free)

9. Warranes

9.1 FLIR Global Limited Lifetime Warranty

A qualifying FLIR Test and Measurement product (the "Product") purchased either directly from FLIR Commercial Systems Inc and aliates (FLIR) or from an authorized FLIR distributor or reseller that Purchaser registers on-line with FLIR is eligible for coverage under FLIR's Limited Lifetime Warranty, subject to the terms and conditions in this document. This warranty only applies to purchases of Qualifying Products (see below) purchased and manufactured aer April 1, 2013.

PLEASE READ THIS DOCUMENT CAREFULLY; IT CONTAINS IMPORTANT INFORMATION ABOUT THE PRODUCTS THAT QUALIFY FOR COVERAGE UNDER THE LIMITED LIFETIME WARRANTY, PURCHASER'S OBLIGATIONS, HOW TO ACTIVATE THE WARRANTY, WARRANTY COVERAGE, AND OTHER IMPORTANT TERMS, CONDITIONS, EXCLUSIONS AND DISCLAIMERS.

1. PRODUCT REGISTRATION. To qualify for FLIR's Limited Lifetime Warranty, Purchaser must fully register the Product directly with FLIR on-line at hp://www.ir.com within Sixty (60) DAYS of the date the Product was purchased by the rst retail customer (the "Purchase Date"). Qualifying PRODUCTS THAT ARE NOT REGISTERED ON-LINE WITHIN SIXTY (60) DAYS OF THE PURCHASE DATE WILL HAVE A LIMITED ONE YEAR WARRANTY FROM DATE OF PURCHASE.
2. QUALIFYING PRODUCTS. Upon registraon, Test and Measurement products that qualify for coverage under FLIR's Limited Lifetime Warranty are: MR7x, CM7x, CM8x, DM9x, IM7x and VP5x not including accessories which may have their own warranty.
3. WARRANTY PERIODS. For purposes of the The Limited Lifetime Warranty, Lifetime is denied as seven years (7) after the product is no longer manufactured, or ten years (10) from date of purchase, whichever is greater. This Warranty is only applicable to the original owner of the Products.

Any Product that is repaired or replaced under warranty is covered under this Limited Lifetime Warranty for one hundred eighty days (180) days from the date of return shipment by FLIR or for the remaining duration of the applicable Warranty Period, whichever is longer.

1. LIMITED WARRANTY. In accordance with the terms and conditions of this Limited Lifetime Warranty, and except as excluded or disclaimed in this document, FLIR warrants, from the Purchase Date, that all fully registered Products will conform to FLIR's published Product speciaons and be free from defects in materials and workmanship during the applicable Warranty Period. PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY, AT FLIR'S SOLE DISCRETION, IS THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS IN A MANNER, AND BY A SERVICE CENTER, AUTHORIZED BY FLIR. IF THIS REMEDY IS ADJUDICATED TO BE INSUFFICIENT, FLIR SHALL REFUND PURCHASER'S PAID PURCHASE PRICE AND HAVE NO OTHER OBLIGATION OR LIABILITY TO BUYER WHATSOEVER.

2. WARRANTY EXCLUSIONS AND DISCLAIMERS. FLIR MAKES NO OTHER WARRANTY OF ANY KIND WITH RESPECT TO THE PRODUCTS. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (EVEN IF PURCHASER HAS NOTIFIED FLIR OF ITS INTENDED USE FOR THE PRODUCTS), AND NON-INFRINGEMENT ARE EXPRESSLY EXCLUDED FROM THIS AGREEMENT.

THIS WARRANTY EXPRESSLY EXCLUDES ROUTINE PRODUCT MAINTENANCE, SOFTWARE UPDATES, AND REPLACEMENT OF

MANUALS, FUSES, OR DISPOSABLE BATTERIES. FLIR FURTHER EXPRESSLY DISCLAIMS ANY WARRANTY COVERAGE WHERE THE ALLEGED NONCONFORMITY IS DUE TO NORMAL WEAR AND TEAR, OTHER ALTERATION, MODIFICATION, REPAIR, ATTEMPTED REPAIR, IMPROPER USE, IMPROPER MAINTENANCE, NEGLECT, ABUSE, IMPROPER STORAGE, FAILURE TO FOLLOW ANY PRODUCT INSTRUCTIONS, DAMAGE (WHETHER CAUSED BY ACCIDENT OR OTHERWISE), OR ANY OTHER IMPROPER CARE OR HANDING OF THE PRODUCTS CAUSED BY ANYONE OTHER THAN FLIR OR FLIR'S EXPRESSLY AUTHORIZED DESIGNEE.

THIS DOCUMENT CONTAINS THE ENTIRE WARRANTY AGREEMENT BETWEEN PURCHASER AND FLIR AND SUPERSEDES ALL PRIOR WARRANTY NEGOTIATIONS, AGREEMENTS, PROMISES AND UNDERSTANDINGS BETWEEN PURCHASER AND FLIR. THIS WARRANTY MAY NOT BE ALTERED WITHOUT THE EXPRESS WRITTEN CONSENT OF FLIR.

1. WARRANTY RETURN, REPAIR AND REPLACEMENT. To be eligible for warranty repair or replacement, Purchaser must nofy FLIR within thirty (30) days of discovering of any apparent defect in materials or workmanship. Before Purchaser may return a Product for warranty service or repair, Purchaser must rst obtain a returned material authorizaon (RMA) number from FLIR. To obtain the RMA number Owner must provide an original proof of purchase. For additional informaon, to nofy FLIR of an apparent defect in materials or workmanship, or to request an RMA number, visit hp://www.ir.com. Purchaser is solely responsible for complying with all RMA instrucons provided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. FLIR will pay for returning to Purchaser any Product that FLIR repairs or replaces under warranty.

FLIR reserves the right to determine, in its sole discretion, whether a returned Product is covered under Warranty. If FLIR determines that any returned Product is not covered under Warranty or is otherwise excluded from Warranty coverage, FLIR may charge Purchaser a reasonable handling fee and return the Product to Purchaser, at Purchaser's expense, or oer Purchaser the opon of handling the Product as a non-warranty return.

1. NON-WARRANTY RETURN. Purchaser may request that FLIR evaluate and service or repair a Product not covered under warranty, which FLIR may agree to do in its sole discretion. Before Purchaser returns a Product for non-warranty evaluaon and repair, Purchaser must contact FLIR by vising hp://www.ir.com to request an evaluaon and obtain an RMA. Purchaser is solely responsible for complying with all RMA instrucons provided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. Upon receipt of an authorized non-warranty return, FLIR will evaluate the Product and contact Purchaser regarding the feasibility of and the costs and fees associated with Purchaser's request. Purchaser is responsible for the reasonable cost of FLIR's evaluaon, for the cost of any repairs or services authorized by Purchaser, and for the cost of repackaging and returning the Product to Purchaser.

Any non-warranty repair of a Product is warranted for one hundred eighty days (180) days from the date of return shipment by FLIR to be free from defects in materials and workmanship only, subject to all of the limitaons, exclusions and disclaimers in this document.

9.2 FLIR Test and Measurement Limited 2 Year Warranty

A qualifying FLIR Test and Measurement product (the "Product") purchased either directly from FLIR Commercial Systems Inc and aliates (FLIR) or from an authorized FLIR distributor or reseller that Purchaser registers on-line with FLIR is eligible for coverage under FLIR's Limited Warranty, subject to the terms and conditions in this document. This warranty only applies to purchases of Qualifying Products (see below) purchased and manufactured aer April 1, 2013.

PLEASE READ THIS DOCUMENT CAREFULLY; IT CONTAINS IMPORTANT INFORMATION ABOUT THE PRODUCTS THAT QUALIFY FOR COVERAGE UNDER THE LIMITED WARRANTY, PURCHASER'S OBLIGATIONS, HOW TO ACTIVATE THE WARRANTY, WARRANTY COVERAGE, AND OTHER IMPORTANT TERMS, CONDITIONS, EXCLUSIONS AND DISCLAIMERS.

1. PRODUCT REGISTRATION. To qualify for FLIR's Limited Warranty, Purchaser must fully register the Product directly with FLIR on-line at hp://www.ir.com within Sixty (60) DAYS of the date the Product was purchased by the rst retail customer (the "Purchase Date"). Qualifying PRODUCTS THAT ARE NOT REGISTERED ON-LINE WITHIN SIXTY (60) DAYS OF THE PURCHASE DATE WILL HAVE A LIMITED ONE YEAR WARRANTY FROM DATE OF PURCHASE.
2. QUALIFYING PRODUCTS. Upon registraon, Test and Measurement products that qualify for coverage under FLIR's Limited Warranty are: VS70 Videoscope, VSAxx Arculaon Camera, VSCxx Camera, VSSxx Probe Spool, VST handset, MR02 Pin Extension Probe, and TAxx not including accessories which may have their own warranty.
3. WARRANTY PERIODS. The applicable Limited Warranty Period measured from the Purchase data are:

Products	Limited Warranty Period
VS70, VSAxx, VSCxx, VSSxx, VST, MR02, TAxx	TWO (2) Years

Any Product that is repaired or replaced under warranty is covered under this Limited Warranty for one hundred eighty days (180) days from the date of return shipment by FLIR or for the remaining duraon of the applicable Warranty Period, whichever is longer.

1. LIMITED WARRANTY. In accordance with the terms and conditions of this Limited Warranty, and except as excluded or disclaimed in this document, FLIR warrants, from the Purchase Date, that all fully registered Products will conform to FLIR's published product speciaons and be free from defects in materials and workmanship during the applicable Warranty Period. PURCHASER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY, AT FLIR'S SOLE DISCRETION, IS THE REPAIR OR REPLACEMENT OF DEFECTIVE PRODUCTS IN A MANNER, AND BY A SERVICE CENTER, AUTHORIZED BY FLIR. IF THIS REMEDY IS ADJUDICATED TO BE INSUFFICIENT, FLIR SHALL REFUND PURCHASER'S PAID PURCHASE PRICE AND HAVE NO OTHER OBLIGATION OR LIABILITY TO BUYER WHATSOEVER.

2. WARRANTY EXCLUSIONS AND DISCLAIMERS. FLIR MAKES NO OTHER WARRANTY OF ANY KIND WITH RESPECT TO THE PRODUCTS. ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (EVEN IF PURCHASER HAS NOTIFIED FLIR OF ITS INTENDED USE FOR THE PRODUCTS), AND NON-INFRINGEMENT ARE EXPRESSLY EXCLUDED FROM THIS AGREEMENT.

THIS WARRANTY EXPRESSLY EXCLUDES ROUTINE PRODUCT MAINTENANCE, SOFTWARE UPDATES, AND REPLACEMENT OF FUSES, OR DISPOSABLE BATTERIES. FLIR FURTHER EXPRESSLY DISCLAIMS ANY WARRANTY COVERAGE WHERE THE ALLEGED NONCONFORMITY IS DUE TO NORMAL WEAR AND TEAR, OTHER ALTERATION, MODIFICATION, REPAIR, ATTEMPTED REPAIR, IMPROPER USE, IMPROPER MAINTENANCE, NEGLECT, ABUSE, IMPROPER STORAGE, FAILURE TO FOLLOW ANY PRODUCT INSTRUCTIONS, DAMAGE (WHETHER CAUSED BY ACCIDENT OR OTHERWISE), OR ANY OTHER IMPROPER CARE OR HANDING OF THE PRODUCTS CAUSED BY ANYONE OTHER THAN FLIR OR FLIR'S EXPRESSLY AUTHORIZED DESIGNEE.

THIS DOCUMENT CONTAINS THE ENTIRE WARRANTY AGREEMENT BETWEEN PURCHASER AND FLIR AND SUPERSEDES ALL PRIOR WARRANTY NEGOTIATIONS, AGREEMENTS, PROMISES AND UNDERSTANDINGS BETWEEN PURCHASER AND FLIR. THIS WARRANTY MAY NOT BE ALTERED WITHOUT THE EXPRESS WRITTEN CONSENT OF FLIR.

1. WARRANTY RETURN, REPAIR AND REPLACEMENT. To be eligible for warranty repair or replacement, Purchaser must nofy FLIR within thirty (30) days of discovering of any apparent defect in materials or workmanship. Before Purchaser may return a Product for warranty service or repair, Purchaser must rst obtain a returned material authorizaon (RMA) number from FLIR. To obtain the RMA number Owner must provide an original proof of purchase. For additional informaon, to nofy FLIR of an apparent defect in materials or workmanship, or to request an RMA number, visit hp://www.ir.com. Purchaser is solely responsible for complying with all RMA instrucons provided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. FLIR will pay for returning to Purchaser any Product that FLIR repairs or replaces under warranty.

FLIR reserves the right to determine, in its sole discretion, whether a returned Product is covered under Warranty. If FLIR determines that any returned Product is not covered under Warranty or is otherwise excluded from Warranty coverage, FLIR may charge Purchaser a reasonable handling fee and return the Product to Purchaser, at Purchaser's expense, or oer Purchaser the opon of handling the Product as a non-warranty return.

1. NON-WARRANTY RETURN. Purchaser may request that FLIR evaluate and service or repair a Product not covered under warranty, which FLIR may agree to do in its sole discreon. Before Purchaser returns a Product for non-warranty evaluaon and repair, Purchaser must contact FLIR by vising hp://www.ir.com to request an evaluaon and obtain an RMA. Purchaser is solely responsible for complying with all RMA instrucons provided by FLIR including but not limited to adequately packaging the Product for shipment to FLIR and for all packaging and shipping costs. Upon receipt of an authorized non-warranty return, FLIR will evaluate the Product and contact Purchaser regarding the feasibility of and the costs and fees associated with Purchaser's request. Purchaser is responsible for the reasonable cost of FLIR's evaluaon, for the cost of any repairs or services authorized by Purchaser, and for the cost of repackaging and returning the Product to Purchaser.

Any non-warranty repair of a Product is warranted for one hundred eighty days (180) days from the date of return shipment by FLIR to be free from defects in materials and workmanship only, subject to all of the limitaons, exclusions and disclaimers in this document.

Corporate Headquarters

FLIR Systems, Inc.

2770 SW Parkway Avenue

Wilsonville, OR 97070

USA

Telephone: [phone]

Customer Support

Technical Support Website hp://support.ir.com

Technical Support Email [e-mail]

Service and Repair Email [e-mail]

Customer Support Telephone [phone] (toll free)

Publicaon Idencaon No.: IM75-en-US

Release version: AB

Release Date: 2017 January

Language: en-US
