ZS2121 - Lighting Emos - Free user manual and instructions

Product Type	LED Ceiling Light
Model	ZS2121
Brand	Emos
Dimensions (L x W x H)	300 x 300 x 50 mm
Weight	0.6 kg
Power Source	AC 220-240 V, 50/60 Hz
Wattage	18 W
Luminous Flux	1200 lm
Color Temperature	4000 K (Neutral White)
Beam Angle	120°
Lifespan	25,000 hours
IP Rating	IP20 (Indoor use)
Material	Aluminum + Polycarbonate
Installation	Ceiling surface mount
Controls	On/Off via wall switch
Dimmable	No
Warranty	2 years
Certifications	CE, RoHS
Maintenance	Clean with dry cloth; do not use harsh chemicals
Safety	Disconnect power before installation or cleaning
Spare Parts	LED module not replaceable; unit must be replaced

Frequently Asked Questions - ZS2121 Emos

How do I install the Emos ZS2121 light?

Ensure power is off. Securely mount the bracket to the ceiling, connect wires (L, N, Earth) using terminal blocks, then attach the fixture and lock in place.

Is the ZS2121 suitable for bathrooms or outdoors?

No, it has an IP20 rating, meaning it is only for indoor dry locations.

Can I dim the ZS2121?

No, this model is not dimmable. Using a dimmer may damage the light.

What is the color temperature?

It has a neutral white color temperature of 4000 K.

How do I clean the light?

Use a soft dry cloth. Avoid water, solvents, or abrasive cleaners.

What is the lifespan of the LED?

The LEDs are rated for 25,000 hours of operation.

The light does not turn on. What should I check?

Verify the circuit breaker is on, check wire connections, and ensure the bulb (if replaceable) is secure. If not, the LED module may be faulty.

Can I replace the LED module?

The LED module is integrated and not user-replaceable. If it fails, the entire unit must be replaced.

What is the warranty period?

Emos offers a 2-year warranty against manufacturing defects.

Does the ZS2121 require an electrician for installation?

If you are not experienced with electrical work, it is recommended to hire a qualified electrician.

USER MANUAL ZS2121 Emos

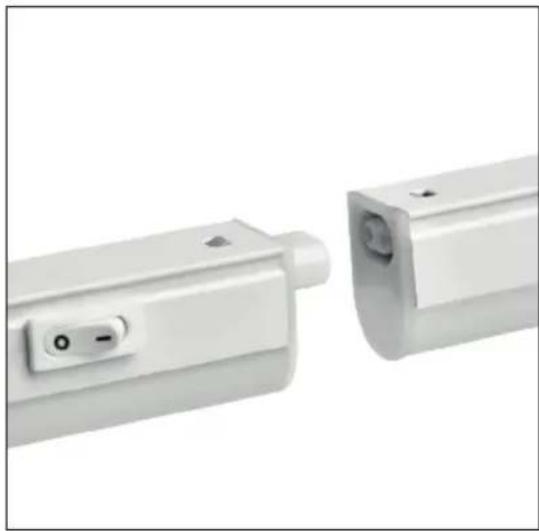

Product image of white electrical plug connectors and two screw fasteners (no text or symbols visible)

Close-up of two white electronic device components with a button and mounting holes (no text or symbols visible)

GB | LED light T5

Technical information:

Performance: 4 W|8 W|10 W|14 W

Supply voltage: 220–240 V AC

Luminous flux: 400 lm|770 lm|1 060 lm|1 300 lm

Chromaticity temperature: 4 000 K

The device is designed for indoor use.

Do not repair the light fitting in case of malfunction.

Disconnect from the power supply during handling.

Do not interfere with the wiring.

Do not connect the light fitting to power supply while the product is in packaging.

The light sources are not replaceable.

Use only with the power cable and connectors delivered with the product.

In case of rupturing or damaging of the light source, stop its use, disconnect it from the power supply and dispose of it safely.

The product is not a toy; do not put it in the hands of children!

Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electron-

ic devices would be disposed on landfill, dangerous substances may reach groundwater and subsequently food chain, where it could affect human health.

Emos spol s.r.o. declares that the ZS2111, ZS2121, ZS2131, ZS2141 is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED svítidlo T5

Moc: 4 W|8 W|10 W|14 W

Snaga: 4 W|8 W|10 W|14 W

Napon napajanja: 220–240 V AC

Svjetlosni fluks: 400 lm|770 lm|1 060 lm|1 300 lm

Temperatura boje: 4 000 K

Puterea: 4 W|8 W|10 W|14 W

Tensiunea de alimentare: 220–240 V AC
