Product Type	LED Ceiling Light
Brand	Emos
Model	ZV2152
Dimensions (mm)	Diameter: 300; Height: 80
Weight (kg)	0.5
Power Source	AC 220-240V, 50/60Hz
Light Source	Integrated LED (non-replaceable)
Luminous Flux (lm)	1200
Color Temperature (K)	3000/4000/6500 (selectable)
Lifespan (hours)	25,000
Protection Rating	IP20 (indoor use)
Mounting Type	Ceiling surface mount
Control Type	Remote control included
Material	Aluminum + PC diffuser
Certifications	CE, RoHS
Warranty	3 years
Cleaning	Wipe with dry cloth; no solvents
Safety	Install by qualified electrician; do not cover fixture
Spare Parts	Remote control available separately
Repairability	LED module not replaceable; remote control replaceable

Frequently Asked Questions - ZV2152 Emos

How do I install the Emos ZV2152 ceiling light?

Installation should be performed by a qualified electrician. Ensure power is off. Mount the bracket to the ceiling, connect wires (L, N, Earth), and attach the fixture. See manual for details.

Can I use this light with a dimmer switch?

No, the Emos ZV2152 is not dimmable. Use only with the supplied remote control for brightness and color temperature adjustments.

How do I change the color temperature?

Use the remote control to cycle through 3000K (warm), 4000K (neutral), and 6500K (cool white).

What is the lifespan of the LED?

The integrated LED has a rated lifespan of 25,000 hours, which is equivalent to about 22 years at 3 hours per day.

Can the LED be replaced?

No, the LED module is integrated and non-replaceable. The entire fixture must be replaced if the LED fails.

Is this light suitable for outdoor use?

No, the ZV2152 has an IP20 rating, making it suitable only for indoor dry locations.

What should I do if the remote control stops working?

Check batteries first. If still not working, contact Emos support for a replacement remote (model: RC-ZV2152).

Does the light have a memory function?

Yes, the light remembers the last brightness and color temperature setting when turned off via remote.

What is the maximum mounting height?

The light is designed for standard ceilings up to 3 meters. For higher ceilings, coverage may reduce.

How do I clean the fixture?

Clean with a soft dry cloth. Do not use water, solvents, or abrasive cleaners. Ensure power is off before cleaning.

USER MANUAL ZV2152 Emos

Line drawing of a frying pan with a lid and handle, no text or symbols present

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV1111	6 W Neutral white	Warm white	500 lmø 75 × 20 mmø 55 mm			220–240 V AC, 50/60 Hz	30 000 h
ZV1112
ZV1122 7.5 W Neutral white		650 lmø 100	× 20 mmø 80 mm
ZV1131	10 W Neutral white	Warm white	900 lmø 125 × 20 mmø 105 mm
ZV1132
ZV1142 13.5 W Neutral white		1 250 lmø 155 × 20 mmø 135 mm
ZV1152	19 W	Neutral white 1 700 lmø 185 × 20 mmø 165 mm

1.

Simple line drawing of a mechanical setup with a spring attached to a base, no text or symbols present.

1.

Simple line drawing of a circuit board with wires and components (no text or symbols)

ZV2111; ZV2112; ZV2122; ZV2131; ZV2132; ZV2142; ZV2152

Simple line drawing of a mechanical component with a circular base and spring attached, above a flat base (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV2111	6 W Neutral white	Warm white	500 lm 75	× 75 × 20 mm 55 mm		220-240 V AC, 50/60 Hz	30 000 h
ZV2112
ZV2122 7	5 W Neutral white	white 650 lm 100 × 100 × 20 mm	80 mm
ZV2131	10 W Neutral white	Warm white	900 lm 125 × 125 × 20 mm 105 mm
ZV2132
ZV2142 13.5 W Neutral white		white 1 250 lm 155 × 155 × 20 mm 135 mm
ZV2152 19 W Neutral white		white 1 700 lm 185 × 185 × 20 mm 165 mm

1.

Simple line drawing of a mechanical or electrical component with a spring attached to a base, no text or symbols present.

Simple line drawing of a circuit board with wires and components (no text or symbols)

GB This luminaire is not suitable for covering with insulation material.

GB | LED Panel, recessed

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP65 – suited for both indoor and outdoor use.

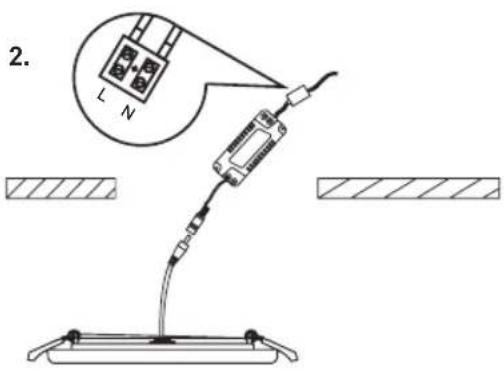

Mounting

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

• Luminaire is suitable entirely for fixed mounting.
• The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
• Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the luminaire.
• In case of broken cover don't use the luminaire and replace broken cover with new one immediately.

EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED panel vestavný

GB This product contains a light source of energy efficiency class E

GB Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
