Brand	Emos
Model	ZV1122
Product Type	LED Lighting Fixture
Light Source	Integrated LED
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	10W
Luminous Flux	800 lm
Color Temperature	3000K - 6500K (adjustable)
Dimensions (L x W x H)	30 cm x 10 cm x 5 cm
Weight	0.5 kg
Material	Aluminum + Plastic
Mounting Type	Surface mounted
Functions	Adjustable brightness, color temperature switching, memory function
Protection Rating	IP20
Operating Temperature	-20°C to +40°C
Lifespan	25,000 hours
Maintenance	Wipe with dry cloth, do not use abrasive cleaners
Safety	CE certified, overheat protection
Spare Parts	LED module and driver are replaceable by qualified personnel
Included Accessories	Mounting bracket, screws, user manual

Frequently Asked Questions - ZV1122 Emos

How do I install the ZV1122 light fixture?

Turn off the power supply. Mount the bracket to the ceiling or wall using the provided screws. Connect the wires (Live, Neutral, Ground) and attach the fixture to the bracket. Turn on the power and test.

Can I replace the LED bulb?

The ZV1122 uses integrated LEDs that are not user-replaceable. However, the LED module can be replaced by a qualified technician if it fails.

How do I change the color temperature?

Use the wall switch or remote control (if included) to cycle through color temperatures: warm (3000K), neutral (4000K), and cool (6500K).

What should I do if the light flickers?

Check that the light is properly connected and the voltage is stable. If flickering persists, try resetting by turning off the power for 1 minute. If still, contact support.

Is the ZV1122 suitable for outdoor use?

No, the IP20 rating means it is only suitable for indoor use. Do not expose to moisture or dust.

How do I clean the fixture?

Disconnect power and let it cool. Wipe with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

Does the light have a memory function?

Yes, the ZV1122 remembers your last brightness and color temperature setting when turned off and on.

What is the warranty period?

Emos offers a 2-year warranty against manufacturing defects. Proof of purchase is required.

Can I use a dimmer switch?

No, this fixture is not compatible with standard dimmer switches. Use the built-in dimming function via remote or switch.

Where can I find spare parts?

Contact Emos customer support or authorized dealers. Provide your model number ZV1122 for assistance.

USER MANUAL ZV1122 Emos

Line drawing of a frying pan with a handle and a hanging object above it (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV1111	6 W Neutral white	Warm white	500 lmø 75 × 20 mmø 55 mm			220–240 V AC, 50/60 Hz	30 000 h
ZV1112
ZV1122 7.5 W Neutral white		650 lmø 100	× 20 mmø 80 mm
ZV1131	10 W Neutral white	Warm white	900 lmø 125 × 20 mmø 105 mm
ZV1132
ZV1142 13.5 W Neutral white		1 250 lmø 155 × 20 mmø 135 mm
ZV1152	19 W	Neutral white 1 700 lmø 185 × 20 mmø 165 mm

1.

Simple line drawing of a mechanical setup with a spring and lever, no text or symbols present

1.

Simple line drawing of a circuit board with a resistor and cable (no text or symbols)

ZV2111; ZV2112; ZV2122; ZV2131; ZV2132; ZV2142; ZV2152

Simple line drawing of a mechanical component with a circular base and spring attached, above a flat base (no text or symbols)

Order Code	Power Consumption	Light Color	Luminous Flux	Dimensions	Ceiling cut-out	Input Voltage	Life Span
ZV2111	6 W Neutral white	Warm white	500 lm 75	× 75 × 20 mm 55 mm		220-240 V AC, 50/60 Hz	30 000 h
ZV2112
ZV2122 7	5 W Neutral white	white 650 lm 100 × 100 × 20 mm	80 mm
ZV2131	10 W Neutral white	Warm white	900 lm 125 × 125 × 20 mm 105 mm
ZV2132
ZV2142 13.5 W Neutral white		white 1 250 lm 155 × 155 × 20 mm 135 mm
ZV2152 19 W Neutral white		white 1 700 lm 185 × 185 × 20 mm 165 mm

1.

Simple line drawing of a mechanical or electrical component with a spring attached to a base, no text or symbols present.

Simple line drawing of a circuit board with wires and components (no text or symbols)

GB This luminaire is not suitable for covering with insulation material.

GB | LED Panel, recessed

LED luminaire is designed for indoor use to be mounted on a solid base. Ingress Protection IP65 – suited for both indoor and outdoor use.

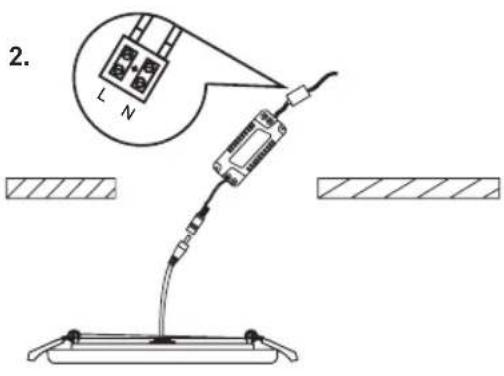

Mounting

Mount the lamp firmly onto a solid basis, for example a wall, a ceiling and like that. Connect the power cord to the mains 230 V\~. Connecting conductor must not be connected to the mains at time of installation. This operation can be carried out only by an authorized person.

WARNING

• Luminaire is suitable entirely for fixed mounting.
• The luminaire can be connected only to the electric distribution network, whose installation and protection complies with the applicable standards.
• Before any manipulation or servicing of the luminaire disconnect the luminaire from AC power. This operation can be carried out only by an authorized person.
• In case of any damage to any part of the luminaire, don't use it.
• LED chips inside the luminaire are not replaceable.
• Don't change inner wiring of the luminaire.
• In case of broken cover don't use the luminaire and replace broken cover with new one immediately.

EMOS spol. s r.o. declares that the LED panel, recessed is in compliance with the essential requirements and other relevant provisions of Directive. The device can be freely operated in the EU. The Declaration of Conformity can be found at http://www.emos.eu/download.

CZ | LED panel vestavný

GB This product contains a light source of energy efficiency class E

GB Do not dispose with domestic waste. Use special collection points for sorted waste. Contact local authorities for information about collection points. If the electronic devices would be disposed on landfi ll, dangerous substanoes may reach groundwater and subsequently food chain, where it could affect human health.
