Product Type	Power Bank
Brand	Lamax
Model	Journey 26800mAh
Battery Capacity	26800 mAh / 96.48 Wh
Input Ports	USB-C (PD 18W), Micro USB (10W)
Output Ports	2x USB-A (18W max), 1x USB-C (18W PD)
Max Output Power	18W (USB-C PD), 18W (USB-A)
Charging Time (via USB-C)	Approx. 6-7 hours (18W)
Dimensions (L x W x H)	160 x 75 x 30 mm
Weight	485 g
LED Indicators	4x LED for battery level
Material	Aluminum alloy + ABS plastic
Safety Features	Overcharge, overdischarge, short circuit, surge protection
Pass-through Charging	Supported
Compatible Devices	Smartphones, tablets, cameras, Bluetooth earphones
Operating Temperature	0°C to 45°C
Included Accessories	USB-C cable, Micro USB cable, user manual
Cleaning Instructions	Wipe with dry cloth; do not use liquids
Repairability	Non-replaceable battery; professional service required for repair
Certifications	CE, RoHS

Frequently Asked Questions - Journey 26800mAh Lamax

How long does it take to fully charge the Lamax Journey 26800mAh power bank?

Using a 18W USB-C PD charger, it takes approximately 6-7 hours. Charging via Micro USB at 10W may take up to 12 hours.

Can I charge my laptop with this power bank?

No, the maximum output is 18W, which is insufficient for most laptops. It is designed for smartphones, tablets, and other small electronics.

How many times can it charge my phone?

For a typical smartphone with 4000mAh battery, you can expect about 5-6 full charges, accounting for energy loss.

Is it safe to use while charging the power bank?

Yes, the power bank supports pass-through charging, but it may generate more heat. It is recommended to avoid prolonged use under load while charging.

What types of batteries are used inside?

The Lamax Journey uses high-quality lithium polymer (Li-Po) cells with built-in protection.

Can I take this power bank on an airplane?

Yes, power banks under 100 Wh (96.48 Wh for this model) are generally allowed in carry-on luggage. Check airline regulations before travel.

How do I know when the power bank is fully charged?

All four LED indicators will be solid and stop blinking. Disconnect the charger to preserve battery health.

What should I do if the power bank gets wet?

If it gets wet, immediately disconnect it from devices and do not use. Let it dry completely in a warm, dry place for at least 24 hours before use. If damaged, dispose of properly.

Can I charge multiple devices simultaneously?

Yes, the power bank can charge up to three devices at once (two USB-A and one USB-C). Total output is shared, so charging speeds may decrease.

How should I store the power bank when not in use?

Store in a cool, dry place at around 50% charge. Avoid extreme temperatures and direct sunlight.

USER MANUAL Journey 26800mAh Lamax

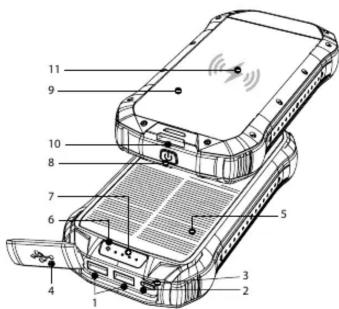

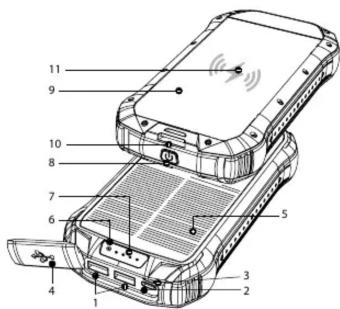

LAMAX LAMAX Journey 26800mAh

1 2× USB-A output
2 USB-C input / output
3 Micro USB input
4 Rubber port cover
5 Solar panel
6 LED solar charge indicator
7 LED charge status indicator
8 (1) button
9 Flashlight
10 Strap attachment point
11 Wireless charging area

Charging the powerbank

Charge the powerbank before using it for the first time. Plug the included power cord into the USB charger and plug the other end into the USB-C connector. The powerbank can also be charged using a micro USB cable, which is not included in the package.

The device can also be charged via the solar panel. A green LED indicates that solar charging is activated. This method is much slower than via the cable.

Charging other devices with the powerbank

A total of 4 outputs are available for charging: 2×USB-A, 1×USB-C, 1× wireless charging. If you charge more than one device at a time, the charging speed is automatically distributed to all the devices being charged.

Pressing the ⏻ button activates wireless charging, which is indicated by a red LED. This LED turns off after about 20 seconds.

Note: For optimal results and charging speed, use the original manufacturer's cable for your mobile device or the cable that comes included.

Battery status indicator

The powerbank's charge status is indicated by 4 blue LEDs.

Press the ⏻ button to display the current charge status of the

powerbank

Flashlight

To switch on the flashlight, hold down the ⏻ button. Press the ⏻ button to switch between 4 light modes: strong, weak, SOS, strobe. To switch the flashlight off again, hold down the ⏻ button.

Box contents

- LAMAX Journey 26800mAh powerbank

- Charging data cable - USB-A -> USB-C

- Strap and carabiner

Specifications

Battery	26800 mAh Lithium-Polymer (99.2 Wh)
Fast charging	up to 20 W
Simultaneous chargingup to 4 devices at once
Input	USB-C: 5 V - 3 A; 9 V - 2 AMicro USB: 5 V - 2 A; 9 V - 2 A
Output	USB-A (2x): 5 V - 3 A; 9 V - 2 A; 12 V - 1.5 AUSB-C: 5 V - 3 A; 9 V - 2.22 A; 12 V - 1.67 A
Wireless charging	5 W / 7.5 W / 10 W
Charging time (cable)	7 hours
Solar panel	2 W
LED Flashlight	3.6 W (full panel, 30 LED)4 lighting modes (strong, weak, SOS, strobe)
Degree of protection	IP66
Dimensions	175 × 94 × 28 mm
Weight	572 g

Carefully read the enclosed safety instructions.

The latest version of the manual can be found at this link:

https://www.lamax-electronics.com/downloads/lamax-journey-26800mAh/LAMAX_Journey_26800mAh_manual.pdf
