Brand	KATHREIN
Model	VCP 27
Product Type	Low-noise pre-amplifier / Receiver
Frequency Range FM	87.5 - 108 MHz
Frequency Range Band III	174 - 230 MHz
Frequency Range Band IV	470 - 606 MHz
Frequency Range Band V	606 - 862 MHz
Max Output Level	110 dBµV (XMod 66 dB)
Noise Figure	≤ 2.0 dB
Power Supply	+12 V to +15 V DC
Power Consumption	< 50 mA
Connection Type	IEC socket 2.4/9.5 (IEC 61169-2)
Weight	0.30 kg
Mounting	Indoor (outdoor with ZVP 13 set)
Remote Feeding	Via coaxial drop cable or separate clamping piece
Selectivity	Selective
Low Noise Design	Very low noise figure
Compliance	CE, WEEE Directive 2002/96/EC
Disposal	Dispose at public collection point

Frequently Asked Questions - VCP 27 KATHREIN

What is the power supply requirement for the VCP 27?

The VCP 27 requires a DC power supply of +12 V to +15 V with a current consumption of less than 50 mA.

Which frequency bands does the VCP 27 support?

It supports FM (87.5-108 MHz), Band III (174-230 MHz), Band IV (470-606 MHz), and Band V (606-862 MHz).

How do I connect the VCP 27?

Use an IEC socket 2.4/9.5 (IEC 61169-2) connection. Remote feeding is done via the coaxial drop cable or a separate clamping piece.

Can the VCP 27 be used outdoors?

It is designed for indoor mounting. For outdoor use, you need the ZVP 13 outdoor mounting set (ordered separately).

What is the maximum output level?

The maximum output level is 110 dBµV (with cross-modulation 66 dB).

What is the noise figure of the VCP 27?

The noise figure is ≤ 2.0 dB, making it a very low-noise amplifier.

How do I select the correct model for a specific channel?

For models VCP 35/45/55, the order number depends on the channel. For VCP 27, it is a fixed model (order no. 230042) covering all bands.

What is the weight of the VCP 27?

The weight is approximately 0.30 kg (packing unit 1 piece).

Is the VCP 27 compliant with environmental regulations?

Yes, it complies with the WEEE Directive 2002/96/EC. At end of life, dispose of it at a public collection point.

What accessories are available for the VCP 27?

For outdoor mounting, the ZVP 13 outdoor mounting set is available separately.

USER MANUAL VCP 27 KATHREIN

Low noise pre-amplifiers

Low noise pre-amplifiers

VCP 27	230042	CE
VCP 35	233500-507*)
VCP 45	233508-524*)
VCP 55	233525-556*)
VCP 66	230041

• Very low noise figure
• Selective
• Remote feeding via coaxial drop cable or separate clamping piece: +12 V to +15 V
  ● Connection: IEC socket 2.4/9.5 IEC 61169-2
• For indoor mounting. For outdoor mounting, ZVP 13 outdoor mounting set is required (see below)

Type Order no.		Frequency range				Max. output level dBμV		Noise figure	Power con-sumption	Packing unit/weight
		MHz 87.5-108 FM	MHz 174-230 B III	MHz 470-606 B IV	MHz 606-862 B V	Range 66 dB XMod	1 channel standard CCIR	dB	mA +12 to +15 V	pc./kg
VCP 27 230042	Input gain dB	Range 21				110 - 2.0	< 50 1/0.30
VCP 35 233500-507*)	Input gain dB		Ch 20			- 116 2.8	< 20 1/0.25
VCP 45 233508-524*)	Input gain dB			Ch 20		- 114 2.0	< 12 1/0.30
VCP 55 233525-556*)	Input gain dB				Ch 20	- 115 2.0	< 15 1/0.30
VCP 66 230041	Input gain dB			Range 22		103 - 2.7	<95 1/0.25

*) Indicate channel: VCP 35: order no.= channel -5, e.g.: Ch 9 = 233504 VCP 45/VCP 55: order no. = channel -13, e.g.: Ch 28 = 233515

Electronic equipment is not household waste - in accordance with directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL dated 27 ^th January 2003 on electrical and electronic equipment, it must be disposed of properly.

At the end of its service life, take this unit for disposal at a public collection point.

Application

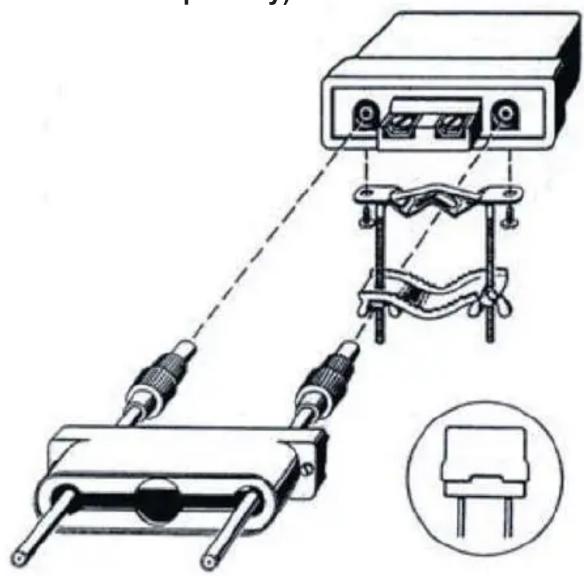

Wall mounting Outdoor mounting

using outdoor mounting set ZVP 13 (please order separately)
