Product Type	RGB Ring Light
Model	Alfama (NLL-1833)
Light Source	168 LEDs
Size	10 inches (25.4 cm)
Color Temperature	3000 – 6500 K (adjustable)
Brightness	800 lumens
Color Rendering Index (CRI)	>85 Ra
Power	10 W
Input	USB 5V DC
Cable Length	200 cm (6.6 ft)
Tripod Height	19 cm (7.5 inches)
Angle Adjustment	Yes (via ball head)
Connectivity (Remote)	Bluetooth 4.0
Included Accessories	Ball head, smartphone holder, tripod, lighting remote, selfie remote, user guide
Warranty	2 years limited manufacturer warranty
Certifications	CE, RoHS, WEEE compliant
Safety Features	Ventilation slots, overheat protection, epilepsy warning for flashing lights

Frequently Asked Questions - Alfama Natec

How do I set up the Natec Alfama ring light?

Unfold the tripod, attach the ball head to the top, screw the ring onto the ball head, then attach the smartphone holder in the center. Finally, plug the USB cable into a power source.

Can I adjust the brightness and color temperature?

Yes, use the included lighting remote. Buttons 2/3 and 13/14 control brightness. Buttons 4, 5, and 6 adjust color temperature (cold, neutral, warm).

How do I pair the selfie remote with my phone?

Enable Bluetooth on your phone. Slide the side button on the selfie remote upward; the LED will flash. Select 'AB Shutter 3' from the Bluetooth list. The LED will turn off, indicating successful pairing.

What is the maximum phone size that fits the holder?

The smartphone holder is adjustable and fits most phones up to about 6.7 inches in width, but the exact maximum is not specified.

Can I use the ring light without the tripod?

The ring light is designed to be mounted on the included tripod, but you can remove it and use a compatible stand if desired.

How many LEDs does the Alfama ring light have?

It has 168 high-quality LEDs, providing even and bright illumination.

Is the ring light suitable for video recording and live streaming?

Absolutely. With adjustable color temperature (3000-6500K) and brightness, plus a high CRI >85, it is ideal for makeup, vlogging, and streaming.

What is the power consumption?

The ring light consumes 10W (max) and is powered via a standard USB port (5V DC).

How do I clean and maintain the ring light?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquids or abrasive cleaners. Ensure ventilation slots are not blocked.

What does the WEEE symbol mean?

The crossed-out wheeled bin symbol indicates that this product should not be disposed of as household waste. Please recycle it properly at a designated collection point.

USER MANUAL Alfama Natec

Rit ring setup with a smartphone mounted on a tripod, featuring a colorful gradient ring and a person holding the camera (no text or symbols visible)

ALFAMA

User Manual

INSTALLATION

1. Unfold the tripod and attach the ball head on the top.
2. Screw the ring to the ball head, then attach the smartphone holder in the centre of the ring.
3. Plug the device in to a USB port.

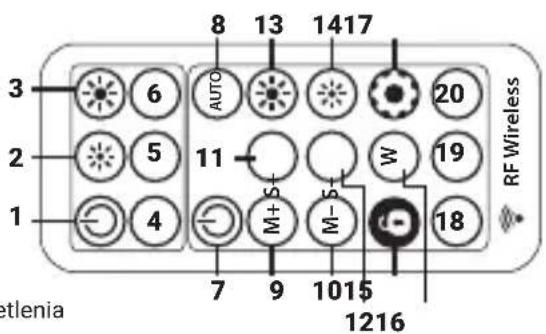

REMOTE

1,7 - On/Off
2,3 - Bright switch
4 - Cold light temperature
5 - Neutral light temperature
6 - Warm light temperature
8 - Demo mode
9,10 - Mode switch
11,12 - Speed control
13,14 - Bright switch
15 - Lock lighting effect
16 - Back to white light
17 - Temporary lighting effect lock
18 - Solid red light
19 - Solid green light
20 - Solid blue light

WIRELESS CONNECTION

• Enable the Bluetooth functionality of the device you wish to pair with the selfie remote.
• Slide the side button on the selfie remote upwards. The LED will flash, indicating that it was turned on.
• From the displayed on your device, select the "AB Shutter 3" selfie remote.
  • The LED on the remote will turn off.
• From now on, pairing will occur automatically when both devices are within range.

REQUIREMENTS

• PC or compatible device with a USB port
- Bluetooth 4.0

SAFETY INFORMATION

• Use as intended.
• Non-authorized repairs or disassembly voids the warranty and may damage the product.
• Dropping or hitting the device may lead to device being damaged, scratched or flawed in other way.
• Do not use the product in low and high temperatures, strong magnetic fields and damp or dusty surroundings.
• Improper usage may break the device.
• Slots and openings in the case are provided for ventilation and should not be obscured. Blocking the vents can cause overheating of the device.
  • People exposed to flashing lights may experience epileptic seizures or other symptoms of epilepsy. If you experience convulsions, dizziness or abnormal perception of any kind, please contact your doctor immediately.

Diagram of a tripod-mounted device with three legs and a small component, showing rotational motion arrows (no text or symbols)

Simple line drawing of a ring-mounted device with a central button and tripod base (no text or symbols)

Pure electrical circuit lines without any symbols

PACKAGE CONTENT

• Natec Alfama RGB Ring Light
- Ball head
- Smartphone holder
- Tripod
- Lighting remote
- Selfie remote
- User guide

SPECIFICATION

• Lamp size 10"
  • Number of LEDs 168 pcs
  • Color temperature 3000 - 6500 K
  • Lumens 800 lm
  • CRI >85 Ra
• Lamp angle adjustment Yes
  • Power 10 W
• Connector USB (5V DC)
• Communication (selfie remote) BT 4.0
  • Cable length 200 cm
• Tripod height 19 cm

WARRANTY

• 2 years limited manufacturer warranty.

GENERAL

• The safe product, conforming to the EU requirements.
• The product is made in accordance with RoHS European standard.
- The WEEE symbol (the crossed-out wheeled bin) using indicates that this product in not home waste. Appropriate waste management aids in avoiding consequences which are harmful for people and environment and result from dangerous materials used in the device, as well as improper storage and processing. Segregated household waste collection aids recycle materials and components of which the device was made. In order to get detailed information about recycling this product please contact your retailer or a local authority.
- Hereby, IMPAKT S.A. declares that that the radio equipment type NLL-1833 is in compliance with Directives 2014/53/UE (RED) and 2011/65/UE (ROHS). The full text of the EU declaration of conformity is available via the product tab at www.impakt.com.pl.

INSTALACJA

Simple line drawing of a ring light setup with a central object and directional arrows (no text or symbols)

Pure electrical circuit lines without any symbols

ZAWARTOŚĆ

Simple line drawing of a ring-mounted device with a central button and tripod base (no text or symbols)

Pure electrical circuit lines without any symbols

OBSAH

Pure electrical circuit lines without any symbols

OBSAH

Simple line drawing of a ring-mounted device with a central button and tripod base (no text or symbols)

Pure electrical circuit lines without any symbols

CONTINUT

Diagram of a tripod-mounted device with three legs and a small component, showing rotational arrows (no text or symbols)

Simple line drawing of a ring-mounted device with a central button and tripod base (no text or symbols)

Pure electrical circuit lines without any symbols

TARTALOM

Simple line drawing of a ring-mounted device with a central button and tripod base (no text or symbols)

Pure electrical circuit lines without any symbols

СЪДЪРЖАНИЕ

• Ринг лампа Natec Alfama RGB Ring Light
• Сферична глава
• Държач за телефон
• Трипод
• Бутон на селфи
• Дистанционно управление за управление на подсветката
• Кратка инструкция

СПЕЦИФИКАЦИЯ
