Product Type	Men's shaver
Model	MSR711
Brand	Blaupunkt
Voltage	5 V
Max Input Current	1000 mA
Shaving Blades	Blaupunkt ACC063
Charging Time	Approximately 2 minutes delay before charge indication
Battery Life	Up to 200 minutes (display shows remaining time)

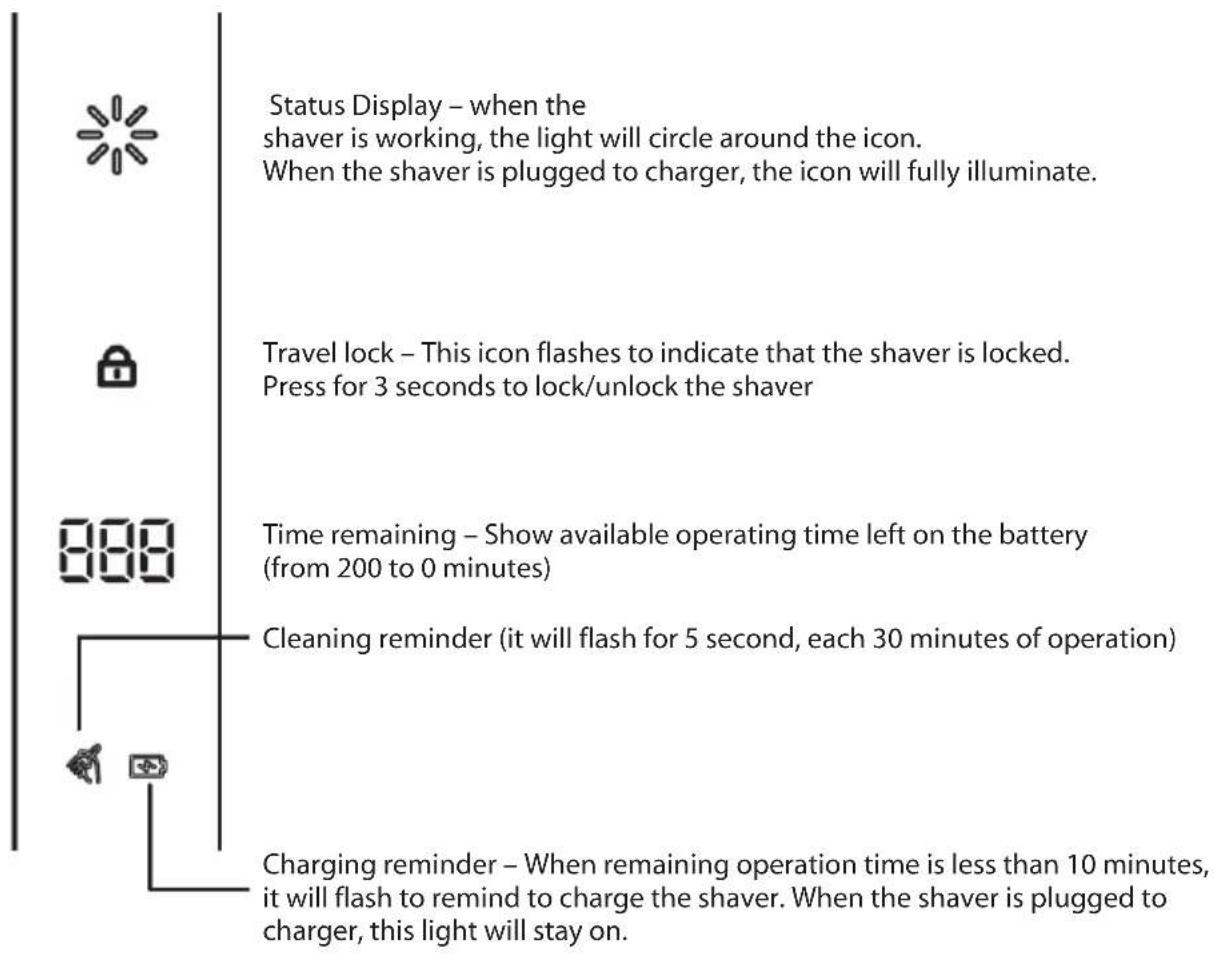

Display Features	Charging indicator, travel lock, time remaining, cleaning reminder
Travel Lock	Press 3 seconds to lock/unlock
Cleaning Method	Brush included; shaving heads can be rinsed under running water
Blade Maintenance	Regular cleaning; blades are replaceable
Usage Environment	Domestic use only; wireless use allowed in bath or shower (cordless)
Safety Standards	CE, WEEE, RoHS, Battery Directive 2006/66/EC
Power Supply	USB AC adapter (not included)
Operating Temperature (Charging)	5°C to 35°C
Material	Recyclable components

Frequently Asked Questions - MSR711 BLAUPUNKT

How long does it take to fully charge the MSR711?

The charging time is not explicitly specified, but if the battery is completely discharged, the charging indicator may take up to 2 minutes to appear. A full charge typically takes a few hours.

Can I use the shaver while it is charging?

Yes, you can use the shaver while connected to the charger, but do not use it near water (e.g., bath, shower) when plugged in.

How do I clean the shaver?

Switch off and unplug. Use the provided brush to clean the shaving head after each use. The blades can be rinsed under running water (max 50°C). Open the head housing, remove and clean each head and blade set individually.

What does the cleaning reminder mean?

The cleaning reminder flashes for 5 seconds every 30 minutes of operation to indicate it's time to clean the shaver.

How do I activate the travel lock?

Press and hold the On/Off button for 3 seconds to lock or unlock the shaver. The travel lock icon will flash when locked.

What is the battery life of the MSR711?

The display shows remaining operating time from 200 to 0 minutes. When less than 10 minutes remain, the charging reminder flashes.

Can I replace the shaving blades?

Yes, the shaving blades are replaceable. Use Blaupunkt ACC063 blades. Each blade is assigned to a specific head; ensure correct placement for optimal performance.

Is the shaver waterproof?

The shaver is not waterproof but can be rinsed under running water. It can be used wirelessly in the bath or shower, but should not be submerged.

What voltage does the charger use?

The shaver operates at 5V with a max input current of 1000mA. The AC adapter should match the outlet voltage (100-240V typical).

How long does the adjustment period last?

It may take up to 3 weeks for your skin and hair to adjust to the blade system. The first shaves may not be perfectly accurate and the skin might be irritated.

USER MANUAL MSR711 BLAUPUNKT

Black handheld electric shaver with three circular dials and a digital display showing four rotary buttons (no text or symbols visible)

Enjoy it.

Men's shaver Herrenrasierer Golarka męska Pánský holicí strojek Pánsky holiaci strojček Férfi borotva Moški brivnik

Aparat za brijanje Ανδρική ξυριστική μηχανή Μъжка самобръсначка Aparat de ras pentru bărbați Skustuvas vyrams Meeste raseerija

Technical line drawing of two electronic components: a USB connector and a multi-pin connector (no text or symbols)

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. • Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.

- If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.

- Unplug the AC adapter from the electrical outlet when not in use.

- Do not connect or disconnect the adaptor from the power source with wet hands.

- Having disconnected the appliance from the power supply, clean it under running water no warmer than 50 degrees.

- Only a wireless appliance may be used in the bath or shower.

- Do not use the shaver if the film or blades are damaged in any way. The appliance may be charged in temperatures in the range of 5-35 degrees Celsius. For reasons of hygiene, the appliance should be used by one person only.

Device is compliant with EU directives:

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be dispose with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL SPECIFICATIONS OF THE APPLIANCE

Voltage: 5V

Max. input current: 1000mA

Shaving blades: Blaupunkt ACC063

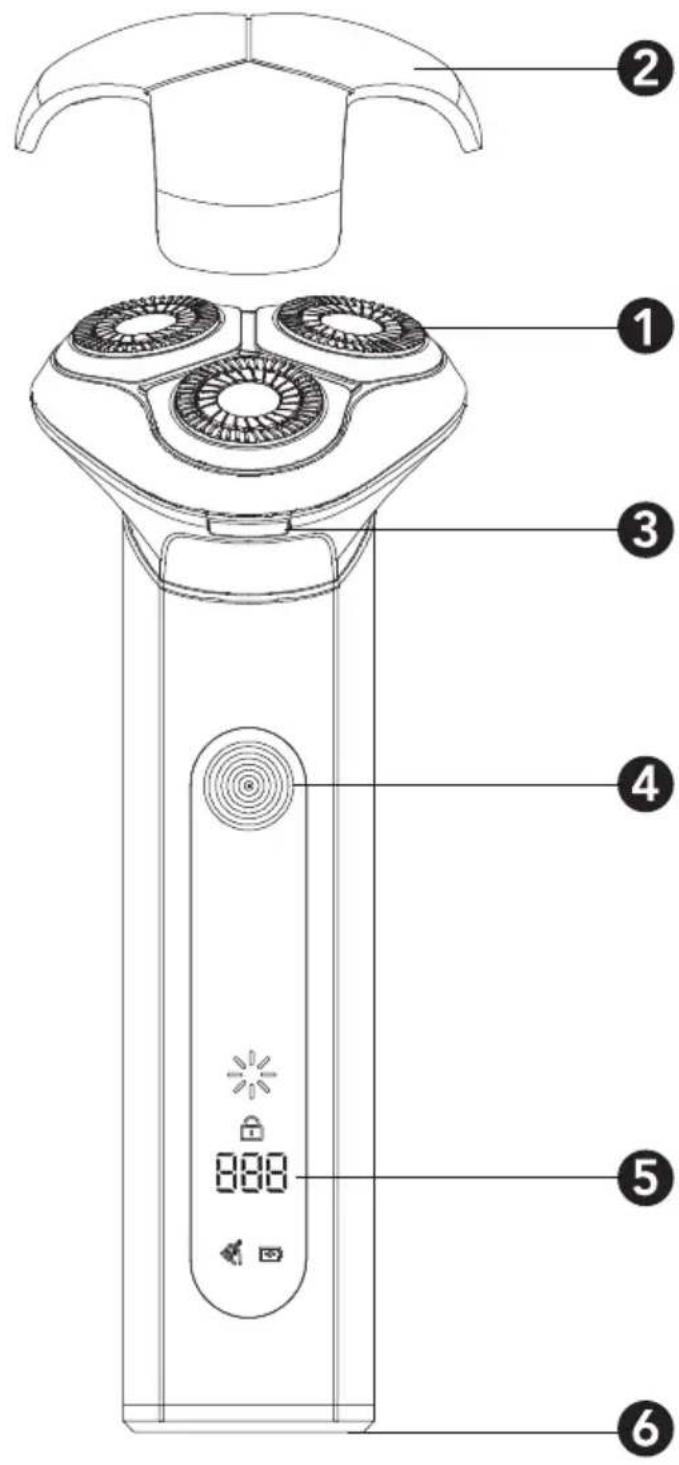

1. Shaving head
2. Housing of the shaving heads
3. Button used to open the housing of the shaving heads
4. On/Off button
5. Display
6. Socket

CHARGING THE APPLIANCE

If the appliance's battery charge is low or the battery is totally discharged, it needs charging. Insert the power supply cord into the appliance and connect the power supply unit to the electrical grid. The charging indicator of the appliance will then display its charging status. If the appliance is totally discharged, the indication of its charging status may be delayed. This delay should be no longer than 2 minutes.

Having connected the appliance to the charger, you may continue using the appliance. However, do not use the appliance in the vicinity of baths, showers, swimming pools or similar water tanks.

SHAVER OPERATION

Switch the shaver on with the On/Off button.

Move the shaver across the skin surface, making circular movements.

Clean the shaving head after each use with the provided brush.

Note: Each shaver requires the skin and hair growth to adjust to the blade system applied. The first shaves may not be perfectly accurate and the skin may be irritated. The adjustment period may last up to 3 weeks.

SHAVER CLEANING

Make sure the appliance is switched off and not connected to the charger.

Clean the shaving film and the shaver blades after each use of the shaver. Use the brush for this purpose. The blades may be rinsed under running water.

Clean the appliance regularly with due care. Press the button opening the housing of the shaving heads. Remove all hair from the inside. Turn the ring mounting the blade heads to the left. Remove the ring. Remove and clean each head and set of blades.

Note: place the blades in the heads they have been removed from (each blade is assigned to a respective head, and if used in another head, the blade may be less effective or even get damaged).

Having cleaned the heads, place them in the housing along with the blades (pay attention to the cuts and grooves), insert the mounting ring and close it by turning it to the right.

Device is compliant with EU directives:

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label
