Product Type	Voltage Converter
Input Voltage	100–240 V~ 50/60 Hz, 0.6 A
Output Voltage	12 V DC, 5.0 A
Output Socket	12V DC socket (cigarette lighter type)
Cable Length	2.5 m
Power Indicator	LED indicator (green when powered)
Operating Environment	Indoor use only
Protection Features	Overcurrent protection, short-circuit protection
Compatible Devices	AC 3010 C car cooler (and similar 12V devices up to 60W)
Safety Certifications	CE compliant (EMC and electrical safety)
Cleaning Instructions	Wipe with dry cloth; do not immerse in water
Disposal Instructions	Do not dispose as household waste; recycle at WEEE collection points
Warranty	Standard manufacturer warranty (see manual)
Package Contents	Voltage converter, user manual
Weight (approx.)	0.5 kg

Frequently Asked Questions - MP 2500 ECG

What is the ECG MP 2500 voltage converter used for?

The MP 2500 is a voltage converter that transforms 100-240V AC mains power into 12V DC output, designed to power devices like the AC 3010 C car cooler or other 12V equipment with a maximum current of 5.0A.

How do I connect the MP 2500?

First, plug the 12V DC plug of your device firmly into the 12V DC socket on the converter. Then, connect the converter's power cord to a wall outlet. The power indicator will light up when powered.

Can I use the MP 2500 outdoors?

No, the MP 2500 is designed for indoor use only. Keep it away from moisture, direct sunlight, and heat sources.

What safety precautions should I take?

Do not immerse in water. Use only with dry hands. Do not cover the converter during use. If the cord or plug is damaged, stop use and have it repaired by a professional service center.

Can I use the MP 2500 with any 12V device?

It can power 12V devices up to 5.0A (60W). Check your device's current rating to ensure it does not exceed this limit.

What does the power indicator mean?

The power indicator lights up green when the converter is connected to mains and working properly. If it does not light, check connections or power source.

How do I clean the MP 2500?

Unplug the converter and wipe it with a dry, soft cloth. Do not use liquids or immerse it in water.

Is the MP 2500 overload protected?

Yes, it includes overcurrent and short-circuit protection. If an overload occurs, the converter may shut down to prevent damage. Reduce the load and restart.

How should I dispose of the MP 2500?

Do not throw it in household waste. Take it to a WEEE recycling collection point for proper disposal of electronic equipment.

What is the cable length of the MP 2500?

The power cord is 2.5 meters long, providing flexibility in placement.

USER MANUAL MP 2500 ECG

Black electrical charger with cable and power plug, no visible text or symbols

MP 2500

CZ

MĚNIČ NAPĚTÍ

NÁVOD K OBSLUZE

SK

MENIČ NAPÄTIA

NÁVOD NA OBSLUHU

PL

PRZETWORNICA NAPIĘCIA

INSTRUKCJA OBSŁUGI

HU

FESZÜLTSÉG ÁTALAKÍTÓ

HASZNÁLATI ÚTMUTATÓ

DE

SPANNUNGSWANDLER

BEDIENUNGSANLEITUNG

GB

VOLTAGE CONVERTER

INSTRUCTION MANUAL

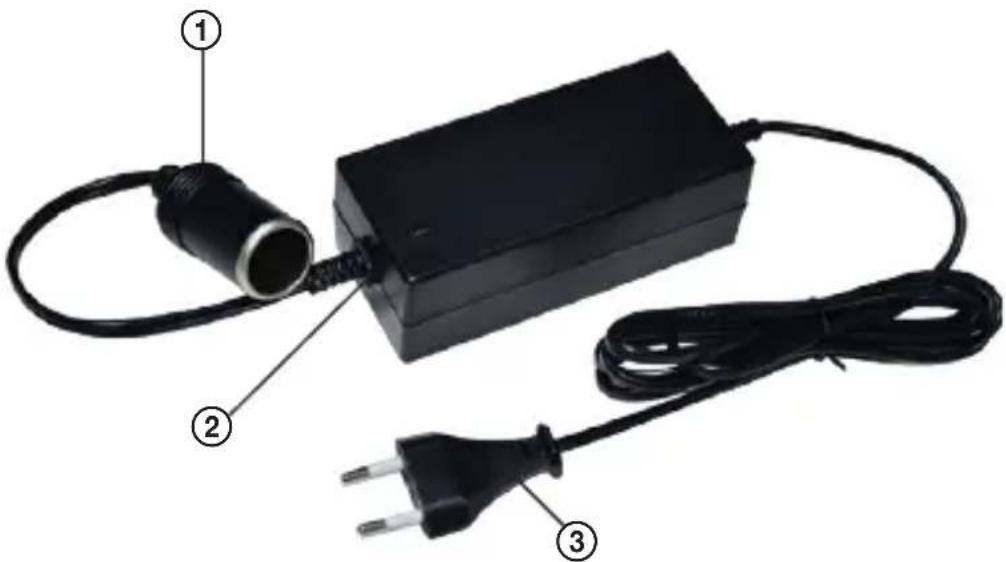

POPIS / POPIS / OPIS / A KÉSZÜLÉK RÉSZEI / BESCHREIBUNG / DESCRIPTION

CZ

1. 12VDC socket
2. Converter power indicator
3. Power cord

BEZPEČNOSTNÍ POKYNY

Do not immerse in water! – Neponořovat do vody!

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

08/05

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or symbols)

08/05

Kimenet: 12 V DC/5,0 A

HULLADÉKFELHASZNÁLÁS ÉS MEGSEMMISÍTÉS

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

08/05

Symbol of a trash bin with crossed lines indicating no waste or restriction, plus a solid black rectangle below (no text or symbols)

08/05

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into a product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for any damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against the risk of fire or electric shock, basic precautions must be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is correctly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.

When used on ships: If the voltage converter is plugged in, make sure the power supply has a current protector.

Danger of injury!

1. The 12V DC plug of the appliance must be firmly connected to the 12V DC socket of the voltage converter.
2. Do not use the voltage converter if the power cord or plug is damaged, if it does not work properly, has dropped to the ground and was damaged or fell into water. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
3. Protect the converter from direct contact with water and other fluids to avoid possible electric shock. Do not immerse into water.

Before using the converter, make sure the power cord and its plug are dry. Do not touch the power cable or the converter with wet hands. Risk of electric shock!

1. The device is intended for indoor use only.

2. Do not allow children to play with the converter. It is not a toy! Take extra care when using the converter near children.

3. Do not place the converter near open flame or other sources of heat (heating, direct sunlight, cooker, etc.).

4. If you feel that the converter is not working properly, disconnect it immediately from the power source and take the converter to a service center.
5. We recommend not leaving the converter with the plugged in power cable unattended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not pull the cord from the outlet by yanking the cable. Unplug the cable from the outlet by grasping the plug.
6. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges. Do not bend the converter's cables in any way.
7. Do not cover the voltage converter during operation, do not place other objects on it.

8. Only use the voltage converter in accordance with the instructions in this manual. This voltage converter is for home use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.

9. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

Do not immerse in water! – Do not immerse in water!

DANGER for children Children may not play with the packaging material. Do not let children play with the plastic bags. Risk of suffocation.

USE OF THE CONVERTER

The voltage converter is suitable for the is suitable for the AC 3010 C car cooler.

First connect the 12V DC power plug of the appliance firmly to the 12V DC power socket. Then connect the voltage converter to the mains. The power indicator turns on when power is supplied.

TECHNICAL DATA

Cable length: 2.5 m

Input: 100–240 V\~ 50/60 Hz, 0.6 A

Output: 12 V DC/5.0 A

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Symbol of a trash bin with crossed lines indicating no waste, above a solid black rectangle (no text or numbers present)

08/05

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu. Changes in text and technical parameters reserved.
