USER MANUAL FM3080 Hind Newland

Black square mechanical component with a central circular opening and mounting holes, set against a teal background (no text or symbols visible)

FM3080

HIND

Stationary Scanners

Disclaimer

© 2023 Newland Europe BV. All rights reserved.

Please read the manual carefully before using the product and operate it according to the manual. It is advised that you keep this manual for future reference.

Do not disassemble the device or remove the seal label from the device; doing so will void the product warranty provided by Newland Europe BV.

All pictures in this manual are for reference only, and the actual product may differ.

Regarding product modification and update, Newland Europe BV reserves the right to make changes to any software or hardware to improve reliability, function, or design at any time without notice. The information contained herein is subject to change without prior notice.

The products depicted in this manual may include software copyrighted by Newland Europe BV or a third party. The user, corporation or individual shall not duplicate, in whole or in part, distribute, modify, decompile, disassemble, decode, reverse engineer, rent, transfer, or sublicense such software without prior written consent from the copyright holders.

This manual is copyrighted. No part of this publication may be reproduced, distributed, or used in any form without Newland Europe BV's written permission.

Risk Warning Regarding Unauthorized System Updates:

You should use the Newland-provided tool to update this product's system. Modifying system files by installing a third-party ROM system or using any cracking method may result in product malfunction or data loss and void your warranty.

Newland Europe BV reserves the right to make a final interpretation of the statement above.

Newland Europe BV

Rolweg 25, 4104 AV, Culemborg,

The Netherlands

www.newland-id.com

Newland Europe BV is a subsidiary of Newland Digital Technology Co., Ltd. Our general conditions of Purchase, Sale and Delivery are filed with the Record Office of the Chamber of Commerce of Utrecht, The Netherlands.

K.v.K. H.R. Utrecht / Chamber of Commerce Utrecht:

Reg. nr. 17109876

Revision History

Version	Description	Date
V1.0.0	Initial release.	December 18, 2018
V1.0.1	1. Updated the programming barcodes for the Good Read Beep Volume feature in Chapter 3.2. Added the Code Page 932 (Japanese, Shift-JIS) feature in Chapter 5.Note: Firmware version ROMA_V1.00.002 or later is required for the new features above.	March 21, 2019
V1.0.2	Added the front view and installation note in the “Dimensions” section in Chapter 1.	March 26, 2019
V1.0.3	Changed the product picture in the first page	Sep 26, 2019
V1.0.4	Revised USB HID Keyboard PID	Oct 24, 2019
V1.0.5	Added the Datalogic Magellan Aux-RS232 section in Chapter 4.	Feb 19, 2020
V1.0.6	Updated the Standard 25 section.	June 12, 2020
V1.0.7	Updated the VID/PID section in Chapter 5.	January 22, 2022
V1.0.8	Updated the Dimensions section in Chapter 1.	July 14, 2022
V1.0.9	Updated the document template.	April 27, 2023

Table of Contents

Revision History 3

Preface ....1

Introduction .... 1

Chapter Description .... 1

Explanation of Symbols....2

Explanation of Icons....2

Chapter 1 Getting Started....3

Introduction 3

Symbologies....3

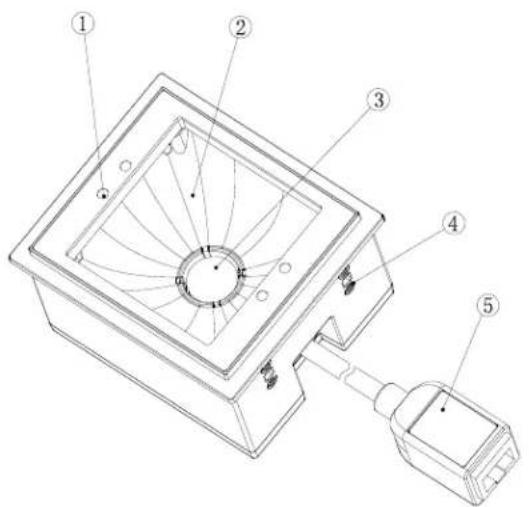

FM3080 Scanner....4

Chapter 2 Installation....5

Introduction 5

Dimensions (unit: mm) 5

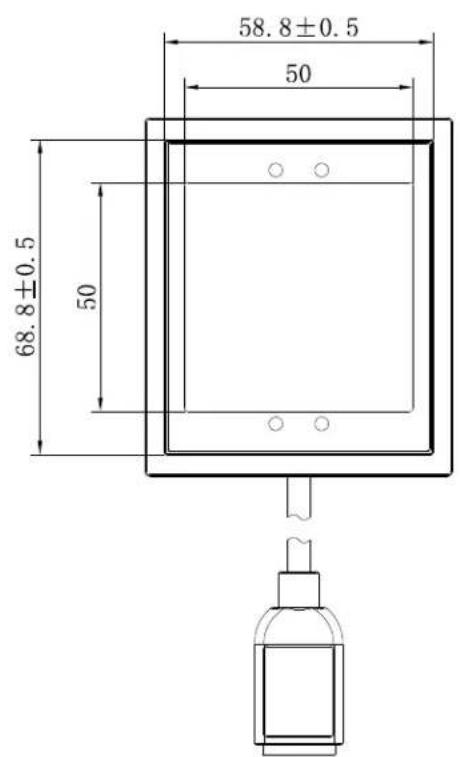

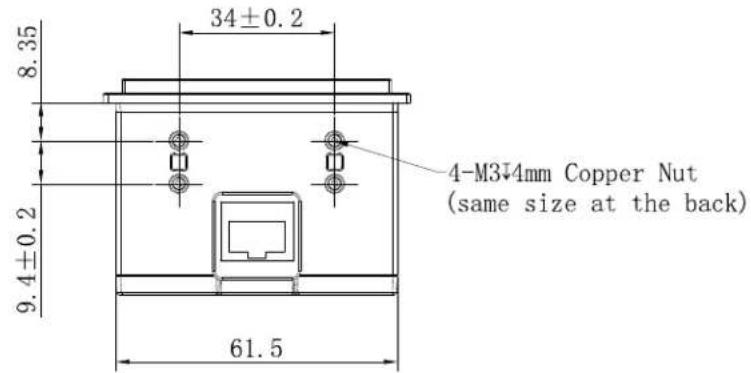

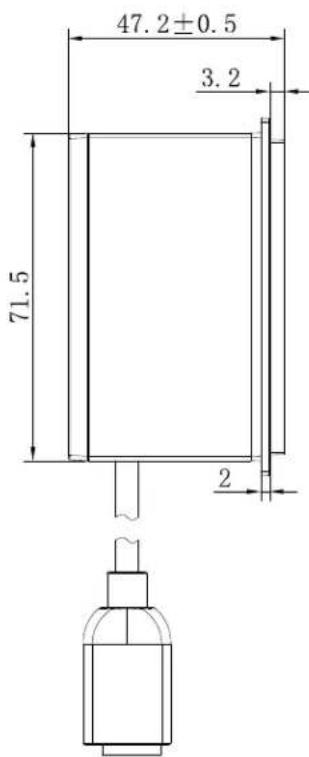

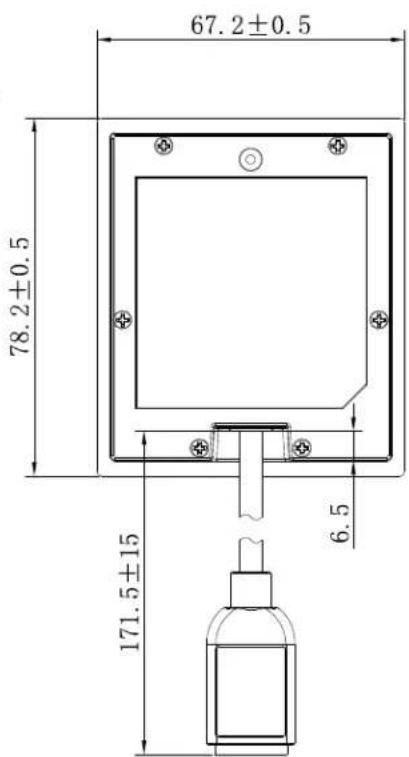

Mounting 6

RJ50 Port 7

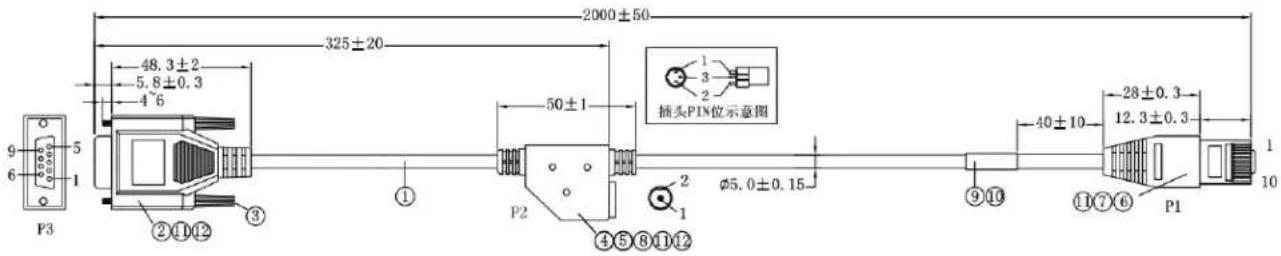

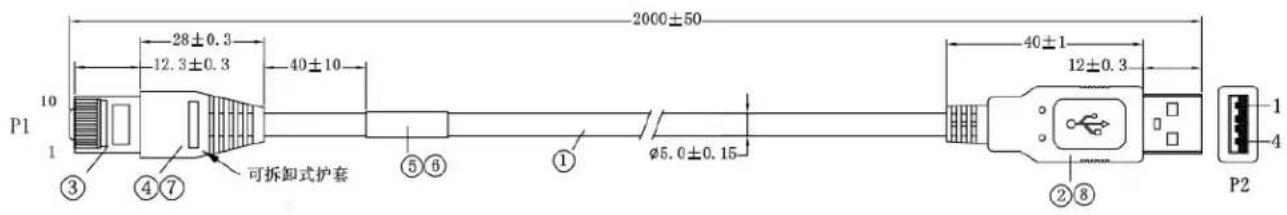

Connector Specifications....7

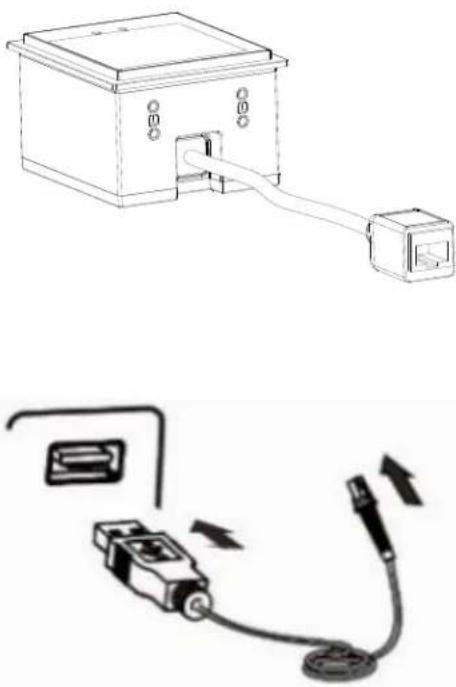

Connecting the FM3080 to a Host Device....8

Using USB Cable 8

Using RS-232 Cable 9

Powering on....10

Powering off 10

ESD....10

Dust and Dirt....10

Ambient Environment....10

Thermal Considerations....11

Maintenance....11

Chapter 3 Optics....12

Introduction 12

Sensor....12

Illumination....12

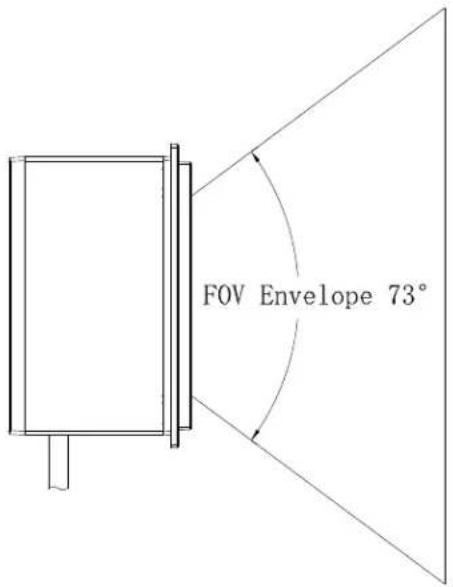

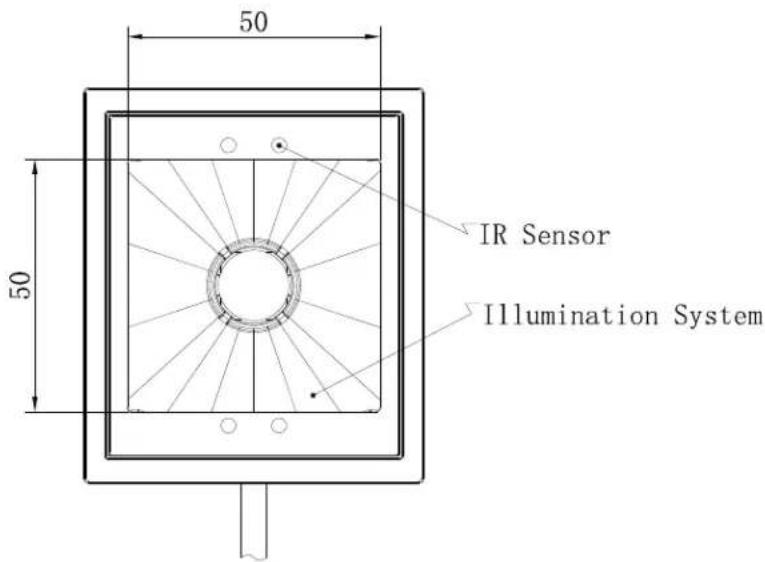

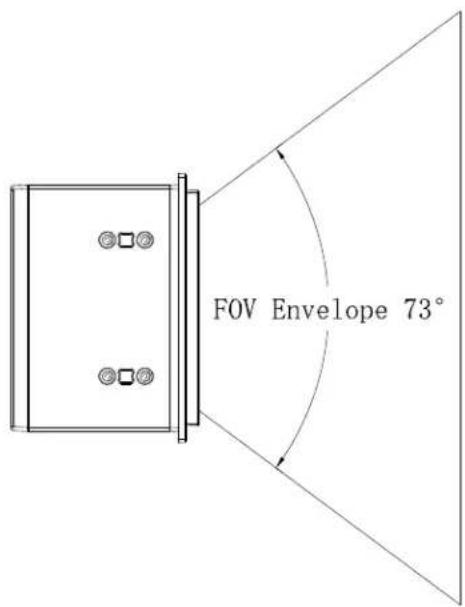

Window Size 13

Ambient Light....15

Eye Safety....15

Depth of Field....16

Chapter 4 Electrical Specifications....17

Power Supply....17

Ripple Noise....17

Interface Pinouts....18

DC Characteristics 18

Operating Voltage 18

Operating Current 19

I/O Voltage 19

Chapter 5 Auxiliary Tools....20

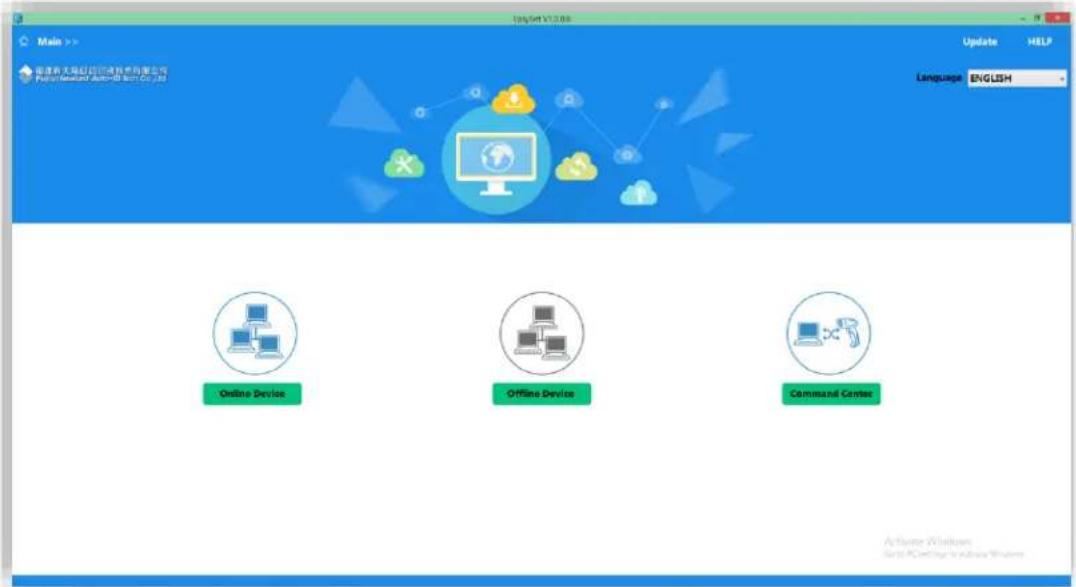

EasySet....20

UFCOM....21

Chapter 6 Configuration ...... 22

Introduction 22

Barcode Programming 22

Command Programming....22

EasySet Programming 22

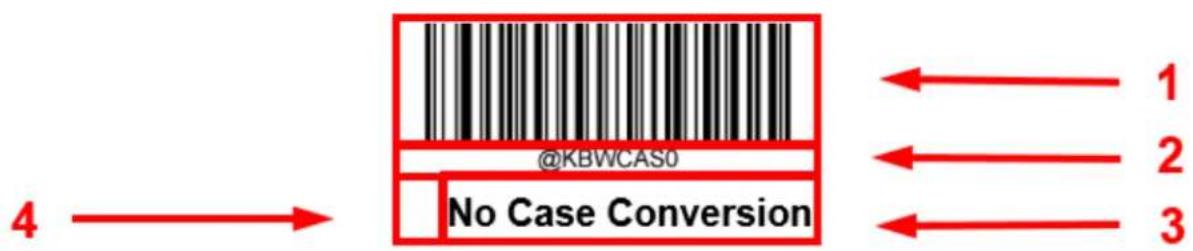

Programming Barcode/ Programming Command/Function....23

Use of Programming Barcodes 24

Default Settings....25

Factory Defaults....25

Custom Defaults ....25

Query Product Information....26

Query Product Name 26

Query Firmware Version 26

Query Hardware Version....27

Query Product Serial Number 27

Query Manufacturing Date....28

Query OEM Serial Number 28

Query Data Formatter Version 28

Chapter 7 Communication Interface....29

Introduction 29

Adaptive Wired Communication....30

RS-232 Interface 31

Baud Rate 32

Parity Check....33

Data Bit....34

Stop Bit 34

USB HID Keyboard 35

USB Country Keyboard Types 36

Beep on Unknown Character....40

Emulate ALT+Keypad 41

Code Page 42

Unicode Encoding....44

Emulate Keypad with Leading Zero 44

ASCII Function Key Mapping Table (Continued)....47

Inter-Keystroke Delay 48

Caps Lock 49

Convert Case....50

Emulate Numeric Keypad 51

Fast Mode 53

Polling Rate....54

USB CDC....56

HID POS (POS HID Barcode Scanner)....57

Introduction 57

Access the Scanner with Your Program....57

Acquire Scanned Data 58

Send Command to the Scanner....58

IBM SurePOS (Tabletop)....59

IBM SurePOS (Handheld)....59

VID/PID 59

Datalogic Magellan Aux-RS232....60

Chapter 8 System Settings....62

Scan Mode 62

Decode Session Timeout 63

Image Stabilization Timeout (Sense Mode)....65

Trigger Selection (Sense Mode)....66

Image Change Trigger Sensitivity 67

IR Proximity Trigger Sensitivity 68

Reread Timeout....69

Good Read Delay....71

Scanning Preference....72

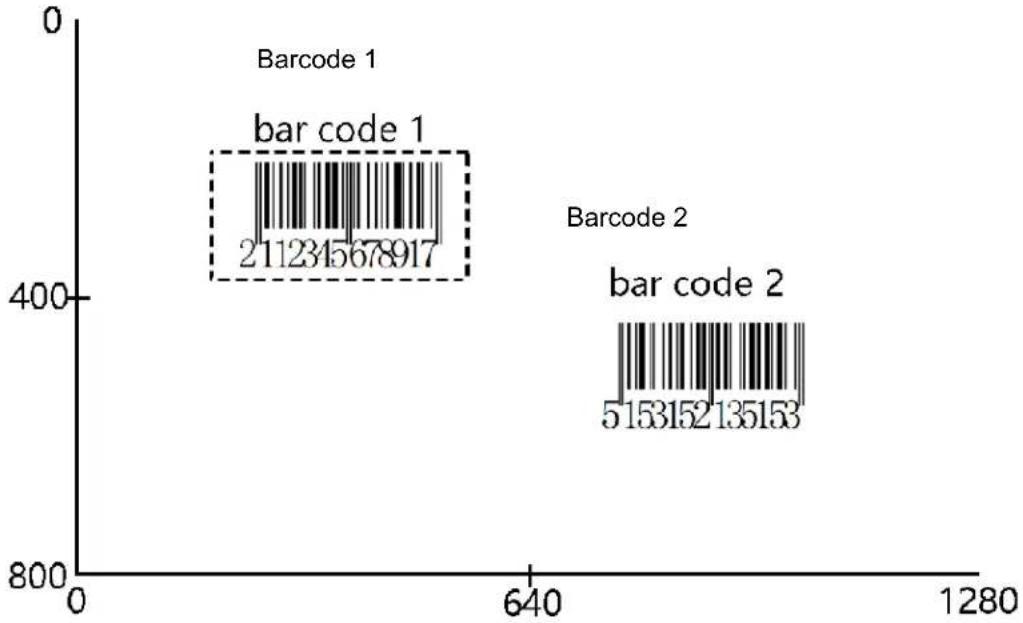

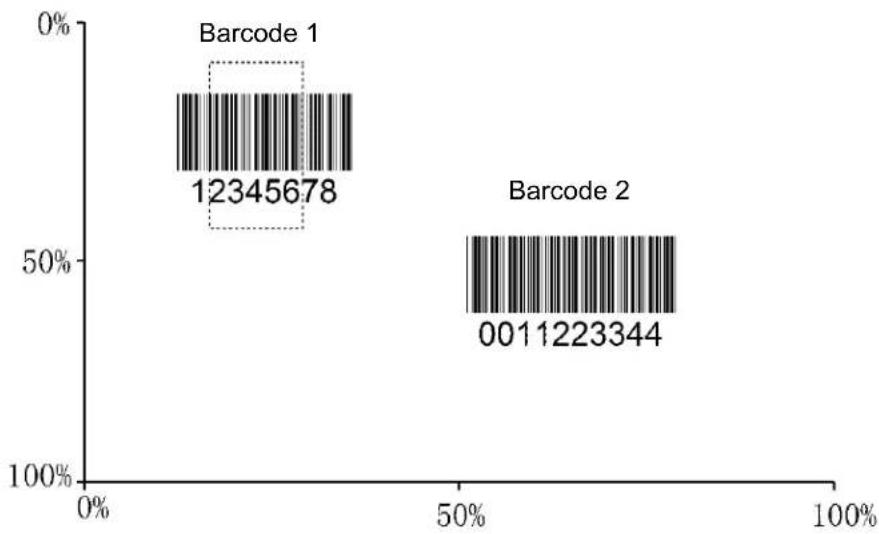

Decode Area 73

Image Flipping....78

Bad Read Message....79

Set Bad Read Message 80

Trigger Commands....80

Modify Start Scanning Command 81

Modify Stop Scanning Command....81

Illumination 83

Illumination LED Selection 84

Good Read LED 84

Good Read LED Duration 85

Good Read LED Selection....86

Power On Beep....87

Good Read Beep 87

Good Read Beep Duration....88

Good Read Beep Frequency 89

Good Read Beep Volume 90

Chapter 9 Symbologies....91

Introduction 91

Global Settings....91

Enable/Disable All Symbologies....91

Enable/Disable 1D Symbologies....91

Enable/Disable 2D Symbologies....92

1D Twin Code 92

Surround GS1 Application Identifiers (AI's) with Parentheses....94

Code 128 95

Restore Factory Defaults 95

Enable/Disable Code 128....95

Set Length Range for Code 128 96

EAN-8 97

Restore Factory Defaults 97

Enable/Disable EAN-8 97

Transmit Check Character 97

2-Digit Add-On Code 98

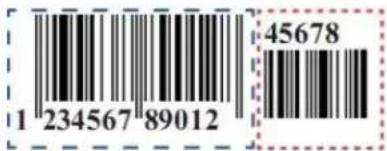

5-Digit Add-On Code 99

Add-On Code Required 100

Convert EAN-8 to EAN-13 100

EAN-13 101

Restore Factory Defaults 101

Enable/Disable EAN-13 101

Transmit Check Character 102

2-Digit Add-On Code 102

5-Digit Add-On Code 103

Add-On Code Required 103

EAN-13 Beginning with 290 Add-On Code Required....104

EAN-13 Beginning with 378/379 Add-On Code Required 104

EAN-13 Beginning with 414/419 Add-On Code Required....105

EAN-13 Beginning with 434/439 Add-On Code Required 105

EAN-13 Beginning with 977 Add-On Code Required .... 106

EAN-13 Beginning with 978 Add-On Code Required 106

EAN-13 Beginning with 979 Add-On Code Required....107

UPC-E....108

Restore Factory Defaults 108

Enable/Disable UPC-E....108

Transmit Check Character 109

2-Digit Add-On Code....109

5-Digit Add-On Code....110

Add-On Code Required 110

Transmit Preamble Character....111

Convert UPC-E to UPC-A 111

UPC-A....112

Restore Factory Defaults 112

Enable/Disable UPC-A....112

Transmit Check Character 112

2-Digit Add-On Code....113

5-Digit Add-On Code 114

Add-On Code Required 115

Transmit Preamble Character 115

Coupon 116

UPC-A/EAN-13 with Extended Coupon Code.... 116

Coupon GS1 Databar Output.... 117

Interleaved 2 of 5 118

Restore Factory Defaults 118

Enable/Disable Interleaved 2 of 5 118

Set Length Range for Interleaved 2 of 5 .... 119

Check Character Verification....120

ITF-14 121

Restore Factory Defaults 121

Enable/Disable ITF-14 121

ITF-6 122

Restore Factory Defaults 122

Enable/Disable ITF-6 122

Matrix 2 of 5 123

Restore Factory Defaults 123

Enable/Disable Matrix 2 of 5....123

Set Length Range for Matrix 2 of 5 124

Check Character Verification....125

Code 39 126

Restore Factory Defaults 126

Enable/Disable Code 39 126

Set Length Range for Code 39....127

Check Character Verification....128

Transmit Start/Stop Character....129

Enable/Disable Code 39 Full ASCII 129

Enable/Disable Code 32 (Italian Pharma Code)....130

Code 32 Prefix....130

Transmit Code 32 Start/Stop Character....131

Transmit Code 32 Check Character....131

Codabar 132

Restore Factory Defaults 132

Enable/Disable Codabar....132

Set Length Range for Codabar 133

Check Character Verification....134

Start/Stop Character 135

Code 93 136

Restore Factory Defaults 136

Enable/Disable Code 93....136

Set Length Range for Code 93....137

Check Character Verification....138

China Post 25....140

Restore Factory Defaults 140

Enable/Disable China Post 25 140

Set Length Range for China Post 25 141

Check Character Verification....142

GS1-128 (UCC/EAN-128) 143

Restore Factory Defaults 143

Enable/Disable GS1-128....143

Set Length Range for GS1-128....144

GS1 Databar (RSS) 145

Restore Factory Defaults 145

Enable/Disable GS1 Databar 145

Transmit Application Identifier "01" 145

GS1 Composite (EAN·UCC Composite)....146

Restore Factory Defaults 146

Enable/Disable GS1 Composite....146

Enable/Disable UPC/EAN Composite....147

Code 11....148

Restore Factory Defaults 148

Enable/Disable Code 11....148

Set Length Range for Code 11....149

Check Character Verification....150

Transmit Check Character 151

ISBN....152

Restore Factory Defaults 152

Industrial 25....155

Restore Factory Defaults 155

Enable/Disable Industrial 25 155

Set Length Range for Industrial 25 156

Check Character Verification....157

Standard 25....158

Restore Factory Defaults 158

Enable/Disable Standard 25 158

Set Length Range for Standard 25 .... 159

Check Character Verification....160

Plessey 161

Restore Factory Defaults 161

Enable/Disable Plessey 161

Set Length Range for Plessey 162

Check Character Verification....163

MSI-Plessey....164

Restore Factory Defaults 164

Enable/Disable MSI-Plessey....164

Set Length Range for MSI-Plessey....165

Check Character Verification.... 166

Transmit Check Character 167

AIM 128....168

Restore Factory Defaults 168

Enable/Disable AIM 128....168

Set Length Range for AIM 128....169

ISBT 128....170

Restore Factory Defaults 170

Enable/Disable ISBT 128....170

Code 49 171

Restore Factory Defaults 171

Enable/Disable Code 49....171

Set Length Range for Code 49....172

Code 16K....173

Restore Factory Defaults 173

Enable/Disable Code 16K....173

Set Length Range for Code 16K....174

PDF417 175

Restore Factory Defaults 175

Enable/Disable PDF417 175

Set Length Range for PDF417....176

PDF417 Twin Code....177

PDF417 Inverse 178

Character Encoding .... 178

PDF417 ECI Output 179

Micro PDF417 180

Restore Factory Defaults 180

Enable/Disable Micro PDF417 180

Set Length Range for Micro PDF417 181

QR Code 182

Restore Factory Defaults 182

Enable/Disable QR Code....182

Set Length Range for QR Code....183

QR Twin Code....184

QR Inverse....185

Character Encoding .... 185

QR ECI Output....186

Micro QR Code 186

Restore Factory Defaults 186

Enable/Disable Micro QR....187

Set Length Range for Micro QR....188

Aztec 189

Restore Factory Defaults 189

Enable/Disable Aztec Code....189

Set Length Range for Aztec Code....190

Read Multi-barcodes on an Image 191

Set the Number of Barcodes....192

Character Encoding 193

Aztec ECI Output 193

Data Matrix....194

Restore Factory Defaults 194

Enable/Disable Data Matrix....194

Set Length Range for Data Matrix....195

Data Matrix Twin Code....196

Rectangular Barcode 197

Data Matrix Inverse....197

Character Encoding 198

Data Matrix ECI Output....198

Maxicode....199

Restore Factory Defaults 199

Enable/Disable Maxicode....199

Set Length Range for Maxicode....200

Chinese Sensible Code....201

Restore Factory Defaults 201

Enable/Disable Chinese Sensible Code 201

Set Length Range for Chinese Sensible Code....202

Chinese Sensible Twin Code 203

Chinese Sensible Code Inverse 204

GM Code....205

Restore Factory Defaults 205

Enable/Disable GM 205

Set Length Range for GM 206

Code One....207

Restore Factory Defaults 207

Enable/Disable Code One....207

Set Length Range for Code One....208

USPS Postnet 209

Restore Factory Defaults 209

Enable/Disable USPS Postnet 209

Transmit Check Character 209

USPS Intelligent Mail 210

Restore Factory Defaults 210

Enable/Disable USPS Intelligent Mail 210

Royal Mail 211

Restore Factory Defaults 211

Enable/Disable Royal Mail 211

USPS Planet 212

Restore Factory Defaults 212

Enable/Disable USPS Planet....212

Transmit Check Character 212

KIX Post 213

Restore Factory Defaults 213

Enable/Disable KIX Post....213

Australian Postal 214

Restore Factory Defaults 214

Enable/Disable Australian Postal 214

Specific OCR-B 215

Restore Factory Defaults 215

Enable/Disable Specific OCR-B 215

Chinese ID Card OCR 216

Restore Factory Defaults 216

Enable/Disable Chinese ID Card OCR 216

Passport OCR....217

Restore Factory Defaults 217

Enable/Disable Passport OCR....217

China Travel Permit OCR....218

Restore Factory Defaults 218

Enable/Disable China Travel Permit OCR....218

Chapter 10 Data Formatter ....219

Introduction 219

Add a Data Format....219

Programming with Barcodes....219

Programming with Serial Commands....222

Enable/Disable Data Formatter 223

Non-Match Error Beep 224

Data Format Selection 225

Change Data Format for a Single Scan 226

Clear Data Format....227

Query Data Formats....227

Formatter Command Type 6 228

Send Commands 228

Move Commands....231

Search Commands 233

Miscellaneous Commands 236

Chapter 11 Prefix & Suffix....242

Introduction 242

Global Settings....243

Enable/Disable All Prefixes/Suffixes....243

Prefix Sequence....243

Custom Prefix....244

Enable/Disable Custom Prefix 244

Set Custom Prefix....244

AIM ID Prefix....245

Code ID Prefix....246

Restore All Default Code IDs 246

Modify Code ID 247

Custom Suffix....256

Enable/Disable Custom Suffix....256

Set Custom Suffix 256

Data Packing....257

Introduction 257

Data Packing Options 257

Terminating Character Suffix....259

Enable/Disable Terminating Character Suffix....259

Set Terminating Character Suffix....259

Chapter 12 Programming Commands....261

Use of Programming Command....261

Query Commands....261

Command Syntax 261

Responses....262

Examples 262

Read Barcode On/Off....264

Make a Beeping Sound....264

Turn On Good Read LED....265

Turn On Illumination LED 265

Chapter 13 Batch Programming....266

Introduction 266

Create a Batch Command....267

Create a Batch Barcode....267

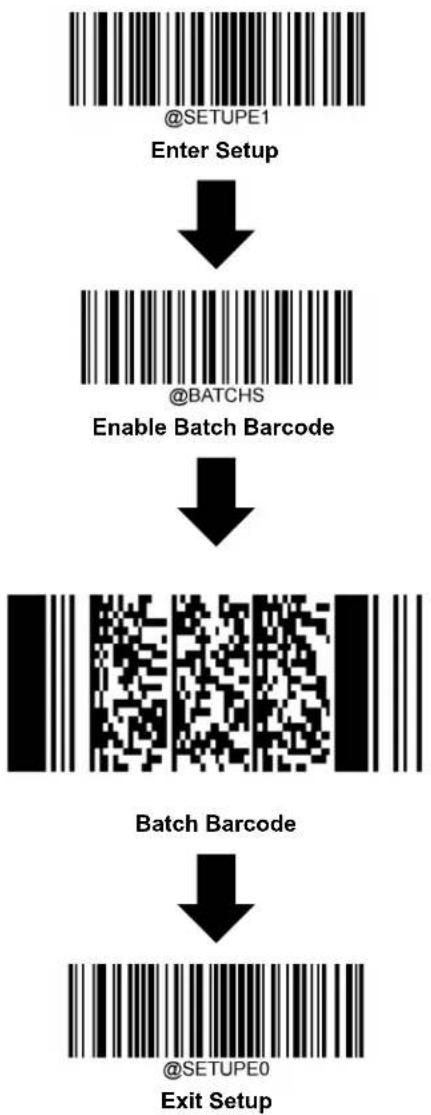

Use Batch Barcode 268

Appendix 269

Digit Barcodes....269

Save/Cancel Barcodes....272

Factory Defaults Table (V1.00.001)....273

AIM ID Table (V2022.6)....282

Code ID Table (V1.00.0)....284

Symbology ID Number (V1.00.0) 286

ASCII Table 288

Preface

Introduction

This manual provides installation, optics, electrical specifications as well as detailed instructions for setting up and using the NLS-FM3080 fixed mount barcode scanner (hereinafter referred to as "the FM3080" or "the scanner").

This guide provides programming instructions for the FM3080. Users can configure the FM3080 by scanning the programming barcodes included in this manual.

The FM3080 has been properly configured for most applications and can be put into use without further configuration. Users may check Appendix: Factory Defaults Table for reference.

Chapter Description

✨ Chapter 1, Getting Started
✨ Chapter 2, Installation
✨ Chapter 3, Optics
✨ Chapter 4 Electrical Specifications
✨ Chapter 5, Auxiliary Tools
✨ Chapter 6 Configuration
✨ Chapter 7 Communication Interface
✨ Chapter 8, System Settings
✨ Chapter 9, Symbologies
✨ Chapter 10, Data Formatter
✨ Chapter 11, Prefix & Suffix
✨ Chapter 12 Programming Commands
: Gives a general description of the FM3080.
: Describes how to install the scanner, including installation information, connector, cable, ESD, and environmental considerations.
: Provides parameters for optics and illumination.
: Includes the electrical characteristics for the scanner and timing sequences.
: Introduces useful tools you can use to set up the FM3080.
: Introduces the use of programming barcodes and product information query.
: Describes how to configure RS-232 and USB communication parameters.
: Describes how to configure general parameters of the FM3080.
: Lists all compatible symbologies and describes how to configure the relevant parameters.
: Explains how to customize scanned data with the advanced data formatter.
: Describes how to use prefix and suffix to customize scanned data.
: Introduces how to configure the FM3080 by serial commands sent from the host.

✨ Chapter 13, Batch Programming

: Explains how to integrate a complex programming task into a single barcode.

Appendix

: Provides factory defaults table and a bunch of frequently used programming barcodes.

Explanation of Symbols

• This symbol indicates lists of required steps.

※ This symbol indicates notes of some parameters.

Explanation of Icons

	This icon indicates auxiliary tools that help users to refer to the manual at ease.
	This icon indicates this information requires extra attention from the reader.
	This icon indicates handy tips that can help you use or configure the scanner with ease.
	This icon indicates practical examples that can help you to acquaint yourself with operations.

Chapter 1 Getting Started

Introduction

The FM3080 scanners are armed with CMOS image capturer and the Newland patented UIMG ^® , a computerized image recognition system-on-chip, featuring fast scanning and accurate decoding on barcodes on virtually any medium - paper, magnetic card, mobile phones and LCD displays.

Note: This guide provides general instructions for the installation. Fujian Newland Auto-ID Tech. Co., Ltd. recommends an opto-mechanical engineer should conduct an opto-mechanical analysis before design.

Symbologies

The FM3080 can easily read printed barcodes and on-screen barcodes, including:

1D	Code 128, EAN-8, EAN-13, UPC-E, UPC-A, Coupon, Interleaved 2/5, ITF-14, ITF-6, Matrix 2/5, Code 39, Codabar, Code 93, China Post 2/5, UCC/EAN-128, GS1 Databar, GS1 Composite, Code 11, ISBN, ISSN, Industrial 2/5, Standard 2/5, Plessey, MSI-Plessey, AIM 128, ISBT 128, Code 49, Code 16K
2D	PDF 417, Micro PDF 417, QR Code, Micro QR, Aztec, Data Matrix, Maxicode, Chinese Sensible Code, GM Code, Code One
Postal	USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal
OCR	Specific OCR-B, Passport OCR, Chinese ID Card, China Travel Permit OCR

FM3080 Scanner

Technical diagram of a device with numbered components and labeled parts, likely for industrial or measurement purposes.

1. IR Sensor
2. Scan Window
3. Lens
4. Mouting Hole
5. External Interface

Figure 1-1

Chapter 2 Installation

Introduction

This chapter explains how to install the FM3080, including general requirements, housing design, and physical and optical information.

Caution: Do not touch the imaging lens when installing the scanner. Be careful not to leave fingerprints on the lens.

Caution: Do not touch the illumination LED during handling. Improper handling may damage the LED.

Dimensions (unit: mm)

78.7(W)×47.7(D)×67.7(H) (max.)

Mounting

The illustrations below show the mechanical mounting dimensions (unit: mm) for the FM3080.

34±0.2 8.35 9.4±0.2 61.5 4-M34mm Copper Nut (same size at the back)

58.8±0.5 50 68.8±0.5 50

47.2±0.5 3.2 71.5 2

67.2±0.5 78.2±0.5 171.5±15 6.5

Figure 2-1

RJ50 Port

The FM3080 can be connected to the host with a cable with RJ50 connector.

PIN 1

Pure geometric diagram with a downward arrow and nested shapes inside a square (no text or symbols)

Figure 2-2

Connector Specifications

USB cable

2000±50 28±0.3 12.3±0.3 40±10 40±1 12±0.3 P1 ① ②⑧ 可拆卸式护套 ⑤⑥ ∅5.0±0.15 ③④⑦ P2 1 4

Figure 2-3

RS-232 cable

2000±50 325±20 48.3±2 5.8±0.3 4°6 9 5 6 1 P3 ②①⑫② ③ ① 50±1 插头PIN位示意图 ① ② 3 2 P2 ④⑤⑥⑪⑫ φ5.0±0.15 40±10 28±0.3 12.3±0.3 ⑨⑩ ⑪⑦⑥ P1 1 10

Figure 2-4

Connecting the FM3080 to a Host Device

Using USB Cable

Technical diagram showing a device connected to a cable and a plug, with no visible text or symbols.

Figure 2-5

Connect the scanner to a host device with a USB cable with RJ50 and USB connectors:

1. Plug the cable's RJ50 connector into the data port on the scanner.
2. Plug the cable's USB connector into the USB port on the host device.

Using RS-232 Cable

Line drawing of a simple electrical enclosure with a cable and connector, no text or symbols present

Diagram of electrical connections and components without any text or symbols

Figure 2-6

Connect the scanner to a host device with an RS-232 cable with RJ50, RS-232 connector and a power jack:

1. Plug the cable's RJ50 connector into the data port on the scanner.
2. Plug the cable's RS-232 connector into the RS-232 port on the host device.
3. Plug the power adapter into the power jack of the cable.
4. Connect the power adapter to a power outlet.

Powering on

Plug the cable's RJ50 connector into the data port on the scanner and plug the cable's USB/ RS-232 connector into the USB/ RS-232 port on the host device to power on the scanner (plug the power adapter into the power jack of the cable when using RS-232 cable).

Powering off

Disconnect the cable to power off the scanner.

ESD

ESD protection has been taken into account when designing the FM3080. The scanner is shipped in ESD safe packaging. Always exercise care when handling the scanner outside its package. Be sure grounding wrist straps and properly grounded work areas are used.

Dust and Dirt

The FM3080 must be sufficiently enclosed to prevent dust particles from gathering on the lens and circuit board. Dust and other external contaminants will eventually degrade the scanner's performance.

Ambient Environment

The following environmental requirements should be met to ensure good performance of the FM3080.

Table 2-1

Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 70°C
Humidity	5%~95% (non-condensing)

Thermal Considerations

Electronic components in the FM3080 will generate heat during the course of their operation. Operating the FM3080 in continuous mode for an extended period may cause temperatures to rise on CPU, CIS, LEDs, DC-DC, etc. Overheating can degrade image quality and affect scanning performance. Given that, the following precautions should be taken into consideration when integrating the FM3080.

✧ Reserve sufficient space for good air circulation in the design.
❖ Avoid wrapping the FM3080 with thermal insulation materials such as rubber.

Maintenance

✨ The scan window should be kept clean.
Do not scratch the scan window.
Use the soft cloth to clean the window, such as eyeglass cleaning cloth.
Do not spray any liquid on the scan window.
Do not use any detergent to clean other parts of the device except for water.

Note: The warranty DOES NOT cover damages caused by inappropriate care and maintenance.

Chapter 3 Optics

Introduction

The FM3080 contains:

• a CMOS image sensor and its lens
• six white LEDs based illumination system

Sensor

Pixel: 800×800 CMOS

Frame rate: 60fps

Illumination

The FM3080 has six white LEDs for supplementary lighting, making it possible to scan barcodes even in complete darkness. The illumination can be programmed On or Off. Customers can add the external illumination system if needed. The spectral range should be within the visible light.

Window Size

The window must not block the field of view and should be sized to accommodate the FOV envelopes shown below.

Front View:

50 50 IR Sensor Illumination System

Figure 3-1

Horizontal:

FOV Envelope 73°

Figure 3-2

Vertical:

FOV Envelope 73°

Figure 3-3

Ambient Light

The FM3080 shows better performance with ambient light. However, high-frequency pulsed light can result in performance degradation.

Eye Safety

The FM3080 uses LEDs to produce illumination beam. The LEDs are bright, but testing has been done to demonstrate that the scanner is safe for its intended application under normal usage conditions. The FM3080 complies with IEC 62471:2006 for LED safety. However, the user should avoid looking into the beam.

Depth of Field

The tables below list the depth of view tested in the 0lx and 300lx natural light.

Table 3-1
Ambient light: Olux natural light

Symbology	Near	Far
EAN-13 (13mil)	0mm	70mm
QR Code (15mil)	0mm	60mm

Table 3-2
Ambient light: 300lux natural light

Symbology	Near	Far
EAN-13 (13mil)	0mm	120mm
QR Code (15mil)	0mm	70mm

Chapter 4 Electrical Specifications

Power Supply

Do not power up the FM3080 until it is properly connected. Be sure the power is cut off before connecting a cable to or disconnecting a cable from the host interface connector. Hot-plugging could damage the scanner.

Unstable power supply or sharp voltage drops or unreasonably short interval between power-ons may lead to unstable performance of the scanner. Do not resupply the power immediately after cutting it off.

1. Ensure that the working voltage is 5V ± 5% and the input power of FM3080 exceeds 500mA.
2. Ensure that the input power drops below 0.5V before powering the FM3080 on again, otherwise it will lead to abnormal function.

Ripple Noise

To ensure the image quality, a power supply with low ripple noise is needed.

Acceptable ripple range (peak-to-peak) ≤150mV

Interface Pinouts

The following table lists the pin functions of the RJ50 port.

Table 4-1

PIN#	Signal	I/O	Function
1	NC	NC	NC
2	NC	NC	NC
3	VCC	P	5V power supply
4	RS232_TX	O	RS-232 output
5	RS232_RX	I	RS-232 input
6	RS232_CTS	I	Hardware flow control: CTS (clear to send)
7	RS232_RTS	O	Hardware flow control: RTS (request to send)
8	GND	P	Ground
9	USB_D-	A	USB_D- signal
10	USB_D+	A	USB_D+ signal

DC Characteristics

Operating Voltage

Table 4-2
T=25°C

Parameter	Description	Minimum	Typical	Maximum	Unit
VCC	Input Voltage ±5% (5V)	4.75	5	5.25	V

Operating Current

Table 4-3
T=25°C

Mode		Typical	Maximum	Unit
Working Current	RMS^1	245	275	mA
	PEAK^2	-	680	mA
Idle Current	RMS	230	-

1. RMS indicates the RMS value of the current under the stable working state.
2. PEAK indicates the peak current the device reaches.

I/O Voltage

Table 4-4
VCC=3.3 V, GND=0 V, T=25°C

Parameter	Description	Minimum	Maximum	Unit
VIL	input low level	0	0.8	V
VIH	input high level	2.0	VCC	V
VOL	output low level	0	0.4	V
VOH	output high level	2.4	VCC	V

Chapter 5 Auxiliary Tools

EasySet

EasySet, developed by Fujian Newland Auto-ID Tech. Co., Ltd., is a configuration tool for Newland's 1D/2D handheld barcode scanner, fixed mount barcode scanners and OEM scan engines. Its main features include:

View device & configuration information of online device
Configure device
Update firmware of online device
Load/modify existing XML configuration file; save current settings to an XML file
◆ Create/print/save programming barcodes to a PDF or Word file
View/edit/save image stored on online device in the original image/BMP/JPG/TIFF format
Send serial commands to online device and receive device response
◆ Supported languages: Chinese and English

EasySet supports 32-bit/64-bit Microsoft WinXP/Win7/Win 8/Win 8.1/Win 10 operating systems.

EasySet can communicate with device via one of the following interface: TTL-232, USB COM Port Emulation (UFCOM driver required), USB CDC (UFCOM driver required), USB DataPipe (UFCOM driver required), USB HID-POS.

Main >> 普通新文档已创建技术的服务器 Power Storage Auto-10 Basic Grid Job Update HELP Language ENGLISH Online Device Offline Device Command Center Active Windows Get PC Settings to Active Windows

UFCOM

UFCOM, developed by Fujian Newland Auto-ID Tech. Co., Ltd., is a virtual serial driver. It is used in conjunction with a USB scanner or a scan engine configured as virtual serial port to provide two-way communication between the device and the host. UFCOM can run on all versions of Windows XP \~ Windows 10 x86 & x64, including the contemporary versions of Windows Server. Users can download the driver from the website at: http://down.nlscan.com:82/Release/UFCOM/.

Chapter 6 Configuration

Introduction

There are three ways to configure the FM3080: Barcode programming, command programming and Easyset programming.

Barcode Programming

The FM3080 can be configured by scanning programming barcodes. All user programmable features/options are described along with their programming barcodes/commands in the following sections.

This programming method is most straightforward. However, it requires manually scanning barcodes. As a result, errors are more likely to occur.

Command Programming

The FM3080 can also be configured by serial commands sent from the host device.

Users can design an application program to send those command strings to the scanners to perform device configuration.

EasySet Programming

Besides the two methods mentioned above, you can conveniently perform scanner configuration through EasySet too. EasySet is a Windows-based configuration tool particularly designed for Newland products, enabling users to gain access to decoded data and captured images and to configure scanners. For more information about this tool, refer to the EasySet User Guide.

Programming Barcode/ Programming Command/Function

@KBWCAS0 No Case Conversion 4 → 1 2 3

The figure above is an example that shows you the programming barcode and command for the Enter Setup function:

1. The No Case Conversion barcode.
2. The No Case Conversion command.
3. The description of feature/option.

Use of Programming Barcodes

Scanning the Enter Setup barcode can enable the scanner to enter the setup mode. Then you can scan a number of programming barcodes to configure your scanner. To exit the setup mode, scan the Exit Setup barcode or a non-programming barcode, or reboot the scanner.

@SETUPE0
Exit Setup

@SETUPE1
Enter Setup

Programming barcode data (i.e. the characters under programming barcode) can be transmitted to the host device. Scan the appropriate barcode below to enable or disable the transmission of programming barcode data to the host device.

@SETUPT0

Do Not Transmit Programming Barcode Data

@SETUPT1

Transmit Programming Barcode Data

Default Settings

Factory Defaults

Scanning the following barcode can restore the scanner to the factory defaults.

You may need to reset all parameters to the factory defaults when:

* scanner is not properly configured so that it fails to decode barcodes.
◇ you forget previous configuration and want to avoid its impact.

@FACDEF
Restore All Factory Defaults

Custom Defaults

Scanning the Restore All Custom Defaults barcode can reset all parameters to the custom defaults. Scanning the Save as Custom Defaults barcode can set the current settings as custom defaults.

Custom defaults are stored in the non-volatile memory.

@CUSSAV
Save as Custom Defaults

@CUSDEF
Restore All Custom Defaults

Restoring the scanner to the factory defaults will not remove the custom defaults from the scanner.

@SETUPE0
** Exit Setup

Query Product Information

After scanning the barcode below, the product information (including product name, firmware version, decoder version, hardware version, serial number, OEM serial number and manufacturing date) will be sent to the host device.

Query Product Information

Query Product Name

Query Product Name

Query Firmware Version

@QRYFWV

Query Firmware Version

Query Hardware Version

@QRYHWV

Query Hardware Version

Query Product Serial Number

@QRYPSN

Query Product Serial Number

Query Manufacturing Date

@QRYDAT

Query Manufacturing Date

Query OEM Serial Number

@QRYESN

Query OEM Serial Number

Query Data Formatter Version

@QRYDFM

Query Data Formatter Version

Chapter 7 Communication Interface

Introduction

Serial communication interface is usually used when connecting the scanner to a host device (like PC, POS). You need to set communication parameters to match the host device.
USB HID Keyboard: The scanner's transmission is simulated as USB keyboard input with no need for command configuration or a driver. Barcode data could be entered by the virtual keyboard directly and it is also convenient for the host device to receive data.
USB CDC: It is compliant with the standard USB CDC class specifications defined by the USB-IF and allows the host device to receive data in the way as a serial port does. A driver is needed when using this feature.
HID POS (POS HID Barcode Scanner): It is based on the HID interface, with no need for a custom driver. It excels virtual keyboard and traditional TTL-232 interface in transmission speed.
IBM SurePOS: It conforms to IBM (now Toshiba Global Commerce Solutions) 4698 USB scanner interface specifications.
Datalogic Magellan Aux-RS232: Program the scanner for the Datalogic Magellan Aux-RS232 interface configuration when connecting the scanner to the Datalogic Magellan device.

When the scanner is connected to both USB and RS-232 ports on a host device, it will select the USB connection by default.

Adaptive Wired Communication

When this feature is on, the scanner can automatically adapt its communication configuration to the way it is connected to the host device: Automatically enable USB/serial communication when connected to the host device via USB/serial port, respectively.

Note: You must restart the scanner before this setting will take effect.

@AUTOUR0
Off

@AUTOUR1
On

RS-232 Interface

Serial communication interface is usually used when connecting the scanner to a host device (like PC, POS). However, to ensure smooth communication and accuracy of data, you need to set communication parameters (including baud rate, parity check, data bit and stop bit) to match the host device.

@INTERF0

RS-232

Baud Rate

Baud rate is the number of bits of data transmitted per second. Set the baud rate to match the host requirements.

@232BAD8
115200

@232BAD7
57600

@232BAD6
38400

@232BAD5
19200

@232BAD4
14400

@232BAD3
9600

@232BAD2
4800

@232BAD0
1200

@232BAD1
2400

Parity Check

Set the parity type to match the host requirements.

Odd Parity: If the data contains an odd number of 1 bits, the parity bit value is set to 0.

Even Parity: If the data contains an even number of 1 bits, the parity bit value is set to 0.

None: Select this option when no parity bit is required.

@232PAR0
None

@232PAR1
Even Parity

@232PAR2
Odd Parity

Data Bit

Set the number of data bits to match the host requirements.

@232DAT1
7 Data Bits

@232DAT0
8 Data Bits

Stop Bit

The stop bit(s) at the end of each transmitted character marks the end of transmission of one character and prepares the receiving device for the next character in the serial data stream. Set the number of stop bits to match the host requirements.

@232STP0
1 Stop Bit

@232STP1
2 Stop Bits

USB HID Keyboard

When the scanner is connected to the USB port on a host device, you can enable the USB HID Keyboard feature by scanning the barcode below. Then scanner's transmission will be simulated as USB keyboard input. The Host receives keystrokes on the virtual keyboard. It works on a Plug and Play basis and no driver is required.

@INTERF3
USB HID Keyboard

If the host device allows keyboard input, then no extra software is needed for HID Keyboard input.

USB Country Keyboard Types

Keyboard layouts vary from country to country. The default setting is U.S. keyboard.

U.S. (English)

@KBWCTY1
Belgium

@KBWCTY2
Brazil

@KBWCTY3
Canada (French)

@KBWCTY4
Czechoslovakia

@KBWCTY5
Denmark

@KBWCTY6
Finland (Swedish)

@KBWCTY8
Germany/ Austria

@KBWCTY7
France

@KBWCTY10
Hungary

@KBWCTY9
Greece

@KBWCTY12
Italy

@KBWCTY11
Israel (Hebrew)

@KBWCTY14
Netherlands (Dutch)

@KBWCTY13
Latin America/ South America

@KBWCTY16

Poland

@KBWCTY15
Norway

@KBWCTY18
Romania

@KBWCTY17
Portugal

@KBWCTY21
Slovakia

@KBWCTY19
Russia

@KBWCTY23
Sweden

@KBWCTY22
Spain

@KBWCTY25
Turkey_F

@KBWCTY24
Switzerland (German)

@KBWCTY27
UK

@KBWCTY26
Turkey_Q

@KBWCTY28
Japan

Beep on Unknown Character

Due to the differences in keyboard layouts, some characters contained in barcode data may be unavailable on the selected keyboard. As a result, the scanner fails to transmit the unknown characters.

Scan the appropriate barcode below to enable or disable the emission of beep when an unknown character is detected.

@KBWBUC0

Do Not Beep on Unknown Character

@KBWBUC1

Beep on Unknown Character

Supposing French keyboard (Country Code: 7) is selected and barcode data "ADF" is being dealt with, the keyboard will fail to locate the "D" (0xD0) character and the scanner will ignore the character and continue to process the next one.

Do Not Beep on Unknown Character: The scanner does not beep and the Host receives "AF".

Beep on Unknown Character: The scanner beeps and the Host still receives "AF".

If Emulate ALT+Keypad ON is selected, Beep on Unknown Character does not function.

Emulate ALT+Keypad

When Emulate ALT+Keypad is turned on, ASCII characters (0x20 - 0xFF) are sent over the numeric keypad no matter which keyboard type is selected.

1. ALT Make
2. Enter the number corresponding to a desired character on the keypad.
3. ALT Break

After Emulate ALT+Keypad ON is selected, you need to choose the code page with which the barcodes were created and to turn Unicode Encoding On or Off depending on the encoding used by the application software.

@KBWALTO
Emulate ALT+Keypad OFF

@KBWALT1
Emulate ALT+Keypad ON

Since sending a character involves multiple keystroke emulations, this method appears less efficient.

Supposing Emulate ALT+Keypad is ON, Unicode Encoding is Off, Code Page 1252 (West European Latin) is selected, and Emulate Keypad with Leading Zero is Off, barcode data "ADF" (65/208/70) is sent as below:

$$ " A" -" A L T M a k e" +" 0 6 5" +" A L T B r e a k" $$

$$ " D" --" A L T M a k e" +" 2 0 8" +" A L T B r e a k" $$

$$ " F" --" A L T M a k e" +" 0 7 0" +" A L T B r e a k" $$

Code Page

Code pages define the mapping of character codes to characters. If the data received does not display with the proper characters, it may be because the barcode being scanned was created using a code page that is different from the one the host program is expecting. If this is the case, select the code page with which the barcodes were created by scanning the appropriate barcode below. For PDF417, QR Code and Data Matrix, besides setting the code page, you also need to set the character encoding in the "Character Encoding" section in Chapter 6. This feature is only effective when Emulate ALT+Keypad is turned on.

Note: Code Page 932, Code Page 936 and Code Page 950 are selectable and respectively supported by different software versions.

@KBWCPG0
Code Page 1252 (West European Latin)

@KBWCPG2
Code Page 1250 (Central and East European Latin)

@KBWCPG4
Code Page 1254 (Turkish)

@KBWCPG1
Code Page 1251 (Cyrillic)

@KBWCPG3
Code Page 1253 (Greek)

@KBWCPG5
Code Page 1255 (Hebrew)

@KBWCPG6
Code Page 1256 (Arabic)

@KBWCPG8
Code Page 1258 (Vietnamese)

@KBWCPG10
Code Page 950 (Traditional Chinese, Big5)

@KBWCPG12
Code Page 932 (Japanese, Shift-JIS)

@KBWCPG7
Code Page 1257 (Baltic)

@KBWCPG9
Code Page 936 (Simplified Chinese, GB2312,GBK)

@KBWCPG11
Code Page 874 (Thai)

Unicode Encoding

Different host program may use different character encodings for handling incoming barcode data. For instance, Microsoft Office Word uses Unicode encoding and therefore you should turn Unicode Encoding on, whereas Microsoft Office Excel or Notepad uses Code Page encoding and therefore you should turn Unicode Encoding off. This feature is only effective when Emulate ALT+Keypad is turned on.

@KBWCPU0
Off

@KBWCPU1
On

Emulate Keypad with Leading Zero

You may turn this feature on to send character sequences sent over the numeric keypad as ISO characters which have a leading zero. For example, ASCII A transmits as "ALT MAKE" 0065 "ALT BREAK". This feature is only effective when Emulate ALT+Keypad is enabled.

@KBWALZ1
On

@KBWALZ0
Off

When Ctrl+ASCII Mode is selected, function characters (0x00 - 0x1F) are sent as ASCII sequences.

@KBWFKM0
Disable

@KBWFKM1
Ctrl+ASCII Mode

@KBWFKM2
Alt+Keypad Mode

If Ctrl+ASCII Mode is selected and other parameters of USB HID Keyboard adopt factory defaults, barcode data "A(i.e. Horizontal Tab)F" (0x41/0x09/0x46) is sent as below:

"A" - Keystroke "A".

- "Ctrl Make" + Keystroke "I" + "Ctrl Break"

"F" - Keystroke "F"

For some text editors, "Ctrl I" means italic convert. So the output may be "AF".

If Alt+Keypad Mode is selected and other parameters of USB HID Keyboard adopt factory defaults, the data above is sent as below:

"A" - Keystroke "A".

- "Alt Make" + Keystrokes "009" + "Alt Break"

"F" - Keystroke "F"

ASCII Function Key Mapping Table

ASCII Function	ASCII Value (HEX)	Function Key Mapping Disabled	Ctrl+ASCII
NUL	00	Null	Ctrl+@
SOH	01	Keypad Enter	Ctrl+A
STX	02	Caps Lock	Ctrl+B
ETX	03	ALT	Ctrl+C
EOT	04	Null	Ctrl+D
ENQ	05	CTRL	Ctrl+E
ACK	06	Null	Ctrl+F
BEL	07	Enter	Ctrl+G
BS	08	Left Arrow	Ctrl+H
HT	09	Horizontal Tab	Ctrl+I
LF	0A	Down Arrow	Ctrl+J
VT	0B	Vertical Tab	Ctrl+K
FF	0C	Delete	Ctrl+L
CR	0D	Enter	Ctrl+M
SO	0E	Insert	Ctrl+N
SI	0F	Esc	Ctrl+O
DLE	10	F11	Ctrl+P
DC1	11	Home	Ctrl+Q
DC2	12	Print Screen	Ctrl+R
DC3	13	Backspace	Ctrl+S
DC4	14	tab+shift	Ctrl+T
NAK	15	F12	Ctrl+U
SYN	16	F1	Ctrl+V
ETB	17	F2	Ctrl+W
CAN	18	F3	Ctrl+X
EM	19	F4	Ctrl+Y
SUB	1A	F5	Ctrl+Z
ESC	1B	F6	Ctrl+[
FS	1C	F7	Ctrl+\
GS	1D	F8	Ctrl+]
RS	1E	F9	Ctrl+6
US	1F	F10	Ctrl+-

ASCII Function Key Mapping Table (Continued)

The last five characters (0x1B\~0x1F) in the table above apply to US keyboard layout only. The following chart provides the equivalents of these five characters for other countries.

Country	Ctrl+ASCII
United States	Ctrl+[	Ctrl+\	Ctrl+]	Ctrl+6	Ctrl+-
Belgium	Ctrl+[	Ctrl+<	Ctrl+]	Ctrl+6	Ctrl+-
Scandinavia	Ctrl+8	Ctrl+<	Ctrl+9	Ctrl+6	Ctrl+-
France	Ctrl+^	Ctrl+8	Ctrl+$	Ctrl+6	Ctrl+=
Germany		Ctrl+Ä	Ctrl++	Ctrl+6	Ctrl+-
Italy		Ctrl+\	Ctrl++	Ctrl+6	Ctrl+-
Switzerland		Ctrl+<	Ctrl+..	Ctrl+6	Ctrl+-
United Kingdom	Ctrl+[	Ctrl+∅	Ctrl+]	Ctrl+6	Ctrl+-
Denmark	Ctrl+8	Ctrl+\	Ctrl+9	Ctrl+6	Ctrl+-
Norway	Ctrl+8	Ctrl+\	Ctrl+9	Ctrl+6	Ctrl+-
Spain	Ctrl+[	Ctrl+\	Ctrl+]	Ctrl+6	Ctrl+-

Inter-Keystroke Delay

This parameter specifies the delay between emulated keystrokes.

@KBWDLY0
No Delay

@KBWDLY40
Long Delay (40ms)

@KBWDLY20
Short Delay (20ms)

Caps Lock

The Caps Lock On options can invert upper and lower case characters contained in barcode data. This inversion occurs regardless of the state of Caps Lock key on the host device's keyboard. To disable this feature, scan the appropriate Caps Lock OFF barcode below based on your keyboard.

@KBWCAP0

Caps Lock OFF, Non-Japanese Keyboard

@KBWCAP2

Caps Lock OFF, Japanese Keyboard

@KBWCAP1

Caps Lock ON, Non-Japanese Keyboard

@KBWCAP3

Caps Lock ON, Japanese Keyboard

Emulate ALT+Keypad ON/ Convert All to Upper Case/ Convert All to Lower Case prevails over Caps Lock ON.

When the Caps Lock ON feature is selected, barcode data "AbC" is transmitted as "aBc".

@SETUPE0

** Exit Setup

Convert Case

Scan the appropriate barcode below to convert all bar code data to your desired case.

No Case Conversion

Convert All to Upper Case

Convert All to Lower Case

When the Convert All to Lower Case feature is enabled, barcode data "AbC" is transmitted as "abc".

If Emulate ALT+Keypad ON is selected, Convert All to Lower Case and Convert All to Upper Case do not function.

Emulate Numeric Keypad

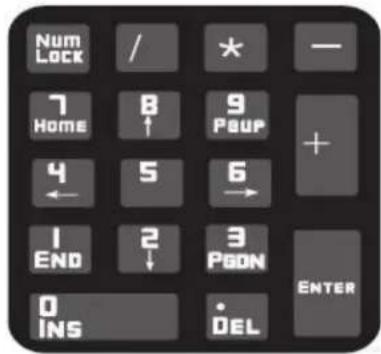

Num Lock / * — 7 Home 8 ↑ 9 P8UP + 4 ← 5 6 → 1 END 2 ↓ 3 PGDN ENTER 0 INS DEL

Do Not Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on main keyboard.

Emulate Numeric Keypad 1: Sending a number (0-9) is emulated as keystroke(s) on numeric keypad. The state of Num Lock on the simulated numeric keypad is determined by its equivalent on the host device. If Num Lock on the host device is turned off, the output of simulated numeric keypad is function key instead of number.

Do Not Emulate Numeric Keypad 2: Sending “+”, “-”, “*” and “/” is emulated as keystroke(s) on main keyboard.

Emulate Numeric Keypad 2: Sending “+”, “-”, “*” and “/” is emulated as keystroke(s) on numeric keypad.

Do Not Emulate Numeric Keypad 1

Emulate Numeric Keypad 1

@KBWNCH0

Do Not Emulate Numeric Keypad 2

@KBWNCH1

Emulate Numeric Keypad 2

Emulate ALT+Keypad ON prevails over Emulate Numeric Keypad.

Supposing the Emulate Numeric Keypad 1 feature is enabled:

if Num Lock on the host device is ON, "A4.5" is transmitted as "A4.5";

if Num Lock on the host device is OFF, "A4.5" is transmitted as ".A":

1. "A" is sent on main keyboard;
2. "4" is sent as the function key "Cursor Move to Left";
3. “.” is sent on main keyboard;
4. "5" is not sent as it does not correspond to any function key.

Fast Mode

When Fast Mode On is selected, the scanner sends characters to the Host faster. If the Host drops characters, turn the Fast Mode off or change the polling rate to a bigger value.

@KBWFAS0
Fast Mode Off

@KBWFAS1
Fast Mode On

Polling Rate

This parameter specifies the polling rate for a USB keyboard. If the Host drops characters, change the polling rate to a bigger value.

@SETUPE0
** Exit Setup

@SETUPE1
Enter Setup

@KBWPOR8
9ms

@KBWPOR7
8ms

@KBWPOR9
10ms

@SETUPE0
** Exit Setup

USB CDC

If your scanner is connected to the USB port on a host device, the USB CDC feature allows the host device to receive data in the way as a serial port does. A driver is needed when using this feature. You may download it from our website at www.newlandaidc.com.

@INTERF8

USB CDC

HID POS (POS HID Barcode Scanner)

Introduction

The HID-POS interface is recommended for new application programs. It can send up to 56 characters in a single USB report and appears more efficient than keyboard emulation.

Features:

◇ HID based, no custom driver required.

◇ Way more efficient in communication than keyboard emulation and traditional TTL-232 interface.

@INTERF5
USB HID-POS

Access the Scanner with Your Program

Use CreateFile to access the scanner as a HID device and then use ReadFile to deliver the scanned data to the application program. Use WriteFile to send data to the scanner.

For detailed information about USB and HID interfaces, go to www.USB.org.

Acquire Scanned Data

After a barcode is decoded, the scanner sends an input report as below:

	Bit
Byte	7	6	5	4	3	2	1	0
0	Report ID = 0x02
1	Barcode Length
2-57	Decoded Data (1-56)
58-61	Reserved
62	Newland Symbology Identifier or N/C: 0x00
63	-	-	-	-	-	-	-	Decoded data continued

Send Command to the Scanner

This output report is used to send commands to the scanner. All programming commands can be used.

	Bit
Byte	7	6	5	4	3	2	1	0
0	Report ID = 0x04
1	Length of command
2-63	Command (1-62)

IBM SurePOS (Tabletop)

@INTERF6
IBM SurePOS (Tabletop)

IBM SurePOS (Handheld)

@INTERF7
IBM SurePOS (Handheld)

VID/PID

USB uses VID (Vendor ID) and PID (Product ID) to identify and locate a device. The VID is assigned by USB Implementers Forum. Newland's vendor ID is 1EAB (Hex). A range of PIDs are used for each Newland product family. Every PID contains a base number and interface type (keyboard, COM port, etc.).

Product	Interface	PID (Hex)
FM3080	USB HID Keyboard	1A22
	USB CDC	1A06
	HID POS	1A10
	IBM SurePOS (Tabletop)	1A20
	IBM SurePOS(Handheld)	1A21

Datalogic Magellan Aux-RS232

Scan the following barcode when connecting to the Datalogic Magellan device, and the configuration of the scanner will be automatically changed accordingly as below.

@INTERF14
Datalogic Magellan Aux-RS232

Parameters		Default Settings
RS-232 Interface	Baud Rate	9600
	Parity Check	None
	Data Bits	8
	Stop Bits	1
	Hardware Auto Flow Control	Enabled
Code 128	Code ID	#
	Enable/Disable Code 128	Enabled
EAN-8	Code ID	FF
	Enable/Disable EAN-8	Enabled
	Check Character	Transmit
	2-Digit Add-On Code	Enabled
	5-Digit Add-On Code	Enabled
EAN-13	Code ID	F
	Enable/Disable EAN-13	Enabled
	Check Character	Transmit
	2-Digit Add-On Code	Enabled
	5-Digit Add-On Code	Enabled
UPC-E	Code ID	E
	Enable/Disable UPC-E	Enabled
	Check Character	Transmit
	2-Digit Add-On Code	Enabled
	5-Digit Add-On Code	Enabled
	Transmit Preamble Character	System Character
UPC-A	Code IDEnable/Disable UPC-A	AEnabled
	Check Character	Transmit
	2-Digit Add-On Code	Enabled
	5-Digit Add-On Code	Enabled
	Transmit Preamble Character	System Character
Interleaved 2 of 5	Code ID	i
	Enable/Disable Interleaved 2 of 5	Enabled
	Check Character Verification	Transmit Check Character After Verification
Code 39	Code ID	*
	Enable/Disable Code 39	Enabled
	Check Character Verification	Transmit Check Character After Verification
	Code 32 Start/Stop Character	Transmit
Codabar	Code ID	%
	Enable/Disable Codabar	Enabled
	Check Character Verification	Disabled
	Codabar Start/Stop Character	Transmit
		ABCD/ABCD
Code 93	Code ID	&
	Enable/Disable Code 93	Enabled
	Check Character Verification	Transmit Check Character After Verification
GS1 Databar	Code ID	R4
	Enable/Disable GS1 Databar	Enabled
	Application Identifier "01"	Transmit
Standard 25	Code ID	s
	Enable/Disable Standard 25	Enabled
	Check Character Verification	Transmit Check Character After Verification
MSI-Plessey	Code ID	@
	Enable/Disable MSI-Plessey	Enabled
	Check Character Verification	One Check Character, MOD10
	Check Character	Transmit
PDF417	Code ID	P
	Enable/Disable PDF417	Enabled
Prefix & Suffix	Code ID Prefix	Enabled
	Terminating Character Suffix	Disabled

Chapter 8 System Settings

Scan Mode

Level Mode: A trigger pull activates a decode session. The decode session continues until a barcode is decoded or you release the trigger.

Sense Mode: The scanner activates a decode session every time it detects a barcode presented to it. The decode session continues until a barcode is decoded or the decode session timeout expires. Reread Timeout can avoid undesired rereading of same barcode in a given period of time. Sensitivity can change the Sense Mode's sensibility to changes in images captured. Image Stabilization Timeout gives the scanner time to adapt to ambient environment after it decodes a barcode and "looks" for another.

Continuous Mode: The scanner automatically starts one decode session after another. To suspend/resume barcode reading, simply press the trigger. Reread Timeout can avoid undesired rereading of same barcode in a given period of time.

Pulse Mode: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode session timeout expires (The decode session timeout begins when the trigger is released).

@SCNMOD0
Level Mode

@SCNMOD2
Sense Mode

@SCNMOD3
Continuous Mode

@SCNMOD4
Pulse Mode

@SCNMOD7
Batch Mode

Decode Session Timeout

This parameter sets the maximum time decode session continues during a scan attempt. It is programmable in 1ms increments from 1ms to 3,600,000ms. When it is set to 0, the timeout is infinite. This feature is only applicable to the Pulse, Sense and Level modes.

@ORTSET
Decode Session Timeout

@SETUPE0
** Exit Setup

Set the decode session timeout to 1,500ms:

1. Scan the Enter Setup barcode.
2. Scan the Decode Session Timeout barcode.
3. Scan the numeric barcodes "1", "5", "0" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Image Stabilization Timeout (Sense Mode)

This parameter defines the amount of time the scanner will spend adapting to ambient environment after it decodes a barcode and "looks" for another. It is programmable in 1ms increments from 0ms to 3,000ms.

@SENIST

Image Stabilization Timeout

Set the image stabilization timeout to 800ms:

1. Scan the Enter Setup barcode.
2. Scan the Image Stabilization Timeout barcode.
3. Scan the numeric barcodes "8", "0" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Trigger Selection (Sense Mode)

@SENTRG0

Image Change Trigger

@SENTRG1

IR Proximity Trigger

@SENTRG2

Both

Image Change Trigger Sensitivity

This specifies the degree of acuteness of the scanner's response to changes in images captured. There are 20 levels to choose from. The smaller the value, the higher the sensitivity and the lower requirement in image change to trigger the scanner. You can select an appropriate degree of sensitivity that fits your application environment. This feature is only applicable to the Sense mode.

@SENLVL14
Low Sensitivity

@SENLVL8
High Sensitivity

@SENLVL
Custom Sensitivity (Level 1-20)

@SENLVL11
Medium Sensitivity

@SENLVL5
Enhanced Sensitivity

Set the image change trigger sensitivity to Level 10:

1. Scan the Enter Setup barcode.
2. Scan the Custom Sensitivity barcode.
3. Scan the numeric barcodes "1" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

IR Proximity Trigger Sensitivity

This specifies the degree of acuteness of the scanner's "sense" to detect barcodes presented to it. There are 10 levels to choose from. The smaller the value, the higher the sensitivity and the further the scanner can reach. You can select an appropriate degree of sensitivity that fits your application needs. This feature is only applicable to the Sense mode.

@SENIRL9
Low Sensitivity

@SENIRL6
Medium Sensitivity

@SENIRL3
High Sensitivity

@SENIRL
Custom Sensitivity (Level 1-10)

Set the IR proximity trigger sensitivity to Level 10:

1. Scan the Enter Setup barcode.
2. Scan the Custom Sensitivity barcode.
3. Scan the numeric barcodes "1" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Reread Timeout

Reread Timeout can avoid undesired rereading of same barcode in a given period of time. This feature is only applicable to the Sense and Continuous modes.

To enable/disable the Reread Timeout, scan the appropriate barcode below.

Enable Reread Timeout: Do not allow the scanner to re-read same barcode before the reread timeout expires.

Disable Reread Timeout: Allow the scanner to re-read same barcode.

@RRDENA1
Enable Reread Timeout

@RRDENAO
Disable Reread Timeout

The following parameter sets the time interval between two successive reads on same barcode. It is programmable in 1ms increments from 0ms to 3,600,000ms. When it is set to a value greater than 3,000, the timeout for rereading same programming barcode is limited to 3,000ms.

@RRDDUR
Reread Timeout

Set the reread timeout to 1,000ms:

1. Scan the Enter Setup barcode.
2. Scan the Reread Timeout barcode.
3. Scan the numeric barcodes "1", "0", "0" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

You may wish to restart the reread timeout when the scanner encounters the same barcode that was decoded in the last scan session before the reread timeout expires. To enable this feature, scan the Reread Timeout Reset On barcode. This feature is only effective when Reread Timeout is enabled.

@RRDREN1

Reread Timeout Reset On

@RRDRENO

Reread Timeout Reset Off

Good Read Delay

Good Read Delay sets the minimum amount of time before the scanner can read another barcode after a good read. This parameter is programmable in 1ms increments from 1ms to 3,600,000ms. Scan the appropriate barcode below to enable or disable the delay.

@GRDENA1
Enable Good Read Delay

@GRDENA0
Disable Good Read Delay

To set the good read delay, scan the barcode below, then set the delay (from 1 to 3,600,000ms) by scanning the digit barcode(s) then scanning the Save barcode from the Appendix.

@GRDDUR
Good Read Delay

Set the good read delay to 1,000ms:

1. Scan the Enter Setup barcode.
2. Scan the Good Read Delay barcode.
3. Scan the numeric barcodes "1", "0", "0" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Scanning Preference

Normal Mode: Select this mode when reading barcodes on paper.

Screen Mode: Select this mode when reading barcodes on the screen.

Barcode Pay Mode: Select this mode when reading barcodes to perform payment transactions.

@EXPLVL0
Normal Mode

@EXPLVL2
Screen Mode

@EXPLVL5
Barcode Pay Mode

Decode Area

Whole Area Decoding: The scanner attempts to decode barcode(s) within its field of view, from the center to the periphery, and transmits the barcode that has been first decoded.

Specific Central Area Decoding: The scanner attempts to read barcode(s) whose center is within a specified decoding area and transmits the barcode that has been first decoded. This option allows the scanner to narrow its field of view to make sure it reads only those barcodes intended by the user. For instance, if multiple barcodes are placed closely together, specific area decoding in conjunction with appropriate pre-defined decoding area will insure that only the desired barcode is read.

@CADENA0
Whole Area Decoding

@CADENA1
Specific Central Area Decoding

If Specific Central Area Decoding is enabled, the scanner only reads barcodes that intersect the predefined decoding area.

You can define the decoding area using the Top of Decoding Area, Bottom of Decoding Area, Left of Decoding Area and Right of Decoding Area barcodes as well as numeric barcode(s) that represent(s) a desired percentage (0-100). The value of Bottom must be greater than that of Top; the value of Right must be greater than that of Left.

@CADTOP
Top of Decoding Area

@CADBOT
Bottom of Decoding Area

@CADLEF
Left of Decoding Area

@CADRIG
Right of Decoding Area

Program the scanner to only read Barcode 1 in the figure above by setting the decoding area to 10% top, 45% bottom, 15% left and 30% right:

1. Scan the Enter Setup barcode.
2. Scan the Top of Decoding Area barcode.
3. Scan the numeric barcode "0" from the "Digit Barcodes" section in Appendix.

@SETUPE0
** Exit Setup

1. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
2. Scan the Bottom of Decoding Area barcode.
3. Scan the numeric barcodes "4" and "5" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Top of Decoding Area barcode.
6. Scan the numeric barcodes "1" and "0" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Left of Decoding Area barcode.
9. Scan the numeric barcode "0" from the "Digit Barcodes" section in Appendix.
10. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
11. Scan the Right of Decoding Area barcode.
12. Scan the numeric barcodes "3" and "0" from the "Digit Barcodes" section in Appendix.
13. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
14. Scan the Left of Decoding Area barcode.
15. Scan the numeric barcodes "1" and "5" from the "Digit Barcodes" section in Appendix.
16. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
17. Scan the Exit Setup barcode.

If Specific Area Decoding is enabled, the scanner only reads barcodes within the predefined decoding area.

You can define the decoding area using the Top of Decoding Area, Bottom of Decoding Area, Left of Decoding Area and Right of Decoding Area barcodes as well as numeric barcode(s) that represent(s) 0 to image size. The value of Bottom must be greater than that of Top; the value of Right must be greater than that of Left.

Top of Decoding Area

Bottom of Decoding Area

Left of Decoding Area

Right of Decoding Area

Program the scanner to only read Barcode 1 in the figure above by setting the decoding area to 190 top, 350 bottom, 200 left and 560 right:

1. Scan the Enter Setup barcode.
2. Scan the Top of Decoding Area barcode.
3. Scan the numeric barcode "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Bottom of Decoding Area barcode.
6. Scan the numeric barcodes "3", "5" and "0" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Top of Decoding Area barcode.
9. Scan the numeric barcodes "1", "9" and "0" from the "Digit Barcodes" section in Appendix.
10. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
11. Scan the Left of Decoding Area barcode.
12. Scan the numeric barcode "0" from the "Digit Barcodes" section in Appendix.
13. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
14. Scan the Right of Decoding Area barcode.
15. Scan the numeric barcodes "5", "6" and "0" from the "Digit Barcodes" section in Appendix.
16. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
17. Scan the Left of Decoding Area barcode.

18. Scan the numeric barcodes "2", "0" and "0" from the "Digit Barcodes" section in Appendix.

19. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.

20. Scan the Exit Setup barcode.

Image Flipping

@MIRROR0
Do Not Flip

@MIRROR1
Flip Horizontally

@MIRROR2
Flip Vertically

@MIRROR3
Flip Horizontally & Vertically

Example of image not flipped

Simple blue letter 'C' with a small circle inside, on white background (no text or symbols)

Example of image flipped vertically

Abstract blue logo design with circular and curved elements on white background (no text or symbols)

Example of image flipped horizontally

Abstract blue angular symbol with a crescent and small circle, no text or labels present.

Example of image flipped horizontally & vertically

Abstract blue crescent and partial circle design on white background (no text or symbols)

Bad Read Message

Scan the appropriate barcode below to select whether or not to send a bad read message (user-programmable) when a good read does not occur before trigger release, or the decode session timeout expires, or the scanner receives the Stop Scanning command (For more information, see the "Serial Trigger Command" section in this Chapter).

@NGRENA0
Bad Read Message OFF

@NGRENA1
Bad Read Message ON

@SETUPE0
** Exit Setup

Set Bad Read Message

A bad read message can contain up to 7 characters (HEX values from 0x00 to 0xFF). To set a bad read message, scan the Set Bad Read Message barcode, the numeric barcodes representing the hexadecimal values of desired character(s) and the Save barcode.

@NGRSET
Set Bad Read Message

Set the bad read message to "F" (HEX: 0x46):

1. Scan the Enter Setup barcode.
2. Scan the Set Bad Read Message barcode.
3. Scan the numeric barcodes "4" and "6" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Trigger Commands

When Enable Trigger Commands is selected, you can activate and deactivate the scanner in the Level mode with serial trigger commands. Sending the Start Scanning command (default: T , user-programmable) to the scanner in the Level mode activates a decode session. The decode session continues until a barcode is decoded or the decode session timeout expires or the scanner receives the Stop Scanning command (default: P , user-programmable).

@SCNTCE0

Disable Trigger Commands

@SCNTCE1

Enable Trigger Commands

Modify Start Scanning Command

The Start Scanning command can consist of 1-10 characters (HEX values from 0x01 to 0xFF). In this command, the character “?” (HEX: 0x3F) cannot be the first character. The default Start Scanning command is T .

@SCNTCT

Modify Start Scanning Command

Set the Start Scanning command to “\*T”:

1. Scan the Enter Setup barcode.
2. Scan the Modify Start Scanning Command barcode.
3. Scan the numeric barcodes "2", "A", "5" and "4" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Modify Stop Scanning Command

The Stop Scanning command can consist of 1-10 characters (HEX values from 0x01 to 0xFF). In this command, the character “?” (HEX: 0x3F) cannot be the first character. The default Stop Scanning command is P .

@SETUPE0

** Exit Setup

@SCNTCP

Modify Stop Scanning Command

Set the Stop Scanning command to “\*P”:

1. Scan the Enter Setup barcode.
2. Scan the Modify Stop Scanning Command barcode.
3. Scan the numeric barcodes "2", "A", "5" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Illumination

A couple of illumination options are provided to improve the lighting conditions during every image capture:

Normal: Illumination LEDs are turned on during image capture.

Always On: Illumination LEDs keep on after the scanner is powered on.

Off: Illumination LEDs are off all the time.

@ILLSCN1
Normal

@ILLSCN0
Off

@ILLSCN2
Always On

@SETUPE1
Enter Setup

Illumination LED Selection

@ILLCLR0
Red LED

@ILLCLR3
Green LED

@ILLCLR1
White LED

@ILLCLR4
Blue LED

Good Read LED

The green LED can be programmed to be On or Off to indicate good read.

@GRLENA1
On

@GRLENA0
Off

@SETUPE0
** Exit Setup

Good Read LED Duration

This parameter sets the amount of time that the Good Read LED to remain on following a good read. It is programmable in 1ms increments from 1ms to 2,500ms.

@GRLDUR20
Short (20ms)

@GRLDUR120
Medium (120ms)

@GRLDUR220
Long (220ms)

@GRLDUR320
Prolonged (320ms)

@GRLDUR
Custom (1 - 2,500ms)

Set the Good Read LED duration to 800ms:

1. Scan the Enter Setup barcode.
2. Scan the Custom barcode.
3. Scan the numeric barcodes "8", "0" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Good Read LED Selection

@GRLCLR0
Red LED

@GRLCLR1
White LED

@GRLCLR2
Green LED

@GRLCLR3
Blue LED

@GRLCLR4
Barcode Pay Mode

Power On Beep

The scanner can be programmed to beep when it is powered on. Scan the Off barcode if you do not want a power on beep.

On

@PWBENA0
Off

Good Read Beep

Scanning the Off barcode can turn off the beep that indicates successful decode; scanning the On barcode can turn it back on.

@GRBENA1
On

@GRBENA0
Off

Good Read Beep Duration

This parameter sets the length of the beep the scanner emits on a good read. It is programmable in 1ms increments from 20ms to 300ms.

@GRBDUR40
Short (40ms)

@GRBDUR80
Medium (80ms)

@GRBDUR120
Long (120ms)

@GRBDUR
Custom (20 - 300ms)

Set the Good Read Beep duration to 200ms:

1. Scan the Enter Setup barcode.
2. Scan the Custom barcode.
3. Scan the numeric barcodes "2", "0" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Good Read Beep Frequency

This parameter is programmable in 1Hz increments from 20Hz to 20,000Hz.

@GRBFRQ800
Extra Low (800Hz)

Black and white barcode image with vertical lines and a horizontal bar at the bottom

@GRBFRQ1600
Low (1600Hz)

Black and white barcode image with vertical lines and a small number 'n' in the bottom right corner.

@GRBFRQ2730
Medium (2730Hz)

@GRBFRQ4200
High (4200Hz)

@GRBFRQ
Custom (20 - 20,000Hz)

Set the Good Read Beep frequency to 2,000Hz:

1. Scan the Enter Setup barcode.
2. Scan the Custom barcode.
3. Scan the numeric barcodes "2", "0", "0" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

@SETUPE0
** Exit Setup

Good Read Beep Volume

There are 20 volume levels to choose from. The bigger the value, the louder the Good Read Beep.

@GRBVLL20

Loud

@GRBVLL12
Medium

Low

@GRBVLL
Custom Volume (Level 1-20)

Set the Good Read Beep volume to Level 8:

1. Scan the Enter Setup barcode.
2. Scan the Custom Volume barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Chapter 9 Symbologies

Introduction

Every symbology (barcode type) has its own unique attributes. This chapter provides programming barcodes for configuring the scanner so that it can identify various symbologies. It is recommended to disable those that are rarely used to increase the efficiency of the scanner.

Global Settings

Enable/Disable All Symbologies

If the Disable All Symbologies feature is enabled, the scanner will not be able to read any non-programming barcodes except the programming barcodes.

Enable All Symbologies

Disable All Symbologies

Enable/Disable 1D Symbologies

Enable 1D Symbologies

Disable 1D Symbologies

@SETUPE0 ** Exit Setup

Enable/Disable 2D Symbologies

@ALL2DC1

Enable 2D Symbologies

@ALL2DC0

Disable 2D Symbologies

1D Twin Code

1D twin code is two 1D barcodes of a symbology or of different symbologies paralleled vertically. Both barcodes must have similar specifications and be placed closely together.

There are 3 options for reading 1D twin code:

Single 1D Code Only: Read either 1D code.
✿ Twin 1D Code Only: Read both 1D codes. Transmission sequence: upper 1D code followed by lower 1D code.
Both Single & Twin: Read both 1D codes. If successful, transmit as twin 1D code only. Otherwise, try single 1D code only.

@A1DDOU0

Single 1D Code Only

@A1DDOU2

Twin 1D Code Only

@A1DDOU1

Both Single & Twin

Surround GS1 Application Identifiers (AI's) with Parentheses

When Surround GS1 AI's with Parentheses is selected, each application identifier (AI) contained in scanned data will be enclosed in parentheses in the output message.

@GS1AIP0

Do Not Surround GS1 AI's with Parentheses

@GS1AIP1

Surround GS1 AI's with Parentheses

Black and white barcode image with vertical lines and a small 'n' in the center

(01) 0 0614141 99999 6 (10) 10ABCEDF123456

If Surround GS1 AI's with Parentheses is selected, the barcode above is output as (01)00614141999996(10)10ABCEDF123456.

If Do Not Surround GS1 AI's with Parentheses is selected, the barcode above is output as 01006141419999961010ABCEDF123456.

Code 128

If the scanner fails to identify Code 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 128 barcode.

Set Length Range for Code 128

The scanner can be configured to only decode Code 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

Set the Minimum Length

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Code 128 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 128 barcodes with that length are to be decoded.

Set the scanner to decode Code 128 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

EAN-8

If the scanner fails to identify EAN-8 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable EAN-8 barcode.

Transmit Check Character

EAN-8 is 8 digits in length with the last one as its check character used to verify the integrity of the data.

@EA8CHK2

Transmit EAN-8 Check Character

@EA8CHK1

Do Not Transmit EAN-8 Check Character

@SETUPE0

** Exit Setup

Enter Setup

2-Digit Add-On Code

An EAN-8 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a two-digit add-on code.

Disable 2-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus 2-digit add-on barcode. It can also decode EAN-8 barcodes without 2-digit add-on codes.

Enable 2-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 2-digit add-on codes.

5-Digit Add-On Code

An EAN-8 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-8 barcode while the part circled by red dotted line is a five-digit add-on code.

1234 567 89012

@EA8AD50
Disable 5-Digit Add-On Code

@EA8AD51
Enable 5-Digit Add-On Code

Disable 5-Digit Add-On Code: The scanner decodes EAN-8 and ignores the add-on code when presented with an EAN-8 plus 5-digit add-on barcode. It can also decode EAN-8 barcodes without 5-digit add-on codes.

Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-8 barcodes with and without 5-digit add-on codes.

Add-On Code Required

When EAN-8 Add-On Code Required is selected, the scanner will only read EAN-8 barcodes that contain add-on codes.

@EA8REQ0

EAN-8 Add-On Code Not Required

@EA8REQ1

EAN-8 Add-On Code Required

Convert EAN-8 to EAN-13

Convert EAN-8 to EAN-13: Convert EAN-8 decoded data to EAN-13 format before transmission. After conversion, the data follows EAN-13 format and is affected by EAN-13 programming selections (e.g., Check Character).

Do Not Convert EAN-8 to EAN-13: EAN-8 decoded data is transmitted as EAN-8 data, without conversion.

@EA8EXP0

Do Not Convert EAN-8 to EAN-13

@EA8EXP1

Convert EAN-8 to EAN-13

EAN-13

Enable/Disable EAN-13

@E13ENA1

Enable EAN-13

@E13ENA0

Disable EAN-13

If the scanner fails to identify EAN-13 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable EAN-13 barcode.

Transmit Check Character

@E13CHK2

Transmit EAN-13 Check Character

@E13CHK1

Do Not Transmit EAN-13 Check Character

2-Digit Add-On Code

An EAN-13 barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a two-digit add-on code.

1 234567 89012 34

@E13AD20

Disable 2-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus 2-digit add-on barcode. It can also decode EAN-13 barcodes without 2-digit add-on codes.

Enable 2-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 2-digit add-on codes.

@SETUPE0

** Exit Setup

5-Digit Add-On Code

An EAN-13 barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is an EAN-13 barcode while the part circled by red dotted line is a five-digit add-on code.

1 234567 89012 45678

Disable 5-Digit Add-On Code: The scanner decodes EAN-13 and ignores the add-on code when presented with an EAN-13 plus 5-digit add-on barcode. It can also decode EAN-13 barcodes without 5-digit add-on codes.

Enable 5-Digit Add-On Code: The scanner decodes a mix of EAN-13 barcodes with and without 5-digit add-on codes.

Add-On Code Required

When EAN-13 Add-On Code Required is selected, the scanner will only read EAN-13 barcodes that contain add-on codes.

EAN-13 Add-On Code Not Required

EAN-13 Add-On Code Required

@SETUPE0 ** Exit Setup

EAN-13 Beginning with 290 Add-On Code Required

This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with "290". The following settings can be programmed:

Require Add-On Code: All EAN-13 barcodes that begin with "290" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.

Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.

@E132900

Do Not Require Add-On Code

@E132901

Require Add-On Code

EAN-13 Beginning with 378/379 Add-On Code Required

This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a "378" or "379". The following settings can be programmed:

Require Add-On Code: All EAN-13 barcodes that begin with a "378" or "379" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.

Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.

@E133780

Do Not Require Add-On Code

@E133781

Require Add-On Code

EAN-13 Beginning with 414/419 Add-On Code Required

This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a "414" or "419". The following settings can be programmed:

Require Add-On Code: All EAN-13 barcodes that begin with a "414" or "419" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.

Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.

Do Not Require Add-On Code

@E134141
Require Add-On Code

EAN-13 Beginning with 434/439 Add-On Code Required

This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with a "434" or "439". The following settings can be programmed:

Require Add-On Code: All EAN-13 barcodes that begin with a "434" or "439" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.

Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.

Do Not Require Add-On Code

@E134341

Require Add-On Code

@SETUPE0
** Exit Setup

EAN-13 Beginning with 977 Add-On Code Required

This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with "977". The following settings can be programmed:

Require Add-On Code: All EAN-13 barcodes that begin with "977" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.

Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.

@E139770

Do Not Require Add-On Code

@E139771

Require Add-On Code

EAN-13 Beginning with 978 Add-On Code Required

This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with "978". The following settings can be programmed:

Require Add-On Code: All EAN-13 barcodes that begin with "978" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.

Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.

@E139780

Do Not Require Add-On Code

@E139781

Require Add-On Code

@SETUPE0

** Exit Setup

EAN-13 Beginning with 979 Add-On Code Required

This setting programs the scanner to require an add-on code (2-digit or 5-digit) on EAN-13 barcodes that begin with "979". The following settings can be programmed:

Require Add-On Code: All EAN-13 barcodes that begin with "979" must have a 2-digit or 5-digit add-on code. The EAN-13 barcode with the add-on code is then transmitted. If the required add-on code is not found, the EAN-13 barcode is discarded.

Do Not Require Add-On Code: If you have selected Require Add-On Code, and you want to disable this feature, scan Do Not Require Add-On Code. EAN-13 barcodes are handled, depending on your selection for the "Add-On Code Required" feature.

@E139790

Do Not Require Add-On Code

@E139791

Require Add-On Code

UPC-E

If the scanner fails to identify UPC-E0/UPC-E1 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UPC-E0/UPC-E1 barcode.

@SETUPE0

** Exit Setup

Transmit Check Character

UPC-E is 8 digits in length with the last one as its check character used to verify the integrity of the data.

@UPECHK2

Transmit UPC-E Check Character

@UPECHK1

Do Not Transmit UPC-E Check Character

2-Digit Add-On Code

A UPC-E barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a two-digit add-on code.

0 123456 78

@UPEAD20

Disable 2-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus 2-digit add-on barcode. It can also decode UPC-E barcodes without 2-digit add-on codes.

Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 2-digit add-on codes.

@SETUPE0

** Exit Setup

5-Digit Add-On Code

A UPC-E barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-E barcode while the part circled by red dotted line is a five-digit add-on code.

0 123456 78901

Disable 5-Digit Add-On Code: The scanner decodes UPC-E and ignores the add-on code when presented with a UPC-E plus 5-digit add-on barcode. It can also decode UPC-E barcodes without 5-digit add-on codes.

Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-E barcodes with and without 5-digit add-on codes.

Add-On Code Required

When UPC-E Add-On Code Required is selected, the scanner will only read UPC-E barcodes that contain add-on codes.

@UPEREQ0
UPC-E Add-On Code Not Required

UPC-E Add-On Code Required

@SETUPE0
** Exit Setup

Transmit Preamble Character

Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-E barcode. Select one of the following options for transmitting UPC-E preamble to the host device: transmit system character only, transmit system character and country code ("0" for USA), or transmit no preamble.

@UPEPRE1
System Character

@UPEPRE0
No Preamble

@UPEPRE2
System Character & Country Code

Convert UPC-E to UPC-A

Convert UPC-E to UPC-A: Convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, the data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Character).

Do Not Convert UPC-E to UPC-A: UPC-E decoded data is transmitted as UPC-E data, without conversion.

@UPEEXP0
Do Not Convert UPC-E to UPC-A

@UPEEXP1
Convert UPC-E to UPC-A

@SETUPE0
** Exit Setup

UPC-A

If the scanner fails to identify UPC-A barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable UPC-A barcode.

Transmit Check Character

UPC-A is 13 digits in length with the last one as its check character used to verify the integrity of the data.

@UPACHK2

Transmit UPC-A Check Character

@UPACHK1

Do Not Transmit UPC-A Check Character

@SETUPE0

** Exit Setup

2-Digit Add-On Code

A UPC-A barcode can be augmented with a two-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a two-digit add-on code.

1 23456 78901 23

Disable 2-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented with a UPC-A plus 2-digit add-on barcode. It can also decode UPC-A barcodes without 2-digit add-on codes.

Enable 2-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 2-digit add-on codes.

5-Digit Add-On Code

A UPC-A barcode can be augmented with a five-digit add-on code to form a new one. In the example below, the part surrounded by blue dotted line is a UPC-A barcode while the part circled by red dotted line is a five-digit add-on code.

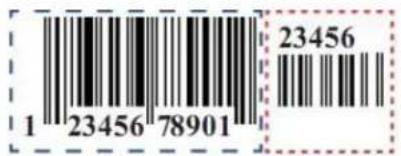

1 23456 78901 23456

Disable 5-Digit Add-On Code: The scanner decodes UPC-A and ignores the add-on code when presented with a UPC-A plus 5-digit add-on barcode. It can also decode UPC-A barcodes without 5-digit add-on codes.

Enable 5-Digit Add-On Code: The scanner decodes a mix of UPC-A barcodes with and without 5-digit add-on codes.

Add-On Code Required

When UPC-A Add-On Code Required is selected, the scanner will only read UPC-A barcodes that contain add-on codes.

@UPAREQ0

UPC-A Add-On Code Not Required

@UPAREQ1

UPC-A Add-On Code Required

Transmit Preamble Character

Preamble characters (Country Code and System Character) can be transmitted as part of a UPC-A barcode. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code ("0" for USA), or transmit no preamble.

@UPAPRE0
No Preamble

@UPAPRE1
System Character

@UPAPRE2

System Character & Country Code

Coupon

UPC-A/EAN-13 with Extended Coupon Code

The following three types of coupon code + extended coupon code are supported:

◇ UPC-A (starting with "5") + GS1-128
✿ UPC-A (starting with "5") + GS1 Databar
◇ EAN-13 (starting with "99") + GS1-128

Use the appropriate barcode below to enable or disable UPC-A/EAN-13 with Extended Coupon Code. When left on the default setting (Off), the scanner treats Coupon Codes and Extended Coupon Codes as single bar codes.

If you scan the Allow Concatenation code, when the scanner sees the coupon code and the extended coupon code in a single scan, it transmits both as separate symbologies. Otherwise, it transmits the first coupon code it reads.

If you scan the Require Concatenation code, the scanner must see and read the coupon code and extended coupon code in a single read to transmit the data. No data is output unless both codes are read.

@CPNENA0
Off

@CPNENA1
Allow Concatenation

@CPNENA2
Require Concatenation

When using the UPC-A Coupon feature, please ensure that System Character or System Character & Country Code is selected for the "Transmit UPC-A Preamble Character" feature.

@SETUPE0
** Exit Setup

Coupon GS1 Databar Output

If you scan coupons that have both UPC and GS1 Databar codes, you may wish to scan and output only the data from the GS1 Databar code. Scan the GS1 Output On barcode below to scan and output only the GS1 Databar code data.

When GS1 Output Off is selected, coupons that have both UPC and GS1 Databar codes are transmitted depending on your selection for the "UPC-A/EAN-13 with Extended Coupon Code" feature.

GS1 Output Off

GS1 Output On

When using the UPC-A Coupon feature, please ensure that System Character or System Character & Country Code is selected for the "Transmit UPC-A Preamble Character" feature.

Interleaved 2 of 5

Restore the Factory Defaults of Interleaved 2 of 5

Enable/Disable Interleaved 2 of 5

@I25ENA1

Enable Interleaved 2 of 5

@125ENA0

Disable Interleaved 2 of 5

If the scanner fails to identify Interleaved 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Interleaved 2 of 5 barcode.

Set Length Range for Interleaved 2 of 5

The scanner can be configured to only decode Interleaved 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

Set the Minimum Length

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Interleaved 2 of 5 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Interleaved 2 of 5 barcodes with that length are to be decoded.

Set the scanner to decode Interleaved 2 of 5 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

A check character is optional for Interleaved 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data.

✿ Disable: The scanner transmits Interleaved 2 of 5 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Interleaved 2 of 5 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.

Since Interleaved 2 of 5 must always have an even number of digits, a zero may need to be added as the first digit when the check character is added. The check character is automatically generated when making Interleaved 2 of 5 barcodes.

@125CHK0

Disable

@I25CHK1
Do Not Transmit Check Character After Verification

@125CHK2
Transmit Check Character After Verification

If the Do Not Transmit Check Character After Verification option is enabled, Interleaved 2 of 5 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Interleaved 2 of 5 barcodes with a total length of 4 characters including the check character cannot be read.)

ITF-14

ITF-14 is a special kind of Interleaved 2 of 5 with a length of 14 characters and the last character as the check character.

ITF-14 priority principle: For the Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the check character, the ITF-14 configurations shall take precedence over the Interleaved 2 of 5 settings.

@I14ENA2
Enable ITF-14 and Transmit Check Character

An example of the ITF-14 priority principle: when ITF-14 is enabled and Interleaved 2 of 5 is disabled, the scanner only decodes Interleaved 2 of 5 barcodes with a length of 14 characters and the last character as the check character.

@SETUPE0
** Exit Setup

ITF-6

ITF-6 is a special kind of Interleaved 2 of 5 with a length of 6 characters and the last character as the check character.

ITF-6 priority principle: For the Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check character, the ITF-6 configurations shall take precedence over the Interleaved 2 of 5 settings.

Restore the Factory Defaults of ITF-6

Enable/Disable ITF-6

@IT6ENAO

Disable ITF-6

@IT6ENA2

Enable ITF-6 and Transmit Check Character

@IT6ENA1

Enable ITF-6 But Do Not Transmit Check Character

An example of the ITF-6 priority principle: when ITF-6 is enabled and Interleaved 2 of 5 is disabled, the scanner only decodes Interleaved 2 of 5 barcodes with a length of 6 characters and the last character as the check character.

@SETUPE0

** Exit Setup

Matrix 2 of 5

Restore the Factory Defaults of Matrix 2 of 5

Enable/Disable Matrix 2 of 5

@M25ENA1

Enable Matrix 2 of 5

@M25ENA0

Disable Matrix 2 of 5

If the scanner fails to identify Matrix 2 of 5 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Matrix 2 of 5 barcode.

Set Length Range for Matrix 2 of 5

The scanner can be configured to only decode Matrix 2 of 5 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

Set the Minimum Length

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Matrix 2 of 5 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Matrix 2 of 5 barcodes with that length are to be decoded.

Set the scanner to decode Matrix 2 of 5 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

A check character is optional for Matrix 2 of 5 and can be added as the last character. It is a calculated value used to verify the integrity of the data.

◆ Disable: The scanner transmitsMatrix 2 of 5 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Matrix 2 of 5 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.

Since Matrix 2 of 5 must always have an even number of digits, a zero may need to be added as the first digit when the check character is added. The check character is automatically generated when making Matrix 2 of 5 barcodes.

Disable

@M25CHK1
Do Not Transmit Check Character After Verification

@M25CHK2
Transmit Check Character After Verification

If the Do Not Transmit Check Character After Verification option is enabled, Matrix 2 of 5 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Matrix 2 of 5 barcodes with a total length of 4 characters including the check character cannot be read.)

Code 39

If the scanner fails to identify Code 39 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 39 barcode.

Set Length Range for Code 39

The scanner can be configured to only decode Code 39 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

Set the Minimum Length

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Code 39 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 39 barcodes with that length are to be decoded.

Set the scanner to decode Code 39 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

A check character is optional for Code 39 and can be added as the last character. It is a calculated value used to verify the integrity of the data.

Disable: The scanner transmitsCode 39 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Code 39 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Code 39 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.

@C39CHK0
Disable

@C39CHK1
Do Not Transmit Check Character After Verification

@C39CHK2
Transmit Check Character After Verification

If the Do Not Transmit Check Character After Verification option is enabled, Code 39 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Code 39 barcodes with a total length of 4 characters including the check character cannot be read.)

Transmit Start/Stop Character

Code 39 uses an asterisk (*) for both the start and the stop characters. You can choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below.

Do Not Transmit Start/Stop Character

Transmit Start/Stop Character

Enable/Disable Code 39 Full ASCII

The scanner can be configured to identify all ASCII characters by scanning the appropriate barcode below.

Disable Code 39 Full ASCII

Enable Code 39 Full ASCII

Enable/Disable Code 32 (Italian Pharma Code)

Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable Code 32. Code 39 must be enabled and Code 39 check character verification must be disabled for this parameter to function.

@C39E320
Disable Code 32

@C39E321
Enable Code 32

Code 32 Prefix

Scan the appropriate barcode below to enable or disable adding the prefix character "A" to all Code 32 barcodes. Code 32 must be enabled for this parameter to function.

@C39S320
Disable Code 32 Prefix

@C39S321
Enable Code 32 Prefix

Transmit Code 32 Start/Stop Character

Code 32 must be enabled for this parameter to function.

@C39T320

Do Not Transmit Code 32 Start/Stop Character

@C39T321

Transmit Code 32 Start/Stop Character

Transmit Code 32 Check Character

Code 32 must be enabled for this parameter to function.

@C39C320

Do Not Transmit Code 32 Check Character

@C39C321

Transmit Code 32 Check Character

Codabar

If the scanner fails to identify Codabar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Codabar barcode.

Set Length Range for Codabar

The scanner can be configured to only decode Codabar barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

Set the Minimum Length

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Codabar barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Codabar barcodes with that length are to be decoded.

Set the scanner to decode Codabar barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

A check character is optional for Codabar and can be added as the last character. It is a calculated value used to verify the integrity of the data.

Disable: The scanner transmits Codabar barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Codabar barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Codabar barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.

@CBACHK0
Disable

@CBACHK1
Do Not Transmit Check Character After Verification

@CBACHK2
Transmit Check Character After Verification

If the Do Not Transmit Check Character After Verification option is enabled, Codabar barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Codabar barcodes with a total length of 4 characters including the check character cannot be read.)

Start/Stop Character

You can set the start/stop characters and choose whether or not to transmit the start/stop characters by scanning the appropriate barcode below.

@CBATSC0

Do Not Transmit Start/Stop Character

@CBATSC1

Transmit Start/Stop Character

@CBASCF0

ABCD/ABCD as the Start/Stop Character

@CBASCF1

ABCD/TN*E as the Start/Stop Character

@CBASCF2

abcd/abcd as the Start/Stop Character

@CBASCF3

abcd/tn*e as the Start/Stop Character

Code 93

If the scanner fails to identify Code 93 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 93 barcode.

Set Length Range for Code 93

The scanner can be configured to only decode Code 93 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@C93MIN
Set the Minimum Length

@C93MAX
Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Code 93 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 93 barcodes with that length are to be decoded.

Set the scanner to decode Code 93 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

Check characters are optional for Code 93 and can be added as the last two characters, which are calculated values used to verify the integrity of the data.

✿ Disable: The scanner transmits Code 93 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Code 93 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted except the last two digits, whereas those failing them will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Code 93 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted, whereas those failing them will not be transmitted.

Disable

@C93CHK1
Do Not Transmit Check Character After Verification

@C93CHK2
Transmit Check Character After Verification

If the Do Not Transmit Check Character After Verification option is enabled, Code 93 barcodes with a length that is less than the configured minimum length after having the two check characters excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Code 93 barcodes with a total length of 4 characters including the two check characters cannot be read.)

China Post 25

Restore the Factory Defaults of China Post 25

Enable/Disable China Post 25

@CHPENA1

Enable China Post 25

@CHPENA0

Disable China Post 25

If the scanner fails to identify China Post 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable China Post 25 barcode.

Set Length Range for China Post 25

The scanner can be configured to only decode China Post 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@CHPMIN

Set the Minimum Length

@CHPMAX

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes China Post 25 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only China Post 25 barcodes with that length are to be decoded.

Set the scanner to decode China Post 25 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

A check character is optional for China Post 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.

✿ Disable: The scanner transmits China Post 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all China Post 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all China Post 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.

Disable

@CHPCHK1
Do Not Transmit Check Character After Verification

@CHPCHK2
Transmit Check Character After Verification

If the Do Not Transmit Check Character After Verification option is enabled, China Post 25 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, China Post 25 barcodes with a total length of 4 characters including the check character cannot be read.)

GS1-128 (UCC/EAN-128)

If the scanner fails to identify GS1-128 barcodes, you may first try this solution by scanning the EnterSetup barcode and then Enable GS1-128 barcode.

Set Length Range for GS1-128

The scanner can be configured to only decode GS1-128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@GS1MIN

Set the Minimum Length

@GS1MAX

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes GS1-128 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only GS1-128 barcodes with that length are to be decoded.

Set the scanner to decode GS1-128 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

GS1 Databar (RSS)

If the scanner fails to identify GS1 Databar barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Databar barcode.

Transmit Application Identifier "01"

@RSSTAI1

Transmit Application Identifier "01"

@RSSTAIO

Do Not Transmit Application Identifier "01"

@SETUPE0

** Exit Setup

GS1 Composite (EAN·UCC Composite)

If the scanner fails to identify GS1 Composite barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GS1 Composite barcode.

Enable/Disable UPC/EAN Composite

@CPTUPC1

Enable UPC/EAN Composite

@CPTUPC0

Disable UPC/EAN Composite

Code 11

If the scanner fails to identify Code 11 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 11 barcode.

Set Length Range for Code 11

The scanner can be configured to only decode Code 11 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@C11MIN
Set the Minimum Length

@C11MAX
Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Code 11 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 11 barcodes with that length are to be decoded.

Set the scanner to decode Code 11 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

Check characters are optional for Code 11 and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data.

If the Disable option is enabled, the scanner transmits Code 11 barcodes as is.

@C11CHK0
Disable

@C11CHK1
One Check Character, MOD11

@C11CHK2
Two Check Characters, MOD11/MOD11

@C11CHK3
Two Check Characters, MOD11/MOD9

@C11CHK4
One Check Character, MOD11 (Len<=10)
Two Check Characters, MOD11/MOD11(Len>10)

@C11CHK5
One Check Character, MOD11 (Len<=10)
Two Check Characters, MOD11/MOD9 (Len>10)

Transmit Check Character

@C11TCK0

Do Not Transmit Code 11 Check Character

@C11TCK1

Transmit Code 11 Check Character

If you select a check character algorithm and the Do Not Transmit Check Character option, Code 11 barcodes with a length that is less than the configured minimum length after having the check character(s) excluded will not be decoded. (For example, when the One Check Character, MOD11 and Do Not Transmit Check Character options are enabled and the minimum length is set to 4, Code 11 barcodes with a total length of 4 characters including the check character cannot be read.)

ISBN

If the scanner fails to identify ISSN barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable ISSN barcode.

Industrial 25

Restore the Factory Defaults of Industrial 25

Enable/Disable Industrial 25

@L25ENA1

Enable Industrial 25

@L25ENA0

Disable Industrial 25

If the scanner fails to identify Industrial 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Industrial 25 barcode.

Set Length Range for Industrial 25

The scanner can be configured to only decode Industrial 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@L25MIN
Set the Minimum Length

@L25MAX
Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Industrial 25 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Industrial 25 barcodes with that length are to be decoded.

Set the scanner to decode Industrial 25 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

A check character is optional for Industrial 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.

◆ Disable: The scanner transmits Industrial 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Industrial 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.

Disable

@L25CHK1
Do Not Transmit Check Character After Verification

@L25CHK2
Transmit Check Character After Verification

If the Do Not Transmit Check Character After Verification option is enabled, Industrial 25 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Industrial 25 barcodes with a total length of 4 characters including the check character cannot be read.)

Standard 25

If the scanner fails to identify Standard 25 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Standard 25 barcode.

Set Length Range for Standard 25

The scanner can be configured to only decode Standard 25 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@S25MIN
Set the Minimum Length

@S25MAX
Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Standard 25 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Standard 25 barcodes with that length are to be decoded.

Set the scanner to decode Standard 25 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

A check character is optional for Standard 25 and can be added as the last character. It is a calculated value used to verify the integrity of the data.

◆ Disable: The scanner transmits Standard 25 barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted except the last digit, whereas those failing it will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Standard 25 barcodes to verify that the data complies with the check character algorithm. Barcodes passing the check will be transmitted, whereas those failing it will not be transmitted.

@S25CHK0
Disable

@S25CHK2
Transmit Check Character After Verification

@S25CHK1
Do Not Transmit Check Character After Verification

If the Do Not Transmit Check Character After Verification option is enabled, Standard 25 barcodes with a length that is less than the configured minimum length after having the check character excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Standard 25 barcodes with a total length of 4 characters including the check character cannot be read.)

Plessey

If the scanner fails to identify Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Plessey barcode.

Set Length Range for Plessey

The scanner can be configured to only decode Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@PLYMIN

Set the Minimum Length

@PLYMAX

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Plessey barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Plessey barcodes with that length are to be decoded.

Set the scanner to decode Plessey barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

Check characters are optional for Plessey and can be added as the last two characters, which are calculated values used to verify the integrity of the data.

◆ Disable: The scanner transmits Plessey barcodes as is.
Do Not Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted except the last two digits, whereas those failing them will not be transmitted.
Transmit Check Character After Verification: The scanner checks the integrity of all Plessey barcodes to verify that the data complies with the check character algorithm. Barcodes passing the checks will be transmitted, whereas those failing them will not be transmitted.

Disable

Do Not Transmit Check Character After Verification

Transmit Check Character After Verification

If the Do Not Transmit Check Character After Verification option is enabled, Plessey barcodes with a length that is less than the configured minimum length after having the check characters excluded will not be decoded. (For example, when the Do Not Transmit Check Character After Verification option is enabled and the minimum length is set to 4, Plessey barcodes with a total length of 4 characters including the check characters cannot be read.)

MSI-Plessey

If the scanner fails to identify MSI-Plessey barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable MSI-Plessey barcode.

Set Length Range for MSI-Plessey

The scanner can be configured to only decode MSI-Plessey barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@MSIMIN
Set the Minimum Length

@MSIMAX
Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes MSI-Plessey barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only MSI-Plessey barcodes with that length are to be decoded.

Set the scanner to decode MSI-Plessey barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Check Character Verification

Check characters are optional for MSI-Plessey and can be added as the last one or two characters, which are calculated values used to verify the integrity of the data.

If the Disable option is enabled, the scanner transmits MSI-Plessey barcodes as is.

@MSICHK0
Disable

@MSICHK2
Two Check Characters, MOD10/MOD10

@MSICHK1
One Check Character, MOD10

@MSICHK3
Two Check Characters, MOD10/MOD11

Transmit Check Character

@MSITCK1

Transmit MSI-Plessey Check Character

@MSITCK0

Do Not Transmit MSI-Plessey Check Character

If you select a check character algorithm and the Do Not Transmit Check Character option, MSI-Plessey barcodes with a length that is less than the configured minimum length after having the check character(s) excluded will not be decoded. (For example, when the One Check Character, MOD10 and Do Not Transmit Check Character options are enabled and the minimum length is set to 4, MSI-Plessey barcodes with a total length of 4 characters including the check character cannot be read.)

AIM 128

If the scanner fails to identify AIM 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable AIM 128 barcode.

Set Length Range for AIM 128

The scanner can be configured to only decode AIM 128 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@AIMMIN
Set the Minimum Length

@AIMMAX
Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes AIM 128 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only AIM 128 barcodes with that length are to be decoded.

Set the scanner to decode AIM 128 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

ISBT 128

If the scanner fails to identify ISBT 128 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable ISBT 128 barcode.

Code 49

If the scanner fails to identify Code 49 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 49 barcode.

Set Length Range for Code 49

The scanner can be configured to only decode Code 49 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@C49MIN

Set the Minimum Length

@C49MAX

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Code 49 barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 49 barcodes with that length are to be decoded.

Set the scanner to decode Code 49 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Code 16K

If the scanner fails to identify Code 16K barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code 16K barcode.

Set Length Range for Code 16K

The scanner can be configured to only decode Code 16K barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@16KMIN

Set the Minimum Length

@16KMAX

Set the Maximum Length

If minimum length is set to be greater than maximum length, the scanner only decodes Code 16K barcodes with either the minimum or maximum length. If minimum length is same as maximum length, only Code 16K barcodes with that length are to be decoded.

Set the scanner to decode Code 16K barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

PDF417

If the scanner fails to identify PDF417 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable PDF417 barcode.

Set Length Range for PDF417

The scanner can be configured to only decode PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@PDFMIN

Set the Minimum Length

@PDFMAX

Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read PDF417 barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode PDF417 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

PDF417 Twin Code

PDF417 twin code is 2 PDF417 barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together.

There are 3 options for reading PDF417 twin codes:

Single PDF417 Only: Read either PDF417 code.
✿ Twin PDF417 Only: Read both PDF417 codes.
Both Single & Twin: Read both PDF417 codes. If successful, transmit as twin PDF417 only. Otherwise, try single PDF417 only.

@PDFDOU0
Single PDF417 Only

@PDFDOU1
Twin PDF417 Only

@PDFDOU2
Both Single & Twin

PDF417 Inverse

Regular barcode: Dark bars on a bright background.

Inverse barcode: Bright bars on a dark background.

@PDFINV0

Decode Regular PDF417 Barcodes Only

@PDFINV2

Decode Both

@PDFINV1

Decode Inverse PDF417 Barcodes Only

Character Encoding

@PDFENC0

Default Character Encoding

@PDFENC1

UTF-8

@PDFENC2

Automatically Select UTF-8 or Code Page

@SETUPE0

** Exit Setup

PDF417 ECI Output

Disable PDF417 ECI Output

@PDFECI1

Enable PDF417 ECI Output

Micro PDF417

If the scanner fails to identify Micro PDF417 barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Micro PDF417 barcode.

Set Length Range for Micro PDF417

The scanner can be configured to only decode Micro PDF417 barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@MPDMIN
Set the Minimum Length

@MPDMAX
Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read Micro PDF417 barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode Micro PDF417 barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

QR Code

If the scanner fails to identify QR Code barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable QR Code barcode.

Set Length Range for QR Code

The scanner can be configured to only decode QR Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

Set the Minimum Length

Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read QR Code barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode QR Code barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

QR Twin Code

QR twin code is 2 QR barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together.

There are 3 options for reading QR twin codes:

Single QR Only: Read either QR code.
✿ Twin QR Only: Read both QR codes. Transmission sequence: left (upper) QR code followed by right (lower) QR code.
Both Single & Twin: Read both QR codes. If successful, transmit as twin QR only. Otherwise, try single QR only.

@QRCDOU0
Single QR Only

@QRCDOU1
Twin QR Only

@QRCDOU2
Both Single & Twin

QR Inverse

Regular barcode: Dark bars on a bright background.

Inverse barcode: Bright bars on a dark background.

@QRCINV0

Decode Regular QR Barcodes Only

@QRCINV2

Decode Both

@QRCINV1

Decode Inverse QR Barcodes Only

Character Encoding

@QRCENC0

Default Character Encoding

@QRCENC1

UTF-8

@QRCENC3

Automatically Select UTF-8 or Code Page

QR ECI Output

@QRCECIO

Disable QR ECI Output

@QRCECI1

Enable QR ECI Output

Micro QR Code

If the scanner fails to identify Micro QR barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Micro QR barcode.

Set Length Range for Micro QR

The scanner can be configured to only decode Micro QR barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@MQRMIN

Set the Minimum Length

@MQRMAX

Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read Micro QR barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode Micro QR Code barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Aztec

If the scanner fails to identify Aztec Code barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Aztec Code barcode.

Set Length Range for Aztec Code

The scanner can be configured to only decode Aztec barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@AZTMIN

Set the Minimum Length

@AZTMAX

Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read Aztec barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode Aztec barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Read Multi-barcodes on an Image

There are three options:

Mode 1: Read one barcode only.
Mode 2: Read fixed number of barcodes only.
Mode 3: Composite Reading. Read fixed number of barcodes first. If unsuccessful, read one barcode only.

Mode 1

@AZTMOD2
Mode 2

Mode 3

Set the Number of Barcodes

@AZTMUL1
1

@AZTMUL2
2

@AZTMUL3
3

@AZTMUL4
4

@AZTMUL5
5

@AZTMUL6
6

@AZTMUL7
7

@AZTMUL8
8

Character Encoding

@AZTENC0

Default Character Encoding

@AZTENC1
UTF-8

@AZTENC2

Automatically Select UTF-8 or Code Page

Aztec ECI Output

@AZTECIO

Disable Aztec ECI Output

@AZTECI1

Enable Aztec ECI Output

Data Matrix

If the scanner fails to identify Data Matrix barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Data Matrix barcode.

Set Length Range for Data Matrix

The scanner can be configured to only decode Data Matrix barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@DMCMIN
Set the Minimum Length

@DMCMAX
Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read Data Matrix barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode Data Matrix barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Data Matrix Twin Code

Data Matrix twin code is 2 Data Matrix barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together.

There are 3 options for reading Data Matrix twin codes:

Single Data Matrix Only: Read either Data Matrix code.
✿ Twin Data Matrix Only: Read both Data Matrix codes. Transmission sequence: left (upper) Data Matrix code followed by right (lower) Data Matrix code.
Both Single & Twin: Read both Data Matrix codes. If successful, transmit as twin Data Matrix only. Otherwise, try single Data Matrix only.

@DMCDOU0
Single Data Matrix Only

@DMCDOU1
Twin Data Matrix Only

@DMCDOU2
Both Single & Twin

Rectangular Barcode

Data Matrix has two formats:

Square barcodes having the same amount of modules in length and width: 10*10, 12*12.... 144*144.

Rectangular barcodes having different amounts of models in length and width: 6*16, 6*14...14*22.

@DMCREC1

Enable Rectangular Barcode

@DMCRECO

Disable Rectangular Barcode

Data Matrix Inverse

Regular barcode: Dark bars on a bright background.

Inverse barcode: Bright bars on a dark background.

@DMCINV0

Decode Regular Data Matrix Barcodes Only

@DMCINV1

Decode Inverse Data Matrix Barcodes Only

@DMCINV2

Decode Both

Character Encoding

@DMCENC0

Default Character Encoding

@DMCENC1
UTF-8

@DMCENC2

Automatically Select UTF-8 or Code Page

Data Matrix ECI Output

@DMCECIO

Disable Data Matrix ECI Output

@DMCECI1

Enable Data Matrix ECI Output

Maxicode

If the scanner fails to identify Maxicode barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Maxicode barcode.

Set Length Range for Maxicode

The scanner can be configured to only decode Maxicode barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@MXCMIN

Set the Minimum Length

@MXCMAX

Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read Maxicode barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode Maxicode barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Chinese Sensible Code

Restore the Factory Defaults of Chinese Sensible Code

Enable/Disable Chinese Sensible Code

@CSCENA1

Enable Chinese Sensible Code

@CSCENA0

Disable Chinese Sensible Code

If the scanner fails to identify Chinese Sensible Code barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Chinese Sensible Code barcode.

Set Length Range for Chinese Sensible Code

The scanner can be configured to only decode Chinese Sensible Code barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@CSCMIN

Set the Minimum Length

@CSCMAX

Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read Chinese Sensible Code barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode Chinese Sensible Code barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Chinese Sensible Twin Code

Chinese Sensible twin code is 2 Chinese Sensible barcodes paralleled vertically or horizontally. They must both be either regular or inverse barcodes. They must have similar specifications and be placed closely together.

There are 3 options for reading Chinese Sensible twin codes:

Single Chinese Sensible Code Only: Read either Chinese Sensible code.
✿ Twin Chinese Sensible Code Only: Read both Chinese Sensible codes. Transmission sequence: left (upper) Chinese Sensible code followed by right (lower) Chinese Sensible code.
Both Single & Twin: Read both Chinese Sensible codes. If successful, transmit as twin Chinese Sensible Code only. Otherwise, try single Chinese Sensible Code only.

@CSCDOU0

Single Chinese Sensible Code Only

@CSCDOU1

Twin Chinese Sensible Code Only

@CSCDOU2

Both Single & Twin

Chinese Sensible Code Inverse

Regular barcode: Dark bars on a bright background.

Inverse barcode: Bright bars on a dark background.

@CSCINV0

Decode Regular Chinese Sensible Barcodes Only

@CSCINV2

Decode Both

@CSCINV1

Decode Inverse Chinese Sensible Barcodes Only

GM Code

If the scanner fails to identify GM barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable GM barcode.

Set Length Range for GM

The scanner can be configured to only decode GM barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@GMCMIN

Set the Minimum Length

@GMCMAX

Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read GM barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode GM barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

Code One

If the scanner fails to identify Code One barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Code One barcode.

Set Length Range for Code One

The scanner can be configured to only decode Code One barcodes with lengths that fall between (inclusive) the minimum and maximum lengths. To accomplish it, you need to set the minimum and maximum lengths.

@ONEMIN

Set the Minimum Length

@ONEMAX

Set the Maximum Length

Minimum length is not allowed to be greater than maximum length. If you only want to read Code One barcodes with a specific length, set both minimum and maximum lengths to be that desired length.

Set the scanner to decode Code One barcodes containing between 8 and 12 characters:

1. Scan the Enter Setup barcode.
2. Scan the Set the Minimum Length barcode.
3. Scan the numeric barcode "8" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Set the Maximum Length barcode.
6. Scan the numeric barcodes "1" and "2" from the "Digit Barcodes" section in Appendix.
7. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
8. Scan the Exit Setup barcode.

USPS Postnet

If the scanner fails to identify USPS Postnet barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable USPS Postnet barcode.

Transmit Check Character

@PNTCHK1

Do Not Transmit USPS Postnet Check Character

@PNTCHK2

Transmit USPS Postnet Check Character

@SETUPE0

** Exit Setup

USPS Intelligent Mail

If the scanner fails to identify USPS Intelligent Mail barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable USPS Intelligent Mail barcode.

Royal Mail

If the scanner fails to identify Royal Mail barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Royal Mail barcode.

USPS Planet

If the scanner fails to identify USPS Planet barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable USPS Planet barcode.

Transmit Check Character

@PLACHK1

Do Not Transmit USPS Planet Check Character

@PLACHK2

Transmit USPS Planet Check Character

@SETUPE0

** Exit Setup

KIX Post

Restore the Factory Defaults of KIX Post

Enable/Disable KIX Post

@KIXENA1

Enable KIX Post

@KIXENA0

Disable KIX Post

If the scanner fails to identify KIX Post barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable KIX Post barcode.

Australian Postal

Restore the Factory Defaults of Australian Postal

Enable/Disable Australian Postal

@APLENA1

Enable Australian Postal

@APLENA0

Disable Australian Postal

If the scanner fails to identify Australian Postal barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Australian Postal barcode.

Specific OCR-B

Restore the Factory Defaults of Specific OCR-B

Enable/Disable Specific OCR-B

@SOBENA1

Enable Specific OCR-B

@SOBENA0

Disable Specific OCR-B

If the scanner fails to identify Specific OCR-B barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Specific OCR-B barcode.

Chinese ID Card OCR

Restore the Factory Defaults of Chinese ID Card OCR

Enable/Disable Chinese ID Card OCR

@IDCENA1

Enable Chinese ID Card OCR

@IDCENA0

Disable Chinese ID Card OCR

If the scanner fails to identify Chinese ID Card OCR barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Chinese ID Card OCR barcode.

Passport OCR

If the scanner fails to identify Passport OCR barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable Passport OCR barcode.

China Travel Permit OCR

If the scanner fails to identify China Travel Permit OCR barcodes, you may first try this solution by scanning the Enter Setup barcode and then Enable China Travel Permit OCR barcode.

Chapter 10 Data Formatter

Introduction

You may use the Data Formatter to modify the scanner's output. For example, you can use the Data Formatter to insert characters at certain points in barcode data or to suppress/replace/send certain characters in barcode data as it is scanned. Normally, when you scan a barcode, it gets outputted automatically; however, when you create a format, you must use a "send" command (see the "Send Commands" section in this chapter) within the format programming to output data. Multiple data formats can be programmed into the scanner. The maximum size of all data formats created is 2048 characters. By default, the data formatter is disabled. Enable it when required. If you have changed data format settings, and wish to clear all formats and return to the factory defaults, scan the Default Data Format code below.

@DFMDEF
Default Data Format

Add a Data Format

Data format is used to edit barcode data. When you create a data format, you must select one of the four labels (Format_0, Format_1, Format_2 and Format_3) for your data format, specify the application scope of data format (such as barcode type and data length) and include formatter commands. Multiple data formats may be created using the same label. When scanned data does not match your data format requirements, you will hear the non-match error beep (if the non-match error beep is ON).

There are two methods to program a data format: Programming with barcodes and programming with serial commands.

Programming with Barcodes

The following explains how to program a data format by scanning the specific barcodes. Scanning any irrelevant barcode or failing to follow the setting procedure will result in programming failure. To find the alphanumeric barcodes needed to create a data format, see the "Digit Barcodes" section in Appendix.

Step 1: Scan the Enter Setup barcode.

Step 2: Scan the Add Data Format barcode.

@DFMADD
Add Data Format

Step 3: Select a label (Format_0 or Format_1 or Format_2 or Format_3).

Scan a numeric barcode 0 or 1 or 2 or 3 to label this data format Format_0 or Format_1 or Format_2 or Format_3.

Step 4: Select formatter command type.

Specify what type of formatter commands will be used. Scan a numeric barcode 6 to select formatter command type 6. (See the "Formatter Command Type 6" section in this chapter for more information)

Step 5: Set interface type

Scan 999 for any interface type.

Step 6: Set Symbology ID Number

Refer to the "Symbology ID Number" section in Appendix and find the ID number of the symbology to which you want to apply the data format. Scan three numeric barcodes for the symbology ID number. If you wish to create a data format for all symbologies, scan 999.

Step 7: Set barcode data length

Specify what length of data will be acceptable for this symbology. Scan the four numeric barcodes that represent the data length. 9999 is a universal number, indicating all lengths. For example, 32 characters should be entered as 0032.

Step 8: Enter formatter command

Refer to the "Formatter Command Type 6" section in this chapter. Scan the alphanumeric barcodes that represent the command you need to edit data. For example, when a command is F141, you should scan F141.

Step 9: Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix to save your data format.

Example: Program a Format_0 data format using formatter command type 6, Code 128 containing 10 characters applicable, send all characters followed by "A".

1. Scan the Enter Setup barcode Enter the Setup mode
2. Scan the Add Data Format barcode Add a data format
3. Scan the 0 barcode Select Format_0 as the label
4. Scan the 6 barcode Select formatter command type 6
5. Scan the 9 barcode three times All interface types applicable
6. Scan the barcodes 002 Only Code 128 applicable
7. Scan the barcodes 0010 Only a length of 10 characters applicable
8. Scan the alphanumeric barcodes F141 Send all characters followed by "A" (HEX: 41)
9. Scan the Save barcode Save the data format

To streamline the programming process, you may as well generate a batch barcode by inputting the command (e.g. @DFMADD069990020010F141;) used to create a data format. See the "Use Batch Barcode" section in Chapter 9 to learn how to put a batch barcode into use.

When creating multiple data formats sharing a label, the formats are separated from each other by a vertical bar (|) in the batch command, e.g. @DFMADD069990029999F141|069990039999F142|169990049999F143;.

Programming with Serial Commands

A data format can also be created by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters.

The syntax consists of the following elements:

Prefix: “\~0000” (HEX: 7E 01 30 30 30 30), 6 characters.

Storage type: “@” (HEX: 40) or “#” (HEX: 23), 1 character. “@” means permanent setting which will not be lost by removing power from the scanner or rebooting it; “#” means temporary setting which will be lost by removing power from the scanner or rebooting it.

Add Data Format Command: "DFMADD" (HEX: 44 46 4D 41 44 44), 6 characters.

Data format label: "0" (HEX: 30) or "1" (HEX: 31) or "2" (HEX: 32) or "3" (HEX: 33), 1 character. "0", "1", "2" and "3" represent Format_0, Format_1, Format_2 and Format_3 respectively.

Formatter command type: "6" (HEX: 36), 1 character.

Interface type: "999" (HEX: 39 39 39), 3 characters.

Symbology ID Number: The ID number of the symbology to which you want to apply the data format, 3 characters. 999 indicates all symbologies.

Data length: The length of data that will be acceptable for this symbology, 4 characters. 9999 indicates all lengths. For example, 32 characters should be entered as 0032.

Formatter commands: The command string used to edit data. For more information, see the "Formatter Command Type 6" section in this chapter.

Suffix: “;” (HEX: 3B 03), 2 characters.

Example: Program a Format_0 data format using formatter command type 6, Code 128 containing 10 characters applicable, send all characters followed by "A".

Enter: 7E 01 30 30 30 30 40 44 46 4D 41 44 44 30 36 39 39 39 30 30 33 39 39 39 46 31 34 31 3B 03

(\~0000@DFMADD069990020010F141;)

Response: 02 01 30 30 30 30 40 44 46 4D 41 44 44 30 36 39 39 39 30 30 33 39 39 39 46 31 34 31 06 3B 03

(0000@DFMADD069990020010F141;)

When creating multiple data formats sharing a label, the formats are separated from each other by a vertical bar (|) in the serial command.

Example: \~0000@DFMADD069990020010F141|069990039999F142|069990049999F143;

Enable/Disable Data Formatter

When Data Formatter is disabled, the data format you have enabled becomes invalid.

@DFMENA0
Disable Data Formatter

You may wish to require the data to conform to a data format you have created. The following settings can be applied to your data format:

Enable Data Formatter, Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled). Any data that does not match your data format requirements generates an error beep (if Non-Match Error Beep is turned ON) and the data in that barcode is not transmitted.

Enable Data Formatter, Required, Drop Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted without prefixes and suffixes (even if prefix and suffix are enabled). Any data that does not match your data format requirements generates an error beep (if Non-Match Error Beep is turned ON) and the data in that barcode is not transmitted.

Enable Data Formatter, Not Required, Keep Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted along with prefixes and suffixes (if prefix and suffix are enabled). Barcode data that does not match your data format requirements is transmitted as read along with prefixes and suffixes (if prefix and suffix are enabled).

Enable Data Formatter, Not Required, Drop Prefix/Suffix: Scanned data that meets your data format requirements is modified accordingly and gets outputted without prefixes and suffixes (even if prefix and suffix are enabled). Barcode data that does not match your data format requirements is transmitted as read along with prefixes and suffixes (if prefix and suffix are enabled).

@DFMENA1

Enable Data Formatter, Required, Keep Prefix/Suffix

@DFMENA2

Enable Data Formatter, Required, Drop Prefix/Suffix

@DFMENA3

Enable Data Formatter, Not Required, Keep Prefix/Suffix

@DFMENA4

Enable Data Formatter, Not Required, Drop Prefix/Suffix

Non-Match Error Beep

If Non-Match Error Beep is turned ON, the scanner generates an error beep when a barcode is encountered that does not match your required data format.

@DFMTON0

Non-Match Error Beep Off

@DFMTON1

Non-Match Error Beep On

@SETUPE0

** Exit Setup

Data Format Selection

After enabling the Data Formatter, you can select a data format you want to use by scanning the appropriate barcode below.

@DFMUSE0
Format_0

@DFMUSE1
Format_1

@DFMUSE2
Format_2

@DFMUSE3
Format_3

Change Data Format for a Single Scan

You can switch between data formats for a single scan. The next barcode is scanned using the data format selected here, then reverts to the format you have selected above.

For example, you may have set your scanner to use the data format you saved as Format_3. You can switch to Format_1 for a single trigger pull by scanning the Single Scan - Format_1 barcode below. The next barcode that is scanned uses Format_1, then reverts back to Format_3.

Note: This setting will be lost by removing power from the scanner, or turning off/rebooting the device.

@DFMSINO
Single Scan - Format_0

@DFMSIN1
Single Scan - Format_1

@DFMSIN2
Single Scan - Format_2

@DFMSIN3
Single Scan - Format_3

Clear Data Format

There are two methods to remove data format created from your scanner:

Delete one data format: Scan the Clear One barcode, a numeric barcode (0-3) and the Save barcode. For example, to delete Format_2, you should scan the Clear One barcode, the 2 barcode and the Save barcode

Delete all data formats: Scan the Clear All barcode.

@DFMCAL
Clear All

@DFMCLR
Clear One

Query Data Formats

You may scan the appropriate barcode below to get the information of data format(s) created by you or preset by manufacturer. For instance, if you have added Format_0 as per the example in the "Add a Data Format" section in this chapter, scanning the Query Current Data Formats barcode, you will get the result: Data Format0:069990020010F141;

@DFMQCU
Query Current Data Formats

@DFMQFA
Query Preset Data Formats

@SETUPE0
** Exit Setup

Formatter Command Type 6

When working with the Data Formatter, a virtual cursor is moved along your input data string. The following commands are used to both move this cursor to different positions, and to select, replace, and insert data into the final output. For the hex value of ASCII characters involved in the commands, refer to the "ASCII Table" in Appendix.

Send Commands

F1 Send all characters

Syntax=F1xx (xx: The insert character's hex value)

Include in the output message all of the characters from the input message, starting from current cursor position, followed by an insert character.

F2 Send a number of characters

Syntax=F2nnxx (nn: The numeric value (00-99) for the number of characters; xx: The insert character's hex value)

Include in the output message a number of characters followed by an insert character. Start from the current cursor position and continue for "nn" characters or through the last character in the input message, followed by character "xx."

F2 Example: Send a number of characters

Black and white barcode image with vertical lines and a central dot, likely for digital scanning or information retrieval.

1234567890ABCDEFGHIJ

Send the first 10 characters from the barcode above, followed by a carriage return.

Command string: F2100D

F2 is the "Send a number of characters" command

10 is the number of characters to send

0D is the hex value for a CR

The data is output as: 1234567890

F3 Send all characters up to a particular character

Syntax=F3ssxx (ss: The particular character's hex value; xx: The insert character's hex value)

Include in the output message all characters from the input message, starting with the character at the current cursor position and continuing to, but not including, the particular character "ss," followed by character "xx." The cursor is moved forward to the "ss" character.

F3 Example: Send all characters up to a particular character

Black and white barcode image with vertical lines and patterned bars

1234567890ABCDEFGHIJ

Using the barcode above, send all characters up to but not including "D," followed by a carriage return.

Command string: F3440D

F3 is the "Send all characters up to a particular character" command

44 is the hex value for a "D"

0D is the hex value for a CR

The data is output as: 1234567890ABC

E9 Send all but the last characters

Syntax=E9nn (nn: The numeric value (00-99) for the number of characters that will not be sent at the end of the message)

Include in the output message all but the last "nn" characters, starting from the current cursor position. The cursor is moved forward to one position past the last input message character included.

F4 Insert a character multiple times

Syntax=F4xxnn (xx: The insert character's hex value; nn: The numeric value (00-99) for the number of times it should be sent)

Send "xx" character "nn" times in the output message, leaving the cursor in the current position.

E9 and F4 Example: Send all but the last characters, followed by 2 tabs

Barcode image containing machine-readable data, no human-readable text visible

1234567890ABCDEFGHIJ

Send all characters except for the last 8 from the barcode above, followed by 2 tabs.

Command string: E908F40902

E9 is the "Send all but the last characters" command

08 is the number of characters at the end to ignore

F4 is the "Insert a character multiple times" command

09 is the hex value for a horizontal tab

02 is the number of time the tab character is sent

The data is output as: 1234567890AB

B3 Insert symbology name

Insert the name of the barcode's symbology in the output message, without moving the cursor.

B4 Insert barcode length

Insert the barcode's length in the output message, without moving the cursor. The length is expressed as a numeric string and does not include leading zeros.

B3 and B4 Example: Insert the symbology name and length

Black and white barcode image with vertical lines and patterns

1234567890ABCDEFGHIJ

Send the symbology name and length before the barcode data from the barcode above. Break up these insertions with spaces. End with a carriage return.

Command string: B3F42001B4F42001F10D

B3 is the "Insert symbology name" command

F4 is the "Insert a character multiple times" command

20 is the hex value for a space

01 is the number of time the space character is sent

B4 is the "Insert barcode length" command

F4 is the "Insert a character multiple times" command

20 is the hex value for a space

01 is the number of time the space character is sent

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: Code128 20 1234567890ABCDEFGHIJ

Move Commands

F5 Move the cursor forward a number of characters

Syntax=F5nn (nn: The numeric value (00-99) for the number of characters the cursor should be moved ahead)

Move the cursor ahead "nn" characters from current cursor position.

F5 Example: Move the cursor forward and send the data

Barcode image containing machine-readable data, no human-readable text visible

1234567890ABCDEFGHIJ

Move the cursor forward 3 characters, then send the rest of the barcode data from the barcode above. End with a carriage return.

Command string: F503F10D

F5 is the "Move the cursor forward a number of characters" command

03 is the number of characters to move the cursor

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 4567890ABCDEFGHIJ

F6 Move the cursor backward a number of characters

Syntax=F6nn (nn: The numeric value (00-99) for the number of characters the cursor should be moved back)

Move the cursor back "nn" characters from current cursor position.

F7 Move the cursor to the beginning

Syntax=F7

Move the cursor to the first character in the input message.

EA Move the cursor to the end

Syntax=EA

Move the cursor to the last character in the input message.

Search Commands

F8 Search forward for a character

Syntax=F8xx (xx: The search character's hex value)

Search the input message forward for "xx" character from the current cursor position, leaving the cursor pointing to the "xx" character.

F8 Example: Send barcode data that starts after a particular character

1234567890ABCDEFGHIJ

Search for the letter "D" in barcodes and send all the data that follows, including the "D". Using the barcode above:

Command string: F844F10D

F8 is the "Search forward for a character" command

44 is the hex value for "D"

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: DEFGHIJ

F9 Search backward for a character

Syntax=F9xx(xx: The search character's hex value)

Search the input message backward for "xx" character from the current cursor position, leaving the cursor pointing to the "xx" character.

B0 Search forward for a string

Syntax=B0nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string)

Search forward for "S" string from the current cursor position, leaving cursor pointing to "S" string. For example, B0000454657374 will search forward for the first occurrence of the 4-character string "Test."

B0 Example: Send barcode data that starts after a string of characters

1234567890ABCDEFGHIJ

Search for the letters "FGH" in barcodes and send all the data that follows, including "FGH." Using the barcode above:

Command string: B00003464748F10D

B0 is the "Search forward for a string" command

0003 is the string length (3 characters)

46 is the hex value for "F"

47 is the hex value for "G"

48 is the hex value for "H"

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: FGHIJ

B1 Search backward for a string

Syntax=B1nnnnS (nnnn: The string length (up to 9999); S: The ASCII hex value of each character in the string)

Search backward for "S" string from the current cursor position, leaving cursor pointing to "S" string. For example, B1000454657374 will search backward for the first occurrence of the 4-character string "Test."

E6 Search forward for a non-matching character

Syntax=E6xx (xx: The search character's hex value)

Search the input message forward for the first non-“xx” character from the current cursor position, leaving the cursor pointing to the non-“xx” character.

E6 Example: Remove zeros at the beginning of barcode data

000037692

This example shows a barcode that has been zero filled. You may want to ignore the zeros and send all the data that follows. E6 searches forward for the first character that is not zero, then sends all the data after, followed by a carriage return. Using the barcode above:

Command string: E630F10D

E6 is the "Search forward for a non-matching character" command

30 is the hex value for 0

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 37692

E7 Search backward for a non-matching character

Syntax=E7xx(xx: The search character's hex value)

Search the input message backward for the first non-"xx" character from the current cursor position, leaving the cursor pointing to the non-"xx" character.

Miscellaneous Commands

FB Suppress characters

Syntax=FBnnxxyy..zz (nn: The numeric value (00-15) for the number of suppressed characters; xxyy..zz: The hex value of the characters to be suppressed)

Suppress all occurrences of up to 15 different characters, starting at the current cursor position, as the cursor is advanced by other commands.

FB Example: Remove spaces in barcode data

345 678 90

This example shows a barcode that has spaces in the data. You may want to remove the spaces before sending the data. Using the barcode above:

Command string: FB0120F10D

FB is the "Suppress characters" command

01 is the number of the characters to be suppressed

20 is the hex value for a space

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 34567890

E4 Replace characters

Syntax= E4nnxxx2yy1yy2...zz1zz2(nn: The total count of the number of characters (characters to be replaced plus replacement characters; xx1: The characters to be replaced, xx2: The replacement characters, continuing through zz1 and zz2)

Replace up to 15 characters in the output message, without moving the cursor.

E4 Example: Replace zeros with CRs in barcode data

1234056780ABC

If the barcode has characters that the host application does not want included, you can use the E4 command to replace those characters with something else. In this example, you will replace the zeros in the barcode above with carriage returns.

Command string: E402300DF10D

E4 is the "Replace characters" command

02 is the total count of characters to be replaced, plus the replacement characters (0 is replaced by CR, so total characters=2)

30 is the hex value for 0

0D is the hex value for a CR (the character that will replace the 0)

F1 is the "Send all characters" command

0D is the hex value for a CR

The data is output as: 1234

5678

ABC

BA Replace a string with another

Syntax=BAnnNN 1 SS 1 NN 2 SS 2

nn: The count of replacements to be made, if nn=00 or nn>=the number of occurrences of a string to be replaced, then replace all occurrences of that string.

NN_1 : The length of the string to be replaced, NN_1>0 .

SS _1 : The ASCII hex value of each character in the string to be replaced.

NN2: The length of replacement string, NN 2>=0. To replace string "SS1" with NUL (i.e. delete string "SS1"), you should set NN2 to 00 and leave out SS2.

SS2: The ASCII hex value of each character in the replacement string.

From the current cursor position, search forward for the occurrence of "SS 1 " string (of length "NN 1 ") and replace the string with "SS 2 " string (of length "NN 2 ") in the output message until every "SS _1 " string is replaced or the count of replacements made reaches "nn" times, without moving the cursor.

BA Example: Replace "23"s with "ABC"s in barcode data

cd123abc23bc12ab232

If the barcode has a string of characters that the host application does not want included, you can use the BA command to replace the string with something else. In this example, you will replace the "23"s in the barcode above with "ABC"s.

Command string: BA0002323303414243F100

BA is the "Replace a string with another" command

00 is the count of replacements to be made, 00 means to replace all occurrences of that string

02 is the length of the string to be replaced

32 is the hex value for 2 (character in the string to be replaced)

33 is the hex value for 3 (character in the string to be replaced)

03 is the length of the replacement string

41 is the hex value for A (character in the replacement string)

42 is the hex value for B (character in the replacement string)

43 is the hex value for C (character in the replacement string)

F1 is the "Send all characters" command

00 is the hex value for a NUL

The data is output as: cd1ABCabcABCbc12abABC2

BA Example: Remove only the first occurrence of "23"s in barcode data

If the barcode has a string of characters that the host application wants removed, you can use the BA command to replace the string with NUL. In this example, you will remove the first occurrence of "23" in the barcode above.

Command string: BA0102323300F100

BA is the "Replace a string with another" command

01 is the count of replacements to be made

02 is the length of the string to be replaced

32 is the hex value for 2 (character in the string to be replaced)

33 is the hex value for 3 (character in the string to be replaced)

00 is the length of the replacement string, 00 means to replace the string to be replaced with NUL

F1 is the "Send all characters" command

00 is the hex value for a NUL

The data is output as: cd1abc23bc12ab232

EF Insert a delay

Syntax=EFnnnn (nnnn: The delay in 5ms increments, up to 9999)

Inserts a delay of up to 49,995 milliseconds (in multiples of 5), starting from the current cursor position. This command can only be used with USB HID Keyboard.

EF Example: Insert a delay of 1s between the 5^th and 6^th character

Send the first 5 characters in a barcode, wait for 1s, then send the rest of the barcode data.

Command string: F20500EF0200E900

F2 is the "Send a number of characters" command

05 is the number of characters to send

00 is the hex value for a Null character

EF is the "Insert a delay" command

0200 is the delay value (5msX200=1000ms=1s)

E9 is the "Send all but the last characters" command

00 is the number of characters that will not be sent at the end of the message

B5 Insert key strokes

Syntax=B5nnssxx (nn: The number of keys pressed (without key modifiers); ss: the key modifier from the table below; xx: the key number from the "Unicode Key Maps" in Appendix.)

Insert a key stroke or combination of key strokes. Key strokes are dependent on your keyboard (see the "Unicode Key Maps" in Appendix). This command can only be used with USB HID Keyboard.

Key Modifiers
No Key Modifier	00
Shift Left	01
Shift Right	02
Alt Left	04
Alt Right	08
Control Left	10
Control Right	20

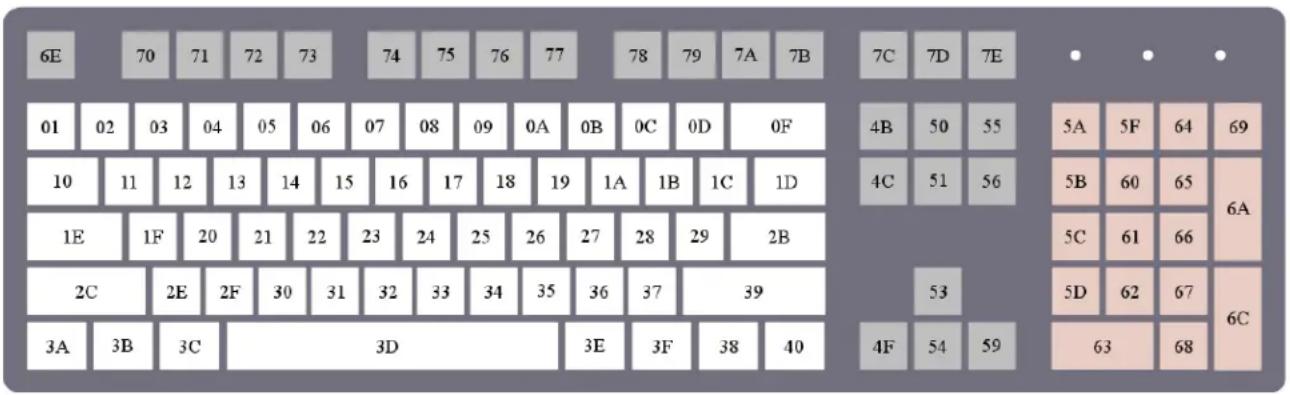

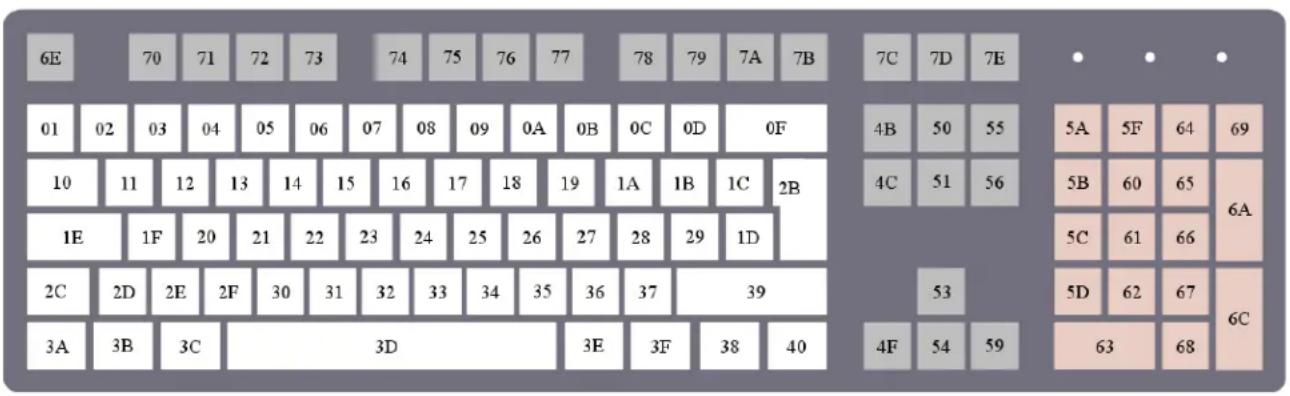

For example, B501001F inserts an "a" on a U.S. style keyboard. B5 = the command, 01 = number of keys pressed (without the key modifier), 00 is No Key Modifier, and 1F is the "a" key. If an "A" were to be inserted, B501011F or B501021F would be entered.

If there are two keystrokes, the syntax would change from Syntax=B5nnssxx for one keystroke to Syntax=B5nnssxxssxx. An example that would insert "aA" is as follows: B502001F011F.

Note: Key modifiers can be added together when needed. Example: Shift Left + Alt Left + Control Left = 15.

Chapter 11 Prefix & Suffix

Introduction

A 1D barcode could contain digits, letters, symbols, etc. A 2D barcode could contain more data, such as Chinese characters and other multi-byte characters. However, in real applications, they do not and should not have all information we need, such as barcode type, data acquisition time and delimiter, in order to keep the barcodes short and flexible.

Prefix and suffix are how to fulfill the needs mentioned above. They can be added, removed and modified while the original barcode data remains intact.

Barcode processing procedure:

1. Edit data with Data Formatter
2. Append prefix/suffix
3. Pack data
4. Append terminating character

Global Settings

Enable/Disable All Prefixes/Suffixes

Disable All Prefixes/Suffixes: Transmit barcode data with no prefix/suffix.

Enable All Prefixes/Suffixes: Allow to append Code ID prefix, AIM ID prefix, custom prefix/suffix and terminating character to the barcode data before the transmission.

@APSENA0

Disable All Prefixes/Suffixes

@APSENA1

Enable All Prefixes/Suffixes

Prefix Sequence

@PRESEQ0

Code ID+ Custom +AIM ID

@PRESEQ1

Custom + Code ID + AIM ID

Custom Prefix

Enable/Disable Custom Prefix

If custom prefix is enabled, you are allowed to append to the data a user-defined prefix that cannot exceed 10 characters. For example, if the custom prefix is "AB" and the barcode data is "123", the Host will receive "AB123".

@CPRENA0
Disable Custom Prefix

@CPRENA1
Enable Custom Prefix

Set Custom Prefix

To set a custom prefix, scan the Set Custom Prefix barcode then the numeric barcodes corresponding to the hexadecimal value of a desired prefix then the Save barcode.

Note: A custom prefix cannot exceed 10 characters.

@CPRSET
Set Custom Prefix

Set the custom prefix to "CODE" (HEX: 0x43/0x4F/0x44/0x45):

1. Scan the Enter Setup barcode.
2. Scan the Set Custom Prefix barcode.
3. Scan the numeric barcodes "4", "3", "4", "F", "4", "4", "4" and "5" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Enable Custom Prefix barcode.
6. Scan the Exit Setup barcode.

@SETUPE0
** Exit Setup

AIM ID Prefix

AIM (Automatic Identification Manufacturers) ID defines symbology identifier (For the details, see the "AIM ID Table" section in Appendix). If AIM ID prefix is enabled, the scanner will add the symbology identifier before the scanned data after decoding.

@AIDENA0

Disable AIM ID Prefix

@AIDENA1

Enable AIM ID Prefix

AIM ID is not user programmable.

Code ID Prefix

Code ID can also be used to identify barcode type. Unlike AIM ID, Code ID is user programmable. Code ID can only consist of one or two English letters.

Disable Code ID Prefix

@CIDENA1
Enable Code ID Prefix

Restore All Default Code IDs

For the information of default Code IDs, see the "Code ID Table" section in Appendix.

Restore All Default Code IDs

Modify Code ID

See the examples below to learn how to modify a Code ID and restore the default Code IDs of all symbologies.

Modify PDF417 Code ID to be "p" (HEX: 0x70):

1. Scan the Enter Setup barcode.
2. Scan the Modify PDF417 Code ID barcode.
3. Scan the numeric barcodes "7" and "0" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Exit Setup barcode.

Restore the default Code IDs of all symbologies:

1. Scan the Enter Setup barcode.
2. Scan the Restore All Default Code IDs barcode.
3. Scan the Exit Setup barcode.

1D symbologies:

Modify Code 128 Code ID

Modify GS1-128 Code ID

Modify EAN-8 Code ID

Modify EAN-13 Code ID

Modify UPC-E Code ID

Modify UPC-A Code ID

Modify Interleaved 2 of 5 Code ID

@CID010

Modify ITF-6 Code ID

@CID009

Modify ITF-14 Code ID

@CID013

Modify Code 39 Code ID

@CID011

Modify Matrix 2 of 5 Code ID

@CID017

Modify Code 93 Code ID

@CID015

Modify Codabar Code ID

@CID020

Modify AIM 128 Code ID

@CID019

Modify China Post 25 Code ID

@CID023
Modify ISSN Code ID

@CID021
Modify ISBT 128 Code ID

@CID025
Modify Industrial 25 Code ID

@CID024
Modify ISBN Code ID

@CID027
Modify Plessey Code ID

@CID026
Modify Standard 25 Code ID

@CID029
Modify MSI-Plessy Code ID

@CID028
Modify Code 11 Code ID

@SETUPE1

Enter Setup

@CID030
Modify GS1 Composite Code ID

@CID031
Modify GS1 Databar Code ID

@CID132
Modify Code 49 Code ID

@CID133
Modify Code 16K Code ID

@SETUPE0
** Exit Setup

2D symbologies:

@CID032

Modify PDF417 Code ID

@CID034

Modify Aztec Code ID

@CID036

Modify Maxicode Code ID

@CID041

Modify GM Code ID

@CID033

Modify QR Code ID

@CID035

Modify Data Matrix Code ID

@CID039

Modify Chinese Sensible Code ID

@SETUPE1
Enter Setup

@CID043
Modify Micro QR Code ID

@CID042
Modify Micro PDF417 Code ID

@CID048
Modify Code One Code ID

@SETUPE0
** Exit Setup

Postal symbologies:

@CID096

Modify USPS Postnet Code ID

@CID098

Modify Royal Mail Code ID

@CID100

Modify KIX Post Code ID

@CID097

Modify USPS Intelligent Mail Code ID

@CID099

Modify USPS Planet Code ID

@CID101

Modify Australian Postal Code ID

OCR:

@CID064

Modify Specific OCR-B Code ID

@CID066

Modify Passport OCR Code ID

@CID065

Modify Chinese ID Card OCR Code ID

@CID068

Modify China Travel Permit OCR Code ID

Custom Suffix

Enable/Disable Custom Suffix

If custom suffix is enabled, you are allowed to append to the data a user-defined suffix that cannot exceed 10 characters. For example, if the custom suffix is "AB" and the barcode data is "123", the Host will receive "123AB".

Disable Custom Suffix

@CSUENA1
Enable Custom Suffix

Set Custom Suffix

To set a custom suffix, scan the Set Custom Suffix barcode then the numeric barcodes corresponding to the hexadecimal value of a desired suffix then the Save barcode.

Note: A custom suffix cannot exceed 10 characters.

@CSUSET
Set Custom Suffix

Set the custom suffix to "CODE" (HEX: 0x43/0x4F/0x44/0x45):

1. Scan the Enter Setup barcode.
2. Scan the Set Custom Suffix barcode.
3. Scan the numeric barcodes "4", "3", "4", "F", "4", "4", "4" and "5" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Enable Custom Suffix barcode.
6. Scan the Exit Setup barcode.

@SETUPE0
** Exit Setup

Data Packing

Introduction

Data packing is designed for a specific group of users who want to have the data packed before transmission. Data packing influences data format, so it is advised to disable this feature when it is not required.

Data Packing Options

✿ Disable Data Packing: Transmit decoded data in raw format (unpacketed).
✿ Enable Data Packing, Format 1: Transmit decoded data with the packet format 1 defined below.
Packet format 1: [STX + ATTR + LEN] + [AL_TYPE + DATA] + [LRC]
STX: 0x02
ATTR: 0x00
LEN: Barcode data length is expressed in 2 bytes ranging from 0x0000 (0) to 0xFFFF (65535).

AL_TYPE: 0x36

DATA: Raw barcode data.

LRC: Check digit.

LRC calculation algorithm: computation sequence: 0xFF+LEN+AL_TYPE+DATA; computation method is XOR, byte by byte.

✿ Enable Data Packing, Format 2: Transmit decoded data with the packet format 2 defined below.

Packet format 2: [STX + ATTR + LEN] + [AL_TYPE] + [Symbology_ID + DATA] + [LRC]

STX: 0x02

ATTR: 0x00

LEN: Barcode data length is expressed in 2 bytes ranging from 0x0000 (0) to 0xFFFF (65535).

AL_TYPE: 0x3B

Symbology_ID: The ID number of symbology, 1 byte.

DATA: Raw barcode data.

LRC: Check digit.

LRC calculation algorithm: computation sequence: 0xFF+LEN+AL_TYPE+Symbology_ID+DATA; computation method is XOR, byte by byte.

@PACKAG0

Disable Data Packing

@PACKAG2

Enable Data Packing, Format 2

@PACKAG1

Enable Data Packing, Format 1

Terminating Character Suffix

Enable/Disable Terminating Character Suffix

A terminating character such as carriage return (CR) or carriage return/line feed pair (CRLF) can only be used to mark the end of data, which means nothing can be added after it.

@TSUENA0

Disable Terminating Character Suffix

@TSUENA1

Enable Terminating Character Suffix

Set Terminating Character Suffix

To set a terminating character suffix, scan the Set Terminating Character Suffix barcode then the numeric barcodes corresponding to the hexadecimal value of a desired terminating character then the Save barcode.

Note: A terminating character suffix cannot exceed 2 characters.

@TSUSET

Set Terminating Character Suffix

@TSUSET0D

Set Terminating Character to CR (0x0D)

@TSUSET0D0A

Set Terminating Character to CRLF (0x0D,0x0A)

Set the terminating character suffix to 0x0A:

1. Scan the Enter Setup barcode.
2. Scan the Set Terminating Character Suffix barcode.
3. Scan the numeric barcodes "0" and "A" from the "Digit Barcodes" section in Appendix.
4. Scan the Save barcode from the "Save/Cancel Barcodes" section in Appendix.
5. Scan the Enable Terminating Character Suffix barcode.
6. Scan the Exit Setup barcode.

Chapter 12 Programming Commands

Use of Programming Command

Besides the barcode programming method, the scanner can also be configured by serial commands (HEX) sent from the host device. All commands must be entered in uppercase letters.

Query Commands

For query commands, the entry in the Data field in the syntax above is one of the following characters means:

* (HEX: 2A) What is the scanner's current value for the setting(s).

& (HEX: 26) What is the factory default value for the setting(s).

^ (HEX: 5E) What is the range of possible values for the setting(s).

The value of the StoreType field in a query command can be either "@" (HEX: 40) or "#" (HEX: 23).

A query command with the SubTag field omitted means to query all the settings concerning a tag. For example, to query all the current settings about Code 11, you should enter 7E 01 30 30 30 30 40 43 31 31 2A 3B 03 (i.e. \~0000@C11*;).

Command Syntax

Prefix StorageType Tag SubTag {Data} [, SubTag {Data}] [; Tag SubTag {Data}] [...] Suffix

Prefix: "\~0000" (HEX: 7E 01 30 30 30 30), 6 characters.

StorageType: "@" (HEX: 40) or "#" (HEX: 23), 1 character. "@" means permanent setting which will not be lost by removing power from the scanner or rebooting it; "#" means temporary setting which will be lost by removing power from the scanner or rebooting it.

Tag: A 3-character case-sensitive field that identifies the desired command group. For example, all USB HID Keyboard configuration settings are identified with a Tag of KBW.

SubTag: A 3-character case-sensitive field that identifies the desired parameter within the tag group. For example, the SubTag for the keyboard layout is CTY.

Data: The value for a feature or parameter setting, identified by the Tag and SubTag.

Suffix: “;” (HEX: 3B 03), 2 characters.

Multiple commands can be issued within one Prefix/Suffix sequence. For configuration commands, only the Tag, SubTag, and Data fields must be repeated for each command in sequence. If an additional command is to be applied to the same Tag, then the command is separated with a comma (,) and only the SubTag and Data fields of the additional commands are issued. If the additional command requires a different Tag field, the command is separated from previous command by a semicolon (;).

If you need to configure the scanner by serial commands sent from the host device in real time, it is recommended to use the temporary setting with Storage as '#'. The permanent setting with Storage as '@' involves erasing and writing process, which will affect the service life of the flash memory.

Responses

Different from command sequence, the prefix of a response consists of the six characters of "0000" (HEX: 02 01 30 30 30 30).

The scanner responds to serial commands with one of the following three responses:

(HEX: 06) Indicates a good command which has been processed.

(HEX: 15) Indicates a good configuration command with its Data field entry out of the allowable range for this Tag and SubTag combination (e.g. an entry for an inter-keystroke delay of 100 when the field will only allow 2 digits), or an invalid query command.

(HEX: 05) Indicates an invalid Tag or SubTag command.

When responding, the scanner echoes back the command sequence with the status character above inserted directly before each of the punctuation marks (the comma or semicolon) in the command.

Examples

Example 1: Enable Code 11, set the minimum and maximum lengths to 12 and 22 respectively.

Enter: 7E 01 30 30 30 30 40 43 31 31 45 4E 41 31 2C 4D 49 4E 31 32 2C 4D 41 58 32 32 3B 03

(\~0000@C11ENA1,MIFM30802,MAX22;)

Response: 02 01 30 30 30 30 40 43 31 31 45 4E 41 31 06 2C 4D 49 4E 31 32 06 2C 4D 41 58 32 32 06 3B 03

(0000@C11ENA1,MIFM30802,MAX22;)

Example 2: Query the current minimum and maximum lengths of Code 11.

Enter: 7E 01 30 30 30 30 40 43 31 31 4D 49 4E 2A 2C 4D 41 58 2A 3B 03

(\~0000@C11MIN*,MAX*;)

Response: 02 01 30 30 30 30 40 43 31 31 4D 49 4E 31 32 06 2C 4D 41 58 32 32 06 3B 03

(0000@C11MIFM30802,MAX22;)

@SETUPE1 Enter Setup

Read Barcode On/Off

Sending the Read Barcode Off command \~0000#SCNENA0; to the scanner can disable it from reading barcode, and the scanner is unable to scan barcode unless you send the Read Barcode On command \~0000#SCNENA1; to it or power cycle it. By default, Read Barcode is On.

Make a Beeping Sound

You may wish to force the scanner to beep upon a command sent from the host. A beeping sound is made to gain a user's attention to an error or other important event.

BEEPONxxxFyyyTnnV (xxx: The desired frequency, 1-20,000Hz; yyy: The desired duration, 1-10,000ms; nn: The desired volume level, 1-20 (lowest-loudest))

Example: Make a 50ms beep at 2,000Hz with volume level set to 20

Enter: \~0000#BEEPON2000F50T20V;

Response: 0000#BEEPON2000F50T20V;

Turn On Good Read LED

You may turn on the external Good Read LED of the scanner for a certain period of time with a command sent from the host. Note that the scanner cannot scan barcodes when it is executing this command. The duration is from 10 to 10000ms.

Command for querying whether the scanner supports this feature: LEDONS* or LEDONS&

Returning LEDONS indicates the scanner supports this feature.

Command for querying the range of possible values for the setting: LEDONS^

Returning LEDONS-2C10-10000D indicates the range for the length of time the LED stays lit is 10-10000ms.

Example: Turn on the Good Read LED for 1,000ms

Enter: \~0000#LEDONS2C1000D;

Response: 0000#LEDONS2C1000D;

Turn On Illumination LED

You may turn on the internal illumination LED on the scanner for a certain period of time with a command sent from the host.

Note that the scanner cannot scan barcodes when it is executing this command. The duration is from 10 to 10000ms.

Command for querying whether the scanner supports this feature: LEDONI* or LEDONI&

Returning LEDONI indicates the scanner supports this feature.

Command for querying the range of possible values for the setting: LEDONI^

Returning LEDONI-0C10-10000D indicates the range for the length of time the LED stays lit is 10-10000ms.

Example: Turn on the illumination LED for 1,000ms

Enter: \~0000#LEDONI0C1000D;

Response: 0000#LEDONI0C1000D;

Chapter 13 Batch Programming

Introduction

Batch programming enables users to integrate a batch of commands into a single batch barcode.

Listed below are batch programming rules:

1. Command format: Command + Parameter Value.
2. Each command is terminated by a semicolon (;). Note that there is no space between a command and its terminator semicolon.
3. Use the barcode generator software to generate a 2D batch barcode.

Example: Create a batch barcode for Illumination Always On, Sense Mode, Decode Session Timeout = 2s:

1. Input the commands:

@ILLSCN2;SCNMOD2;ORTSET2000;

1. Generate a batch barcode.

When setting up a scanner with the above configuration, scan the Enable Batch Barcode barcode and then the batch barcode generated.

@BATCHS
Enable Batch Barcode

Create a Batch Command

A batch command may contain a number of individual commands each of which is terminated by a semicolon (;).

For more information, refer to the "Use of Programming Command" section in Chapter 3.

Create a Batch Barcode

Batch barcodes can be produced in the format of PDF417, QR Code or Data Matrix.

Example: Create a batch barcode for Illumination Always On, Sense Mode, Decode Session Timeout = 2s:

1. Input the following commands:

@ILLSCN2;SCNMOD2;ORTSET2000;

1. Generate a PDF417 batch barcode.

Black and white QR code image with vertical stripes on both sides

Use Batch Barcode

To put a batch barcode into use, scan the following barcodes. (Use the example above.)

Appendix

Digit Barcodes

0\~9

@DIGIT0 0

@DIGIT1 1

@DIGIT2 2

@DIGIT3 3

@DIGIT4 4

@DIGIT5 5

6

7

8

9

A\~F

A

B

C

D

E

F

Save/Cancel Barcodes

After reading numeric barcode(s), you need to scan the Save barcode to save the data. If you scan the wrong digit(s), you can either scan the Cancel barcode and then start the configuration all over again, or scan the Delete the Last Digit barcode and then the correct digit, or scan the Delete All Digits barcode and then the digits you want.

For instance, after reading the Maximum Length barcode and numeric barcodes "1", "2" and "3", you scan:

Delete the Last Digit: The last digit "3" will be removed.
Delete All Digits: All digits "123" will be removed.
✿ Cancel: The maximum length configuration will be cancelled. And the scanner is still in the setup mode.

@DIGSAV
Save

@DIGCAN
Cancel

@DIGDEL
Delete the Last Digit

@DIGDAL
Delete All Digits

Factory Defaults Table (V1.00.001)

Parameter	Factory Default	Remark
System Settings
Barcode Programming	Disabled (Exit Setup)
Programming Barcode Data	Do not transmit
Scan Mode	Sense Mode
Decode Session Timeout	2000ms	1-3,600,000ms; 0: Infinite
Image Stabilization Timeout (Sense Mode)	300ms	0-3,000ms
Trigger Selection (Sense Mode)	Image Change Trigger and IR Proximity Trigger
Image Change Trigger Sensitivity	3
IR Proximity Trigger Sensitivity	1
Reread Timeout	Enabled, 500ms	1-3,600,000ms
Reread Timeout Reset	Off
Good Read Delay	Disabled, 500ms	1-3,600,000ms
Scanning Preference	Barcode Pay Mode
Decode Area	Whole Area Decoding
Specify Decoding Area	40% top, 60% bottom, 40% left, 60% right
Image Flipping	Do Not Flip
Bad Read Message	Off
	NG	1-7 characters
Trigger Commands	Disabled
Start Scanning Command	T
Stop Scanning Command	P
Illumination	Normal
Illumination LED Selection	White LED
Good Read LED	On
Good Read LED Duration	220ms
Good Read LED Selection	Green LED
Power On Beep	On
Good Read Beep	On
Good Read Beep Duration	Medium (80ms)
Good Read Beep Frequency	Medium (2730Hz)
Good Read Beep Volume	Loud
Default Interface	USB CDC
RS-232 Interface
Baud Rate	9600
Parity Check	None
Data Bits	8
Stop Bits	1
Hardware Auto Flow Control	Disabled
USB Interface
USB Country Keyboard	US keyboard	USB HID Keyboard
Beep on Unknown Character	Off	USB HID Keyboard
Emulate ALT+Keypad	Off	USB HID Keyboard
Code Page	Code Page 1252 (West European Latin)	USB HID Keyboard
Unicode Encoding	Off	USB HID Keyboard
Emulate Keypad with Leading Zero	On	USB HID Keyboard
Function Key Mapping	Disable	USB HID Keyboard
Inter-Keystroke Delay	No Delay	USB HID Keyboard
Caps Lock	Caps Lock OFF, non-Japanese Keyboard	USB HID Keyboard
Convert Case	No Case Conversion	USB HID Keyboard
Emulate Numeric Keypad 1	Off	USB HID Keyboard
Emulate Numeric Keypad 2	Off	USB HID Keyboard
Fast Mode	Off	USB HID Keyboard
Polling Rate	4ms	USB HID Keyboard
Adaptive Wired Communication	On
Symbologies
Global Settings
1D Twin Code	Single 1D Code Only
Surround GS1 AI's with Parentheses	Do Not Surround GS1 AI's with Parentheses
Code 128
Code 128	Enabled
Maximum Length	48
Minimum Length	1
EAN-8
EAN-8	Enabled
Check Character	Transmit
2-Digit Add-On Code	Disabled
5-Digit Add-On Code	Disabled
Add-On Code	Not Required
Convert EAN-8 to EAN-13	Disabled
EAN-13
EAN-13	Enabled
Check Character	Transmit
2-Digit Add-On Code	Disabled
5-Digit Add-On Code	Disabled
Add-On Code	Not Required
EAN-13 Beginning with 290 Add-On Code Required	Do Not Require Add-On Code
EAN-13 Beginning with 378/379 Add-On Code Required	Do Not Require Add-On Code
EAN-13 Beginning with 414/419 Add-On Code Required	Do Not Require Add-On Code
EAN-13 Beginning with 434/439 Add-On Code Required	Do Not Require Add-On Code
EAN-13 Beginning with 977 Add-On Code Required	Do Not Require Add-On Code
EAN-13 Beginning with 978 Add-On Code Required	Do Not Require Add-On Code
EAN-13 Beginning with 979 Add-On Code Required	Do Not Require Add-On Code
UPC-E
UPC-E0	Enabled
UPC-E1	Disabled
Check Character	Transmit
2-Digit Add-On Code	Disabled
5-Digit Add-On Code	Disabled
Add-On Code	Not Required
Transmit Preamble Character	System Character
Convert UPC-E to UPC-A	Disabled
UPC-A
UPC-A	Enabled
Check Character	Transmit
2-Digit Add-On Code	Disabled
5-Digit Add-On Code	Disabled
Add-On Code	Not Required
Transmit Preamble Character	System Character
Coupon
UPC-A/EAN-13 with Extended Coupon Code	Disabled
Coupon GS1 DataBar Output	Disabled
Interleaved 2 of 5
Interleaved 2 of 5	Enabled
Maximum Length	80
Minimum Length	6	No less than 4
Check Character Verification	Disabled
ITF-14
ITF-14	Disabled
ITF-6
ITF-6	Disabled
Matrix 2 of 5
Matrix 2 of 5	Disabled
Maximum Length	80
Minimum Length	4	No less than 4
Check Character Verification	Disabled
Code 39
Code 39	Enabled
Maximum Length	48
Minimum Length	1
Check Character Verification	Disabled
Start/Stop Character	Do not transmit
Code 39 Full ASCII	Disabled
Code 32 Pharmaceutical (PARAF)	Disabled
Code 32 Prefix	Disabled
Code 32 Start/Stop Character	Do not transmit
Code 32 Check Character	Do not transmit
Codabar
Codabar	Disabled
Maximum Length	60
Minimum Length	2
Check Character Verification	Disabled
Start/Stop Character	Do not transmit
	ABCD/ABCD
Code 93
Code 93	Disabled
Maximum Length	48
Minimum Length	1	No less than 1
Check Character Verification	Do Not Transmit Check Character After Verification
China Post 25
China Post 25	Disabled
Maximum Length	48
Minimum Length	1
Check Character Verification	Disabled
GS1-128 (UCC/EAN-128)
GS1-128	Enabled
Maximum Length	48
Minimum Length	1
GS1 Databar
GS1 Databar	Disabled
Application Identifier "01"	Transmit
EAN·UCC Composite
GS1 Composite	Disabled
UPC/EAN Composite	Disabled
Code 11
Code 11	Disabled
Maximum Length	48
Minimum Length	4	No less than 4
Check Character Verification	One Check Character, MOD11
Check Character	Transmit
ISBN
ISBN	Disabled
Set ISBN Format	ISBN-10
ISSN
ISSN	Disabled
Industrial 25
Industrial 25	Disabled
Maximum Length	48
Minimum Length	6	No less than 4
Check Character Verification	Disabled
Standard 25
Standard 25	Disabled
Maximum Length	48
Minimum Length	6	No less than 4
Check Character Verification	Disabled
Plessey
Plessey	Disabled
Maximum Length	48
Minimum Length	4	No less than 4
Check Character Verification	Disabled
MSI-Plessey
MSI-Plessey	Disabled
Maximum Length	48
Minimum Length	4	No less than 4
Check Character Verification	One Check Character, MOD10
Check Character	Transmit
AIM 128
AIM 128	Disabled
Maximum Length	48
Minimum Length	1
ISBT 128
ISBT 128	Disabled
Code 49
Code 49	Disabled
Maximum Length	80
Minimum Length	1
Code 16K
Code 16K	Disabled
Maximum Length	80
Minimum Length	1
PDF417
PDF417	Disabled
Maximum Length	2710
Minimum Length	1
PDF417 Twin Code	Single PDF417 Only
PDF417 Inverse	Decode Regular PDF417 Barcodes Only
Character Encoding	Default Character Encoding
PDF417 ECI Output	Enabled
Micro PDF417
Micro PDF417	Disabled
Maximum Length	366
Minimum Length	1
QR Code
QR Code	Enabled
Maximum Length	7089
Minimum Length	1
QR Inverse	Decode Regular QR Barcodes Only
Character Encoding	Default Character Encoding
QR ECI Output	Enabled
Micro QR Code
Micro QR	Disabled
Maximum Length	35
Minimum Length	1
Aztec
Aztec Code	Disabled
Maximum Length	3832
Minimum Length	1
Read Multi-barcodes on an Image	Mode 1
Character Encoding	Default Character Encoding
Aztec ECI Output	Enabled
Data Matrix
Data Matrix	Disabled
Maximum Length	3116
Minimum Length	1
Data Matrix Twin Code	Single Data Matrix Only
Rectangular Barcode	Enabled
Data Matrix Inverse	Decode Regular Data Matrix Barcodes Only
Character Encoding	Default Character Encoding
Data Matrix ECI Output	Enabled
Maxicode
Maxicode	Disabled
Maximum Length	150
Minimum Length	1
Chinese Sensible Code
Chinese Sensible Code	Disabled
Maximum Length	7827
Minimum Length	1
Chinese Sensible Twin Code	Single Chinese Sensible Code Only
Chinese Sensible Code Inverse	Decode Regular Chinese Sensible Barcodes Only
GM Code
GM	Disabled
Maximum Length	2751
Minimum Length	1
Code One
Code One	Disabled
Maximum Length	3550
Minimum Length	1
USPS Postnet
USPS Postnet	Disabled
Check Character	Transmit
USPS Intelligent Mail
USPS Intelligent Mail	Disabled
Royal Mail
Royal Mail	Disabled
USPS Planet
USPS Planet	Disabled
Check Character	Transmit
KIX Post
KIX Post	Disabled
Australian Postal
Australian Postal	Disabled
Specific OCR-B
Specific OCR-B	Disabled
Chinese ID Card OCR
Chinese ID Card OCR	Disabled
Passport OCR
Passport OCR	Disabled
China Travel Permit OCR
China Travel Permit OCR	Disabled
Data Formatter
Data Formatter	Disabled
Non-Match Error Beep	On
Data Format Selection	Format_0
Prefix & Suffix
All Prefixes/Suffixes	Disabled
Prefix Sequence	Code ID+ Custom +AIM ID
Custom Prefix	Disabled
AIM ID Prefix	Disabled
Code ID Prefix	Disabled
Custom Suffix	Disabled
Data Packing	Disable Data Packing
Terminating Character Suffix	Enabled

AIM ID Table (V2022.6)

Symbology	AIM ID	Possible AIM ID Modifiers (m)
Code 128	]C0
GS1-128 (UCC/EAN-128)	]C1
EAN-8	]E4
EAN-13	]E0
EAN-13 with Addon	]E3
UPC-E	]E0
UPC-E with Addon	]E3
UPC-A	]E0
UPC-A with Addon	]E3
Interleaved 2 of 5	]Im	0, 1, 3
ITF-14	]Im	1, 3
ITF-6	]Im	1, 3
Matrix 2 of 5	]X0
Code 39	]Am	0, 1, 3, 4, 5, 7
Codabar	]Fm	0, 2, 4
Code 93	]G0
China Post 25	]X0
AIM 128	]C2
ISBT 128	]C4
ISSN	]X0
ISBN	]X0, ]E0, ]E3
Industrial 25	]S0
Standard 25	]Rm	0, 1, 3
Plessey	]P0
Code 11	]Hm	0, 1, 3
MSI Plessey	]Mm	0, 1
GS1 Composite	]em	0-3
GS1 Databar(RSS)	]e0
Code 49	]Tm	0, 1, 2, 4
Code 16K	]Km	0, 1, 2, 4
PDF417	]Lm	0-5
QR Code	]Qm	0-6
Aztec	]zm	0-9, A-C
Data Matrix	]dm	0-6
Maxicode	]Um	0-3
Chinese Sensible Code	]hm	0, 1, 2, 4, 8
GM	]gm	0-5
Micro PDF417	]Lm	1-5
Micro QR	]Qm	0-6
Code One	]Dm	0, 1, 2, 4
USPS Postnet	]X0
USPS Intelligent Mail	]X0
Royal Mail	]X0
USPS Planet	]X0
KIX Post	]X0
Australian Postal	]X0
Specific OCR-B	]o2
Passport OCR	]o2
Chinese ID Card	]o2
China Travel Permit OCR	]o2

Code ID Table (V1.00.0)

Symbology	Code ID
Code 128	j
GS1-128 (UCC/EAN-128)	j
EAN-8	d
EAN-13	d
UPC-E	c
UPC-A	c
Interleaved 2 of 5, Febraban	e
ITF-14	e
ITF-6	e
Matrix 2 of 5	v
Code 39	b
Codabar	a
Code 93	i
China Post 25	X
AIM 128	X
ISBT 128	X
ISSN	g
ISBN	B
Industrial 25	l
Standard 25	f
Plessey	n
Code 11	H
MSI Plessey	m
GS1 Composite	y
GS1 Databar (RSS)	R
Code 49	X
Code 16K	X
PDF417	r
QR Code	s
Aztec	z
Data Matrix	u
Maxicode	x
Chinese Sensible Code	h
GM Code	x
Micro PDF417	R
Micro QR	X
Code One	X
USPS Postnet	P
USPS Inteligent Mail	M
Royal Mail	x
USPS Planet	L
KIX Post	K
Australian Postal	A
Specific OCR-B	S
Chinese ID Card OCR	S
Passport OCR	O
China Travel Permit OCR	S

Symbology ID Number (V1.00.0)

Symbology	ID Number
Code 128	002
GS1-128 (UCC/EAN-128)	003
EAN-8	004
EAN-13	005
UPC-E	006
UPC-A	007
Interleaved 2 of 5, Febraban	008
ITF-14	009
ITF-6	010
Matrix 2 of 5	011
Code 39	013
Codabar	015
Code 93	017
China Post 25	019
AIM 128	020
ISBT 128	021
ISSN	023
ISBN	024
Industrial25	025
Standard25	026
Plessey	027
Code11	028
MSI-Plessey	029
GS1 Composite	030
GS1 Databar (RSS)	031
PDF417	032
QR Code	033
Aztec	034
Data Matrix	035
Maxicode	036
Chinese Sensible Code	039
GM Code	040
Micro PDF417	042
Micro QR	043
Code One	048
Specific OCR-B	064
Chinese ID Card OCR	065
Passport OCR	066
China Travel Permit OCR	068
USPS Postnet	096
USPS Inteligent Mail	097
Royal Mail	098
USPS Planet	099
KIX Post	100
Australian Postal	101
Code 49	132
Code 16K	133

ASCII Table

Hex	Dec	Char
00	0	NUL	(Null char.)
01	1	SOH	(Start of Header)
02	2	STX	(Start of Text)
03	3	ETX	(End of Text)
04	4	EOT	(End of Transmission)
05	5	ENQ	(Enquiry)
06	6	ACK	(Acknowledgment)
07	7	BEL	(Bell)
08	8	BS	(Backspace)
09	9	HT	(Horizontal Tab)
0a	10	LF	(Line Feed)
0b	11	VT	(Vertical Tab)
0c	12	FF	(Form Feed)
0d	13	CR	(Carriage Return)
0e	14	SO	(Shift Out)
0f	15	SI	(Shift In)
10	16	DLE	(Data Link Escape)
11	17	DC1	(XON) (Device Control 1)
12	18	DC2	(Device Control 2)
13	19	DC3	(XOFF) (Device Control 3)
14	20	DC4	(Device Control 4)
15	21	NAK	(Negative Acknowledgment)
16	22	SYN	(Synchronous Idle)
17	23	ETB	(End of Trans. Block)
18	24	CAN	(Cancel)
19	25	EM	(End of Medium)
1a	26	SUB	(Substitute)
1b	27	ESC	(Escape)
1c	28	FS	(File Separator)
1d	29	GS	(Group Separator)

Hex	Dec	Char
1e	30	RS (Request to Send)
1f	31	US (Unit Separator)
20	32	SP (Space)
21	33	! (Exclamation Mark)
22	34	" (Double Quote)
23	35	# (Number Sign)
24	36	$ (Dollar Sign)
25	37	% (Percent)
26	38	& (Ampersand)
27	39	` (Single Quote)
28	40	( (Left/ Opening Parenthesis)
29	41	) (Right/ Closing Parenthesis)
2a	42	* (Asterisk)
2b	43	+ (Plus)
2c	44	, (Comma)
2d	45	- (Minus/ Dash)
2e	46	. (Dot)
2f	47	/ (Forward Slash)
30	48	0
31	49	1
32	50	2
33	51	3
34	52	4
35	53	5
36	54	6
37	55	7
38	56	8
39	57	9
3a	58	: (Colon)
3b	59	; (Semi-colon)
3c	60	< (Less Than)
3d	61	= (Equal Sign)
3e	62	> (Greater Than)
3f	63	? (Question Mark)
40	64	@ (AT Symbol)
41	65	A
42	66	B
43	67	C
44	68	D
45	69	E
46	70	F
47	71	G
48	72	H
49	73	I
4a	74	J
4b	75	K
4c	76	L
4d	77	M
4e	78	N
4f	79	O
50	80	P
51	81	Q
52	82	R
53	83	S
54	84	T
55	85	U
56	86	V
57	87	W
58	88	X
59	89	Y
5a	90	Z
5b	91	[ (Left/ Opening Bracket)
5c	92	\ (Back Slash)
5d	93	] (Right/ Closing Bracket)
5e	94	^ (Caret/ Circumflex)
5f	95	_ (Underscore)
60	96	' (Grave Accent)
61	97	a
62	98	b
63	99	c
64	100	d
65	101	e
66	102	f
67	103	g
68	104	h
69	105	i
6a	106	j
6b	107	k
6c	108	l
6d	109	m
6e	110	n
6f	111	o
70	112	p
71	113	q
72	114	r
73	115	s
74	116	t
75	117	u
76	118	v
77	119	w
78	120	x
79	121	y
7a	122	z
7b	123	{ (Left/ Opening Brace)
7c	124	| (Vertical Bar)
7d	125	} (Right/ Closing Brace)
7e	126	~ (Tilde)
7f	127	DEL (Delete)

Keyboard Key References

6E 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7D 7E • • • 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0F 4B 50 55 5A 5F 64 69 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 4C 51 56 5B 60 65 6A 1E 1F 20 21 22 23 24 25 26 27 28 29 2B 2C 2E 2F 30 31 32 33 34 35 36 37 39 3A 3B 3C 3D 3E 3F 38 40 4F 54 59 63 68 6C

104 Key U.S. Style Keyboard

6E 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7D 7E • • • 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0F 4B 50 55 5A 5F 64 69 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 2B 1E 1F 20 21 22 23 24 25 26 27 28 29 1D 2C 2D 2E 2F 30 31 32 33 34 35 36 37 39 3A 3B 3C 3D 3E 3F 38 40 4F 54 59 63 68 5A 5F 64 69 5B 60 65 6A 5C 61 66 5D 62 67 6C

105 Key European Style Keyboard
