USER MANUAL 70-8902 Metra

Receiver Wiring Adaptor

IMPORTANT

120 70-8902

Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.

Revision 10/10/17

STEP 1 -- MATCH & CONNECT WIRES

A. Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
B. Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
C. Individually tape off any unused wires.
D. Make final wiring connections following instructions on the next page.

Continue with these instructions to match and connect wires on the next page.

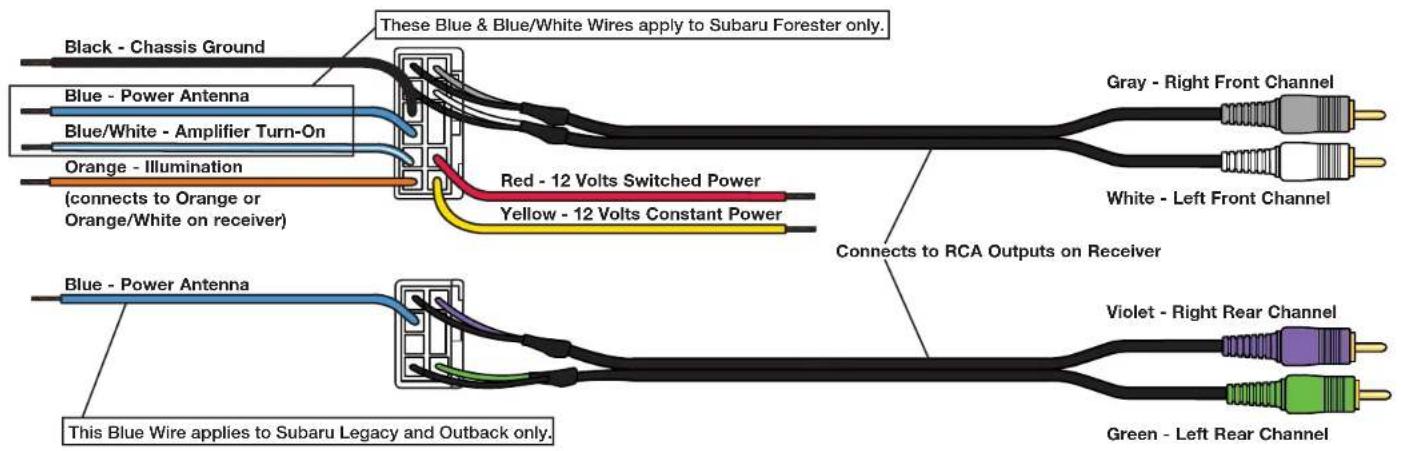

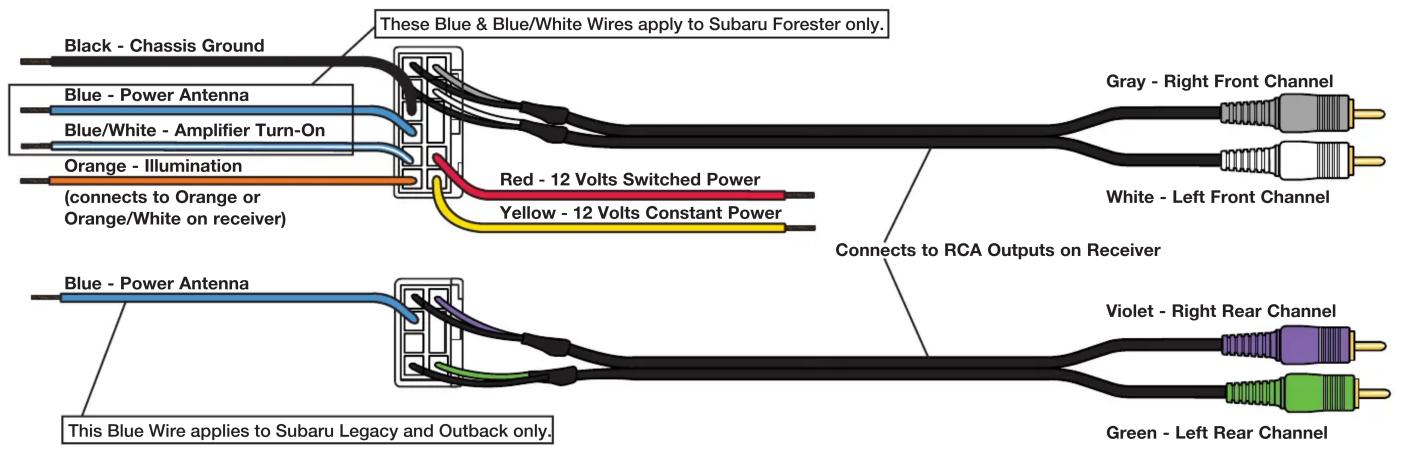

These Blue & Blue/White Wires apply to Subaru Forester only. Black - Chassis Ground Blue - Power Antenna Blue/White - Amplifier Turn-On Orange - Illumination (connects to Orange or Orange/White on receiver) Red - 12 Volts Switched Power Yellow - 12 Volts Constant Power Gray - Right Front Channel White - Left Front Channel Connects to RCA Outputs on Receiver Blue - Power Antenna This Blue Wire applies to Subaru Legacy and Outback only. Violet - Right Rear Channel Green - Left Rear Channel

STEP 1 -- (continued)

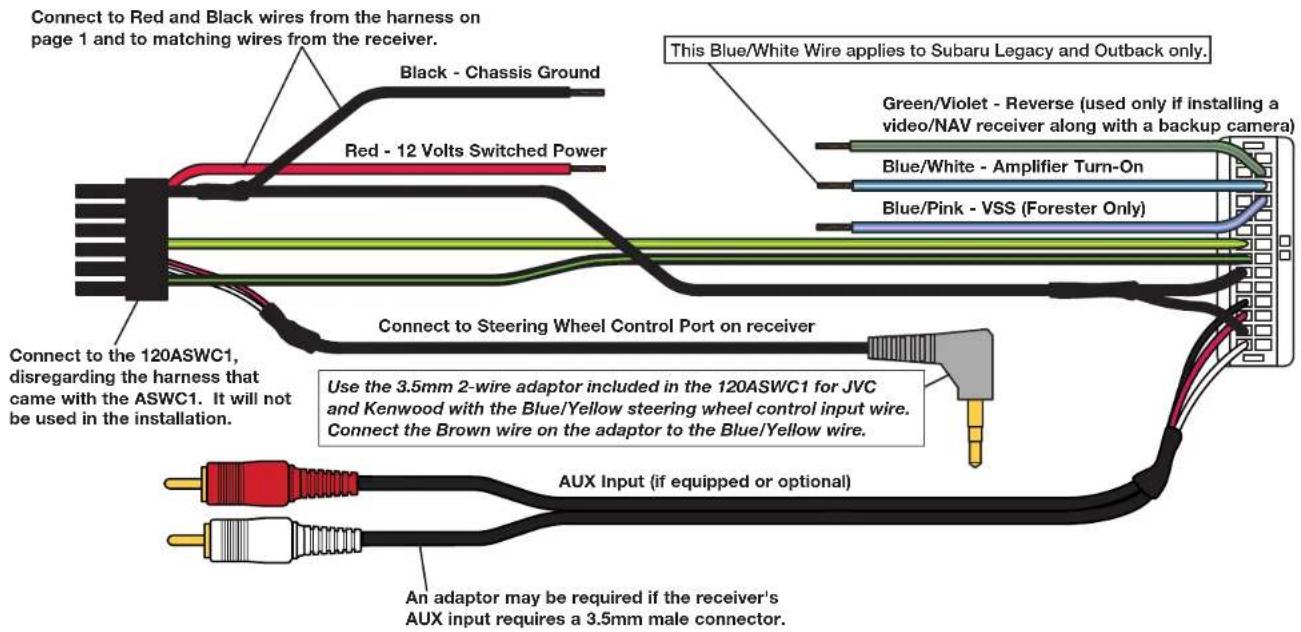

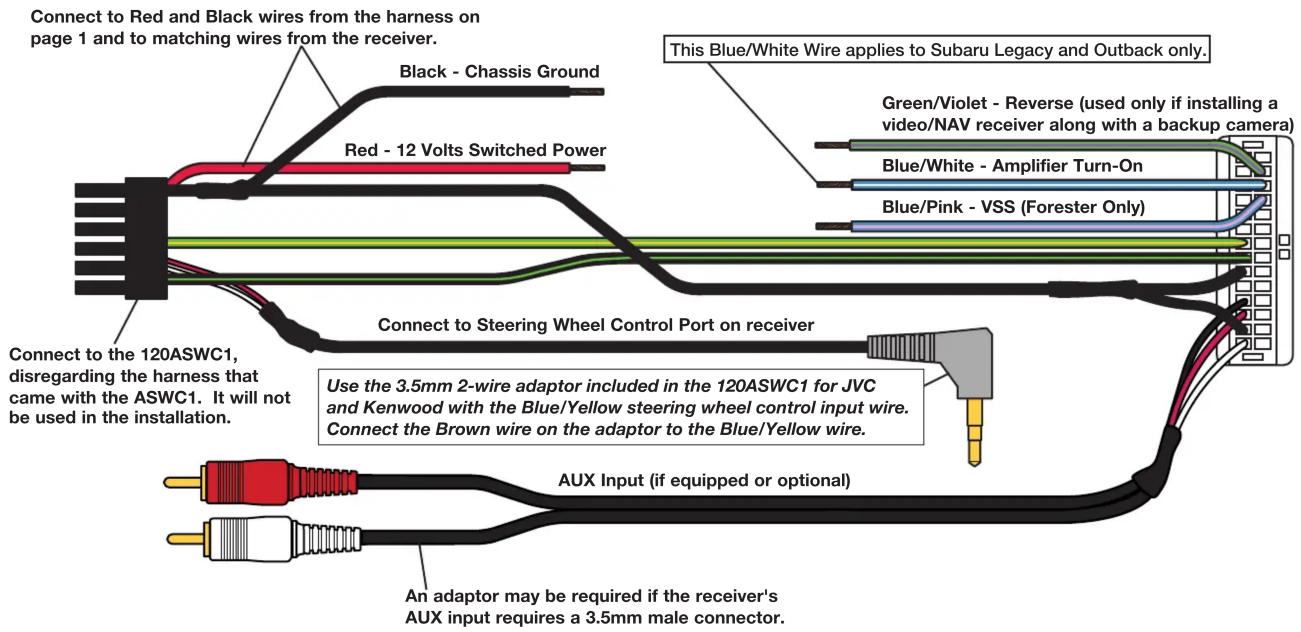

Connect to Red and Black wires from the harness on page 1 and to matching wires from the receiver. Black - Chassis Ground Red - 12 Volts Switched Power This Blue/White Wire applies to Subaru Legacy and Outback only. Green/Violet - Reverse (used only if installing a video/NAV receiver along with a backup camera) Blue/White - Amplifier Turn-On Blue/Pink - VSS (Forester Only) Connect to Steering Wheel Control Port on receiver Connect to the 120ASWC1, disregarding the harness that came with the ASWC1. It will not be used in the installation. Use the 3.5mm 2-wire adaptor included in the 120ASWC1 for JVC and Kenwood with the Blue/Yellow steering wheel control input wire. Connect the Brown wire on the adaptor to the Blue/Yellow wire. AUX Input (if equipped or optional) An adaptor may be required if the receiver's AUX input requires a 3.5mm male connector.

Receiver Wiring Adaptor Connections

120 70-8902

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts Required ▶

Wire Stripper/Crimp Tool Crimp Caps

Metra 70-8902 - Tools & Parts Required ▶ - 1

Metra 70-8902 - Tools & Parts Required ▶ - 2

A. Strip wires back 1/2".

Metra 70-8902 - Tools & Parts Required ▶ - 3

Metra 70-8902 - Tools & Parts Required ▶ - 4

natural_image Line drawing of a mechanical tool or device with internal components and a handle (no text or symbols)

B. Twist wires together and insert in crimp cap.

Metra 70-8902 - Tools & Parts Required ▶ - 5

natural_image Diagram showing a cable being inserted into a plug, with an arrow indicating the insertion process (no text or symbols present)

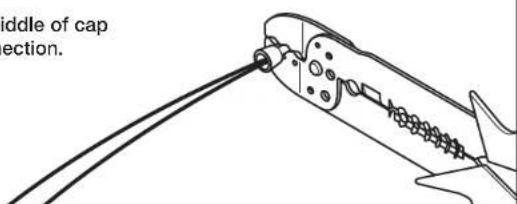

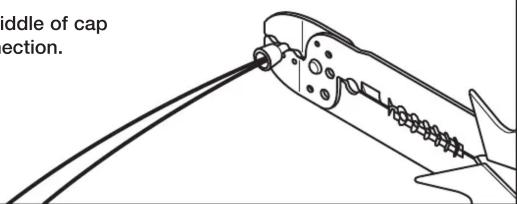

C. Squeeze middle of cap for tight connection.

diddle of cap ection.

STEP 2 -- CONTINUED

D. Complete crimp connections for all necessary wires.
E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.

Receiver Wiring Adaptor

Generic Illustration

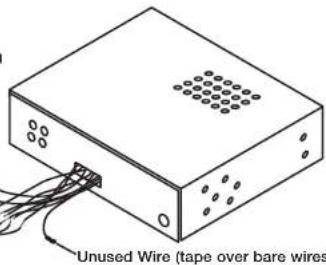

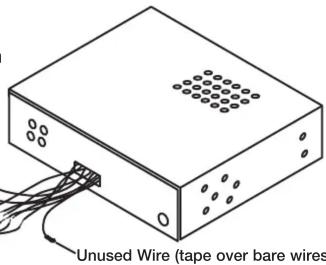

Unused Wire (tape over bare wires)

STEP 3 -- APPLICATION

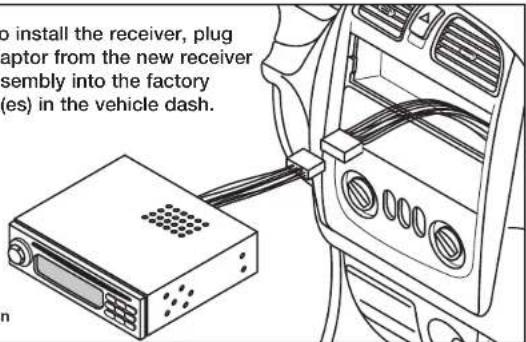

When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.

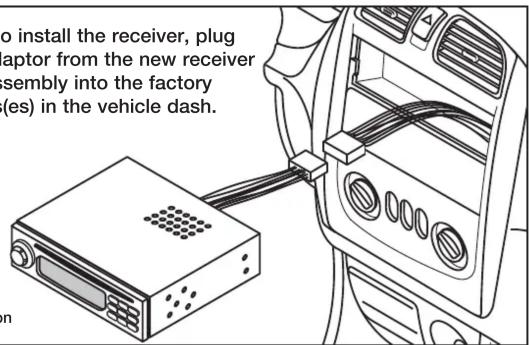

to install the receiver, plug aptor from the new receiver sembly into the factory (es) in the vehicle dash.

Generic Illustration

CRUTCHFIELD®

Copyright 2017 Crutchfield Corporation
