Product Type	Receiver Wiring Adaptor
Brand	Metra
Model	70-6502
Compatibility	Select vehicles, e.g., 2003-2006 Jeep Wrangler with factory subwoofer
Connector Type	Color-coded wire harness
Wire Length	Approximately 6 inches
Wire Gauge	18 AWG
Constant 12V Wire	Yellow
Switched 12V Wire	Red
Ground Wire	Black
Illumination Wire	Orange
Left Front Speaker Positive	White
Left Front Speaker Negative	White/Black
Right Front Speaker Positive	Gray
Right Front Speaker Negative	Gray/Black
Left Rear Speaker Positive	Green
Left Rear Speaker Negative	Green/Black
Right Rear Speaker Positive	Violet
Right Rear Speaker Negative	Violet/Black
Power Antenna/Amp Turn-On Wire	Blue
Installation Method	Strip, twist, and crimp wires; tape unused wires
Materials	Plastic housing, copper wires
Dimensions (Approx.)	6 x 4 x 1 inches
Weight (Approx.)	0.2 lbs
Operating Temperature Range	-40°F to 185°F
Maintenance	Wipe with dry cloth
Safety Precautions	Disconnect vehicle battery before installation

Frequently Asked Questions - 70-6502 Metra

Which vehicles is the Metra 70-6502 compatible with?

The 70-6502 is designed for select vehicles, including the 2003-2006 Jeep Wrangler with factory subwoofer. For full compatibility, refer to your vehicle's wiring or use Crutchfield's fit guide.

How difficult is it to install this wiring adaptor?

Installation requires basic tools: a wire stripper and crimp caps. You'll match wires by function (not color) and crimp connections. The process is straightforward for someone comfortable with car audio installation.

What do the wire colors on the adaptor mean?

Colors correspond to functions: Yellow (constant 12V), Red (switched 12V), Black (ground), Orange (illumination), White/Gray/Green/Violet for speakers (positive/negative), Blue (power antenna/amp turn-on). Always match by function, not color.

Do I need any additional parts for installation?

You may need a wiring harness adapter for your specific vehicle if not already included. The 70-6502 is usually a direct plug-in to the factory harness after crimping to your aftermarket receiver.

How do I know if this adaptor fits my car?

Check your vehicle's year, make, and model against Metra's compatibility list. For assistance, contact Crutchfield at 1-888-955-6000 or use their online vehicle selector.

What is the best way to crimp the wires?

Strip 1/2 inch of insulation, twist wires together, insert into a crimp cap, and squeeze the middle of the cap with a crimp tool until tight. Ensure a secure connection to avoid shorts.

What should I do if I have no sound after installation?

Verify all speaker wire connections are secure and match the receiver's outputs. Check that the receiver is powered (constant and switched 12V). Also ensure the antenna/amp turn-on wire is correctly connected if applicable.

Why isn't my receiver's illumination working?

The illumination wire (Orange) must be connected to the vehicle's illumination circuit. If your receiver lacks a dimmer wire, tape off the Orange wire. Some vehicles require a separate adapter.

Does this adaptor support power antennas or amplifiers?

Yes, the Blue wire provides 12V output for power antennas or amplifier turn-on. Connect it to the corresponding wire on your receiver and the vehicle's antenna or amp.

Is there a warranty for the Metra 70-6502?

Metra offers a limited lifetime warranty. Retain your receipt. For defects or replacements, contact Metra or your point of purchase, such as Crutchfield.

USER MANUAL 70-6502 Metra

Receiver Wiring Adaptor

IMPORTANT

Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.

120 70-6502

Revision 01/07/15

STEP 1 -- MATCH & CONNECT WIRES

A. Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
B. Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to illumination wire in this harness by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
C. Individually tape off any unused wires.
D. Make final wiring connections following instructions on the next page.

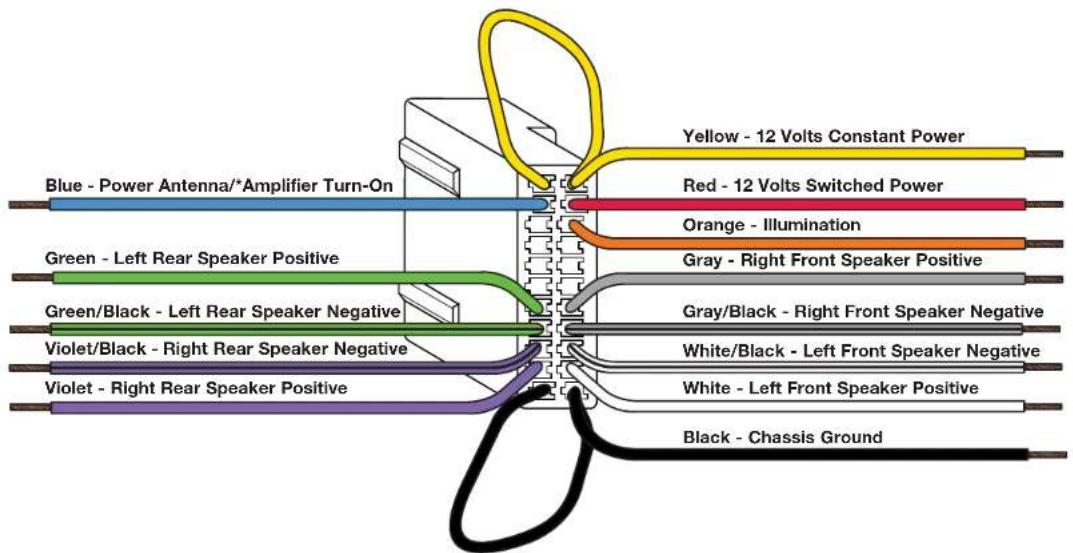

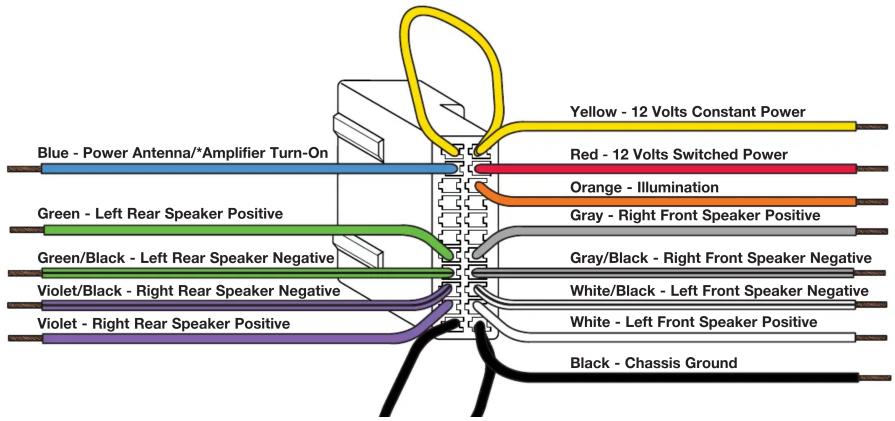

Receiver Wiring Adaptor Connections

120 70-6502

STEP 2 -- CRIMP CONNECTIONS

Tools & Parts Required ▶

Wire Stripper/Crimp Tool Crimp Caps

A. Strip wires back 1/2".

Line drawing of a mechanical component with internal gear-like structure (no text or symbols)

B. Twist wires together and insert in crimp cap.

Diagram showing a cable being inserted into a plug, with an arrow indicating the insertion direction (no text or symbols present)

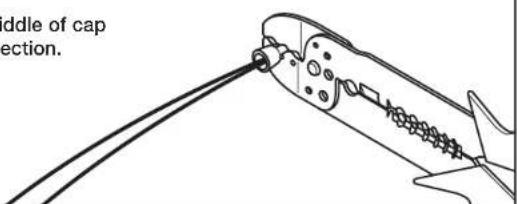

C. Squeeze middle of cap for tight connection.

Page 2

STEP 2 -- CONTINUED

D. Complete crimp connections for all necessary wires.

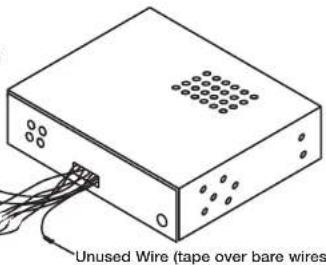

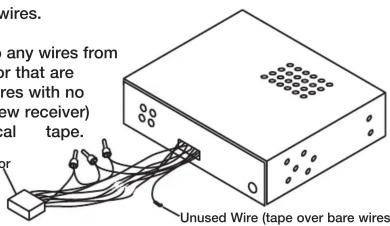

E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.

Receiver Wiring Adaptor

Generic Illustration

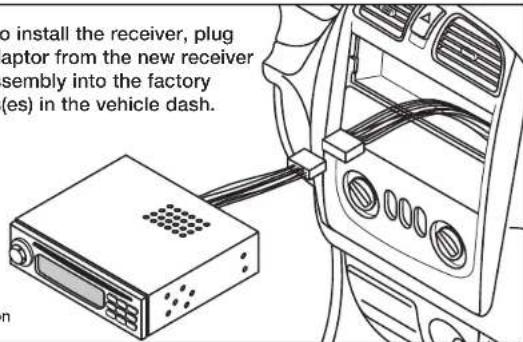

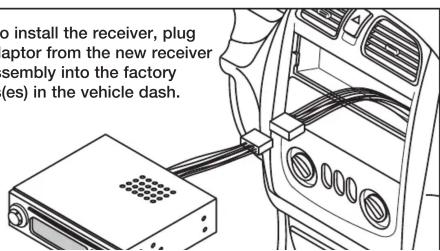

STEP 3 -- APPLICATION

When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.
