USER MANUAL CN 051 250 EI CLOUD W Tesy

Abstract gray arrow shape pointing right, no text or symbols present

EN ELECTRIC PANEL HEATER 2-11 Operation and Storage Manual of Panel Heater

Exterior view of a white TESY air conditioner unit with horizontal ventilation grilles and a QR code (no text or symbols on the device itself)

CN 051 EI [CLOUD] [AS] W 230V\~ 50Hz 500/1000/1500/2000/2500/3000W

IMPORTANT SAFETY MEASURES AND INSTRUCTIONS:

WARNING!

• Please read this manual before operating the appliance and keep it at a safe place for future reference. In case the appliance is obtained by a new owner, it should be transferred together with its manual.
• CAUTION: Children under 3 years of age should be kept away from the appliance unless they are under constant supervision.

Children from 3 to 8 years of age are allowed to operate the on/off button ONLY, provided that the appliance is installed and ready for operation and such children have been supervised and instructed in safe operation of the appliance and they understand all related risks.

Children from 3 to 8 years of age MUST NOT: connect the plug to power sockets, make adjustments, clean it or carry out user maintenance operations.

This appliance can be used by children older than 8 years of age and by people with reduced physical, sensor and mental capabilities, as well as by people with insufficient experience and knowledge provided they are supervised or instructed in safe operation of the appliance and understand the related risks. Children should not be allowed to play with the appliance. Cleaning and user maintenance operations must not be carried out by children without supervision.

• CAUTION: Some of the appliance parts may get very hot during operation and thus cause burns to users. In case there are children and vulnerable people in the room, special attention should be paid.
• WARNING: Do not cover the appliance in order to prevent overheating!
• The appliance must not be placed right under a socket box!
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Before connecting the appliance to the mains, check if the voltage indicated on its technical plate corresponds to the voltage of the electricity, supplied to your house.
• This appliance shall be used only for the purpose it has been designed and intended for, i.e. heating of domestic premises. The appliance is not intended for commercial/industrial application. Every other use is to be considered improper, and therefore dangerous. The manufacturer doesn't bear responsibility for damages arising from improper and irrational use. Non-adherence to these instructions would render the warranty invalid!
• Do not leave your home while the heater is operating: make sure that the power switch is in OFF position (panel heaters with mechanical control).
• Keep inflammable objects, such as furniture, pillows, bedding, paper, clothes, curtains etc. at a safe distance of at least 100 cm away from the panel heater.
• Do not operate the appliance in areas of use or storage of combustible substances. Do not operate the appliance in areas of combustible media (for example in close proximity to inflammable gases or aerosols) – there is great risk of explosion and fire!
• Do not insert and do not allow foreign objects to enter the ventilation openings (inlet and outlet) because this will cause electric shock, fire or will damage the appliance.
• The appliance is not suitable for animal breeding. The panel heater is intended for domestic/indoor operation only.
• When positioning the appliance, do not cover the safety grilles; do not hamper the incoming and outgoing air flow. All objects must be at a safe distance of at least 1 meter away from the appliance front and sides.
• The most common reason for overheating is dust and fluff deposits in the appliance. Clean the ventilation openings on a regular basis with a vacuum cleaner, but before that it is very important to disconnect the heater from the mains.
• Never touch the appliance with wet or moist hands – there is risk for your life!
• The power socket should be accessible all the time in order to disconnect the power plug when needed as fast as possible! Never pull the power cord or the appliance itself in order to disconnect it from the mains.
• PAY ATTENTION! Outgoing air gets heated during appliance operation (up to more than 100°C).
• If you decide to stop using an appliance of this kind, it is recommended to make it unusable by cutting its power cord after you have disconnected it from the mains. It is advisable all possible risks related to the appliance to be secured,

especially in relation to children that may play with out-of-use appliances.

• Warning: Do not use this appliance with a programmer, counter or any other mechanism which could automatically turn on the heater – if the appliance is covered or positioned incorrectly there is a risk of fire.
• Position the power cord in such a way that it does not obstruct the free movement of people and cannot be stepped on! Use only approved extension cords, which are suitable for this appliance, i.e. they have a compliance sign!
• Never move the appliance by pulling its power cord; do not use the power cord for carrying other objects!
• Do not bend the power cord and do not pull it against sharp edges; do not place the power cord on hot surfaces or open fire!
• The scattered UVA light emitted by the device is harmless to the eyes. Looking directly at UVA light is not recommended.

PACKING

• After unpacking the appliance, check if its contents are intact and if it has not been damaged during transportation! In case a damage or incomplete delivery is found, contact your authorized retailer!
- Do not dispose of the original packing box! It could be used for storage and transportation purposes in order to avoid damages during transportation!
- Disposal of packing material should be done in the appropriate way! Children must be prevented from playing with polyethylene bags!

INSTALLATION INSTRUCTIONS

- This panel heater is designed to be used indoors, mounted on a wall.

Important: In premises bigger than 45 m^3 , it is recommended to use a combination of 2 or more panel heaters.

• Do not position the panel heater under a power socket or electricity connection box.

• DO NOT install/operate the panel heater:

• in places where a draught is present, which could influence the control settings;

• right under a power socket;

• in "Volume 1" for bathrooms;
• in "Volume 2" if the control board can be reached by a person who is in a shower or in a bathtub;

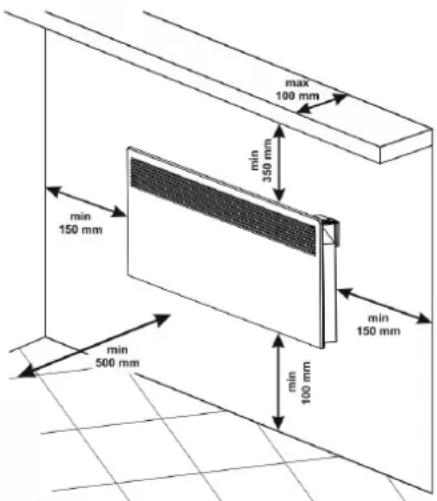

- for the wall-mounting of the panel heater, only the wall braces must be used which are delivered together with the appliance. When installing the panel heater, minimum safe distances must be observed

max 100 mm min 350 mm min 150 mm min 150 mm min 500 mm min 100 mm

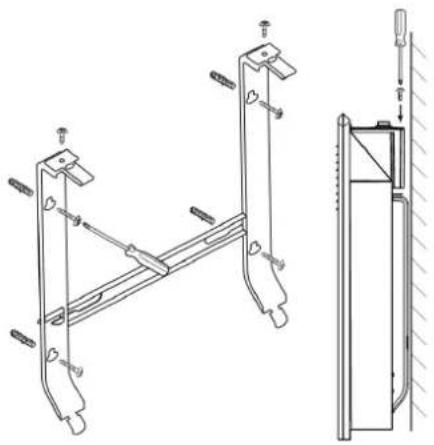

- First of all, remove the wall braces from the back of the appliance body. Unscrew the two screws which are positioned at the upper part of the two vertical bars of the wall braces. Then pull the upper part of the bar by pressing strongly the two upper parts which are inserted in the back of the body.

Technical line drawing of a mechanical support frame assembly with mounting brackets and a side-view detail (no text or symbols)

• Slide down the wall brace in order to detach it from the back of the body.
• Attach firmly the wall brace onto a wall through the four screw holes.
• Lift the panel heater up to almost vertical position and insert the two lower protruding parts of the braces into the two lower openings of the back cover of the panel heater. Then lift the panel heater and insert the two upper protruding parts of the wall braces into the two upper openings of the back cover of the heater. Finally, put the two screws back to their places and tighten them in order to install the panel heater firmly to the wall.

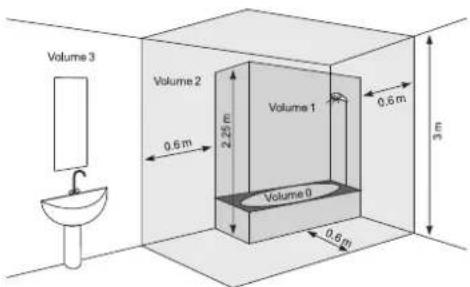

BATHROOM OPERATION

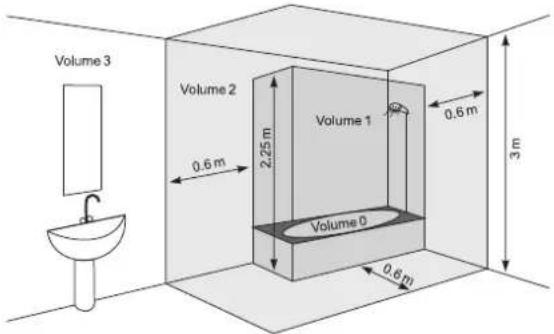

- The panel heater must be installed in accordance with the normal trade practices and in compliance with the national legislation (EU electricity directives and regulations concerning special installations and places of operation including bathrooms, shower cabins HD60364-7-701(IEC 60364-7-701:2006)).

Volume 3 Volume 2 0.6 m Volume 1 2.25 m Volume 0 0.6 m 3 m

- In case this panel heater is to be used in a bathroom or other similar room, the following installation requirements must be observed: the panel heater is with IP24 protection (water drops protection). Hence it can be installed in "Volume 2" (see the diagram below) in order to avoid the risk of the control board (power switch and thermo regulator) being reached by a person who is in a shower or a bathtub. The minimum distance between the appliance and a water source should be not less than 1 meter and it is compulsory the appliance to be wall-mounted! If you do not feel sure about the installation of this panel heater in a bathroom, we recommend you to consult a professional electrician.

Note: If the above-mentioned instructions cannot be implemented, it is recommended to install the appliance in "VOLUME 3".

• In wet premises the power source must be installed at a height of at least 25 cm above the floor (bathrooms and kitchens).
• The installation must be equipped with a safety fuse, and the distance between the fuse contacts in disconnected condition should be at least 3 mm.

Thank you for choosing CN051 panel heater. This is a product providing heating in winter depending on the consumers' needs for comfortable room temperature. If operated and taken care of properly in accordance with these instructions, the appliance will provide you with many years of useful operation.

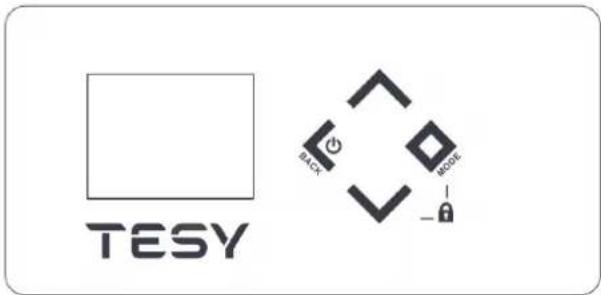

OPERATION INSTRUCTIONS

• Hold for 1.5 sec ON/OFF button for OFF or ON the heater.

• Step back – push the ON/OFF button until 1 seconds

• Quick menu/Confirmation - push the Mode button until 1 seconds
  • Full menu - hold the Mode button over 3 seconds

TESY BLACK MODE -

1. Predefined functions:

1.1. Comfort mode - with On/Off option - allows the user to set a desired temperature when being at home. After once set it and the function is switched On, the appliance will keep the same room temperature each time of usage. This temperature to be set at 23°C by default.

Activation of „Comfort mode“ :

- Push the button "Mode" for sec and select "Comfort mode" by pushing any of the buttons: and and confirm with "Mode" button

. After that you should set the comfort temperature

• by pushing any of the buttons or set the desired temperature. Confirm with "Mode" button
• The "Comfort" mode is activated.

Deactivation of „Comfort mode“ :

- To deactivate the "Comfort" mode press "On/Off" button for 1.5 sec. Then the heater turns off. The display will continue showing the set temperature. Or press "Mode" button to choose different mode.

Visualization on Display in "Comfort" mode settings :

- Set temperature

The display shows "Comfort" in the top and the set temperature

DEVICE INFO COMFORT e ECO COMFORT 21°C 22° 23:45

When the convector is in „Heating mode“, sign „sun“, appears on the display.

1.2. Eco mode - with On/Off option - allows the user to set a desired temperature when being out of home. After once set it and the function is switched On, the appliance will keep the same room temperature each time of usage. This temperature will be set at 18°C by default. User could also set the time when the appliance to switch to Comfort mode.

Activation of „Eco„ mode

Push the button "Mode" for 3 sec and select "Eco" mode by pushing any of the buttons: on, and confirm with "Mode" button. After that you should set the temperature – by pushing any of the buttons or set the desired temperature. Confirm with "Mode" button

If you want you can set the clock time:

-Select by pushing any of the buttons: for reach actual hour time. Confirm with "Mode" button

- The minute icon is flashing and by pushing any of the buttons: on reach actual minute time. Confirm with "Mode" button (range 00.00-24.00).

EN

When the set time has elapse, the appliance going to Comfort mode

Deactivation of „Eco„ mode

- You can exit "Eco" mode by pushing "On/Off" button for 1.5 sec. Then the heater turns off. The display will continue showing the set temperature. Or press "Mode" button to choose different mode.

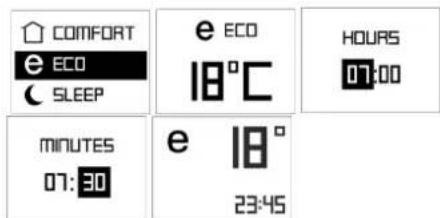

Visualization on Display in "Eco" mode settings :

- Set temperature

The display shows "Eco" in the top and the set temperature

COMFORT e ECO SLEEP e ECO 18°C HOURS 07:00 MINUTES 07:30 e 18° 23:45

1.3. Sleep mode with On/Off option – two hours after activation, the convector decreases the set temperature with -3^ C under the set temperature in Comfort mode. User could set the time range for operating in Sleep mode then the appliance switches to Comfort mode. By default: 6 hours.

Activation of „Sleep mode„

Push the button "Mode" for 3 sec and select "Sleep mode" by pushing any of the buttons: OK, and confirm with "Mode" button. If you want you can set the clock time: select by pushing any of the buttons: OK, reach actual hour time. Confirm with "Mode" button. The minute icon is flashing and by pushing any of the buttons: OK, reach actual minute time. Confirm with "Mode" button (range 00.00-24.00). When the set time has elapse, the appliance going to Comfort mode!

Deactivation of "Sleep mode"

User can exit "Sleep mode" by pushing "On/Off" button for 1.5 sec. Then the heater turns off. The display will continue showing the set temperature. Or press "Mode" button to choose different mode.

Visualization on Display in "Sleep" mode settings :

- Set temperature

The display shows "Sleep" in the top and the set temperature

e ECO SLEEP DELAY ST. HOURS 07:00 MINUTES 07:45 19° 23:45

2. Basic modes

"Heating" mode

Start "Heating" mode

When the panel heater is switched-off its digital display shows

By pushing the ON/OFF button for 1.5 sec the appliance goes into "Heating" mode. Then the display indicates mode. The set temperature is indicating in the right. If the room temperature is lower than the set one, the heater will switch automatically on, and a heating sign ● if appear on the display.

The display shows in the top and the set temperature

Deactivation of "Heating" mode

User can exit "Heating" mode by pushing "On/Off"-button for 1.5 sec. Then the heater turns off. The display will be showing OFF.

Temperature adjustment

By pushing any of the buttons: on, the user enters "Temperature adjustment" mode and the user can change the temperature settings in the desired direction. The new settings are saved and the heater goes automatically into "Heating" mode. Many of or buttons get pressed longer than 0.5 sec., the temperature settings will start automatically increase or decrease at a rate of 6 units per second. The range of available temperature settings is from 10 up to 30 degrees.

Delay start function

The delay start function allows the user to set the time at which the convector will switch on and start heating.

Push the "Mode" button for 3 sec and select "Delay Start" by pushing any of the buttons: or and confirm with "Mode" button, user can enter the time and temperature, when it will automatically go to "Heating" mode. Initially a setting of 12 hours is set by default and by pushing or buttons user can change the time settings in the desired direction. After the hour of "delay start" mode is chosen, press "Mode" button for confirmation. After that set the temperature at which the convector will start operating by pushing of any of buttons: or Confirm with "Mode" button if any of or buttons is held for more than 0.5 seconds, the time and temperature settings start automatically increase or decrease at a rate of 4 units per second. Confirm with "Mode" button or don't press any button for 3 seconds.

If user enters time – 00, this mode will not be implemented. If the "Delay start" mode is already enabled and user selects the "Delay Start" mode again, it can be changed the remaining time in both possible directions. You can exit this mode by pushing the "On/Off" button. Then panel heater will go into "Heating" mode. The "Delay start" needs to be set from 0 to 96 hours.

Visualization on Display in "Delay start" settings :

The display shows "Delay start" in the top and the set temperature

SLEEP DELAY ST. W.SCHEDU DELAY START 14 H DELAY START 21 °C 18° 11:35

Anti-frost mode

If the room temperature falls below 5°C and the panel heater is off, the heater will turn on automatically in order to prevent freezing of the area. Indication – in left top corner - only when work the anti-frost mode

Factory settings of the function is ON (switched On).

Activation and deactivation of Anti-frost mode

- If the customer wants to change it – push "Mode" button for 3 sec and select "Anti-frost" mode or pushing any of the buttons: or √. Confirm with "Mode" button and user can push button to reach "OFF". Confirm with "Mode" button

To activate the function – push "Mode" button for 3 sec and select "Antifrost" mode, or pushing any of the buttons: or √. Confirm with "Mode" button starts blinking and user has to push button to reach "ON". Confirm with "Mode" button

Visualization on Display in "Anti-frost" settings :

"Temperature correction for the sensor" function

Due to the specifics of the temperature profile in some premises there may be difference from the temperature shown on the display and the actually measured temperature in the various locations of the heating appliance in the room.

See the temperature shown on the display of the appliance

Measure the temperature at a place where the temperature is "comfortable" enough for you (usually at a height of 60 cm from the floor, in sitting positon). If you find a difference within a range of ±4°C, you can set the necessary correction in the convector's menu (It is important to note that this function can be set only after the temperature has become the same all around the room, and depending on the room type, the minimum required time is 7 hours) by entering the temperature difference resulting between the value on the display and the actually measured temperature.

This function is used with the purpose of providing better temperature comfort and energy saving for the user of the electric convector in the room which it is in. A temperature difference greater than ±4 °C from the measured temperature in a specific location in the room indicates that the room where you use the convector in is not well insulated or the temperature is not the same all around the room.

Example: a convector in a room on a stone floor – the convector displays 18°C (the set temperature is 22°C), the actually measured temperature (feeling of reached comfort temperature) is 22°C at a height of 60 cm from the floor -> in this case the convector continues to overheat the room (this is a direct energy loss, but the convector cannot reach the set temperature because it measures the temperature at a low height close to the floor) and it will never switch off. In this case a temperature correction of +4°C needs to be applied to the sensor, thus the convector will display 22°C and it will start switching off, and eventually it will maintain the set temperature of 22°C).

The normal status of the function is 0°C by default

If the customer wants to change it - by pushing "Mode" button for 3 sec and select "Temperature correction" mode by pushing any of the buttons: or Confirm with "Mode" button - by pushing or button user can reach a temperature correction in the diapason from "-4°C" up to "+4°C". Confirm with "Mode" button

If user wants to see the already set correction, should press "Mode" button for 3 sec and select "Temperature correction" mode by pushing any of the buttons: or . Confirm with "Mode" button. User can change it by pushing button or to give a new value of correction in the diapason ±4°C. Confirm with "Mode" button.

If the factory reset function is used, the temperature correction has to be set again. The factory setting of its value is 0^ C.

Visualization on Display in "Temperature correction" settings :

Function Adaptive start Ⓐ

Adaptive start is a function which predicts and initiates the optimal start of heating in order to reach the set-point temperature at the desired time;

Test according to user instruction / documentation. The function is tested in a room with a continuous heat demand of 50 - 60% with reference to the wattage of the test device. The product is working at a comfort temperature 23^ ± 3^ setpoint until stable conditions. This temperature is the reference comfort temperature "Ct". Activate a set-back period of 7h + 2h/-0h per 24h with a set-back of 4^ ± 1^ . The

comfort period being 17 -2h/+0h hours. With the adaptive control activated - let the heater thermostat working during 4 periods (4 x 24 hours) of comfort and low setback cycles. After the latest low setback period finishes the comfort temperature "Ct" should be reached within ±30 minutes deviation to the time target - with a maximal difference of ±1°C from the reference comfort temperature "Ct".

- Factory settings of the function is "ON"

Deactivation of function Adaptive start : Ⓐ

- If the customer wants to change it – by pushing the "Mode" button to 3 sec and select "Adaptive start" ▲ Mode by pushing any of the buttons: or . Confirm with "Mode" button and user can push button to reach "OFF". Confirm with "Mode" button, in this case, the function adaptive start is switched OFF.

Activation of function Adaptive start :

To return again in condition "ON" – by pushing the "Mode" button for 3 sec and select "Adaptive start" mode by pushing any of the buttons: or . Confirm with "Mode" button and user can push button to reach "ON". Confirm with "Mode" button. In this case the function Adaptive start is switched ON.

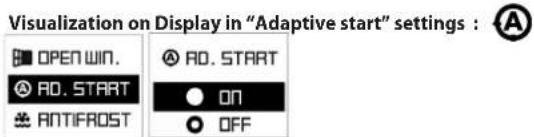

Visualization on Display in "Adaptive start" settings : OPEN WIN. AD. START ANTIFROST AD. START ON OFF

RESET to default settings

If the customer wants reset the convector to factory settings – by pushing the

"Mode" button for 3 sec and select "RESET" mode by pushing any of the buttons: on. Confirm with "Mode" button.

Visualization on Display in "RESET" settings :

AD. START RESET OPEN WIN. RESET TO FACTORY DEFAULT? CONFIRM RESET ? SETTINGS CLEARED

After using the reset function, the following functions will be re-set: - clock time

• temperature correction value 0°C
• function Anti-frost mode is activated
• adaptive start is activated
• weekly program - 24/7 is reset.

Open window/door function

Room temperature control with open window detection - the product is equipped with an integrated electronic device that reduces the heat output when detects an open window or door. A sensor is used to detect eventual drop in the room temperature. If the temperature falls more than 5°C, the convector will switch off by itself. Within 15 min the open window detection should turn the appliance off. When the room temperature rises by at least 0.5°C and the difference from the initial set point is below 5°C, the convector switches itself on with the settings already made. If the temperature does not rise for more than 60 minutes, the convector enters Standby mode. The function is allowed to be cancelled manually.

The function can be switched Off manually.

Deactivation of Open window/door function :

If the customer wants to change it - by pushing the "Mode" button for 3 sec and select "Open window" mode, or pushing any of the buttons: or. Confirm with "Mode" button. User has to push button to reach "OFF". Confirm with "Mode" button. In this case function "Open window" is switched OFF.

Activation of Open window/door function :

To return again in condition "ON" – by pushing the "Mode" button for 3 sec and select "Open window" mode, or pushing any of the buttons: or Confirm with "Mode" button. User has to push button.

EN

to reach "ON". Confirm with "Mode" Button. In this case function "Open window" is switched ON.

Note: When the "Open window" function is enabled, the "Anti-frost" function does not work!

Visualization on Display in "Open window" settings :

Keyboard lock (Protection from children)

When user turns on this function, all keys of the control panel remain locked. Hold buttons √ and "Mode" ♦ together for 3 seconds. The display should show a message when this mode is activated. When user wants to turn off this function has to hold the same button combination for 3 seconds.

Activation/deactivation: Holding and "Mode" buttons for 3 seconds the keyboard gets locked.

To unlock the control panel, hold and "Mode" buttons for 3 seconds.

Visualization on Main Display when activating and deactivating the function "Protection from children":

Day and time - settings

First step or use after factory reset function

Set the current time and day by pushing the "Mode" button for 3 sec and select "DAY TIME" mode by pushing any of the buttons; or. Confirm with "Mode" button.

Set a schedule for the first day of the week

Select "DAY OF THE WEEK" mode by pushing any of the buttons: or. Confirm with "Mode" button

Select by pushing any of the buttons: on, reach current day of the week (Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday). Confirm with "Mode" button.

OPEN WIN. DAY TIME WI-FI DAY OF THE WEEK TIME MONDAY TUESDAY WEONESDAY

Set time

Select "TIME" mode by pushing any of the buttons: . Confirm with "Mode" button

The hour icon is flashing and by pushing any of the buttons: on reach actual hour time. Confirm with "Mode" button. The minute icon is flashing and by pushing any of the buttons: on reach actual minute time. Confirm with "Mode" button. (range 00.00-24.00)

OPEN WIN. DAY TIME WI-FI DAY OF THE WEEK TIME HOURS 11:16 MINUTES 12:45

Weekly program (timer) 24hours/7days

Min 300 sets of time periods

Electronic thermoregulator with weekly program (timer) 24/7 - electronic room temperature control plus weekly timer means the product is equipped with an electronic device, either integrated or external, which allows the product automatically to vary its heat output over a certain time period. In relation with a certain required level of indoor heating comfort. It allows the setting

of timing and temperature levels for a full week. During the 7-day period the settings must allow a variation on a day-to-day basis;

Deactivation

If the customer wants to deactivate it, he/she has to push ON/OFF button(The heater goes into "heating" mode.) or press for 1.5 sec ON/OFF button for OFF the heater.

Activation

If the customer wants to set "Weekly shedule (timer)" mode-by pushing the "Mode" button to 3 sec and select "Weekly shedule" mode-by pushing any of the buttons: on. Confirm with "Mode" button.

There have three options:

• CREATE PROGRAM
• ERASE PROGRAM
• VIEW PROGRAM

Create program

Select "Create program" by pushing any of the buttons: √. Confirm with "Mode" button

1. Set "DAY OF THE WEEK" by pushing any of the buttons: ▲ or ▼ reach current day of the week (Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Sunday). Confirm with "Mode" button ◆

2. Set "TIME PERIOD" by pushing any of the buttons: √ reach the desired Start time (range 00.00-24.00). Confirm with "Mode" button √ push any of the buttons: √ reach the desired End time (range 00.00-24.00). Confirm with "Mode" button

3. Set "DESIRE TEMPERATURE" by pushing any of the buttons: for reach the desired temperature (10-30 °C). Confirm with "Mode" button

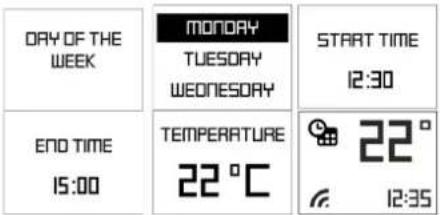

DAY OF THE WEEK MONDAY TUESDAY WEONESDAY START TIME 12:30 END TIME 15:00 TEMPERATURE 22 °C 22 ° 12:35

The temperature of 22 °C started at 12.30 to 15.00 on Sunday. The convector will heat till reach the settings of the next given point.

If the TIME PERIOD is empty (no time set) – visualization should be OFF ⏻.

• One step back – with single pushing of ON/OFF button
• No limit of time periods – step is 0.5 hour (30 minutes).
• Adaptive start function is switched on by default.

Erase program

Select "Erase program" by pushing any of the buttons: or. Confirm with "Mode" button. Select the program by pushing any of the buttons

or and confirm with "Mode" button.

Checking the schedule program

View program

Select "View program" by pushing any of the buttons. On. Confirm with "Mode" button. Select a day of the week (Monday, Tuesday, Wednesday, Thursday, Friday, Saturday and Sunday) by pushing any of the buttons. On. and confirm with "Mode" button. You can view the programs for the selected day by pushing any of the buttons. On. One step back – with single pushing of ON/OFF button.

MONDAY 22° 12:30 - 15:00

Function AirSafe – only for models CN 051 xxx EI CLOUD AS W and CN 051 xxx EI AS W

Function Air Safe

The Air safe function is a result of working together of the module, composed of UVA LEDs and the convector heater.

Advantages of the function:

1. Better air hygiene and a healthier environment, thanks to the bactericidal effect of the function.
2. Safe operation, even in the presence of people and animals - the light emitted by the module is UVA, which is 95% of the UV light passing through the atmosphere. The reflected UV light in the volume of the housing in which the heater is located has a very low intensity and energy and has no harmful effects on humans, plants and animals.
3. Without generation of ozone, hydrogen peroxide, organic or inorganic molecules or ions
4. High degree of reduction of bacteria and fungi
5. Extremely long service life - over 50,000 hours (over 12 years).
6. Quite working mode – natural air flow, through the convector heater

Principle of work of Air safe function

The Air Safe function can be switched on and off by the user through the convector control menu. In order to work, it is necessary the convector to be switched on and heated (the set temperature is higher than the ambient temperature).

When the temperature of the heater rises, the natural air flow starts in the room.

Colder air enters through the lower openings of the convector and passes by the UVA LEDs.

Due to this movement, the molecules of gases, bacteria, micromycetes (fungi) and other microorganisms contained in or carried by the air are irradiated by the combined effect of UVA LED radiation and the infrared radiation of the heater. The continuous passage of the air flow through the volume of the convector provides enough energy to break the connections supporting the structure of harmful microorganisms carried by the air.

As a result of natural convection, after a certain period of time, the air contained in the room completely passes through the volume of the convector, which leads to a reduction of the bacteria and micromycetes contained in it.

Function Air Safe is a protection against harmful organisms such bacteria and fungi. Provides better air hygiene and benefits to a healthier environment.

The function can be switched Off manually.

If the customer wants to change it- by pushing the "Mode" button for 3 sec and select "Air Safe" mode. Pushing any of the buttons: or Confirm with "Mode" button. Use has to push button to reach "OFF". Confirm with "Mode" button. In this case the function is switched OFF.

To return again in condition "ON" – by pushing the "Mode" button for

3 sec and select "Air Safe" model by pushing any of the buttons: or Confirm with "Mode" button. User has to push button to reach "ON". Confirm with "Mode" button on this case the function is switched ON.

Operation of Air Safe must continue for 2 minutes after stopping the heating element, and then turn off.

Built in tip-over switch – if the convector tilts with more than 45^ or falls down, the power must switch Off and indicate on display "tilt". After restoring the device to its normal position, operation of the last set function must continue.

Function Wi-Fi - only for models CN 051 xxx EI CLOUD AS W and CN 051 xxx EI CLOUD W

Function Wi-Fi

If the customer wants to switch off Wi-Fi function - by pushing the "Mode" button to 3 sec and select "Wi-Fi" mode by pushing any of the buttons: or. Confirm with "Mode" button. User has to push button to reach "Wi-Fi OFF". Confirm with "Mode" button. In this case function "Wi-Fi" is switched OFF.

To return again in condition "Wi-Fi ON" – by pushing the "Mode" button for 3 sec and select "WI-FI" mode by pushing any of the buttons: or Confirm with "Mode" button. User has to push

button to reach "Wi-Fi ON". Confirm with "Mode" button. In this case function "WI-FI" is switched ON.

To turn "Wi-Fi LOCAL" on by pushing the "Mode" button for 6 sec and select "WI-FI" mode, by pushing any of the buttons: On. Confirm with "Mode" button is her has to push button to reach "Wi-Fi LOCAL". Confirm with "Mode" button in this case function "WI-FI LOCAL" is switched ON.

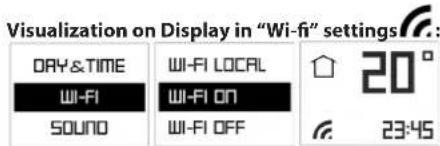

Visualization on Display in "Wi-fi" settings DAY&TIME WI-FI SOUND WI-FI LOCAL WI-FI ON WI-FI OFF 20° 23:45

Work mode of display:

When pressed - backlight intensity - 100%; after 5s - OFF

Sound option

If the customer wants to deactivate sound function - push the "Mode" button for 3 sec and select "Sound" mode by pushing any of the buttons: on, and confirm with "Mode" button. To turn off the sound, choose degree 0 through the buttons on. Confirm with "Mode" button

- If the customer wants to activate sound function – push the "Mode" button for 3 sec and select "Sound" mode by pushing any of the buttons: . . . Confirm with "Mode" button . The user can select 5 degrees of sound volume via the buttons or . . Confirm with "Mode" button in this case, the sound function is turned on at the level you selected.

Visualization on Display in "Sound" settings

Device info

If the customer wants to view "Device info" - by pushing the "Mode" button for 3 sec and select "Device info" by pushing any of the buttons: or Confirm with "Mode" button.

Visualization on Display in "Device info"

• ID
• MAC address
• Firmware version

Quick menu

Push the "Mode" button to start quick already configured program. Select by pushing any of the buttons: ▲ or √ and confirm with "Mode" button ◆. The program going to start to work.

Content function:

- Comfort

- Eco

- Sleep

- Delay start

- Weekly schedule

Exit from the any mode – with single pushing of ON/OFF button

Errors mode:

If the display shows "t1" or "t2", this means that the self-diagnostic system has found a problem with the temperature sensor. "t1" indicates a disconnected cable at the sensor, while "t2" indicates short circuit at the sensor. In this case the electric convector will be automatically switched off and it can be switched on again only after the problem has been fixed. The problem has to be handled by a qualified specialist.

DISCONNECTION FROM THE POWER SUPPLY:

If the electric convector is disconnected from the mains, this will not affect the set temperature and the mode of operation which has been active prior to its disconnection. If for example the convector has been in "Heating" mode, after it has been disconnected and reconnected to the mains, it will continue operating in the same mode with the same set temperature.

The principle of operation of the electric convector with energy-independent memory is to store the settings for 120 minutes guaranteed, and up to 180 minutes not guaranteed.

If the time is more than 120 min the appliance going to Stand by mode.

PROTECTION

• The appliance is equipped with a safety thermo turn-off device, which automatically turns the heater off in cases of extreme temperature of the panel heater /i.e. overheating of the appliance/.
• The safety thermo turn-off device will automatically restore the heater operation when the temperature of the appliance falls below the permissible ultimate values.

CLEANING

• It is compulsory first to turn off the appliance through its power switch and to disconnect it from the power socket. Before starting the cleaning session you should wait until the panel heater cools down in a disconnected state.
• The panel heater can be cleaned with little efforts at the appliance rear part – just press the "P"-shaped braces /figure 2/ at the back of the appliance so that you can dismantle it and consequently you can clean the rear part of the appliance.

• Clean the heater body with damp cloth, vacuum cleaner or a brush.

• Never immerse the appliance into water – there is danger for your life from electric shock!

• Never use gasoline, thinner or hard abrasive products to clean the appliance, because they will damage the appliance coating.

STORAGE

• Before putting the panel heater away let it cool down after you have disconnected it from the power socket
• Use the appliance original packing to store it, if the panel heater will not be in use for a long period of time. By storing the product in its original packing you protect it from excessive dirt and dust accumulation.
• Never put a hot panel heater in its packing!
• It is necessary the product to be stored at a dry and dark place, protected from direct sun light.
• It is explicitly forbidden to store the panel heater in damp and wet premises.

MAINTENANCE OPERATIONS OF THE APPLIANCE

• In case of appliance malfunction, please contact the authorized service center closest to your location. /service centers are indicated in appliance warranty documents/.
• Important: In case of a claim and/or violation of your consumer rights, please contact the supplier of this appliance at the indicated locations or via the Internet page of the company: www.tesy.com

DIMENSIONS OF HEATED VOLUME AND HEATED AREA OF A ROOM / APPLIANCE MODELS

Model Heated volume Heated area
CN 051 050 EI [CLOUD] [AS] W - 500W 10^* - 15 m	^3	4^* - 6 m^2
CN 051 100 EI [CLOUD] [AS] W - 1000W 20^* - 30 m	^3	8^* - 12 m^2
CN 051 150 EI [CLOUD] [AS] W - 1500W 30^* - 45 m	^3	12^* - 18 m^2
CN 051 200 EI [CLOUD] [AS] W - 2000W 40^* - 60 m	^3	16^* - 24 m^2
CN 051 250 EI [CLOUD] [AS] W - 2500W 50^* - 70 m	^3	20^* - 28 m^2
CN 051 300 EI [CLOUD] [AS] W - 3000W 60^* - 80 m	^3	24^* - 32 m^2

* Minimum guaranteed heated volume (area) for heating at an average capacity of heat transmission factor = 0.5W / (m^2K) for a heated room. Higher values of heated volume (area) can be achieved at an average value of = 0.35W / (m^2K) . Standard height of heated rooms - 2.5 meters.

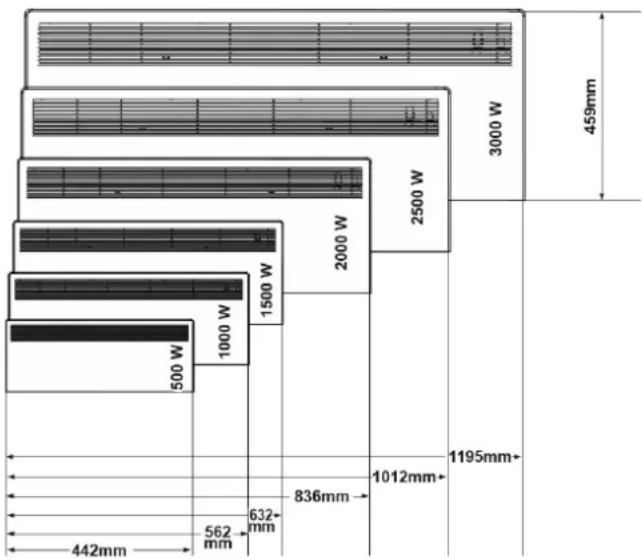

3000 W 459mm 2500 W 2000 W 1195mm+ 1012mm- 836mm 632mm 562 mm 442mm

• Environment protection instructions

Obsolete electric appliances contain valuable materials and consequently they should not be treated as domestic wastel. We ask for your cooperation and your active contribution to protect the resources and the environment. Please submit your out-of-use appliances to the organized buy-back stations (if there are such).

TABLE 2: INFORMATION REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS
Model identifier(s): 1.CN051 050 EI W; 2.CN051 100 EI W; 3.CN051 150 EI W; 4.CN051 200 EI W; 5.CN051 250 EI W; 6.CN051 300 EI W 230V\~50Hz

Item	Symbol	Value 1	Value 2	Value 3	Value 4	Value 5	Value 6	Unit	Item	Unit
Heat output Type of heat input for electric storage local space heaters only (select one)
Nominal heat output P	nom	0.50	1.00	1.50	2.00	2.50	3.00	kW	Manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative) P	min	0.00	0.00	0.00	0.00	0.00	0.00	kW	Manual heat charge control, with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output (indicative)	Pmax.C	0.50	1.00	1.50	2.00	2.50	3.00	kW	Electric heat charge control, with room and/or outdoor temperature feedbackheat charge control, with integrated thermostat	[no]
Auxiliary electricity consumption Fan assisted heat output [no]
At nominal heat output el	max	0.43	0.93	1.44	1.91	2.45	2.91	kW	Type of heat output/room temperature control (select one)	-
At minimum heat output el	min	0.00	0.00	0.00	0.00	0.00	0.00	kW	Single stage heat output and no room temperature control	[no]
In standby mode	el SB				0.00033			kW	Two or more manual stages, no room temperature control	[no]
									With mechanic thermostat room temperature control	[no]
									With electronic room temperature control	[no]
									With electronic room temperature control plus day timer	[no]
									With electronic room temperature control plus week timer	[yes]
									Other control options (multiple selections possible)
									Room temperature control, with presence detection	[no]
									Room temperature control, with open window detection	[yes]
									With distance control option	[no]
									With adaptive start control	[yes]
									With working time limitation	[no]
									With black bulb sensor	[no]

Model identifier(s): 1.CN051 050 EI AS W; 2.CN051 100 EI AS W; 3.CN051 150 EI AS W; 4.CN051 200 EI AS W; 5.CN051 250 EI AS W; 6.CN051 300 EI AS W 230V\~50Hz

Item	Symbol	Value 1	Value 2	Value 3	Value 4	Value 5	Value 6	Unit	Item	Unit
Heat output Type of heat input for electric storage local space heaters only (select one)
Nominal heat output P	nom	0.50	1.00	1.50	2.00	2.50	3.00	kW	Manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative) P	min	0.00	0.00	0.00	0.00	0.00	0.00	kW	Manual heat charge control, with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output (indicative)	P_max,C	0.50	1.00	1.50	2.00	2.50	3.00	kW	Electric heat charge control, with room and/or outdoor temperature feedback heat charge control, with integrated thermostat	[no]
Auxiliary electricity consumption Fan assisted heat output [no]
At nominal heat output el	max	0.43	0.93	1.44	1.91	2.45	2.91	kW	Type of heat output/room temperature control (select one)	-
At minimum heat output el	min	0.00	0.00	0.00	0.00	0.00	0.00	kW	Single stage heat output and no room temperature control	[no]
In standby mode	el SB				0.00033			kW	Two or more manual stages, no room temperature control	[no]
									With mechanic thermostat room temperature control	[no]
									With electronic room temperature control	[no]
									With electronic room temperature control plus day timer	[no]
									With electronic room temperature control plus week timer	[yes]
									Other control options (multiple selections possible)
									Room temperature control, with presence detection	[no]
									Room temperature control, with open window detection	[yes]
									With distance control option	[no]
									With adaptive start control	[yes]
									With working time limitation	[no]
									With black bulb sensor	[no]

TESY Ltd

48 Madara Blvd,

Shumen, 9700,

Bulgaria

TABLE 2: INFORMATION REQUIREMENTS FOR ELECTRIC LOCAL SPACE HEATERS
Model identifier(s): 1.CN051 050 EI CLOUD W; 2.CN051 100 EI CLOUD W; 3.CN051 150 EI CLOUD W; 4.CN051 200 EI CLOUD W; 5.CN051 250 EI CLOUD W; 6.CN051 300 EI CLOUD W 230V\~50Hz

Item	Symbol	Value 1	Value 2	Value 3	Value 4	Value 5	Value 6	Unit	Item	Unit
Heat output Type of heat input for electric storage local space heaters only (select one)
Nominal heat output P	nom	0.50	1.00	1.50	2.00	2.50	3.00	kW	Manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative) P	min	0.00	0.00	0.00	0.00	0.00	0.00	kW	Manual heat charge control, with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output (indicative)	P_max,C	0.50	1.00	1.50	2.00	2.50	3.00	kW	Electric heat charge control, with room and/or outdoor temperature feedback heat charge control, with integrated thermostat	[no]
Auxiliary electricity consumption Fan assisted heat output [no]
At nominal heat output el	max	0.43	0.93	1.44	1.91	2.45	2.91	kW	Type of heat output/room temperature control (select one)	-
At minimum heat output el	min	0.00	0.00	0.00	0.00	0.00	0.00	kW	Single stage heat output and no room temperature control	[no]
In standby mode	el SB				0.00033			kW	Two or more manual stages, no room temperature control	[no]
									With mechanic thermostat room temperature control	[no]
									With electronic room temperature control	[no]
									With electronic room temperature control plus day timer	[no]
									With electronic room temperature control plus week timer	[yes]
									Other control options (multiple selections possible)
									Room temperature control, with presence detection	[no]
									Room temperature control, with open window detection	[yes]
									With distance control option	[yes]
									With adaptive start control	[yes]
									With working time limitation	[no]
									With black bulb sensor	[no]

Model identifier(s): 1.CN051 050 EI CLOUD AS W; 2.CN051 100 EI CLOUD AS W; 3.CN051 150 EI CLOUD AS W; 4.CN051 200 EI CLOUD AS W; 5.CN051 250 EI CLOUD AS W; 6.CN051 300 EI CLOUD AS W 230V\~50Hz

Item	Symbol	Value 1	Value 2	Value 3	Value 4	Value 5	Value 6	Unit	Item	Unit
Heat output Type of heat input for electric storage local space heaters only (select one)
Nominal heat output P	nom	0.50	1.00	1.50	2.00	2.50	3.00	kW	Manual heat charge control, with integrated thermostat	[no]
Minimum heat output (indicative) P	min	0.00	0.00	0.00	0.00	0.00	0.00	kW	Manual heat charge control, with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output (indicative)	P_max,C	0.50	1.00	1.50	2.00	2.50	3.00	kW	Electric heat charge control, with room and/or outdoor temperature feedback heat charge control, with integrated thermostat	[no]
Auxiliary electricity consumption Fan assisted heat output [no]
At nominal heat output el	max	0.43	0.93	1.44	1.91	2.45	2.91	kW	Type of heat output/room temperature control (select one)	-
At minimum heat output el	min	0.00	0.00	0.00	0.00	0.00	0.00	kW	Single stage heat output and no room temperature control	[no]
In standby mode	el SB				0.00033			kW	Two or more manual stages, no room temperature control	[no]
									With mechanic thermostat room temperature control	[no]
									With electronic room temperature control	[no]
									With electronic room temperature control plus day timer	[no]
									With electronic room temperature control plus week timer	[yes]
									Other control options (multiple selections possible)
									Room temperature control, with presence detection	[no]
									Room temperature control, with open window detection	[yes]
									With distance control option	[yes]
									With adaptive start control	[yes]
									With working time limitation	[no]
									With black bulb sensor	[no]

TESY Ltd

48 Madara Blvd,

Shumen, 9700,

Bulgaria

Prior to contacting the Customer Service Center, please check the items in the table below.

PROBLEM CAUSE SOLUTION
The appliance doesn't work No power supply from the grid. Be sure that the product is plugged in and that the electrical outlet is working.	Plug into the power outlet and check position of the ON/OFF switch.
The temperature may be set too low. Set the temperature to a higher position.
The "Protection from children" may be activated. See the section "Protection from children" in the user manual.
The delayed start is working. Press the Turn ON button from control board.
Room does not get warm enough although the appliance is hot	Appliance overheating. High limit safety cut-out limits heating output.	Eliminate the cause (cover, dirt or obstructions at the air inlet or outlet).Observe minimum clearances according to mounting instructions.
	Check the Temperature correction for the sensor	See the temperature shown on the display of the appliance. Measure the temperature at a place where the temperature is "comfortable" enough for you. If you find a difference within a range of ±4°C, you can set the necessary correction in the convector's menu by entering the temperature difference resulting between the value on the display and the actually measured temperature.
	The heat demand of the room is higher than the appliance output.	Remove heat losses (Close windows and doors. Avoid constant venting.)
	Check if the power of your device is adapted to the size of your room.	Recommended an average of 100 W/m2 for a ceiling height of 2,50m or 30W/m3
Open window/door detection does not respond	Appliance does not detect a pronounced temperature drop due to venting. (Open window/door detection requires previously stable room temperature.)	Avoid obstructions that may prevent normal air exchange between the appliance and the indoor air.
	Open window/door detection is not enabled Switch on open window/door detection.
„Adaptive start" function does not work as required	This function works only in weekly mode. Switch on Adaptive start function.
	Severely fluctuating room temperature or the appliance learning procedure has not been completed.	Wait a few days for behavior to stabilize.
	"Adaptive start" function is not enabled. Switch on the „Adaptive start" function in the menu.
Display shows "t1" or "t2"	The self-diagnostic system has found a problem with the temperature sensor "t1" indicates a disconnected cable at the sensor "t2" indicates short circuit at the sensor	In this case the electric convector will be automatically switched off and it can be switched on again only after the problem has been fixed by the authorized service representatives. Contact the authorized service center or the retailer you bought the product from.
Dirty marks appear on the wall around the device	The dirty marks come as a result of air contamination.	Make sure that some fresh air enters the room regularly, especially if it is used for smoking.
The device does not follow internal programming commands	The date and time are not set correctly.	Check the set date and time.
	The appliance is under Open window/door detection.	Switch off the Open window/door detection.
Sounds/Noises	Emitting faint noises during the heating process and shortly after the set temperature is reached, is not something unusual.	Such effect is in result of the natural materials expansions during the rapid temperature increase and following cooling of the metals used for the product manufacturing.
Yellowish stains on the grid	Such stains could be in result of covering the product with wet clothes.	Do not cover the product! Such actions are not allowed, because they block the air convection and will damage the product irreparably, leading to serious risk for your health and properties.

Technical line drawing of a mechanical support structure with two views (top and side), no text or symbols present.

Volume 3 Volume 2 0.6 m 2.25 m Volume 1 0.8 m 3 m Volume 0 0.6 m

Technical line drawing of a mechanical support frame assembly with mounting brackets and a side-view detail (no text or symbols)

Volume 3 Volume 2 0.6 m 2.25 m Volume 1 0.6 m Volume 0 0.6 m 3 m

1. Moduri de program presetate:

Mod Confort (Comfort mode) ; Mod Eco (Eco mode) ; Mod „Somn“ (Sleep mode)

Technical line drawing of a mechanical support frame assembly with mounting brackets and a side-view detail (no text or symbols)

Volume 3 Volume 2 0.6 m Volume 1 2.25 m 0.6 m Volume 0 0.6 m 3 E

Technical line drawing of a mechanical support frame assembly with mounting brackets and a side-view detail (no text or symbols)

Volume 3 Volume 2 0.6 m Volume 1 2.25 m Volume 0 0.6 m 3 m

Technical line drawing of a mechanical support structure with mounting brackets and a side-view detail (no text or symbols)

• Povucite prema dolje zidni nosač kako biste ga uklonili iz stražnjeg korpusa.
• Pričvrstite čvrsto na zid zidni nosač kroz napravljene četiri dupke za vijke.
• Podignite konvektor gotovo do okomitog položaja i umetnite dvije donje izdate dijelove zidnih nosača u dva donja proreza u stražnjem poklopcu konvektora. Zatim podignite konvektor i umetnite dvije gornje izdate dijelove zidnih nosača u dva gornja proreza u stražnjem poklopcu konvektora. Konačno vratite natrag na njihovo mjesto i zategnite dva vijka, da biste pričvrstili čvrsto konvektor na zid.

KORIŠTENJE U KUPATILU

- Konvektor mora biti instaliran u skladu s uobičajenom komercijalnom praksom i u skladu sa zakonima relevantne zemlje (Direktive za električnu struju EK i zahtjevi za posebne instalacije ili prostore koji uključuju kupatila ili tuševe HD60364-7-701 (IEC 60364-7-701: 2006)).

Volume 3 Volume 2 0.6 m 2.25 m Volume 1 0.6 m Volume 0 0.6 m 3 m

- Ako ovaj konvektor će se koristiti u kupaonici ili u drugim sličnim prostorima moraju biti ispunjeni sljedeći zahtjevi za instalaciju: konvektor je sa zaštitom IP24 (zaštita od prskanja vode). Zbog ove činjenice se mora ugraditi u prostoru 2 (volume2) (vidi sliku dolje) kako bi se izbjegla mogućnost ova upravljačka ploča (prekidač i termostat) konvektora da se može dostigne od strane čovjeka koji je pod tušem ili u kadi. Minimalna udaljenost od aparata do izvora vode ne smije biti manji od 1 metra, a uređaj mora biti obavezno montiran na zidu! Ako niste sigurni o instaliranju ovog konvektora u prostoru za kupaonicu, mi preporučujemo da se konzultirate stručnu osobu.

Napomena: Ako se ne mogu zadovoljiti gore navedeni uvjeti, preporuča se instalacija da bude izvedena u prostoru 3 (Volume 3).

• U vlažnim prostorijama (kupaonice i kuhinje) izvor energije mora biti montiran na visini od najmanje 25 cm od poda.
• Instalacija mora biti opremljena automatskim osiguračem pri čemu udaljenost između kontakata kada je isključen, mora biti najmanje 3 mm.

Thank you for choosing CN051 panel heater. This is a product providing heating in winter depending on the consumers' needs for comfortable room temperature. If operated and taken care of properly in accordance with these instructions, the appliance will provide you with many years of useful operation.

KORISNIČKI VODIĆ

- Zadržite 1.5 sekunde gumb ON/OFF unključivanje/isključivanje konvektora.

- Korak nazad – pritisnite gumb ON/OFF za 1 sekundu

• Brzi izbornik/Potvrđivanje – pritisnite gumb Mode ◆ za 1 sekundu
• Prošireni izbornik – pritisnite gumb Mode ◆ za 3 sekunde

TESY BACK MODE -

Tjedni raspored (tajmer) 24 sata/7 dana

Najmanje 300 postavaka vremenskih razdoblja

Abstract geometric shape resembling a stylized letter 'C' or arrowhead, rendered in gray with no text or symbols.

TESY

TESY Ltd - Head office

1166 Sofia, Sofia Park,

Building 16V, 2nd Floor

PHONE: [phone],

FAX: [phone],

[e-mail]
