Product Type	Electric Instant Water Heater
Model	EWE601LX1DPX2
Brand	Electrolux
Dimensions (W x H x D)	220 mm x 401 mm x 90 mm
Weight (approx.)	2.5 kg
Power Rating	3.5 kW (adjustable)
Voltage / Frequency	220-240 V / 50 Hz
Min. Operating Pressure	0.1 MPa (1 bar)
Max. Operating Pressure	0.6 MPa (6 bar)
Flow Rate (at 30°C rise)	2.0 L/min
Water Connection	1/2 inch BSP
Energy Class	A
Safety Features	Thermal cut-off, flow sensor, pressure relief valve
Material	ABS plastic body, copper heating element
IP Rating	IP25 (splash-proof)
Installation	Wall-mounted, above sink
Warranty	2 years
Included Accessories	Shower head, hose, mounting kit

Frequently Asked Questions - EWE601LX1DPX2 ELECTROLUX

How do I install the Electrolux EWE601LX1DPX2 water heater?

Installation requires a 220-240V power outlet and a 1/2 inch water connection. Mount the unit vertically on the wall using the provided bracket, connect water inlet and outlet, then plug in. Refer to the manual for detailed steps.

Can I adjust the water temperature?

Yes, the unit has a power setting knob that adjusts the wattage (0 to 3.5 kW), allowing you to control the output temperature. Higher wattage gives hotter water for given flow.

What is the power consumption of this instant water heater?

At maximum setting, it consumes 3.5 kW per hour. Actual consumption depends on flow rate and temperature rise.

Does it work with low water pressure?

The minimum required pressure is 0.1 MPa (1 bar). It is designed for standard household water systems.

How do I clean and maintain the EWE601LX1DPX2?

Regularly descal the heating element using a mixture of water and white vinegar every 3 months. Wipe the exterior with a damp cloth. Do not use abrasive cleaners.

Is there a risk of electric shock?

The unit has an IP25 rating and includes thermal cut-off and ground protection. Ensure proper earthing and avoid using if damaged.

What is the warranty period?

The standard warranty is 2 years from date of purchase. Register your product for coverage.

Can I use this water heater for a shower?

Yes, it comes with a shower head and hose, making it suitable for shower use. Flow may be lower in winter.

What should I do if no hot water comes out?

Check power supply, ensure water flow is sufficient, and verify the heater is set to a high power level. If still not working, contact service.

Are spare parts available?

Yes, commonly used parts like heating element, flow switch, and shower hose can be ordered through Electrolux service centers.

USER MANUAL EWE601LX1DPX2 ELECTROLUX

Electric Instant Water Heater

Model:

EWE601LX1DPX2

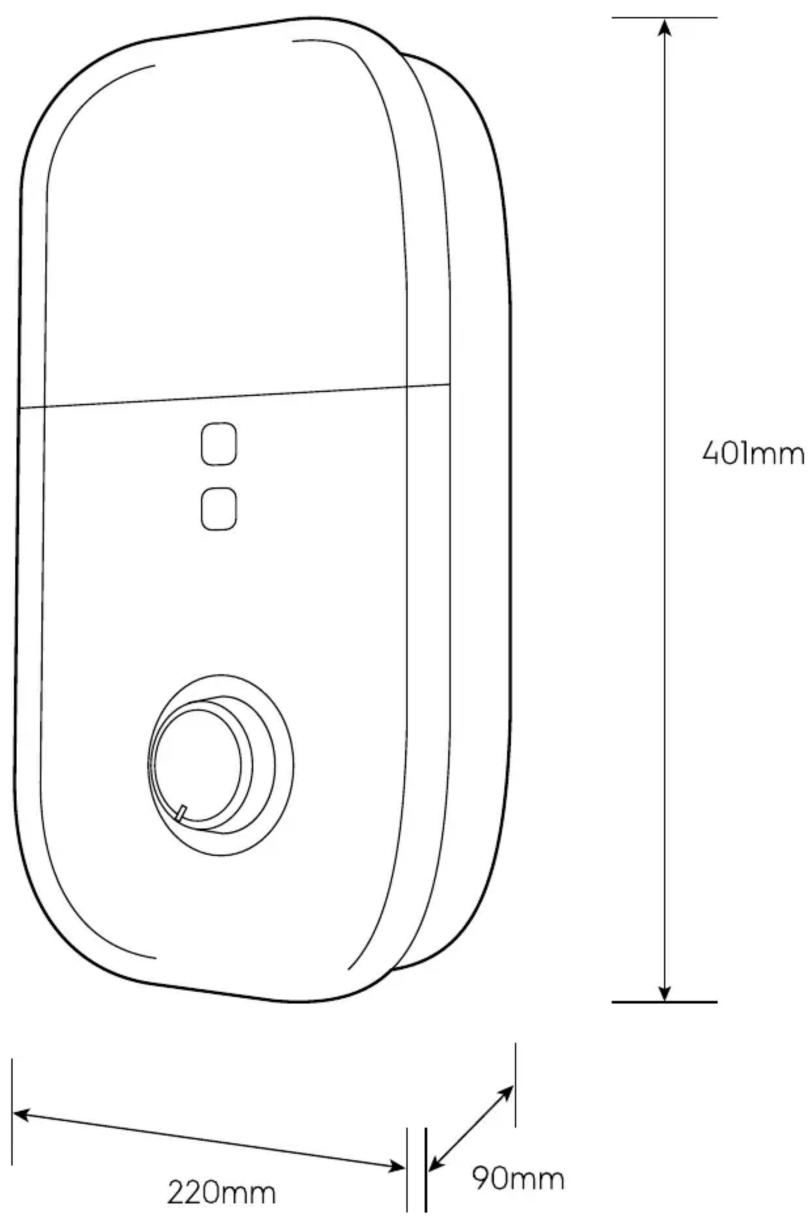

Dimensions

width height depth

Product (mm) 220 401 90

Please note! Dimensions to be used as a guide only. All customers MUST refer to the user manual supplied with the product for detailed installation instructions.

© 2021 Electrolux S.E.A PTE. LTD. E_DIM_EWE601LX1DPX2_Jun21
