GZ 606 - Crepe maker Guzzanti - Free user manual and instructions

Product Type	Electric Griddle
Brand	Guzzanti
Model	GZ 606
Cooking Surface	Non-stick coated
Heating Element	Concealed, 1500 W
Temperature Control	Adjustable thermostat
Indicator Light	Power-on light
Handle	Cool-touch handle
Material	Aluminum body with plastic base
Dimensions (approx.)	30 x 20 x 5 cm
Weight	1.8 kg
Power Supply	220-240 V, 50/60 Hz
Cord Length	1 m
Safety Features	Overheat protection, non-slip feet
Cleaning	Wipe with damp cloth; non-stick coating care
Dishwasher Safe	No
Usage	Indoor use only
Included Accessories	User manual

Frequently Asked Questions - GZ 606 Guzzanti

How do I clean the griddle after use?

Allow the griddle to cool completely. Wipe the non-stick surface with a soft damp cloth. Do not use abrasive cleaners or metal utensils. The cooking surface is not dishwasher safe.

Can I use metal spatulas on this griddle?

No, use only wooden, silicone, or plastic utensils to avoid scratching the non-stick coating.

What is the maximum temperature setting?

The adjustable thermostat allows up to approximately 230°C (450°F), suitable for searing and browning.

How do I season the griddle before first use?

Wash the surface with mild soap and water, dry thoroughly, then lightly rub with cooking oil and heat for 2-3 minutes. Let cool and wipe off excess oil.

Does the griddle have an automatic shut-off?

Yes, it features overheat protection that automatically turns off the appliance if it exceeds safe temperatures.

Can I use the griddle on a glass stovetop?

This electric griddle is designed for countertop use only. Do not place on any stove or heat source.

What is the power consumption?

The griddle operates at 1500 W, 220-240 V. Ensure your outlet matches these specifications.

How long does it take to heat up?

Approximately 3-4 minutes to reach desired cooking temperature. The indicator light turns off when ready.

Is the griddle suitable for pancakes and crepes?

Yes, the flat non-stick surface is ideal for making pancakes, crepes, eggs, and other breakfast items.

Where can I find spare parts?

Contact Guzzanti customer service or authorized dealers. The power cord is not user-replaceable.

USER MANUAL GZ 606 Guzzanti

Black and white photo of a round baking pan with a control knob (no visible text or symbols)

Návod k obsluze

Návod na obsluhu

Instrukcja obsługi

Használati útmutató

Navodila za uporabo

Gebrauchsanleitung

Instruction manual

Line drawing of a circular appliance with a handle and two separate tools (no text or symbols)

DOPLŇKOVÉ DŮLEŽITÉ POKYNY

PŘEČTĚTE SI TYTO POKYNY

USCHOVEJTE SI TYTO POKYNY

PŘÍPRAVA

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Line drawing of a circular appliance with a handle and two separate tools (no text or symbols)

LEN PRE POUŽITIE V DOMÁCNOSTI - prečítajte si pokyny.

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY

DOPLNKOVÉ DÔLEŽITÉ POKYNY

PREČÍTAJTE SI TIETO POKYNY

VAROVANIE: upozornenie o krátkom kábli.

USCHOVAJTE SI TIETO POKYNY

PRÍPRAVA

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Line drawing of a circular appliance with a handle and two separate tools (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Line drawing of a microwave oven with two separate kitchen utensils (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Line drawing of a circular appliance with a handle and two separate tools (no text or symbols)

SAMO ZA UPORABO V GOSPODINJSTVU - preberite navodila.

DODATNA POMEMBNA NAVODILA

NATANČNO PREBERITE TA NAVODILA

POZOR: opozorilo o kratkem kablu.

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Line drawing of a circular appliance with a handle and two separate tools (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Line drawing of a circular appliance with a handle and two separate tools (no text or symbols)

HOUSEHOLD USE ONLY - Please read instructions

Thank you for buying an electric crepe maker manufactured by Yilong. Thanks to this new appliance, you can now make those perfect crepes you have long dreamed of. The appliance's performance and regular heat supply will enable you to cook crepes rapidly and immediately.

The spreading system we have perfected will allow each individual to make his/her own crepe in no time at all.

Although use of this appliance is simple, we advise you to read this manual carefully before first use and particularly the safeguards below.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all the instructions

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against electric shock do not immerse cord, plugs, or the frame of the appliance in water or other liquid. Do not handle these parts with wet hands.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility or to your point of sale for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot surfaces.

10. Do not place on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving the appliance.

12. Always attach plug to appliance first, then plug in the wall outlet. To disconnect: push the cursor to minimum, then remove plug from wall outlet.

13. Do not use appliance for other than intended use.

14. Place the appliance more than 8" away from any surface and every article which is sensitive to heat.

15. Place the appliance on a stable and dry surface, a little held aloof from the edge.

16. When using this machine for the first time, there may be a smell of smoke coming from the surface of the heating element. This is normal because of the oil protective coating in production.

17. SAVE THESE INSRTUCTION

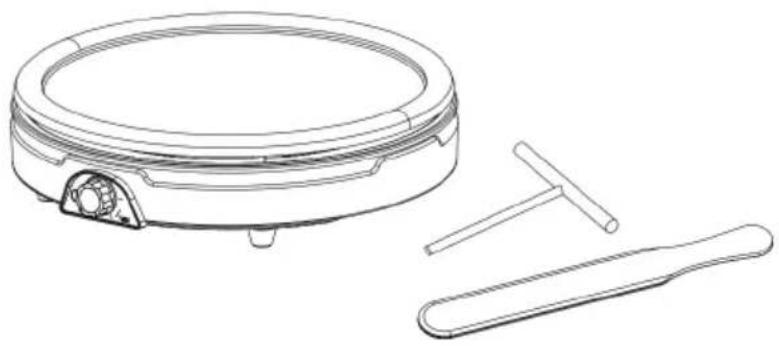

THE EQUIPMENT

1) Non-stick φ38cm. crepes plate
2) Cursor to regulate the thermostat
3) Indicator light to signal heating period
4) T spatula and wood spatula : to turn the crepe

Technical features: 1350 W, 230 V \~ 50 - 60 Hz

IMPORTANT SAFEGUARDS Complementary

READ ALL THESE INSTRUCTIONS

WARNING: Short Cordon Instructions

a) A short power supply cord is provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Extension cords are available and may be used if care is exercised in their use.
c) If an extension cord is used, the marked electrical rating of the extension cord should be at least as great as electrical rating of the appliance, and the longer cord should be arranged so that it will not drape over the counter or table top where it could be pulled on by children over unintentionally.

KEEP THESE INSTRUCTIONS

SETTING UP

• Install the crepe maker and its accessories.
- Undo the lead and firmly plug in, first to the appliance and then to electrical socket.
• Control cooking temperature with the thermostat.
- Before cooking your first crepe and between cooking each crepe, grease the griddle with a cotton cloth lightly moistened with cooking oil.

Fondue Instructions:

• Put the pot onto the flat plate and make sure the bottom fully contacts with the heating plate.
• Turn the knob to "MAX" position and the indicator light is on. The unit starts to work.
• It is normal that the indicator light may cycle off and on due to the thermostatic control. This cycling controls the temperature of the pot until the food is well cooked.
• Please turn the knob to "MIN" position after use to turn off the power and the indicator light is off.

IMPORTANT:

• Temperature settings are given for information only. You can change them according to your needs.
- When setting Max, spread the batter using the wooden spatula.

USING THE WOODEN SPATULAR

The wooden spatulas is traditionally used to spread the crepes or galettes batter. You must pull the batter with the scraper but don't push it back.

For right-handed persons: hold the scraper in the right hand between the thumb and the forefinger, the handle is supported by the other fingers.

Pour the batter in one go on the left part of the griddle.

Place the scraper behind the batter.

Spread the batter with the scraper while turning and pulling by small jerks in clockwise directions.

Each movement of scraper must spread batter, do not go over areas that have been spread or the crepe may rip.

Continue to spread the batter until you have made a perfectly round crepe or a galette.

MAINTENANCE

The non-stick griddle does not require any special maintenance. After each crepe has been cooked, simply wipe it with a cotton cloth. Cotton is less abrasive than some kitchen papers.

• Avoid using chemical cleansing products and abrasive sponges on the non-stick griddle.
  • Clean the coated frame and base with a damp sponge.
  • Caution: never immerse this appliance in water-unplug it before cleaning.
• If you need to replace the lead, do so with a lead of the same type and ensure it has a <> connecting plug for the side of the appliance.

GUARANTEE - AFTER SALES SERVICE

We take every care to ensure that each of our appliances reaches our users in perfect working order. If, at time of unpacking, you notice a defect, inform the retailer within 48 hours of purchase.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
