Product Type	Freestanding Dishwasher
Brand / Model	Guzzanti GZ 8705A
Place Settings	14
Energy Efficiency Class	D
Dimensions (H x W x D)	81.5 x 59.6 x 55.8 cm
Weight (approx.)	45 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	1850 W
Water Pressure Range	0.4 - 10 bar (0.04 - 1.0 MPa)
Noise Level	49 dB(A) re 1 pW
Programs	Intensive, Eco, Light, Crystal, 60 min, Rapid, Pre-Rinse
Additional Functions	Delay start (up to 24h), 3 in 1, Dry+, Child lock
Water Softener	Adjustable from H0 to H7
Salt Capacity	~2 kg (first fill requires 500 ml water)
Rinse Aid Dispenser Capacity	~140 ml, adjustable dose
Detergent Dispenser	Main wash (min 20g) + pre-wash (5g)
Filter System	Flat filter, coarse filter, micro filter – weekly cleaning advised
Spray Arms	Upper and lower, removable for cleaning

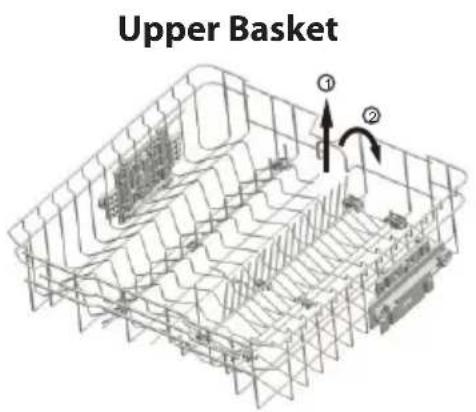

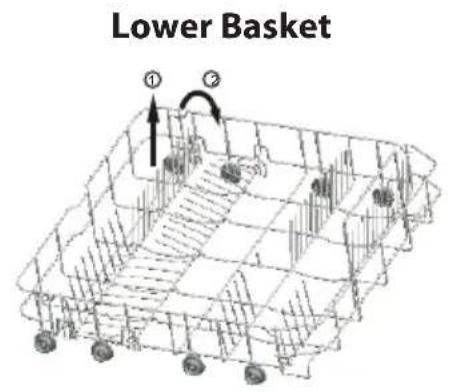

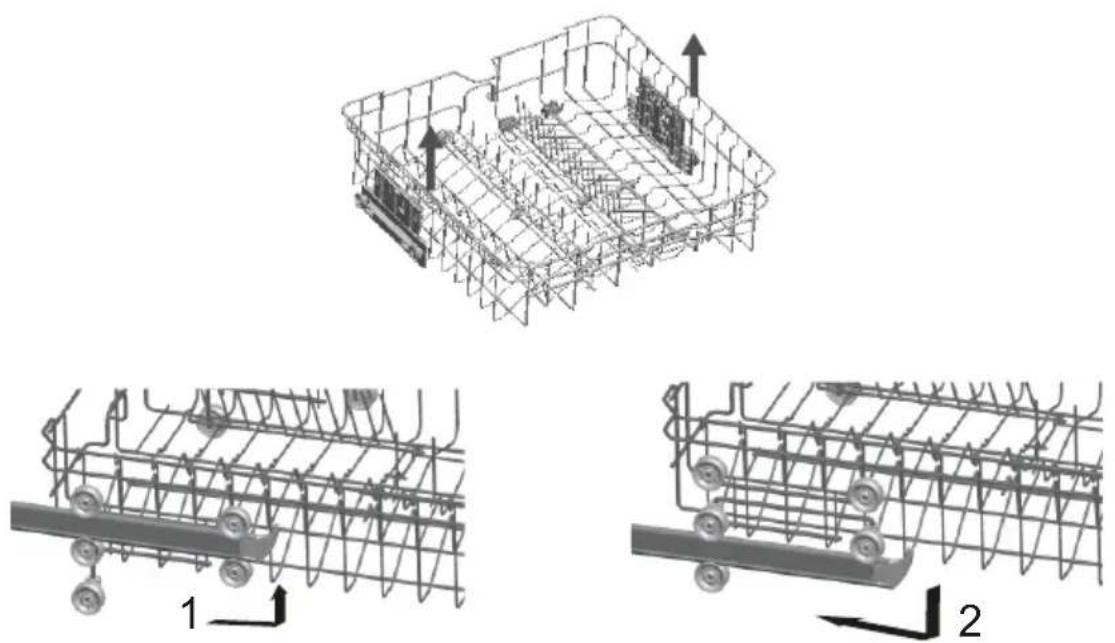

Baskets	Upper basket (height adjustable), lower basket (fold-down tines), cutlery tray
Safety Features	Child lock, overflow protection, hydrogen gas warning, door switch
Spare Parts Availability	Minimum 7 years for professional repairers, 10 years for end-users

Frequently Asked Questions - GZ 8705A Guzzanti

How do I set the water softener hardness level?

Close the door, press the Power switch on, then hold down the Delay button and press Program for 5 seconds. H.. will flash on the display. Press Delay to increase the hardness level (H0 to H7) according to your water hardness. Press Program to confirm.

How do I load salt into the water softener?

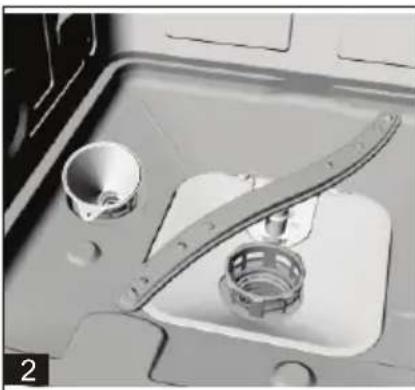

Remove the lower basket, unscrew the salt container cap. For first use, fill 2/3 of the container with water (about 500 ml). Use the funnel to add about 2 kg of dishwasher salt. Screw the cap back on and run a wash cycle immediately.

When should I refill the rinse aid?

Refill when the rinse aid indicator light on the control panel turns on, or when the optical level indicator on the dispenser shows it is 1/4 full. The indicator will be mostly clear when nearly empty.

How do I clean the filters?

After each cycle, inspect filters. To remove, first turn the coarse filter counterclockwise and lift out, then lift the flat filter. Rinse under running water. Clean entire filter assembly weekly with a soft brush. Reassemble by reversing the steps.

What should I do if an error code appears?

Refer to the manual: E1 = door open, E2 = water inlet issue, E3 = drainage problem, E4 = temperature sensor, E5 = overflow, E6 = water leakage, E7 = heating element. Try basic troubleshooting: check water supply, drain hose, door closure. If the problem persists, turn off power and water and call a service.

Can I add dishes after the cycle has started?

Yes, as long as the detergent dispenser has not opened. Open the door slightly to pause (spray arms will stop), then fully open and add dishes. Close the door – the cycle will resume after 10 seconds. Caution: hot water may splash, so open carefully.

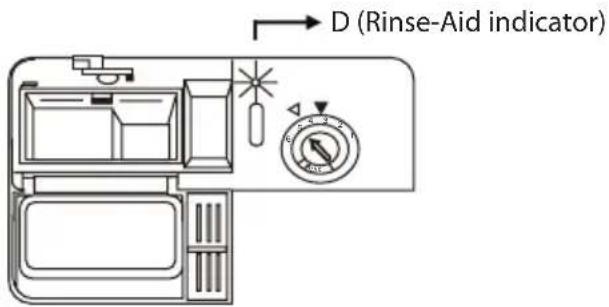

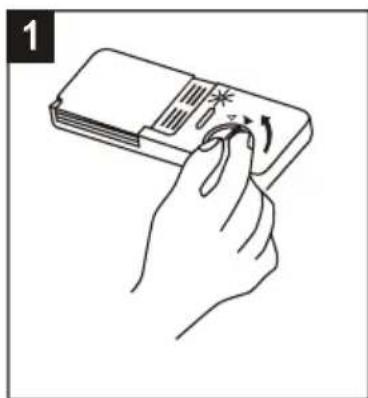

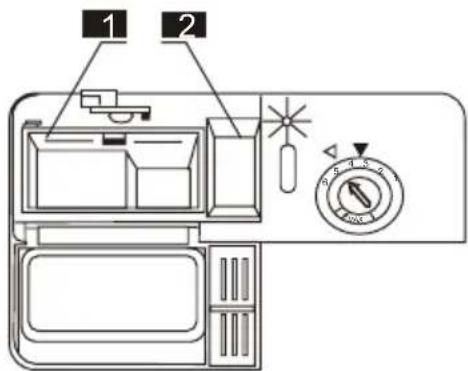

How do I adjust the rinse aid dosage?

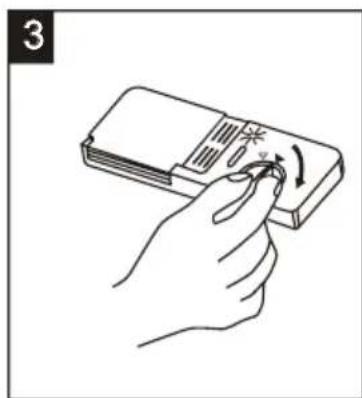

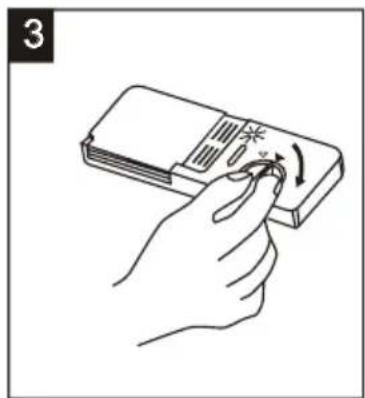

Open the rinse aid dispenser cap and rotate the dial under the cap. Settings range from 1 to 6 (factory set at 5). Increase if you see water spots or lime residue; decrease if sticky whitish streaks appear.

Why is there water standing at the bottom after a cycle?

A small amount of clean water around the outlet is normal; it keeps the water seal lubricated. If the water is excessive or dirty, check the filters for blockage or the drain hose for kinks.

What detergent should I use?

Only use detergent specifically designed for automatic dishwashers. Never use soap, laundry detergent, or hand washing liquid. You can use powder, gel, or tablets (tablets work best in longer programmes). Adjust amount based on water hardness and soil level.

How do I activate the child lock?

Press and hold the Program button for 3 seconds. The child lock indicator will flash 6 times and then stay lit. To deactivate, press and hold the button again for 3 seconds.

USER MANUAL GZ 8705A Guzzanti

Technical line drawing of an open kitchen appliance with internal components (no text or symbols)

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

PŘEČTĚTE SI TENTO NÁVOD K OBSLUZE

Vážený zákazníku,

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a mechanical component with a handle and central hub (no visible text or symbols)

Interior view of a car intake tray with mechanical components (no visible text or symbols)

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

Diagram of a screwdriver with a plastic bag attached, showing no text or symbols

Hand holding a device with a scroll wheel, no visible text or symbols

Line drawing of a hand pressing down on a device with a tool and circular button, showing no text or symbols.

POZNÁMKA:

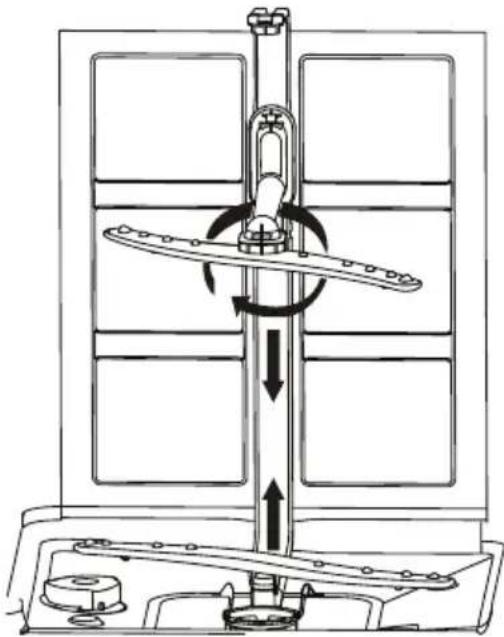

Technical line drawing of a mechanical device with rotating arms and mounting base (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

USCHOVAJTE SI ICH NA NESKORŠIE POUŽITIE

2. LIKVIDÁCIA

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a mechanical component with a handle and central hub (no visible text or symbols)

Interior view of a car intake tray with mechanical components (no visible text or symbols)

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

Diagram of a screwdriver with a plastic bulb and a magnified view of its tip (no text or symbols)

Hand holding a device with a scroll wheel, no visible text or symbols

Line drawing of a hand pressing down on a device with a tool and circular button, showing no text or symbols.

POZNÁMKA:

Mechanical component with spring mechanism and rotating arrow (no text or symbols visible)

Close-up of a mechanical component with a curved blade and circular opening, showing a black arrow indicating direction (no text or symbols)

POZNÁMKA:

Technical line drawing of a mechanical device with rotating arms and mounting base (no text or symbols)

Čistenie dvierok

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

Close-up of a mechanical component with a handle and central hub (no visible text or symbols)

Interior view of a car intake tray with mechanical components (no visible text or symbols)

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

Diagram of a mechanical component with a threaded base and a circular inset showing internal features (no text or symbols)

Hand holding a device with a scroll wheel, no visible text or symbols

Line drawing of a hand pressing down on a device with a button and directional arrows (no text or symbols)

2

Line drawing of a cleaning or cleaning device with labeled components (no text or symbols)

UWAGA:

Close-up of a mechanical device with a spring-loaded handle and rotating button (no visible text or symbols)

Close-up of a mechanical component with a curved blade and circular opening, showing a directional arrow (no text or symbols)

UWAGA:

Technical line drawing of a mechanical device with rotating arms and mounting base (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a mechanical component with a handle and central hub (no visible text or symbols)

Interior view of a mechanical device with a tool and cylindrical component (no visible text or symbols)

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

Diagram of a lamp bulb with a screw and a magnified inset showing internal components (no text or symbols)

Hand holding a device with a scroll wheel, no visible text or symbols

Line drawing of a hand pressing down on a device with a tool and circular button, showing no text or symbols.

MEGJEGYZÉS:

Close-up of a mechanical component with a spring and lever mechanism (no visible text or symbols)

Close-up of a mechanical component with a black handle and circular opening, showing a white base and circular hole (no text or symbols visible)

MEGJEGYZÉS:

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Fagyásvédelem

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Embalažne materiale odstranite pravilno. Ves embalažni material je mogoče reciklirati.

Plastični deli so označeni s standardnimi mednarodnimi kraticami:

Close-up of a mechanical component with a handle and central hub (no visible text or symbols)

Interior view of a car intake tray with mechanical components (no visible text or symbols)

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

Diagram of a lamp with a screw and a magnified inset showing internal components (no text or symbols)

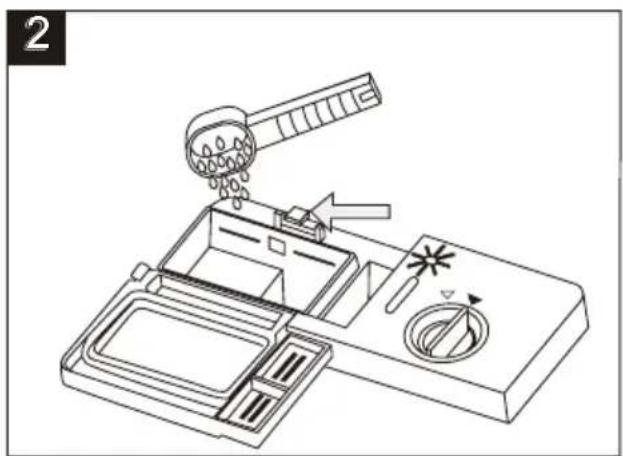

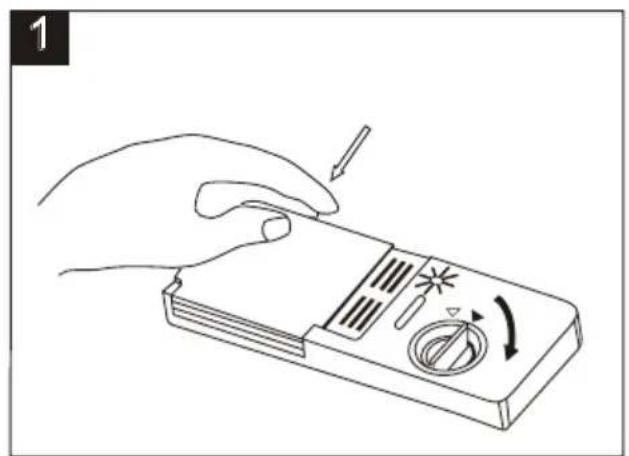

1 Rezervoar odprite tako, da obrnete pokrov v položaj „open“ (proti levi) in ga privzdignete.

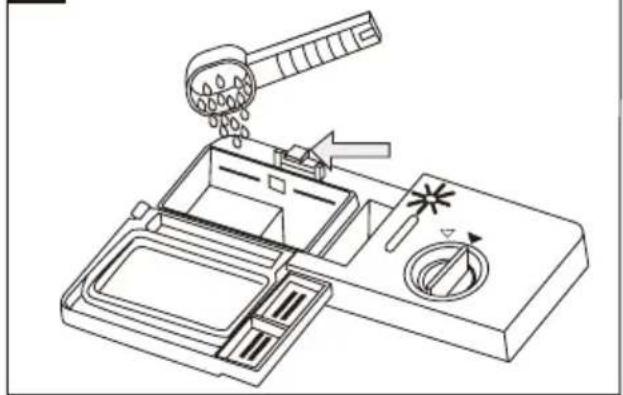

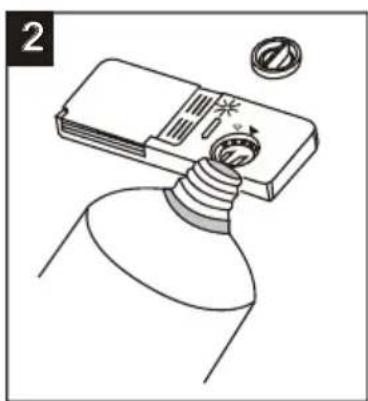

2 Sredstvo za izpiranje nalijte v rezervoar in pazite, da ne nalijete preveč.
3 Ponovno namestite pokrov tako, da ga vstavite v ležišče, poravnanega z oznako „open“, nato pa ga obrnete desno v položaj „closed“ (zaprto.

Line drawing of a hand pressing down on a device with a tool and circular button, showing no text or symbols.

OPOMBA:

Mechanical component with spring and lever mechanism (no visible text or symbols)

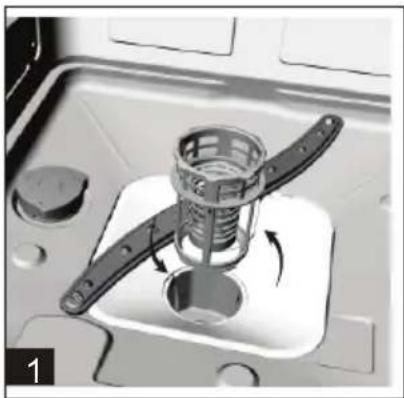

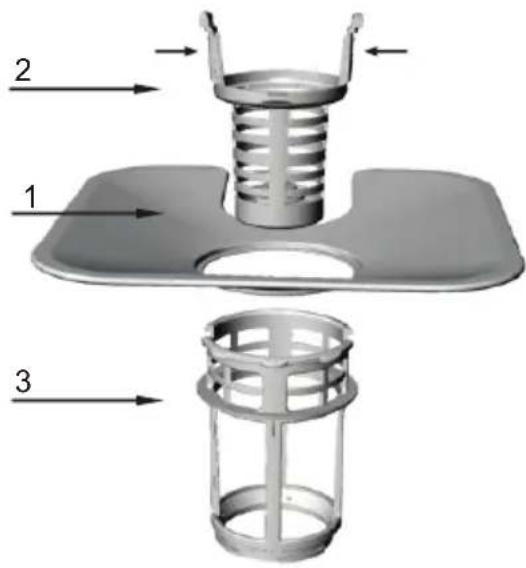

Korak 1: Zavrtite filter v nasprotni smeri urinega kazalca in ga dvignite.

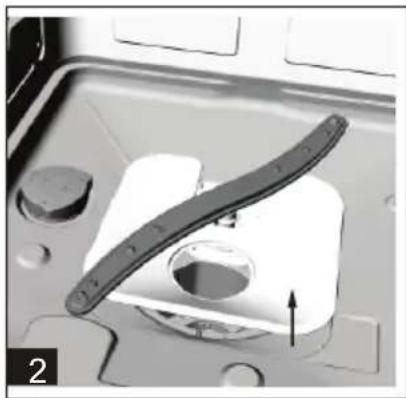

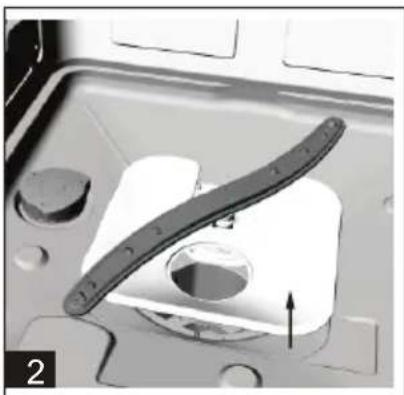

Korak 2: Potegnite filtrirno ploščo navzgor.

Close-up of a mechanical component with a curved blade and circular opening, showing a 2D view (no text or symbols visible)

OPOMBA:

Sklop filtrov odstranite tako, da opravite najprej korak 1 in nato korak 2; ko želite sklop filtrov spet namestiti v stroj, opravite najprej korak 2 in nato korak 1.

Sklop filtrov

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Close-up of a mechanical component with a curved tool and central hub (no visible text or symbols)

Close-up of a kitchen sink with a metal tool and a bowl, no visible text or symbols

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

Diagram of a mechanical component with a threaded base and a circular inset showing a magnified view (no text or symbols)

Hand holding a device with a scroll wheel, no visible text or symbols

Line drawing of a hand pressing down on a device with a circular button and directional arrows (no text or symbols)

2

Technical line drawing of a cleaning or cleaning device with labeled components (no text or symbols)

ANMERKUNG:

Isometric technical diagram of a structural framework with labeled components (no text or symbols present)

* Fakultativ

Besteckschublade

Mechanical component with spring and lever mechanism (no visible text or symbols)

Close-up of a mechanical component with a black curved blade and circular opening, showing a white base and circular hole (no text or symbols visible)

ANMERKUNG:

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Reinigung der Tür

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Please read this User Information carefully and keep it to refer to at a later date.

Pass it on to any subsequent owner of the appliance.

This manual contains sections of Safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Carefully read it before using the dishwasher will help you to use and maintain the dishwasher properly.

BEFORE CALLING FOR SERVICE

To review the section on Troubleshooting Tips will help you to solve some common problems by yourself and no need to ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

CONTENTS

1. Safety Information .... 3

2. Disposal......6

3. Operation Instruction......7

Control Panel....7

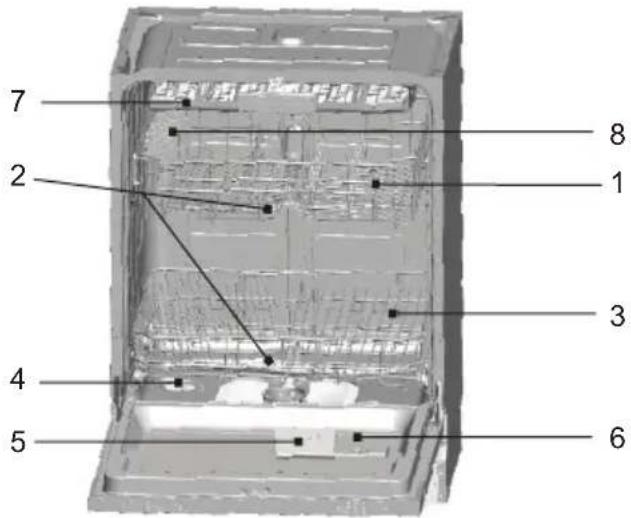

Dishwasher Features 8

1. Prior Using for the First Time 8

Set the water softener 8

Loading the Salt into the Softener....9

Fill the Rinse Aid Dispenser....10

Rinse aid dispenser....10

Function of Detergent....11

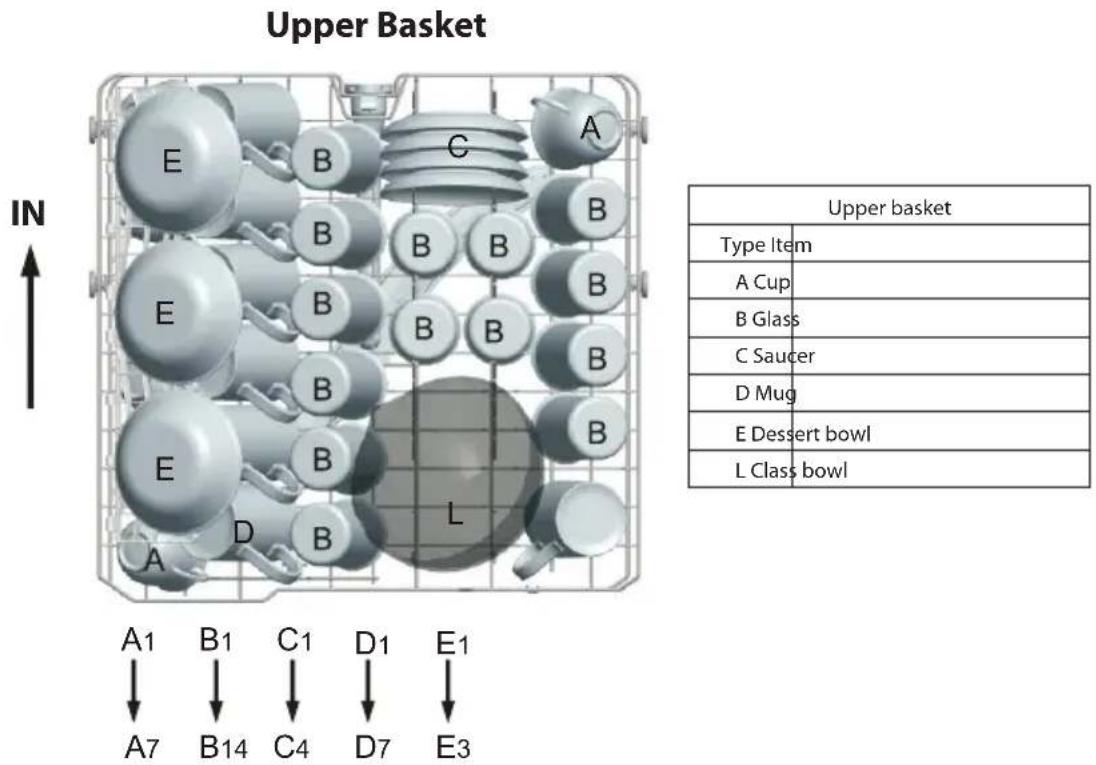

1. Loading the Dishwasher Baskets .....14

2. Starting a Washing Programme .....18

Wash cycle table 18

Turning on the Appliance....19

Change the Programme ....19

Forget to Add Dish....19

1. Maintenance and cleaning.....20

How to Keep Your Dishwasher in Shape......22

1. Troubleshooting Tips......23

Error codes....23

Before Calling for Service ....23

Technical Data Sheet....26

1. SAFETY INFORMATION

WARNING!

When using your dishwasher, follow the basic precautions including the following:

WARNING! HYDROGEN GAS IS EXPLOSIVE

Under certain conditions, Hydrogen gas may be produced in a hotwater system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot-water system has not been used for such a period, before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes. This will release some accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame this time.

WARNING! PROPER USE

• Do not abuse, sit on, or stand on the door or dish basket of the dishwasher.
• Do not touch the heating element during or immediately after using.
• Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating. There is a risk of water squirting out.
• Do not place any heavy objects or stand on the door when it is open. The appliance could tip forward.
• When loading items to be washed:

• Locate sharp items so that they are not likely to damage the door seal;

• Load sharp knives with the handles up to reduce the risk of cuttype injuries;

• Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.

- When using your dishwasher, you should prevent plastic items from contacting with heating element.

- Check that the detergent receptacle is empty after completion of the wash cycle.

- Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

- Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.

- Other means for disconnection from the supply must be incorporated in the fixed wiring with at least 3mm contact separation in all poles.

- Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.

• These instructions shall also be got from the manufacturer or responsible Vendor.

• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

• Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with skin and eyes, and keep children away from the dishwasher when the door is open.
• The door should not be left in the open position since this could present a tripping hazard.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- Please dispose of packing materials properly.

- During installation, the power supply must not be excessively or dangerously bent or flattened.

- Do not tamper with controls.

- The appliance is to be connected to the water mains using new hose sets, and the old hose-sets should not be reused.

• Make sure that the carpet must not obstruct the openings at the bottom base.

• Use the dishwasher only for its intended function.

• The dishwasher is intended for indoor use only.

- The dishwasher is not designed for commercial use. It is intended for use in domestic households and in similar working and residential environments.

READ AND FOLLOW THIS SAFETY INFORMATION

CAREFULLY SAVE THESE INSTRUCTIONS

2. DISPOSAL

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Dispose of the dishwasher packaging material correctly.

All packaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

(e.g. PS for polystyrene, padding material)

This appliance is identified according to the European guideline 2002/96/EC on waste electrical and electronic equipment -WEEE. The guideline specifies the framework for an EU-wide valid return and re-use of old appliances.

WARNING!

Packaging material could be dangerous for children!

For disposing of package and the appliance please go to a recycling centre. Cut off the power supply cable and make the door closing device unusable.

Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service

IMPORTANT!

To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

1 Power switch: To turn on/off the power supply.
2 Delay button: The START DELAY will allow you to delay the start time of any cycle automatically up to 24 hours.
3 Program select button/Child lock button: Press the button to select the program. The "Child lock" will be available when you press the button 3 seconds, and "LO" flashes 6 times on digital displays.
4 Function alternative button: Press this button you can choose the additional function "3 IN 1" or dry+, and the corresponding light flashes.
5 Program indicator light: When you select a washing programme, the corresponding light will display.
6 Dry+ indicator: An increased temperature during the final rinse stage will improve the drying process; The indicator will be available when the Dry+ button is selected.

7 Salt refill indicator: The indicator lights up when the softener needs to be refilled.
8 Rinse aid refill indicator: The indicator lights up when dispenser needs to be refilled.
9 3 in 1 indicator: The indicator lights up when the additional function be selected.
10 Child lock indicator: The "Child Lock" will be available when you press the Child lock buttons for 3 seconds, and the "Child lock" indicator lights up after flashing 6 times.
11 Digital display: To display the running time remain, malfunction codes and delay time.

DISHWASHER FEATURES

Front View

1 Upper Basket
2 Spray Arms
3 Lower Basket
4 Water Softener
5 Detergent Dispenser
6 Rinse Aid Dispenser
7 Cutlery Tray
8 Cup Holder

4. PRIOR USING FOR THE FIRST TIME

Before using your dishwasher for the first time:

A. Set the water softener
B. Pour 500ml of water inside the salt container and then fill with dishwasher salt
C. Fill the rinse aid dispenser
D. Function of detergent

A. Set the water softener

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder the water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Setting

The amount of salt dispensed can be set from H0 to H7.

Salt is not required at the set value H0.

1. Find out about the hardness value of your tap water. Your water utility company will help you with this.
   2 Set value can be found in the water hardness table.
2. Close the door.
3. Switch on „Power“ switch.
4. Hold down „Delay“ button and then press „Program“ button for 5 seconds.
   The buzzer rings one time and H.. flashes on the digital display. (factory setting is H4)

For optional

1. Set value can be found in the water hardness table.
2. Close the door.
3. Switch on on/off switch.
4. Hold down „Delay“ button and press „Program“ button for 5 seconds.
   The buzzer rings one time and H.. flashes on the digital display. (factory setting is H4)

To change the setting:

1. Press „Delay“ button.

Each time the button is pressed, the set value increases by one level; when the value of H7 has been reached, the display jumps back to H0 (off).

1. Press „Program“ button. The chosen setting has now been stored.

Water hardness and Indicator light status table

Water hardness Mmol/l		Set value on the	machine
°Clark Range
0-8 soft 0-	1.1 H0
9-10 soft 1-	2-1.4 H1
11-12 medium	1.5-	1.8 H2
13-15 medium	1.9-	2.1 H3
16-20 medium	2.2-	2.9 H4
21-26	hard	3.0-3.7 H5
27-38	hard	3.8-5.4 H6
39-62	hard	5.5-8.9 H7

B. Loading the Salt into the Softener

Always use salt intended for use with dishwasher.

NOTE: If your model has no water softener, you may skip this section

WATER SOFTENERThe hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils.The appliance is equipped with a special softener that uses salts specifically designed to eliminate lime and minerals from the water.

The salt container is located beneath the lower basket and should be filled as follows:

Attention!

Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any caused damages.

Only fill with salt just before starting one of the complete washing programmes.

This will prevent any grains of salt or salty water, which may have been split, remaining on the bottom of the machine for any period of time, which may cause corrosion.

After the first wash cycle the control panel light expires.

Close-up of a mechanical component with a handle and central hub (no visible text or symbols)

Interior view of a kitchen sink with a metal tool and bowl (no visible text or symbols)

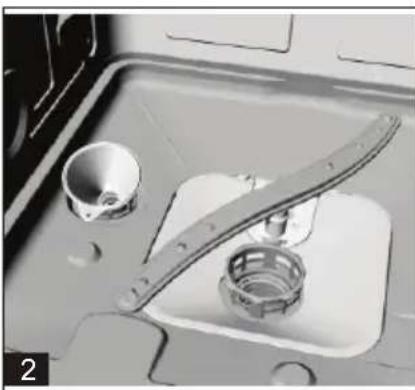

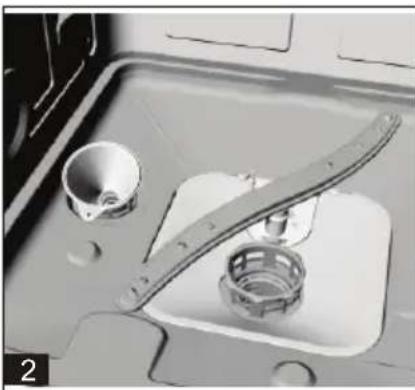

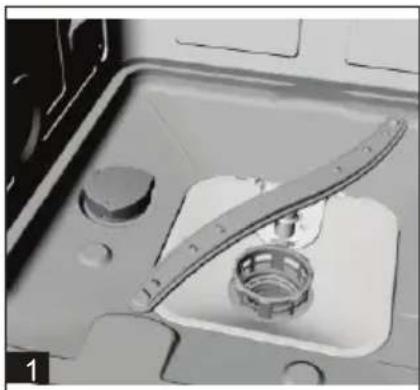

A. Remove the lower basket and then unscrew and remove the cap from the salt container. 1
B. If you are filling the container for the first time, fill 2/3 of its volume with water (around 500 ml).
C. Place the end of the funnel (supplied) into the hole and introduce about 2kg of salt. It is normal for a small amount of water to come out of the salt container.
D. Carefully screw the cap back on.
E. Usually, the salt warning light will be off in 2-6 days after the salt container is filled with salt.

NOTE:

1. The salt container must be refilled when the salt warning light in the control panel comes on. Though the salt container is filled enough, the indicator light may not black out before the salt fully dissolve. If there is no salt warning light in the control panel (for some models), you can judge when to load the salt into the softener by the cycles that the dishwasher had run (see the following schema).
2. If there are spills of the salt, a soak program could be run to wipe them out.

C. Fill the Rinse Aid Dispenser

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light on the control panel, you can judge the amount of rinse-aid by the color of the optical level indicator „D“ located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1/4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full

3/4 full

1 / 2 full

☐ 1 / 4 full - Should refill to eliminate spotting

○ Empty

RINSE AID DISPENSER

Line drawing of a hand holding a device with a scroll wheel (no text or symbols)

Diagram of a lamp with a screw base and a magnified inset showing internal components (no text or symbols)

Hand holding a device with a scroll wheel, no visible text or symbols

1 To open the dispenser, turn the cap to the „open“ (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, be careful not to overfill.
3 Replace the cap by inserting it aligned with „open“ arrow and turning it to the „closed“ (right) arrow.

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes that can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes.

Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser.

To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 140 ml.

Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills with a damp cloth. Don't forget to replace the cap before you close dishwasher door.

Attention!

Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming during the next wash.

Adjusting Rinse Aid Dispenser

The rinse aid dispenser has four or six settings. Always start with the dispenser set on „4“ If spots and poor drying are problems, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to „5“. If the dishes still are not drying properly or are spotted, adjust the dial to the next higher number until your dishes are spot-free. The dose is factory set in position 5.

MAX
Adjust lever (Rinse)

NOTE: Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish streaks on the dishes or a bluish film on glassware or knife blades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of commercial quality detergents are suitable for this purpose.

Concentrated Detergent

Based on their chemical composition, dishwasher can be split in two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

The use of „Eco“ washing programme in conjunction with concentrated detergents reduces pollution and is good for your dishes; these washing programmes are specially matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason “Eco” washing programme in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programme.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent cannot dissolve and develop their full cleaning power during short programmes. Therefore please use long programmes when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each washing cycle following the instructions provided in the Wash Cycle Table. Your dishwashers use less detergent and rinse aid than conventional dishwashers. Generally, only one tablespoon of detergent is needed fora normal wash load. Also, more heavily soiled items need more detergent. Always add the detergent just before starting dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

Line drawing of a hand pressing down on a device with a tool and circular button, showing no text or symbols.

NOTE:

1 If the lid is closed: press release button. The lid springs open.
2 Always add the detergent just before starting each wash cycle. Only use branded detergent aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.

Fill in the detergent

Fill the detergent dispenser with detergent.

The marking indicates the dosing levels, as illustrated on the right:

1 The place of main wash cycle detergent placed, „MIN“ means approximately 20 g of detergent.
2 The place of pre-wash cycle detergent placed, approximately 5 g of detergent.

Please observe the manufacturer's dosing and storage recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent Chamber. This detergent will take effect during the pre-wash phase.

NOTE:

You find information about the amount of detergent for the single programme on the last page. Please be aware that according to the level soiling and the specific hardness of water, differences are possible. Please observe the manufacturer's recommendations on the detergent packaging.

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chloride

Normally new pulverized detergent is without phosphate. The water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not remove completely. In this case please choose a programme with higher temperature.

5. LOADING THE DISHWASHER BASKETS

For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and silverware baskets may vary from your model.

Attention before or after Loading the Dishwasher Baskets

Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in the following way:

1. Items such as cups, glasses, pots/pans, etc. are stood upside down.
2. Curve items, or those with recesses, should be at a slant so that water can run off.
3. They are stacked securely and can not tip over.
4. They do not prevent the spray arms from rotating while washing takes place.

Very small items should not be washed in the dishwasher as they could easily fall out of the baskets.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cup and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water.

Upper Basket Height Adjustment

Basket height adjustment mechanism on the upper basket of your machine is designed to let you adjust the height of your upper basket upwards or downwards, without removing it from your machine when it is full, and create large spaces at the top or bottom area of your machine as needed. Basket of your machine is set to lower position in factory settings.

In order to raise your basket, hold it from both sides and pull it upwards. In order to lower it, hold it from both sides again, and leave it.

Loading the Lower Basket

We recommend that you place large items which are most difficult to clean in to the lower basket: pots, pans, lids, serving dishes and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the baskets in order to avoid blocking the rotation of the top spray arm.

Pots, serving bowls, etc. must always be placed top down.

Deep pots should be slanted to allow water to flow out.

The bottom basket features fold down tine rows so that larger or more pots and pans can be loaded.

Lower Basket

Lower basket

Type Item

C Saucer

E Dessert bowl

H Soup plate

I Dinner plate

J Dessert plate

K Oval plate

F Small bowl

G Oven pot

M Melamine dessert plate

N Melamine bowl

\* Upper/Lower basket Folding racks

Folding racks consisting of two parts that are located on the upper and lower basket of your machine are designed in order to let you place big items easier as pots, pans, etc. If requested, each part can be folded separately, or all of them can be folded and larger can be obtained. You can use folding racks by rasing then upwards, or by folding.

* For optional

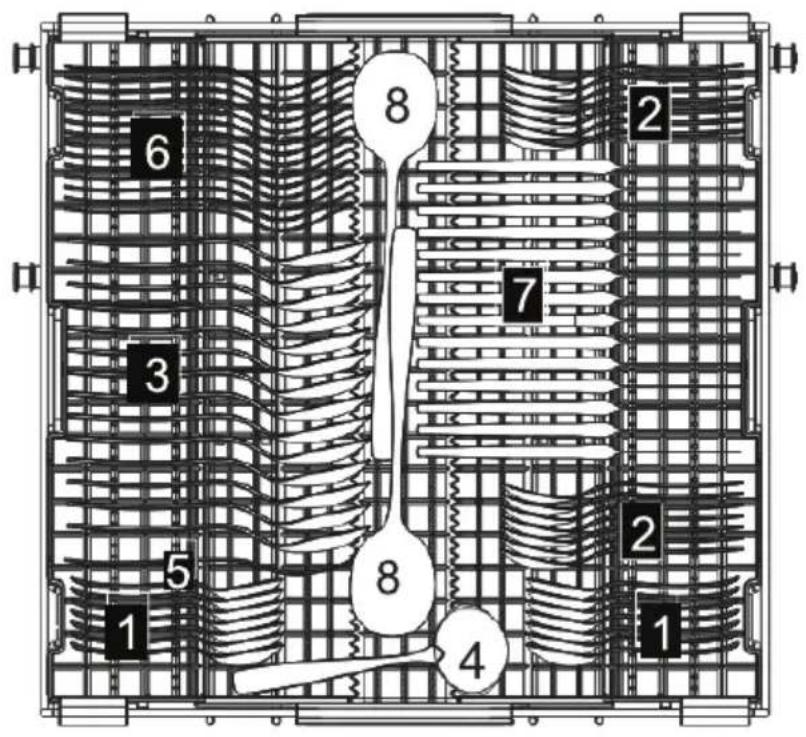

Cutlery tray

Arrange the cutlery in the tray as shown. Cutlery should be placed to ensure that water runs off freely.

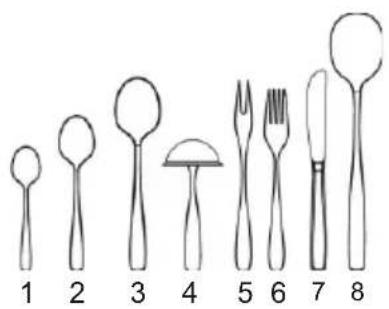

Cutlery basket
Type	Item
1	Tea spoons
2	Dessert spoons
3	Soup spoons
4	Gravy ladle
5	Serving fork
6	Forks
7	Knives
8	Serving spoons

For washing in the dishwasher the following cutlery/dishes

WARNING!

Do not let any item extend through bottom.

Are not suitable

Cutlery with wooden, horn china or mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that is not temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Lead crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibre

Are of limited suitability

Some types of glasses can become dull after a large number of washes. Silver and aluminium parts have a tendency to discolour during washing. Glazed patterns may fade if machine washed frequently

NOTE:

Do not put in items that are dirty of cigarette ash, candle wax, lacquer or paint. If you buy new dishes please make sure that they are suitable for dishwashers.

NOTE:

Please do not overload your dishwasher. There is only space for 14 standard dishes. Do not use dish that is not suitable for dishwashers. This is important for good results and for reasonable energy consumption.

Loading Cutlery and Dishes

Before loading the dishes, you should: Remove large left-over Soften remnants of burnt food in pans

When Loading the Dishes and Cutlery, Please Note:

Dishes and cutlery must not impede the rotation of the spray arms.

Load hollow items such as cups, glasses, pans etc. with the opening downwards so that water cannot collect in the container or a deep base.

Dishes and items of cutlery must not lie inside one another, or cover each other

■ To avoid damage to glasses, they must not touch
- Load large items which are most difficult to clean into the lower basket
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups

Attention!

Long bladed knives stored in an upright position are a potential hazard!

Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.

Damage to Glassware and other Dishes

Possible causes:

■ Type of glass or manufacturing process. Chemical composition of detergent.
■ Water temperature and duration of dishwasher programme.

Suggested remedy:

■ Use glassware or porcelain dishes that have been marked dishwasher-proof by the manufacturer.
Use a mild detergent that is described as kind of dishes. If necessary, seek further information from detergent manufacturers.
■ Select a programme with a low temperature.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible after the programme has ended.

At the End of the Wash

When the working cycle has finished, the buzzer of dishwasher will ring for 6 times, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

6. STARTING A WASHING PROGRAMME

Wash cycle table

Program	Cycle Selection Information	Description of Cycle	Detergent Pre/main	Running Time (min)	Energy (kWh)	Water (L)
Intensive	For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while.	Pre-wash Main wash (60 °C) Rinse 1 Rinse2 Hot rinse Drying	4/18g (or 3 in 1)	213 1.5	00 18.0
Eco (*EN60436) (Standard Programme)	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. Standard daily cycle.	Pre-wash Main wash (48 °C) Hot rinse Drying	4/18g (or 3 in 1)	239 0.8	48 10
Light	Light wash cycle to be used for more delicate items which are sensitive to high temperatures. (Run cycle immediately after use)	Pre-wash Main wash (45 °C) Rinse Hot rinse Drying	3/16g (or 3 in 1)	152 0.9	50 14.0
Crystal	For lightly soiled loads, such as plates, glasses, bowls and lightly soiled pans.	Main wash (40 °C) Rinse Hot rinse Crystal Drying	3/16g 124	0.900 11.0
[SC34] 60 min	For lightly and normally soiled plates and pans for every day.	Hot rinse 1 Hot rinse 2 Hot rinse (50 °C) Drying	3/16g 60	1.000 11.5
Rapid	A shorter wash for lightly soiled loads that do not need drying.	Main wash (45 °C) Hot rinse	15g 40	550 7.0
Pre-Rinse	To rinse dishes that you plan to wash later that day.	Pre-wash 12 0.010	4.0

1. The ECO program is suitable to clean normally soiled tableware, it is the most efficient program in terms of its combined energy and water consumption

2. Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. water and energy consumption and is not recommended.

3. Washing tableware in a household dishwasher usually consumes less energy and water than hand dishwashing when the household dishwasher is used according to this instruction manual.

* EN 60436: this program is the test cycle

The information for comparability test in accordance with EN 60436, as follows:

- Capacity: 14 settings

- Position of upper basket: Lower position

- Rinse aid setting: 6 (or 4 for four setting dispenser)

Turning on the Appliance

Starting a wash cycle...

Draw out the lower and upper basket, load the dishes and

1. Push them back. It is recommended to load the lower basket first, then the upper one (see the section entitled „Loading the Dishwasher“). Pour in the detergent (see the section entitled „Salt, Detergent and Rinse Aid“).
2. Insert the plug into the socket. The power supply is 220-240V AC 50 Hz, the specification of the socket is 12 A 250 VAC 50 Hz.

Make sure that the water supply is turned on to full pressure. Open the door, press the ON/OFF button, Press the "program." button to select a desired "Wash cycle". (See the section entitled "Wash Cycle Table"). With a little force to ensure the door is properly closed.

NOTE:

A click could be heard when the door is closed perfectly.

When the washing is over, you can shut off the switch by pressing ON/OFF button.

Change the Programme

Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled „ Fill in the Detergent „).

Open the door, Press current prog. button more than three seconds to cancel the programme, then you can change the programme to the desired cycle setting (see the section entitled „Starting a wash cycle...”). Then, close the door.

NOTE: If you open the door when washing, the machine pauses and warning alarm rings, the display appears E1. When you close the door, the machine will keep on working after 10 seconds.

The 6 programme lights show the state of the dishwasher:

a) All program lights off --> stand by
b) One of the program lights on --> cycle running
c) One of the program lights blinking --> pause

NOTE:

If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main power and water supply before calling a service.

Forget to Add Dish

A forgotten dish can be added any time before the detergent cup opens.

1. Open the door a little to stop the washing.
2. After the spray arms stop working, you can open the door completely.
3. Add forgotten dishes.
4. Close the door, the dishwasher will work after ten seconds.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

Switch Off the Dishwasher.

The digital display appears „---“ and the buzzer rings 6 times, only in this case the programme has ended.

1. Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap!

Open the door carefully. Hot steam may escape when the door is opened!

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper basket onto the dishes in the lower one.

7. MAINTENANCE AND CLEANING

Filtering System

The filter is used to avoid the big remnants and other sundries getting inside the pump. The residue can obstruct the filter in sometime.

The filter system consists of a coarse filter, a flat (Main filter) and a micro filter (fine filter).

1 Flat filter

Food and debris will be trapped by a special jet on the lower spray arm.

2 Coarse filter

Big debris, such as bone and glass that could clog the drain will be trapped in the coarse filter.

To remove an item caught in this filter, gently squeeze the taps on the top of this filter and lift it out.

3 Micro filter

This filter holds soil and food residue in the sump area and prevents it from being redeposit on the dishes during a cycle.

- Inspect the filters for obstructions every time the dishwasher has been used.

- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

Mechanical component with spring and lever mechanism (no visible text or symbols)

Step 1: contrarotate the Coarse filter, and then lift it up;

Step 2: lift the Flat filter up

Close-up of a mechanical component with a curved blade and circular opening, showing no visible text or symbols.

NOTE:

If operate from step 1 to step 2, the filter system will be removed; while operate from step 2 to step 1, the filter system will be installed.

Filter assembly

For best performance and results, the filter assembly must be cleaned. The filter efficiently removes food particles from the wash water, allowing it to be recirculated during the cycle. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter assembly, pull on the cup handle in the upward direction. The entire filter assembly should be cleaned once a week. To clean the coarse filter and the micro filter, use a cleaning brush. Then, reassemble the filter parts as shown in the figures above and reinsert the entire assembly in the dishwasher, positioning in its seat and pressing downward. The dishwasher must never be used without the filters. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

WARNING!

Never run the dishwasher without the filters in place. When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of dishwasher could be debased.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To remove the spray arms, screw off the nut clockwise to take out the washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing thoroughly.

Caring for the Dishwasher

To clean the control panel, use a lightly dampened cloth then dry thoroughly.

To clean the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Protect Against Freezing

If your dishwasher is left in an unheated place during the winter, ask a service technical to:

1. Cut off electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter in the tub and the bottom and use a sponge to use up water in sump.

Cleaning the Door

To clean the edge around the door, you should use only a soft warm, damp rag. To prevent penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will scratch the finish. Some papers towels can also scratch or leave marks on the surface.

Follow these steps when there is foreign material in the dishwasher.

WARNING!

Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components. It is not allowed to use the abrasive agent or some paper towel because of the risk of scratching or leaving spots on the stainless steel surface.

Technical line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

How to Keep Your Dishwasher in Shape

After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside.

Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks.

No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Use only a cloth and warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water and a little white vinegar, or a cleaning product made specifically for dishwashers.

When You Go on holiday

When you go on holiday, it is recommended that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly ajar. This will help the seals last longer and prevent odors from forming in the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odors to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this.

Attention:

The installation of the pipes and electrical equipments should be done by professionals.

Warning
	Electrical Shock Hazard!Disconnect electrical power before installing dishwasher.Failure to do so can result in death or electrical shock.

8. TROUBLESHOOTING TIPS

Error codes

When some malfunctions happen, the appliance will display error codes to warn you.

Codes Meanings Possible Causes
E1 Door open
E2 Water inlet Water inlet malfunction
E3 Water drainage Water drainage malfunction
E4 Temperature sensor Temperature sensor malfunction
E5 Overflow/leakage Overflow occurs/Water leakage occurs
E6 Water leakage Water leakage occurs
E7 Heating element	Abnormal heating

WARNING!

If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

Availability of Spare Parts

Dependant upon the spare part, these are available for a minimum period of seven years for professional repairers or a minimum of ten years for professional repairers and end-users. Contact the Customer Service helpline for assistance.

Before Calling for Service

Reviewing the charts on the following pages may make you be free of calling for service.

Problem	Possible Causes	What To Do
Dishwasher doesn’t run.	Fuse blown, or the circuit breaker acted.	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
	Power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket.
	Water pressure is low.	Check that the water supply is connected properly and the water is turned on.
Drain pump doesn’t stop.	Overflow.	The system is designed to detect an overflow. When it does, it shuts off the circulation pump and turns on the drain pump.
Problem Possible Causes What To Do
Noise. Some audible	sounds are normal.	Sound from detergent cup opening.
	Utensils are not secure in the baskets or something small has dropped into the basket.	To ensure everything is secured in the dishwasher.
	Motor hums. Dishwasher	has not been used regularly. If you do not use it often, remember to set it to fill and pump out every week, which will help keep the seal moist.
Suds in the tub. Improper detergent. Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then start the „pre-rinse“ wash cycle to drain out the water... Repeat if necessary.
Stained tub interior.	Detergent with colorant was used.	Make sure that the detergent is the one without colorant.
Dishes and flatware not clean.	Improper program. Improper basket loading.	Select a stronger programme. Make sure that the action of the detergent dispenser and spray arms are not blocked by large dishware.
Spots and filming on glasses and flatware.	1 Extremely hard water2 Low inlet temperature3 Overloading the dishwasher4 Improper loading5 Old or damp powder detergent6 Empty rinse agent dispenser7 Incorrect dosage of detergent	To remove spots from glassware:1 Take out all metal utensils out of the dishwasher.2 Do not add detergent.3 Choose the longest cycle.4 Start the dishwasher and allow it to run for about 18 to 22 minutes, then it will be in the main wash.5 Open the door to pour 2 cups of white vinegar into the bottom of the dishwasher.6 Close the door and let the dishwasher complete the cycle. If the vinegar does not work: Repeat as above, except use 1/4 cup (60 ml)of citric acid crystals instead of vinegar.
Cloudiness on glassware	Combination of soft water and too much detergent	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
Yellow or brown film on inside surfaces	Tea or coffee stains Using a solution of 1/2 cup of bleach and 3 cups of warm water to remove the stains by hand.⚠ WARNINGYou have to wait for 20 minutes after a cycle to let the heating elements cool down before cleaning interior; otherwise, burns will happen.
	Iron deposits in water can cause an overall film	You have to call a water softener company for a special filter.
Problem Possible Causes	Causes What To Do
White film on inside surface.	Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
The Detergent dispenser lid cannot be closed properly.	Clogged detergent residue is blocking the catch.	Clean the detergent from the catch.
Detergent left in dispenser cups.	Dishes block detergent Cups.	Re-loading the dishes properly.
Steam. Normal phenomenon. There is some steam coming through the vent by the door latch during drying and water draining.
Black or gray marks on dishes.	Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
Water standing on the bottom of the tub.	This is normal. A small amount of clean water around the outlet on the tub bottom keeps the water seal lubricated.
Dishwasher leaks.	Overfill dispenser or rinse aid spills.	Be careful not to overfill the rinse aid dispenser. Spilled rinse aid could cause oversuding and lead to overflowing. Wipe away any spills with a damp cloth.
	Dishwasher isn't level. Make sure the dishwasher is level.

If the above chart does not solve your problem, contact a dedicated repairman

Self-maintenance, unprofessional maintenance will affect the safety of the product use, affect the ementation of the warranty policy.

Technical Data Sheet

Sheet of household dishwasher according to EU Directive 2019/2017:

Manufacture	GUZZANTI
Model GZ8705A
Standard place settings 14
Energy effici Airborne acoustical noise emissions ency class^1	D
PARAMETER UNIT VALUE
Eco programme energy consumption (EPEC) rounded to three decimal places	kWh/cycle 0.848
Standard programme energy consumption (SPEC) rounded to three decimal places	kWh/cycle 1.700
Energy Efficiency Index (EEI) - 49.9
Eco programme water consumption (EPWC) rounded to one decimal place	l/cycle 10.0
Cleaning performance index (IC) - 1.13
Drying performance index (ID) - 1.09
Duration of the eco programme (Tt) rounded to the nearest minute h:min 3:59
Power consumption in off-mode (Po) rounded to two decimal places W	0.49
Power consumption in standby mode (Psm) rounded to two decimal places	W	0.60
Does standby mode include the display of information?	-	No
Power consumption in standby mode (Psm) in condition of networked standby (if applicable), rounded to two decimal places	W	-
Power consumption in delay start (Pds) (if applicable) rounded to two decimal places	W	1.00
Airborne acoustical noise emissions	dB(A) re 1 pW	49
Mounting	Freestanding
Could be built-in	Yes
Height	81.5 cm
Width	59.6 cm
Depth (with connectors)	55.8 cm
Power consumption	1850 W
Rated voltage / frequency	AC 220-240 V/ 50 Hz
Water pressure (flow pressure)	0,4 - 10 bar = 0,04 - 1,0 MPa

NOTE:

1. A (highest efficiency) to D (lowest efficiency).

The device meets the European standards and the directives in the current version at delivery.

• LVD 2014/35/EU
• EMC 2014/30/EU
• EUP 2019/2022

NOTE:

The above values have been measured in accordance with standards under specified operating conditions. Results may vary greatly according to quantity and pollution of the dishes, water hardness, amount of detergent, etc.

The manual is based on the European Union's standards and rules.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
