GZ 3061 - Vacuum Sealer Guzzanti - Free user manual and instructions

Product Type	Vacuum Sealer
Brand	Guzzanti
Model	GZ 3061
Color	Black and Silver
Dimensions (W x D x H)	38.5 x 9.5 x 7.5 cm
Weight	1.6 kg
Power Supply	220-240V, 50Hz
Power Consumption	130 W
Sealing Length	30 cm
Vacuum Pump	Single-stage
Material	ABS Plastic with stainless steel heating strip
Functions	Vacuum seal, Seal only, Pulse vacuum, Marinate
Accessory Port	Yes, for canisters and bags
Included Accessories	5 vacuum bags, accessory hose
Safety Features	Overheat protection, automatic power off
Cleaning	Wipe with a damp cloth; do not submerge in water
Storage	Upright or flat, with cord wrap
Warranty	2 years
Certifications	CE, RoHS
Repairability	Replaceable sealing strip and gasket

Frequently Asked Questions - GZ 3061 Guzzanti

How to use the vacuum sealer?

Place the bag in the sealing channel, close the lid, and select the Vacuum Seal function. The machine will automatically vacuum and seal the bag.

Can I seal bags without vacuum?

Yes, use the Seal Only function to seal the bag without removing air. This is useful for items that don't require vacuum sealing.

What types of bags are compatible?

Use specially designed vacuum sealer bags with textured interior. Bags should be at least 28 cm wide to fit the sealing bar.

How to clean the appliance?

Unplug the unit and wipe the exterior with a damp cloth. For the sealing strip, clean with a dry brush. Do not immerse in water.

Why is the machine not sealing properly?

Ensure the bag is placed evenly and the lid is fully closed. Check if the sealing strip is dirty or worn. Replace if necessary.

Can I use it for liquids?

For liquids, use the Pulse function to manually control vacuuming until liquid stops bubbling, then seal immediately.

How to store the appliance?

Store upright or flat in a dry place. Wrap the power cord around the base to keep it tidy.

What to do if the appliance overheats?

The overheat protection will automatically shut off the unit. Let it cool down for 20 minutes before reuse.

How to replace the sealing strip?

Open the lid, remove the old strip, and insert a new one (model-specific). Ensure it is properly aligned before closing.

Is the appliance suitable for commercial use?

No, this vacuum sealer is designed for household use only. For commercial purposes, consider a heavier-duty model.

USER MANUAL GZ 3061 Guzzanti

3D rendering of a transparent plastic water heater with three compartments and a coiled tube (no text or symbols visible)

Návod k obsluze Návod na obsluhu Instrukcja obsługi Használati útmutató Navodila za uporabo Gebrauchsanleitung Instruction manual

ODSÁVÁNÍ VZDUCHU ZE SKLENĚNÉ NÁDOBY

Technical line drawings of three mechanical components: a square housing with a central knob, a circular dial with internal features, and a rectangular housing with a handle (no text or symbols)

Obr. 1.0 Obr. 2.0 Obr. 3.0

ČIŠTĚNÍ SKLENĚNÝCH NÁDOB

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Technical line drawings of three mechanical components: a square housing with a central knob, a circular dial with internal features, and a rectangular housing with a handle (no text or symbols)

Obr. 1.0 Obr. 2.0 Obr. 3.0

ČISTENIE SKLENENÝCH NÁDOB

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Technical line drawings of three mechanical components: a square pot, a circular dial with internal features, and a rectangular housing (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Technical line drawings of three mechanical components: a square housing with a conical top, a circular dial with internal features, and a rectangular housing with a handle (no text or symbols)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Technical line drawings of three mechanical components: a square housing, a circular dial with internal features, and a rectangular housing (no text or symbols)

Abb. 1.0 Abb. 2.0 Abb. 3.0

REINIGUNG DER GLASBEHÄLTER

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

1. Wash the container in water and clean the lid with a damp cloth; dry all completely.

2. Place the food into the container and leave at least 2cm room between the food and the top edge of the container, Clean the top edge of the container again and the underside of the lid and the seal of the container lid, then place the container lid on the container.

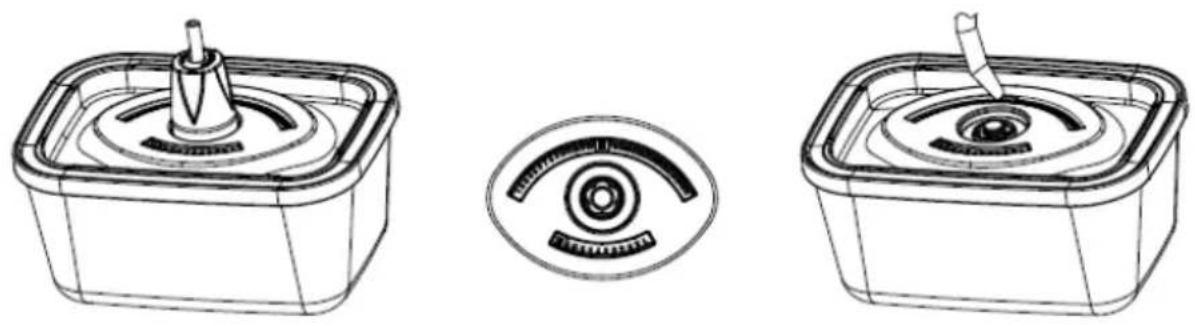

3. Take the vacuum and insert the end of it into the air extraction opening of the appliance and the other end on the lid middle area to cover the silicone valve. See Fig 1.0

4. Close the appliance lid.

5. Press the Canister button on the appliance, the vacuum process begins. To make sure that no air can enter between the container and the lid, press down on the lid with your hand during vacuuming. The appliance switches off automatically once the required vacuum has been reached.

6. Gently pull out the air extraction hose from the lid.

7. Setting the date and monthly manually after vacuumed, See Fig 2.0

8. If need to release the air and open the container lid, just use one finger to push aside the silicone valve. See Fig 3.0

Technical line drawings of three mechanical components: a square housing with a conical top, a circular dial with internal gear mechanism, and a rectangular housing with a handle (no text or symbols)

Fig. 1.0 Fig. 2.0 Fig. 3.0

CLEANING GLASS CONTAINERS

1. You can clean the containers in warm washing up water or in a dishwasher. Thoroughly dry the items after cleaning.

2. Do not clean the lids in the dishwasher.

SAFETY INFORMATION

1. This item must be cleaned after each vacuuming process, if the device is not maintained in a clean condition, can also result in a dangerous condition in the device as well as in the growth of fungus and bacteria.

2. Do not use any agressive or abrasive cleaning agents or solvents.

3. Do not scrape off stubborn dirt with hard items.

4. Dry thoroughly before using again.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
