Product Type	Refrigerator
Brand	Concept
Model	LKR3455BER
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	65 kg
Energy Rating	A+
Annual Energy Consumption	250 kWh
Climate Class	N-ST
Refrigerant Type	R600a
Total Net Capacity	340 L
Refrigerator Capacity	250 L
Freezer Capacity	90 L
Freezing Capacity	5 kg/24h
Noise Level	42 dB
Defrost Type	No Frost (Frost Free)
Display Type	LED Touch Control
Shelves Material	Tempered Glass
Interior Lighting	LED
Door Alarm	Yes (Visual/Audio)
Child Lock	No
Handle Type	Recessed
Reversible Doors	Yes
EAN / GTIN	3838782308541

Frequently Asked Questions - LKR3455BER Concept

How do I adjust the temperature in my Concept LKR3455BER refrigerator?

To adjust the temperature, locate the thermostat dial inside the fridge compartment (usually near the top right or back). Turn it clockwise for colder, counterclockwise for warmer. The recommended setting is medium (3-4).

Why is my refrigerator not cooling properly?

Check if the power cord is plugged in and the thermostat is set correctly. Ensure the door seals are clean and tight, and that air vents are not blocked by food items. Also, allow 24 hours after first installation for temperature stabilization.

How often should I defrost the freezer?

Your model features No Frost technology, which automatically prevents ice buildup. No manual defrosting is required. However, if you notice frost, check the door seal or call service.

What is the best way to clean the interior?

Unplug the appliance. Remove all food and shelves. Clean with a soft cloth using warm water and mild dish soap. Avoid abrasive cleaners or scouring pads. Dry thoroughly before restoring power.

Can I reverse the door opening direction?

Yes, the doors are reversible. Refer to the manual for step-by-step instructions. You will need a screwdriver and possibly a friend to hold the door. It involves swapping hinges and door handles.

What does the 'ECO' mode do?

ECO mode optimizes energy consumption by slightly raising the temperature during low use periods. It reduces electricity bills without affecting food preservation significantly. Activate it via the control panel.

Why is there water pooling inside the fridge?

Water usually comes from a blocked defrost drain. Clean the drain hole (located at the back of the fridge interior) with a pipe cleaner or cotton swab. Also ensure the drain tray isn't cracked.

What should I do if the door alarm sounds continuously?

The alarm indicates the door has been left open for more than 60 seconds. Close the door firmly. If it persists, check if something is blocking the door or if the magnetic seal is damaged.

How can I replace a broken shelf?

Contact Concept customer support or an authorized parts dealer. Provide your model number (LKR3455BER). Always order genuine tempered glass shelves to ensure safety and fit.

How do I reset the control panel after a power outage?

The device should restart automatically. If the panel is unresponsive, unplug for 5 minutes, then plug back in. If issue persists, press and hold the Power button for 10 seconds to force reboot.

USER MANUAL LKR3455BER Concept

Three concept refrigerators in black, white, and red colors arranged side by side (no text or symbols on the models themselves)

LKR3455bcr / LKR3455ber / LKR3455rdr

PODĚKOVÁNÍ

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using this product is familiar with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Tips for use

User manual

Installation of the appliance

Connection to the mains

Cleaning and maintenance

Regular operating noise

Troubleshooting

Error message

Service centre

Environmental protection

TECHNICAL SPECIFICATIONS
Energy class E
Voltage 220 V ~ 50 Hz
Annual power consumption 201 kWh
Daily power consumption 0,551 kWh
Total volume 250 l
Usable volume (refrigerator/freezer) 186 l / 64 l
Freezing capacity 3 kg / 24 hours
Freezer accumulation time 14 hours
Climate class ST / T
Noise level 41 dB (A)
Height 1883 mm
Width 545 mm
Depth 585 mm
Weight 52 kg

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon a delivery of a freestanding refrigerator freezer

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to injure yourself!
• Do not use the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any other way than as described in this manual.
• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance.
  • This appliance can be used in households and similar places like:
• kitchen cabinets in shops, offices and other workplaces
• appliances used in agriculture
• appliances used by guests in hotels and other areas in a hotel environment
• appliances used in a Bed and Breakfast environment

- Do not use the appliance if you are barefoot.

- Do not touch the appliance with wet hands.

- Do not touch the cooling parts of the freezer with wet hands. Risk of injury!

- Do not stand or sit on the open door of the appliance.

- Do not allow children or unauthorized people to handle the appliance, use it out of their reach.

• Children should not play with the appliance.

- Pay extra attention if the appliance is used near children.

- Do not allow the appliance to be used as a toy.

- This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.

- If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.

- When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

- Do not immerse the power cord or the plug in water or any other liquid.

- Check the appliance and the power cord for damage regularly.

- Do not switch on the appliance if it has been damaged.

- Do not use the appliance if the door or the door seals are damaged. Call the authorised service centre.

- Do not use any accessories other than those recommended by the manufacturer.

- Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.

- IMPORTANT! Before switching on, let the appliance stand still for at least 2 hours to settle the refrigerant gases in the compressor after shipping.

- Use the appliance in a room with temperatures between +16 °C and +38 °C.

- Do not place the appliance near heat sources, it may increase its consumption and shorten the service life.

- Do not place any objects on the top of the appliance, as it could damage the appliance.

- Do not place any electrical devices such as mixers and others in the appliance.

- Do not store explosive substances such as aerosol cans with a flammable substance in the appliance,

- Before use, it is necessary to wipe the inside of the appliance with a solution of baking soda dissolved in tepid water. After cleaning, dry all parts thoroughly.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

- NOTICE! Do not use mechanical devices or other means to speed up the defrosting process other than those recommended by the manufacturer.

- Place the appliance on a flat place in a well-ventilated are.

- Do not place the appliance under the direct sun shine.

- Make sure there is enough free space around the appliance for free circulation of air.

- The appliance should be located at least 50 cm from a gas oven or burners and should be placed at least 5 cm away from an electric oven.

- If the appliance is placed close to the freezer, a distance of at least 2 cm should be between them in order to avoid creating moisture on the outside.

- The rear and side walls of the appliance should be at least 10 cm away from the wall. There should be a free space of approximately 30 cm above the appliance as it needs to ventilate freely.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

Caution!

To avoid injury, open the door only for a short period of time to insert or remove food. Children may lock themselves inside the appliance (risk of suffocation) or be exposed to other dangers.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

Caution! The risk of fire / Flammable materials.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

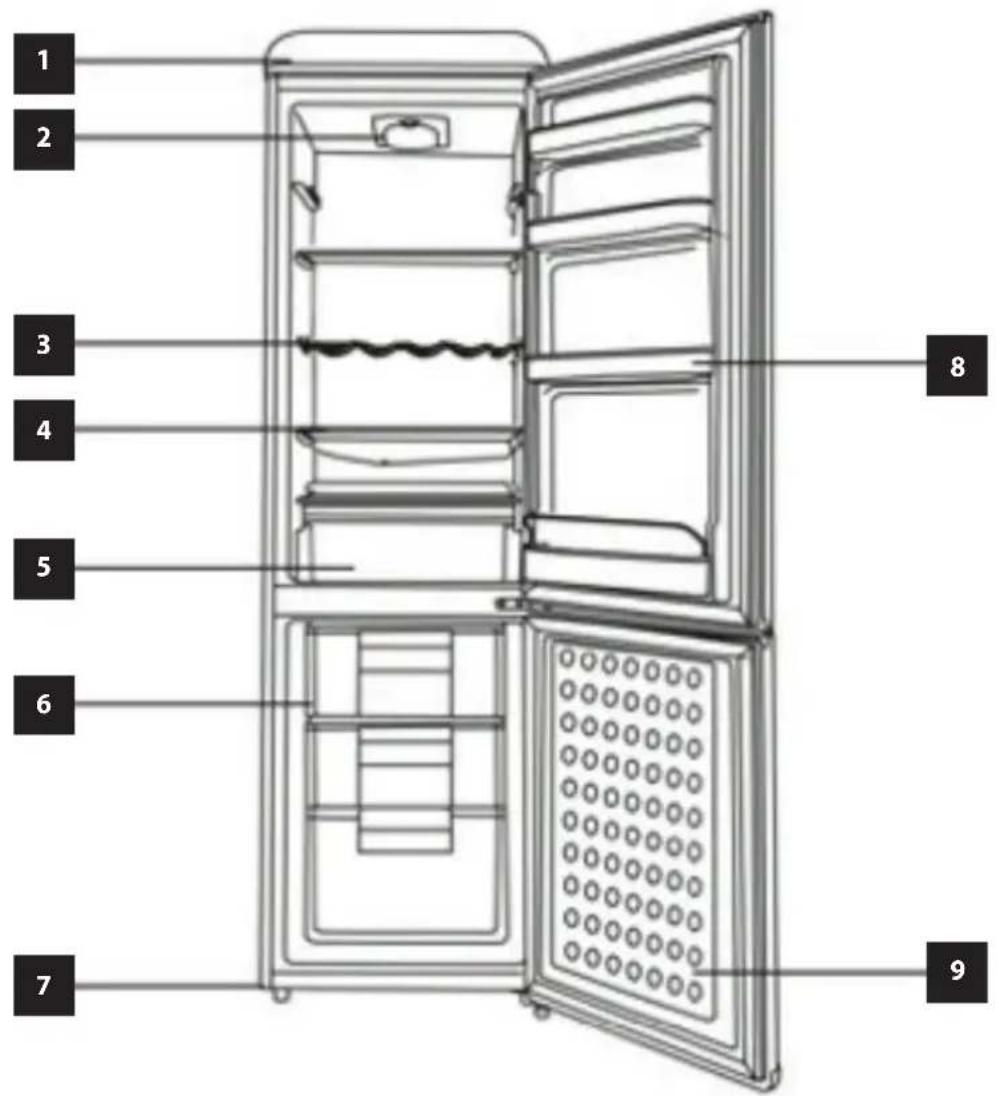

PRODUCT DESCRIPTION

1 Cover
2 Light and thermostat controls
3 Beverage shelf
4 Glass shelves
5 Fruit and vegetable drawer
6 Freezer
7 Adjustable feet
8 Fridge door
9 Freezer door

1 2 3 4 5 6 7 8 9

TIPS FOR USE

- If there is a power failure or the cord has been pulled out of the wall socket, it is necessary to wait at least 5 minutes before reconnecting the appliance. This 5-minute delay is done to prevent compressor damage.

- During a power failure, food can be stored for several hours inside the refrigerator and freezer. Open the door of the refrigerator and the freezer as little as possible in order to extend the freshness of the stored food.

- If you do not use the appliance for a long time, disconnect the appliance from the mains, clean the inside of the appliance with non-aggressive detergents (see the Cleaning and Maintenance section) and leave the appliance door open to prevent unpleasant odours inside the appliance.

- The ambient temperature in the room, the temperature of the food, the amount of food stored, and how often the door of the appliance gets opened have an effect on the temperature inside the appliance.

- If you do not attend to store frozen food, there is no need to have the freezer set to the maximum cooling power. If you leave the temperature set to the maximum cooling power for a long time, the drain line may get frozen.

- This appliance is designed for use at ambient temperatures of 16 °C to 38 °C. The appliance may not function properly if it is used in environment with ambient temperatures listed in the table.

Climate class Ambient Temperature

T 16 °C up to 43 °C

ST 16 °C up to 38 °C

N 16 °C up to 32 °C

SN 10 °C up to 32 °C

Tips for storing food in a refrigerator

The refrigerator is used to store fresh food for several days.

• Be aware that stored food should not touch the back wall. Leave some space around the individual items to ensure air circulation in the refrigerator.
• Do not put hot food or drinks in the refrigerator. It will increase the humidity inside the refrigerator.
  • Store the food in closed containers or packed.
  • Store liquids in closed containers or bottles.
  • It is recommended to place the wrapped meat on the glass shelf above the fruit and vegetable drawer.

Please follow the instructions below to avoid degrading of stored food.

• Do not open the refrigerator door for longer than necessary, as the supply of warm air significantly increases the temperature inside the appliance.
• Clean surfaces that may be in contact with food and drainage channels regularly.
• Fresh meat and fish should be stored in a suitable place to avoid contact with other foods.

Tips for storing food in a freezer

The freezer is used to freeze fresh food, store frozen food for the time specified on the packaging and to produce ice.

• Pack the fresh food airtight. Special freezer bags, polyethylene bags and plastic containers are ideal.
- Prevent fresh food from coming into contact with already frozen food.
- In case of power failure, open the freezer door only when necessary and as little as possible. The freezer keeps the food frozen for up to 12 hours.
- Never place warm food or beverages in the freezer.
• Before putting frozen food into the freezer, make sure the packaging is not damaged.
- It is also not recommended to put beverages in glass bottles in the freezer, glass can easily rupture due to low temperatures inside the freezer.

USER MANUAL

Before first use

Before first use you should wipe the outside and inside of the appliance with a damp cloth for hygiene reasons. Wash all removable parts with warm soapy water.

After installing the refrigerator, leave the appliance standstill for at least 2 hours before connecting to the mains. It is necessary to allow the cooling gases to set down. Then you can connect the refrigerator to the mains and let it run for 2-3 hours to stabilize a normal operating temperature. Then put fresh or frozen food inside the appliance.

Note: If a power failure occurs during the first run, wait for at least 5 minutes before switching on again or connecting to the mains.

Setting the Temperature of Refrigerator Zone

1. Open the refrigerator door.
2. You can set the internal temperature of the refrigerator compartment and freezer compartment with the inside temperature controller (figure 1).
3. Turn the knob from position 1 to position 5 to get a cooler temperature inside the appliance.

- The numbers displayed on the controller do not indicate a specific set temperature, but a temperature level

- If the thermostat is set to position 0, it is switched off and the appliance does not cool or freeze.

- For normal food storage in the freezer, set the thermostat to position 2 to 4.

- The refrigerator should be in operation for at least 24 hours to reach the required cooling temperature.

Allow the refrigerator to cool completely before placing food. It is best to wait 24 hours before placing food in the refrigerator.

0 OFF 5

Fig. 1

Setting the Temperature of Freezer Zone

- The freezer temperature is set automatically according to the set temperature in the refrigerator and it cannot be altered.

Note: Frozen water droplets may appear on the back wall of the refrigerator, it is a common phenomenon not a defect of the appliance.

INSTALLATION OF THE APPLIANCE

• Defects caused by improper installation are not covered by the warranty.
  • Installation is the responsibility of the customer not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.
• Place the appliance on a flat place in a well-ventilated are.
• Do not place the appliance under the direct sun shine.
• The appliance should be placed at least 10 cm from the wall at the back and both sides. There should be a free space of approximately 30 cm above the appliance as it needs to ventilate freely.
• If necessary, use the adjustable feet at the bottom of the appliance to align the appliance in a horizontally stable position.

CONNECTION TO THE MAINS

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance. We recommend using a separate outlet with a 10 A circuit breaker.
• Only use grounded sockets.
• Do not use multiple sockets, plugs and extension cords. There is a risk of overheating.
  • The plug of the power cord on the appliance must be freely accessible even after the installation.
  • Changes in a connection may only be performed by a qualified professional.
• Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.
  • The power cord must be positioned in a way that it is not deformed or excessively bent.

CLEANING AND MAINTENANCE

• Disconnect the power cord from the wall outlet or switch off the circuit breaker of the appliance before cleaning and maintenance.
• Dust and dirt on the appliance on the wall and on the ground should be regularly cleaned for trouble-free operation and energy savings.
  • The inside of the refrigerator should be cleaned according to the frequency of use to avoid unpleasant odours.
• One source of odour can also be dirt deposits around the sealing. Regular cleaning with a damp cloth prevents these unpleasant odours.
• For cleaning, we recommend using non-aggressive products, preferably clear lukewarm water along with a soft sponge or paper towel.
• When the cleaning is done, let the appliance open to dry out naturally.
• For cleaning, we do not recommend cleaning agents such as alcohol, acetone, oil, toothpaste or any other abrasive products.
  • We do not recommend rough brushes, hard wipes or steel brushes.
  • We do not recommend using boiling water as it may cause damage to the appliance.
• We do not recommend cleaning the appliance with a stream of water that could interfere with the insulation or cause a short circuit of some electronic components of the appliance.
• Clean all the accessories of the appliance with a solution of lukewarm water and a detergent. Never wash the accessories in a dishwasher!

Defrosting

1. Disconnect the electrical plug from the mains
2. Move food from the refrigerator to place where it will not be spoiled, prepare a container to catch defrosting frost
3. Wipe the thawed water on the evaporator and the inner lining with a dry cloth, then wring the cloth out and repeat the process until the ice has completely thawed
4. To speed up the defrosting process, you can use an ice scoop (use only a plastic or wooden scoop to avoid damaging the seal and the inner lining) or a very fine brush in combination with the use of an adequate amount of warm water.
5. After complete defrosting and wiping the residual water inside the refrigerator with a dry cloth, you can put the food back in the refrigerator and switch on the appliance.

It can be caused by expanding and shrinking of the air inside the refrigerator and freezer.

Short cracking

It can be heard when the thermostat turns on and off the compressor.

Noise of the compressor

Running compressor produces noise. After the installation of the appliance, the compressor may be a little louder for a short time.

Bubbling and flowing

This sound is generated when the refrigerant is flowing through the appliance pipes.

TROUBLESHOOTING

Most of the minor errors that appear when using the refrigerator can be removed by yourself, there is no need to contact an authorized service centre. The following overview should help you find the causes of occurring errors.

If the following overview does not help to remedy the error, please contact an authorized service centre.

Defect description	Possible cause Solution
The appliance does not work	The power cord plug is not plugged in the wall outlet.	Check the connection of the cord.
	Damaged power cord	Do not connect the appliance into the mains. Contact a qualified expert or an authorised service.
	Faulty main electronics or control electronics	Contact an authorized service centre.
The appliance cannot lower the temperature	Cooling fluids leakage Contact an authorized service centre.
	Clogged refrigerator or freezer piping Contact an authorized service centre.
The compressor is still running	Room temperature is high	Ensure that there is enough space around the appliance for free air circulation.
	Too many items stored in the refrigerator and freezer	Remove some of the items that do not have to be stored in the appliance.
	Hot meals or liquids are placed inside the refrigerator	Remove all hot meals and liquids from the appliance and let them cool down firts.
	Door gets opened too frequently Do not open	the door so often.
	Faulty main electronics or control electronics	Contact an authorized service centre.
Compressor creates too much noise.	Loose screws securing the compressor Tighten the screws.
	The refrigerator is not stable	Align the refrigerator so that it is in the plane.
The light inside the refrigerator does not light up	The power cord plug is not plugged in the wall outlet.	Check the connection of the cord.
	The light in the refrigerator is damaged Contact an authorized service centre.
There is too much water in the evaporator container	The door of the refrigerator is not completely closed	Make sure that the door of the refrigerator is closed and that there is no food or containers that could keep the door from closing properly.
	Inside the refrigerator there is food that contains too much water - constant defrosting	Reduce the amount of food in the refrigerator that contains too much water.
A frost deposit forms inside the freezer.	Insufficiently packaged food or wet containers	Ensure that the food packaging is not damaged or that the containers are dry before placing them in the freezer.
	Door gets opened too frequently Do not open	the door so often.
	Incorrectly placed compartments in the freezer	Check that the freezer compartments are properly placed.
	The door sealing is damaged or worn out Contact an authorized service centre.

SERVICE CENTRE

CAUTION!

Extensive maintenance or repair, which requires access to internal parts of the product, has to be performed by a qualified service centre.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

CONCEPT POLSKA sp. z o.o.
