Refine 700 E7HS1-4MN - Steam cleaner ELECTROLUX - Free user manual and instructions

Product Type	Steam Cleaner
Brand	Electrolux
Model	Refine 700 E7HS1-4MN
Dimensions (W x D x H)	Approx. 30 x 25 x 120 cm
Weight	Approx. 4.5 kg
Power	1500 W
Water Tank Capacity	1.2 L
Heating Time	Approx. 3 minutes
Steam Pressure	3.5 bar
Steam Temperature	Up to 100°C
Continuous Steam Time	Up to 30 minutes
Accessories Included	Floor nozzle, detail nozzle, brush, extension tubes, microfiber cloth
Safety Features	Overheat protection, pressure relief valve, child lock
Maintenance	Descale regularly; clean nozzles after use
Repairability	Spare parts available from Electrolux service centers
Cable Length	5 m
Energy Class	A

Frequently Asked Questions - Refine 700 E7HS1-4MN ELECTROLUX

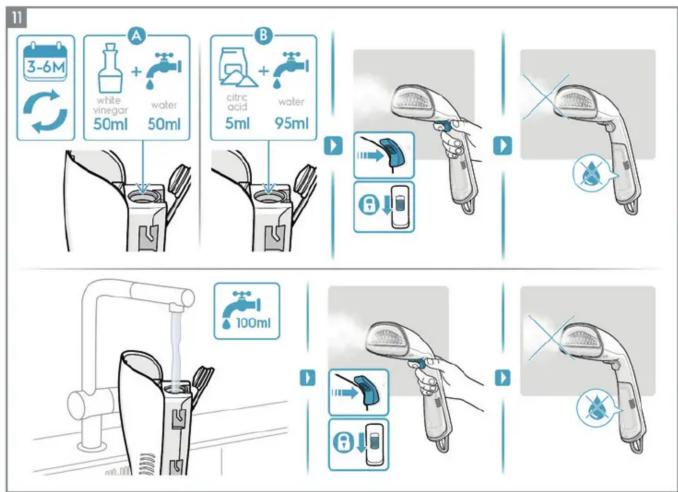

How do I descale the steam cleaner?

Use a mixture of water and white vinegar (1:3 ratio) in the water tank. Run the cleaner until half the solution is used, then let it sit for 15 minutes. Empty and rinse thoroughly with clean water.

Can I use tap water in the steam cleaner?

Yes, but for best performance and to reduce scaling, use distilled or demineralized water. Hard tap water may cause mineral buildup.

What should I do if the steam pressure is low?

Check that the water tank is full and properly seated. Clean the nozzle to remove any blockages. If still low, descale the unit.

How often should I clean the filters?

Inspect and clean the inlet filter at least once a month. Remove any debris by rinsing under running water.

Is the steam cleaner safe for all floor types?

It is safe for sealed hardwood, tile, laminate, and vinyl floors. Do not use on unsealed wood or delicate surfaces.

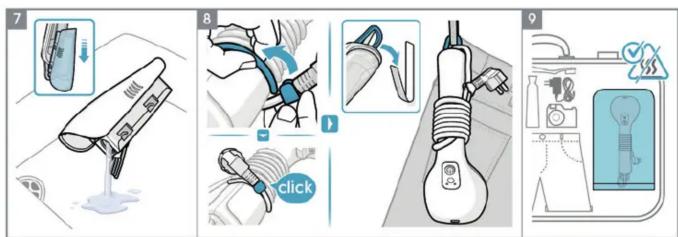

How do I store the steam cleaner after use?

Allow it to cool down completely. Empty the water tank and wrap the power cord. Store in a dry place.

The unit is leaking water. What could be wrong?

Check that the water tank cap is tightly closed. Inspect the rubber seals for damage. If the unit leaks during use, turn it off immediately and contact service.

Can I add cleaning solutions to the water tank?

No, only use plain water. Adding chemicals may damage the unit and reduce steam quality.

How long does the steam cleaner heat up?

Typically about 3 minutes. The ready indicator light will turn on when steam is ready.

Where can I purchase spare parts?

Visit the Electrolux website or authorized service centers. Common parts like nozzles and microfiber cloths are available online.

USER MANUAL Refine 700 E7HS1-4MN ELECTROLUX

Line drawing of a hair dryer with handle and ventilation slots (no text or symbols)

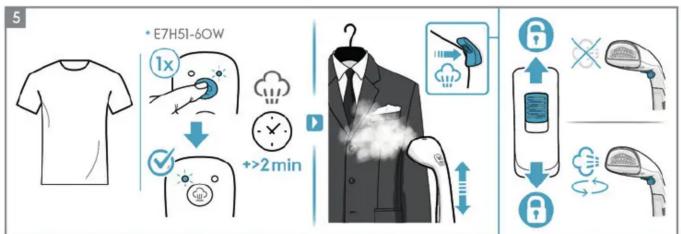


WE'RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You've chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you'll get great results every time.

Welcome to Electrolux.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.electrolux.com

Register your product for better service: www.electrolux.com/productregistration

Buy accessories and consumables for your appliance: www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

• Model Number
• PNC number
• Serial number

The information can be found on the rating plate.
