VP S1010 - Vacuum Cleaner ECG - Free user manual and instructions

Product Type	Vacuum Cleaner
Brand	ECG
Model	VP S1010
Weight	3.1 kg
Nominal Voltage	220–240 V ~ 50/60 Hz
Nominal Input Power	800 W
Suction Power	180 W
Dust Bag Capacity	1.5 L
Operating Radius	7.5 m
Noise Level	< 80 dB
Filtration	Motor filter, HEPA F7, paper bag
Accessories Included	Two-piece plastic tube, floor brush, tapered multipurpose brush
Cable Rewind	Automatic (via button)
Full Dust Bag Indicator	Yes (color change to red)
Suction Power Regulation	Yes (slider on hose or body)
Airflow Regulation	Slider on hose
Wheels	Rubber coated for easy transport
Replacement Filter Bag Type	KOMA EC 22S or SWIRL Y 45
Safety Features	Overheat protection, automatic shut-off (via indicator)
Usage	Indoor only, dry surfaces

Frequently Asked Questions - VP S1010 ECG

How do I change the dust bag?

Press the front cover lock to open the cover. Remove the holder with the full dust bag. Fit a new bag (compatible with KOMA EC 22S or SWIRL Y 45) into the holder and reinsert.

What does the red indicator on my vacuum mean?

The full dust bag indicator turns red when the dust bag is full or the suction path is blocked. Replace or empty the dust bag first; if the indicator stays red, check for clogs in the hose or tube.

How often should I clean the motor filter?

Clean the motor filter at least twice a year. Open the front cover, remove the dust bag, take out the filter, wash it in warm water, and dry thoroughly before reuse.

The vacuum cleaner won't start. What should I check?

Ensure the power cord is properly plugged into a working outlet. Check if the cord is damaged. If the problem persists, contact an authorized service center.

How do I rewind the power cord?

Press the cable rewind button located on the vacuum body. The cord will automatically retract. Never pull the cord beyond the red mark.

Can I use this vacuum on wet surfaces or outdoors?

No. The vacuum is designed for indoor use only on dry surfaces. Using it on wet areas or outdoors poses a risk of electric shock and damage.

What is the optimal cord length for use?

The yellow mark on the power cord indicates the optimal length. Do not pull beyond the red mark, which is the maximum safe extension.

How do I clean the exhaust filter?

Open and remove the cover grille of the output filter. Shake off accumulated dust. If damaged, replace with a new filter.

What accessories come with the vacuum?

The package includes a two-piece plastic tube, floor brush, and a tapered multipurpose brush for crevices and furniture.

Is the vacuum safe for use around children?

Children aged 8 and above can use the vacuum under supervision. Keep children under 8 away from the appliance and its power cord.

USER MANUAL VP S1010 ECG

Exterior view of a black and white ECG vacuum cleaner with green handle (no text or symbols visible on body)

VPS 1010

VACUUM CLEANER

INSTRUCTION MANUAL

BODENSTAUBSAUGER

BEDIENUNGSANLEITUNG

PODLAHOVÝ VYSAVAČ

NÁVOD K OBSLUZE

PÕRANDATOLMUIMEJA

KASUTUSJUHEND

USISAVAČ

UPUTE ZA UPORABU

GRĪDAS PUTEKLSŪCĒJS

ROKASGRÂMATA

GRINDU DULKIŲ SIURBLYS

INSTRUKCIJU VADOVAS

PADLÓPORSZÍVÓ

HASZNÁLATI ÚTMUTATÓ

ODKURZACZ PODŁOGOWY

INSTRUKCJA OBSŁUGI

ASPIRATOR DE PODEA

INSTRUCTIUNI DE UTILIZARE

PODLAHOVÝ VYSÁVAČ

NÁVOD NA OBSLUHU

TALNI SESALNIK

NAVODILA

USISIVAČ

UPUTSTVO ZA UPOTREBU

ΗΛΕΚΤΡΙΚΗ ΣΚΟΥΠΑ

ΕΓΧΕΙΡΙΔΙΟ ΟΔΗΓΙΩΝ

ПИЛОСОС

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damage caused during transportation, improper use, voltage fluctuation or any change or modification of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without inserted dust bag, motor filter and exhaust filter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to any maintenance. When unplugging the appliance, hold the power cord by the plug. Do not pull the cable.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Do not allow children to play with the vacuum cleaner. A vacuum cleaner is not a toy. Be more attentive if you are using the vacuum cleaner near children.
9. Use only attachments and accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly, if it fell (e.g. into water), if it is damaged or if it was forgotten outdoors, have it inspected professionally at an authorized service centre.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not touch the power cord or the vacuum cleaner with wet hands.
13. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any debris, which can reduce the suction power of the vacuum cleaner.
14. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.
15. Do not use the vacuum cleaner on the following objects, which could result in damaging the device or injury:
16. sharp objects like glass, screws, coins, nails, etc.
17. hot or smouldering objects like embers, cigarettes or flammable and volatile liquids
18. wet surfaces, water and other liquids.
19. Use extra care when cleaning stairs.
20. Use the vacuum cleaner only in accordance with the instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for any damage caused by the improper use of this appliance.
21. This appliance can be used by children aged 8 years and older and people with lower physical or mental abilities or lack of experience and knowledge, if they are supervised or have been instructed to use the product in a safe manner and understand the potential dangers. Children shall not play with the appliance. Cleaning and maintenance performed by the user should not be done by children unless they are older

than 8 years and under supervision. Children under 8 years old must keep away from the appliance and its power supply.

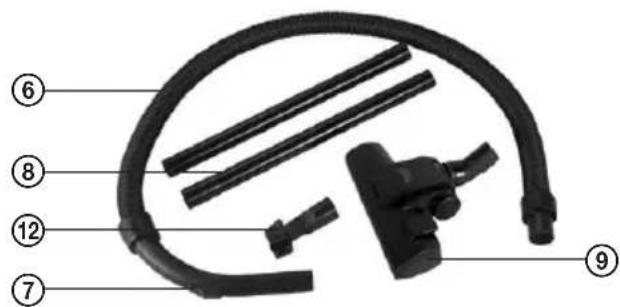

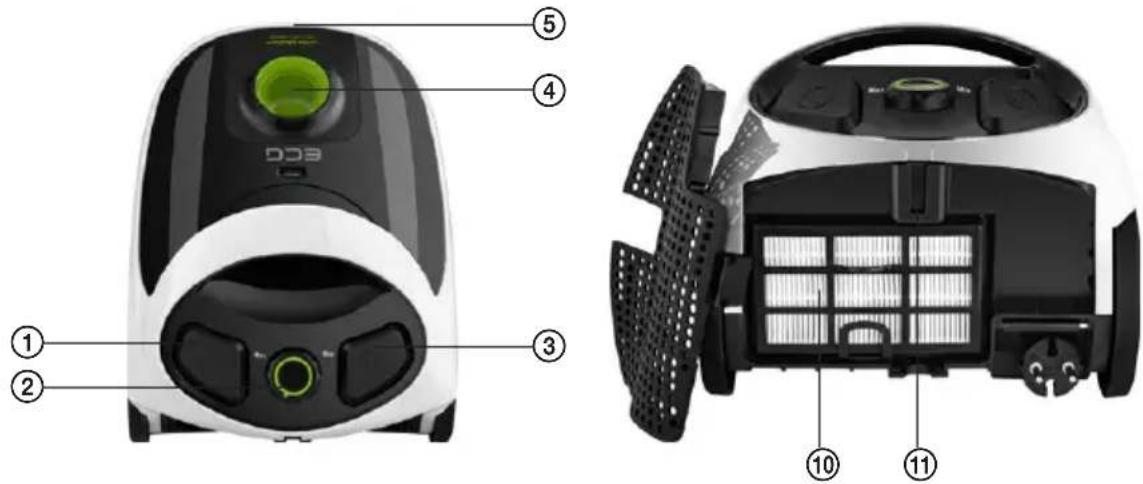

DESCRIPTION OF THE VACUUM CLEANER

List of parts

1. ON/OFF button
2. Suction power regulation
3. Cable rewind button
4. Opening for inserting the hose
5. Front cover lock

6. Hose

7. Air flow regulation slider

8. Two -piece plastic tube
9. Floor brush
10. Output filter cover grille
11. Adapter storage clip
12. Multipurpose brush head

USING THE VACUUM CLEANER

The vacuum cleaner must be switched off and disconnected from power before you start to assemble it!

1. Insert the end of the hose into the opening in front of the vacuum cleaner and secure it.
2. Connect the other end of the hose with curved ending to the tube.
3. Attach to the tube accessories suitable for the flooring type. Switch the brush nozzle for carpets or for hard floors according to the type of floor. The combined nozzle is designed for cleaning narrow spaces and difficult to reach areas in the corners or between the furniture.
4. Starting the vacuum cleaner: plug the power cable in the electrical outlet whose parameters correspond to the data in the type tag of the vacuum cleaner and press the power button to start the vacuum cleaner.
5. Pulling and rewinding the cord: Grasp the plug and pull out the power cord. Press the retractor button, the power cord rewinds back in the vacuum cleaner.

Note: Never pull out the power cord beyond the red mark located on the cord. The yellow mark shows the optimum length of the power cord.

Note: When carrying the appliance from one room to another unplug the power cord and carry it by the handle. Never move the vacuum cleaner by pulling the power cord.

After use

Switch off the vacuum cleaner and unplug it from the electrical outlet. Press the retractor button, the power cord rewinds back in the vacuum cleaner. Before attaching any accessories or before cleaning the appliance, always switch off the vacuum cleaner and unplug the power cord from the outlet. To disconnect the vacuum cleaner hose, press the hose attachment at the marked points and pull out the hose.

Issues

Do not use an appliance showing any signs of damage. A damaged power cord has to be replaced in an authorized service centre. Only this way can you prevent safety risks.

See the troubleshooting guide if your vacuum cleaner does not operate correctly. Refer to an authorized service centre if you are not able to resolve an issue yourself.

Full dust bag indicator

The vacuum cleaner is equipped with an indicator, which changes colour to red if the dust bag is full or if the suction paths are otherwise blocked. If the full dust bag indicator remains red even after inserting a new bag, switch off the vacuum cleaner, unplug it from the outlet and check if the hose or the tube of the vacuum cleaner are not clogged. If the indicator still remains red, contact an authorized service centre or your vendor. To prevent overheating of the vacuum cleaner and subsequent damage, check the following parts of the vacuum cleaner:

• All connections between the hose, telescopic tube and floor brush
• Opening for connecting the hose
• Brush throughput
• Exhaust filter
• Motor filter
• Dust bag

CLEANING AND MAINTENANCE

Warning:

Always unplug the power cord from the outlet before any maintenance and cleaning.

1. Changing the dust bag: When the colour of the dust bag indicator changes to red, it is time to change or empty the dust bag.

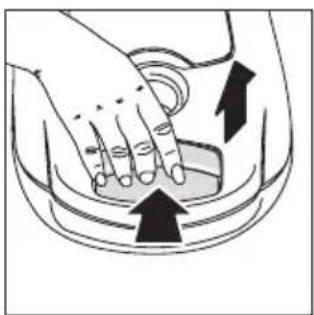

2. Press the lock in front to open the front cover (fig. A).

3. Remove the holder with the full dust bag.

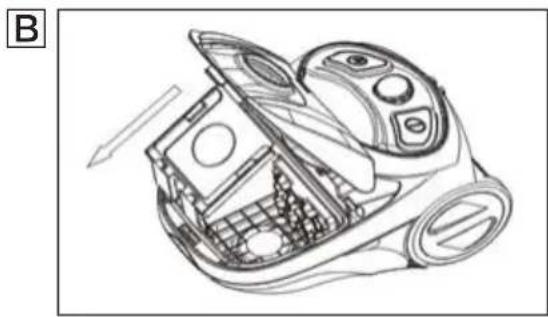

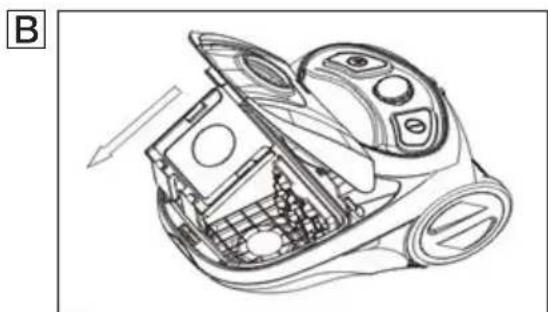

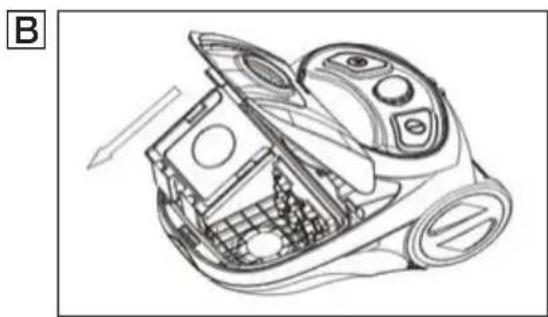

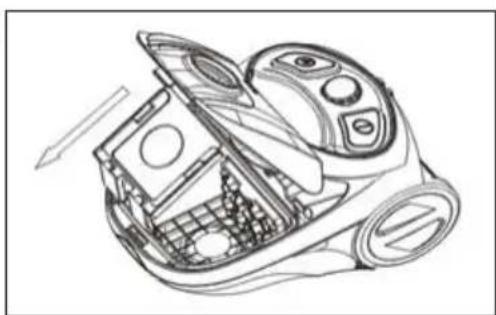

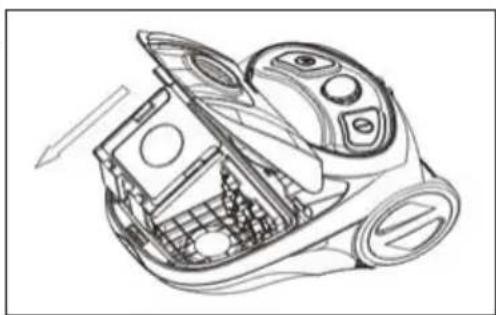

4. Fit the new bag into the holder and return the holder (fig. B).

A

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

B

Line drawing of a vacuum cleaner with internal components and a pencil, no text or symbols present

1. Clean the motor filter twice a year: Open the front cover, take out the dust bag, remove the filter, wash it in warm water and dry it thoroughly prior to next use. If the filter is damaged replace it with a new one.

2. Clean the output filter regularly: Open and remove the cover grill of the output filter. Shake to remove the accumulated dust. If the filter is damaged replace it with a new one.

3. Cleaning of the appliance surface: To clean use a soft cloth slightly moistened with a few drops of mild detergent. Never use a solvent or any abrasive scouring cleaners. Never immerse vacuum cleaner in water or any other liquid and do not clean it under running water.

Warning:

Replacement filter bags for the VP S 1010 vacuum cleaner can be found under the name KOMA EC 22S, SWIRL Y 45.

TROUBLESHOOTING

Before contacting the service, check the following list of common problems and possible remedies.

Problem Possible cause Solution
The motor will not start.	The vacuum cleaner is not powered.	Check the power cord and the electrical outlet. If the device still does not work, contact an authorized service centre.
The suction power is reduced.	Full dust bag, clogged hose or tube or dirty filters.	Replace the dust bag, remove foreign objects from the hose or tube, replace the filters.

TECHNICAL DATA

Suction power 180 W

Two -piece plastic tube

Rubber coated wheels for easy transport

Automatic rewind

Full dustbag indicator

Volume of the dust bag - 1.5 l

Operating radius 7.5 m

Filters: motor filter, HEPA filter F7, paper bag 1,5 l

Accessories:

- Two -piece plastic tube

- Floor brush

- Tapered multipurpose brush

Weight: 3.1 kg

Nominal voltage: 220–240 V\~ 50/60 Hz

Nominal input power: 800 W

Noise level: < 80 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating manual is available on internet at www.ecg -electro.eu.

Changes of text and technical parameters reserved.

08/05

SICHERHEITSHINWEISE

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

B

Line drawing of a vacuum cleaner with internal components and airflow direction arrow (no text or symbols)

Seznam součástí

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

B

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Osade loetelu

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

B

Line drawing of a vacuum cleaner internal structure with no text or symbols

Popis dijelova

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and housing (no text or symbols)

1. Dva puta godišnje očistite filtar motora: Otvorite prednji poklopac, uklonite vrećicu za prašinu, izvadite filtar, operite ga toplom vodom i temeljito osušite prije ponovne uporabe. Ako je filtar oštećen, zamijenite ga.
2. Redovno čistite ispušni filtar: Nagnite i uklonite mrežicu poklopca izlaznog filtra. Protresite radi uklanjanja nakupljene prašine. Ako je filtar oštećen, zamijenite ga.
3. Čišćenje površina usisavača: Za čišćenje koristite mekanu, malo vlažnu krpu s nekoliko kapi blagog deterdženta. Nikada ne upotrebljavajte razrjeđivače ili abrazivna sredstva za čišćenje. Nikad ne uranjajte usisavač u vodu ili drugu tekućinu niti ga ne postavljajte pod mlaz vode.

Upozorenje:

Zamjenske filtar vrećice za usisavač VP S 1010 nalaze se pod oznakom KOMA EC 22S, SWIRL Y 45.

UKLANJANJE POTEŠKOĆA

Dalu saraksts

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

B

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

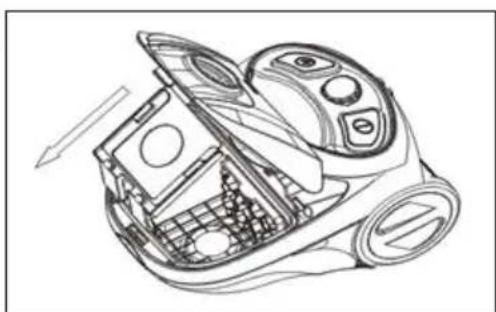

Dalių sąrašas

Illustration of a hand pressing down on a curved surface with directional arrows indicating motion (no text or symbols)

B

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

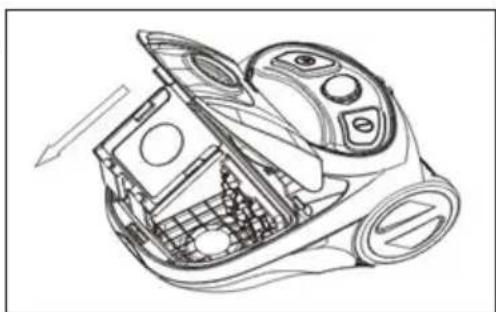

A készülék részei

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

B

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Lista elementów

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with internal components and airflow direction indicator (no text or symbols)

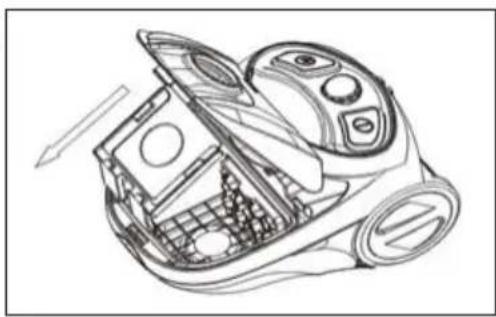

Listă de componente

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

B

Technical line drawing of a vacuum cleaner internal structure (no text or symbols)

Zoznam súčastí

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with internal components and airflow direction indicator (no text or symbols)

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with internal components and airflow direction indicator (no text or symbols)

Lista delova

1. Dugme ON/OFF
2. Regulator snage usisavanja
3. Dugme za namotavanje kabla
4. Otvor za crevo
5. Brava prednjeg poklopca

6. Crevo

7. Klizač za regulaciju vazduha

8. Dvodelna plastična cev
9. Četka za prašinu
10. Zaštitna mrežica poklopca izlaznog filtra
11. Mesto za prihvaćanje nastavka
12. Višenamenska četka

KORIŠĆENJE USISIVAČA

Pre sastavljanja, usisivač mora biti isključen i odvojen od izvora električne struje!

1. Kraj creva umetnite u otvor u prednjem delu usisivača i učvrstite.
2. Drugi kraj creva savijenim krajem spojite na cev.
3. Na cev stavite nastavak koji je pogodan za vrstu podloge koju ćete čistiti. Nastavak sa četkom za tvrde podove ili tepihe podesite u skladu sa podlogom. Uska cev je namenjena čišćenju teško dostupnih mesta u uglovima ili između nameštaja.
4. Pokretanje usisivača: uključite mrežni utikač u električnu utičnicu čiji parametri odgovaraju podacima na tipskoj pločici usisivača i pokrenite usisivač pritiskom na tipku za uključivanje / isključivanje.
5. Povlačenje i namatanje kabla: Uhvatite vilicu i povucite kabl. Pritisnite taster za uvlačenje i kabl će se namotati u usisivaču.

Napomena: Nikada nemojte povlačiti kabl za napajanje dalje od crvene oznake na kabeu. Žutom bojom je označena optimalna dužina izvučenog kabla.

Napomena: Prilikom transporta uređaja iz sobe u sobu, odvojite ga od napajanja i nosite prihvaćanjem za ručku. Usisivač nikada ne povlačite potezanjem kabla.

Nakon korišćenja

Isključite usisivač, a zatim ga isključite i iz električne mreže. Pritisnite taster za uvlačenje i kabl će se namotati u usisivaču. Pre svakog postavljanja bilo kog nastavka i pre čišćenja, usisivač obavezno isključite i izvucite utikač iz utičnice. Da biste odspojili crijevo usisavača, pritisnite nastavak za crijevo na označenim mjestima i izvucite crijevo.

U slučaju problema

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

Technical line drawing of a vacuum cleaner with internal components and housing (no text or symbols)

1. Dva puta godišnje očistite filter motora: Otvorite prednji poklopac, uklonite vrećicu za prašinu, izvadite filtar, operite ga toplom vodom i temeljito osušite prije ponovne uporabe. Ako je filter oštećen, zamenite ga.

2. Redovno čistite ispusni filter: Nagnite i uklonite mrežicu poklopca izlaznog filtra. Otresite filter da biste ga očistili od skupljene prašine. Ako je filter oštećen, zamenite ga.

3. Čišćenje površina usisivača: Za čišćenje koristite mekanu, malo vlažnu krpu sa nekoliko kapi blagog deterdženta. Nikada nemojte koristiti razređivač ili bilo kakvo abrazivno sredstvo za čišćenje. Nikada ne potapajte usisivač u vodu ili drugu tečnost, niti ga ne postavljajte pod mlaz vode.

Pažnja:

Zamjenske filtar vrećice za usisavač VP S 1010 nalaze se pod oznakom KOMA EC 22S, SWIRL Y 45.

OTKLANJANJE PROBLEMA

Illustration of a hand pressing down on a car seat with arrows indicating motion (no text or symbols)

Line drawing of a vacuum cleaner with internal components and airflow direction indicator (no text or symbols)

Illustration of a hand pressing down on a small container with arrows indicating motion (no text or symbols)

B

Line drawing of a vacuum cleaner with internal components and airflow direction arrow (no text or symbols)

250 69 Klíčany, Czech Rep. el. paštas: [e-mail]

Magyar

K+B Progres, a. s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e -mail: [e-mail]

Polski

K+B Progres, a. s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e -mail: [e-mail]

Română

K+B Progres, a. s.

U Expertu 91 tel.: [phone]

250 69 Klíčany, Czech Rep. e -mail: [e-mail]

Slovenčina
