Brand	Electrolux
Model	EWE381KX-DWG6
Product Type	Electric Instant Water Heater
Dimensions (W x H x D)	220 x 401 x 90 mm
Weight	Approx. 2.5 kg
Power Rating	3.5 kW
Voltage / Frequency	220-240 V / 50 Hz
Water Pressure Range	0.2 - 6.0 bar
Min. Operating Temperature	5°C
Max. Output Temperature	60°C
Flow Rate	3.0 - 5.0 L/min (depending on inlet temp)
Control Type	Mechanical dial with temperature range
Heating Element	Copper, spiral type
Safety Features	Dry heating protection, overheat protection, IPX4 splash proof
Installation	Wall mounted, horizontal or vertical
Water Connections	1/2" BSP inlet and outlet
Housing Material	ABS plastic, white finish
Warranty	1 year (parts and labor)
Country of Origin	Singapore (for SEA market)
Cleaning Instructions	Descale every 3 months; clean inlet filter monthly
Repairability Index	High; spare parts available

Frequently Asked Questions - EWE381KX-DWG6 ELECTROLUX

What is the power rating of the Electrolux EWE381KX-DWG6?

The power rating is 3.5 kW. Ensure your electrical circuit supports this load.

Can I install this water heater myself?

Installation should be done by a qualified professional to comply with local electrical and plumbing regulations.

Why is the water not getting hot?

Check if the unit is powered on, the temperature dial is set correctly, and the inlet water pressure is within the operating range (0.2-6.0 bar). A clogged filter may also reduce flow.

How do I clean the water heater?

Turn off power and water, remove the inlet filter and clean it with a brush. For descaling, use a descaling solution diluted in water every 3 months.

What is the minimum water pressure required?

The minimum water pressure is 0.2 bar. Low pressure may cause the heater to not activate properly.

Can I use this heater for a shower?

Yes, it can supply one shower point, but note that the flow rate may drop in winter due to cold inlet water.

Why does the heater make a noise?

Noise is often due to mineral buildup or trapped air. Flush the unit and descale regularly.

What is the warranty period?

Electrolux offers a 1-year warranty covering parts and labor. Extended warranty may be available through retailers.

Does the heater have a temperature display?

No, it uses a mechanical dial without a digital display. Temperature is set by the dial position.

Can I use this water heater with a solar water system?

Yes, it can be used as a backup heater, but the inlet temperature must not exceed 60°C to avoid damage.

USER MANUAL EWE381KX-DWG6 ELECTROLUX

Electric Instant Water Heater

Model:

EWE381KX-DWG6

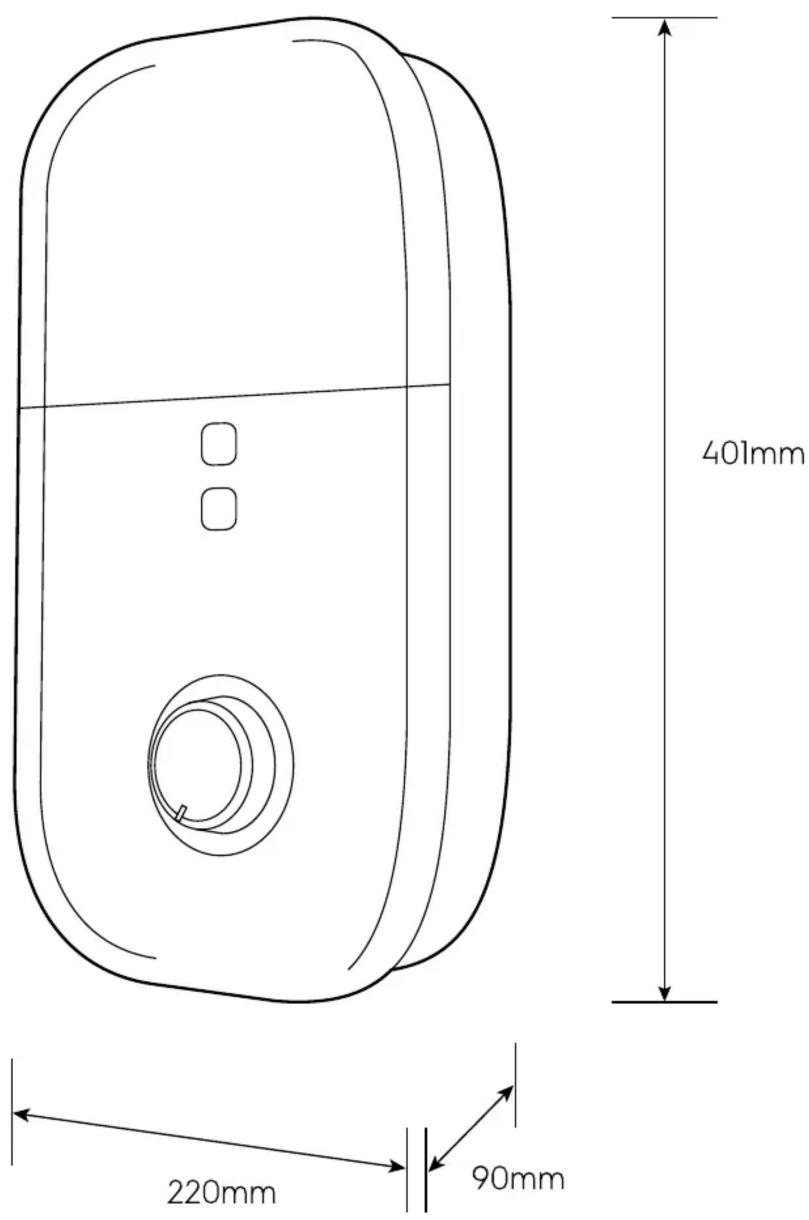

Dimensions

width height depth

Product (mm) 220 401 90

Please note! Dimensions to be used as a guide only. All customers MUST refer to the user manual supplied with the product for detailed installation instructions.

© 2021 Electrolux S.E.A PTE. LTD. E_DIM_EWE381KX-DWG6_Jun21
