MNV8060DS - Dishwasher Concept - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Concept
Model	MNV8060DS
Dimensions (H x W x D)	82 cm x 60 cm x 55 cm
Weight	Approximately 45 kg
Power Supply	220-240 V, 50 Hz
Rated Current	10 A
Energy Efficiency Class	E (EU 2019/2017)
Number of Place Settings	14
Noise Level	44 dB(A) re 1 pW
Number of Programs	6
Programs	Eco, Intensive, Normal, Quick, Glass, Pre‑Rinse
Drying System	Condensation drying with heat exchanger
Water Consumption per Cycle	9.5 L (Eco program)
Annual Energy Consumption	295 kWh (based on 280 cycles)
Maximum Noise Level	49 dB(A)
Installation Type	Fully integrated
Adjustable Feet	Yes (front and rear)
Safety Features	Child lock, anti‑flood system, overfill protection
Maintenance	Clean filters regularly, descale every 3 months
Spare Parts Availability	Filters, spray arms, heating element, control board
Reparability Index	7.5/10 (estimated based on parts availability)

Frequently Asked Questions - MNV8060DS Concept

How do I reset my Concept MNV8060DS dishwasher?

To reset, press and hold the Start/Reset button for 3 seconds during a cycle. The appliance will drain and cancel the current program.

What does the 'E1' error code mean?

Error code E1 indicates a water inlet issue. Check if the water tap is open, the water hose is not kinked, and the inlet filter is clean.

Can I use regular dish soap instead of dishwasher detergent?

No, do not use hand dish soap. It creates excessive foam and may damage the machine. Use only dishwasher detergent (powder, gel, or tablets).

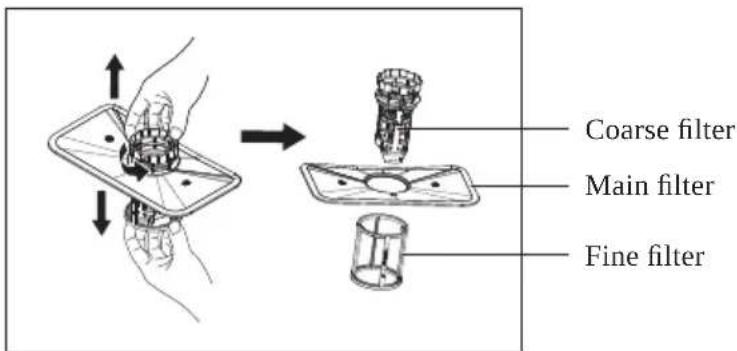

How often should I clean the filters?

Clean the filters every 1-2 weeks depending on usage. Rinse under running water and remove any debris to ensure optimal performance.

Why is my dishwasher not drying dishes properly?

Check if rinse aid is filled, select a program with drying (e.g., Intensive), and ensure the load is not too tight preventing air circulation. Also, clean the heat exchanger if equipped.

What is the maximum load capacity?

The maximum capacity is 14 place settings. Follow the loading instructions in the manual for best results.

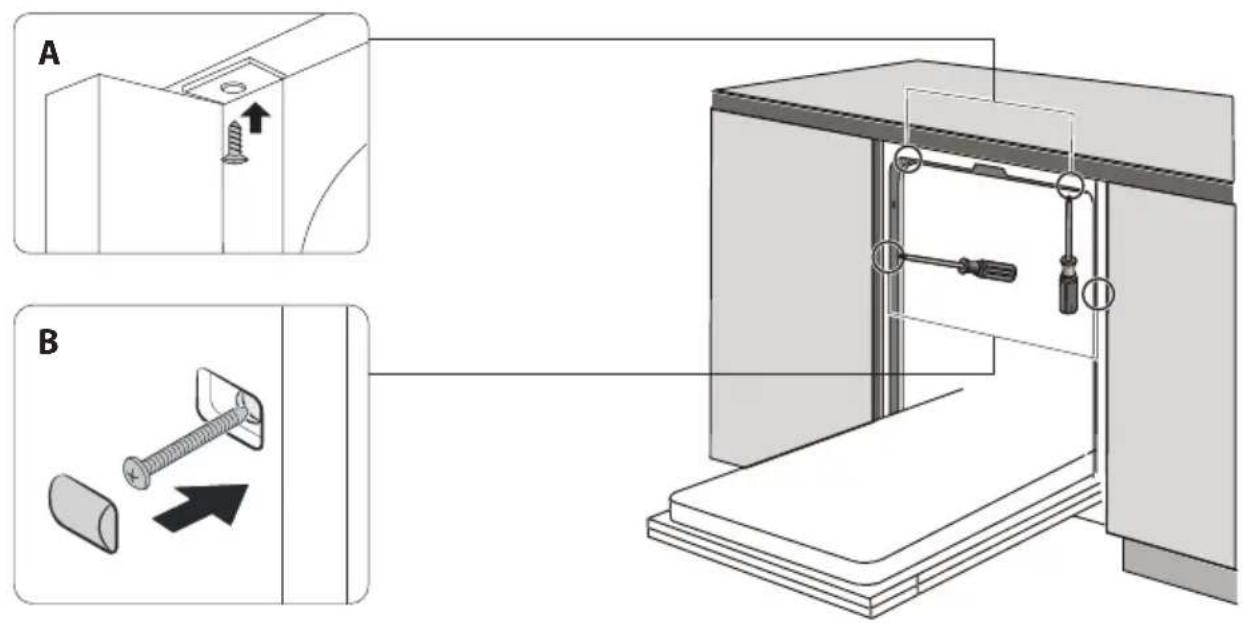

How do I install the dishwasher?

Installation must be done by a qualified technician. Ensure the appliance is level, connect to cold water supply (max 60°C), and secure the electrical connection per local regulations.

What program should I use for heavily soiled pans?

Use the Intensive program. It operates at a higher temperature (65°C) and longer wash time to remove baked-on residues.

How do I activate the child lock?

Press and hold the Delay button for 5 seconds until the indicator lights up. To deactivate, repeat the same step.

What type of salt should I use?

Use only dishwasher salt (coarse grained). Do not use table salt or other salts, as they may damage the water softener.

USER MANUAL MNV8060DS Concept

Interior view of a modern kitchen appliance with visible dish, wheels, and control panel (no readable text or symbols)

MNV8060ds

PODĚKOVÁNÍ

Close-up of a cable with two connectors and wires, labeled '12' at bottom (no text or symbols on main subject)

Technical line drawing of a mechanical conveyor system with no visible text or symbols

3D wireframe model of a basket structure with no visible text or symbols

POPIS OVLÁDACÍHO PANELU

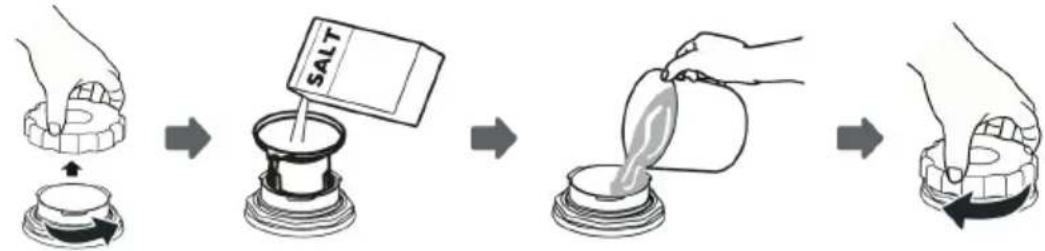

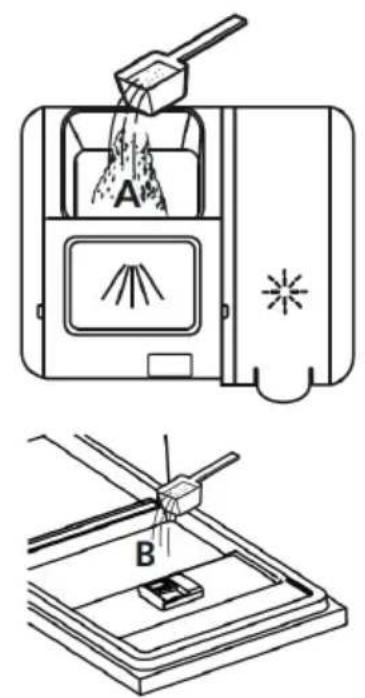


Obr. 1

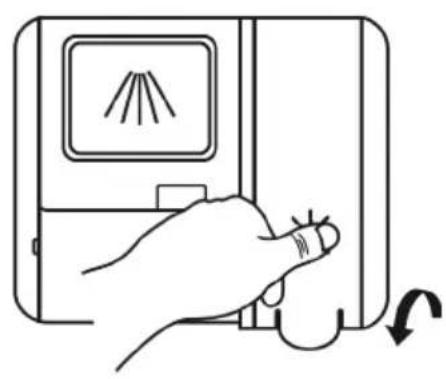

Poznámka:

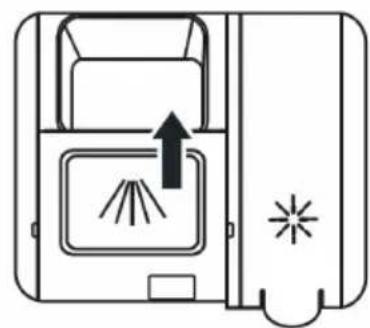

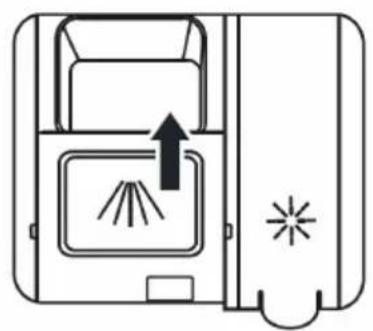

Simple line drawing of a refrigerator with a window and starburst symbol, no text or labels present

Obr. 3 Obr. 4 Obr. 5

Line drawing of a hand inserting a device into a vertical panel, showing internal components and a screen with a tree-like symbol (no text or labels)

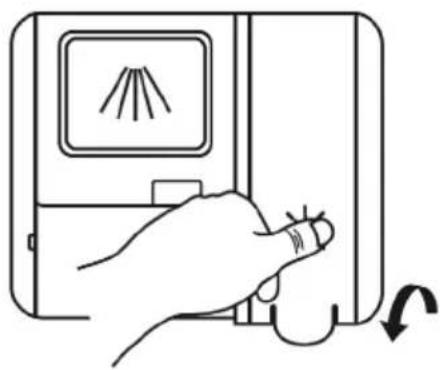

Line drawing of a hand pressing down on a device with a screen showing a flame symbol (no text or labels)

Obr. 7 Obr. 8

Diagram of a device with a tray, vent, and warning symbol (no text or labels)

Technical diagram of a mechanical assembly with gears and housing (no text or labels)

Přední stěna koše

Line drawing of a mechanical device with internal components and hands adjusting parts (no text or symbols)

Etažér

Diagram showing two stages of a structural steel frame with circular elements, one before and one after rotation (no text or symbols)

Obr. 9

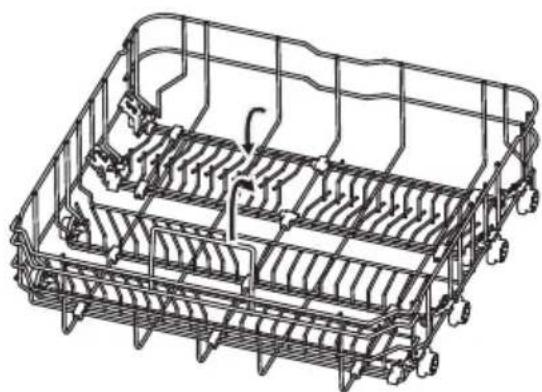

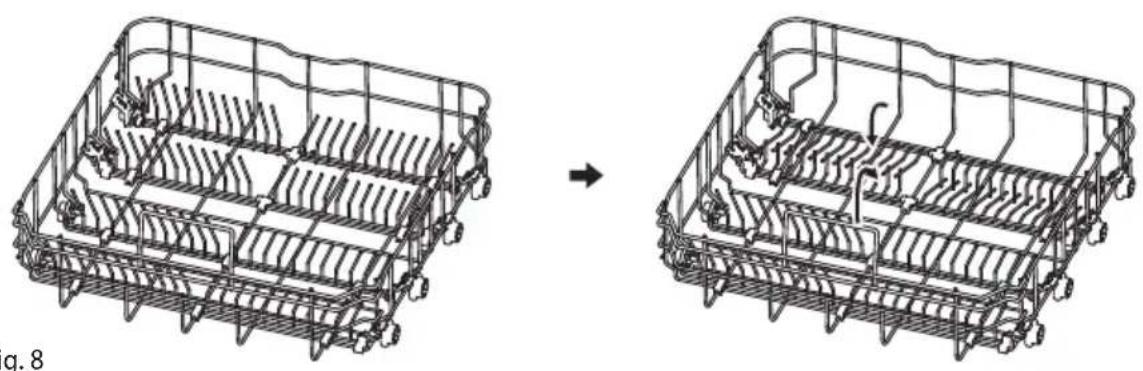

Dolní koš

Technical line drawing of a mechanical assembly before and after modification (no text or symbols)

Obr. 10

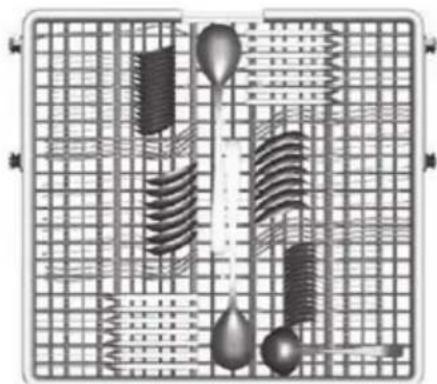

Koš na příbory

Diagram of mechanical components arranged on a grid background, including springs and balls (no text or labels)

Vyndávání nádobí

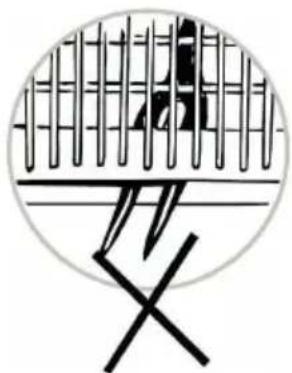

Circular diagram with grid lines and a crossed X symbol at the bottom (no text or labels)

PŘEHLED MYCÍCH PROGRAMŮ

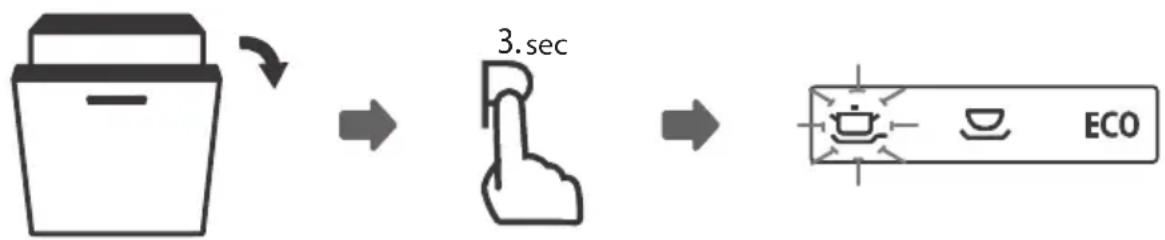


Poznámka:

POZOR!

Simple line drawing of a bin with a recycling arrow (no text or symbols)

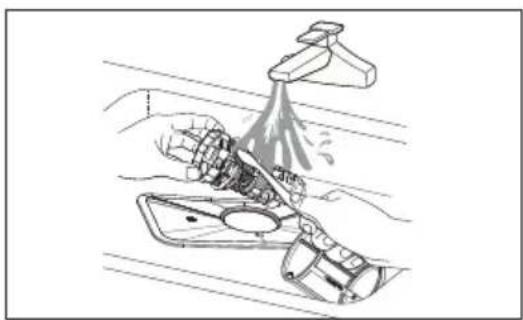

Illustration of hands using a spray gun to spray liquid onto a tray (no text or symbols)

Technical diagram of a mechanical assembly with internal components and an inset view showing a gear mechanism (no text or labels)

Poznámka:

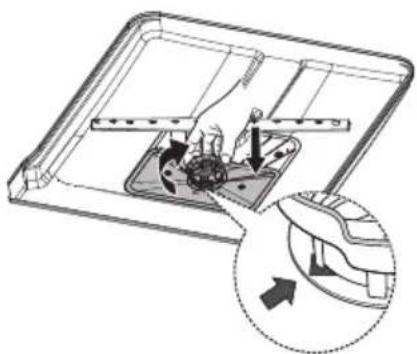

Mechanical gear assembly diagram showing a lever mechanism and gear meshing (no text or labels)

Technical line drawing of a mechanical assembly with a central component and an upward arrow indicating motion (no text or symbols)

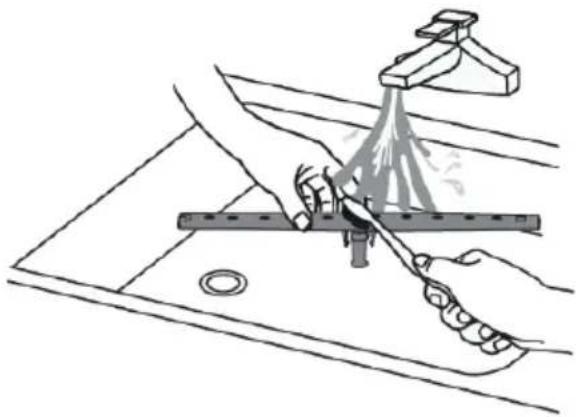

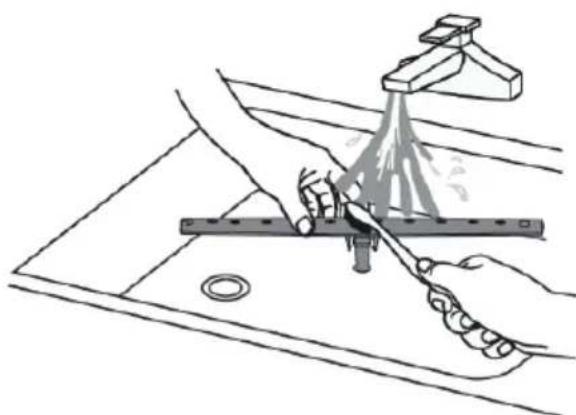

Line drawing of a kitchen sink with hand cleaning the surface using a tool (no text or symbols)

UPOZORNĚNÍ!

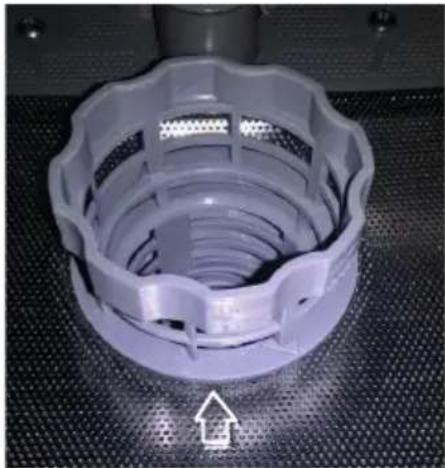

Close-up of a white plastic mechanical component with a textured surface and a small arrow pointing to it (no text or symbols visible)

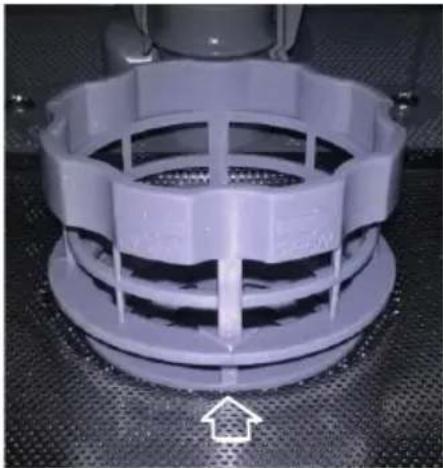

Close-up of a white plastic mechanical component with a textured surface and a white arrow pointing to a feature (no text or symbols visible)

Close-up of a mechanical component with a circular flange and central rod, no visible text or symbols

Line drawing of a washing machine with a close-up inset showing internal components (no text or symbols)

Hand holding a pipe fitting with a wrench inserted (no text or symbols visible)

Line drawing of a faucet with a stopper and valve (no text or symbols)

Dolní koš

Silhouette of various kitchen utensils and a square base (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

ULOŽENÍ STOJANU DO DOLNÍHO KOŠE

Technical line drawing of a multi-wheeled agricultural machine with multiple cylindrical components and mesh railings (no text or symbols)

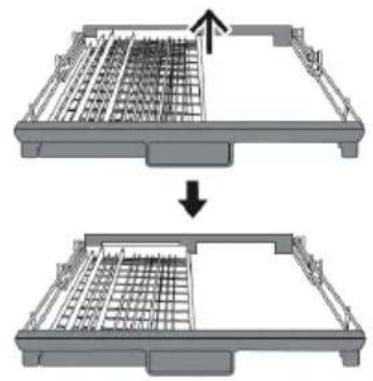

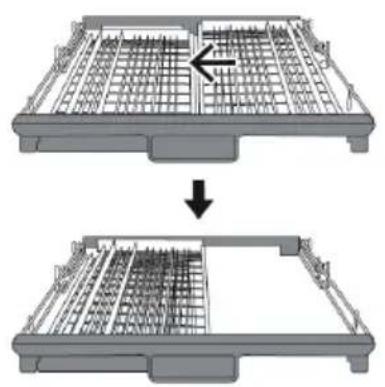

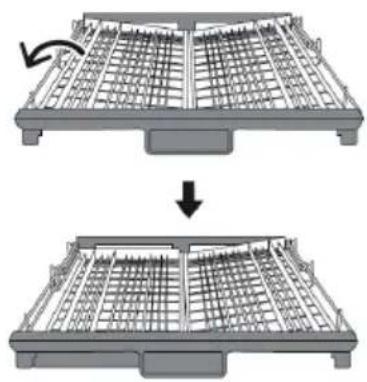

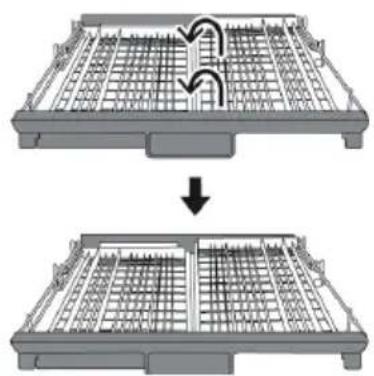

POLOHOVÁNÍ KOŠE NA PŘÍBORY

Two-step diagram showing a grid-based structure before and after processing, with no text or symbols present.

Diagram showing two views of a grid-patterned container or rack structure, with an arrow indicating direction (no text or symbols present)

Two-step diagram showing a grid structure before and after modification, with no visible text or symbols.

Two-step diagram showing a mechanical assembly with grid-like components and an upward arrow indicating motion (no text or symbols)

Poznámka:

Obr. 1

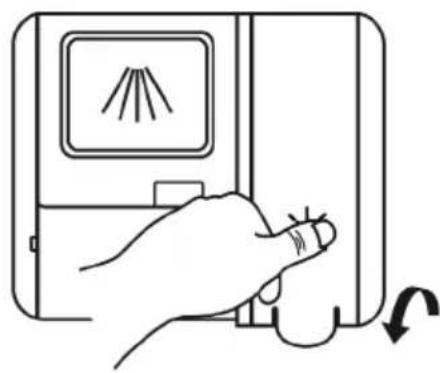

Poznámka:

Simple line drawing of a door with a window and starburst symbol, no text or labels present

Obr. 3 Obr. 4 Obr. 5

Line drawing of a hand inserting a device into a device with a screen and plug (no text or symbols)

Line drawing of a hand pressing down on a device with a scroll wheel (no text or symbols)

Technical diagram of a mechanical assembly with multiple components arranged in a grid (no text or labels visible)

Predná stena koša

Line drawing of a mechanical assembly with hands operating a spring-loaded housing (no text or symbols)

Etažér

Isometric line drawing of a mechanical structure with spring-like elements and a rotation arrow (no text or symbols)

Pure mechanical linkage diagram without any text, numbers, or symbols

Dolný kôš

Two wire mesh diagrams showing structural changes before and after assembly (no text or symbols)

Obr. 10

Kôš na príbor

Grid-patterned diagram with four metallic tools and droplets, no text or symbols present

Vyberanie riadu

Circular diagram with grid lines and a crossed X symbol, no readable text or symbols present.

PREHŁAD ČISTIACICH PROGRAMOV

POZOR!

Simple line drawing of a bin with an arrow indicating rotation (no text or symbols)

Illustration of hands using a spray gun to spray liquid onto a surface, with no text or symbols present.

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or symbols)

Poznámka:

Mechanical gear assembly diagram showing a lever mechanism and gear shift (no text or labels)

Technical line drawing of a mechanical assembly with a central component and an upward arrow indicating motion (no text or symbols)

Illustration of hands using a tool to clean or wash a surface, no text or symbols present

UPOZORNENIE!

Close-up of a white plastic mechanical component with a textured base and central hub, no visible text or symbols.

Close-up of a white plastic mechanical component with a textured surface and directional arrows indicating flow or movement (no text or symbols)

Close-up of a mechanical component with a circular base and central protrusion, showing no visible text or symbols.

Diagram of a washing machine with a close-up view showing internal components and a screwdriver inserted (no text or labels)

Obr. 15

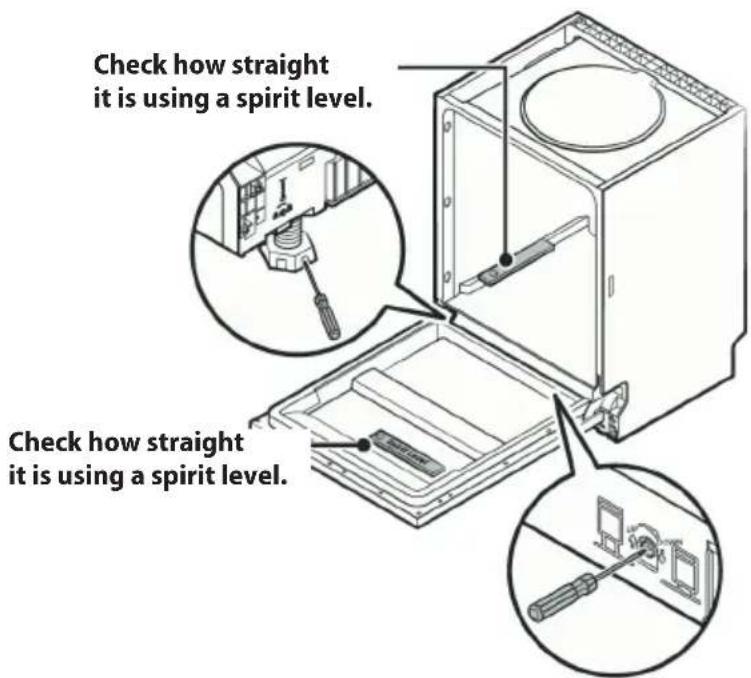

VYROVNANIE UMÝVAČKY DO VODOROVNEJ POLOHY

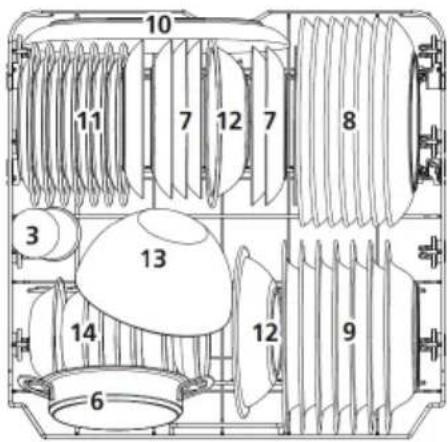

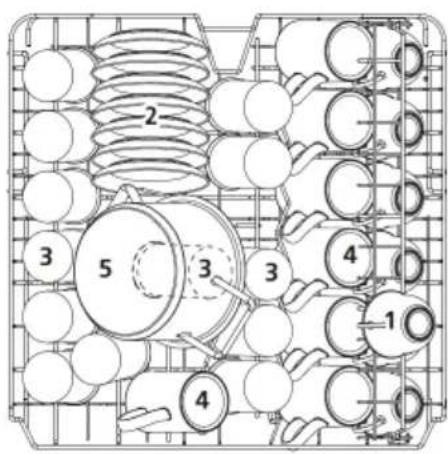

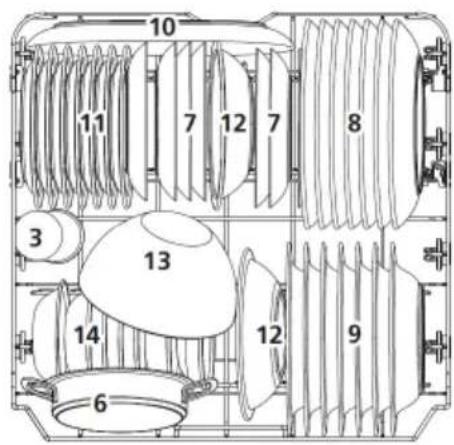

Dolný kôš

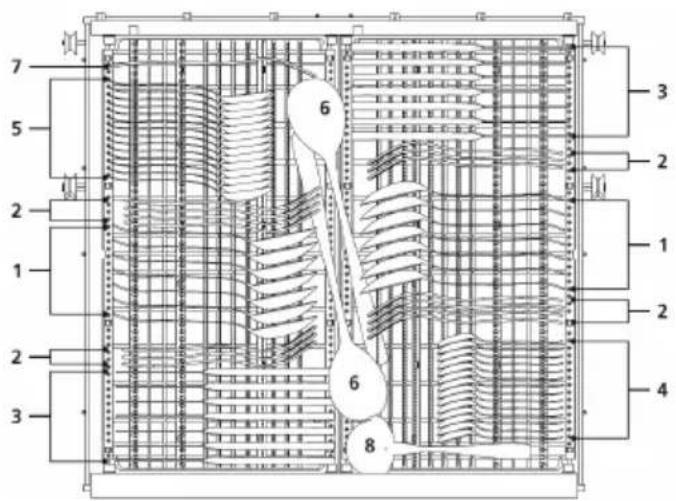

Číslo Položka Číslo Položka
1 Šálky 8 Plytké taniere
2 Tanieriky 9 Hlboké taniere
3 Poháre 10 Servírovací tanier
4 Hrnčeky 11 Plastové tanieriky
5 Malý hrniec 12 Plastové misky
6	Hrniec na pečenie	13	Sklenená misa
7	Dezertné tanieriky	14	Dezertné misky

Kôš na príbor

Technical line drawing of a mechanical assembly with three circular components and curved brackets (no text or symbols)

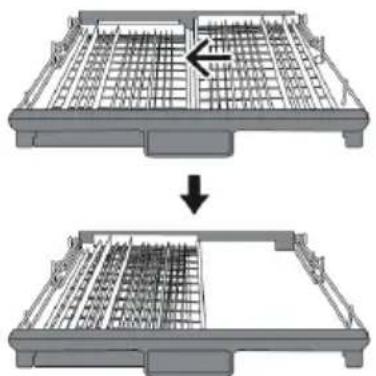

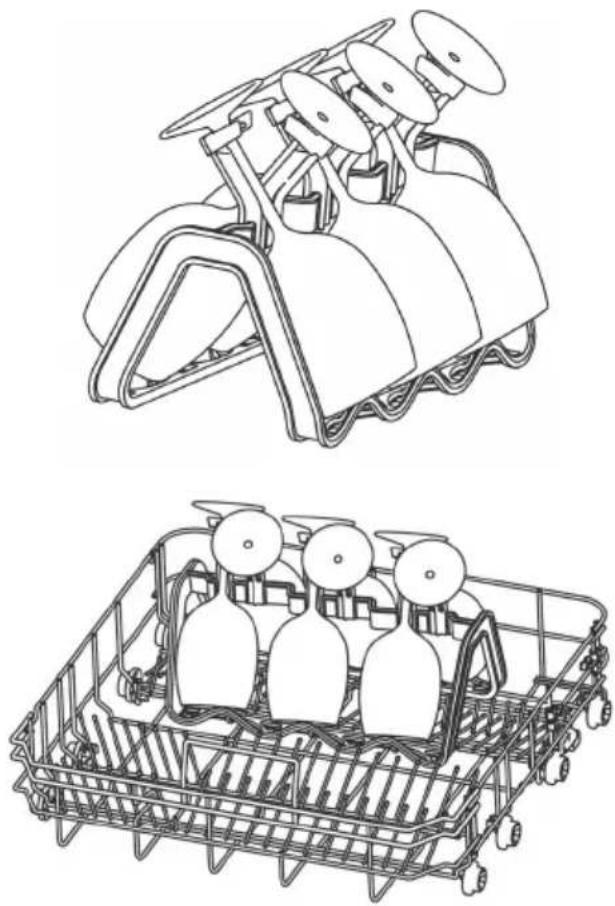

ULOŽENIE STOJANA DO DOLNÉHO KOŠA

Technical line drawing of a multi-wheeled industrial machine with multiple cylindrical components and wiring (no text or symbols)

Diagram showing a grid structure before and after modification, with no text or symbols present.

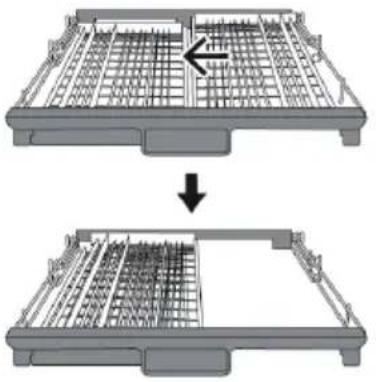

Poloha 3 – posuňte pravú stranu koša sprava dolava, koše sa prekrývajú.

Two-step diagram showing structural grid transformation from top to bottom view, with an arrow indicating the process (no text or symbols present)

Two-step diagram showing structural grid deformation before and after, with no text or symbols present.

Two mechanical assembly diagrams showing structural changes, with an upward arrow indicating a process or transformation (no text or symbols present)

Poznámka:

Internal view of a computer monitor with coiled cable and connectors (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a multi-tiered mechanical basket or rack structure (no text or symbols)

OPIS PANELU STEROWANIA

Rys. 1

Pamiętaj:

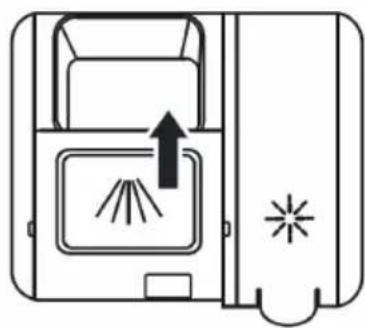

Simple line drawing of a refrigerator with a window and starburst symbol, no text or labels present

Line drawing of a device with a handle inserting into a slot (no text or symbols)

Line drawing of a hand pressing down on a device with a slide and scroll, showing no text or symbols.

Rys. 7 Rys. 8

Diagram of a device with a fan, screen, and door, showing internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with multiple components arranged in a grid (no text or labels visible)

Line drawing of a mechanical assembly with gears and a handle, no text or symbols present

Etażerka

Diagram showing two mechanical assembly stages with rotating components and directional arrows (no text or symbols)

Rys. 9

Dolny kosz

Two wire mesh diagrams showing structural changes before and after assembly (no text or symbols)

Rys. 10

Kosz na sztućce

Diagram of mechanical components arranged on a grid background, including springs and balls (no text or labels)

Wyjmowanie naczyń

Circular diagram with grid lines and a cross symbol at the bottom (no text or labels)

PRZEGLĄD PROGRAMÓW MYCIA

UWAGA!

Simple line icon of a bin with a circular arrow indicating rotation (no text or symbols)

Diagram of a mechanical device with spray and motion lines, no visible text or symbols

Technical illustration of a mechanical assembly inside a transparent enclosure, showing internal components and a magnified inset with an arrow indicating motion (no text or symbols present)

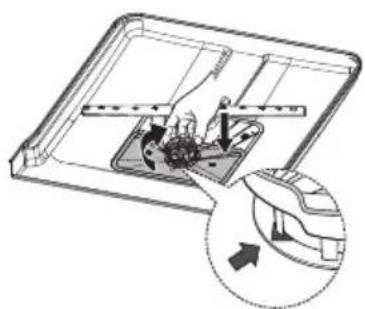

Mechanical gear assembly diagram showing a pinwheel and gear mechanism (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of hands using a tool to clean or wash a surface, no text or symbols present

PRZESTROGA!

Close-up of a white plastic mechanical component with a textured surface and a directional arrow indicator (no text or symbols)

Close-up of a white plastic mechanical component with a textured surface and directional arrows indicating flow or movement (no text or symbols visible)

Close-up of a mechanical component with a circular housing and a white arrow pointing to a feature, no visible text or symbols.

ny filtr

Line drawing of a washing machine with a close-up inset showing internal components (no text or symbols)

Rys. 15

Line drawing of hands holding a faucet with a pipe fitting (no text or symbols)

Line drawing of a faucet with a valve and handle (no text or symbols)

Diagram showing two steps of a grid-based mechanical component, one moving rightward and the other moving down (no text or symbols)

Two-step diagram showing a grid-based structure before and after processing, with no visible text or symbols.

Two-step diagram showing structural grid deformation, with no text or symbols present.

Diagram showing two stages of a mechanical or structural assembly with grid patterns and an upward arrow (no text or symbols)

Pamiętaj:

Close-up of a computer monitor with two coiled cables and connectors, labeled '12' (no text or symbols on the cables themselves)

Technical line drawing of a mechanical component with no visible text or symbols

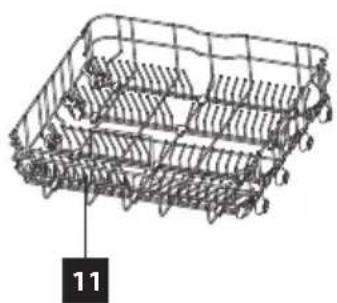

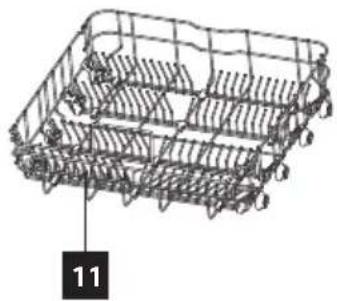

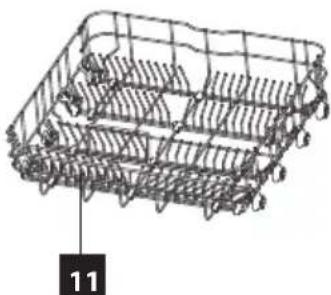

Wire mesh basket diagram with numbered label (11) pointing to internal structure, no readable text or symbols present.

VADĪBAS PANELA APRAKSTS

Piezime:

Diagram of a device with a screen and starburst symbol, showing airflow or heat transfer (no text or labels)

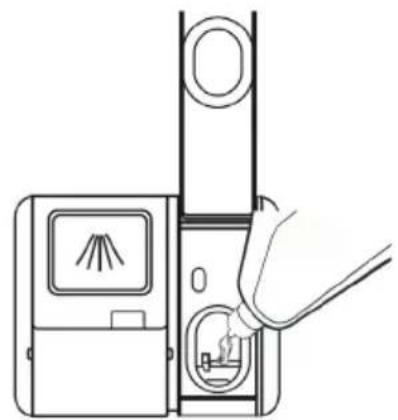

Line drawing of a hand inserting a device into a vertical panel, showing internal components and a screen with a tree-like symbol (no text or labels)

Line drawing of a hand pressing down on a device with a screen showing a flame symbol (no text or labels)

3.att 4.att 5.att

Diagram of a refrigerator with a door and window, showing internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with insulators and housing (no text or labels)

Technical illustration of a mechanical assembly with two views: top shows a hand holding a component, bottom shows a close-up of hands adjusting a tool (no text or symbols present)

Plauktiņš

Isometric line drawing of a structural steel rebar with circular components, no text or symbols present

1. att.

Pure mechanical diagram of a zigzag structure with circular holes, no text or symbols present

Apakšējais grozs

Technical line drawing of a multi-level mechanical assembly with no visible text or symbols

10.att

Technical line drawing of a multi-layered mechanical assembly with no visible text or symbols

Galda piederumu grozs

Grid-based diagram with four metallic objects arranged in a V-shape, no text or symbols present

Trauku iznemšana

Simple line drawing of a fence with diagonal braces and a cross symbol at the base (no text or symbols)

MAZGĀŠANAS PROGRAMMU PĀRSKATS

Simple line drawing of a bin with an arrow indicating rotation (no text or symbols)

Illustration of a hand using a tool to clean or spray liquid from a kitchen sink (no text or symbols)

Diagram of a mechanical device with a hand operating a tool, showing internal components and a magnified inset view (no text or symbols)

Piezime:

Three technical diagrams showing mechanical assembly and cleaning steps (no text or symbols)

BRĪDINĀJUMS!

Close-up of a white plastic mechanical component with a textured surface and a small arrow pointing to it (no text or symbols visible)

Close-up of a white plastic mechanical component with a hexagonal groove and internal grooves, placed on a textured surface (no text or symbols visible)

Close-up of a mechanical component with a circular housing and a white arrow pointing to a feature, no visible text or symbols.

Technical line drawing of a washing machine with an inset showing mechanical components (no text or symbols)

1. att.

Line drawing of hands holding a faucet handle (no text or symbols)

Line drawing of a faucet with handle and valve (no text or symbols)

Line drawing of a mechanical component with multiple curved arms and a central hub (no text or symbols)

Technical line drawing of a multi-wheeled agricultural machine with three cylindrical tanks and wheels (no text or symbols)

TRAUKU IEVIETOŠANAS PIEMĚRI

Diagram showing a mechanical assembly process with grid patterns before and after, no text or symbols present.

Two-step diagram showing a grid-based structure before and after modification, with no visible text or symbols.

1. pozicija – iznemiet groza labo pusi, kreisā puse paliks plakana.

Two-step diagram showing structural grid transformation from top to bottom plate (no text or symbols)

Diagram showing two mechanical assembly steps with grid patterns and an upward arrow (no text or symbols)

Piezime:

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using the warming drawer is familiarized with the instructions.

TABLE OF CONTENTS

Technical specifications	Putting the appliance into operation
Important safety information	Turbo drying
Product description	Cleaning and maintenance
Control panel description	Installation of the appliance
User manual	Troubleshooting
Loading the regenerating salt	Error message	The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.
Loading the rinse aid	Dimensions
Detergents	Example of loading dishware
Unsuitable dishware	Positioning of the cutlery basket
Loading dishware	Environmental protection
Washing programs overview

TEHNISKIE PARAMETRI
Energy efficiency class (a)	C	Airborne acoustical noise emission class (a)	B
EEI (a)	43,9 Height 815 mm
Cleaning performance index (a)	1,125 Width 598 mm
Drying performance index (a)	1,065 Depth (closed door) 570 mm
Energy consumption(kWh/cycle) (1)	0,747 Depth (open door 90°) 1150 mm
Water consumption(l/cycle) (2)	9,8 Rated capacity (a)		14 sets of dishes
Program duration (h:min) (a)	3:18 Type Built-in
Off-mode 0,49 W Charging/frequency			230 V ~ 50 Hz
Delay start	1,0 W	Water pressure	0.04–1 MPa
Airborne acoustical noise emissions (a)	42 dB (A)	Weight	44 kg

Additional information:

(a) pro program ECO

(1) based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used.
(2) based on the eco program. Actual water consumption will depend on how the appliance is used and on the hardness of the water.

IMPORTANT SAFETY INFORMATION

Upon delivery of the dishwasher

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any way other than as described in this manual.
  • This appliance can be used in households and similar places like:

• Kitchen cabinets in shops, offices and other workplaces.
  • Appliances used in agriculture.

• Appliances used by guests in hotels and other areas in a hotel environment.
• Appliances used in a Bed and Breakfast environment.

- Do not touch the appliance with wet hands.

- Load sharp knives with the handles up or horizontally to reduce the risk of cut-type injuries.

- Use the dishwasher only for household purposes and only for washing kitchen utensils.

- Do not store anything inside the appliance.

- Do not stand or sit on the open door of the appliance.

• Water from the washing area is not drinkable.

- Do not use any solvents in the dishwasher (danger of explosion).

- Use only the products suitable for dishwashers.

- During the running washing program always open the dishwasher door very carefully, water may spurt out.

- Follow the instructions for safety and use on the packaging of the cleaning agents.

- Do not touch hot surfaces and heating elements during use or shortly after use.

- Do not allow children or unauthorized people to handle the appliance, use it out of their reach.

- Children should not play with the appliance. - Pay extra attention if the appliance is used near children.

- Do not allow the appliance to be used as a toy.

- This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.

- Caution! A large amount of steam may be released from the appliance when you open the door. Be careful. Risk of scalding!

- If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.

- When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

- Do not immerse the power cord or the plug in water or any other liquid.

- Check the appliance and the power cord for damage regularly.

- Do not switch on the appliance if it has been damaged.

- Do not use the appliance if the door or the door seals are damaged. Call the authorised service centre.

- Do not use the appliance without properly installed covers and without a front plate.

- The appliance is designed for washing dishware suitable for washing in the dishwasher. Avoid contact of plastic dishware with the heating elements of the appliance.

- Do not use any accessories other than those recommended by the manufacturer.

- Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.

- Before cleaning of the appliance, leave it for at least 30 minutes to cool down.

- Children should not clean and maintain the appliance unless they are at least 8 years old and under supervision.

- Keep the detergents and rinse aids from children.

- Keep children away from the open dishwasher, there could still be detergent residues.

CAUTION!

To avoid injury open the door only for a short period of time to load or unload dishware. Children may lock themselves inside the appliance (risk of suffocation) or be exposed to other dangers.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

PRODUCT DESCRIPTION

1. Upper spray nozzle
2. Inner pipe
3. Regenerating salt container
4. Detergent and rinse aid dispenser
5. Lower spray arm
6. Filtration system
7. Cutlery basket
8. Upper basket
9. Upper spray arm
10. Cup shelf
11. Lower basket
12. Water supply connector
13. Drain hose

Front view

Back view of a computer monitor with two coiled cables and connectors, labeled with number 12 (no text or symbols on the cables themselves)

Technical line drawing of a mechanical component with no visible text or symbols

Wire mesh basket diagram with no visible text or symbols

CONTROL PANEL DESCRIPTION

1. Power button
2. Washing program selection button
3. Alternative washing function button
4. Program function
5. Delayed start function button

DESCRIPTION OF INDIVIDUAL BUTTONS OF THE CONTROL PANEL

Washing program selection button

• Press the button to select desired washing program.
  • The selected washing program is indicated by the diodes placed below the corresponding washing programs (6).
• The display shows the duration of each selected washing program.

Symbol Mycí program
	AutoAutomatic detection of lightly, normally or heavily dirty dishes, with or without dried food residue
	IntensiveHeavily dirty dishes including pots and pans. Dried food residue.
	UniversalFor normally dirty dishes such as pots, plates, glasses and slightly dirty pans.
	ECOThis is a standard program suitable for normally dirty dishes such as pots, plates, glasses and slightly dirty pans.
	GlassFor lightly dirty dishes and glassware.
	90 MinFor normally dirty dishes that do not require long washing.
	RapidShorter washing for slightly dirty dishes that do not need drying.
[B4C2]	SoakTo rinse dishes that you plan to wash later that day.

Alternative washing function button

- Press the button to select which spray arms will be used during the washing program (both spray arms, only the upper spray arm, only the lower spray arm) (7).

Symbol Program function
	Upper spray arm
	Lower spray arm

Display

- The display (10) shows the time of the washing program and the time of the delayed start of the program.

E.g. The time of the washing program 3:05

The time of the delayed start H:09

Status indicator

- If the indicator status (9) LED lights up, it is needed to add the appropriate detergents or open the water supply.

Symbol Status indicator
	Rinse aid
	Salt
	The water supply is closed

Program function

• You can select only one program function for each type of washing program (8).
• For AUTO, RAPID and Pre-wash washing programs you cannot select any of the program functions. For other washing programs (INTENSIVE, UNIVERSAL, ECO, GLASS, 90 Min) it is possible to select the program function.

Symbol Program function
	Extra drying; increased drying efficiency.
	Increased washing efficiency.
	Express, shortening the time of the washing program.

Delayed start function button

Delayed starting can be set from 0 to 24 hours (5).

USER'S MANUAL

Before first use

1. Set the appliance according to hardness of the water (see below).
2. Pour the regenerating salt into the salt container.
3. Pour the rinse aid into the rinse aid dispenser.
4. Pour the detergent or put the tablet into the detergent dispenser.

Water softeners

Soft water is required for efficient washing (water with low calcium content), otherwise limescale is created on the dishes and in the interior of the dishwasher. Tap water which exceeds the given level of water hardness must be softened before being used for washing purposes (meaning free of calcium). This is achieved by regenerating salt in the softening unit of the dishwasher. Setting the unit and the required amount of salt depend on the hardness of tap water.

Water hardness is measured in equivalent degrees of hardness, German degrees °dH, French degrees °fH, British degrees °Clarke and mmol/l (millimoles per litre - international unit for the hardness of water).

The softening unit should be set according to the hardness of the water used for the appliance. Contact your local water utility company for information about the water hardness in your area. Set the dosage regulator manually according to the table.

Setting the appliance according to the water hardness

1. Press the power button (1) to turn the appliance on.
2. Press the Program button (2) for more than 5 seconds, within 60 seconds after switching on the appliance, to start the water softening setting.
3. Press the Program button (2) again to select the correct setting according to your area, the setting will switch in the following order: H1->H2->H3->H4->H5->H6.
4. Press the power button (1) to confirm the setting.

Water-hardness				Value	Regeneration occurs every X program sequence1)	Salt consumption (g/washing cycle)
°dH °fH °Clarke mmol/l
0~5	0~9	0~6	0~0,94	H1	No regeneration	0
6–11	10–20	7–14	1.0–2.0	H2	10	9
12–17	21–30	15–21	2.1–3.0	H3	5	12
18–22	31–40	22–28	3.1–4.0	H4	3	20
23–34	41–60	29–42	4.1–6.0	H5	2	30
35–55	61–98	43–69	6.1–9.8	H6	1	60

1) Every cycle with a regeneration operation consumes additional 2.0 litres of water, the energy consumption increases by 0.02 kWh and the program extends by 4 minutes.

Note:

This appliance is factory preset to H3.

$$ 1 ^ {\circ} \mathrm{dH} = 1. 2 5 ^ {\circ} \text { Clarke } = 1. 7 8 ^ {\circ} \mathrm{fH} = 0. 1 7 8 \mathrm{mmol/l} $$

°dH German degrees

°fH French degrees

°Clark British degrees

LOADING THE REGENERATION SALT

The effects of salt

During the washing cycle the salt goes automatically from the container to the softening unit where it dissolves the calcium content. Dissolved calcium is washed away from the dishwasher. The softening unit is then ready again for further action. This regeneration process works only if the salt is dissolved in water.

1. Open the appliance door, remove the lower basket and proceed as shown in Fig. 1 below.
2. Remove the regenerating salt container lid.
3. Place the funnel (included in the package) on the opening of the regenerating salt container and slowly fill the container with the salt. The capacity of the empty container is about 1.5 kg.
4. Fill the rest of the container with water before first use. It is normal for a small amount of water to flow out of the container during filling.
5. Close the regenerating salt container after filling.

Fig. 1

Note:

• The regenerating salt container is located under the lower rack.
• The regenerating salt container can be refilled only when the salt status indicator is on.
  • After refilling the indicator goes off.
• If there is a spillage of regenerating salt, run a short washing cycle to wash away the salt.

Caution!

• Load the regenerating salt before running washing cycle to wash away any spilled salt residues and prevent the risk of corrosion of the appliance interior.
  • Always use regenerating salt designed for use in dishwashers. Never use table salt!
• Never pour detergents into the regenerating salt container. Detergents can destroy the softening unit!

In the event of damage caused by improper use of salt, the manufacturer assumes no responsibility or liability for any caused damage.

LOADING THE RINSE AID

The rinse aid is used in the last stage of rinsing to prevent the drops of water from staying and drying out on the dishes leaving undesirable stains on the dishes.

1. Open the appliance door.
2. Open the rinse aid dispenser as shown in Fig..3.
3. Slowly pour the rinse aid into the dispenser (Fig.. 4). The capacity of the empty dispenser is about 140 ml.
4. After filling close the rinse aid dispenser cover and tighten it (Fig.. 5)..

Fig.3 Fig. 4 Fig. 5

If the indicator of the amount of the rinse aid lights up, you must refill the dispenser before starting a new washing cycle!

Note:

• The rinse aid dispenser is located on the door next to the detergent dispenser.
  • The appliance is designed to be used only with liquid rinse aids.
• If there is a spillage of the rinse aid, wipe it out using an absorbent cloth or run a short washing cycle to wash it away.

Caution!

• Use only rinse aids designed for use in dishwashers. Never pour detergents into the rinse aid dispenser.
• Load the rinse aid before running the short washing cycle to wash away any spilled rinse aid residues and prevent the risk of corrosion of the appliance interior.

Setting the dosage of the rinse aid

For better drying results with a limited amount of rinse aid, the dishwasher is designed to adjust consumption according to user settings. Follow the steps below.

1. Close the door and switch on the dishwasher by plugging it into an electrical outlet.
2. Within 60 seconds after step 1, press the "Program" button [2] for more than 5 seconds and then press the Delayed Start" button [5] to enter one of the pre-set options, the rinse aid status indicator flashes once per second.
3. Press the "Program" button [2] to select the most appropriate setting to match your habits, the settings will change in the following order: D1->D2->D3->D4->D5->D1. The higher the number, the more rinse aid the dishwasher uses.
4. Without reaction within 5 seconds or by pressing the "On/Off" button [1], you finish the setting, the setting is completed successfully.

If you only use a detergent with the integrated rinse aid, decrease the dosage of the rinse aid to minimum. DETERGENTS

Detergents can be divided into four groups according to the form:

a) Loose,
b) Liquid,
c) Tablets,
d) Combined detergents (e.g. 3 in 1 tablets).

Detergents can be divided into two groups according to the chemical composition:

a) Alkaline,
b) With natural enzymes.

They can be also divided into:

a) phosphate and chlorine,
b) phosphate and chlorine-free,
c) phosphate-free and chlorine-free.

• When using phosphate-free detergents with hard water, a white film can be created in the appliance interior.
• Increasing the dose of detergent will prevent the sediment and get better washing results.
• Chlorine-free detergents have less bleaching effect. This may lead to enhancement of tea residue stains or colouring of plastic dishes. In this case, use a stronger washing program, increase the dose of detergent or use a chlorine detergent.

Detergents – Tablets

• The tablets from different manufacturers dissolve at different rates.
• Some detergent tablets cannot dissolve completely therefore they are less efficient while running short programs.
- For this reason, we recommend selecting longer washing programs to ensure the complete dissolution of the detergent tablets.

Detergent dispenser

The detergent dispenser must be refilled before every washing cycle. For regular use one tablespoon of detergent is plenty. If the dishes are heavily soiled, add more detergent. Add the detergent just before starting the washing program. If the detergent stays in the dispenser, it may get wet and it may not dissolve completely when starting a new cycle.

Filling the detergent dispenser

1. Choose how to open the dispenser lid according to the actual design.

- Method 1: Slide the release latch to open the lid

- Method 2: Open the lid by pushing the release latch. (Fig. 6).

1. Add detergent to the dispenser main chamber (A) just before the washing cycle (Fig. 7). For better cleaning results, especially if you have very dirty dishes, pour a small amount of detergent directly onto the inner door recess (B). The detergent thus added is already activated during the pre-wash phase.

2. Finally, close the flap by sliding it to the left (Fig. 8).

Diagram of a device with a lid, vent, and starburst symbol (no text or labels)

Fig.6 Fig.7 Fig.8

Tip how to save detergents

- When the dishes are soiled lightly, simply use a smaller amount of detergent than recommended.

Note:

• Add the detergent just before starting the washing program.
• Use a commercially available liquid or powder branded detergent or tablets.
• Never use detergents designed for manual washing!
• When using tablet detergents read the manufacturer's recommendations, where the tablets should be placed (detergent dispenser, cutlery basket, etc.).
• Make sure the cover of the detergent dispenser is closed, even if tablets are used.

Caution!

- Use only detergents designed for use in dishwashers.

- Keep the detergents in a dry place and out of reach of children.

- Do not leave the detergent in the detergent dispenser when the dishwasher is not intended to be used for some time.

UNSUITABLE COOKWARE

• Cutlery and dishware with wooden parts.
- Plastic dishware and dishware with glued parts that are not heat resistant.
• Glued items, cutlery or plates.
- Tin or copper dishware.
- Crystal glass.
• Steel items prone to rusting.
- Wooden bowls.
- Objects made of synthetic fibres.

Some aluminium and silver parts may change colour or fade. Certain types of glass can tarnish after several washing cycles.

Note:

• Do not put absorbent materials such as sponges and cloths in the dishwasher.
• Use detergents which are labelled by a manufacturer as gentle to dishes.
• Wash only the dishes confirmed to be suitable for washing in dishwashers.
• Do not wash dishes soiled with ash, wax, grease or paint in the dishwasher!

LOADING DISHWARE

Placing dishware

Remove large food residues from the dishes. Rinsing dishes under the tap before washing in the dishwasher is not necessary.

Load the dishes in the following manner:

• Place cups, glasses, pots, pans, etc. upside down.
• Place the dishes with hollows diagonally to allow excess water to drain and for best results of drying.
• Dishware must be loaded securely to avoid falling.
• Loaded dishes must not impede the spray arms to rotate freely.
• Dishware and cutlery should not lie on one another or cover each other.
  • Glasses should not touch each other to avoid possible damage.
• Load pots and larger dishes in the lower rack.
• The upper rack is designed for loading of smaller and lighter dishware (glasses, cups, etc.).
• Long-bladed knives placed upright are very dangerous! Be careful, risk of injury!
• Long and sharp cutlery (carving knives) must be placed horizontally in the upper rack.
• Do not wash very small items in the dishwasher as they can easily slip out of the racks.
• Do not overload the dishwasher!

Upper rack

The upper rack is suitable for:

• glasses,
• coffee and tea cups,
• saucers,
• small bowls and plates,
• shallow pans.

Make sure that the loaded dishware cannot be overturned by running water from the spray arms.

Technical illustration of a mechanical assembly with gears and housing (no text or symbols)

Adjusting the height of the upper rack

1. To raise the upper basket, just lift the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle.

Technical line drawing of a mechanical assembly with spring-loaded components (no text or symbols)

1. To lower the upper basket, lift the adjust handles on each side to release the basket and lower it to the lower position.

Stand

• Glasses and tall glasses lean on the edge of the stand (not on other dishware).
- Do not put any long items, serving and salad cutlery, ladles and kitchen knives in a way that they could impede the rotation of the spray arms.
- You can tilt the stand and adjust it in height (Fig.9).

Isometric line drawing of a structural grid with circular elements, no text or symbols present

Fig. 9

Pure mechanical linkage diagram without any text, numbers, or symbols

Lower rack

The lower rack is suitable for:

• pots,
  • pans,
• lids,
• large bowls and plates.

Make sure that the loaded dishware cannot impede the rotation of the spray arms. For washing larger items (pots, pans, etc.) tilt the plate holders in the lower rack (Fig. 8).

Fig. 8

Cutlery basket

• Load cutlery in the cutlery basket (blades of knives pointing downwards).
• Load the cutlery (forks, spoons, teaspoons) in a way the bent parts point the same direction (to achieve better washing results).
• Long and sharp objects should be placed in front of the upper rack in a horizontal position as shown in Fig. 9.
• If they do not fit in the basket, you can put them on the stand in the upper rack. (Fig. 7).

Grid-based diagram with mechanical components and arrows, no visible text or symbols

Unloading dishware

We recommend unloading the lower rack first to prevent any excess water from the upper rack from flowing down onto the dishware in the lower rack.

Caution!

Make sure that cutlery with sharp parts or spikes do not protrude out of the basket. Risk of injury! Always put the knives with blades down!

Simple line drawing of a fence with diagonal braces and a cross symbol (no text or labels)

WASHING PROGRAMS OVERVIEW

Program	Information about the washing program	Description of the washing cycle	Amount of detergent Previous/ main	Wash cycle time [min]	Power consumption [kWh]	Water consumption [L]	Rinse aid
Auto	Automatic detection of cleaning, lightly, normally or heavily soiled items.	Pre-wash (45°C) Automatic washing (55-65°C) Rinsing Rinsing (50-55°C) Drying	4/18 g Or 1-2 a tablet	85 - 185	0,85-1,55 8,5-18	YES
Intesive	Heavily soiled dishes, dirty pots, pans, etc., dried food	Pre-wash (50°C) Washing (65°C) Rinsing Rinsing Rinsing (60°C) Drying	4/18 g Or 1-2 a tablet	205 1,5	16,6 YES
Universal	Normal dirty dishes, pots, plates, glasses and lightly soiled pans	Pre-wash (45°C) Washing (55°C) Rinsing Rinsing (55°C) Drying	4/18 g Or 1-2 a tablet	175 0,98	13,6 YES
ECO	The standard program is suitable for less dirty dishes	Pre-wash Washing (50°C) Rinsing Rinsing (65°C) Drying	4/18 g Or 1-2 a tablet	198 0,74	7 9,8 YES
Glass	Lightly dirty dishes and glassware	Pre-wash Washing (50°C) Rinsing (50°C) Rinsing (60°C) Drying	4/18 g Or 1-2 a tablet	120 0,95	13,5 YES
90 min.	Normal dirty dishes that need quick rinsing	Washing (60°C) Rinsing Rinsing (50°C) Drying	22 g Or a tablet	90 1,18	12,5 YES
Rapid	Short washing for lightly soiled dishes; for quick washing	Washing (45°C) Rinsing (45°C)	12 g Or a tablet	30 0,82	11,2 NO
Pre-wash	Rinsing dishes that will be washed later the same day	Pre-wash	-	15	-	4,1	NO

Note:
If the display does not show the temperature during the running washing program, it means that phase of the program does not heat up the water.

PUTTING THE APPLIANCE INTO OPERATION

Starting the washing program

1. Open the appliance door.
2. Check the amount of the regenerating salt and refill if needed.

3. One by one pull out the upper and lower rack, load the dishes and then slide the racks back. We recommend loading the lower rack first and then the upper rack (see „Loading dishware“).

4. Make sure that the water tap is open.

5. Press button (1) to turn the appliance on.

6. Press button (2) repeatedly to select the desired program. The display (6) shows the preset time of the selected program. The wash program runs in the following order: ECO – Glass – 90min – Rapid – Pre-wash – Auto – Intensive – Universal – ECO.

7. By pressing button (3) you can choose whether the upper spray arm, the lower spray arm or both will be operating for the selected program. This is possible on all washing programs.

8. If you require a delayed start, press the delayed start function button (5) repeatedly. The delayed start can be set up to 24 hours.

9. After selecting the program and adjusting, close the door of the appliance. The washing program or the countdown of the delayed start will start.

10. You will hear an eight-fold beep sound after the washing program is done. During the beeping sound there is a flashing symbol 0:00 on the display. The indicator for the selected wash program will be on and the display will show „end“ after the eight-fold beep sound.

11. Open the appliance door and press button (1) to turn the appliance off. Caution! Be careful while opening the door of the appliance, a large amount of water vapour can be released or hot water can spurt. There is a danger of scalding!

12. Hot dishes are very fragile. We recommend leaving the dishes to cool down for about 15 minutes before unloading.

Unload the lower rack first and then the upper rack to prevent the excess water from the upper rack flowing down on the dishes in the lower rack.

Changing the program during the running washing program

If you decide to change the currently running program, make sure there is enough detergent in the dispenser, or whether it was used and it is needed to be refilled before starting a new washing program (see „Loading the detergent“).

1. Open the door slightly to pause the running washing program. Wait until the spray arms are completely stationary.
2. Press and hold button (2) for more than 3 seconds. The appliance will switch to standby mode in which you can change the washing program setting.
3. Close the door after you are done resetting. The washing cycle will continue after a few seconds.

Note:

• If you open the appliance door during the running wash program, the program will be paused.
• A beep sound occurs every minute to warn the door is open during the running program.

Adding dishes to the dishwasher during the running washing program

1. Open the door slightly to pause the running washing program. Wait until the spray arms are completely stationary.
2. Add the dishes into the dishwasher and close the door. The washing cycle will continue after a few seconds.

Caution!

Be careful while opening the door of the appliance, a large amount of water vapour can be released or hot water can spurt. Hot water with the detergent can be of a chemically aggressive nature and may have detrimental effects on your skin or furniture.

Auto Open

After washing, the door will open automatically to achieve better drying effect.

Note:

The dishwasher door must not be blocked when set to open automatically.

This can disrupt door lock functionality.

Simple line drawing of a bin with an arrow indicating rotation (no text or symbols)

Tips for best drying results

• The drying effect will be always less effective on the dishes made of unsuitable material (e.g. plastic) than on other dishes.
  • Always place the dishes in a way that water cannot stay in the hollows of the dishes.
• Larger amounts of water remaining in such hollows cannot be dried properly.

Auto open is activated in the indicated time advance before the end of the washing program Note: If the given program does not offer the „Auto open“ function, the box is marked with an „X“

Program
		AUTO	Intensive	Universal	ECO	Glass	90 min	Rapid	Pre-wash
Function	NO function was selected	10 10	10 50 10 5	X X
	Select Power wash function	10 10	10 50 10 X	X X
	Select Extra drying function	10	10	10	50	15	5	X	X
	Select Express	10	0	0	10	0	0	X	X

CLEANING AND MAINTENANCE

Regular maintenance and inspection prevent malfunctions. To maintain a perfect appearance of the interior of the dishwasher, we recommend using a special dishwasher cleaner once every 4–6 months.

• Check the spray arms and make sure there are no deposits of fat and lime. If deposits occur, fill the detergent dispenser with the detergent and start the washing program on the highest set temperature.
• Wipe the door sealing with a damp cloth regularly to remove any deposits.
• Check the indicator of the amount of the regenerating salt and refill the container if needed.
• Check the indicator of the amount of the rinse aid and refill the container if needed.

Filter system

The filtration system at the bottom of the dishwasher retains coarse dirt from the washing cycle. The accumulated coarse residues may cause clogging of the filters. Check the filters regularly and clean them under running water if necessary. Follow the steps below to clean the dishwasher filters:

1. Grasp the coarse filter and unlock it by turning it counter-clockwise. Pull the filter upwards.

Technical line drawing of a mechanical component with internal components and directional arrows (no text or symbols)

1. The fine filter can be pulled from the bottom of the filter assembly. Separate the coarse filter from the main filter by gently pressing the tabs at the top and pulling it out.

1. Larger food residues can be cleaned by rinsing the filter under running water. Use a soft cleaning brush for more thorough cleaning.

Diagram of a hand cleaning a car interior with spray and cleaning tools (no text or symbols)

1. Then reassemble the filters. Proceed in the reverse order to their disassembly. Put the filter assembly back into the dishwasher and turn it clockwise. Check that the filter is properly closed by the position of the arrow for closed filter.

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or symbols)

Note:

• The filter system should be clean at least once a week.
- Do not knock the filters to clean them, it may cause damage and it may also lead to reduction of the filtering effectiveness.
- Make sure the filter system is locked properly after cleaning!

Cleaning the spray arms

It is necessary to clean the spray arms regularly. Calcium and dirt may block nozzles and bearings of the spray arms.

1. To remove the upper spray arm, hold the nut in the centre and rotate the spray arm clockwise to remove it.
2. To remove the lower spray arm, pull it upwards.
3. Wash the spray arms with soap and warm water and clean the nozzles with a soft brush. After thorough rinsing, put them back.

Mechanical assembly diagram showing a lever mechanism and gear mechanism (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a hand using a tool to clean or wash a surface, no text or symbols present

CAUTION!

One of the most common malfunctions is clogged spray arms. The filter is not properly inserted. Make sure the filter system is locked properly after cleaning!

Close-up of a white plastic mechanical component with a circular base and textured surface, no visible text or symbols.

Properly secured filter P

Close-up of a white plastic mechanical component with a circular recessed structure, placed on a perforated surface (no text or symbols visible)

Poorly secured filter

Close-up of a white plastic industrial component with a circular base and central grating, no visible text or symbols.

Cleaning the control panel and the surface of appliance

• Use only a soft damp cloth for cleaning.
• Do not use rough and sharp objects (e.g. steel wool) or aggressive detergents.
• Do not allow water to come in contact with the door lock of the appliance.
• To clean the control panel do not use a spray cleaner. It may cause damage to the door lock and electrical parts of the appliance.
• Some paper towels can scratch the stainless steel of the control panel.

Cleaning the door of the appliance

• To clean the edges around the door, use only a soft damp cloth.
- Do not use any spray cleaners, they may damage the door lock and electrical parts of the appliance.

Frost protection

If you are not going to use the appliance for a longer period of time or to place the appliance in places with low temperatures, it is necessary to follow these steps:

1. Unplug the appliance from the mains.
2. Close and disconnect the water inlet hose from the water supply.
3. Dismantle the inlet hose and drain water from the hose and the dishwasher. To capture the water, you can use a shallow container e.g. basin.
4. Reconnect the inlet hose to the dishwasher.
5. Remove the filter system and drain/wipe the remaining water (using for example a sponge).

Note:

- If there is ice and the dishwasher cannot be turned on, contact the service centre.

Tips for maintaining

• After each washing cycle, close the water supply and leave the dishwasher door slightly open to prevent accumulation of moisture and odour.
- Before cleaning and maintenance, disconnect the power cord from the wall outlet.
- Do not use any coarse (e.g. steel wool, rough part of sponges) and sharp objects or aggressive cleaning agents, they may scratch the surface of the appliance.
- For cleaning use a damp cloth dipped in water and detergent.
- If you intend not using the dishwasher for a longer period of time, run a washing program without dishware. After each washing cycle, disconnect the power cord from the wall outlet and leave the dishwasher door slightly open to prevent accumulation of moisture and odour. Leaving the door slightly open prolongs the life of the seal.
- Keep the appliance in an upright position when manipulating. If this is not possible, lay the appliance and transport it on its back.
- Deposits on the seal are one of the sources of odours. Clean the seal to prevent that.

INSTALLATION OF THE APPLIANCE

Caution!

Risk of electric shock! Before installation, disconnect the power cord from the wall outlet. Otherwise there is a risk of death or electric shock.

Built-in dishwashers installed as a free-standing appliance must be secured against overturning. They must be for example screwed to the wall or placed under a worktop which is screwed to adjacent cabinets.

For safe operation the dishwasher must be installed by a qualified professional. Figures for the inflow and outflow of water and electrical grid parameters must match with the figures listed in the technical specifications or in the installation instructions.

• Defects caused by improper installation are not covered by the warranty.
  • Installation is the responsibility of the customer not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.
• The dishwasher should be placed near the wall outlet, water supply and waste.
• There should be a space for inlet and drain hose on one side of the lower cabinet.
  • Dimensions for mounting the appliance are shown in Fig. 12.
• If the dishwasher is installed in a corner of the lower cabinets, make sure there is a free space around the open dishwasher door 50 ~mm (Fig. 13).

Fig. 12 Fig. 13

Dimensions and fastening of the cover plate on the door of the dishwasher

• The dimensions and location of holes on the cover plate are shown in Fig. 14. The dimensions are given in mm.
- Attach the handle to the cover plate and make sure the screw heads are screwed properly and that they do not stick out of the back side of the plate.
• Using the fixing strips, place the cover plate on the door of the dishwasher (Fig. 14a).
- Fasten the cover plate using the screws (Fig. 14b).
- Unscrew the four short screws from the inner side of the door (Fig. 14b).
- Screw the four long screws instead of the short ones. Now the cover plate is fastened to the appliance door (Fig. 14b).

Fig. 14

Fig. 14a

Fig. 14b

Note:

1. In the upper part of the illustration for the installation of the top plate it is shown how many spacer bars and which screws must be used for installing the spacer bars to the control panel of the dishwasher.
2. The spacer bars are put together; the side without the „pins“ shall be attached to the bottom side of the dishwasher control panel.
3. The "pins" on the bottom side of the bars must be removed (cut off). This step must be done otherwise the top plate would not fit properly.
4. After removing the "pins", attach the spacer bars with the included screws to the bottom side of the dishwasher control panel.
5. In the upper part of the illustration for the installation of the top plate it is shown which screws must be used for the number of spacer bars.
6. After attaching the spacer bars to the bottom side of the dishwasher control panel, the head of the screw must be at the same level (it must not stick out) as the bottom side of the spacer bar.

Adjusting door spring strength

• The spring strength is preset only for the appliance door itself. After attaching the cover plate the weight of the door changes.
• You adjust the strength of the springs using the screws located on the bottom part of the front of the dishwasher (Fig. 15).
• Setting of the springs is correct when the open door stays in the position and does not fall down.

Line drawing of a washing machine with a close-up inset showing internal components (no text or symbols)

When installing the appliance, follow these steps:

1. Remove all the packaging and marketing materials before first use.
2. Fasten the cover plate to the appliance door. Use the fastening screws and brackets.
3. You adjust the strength of the springs (left and right) using the screws located on the bottom part of the front of the dishwasher (Fig. 15). To increase the strength turn clockwise. To decrease the strength turn counter clockwise.
4. Connect the inlet hose to the water supply according to Fig. 17.
5. Connect the drain hose according to Fig. 18.
6. Stick the condensation belt under the kitchen top (step 3). Make sure that the condensation belt is stuck alongside the edge of the kitchen top.
7. Place the dishwasher into the prepared space.
8. Use the feet at the front and back of the appliance to level it to a horizontal position. Adjust the back feet by turning the screw on the bottom of the front side of the appliance (step 5). Adjust the front feet by turning screws located near the feet themselves (step 5B). Use a spirit level Fig. 16).
9. Plug the power cord in the wall outlet.
10. The appliance must be secured after placing and levelling it. Securing the appliance can be done in two ways:

A - Attaching to a standard kitchen top:

Place the installation hook into the hole located on the top of the appliance.

Screw the installation hook to the kitchen top (step 6).

B - Attaching to a marble or granite work top:

Screw the sides of the dishwasher to the cabinets (step 7).

Adjusting door spring strength

• The spring strength is preset only for the appliance door itself. After attaching the cover plate the weight of the door changes.
• You adjust the strength of the springs using the screws located on the bottom part of the front of the dishwasher (Fig. 15).
• Setting of the springs is correct when the open door stays in the position and does not fall down.

Note:

Maximum adjustable height of the feet is 70 mm.

Fig. 16

Connection to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance. We recommend using a separate outlet with a 10A circuit breaker.
- Only use grounded sockets.
- Do not use multiple sockets, plugs and extension cords. There is a risk of overheating.
• The plug of the power cord on the appliance must be freely accessible even after the installation.
• Changes in a connection may only be performed by a qualified professional.
- Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
- The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.

Connection of the water supply

• Before connecting the inlet hose to the water supply, make sure that the water pressure is in the range of 0.04 to 1.00 MPa. When water pressure is higher, you must install a pressure reducing valve.
• Connect the inlet hose to the tap with 3/4" thread (Fig. 18). Make sure that the inlet hose is not bent, crushed or entangled.
• When replacing the appliance always use a new inlet hose!
• If the water pipes are new or they have not been used for a longer period of time, run off a sufficient amount of water before connecting the inlet hose to rinse the pipes and wash away any impurities.
• If these safety instructions are not observed, it may lead to blockage and damage to the appliance.

Line drawing of hands holding a faucet with a handle (no text or symbols)

Common supply hose

Line drawing of a faucet with a valve (no text or symbols)

Safety supply hose

Connecting the drain hose

Connect the drain hose to the waste pipe with a minimum diameter: 40mm (Fig. 18). Make sure the drain hose is not bent or squeezed to prevent slowing down or stopping of the water flow

The height of the waste pipe must be less than 1,000 mm (Fig. 18) and the drain hose should not be submerged in water. Secure the drain hose properly to prevent unwanted loosing from the waste pipe.

Fig. 18

Extension of the drain hose

The distance between the connection of the drain hose with the waste pipe and the bottom of the appliance should not be bigger than 1,000 mm. If you need to extend the drain hose, make sure to use the same one. The total length of the drain hose must not be longer than 4 m, otherwise it will reduce the cleaning effectiveness of the appliance.

Disassembling

If you disassemble the appliance, it is important to follow the steps in the correct order:

1. First, unplug the power cord from the mains (pull the plug or switch off the circuit breaker).
2. Close the water supply.
3. Loosen the drain and inlet hoses.
4. Loosen the fastening screws.
5. If the dishwasher is attached to the base plate, remove it.
6. Pull the dishwasher out while gently pulling the drain and inlet hoses and the power cord.

Disconnection of the water supply

1. Close the water supply (the tap).
2. Press the button to release the water pressure in the inlet hose. Water cannot accidentally spurt out when the water pressure is low.
3. Unscrew the inlet hose from the tap.

Draining excess water from hoses

If the drain hose is connected to the waste pipe at the maximum allowable height, the excess water cannot be drained completely. It is necessary to disconnect the drain hose and lay it as low as possible. To capture the water, you can use a shallow container e.g. a basin.

TROUBLESHOOTING

You can remove most of the minor malfunctions by yourself, there is no need to call the service centre. The following overview will help you find the causes of occurring errors.

Defect description Possible cause Solution
The appliance does not work	Faulty circuit breaker	Check the circuit breaker in the switchboard if it is in working condition. Unplug all other appliances that are connected to the same circuit.
	The power cord plug is not plugged in the wall outlet.	Make sure the appliance is switched on and the door is closed.Check the connection of the cord.
	Low water pressure	Make sure the water supply is open and the inlet hose is tightly connected to the water supply tap or the hose is not bent.
	Door is not closed properly. Make sure that the door is closed tightly.
Water is not pumped out of the appliance.	Broken drain hose Check the drain hose.
	Filter is clogged	Check the coarse filter (see „Cleaning the filter system“)
	Drainage is clogged	Check the drainage. If the drainage is clogged, clean it.Before contacting a qualified electrician disconnect the drain hose from the drainage and make sure water flows out of the drain hose. To catch water from the drain hose use e.g. a bucket or some other larger container.
Soapy water in the appliance interior	Unsuitable detergent or spilled rinse aid.	Use only detergent designed for use in dishwashers. If there is a soapy foam in the interior, leave the appliance open to let the foam evaporate. Pour 4.5 litres of cold water into the washing area, close the appliance and then pump out the water. Repeat the process if needed. Spilled rinse aid always wipe off as soon as possible.
	Spilled rinse aid	Spilled rinse aid always wipe off as soon as possible.
Stains in the washing area	Coloured detergent has been used	Do not use detergents with dye.
White film on the inner surface of the dishwasher.	Sedimentary minerals	Use a damp sponge with a cleaning agent and put on rubber gloves. Never use any other cleaning agents than for dishwashers.
Stains on cutlery	Used cutlery is not corrosion resistant
	The appliance was not turned on after the salt was added in the dishwasher. Pieces of salt got in the washing cycle	After adding salt, always run a quick wash cycle without dishware loaded.
	Loose cover of the softener container	Check the softener container cover and make sure it is properly tightened.
Knocking sound in the interior of the appliance during running washing program	The lower or upper spray arm is blocked by dishes or food remains	Pause the program, check the arrangement of dishes or rearrange the dishes and if necessary, clean the spray arm.
Rattling sound in the interior of the appliance during running washing program	During the running washing program Dishes move freely inside the appliance	Pause the program and rearrange the dishes to avoid spontaneous releasing of the dishes during the washing program.
Knocking noise in water pipes	It may be caused by the cross-section of the pipes.	The knocking noise does not influence the dishwasher. If you have doubts, consult it with a qualified professional.
The detergent dispenser cover cannot be closed	The dispenser is overfilled. Remove the excess amount of detergent.
	The mechanism is blocked by the detergent residues.	Clean the closing mechanism of the detergent dispenser.
Dishes are dirty	The dishes were not arranged properly	See "Loading dishware".
	The selected washing program was not strong enough	Select more intensive washing program.
	Insufficient amount of detergent	Use more detergent.
	The arm is blocked by dishes or food remains.	Check the dishes and clean the spray arm if needed.
	It is possible the filter is inserted improperly. Blockage of the arms may occur.	Clean or insert the filter properly. Clean the spray arms (see "Cleaning the spray arms").
Stains on glass	Combination of soft water and too much of detergents.	Use smaller amount of detergent and for washing glasses select the shortest washing cycle if water in your area is soft.
Black or grey stains on the dishes	Aluminium cutlery has touched the dishes during the washing cycle.	Use a gentle abrasive agent to clean such stains. Do not put this agent into the dishwasher!!!
Dishes are moist	Dishes were loaded improperly	See „Loading dishware“.
	Insufficient amount of rinse aid	Use more rinse aid.
	You unload the dishes too soon.	Do not unload the dishes immediately after the washing program is done. Open the door slightly to allow the excess steam to escape. Start unloading when the dishes are almost cold to the touch. Always unload the lower rack first and then the upper rack to prevent the excess water from the upper rack flowing down onto the dishes in the lower rack.
	Wrong washing program was selected	The short washing program is less effective than the long programs and the temperature is also lower. Select longer washing program.
	Cutlery with wooden handle	Draining water from these is more difficult. This type of cutlery is not suitable for washing in the dishwasher.

ERROR MASSAGE

In case of failure, the display shows the error code.

Code	Description of error Possible cause
E1	Filling the dishwasher with water takes too long.	Check the water supply (tap is not opened, the water supply is limited, water pressure is too low).
E3	Dishwasher does not reach the set temperature.	Heating element malfunction.
E4	Dishwasher is overflowing	Too much inflowing water. Check the water supply pressure.
E8	Water inlet valve malfunction	Contact a qualified expert or a service.
E9	Button pressed for more than 30 seconds	There is a problem with the water supply, or a defective button.
ED	Breakdown in communication between the main board and display.	Open circuit on the main board.
ED	Washing control system fail. PCB or motor fail.
EC	Failure of communication between main PCB with display PCB.	Open circuit or break wiring for the communication.

Note:

• In case of overflowing turn off the main water supply and then contact the service.
- Before restarting the appliance, remove the excess water from the interior of the appliance.

DIMENSIONS

Height (H) 815 mm
Width (W) 448 mm
Depth (D1) 570 mm (with door closed)
Depth (D2) 1 150 mm (with door open up to 90 °)

EXAMPLE OF LOADING DISHWARE

Upper rack Lower rack

Number Item Number Item
1 Cups 8 Dinner plates
2 Saucers 9 Soup plates
3 Glasses 10 Oval platter
4 Mugs 11	Melamine dessert plates
5	Small pot	12	Melamine bowls
6	Oven pot	13	Glass bowl
7 Dessert plates	14 Dessert bowls

Number Item
1 Tablespoons
2 Forks
3 Knives
4 Teaspoons
5 Dessert spoons
6 Serving spoons
7 Serving forks
8 Sauce spoons

Silhouette of various kitchen utensils and a square base (no text or symbols)

Note:

• Maximum weight capacity of the stand is 1.5 kg.

Rack for wine glasses

- Large glasses can also be placed in a rack designed for cleaning wine glasses. The glasses are slightly tilted to use the space as efficiently as possible.

Placing the rack in the lower basket

• To place the wine glasses, remove the cup rack from the lower basket and lower two rows of folding spines, then place the rack in the basket.

Technical line drawings of a mechanical device and its internal components (no text or symbols)

POSITIONING OF THE CUTLERY BASKET

Position 1— Set the left side of the basket to the lower position, the left side is flat, right side is skewed.

Position 2 - Set the left side of the basket to the lower position, the left side is flat, right side is skewed.

Two-step diagram showing a grid-based structure before and after transformation, with no text or symbols present.

Diagram showing two stages of a grid-based structural assembly, with an arrow indicating the process (no text or symbols present)

Position 3 – Lift the left side of the basket upwards, both sides of the baskets are flat.

Position 4 – Move the right side of the basket from right to left, baskets are overlapping.

Two-step diagram showing structural change of a grid-patterned plate, with an arrow indicating the process (no text or symbols present)

Diagram showing two stages of a structural assembly with grid patterns and an upward arrow (no text or symbols)

Note:

- The left side of the basket cannot be completely removed. You can only remove the right side.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

CONCEPT POLSKA sp. z o.o.
