MNV4160 - Dishwasher Concept - Free user manual and instructions

Product Type	Built-in Dishwasher
Brand	Concept
Model	MNV4160
Energy Class	E (EEI 55.9)
Cleaning Performance Index	1.13
Drying Performance Index	1.07
Energy Consumption (Eco)	0.951 kWh/cycle
Water Consumption (Eco)	11 L/cycle
Program Duration (Eco)	3:40 h:min
Noise Level	47 dB(A)
Noise Emission Class	C

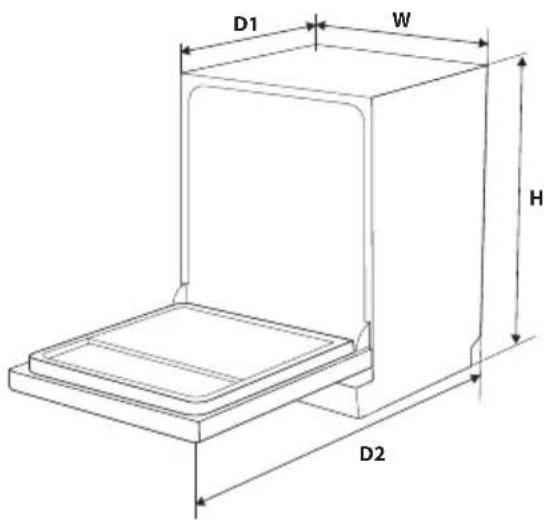

Dimensions (H x W x D)	815 x 598 x 550 mm (closed door)
Depth with Open Door	1150 mm
Capacity	14 place settings
Type	Built-in
Voltage / Frequency	230 V ~ 50 Hz
Water Pressure Range	0.04 – 1.0 MPa
Net Weight	30.5 kg
Washing Programs	Intensive, Universal, ECO, Glass, 90 Min, Rapid
Additional Functions	Half Load, Delayed Start (up to 24h), Extra Drying
Water Softener Setting	Adjustable (H1-H6)

Frequently Asked Questions - MNV4160 Concept

How do I adjust the water hardness setting?

Press the power button to turn on the appliance, then within 60 seconds press and hold the Program button for more than 5 seconds. Use the Program button to select the appropriate hardness level (H1 to H6) according to your local water hardness, and press the power button to confirm.

Where do I add regenerating salt and how much?

The salt container is located under the lower rack. Remove the lower basket, unscrew the cap, and using the funnel provided, fill the container with dishwasher salt. The capacity is about 1.5 kg. Before first use, fill the container with water. Always refill when the salt indicator lights up.

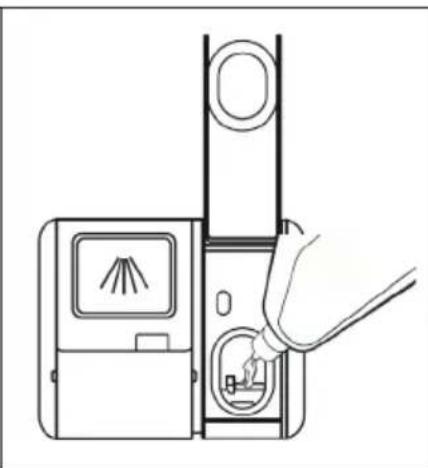

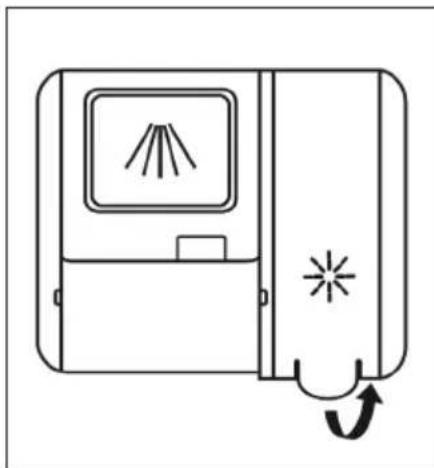

How do I fill the rinse aid dispenser?

Open the dishwasher door. The rinse aid dispenser is on the door next to the detergent dispenser. Open the cap and slowly pour liquid rinse aid until full (capacity approx. 140 ml). Close the cap. Refill when the rinse aid indicator lights up.

What should I do if the dishwasher doesn't start?

Check that the power cord is plugged in, the circuit breaker is on, the door is closed properly, and the water supply is open. Also ensure no error code is displayed. If the issue persists, consult the troubleshooting section.

How do I interpret error codes like E1 or E4?

E1 indicates longer filling time – check water supply is open and pressure is adequate. E4 indicates overflowing – turn off water supply and contact service. Other codes: E3 (heating issue), Ed (communication fault).

How often should I clean the filters?

Check the filters regularly and clean them under running water if clogged. Turn the coarse filter counter-clockwise to remove, then separate the fine filter. Rinse all parts and reassemble in correct order. Ensure the filter is locked properly after cleaning.

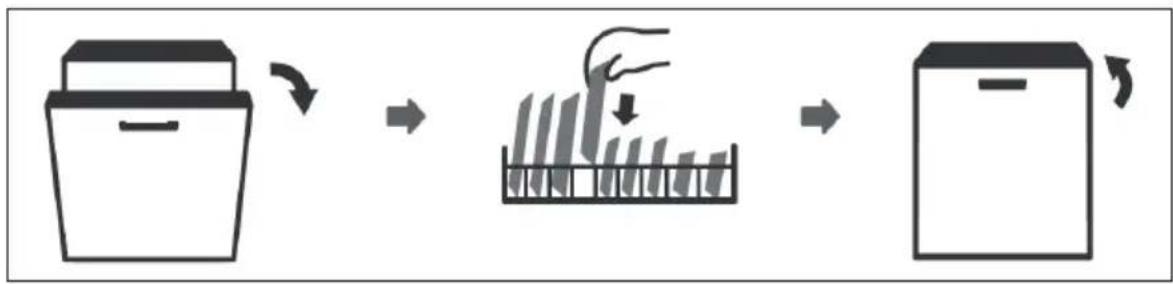

Can I open the door during a wash cycle to add dishes?

Yes, you can pause the program by opening the door slightly. Wait for the spray arms to stop moving, add dishes, then close the door. The cycle will resume after a few seconds. Be cautious of hot steam or water.

Why are my dishes not drying properly?

Ensure you are using rinse aid and the extra drying option is selected if available. Also, avoid unloading dishes too soon; leave the door slightly open after cycle to let steam escape. Check that the program selected includes drying phase (Rapid program does not dry).

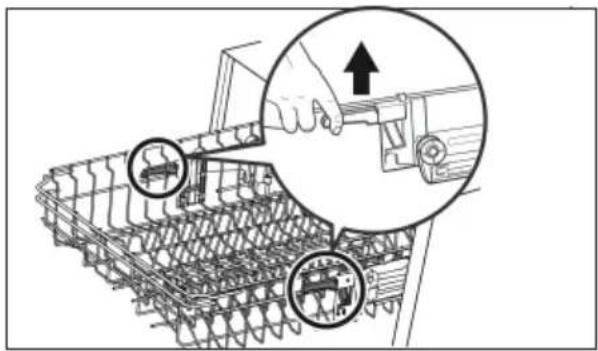

How do I adjust the height of the upper basket?

To raise the upper basket, grasp it at the center on each side and lift until it clicks into the upper position. To lower, lift the adjustment handles on both sides to release the basket, then lower it to the desired position.

What types of detergents can I use?

Use only detergents specifically designed for dishwashers (powder, liquid, or tablets). For heavily soiled dishes, add a small amount directly to the inner door recess for pre-wash. Never use hand washing detergents.

USER MANUAL MNV4160 Concept

Exterior view of a white multi-level kitchen appliance with multiple circular compartments and metal grating (no visible text or symbols)

MNV4160

PODĚKOVÁNÍ

Interior view of a device labeled 'Zadní pohled' showing coiled cable and connectors (no readable text beyond label)

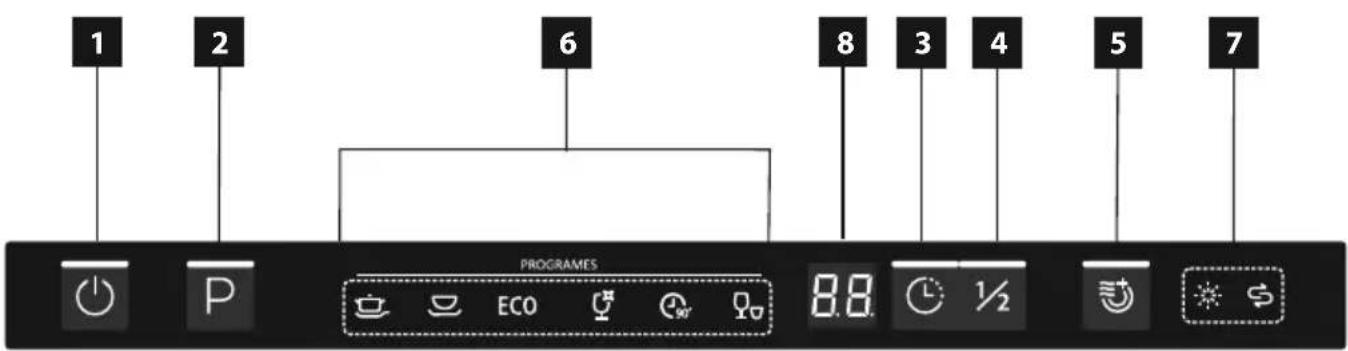

POPIS OVLÁDACÍHO PANELU

Obr. 1

Poznámka:

Obr. 3
Obr. 4 Obr. 5

Obr. 8 Obr. 9

Diagram of a refrigerator interior with an upward arrow and starburst symbol indicating airflow or heat transfer (no text or labels)

Diagram of a refrigerator interior with an upward arrow and starburst symbol indicating airflow or heat transfer (no text or labels)

Poznámka:

3D rendered mechanical components arranged in a grid, including bolts, cylinders, and housing (no text or symbols visible)

Přední stěna koše

Technical line drawing of a mechanical assembly or housing with internal components (no text or symbols)

Etažér

Diagram showing a structural assembly before and after rotation, with no visible text or symbols

Obr. 11

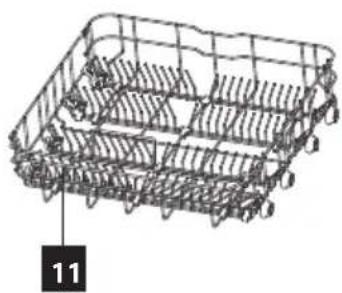

Dolní koš

Diagram showing a structural change before and after modification, with no visible text or symbols

Obr. 12

Vyndávání nádobí

Circular diagram with grid pattern and crossed X marks, no text or symbols present

PŘEHLED MYCÍCH PROGRAMŮ

Poznámka:

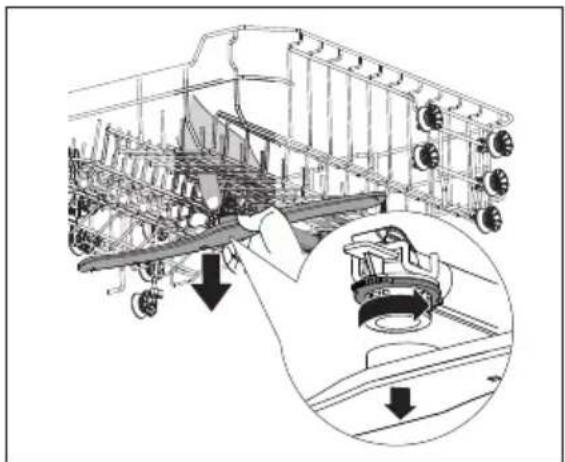

Technical line drawing of a mechanical component with internal components and directional arrows (no text or symbols)

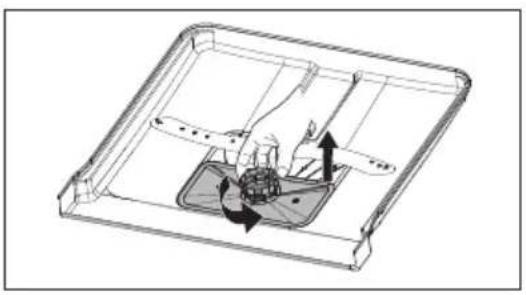

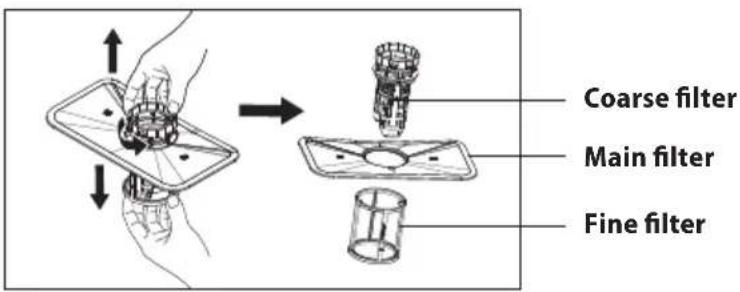

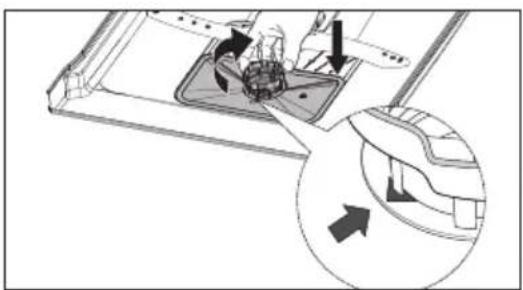

Hrubý filtr

Hlavní filtr

Jemný filtr

Diagram of a car interior showing hand cleaning and spray, with no visible text or symbols

Technical diagram showing a mechanical assembly with an inset close-up of a component detail (no text or symbols)

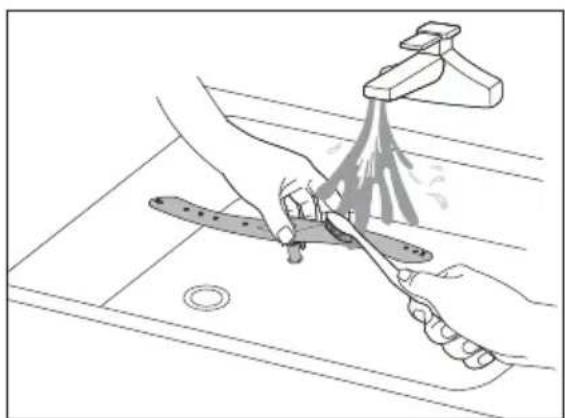

Poznámka:

Technical line drawing of a biplane with structural frame and rotor assembly, showing internal components and directional arrows (no text or symbols)

Diagram of a hand operating a mechanical component with a tool, showing no text or symbols

Illustration of a kitchen sink with hand cleaning the surface and a faucet (no text or symbols)

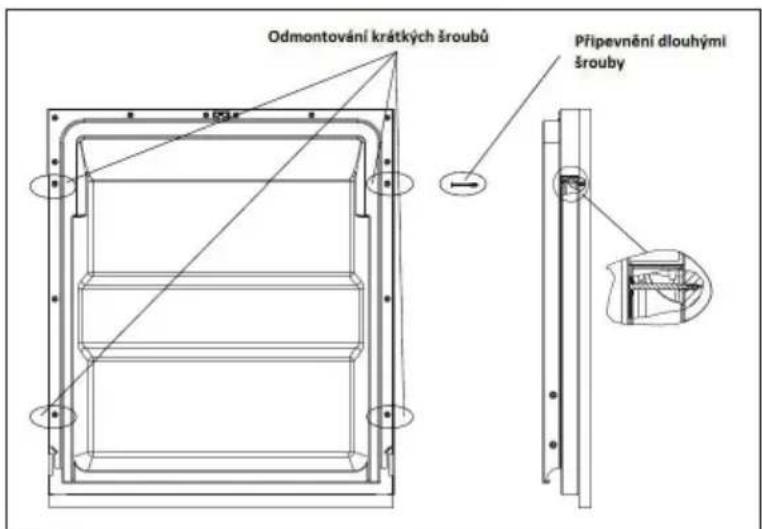

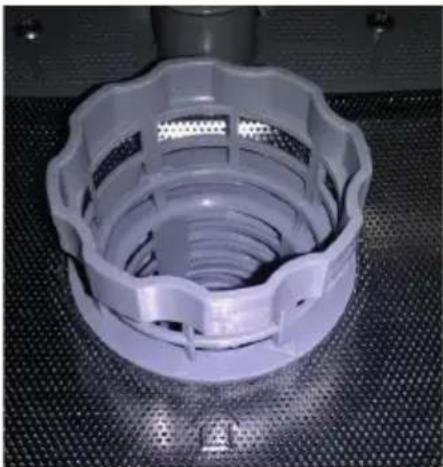

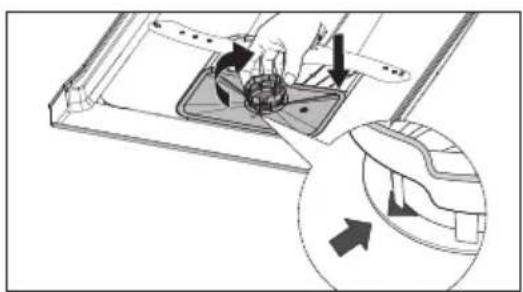

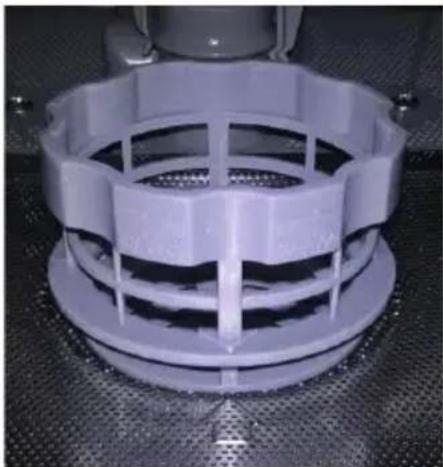

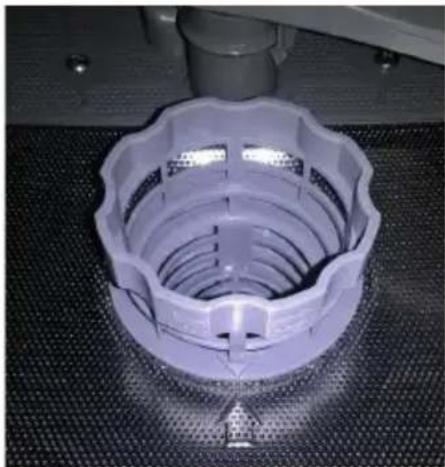

UPOZORNĚNÍ!

Close-up of a white plastic mechanical component with concentric grooves and a central slot, mounted on a perforated surface (no text or symbols visible)

Close-up of a white plastic mechanical component with a mesh texture and central ribbed structure (no text or symbols visible)

Close-up of a white plastic mechanical component with a circular base and internal grooves, mounted on a perforated metal surface (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Obr. 16a

Technical line drawing of a washing machine with an inset showing internal components (no text or symbols)

Obr. 17

Horní koš Dolní koš

Diagram showing structural change of a grid-patterned metal frame under rotation, with no text or symbols present.

Diagram showing a grid-based structure before and after modification, with no visible text or symbols.

Diagram showing two stages of a structural assembly with grid patterns, no text or symbols present

OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

Obr. 1

Poznámka:

Obr. 3 Obr. 4 Obr. 5

Obr. 8 Obr. 9

Diagram of a device with a fan and lamp, showing airflow direction (no text or symbols)

3D diagram of mechanical components arranged in a grid, including gears and spheres (no text or labels)

Predná stena koša

Technical line drawing of a mechanical assembly or housing component (no text or symbols visible)

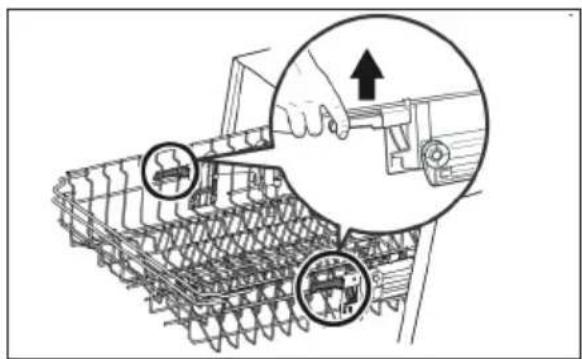

1. Ak chcete spustit' horný kôš nižšie, zdvihnite nastavovaciu rukovat' na oboch stranách, aby sa kôš uvolnil, a spustte ho do dolnej polohy.

Etažér

Diagram showing a structural assembly before and after rotation, with no visible text or symbols

Obr. 11

Dolný kôš

Diagram showing a structural change before and after assembly, with no visible text or symbols

Obr. 12

Vyberanie riadu

Simple line drawing of a fence with diagonal bracing and a cross symbol at the base (no text or labels)

PREHŁAD ČISTIACICH PROGRAMOV

Poznámka:

POZOR!

Technical line drawing of a mechanical assembly with spray and housing (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols visible)

Poznámka:

Technical line drawing of an aircraft fuselage with internal components and a magnified inset showing the engine (no text or symbols)

Technical line drawing of a hand operating a mechanical component with a tool, no text or symbols present

Line drawing of a kitchen sink with hand cleaning the surface and a tool on the sink (no text or symbols)

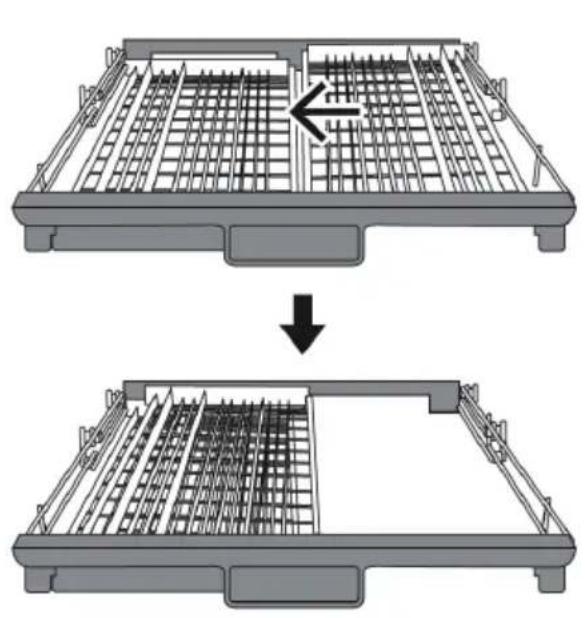

UPOZORNENIE!

Close-up of a white plastic cylindrical component with a textured outer ring, placed on a perforated metal surface (no text or symbols visible)

Close-up of a white plastic mechanical component with a perforated inner ring, placed on a perforated surface (no text or symbols visible)

Close-up of a mechanical component with concentric rings and a perforated base (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a washing machine with an inset showing internal components (no text or symbols)

Obr. 17

Diagram showing structural grid deformation before and after, with no text or symbols present

Poloha 3 –posuňte pravú stranu koša sprava dol’ava, koše sa prekrývajú.

Diagram showing structural change of a grid-patterned container or rack system, with an arrow indicating the process (no text or symbols present)

Diagram showing structural change of a grid-patterned structure from top to bottom, with an arrow indicating upward motion (no text or symbols present)

OCHRANA ŽIVOTNÉHO PROSTREDIA

Close-up of a server rack with coiled cable and connectors, labeled 'Widok z tyłu' (no other text or symbols visible)

OPIS PANELU STEROWANIA

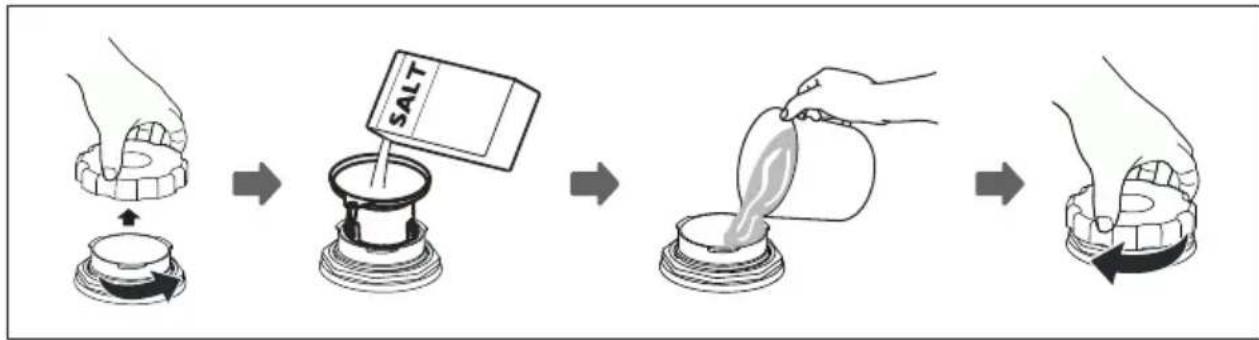


Rys. 1

Pamiętaj:

Diagram of a microwave oven with airflow direction and starburst symbol (no text or labels)

3D diagram of mechanical components arranged in a grid, including gears and shafts (no text or labels)

Technical line drawing of a mechanical assembly with hands operating it (no text or symbols present)

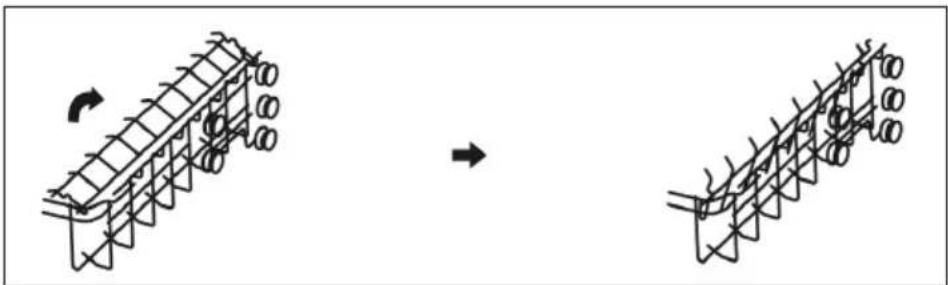

Etażerka

Diagram showing two mechanical assembly stages with rotating arrows indicating motion (no text or symbols)

Rys. 11

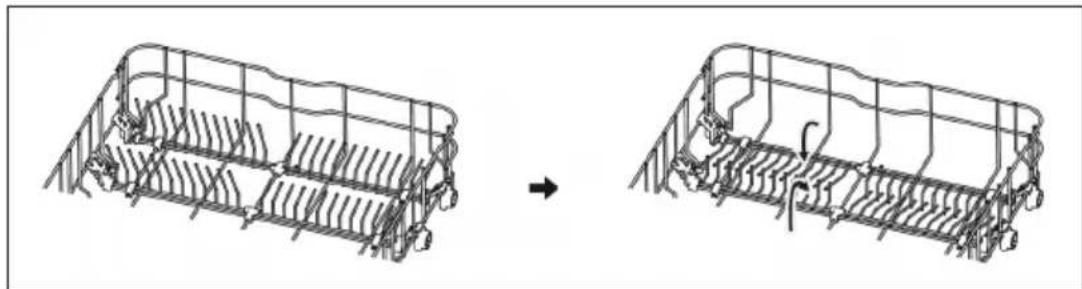

Dolny kosz

Diagram showing a structural change before and after assembly, with no visible text or symbols

Rys. 12

Wyjmowanie naczyń

Simple line drawing of a chair with a fence and tie, no text or symbols present

PRZEGLĄD PROGRAMÓW MYCIA

Technical line drawing of a mechanical component with internal components and directional arrows (no text or symbols)

Illustration of a hand spraying liquid onto a mechanical component (no text or symbols visible)

Diagram of a mechanical component with internal components and directional arrows, no readable text or symbols present.

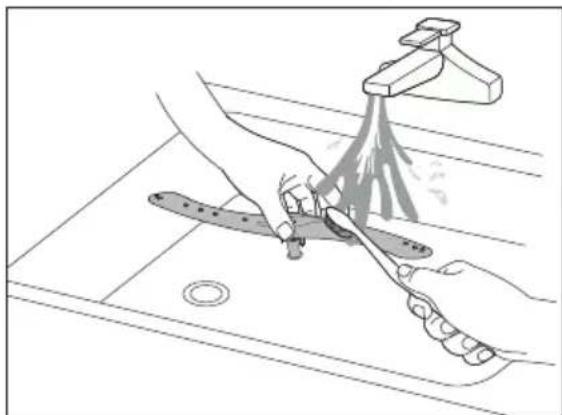

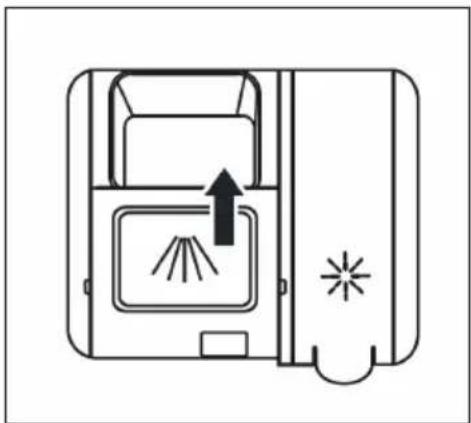

Pamiętaj:

Technical line drawing of an aircraft fuselage with internal components and a magnified inset showing the blade assembly (no text or symbols)

Illustration of a hand using a propeller to lift a mechanical component inside a tray (no text or symbols)

Line drawing of a kitchen sink with hand cleaning the surface and a hand washing a tooth (no text or symbols)

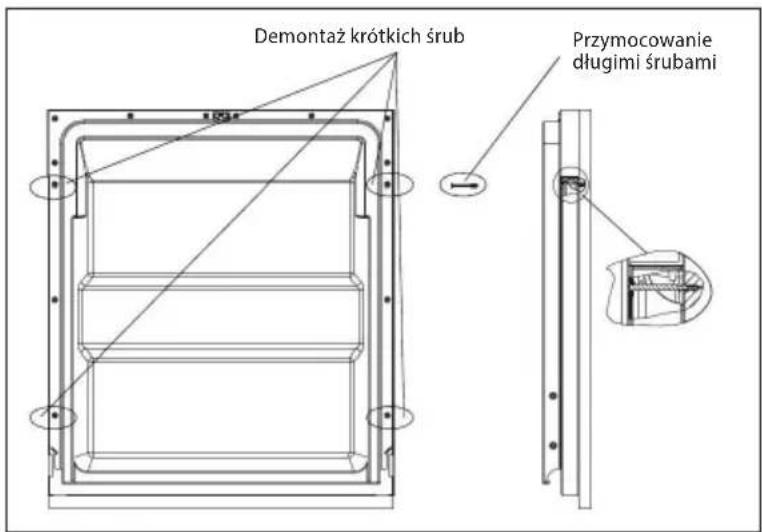

PRZESTROGA!

Close-up of a white plastic mechanical component with concentric grooves and a central hub, placed on a textured surface (no text or symbols visible)

Close-up of a white plastic mechanical component with a meshed surface (no visible text or symbols)

Close-up of a mechanical component with concentric circular grooves and a perforated base (no visible text or symbols)

y filtr

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a washing machine with an inset showing mechanical components (no text or symbols)

Rys. 17

Pamiętaj:

Black silhouette of various kitchen utensils and kitchenware arranged in rows, with a scale bar below (no text or symbols on the items)

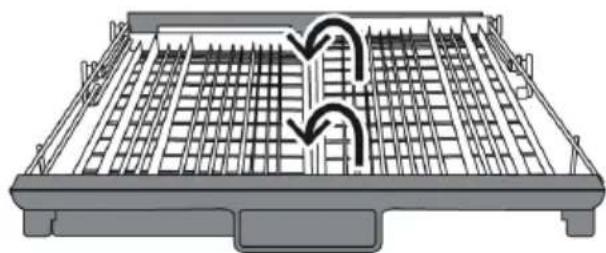

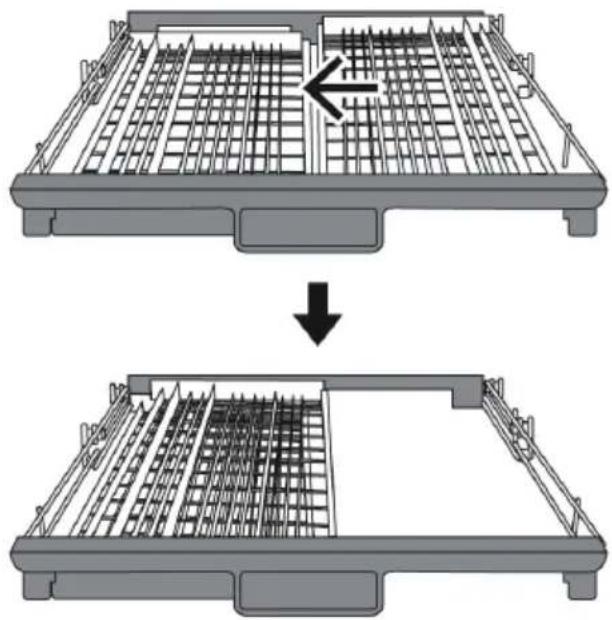

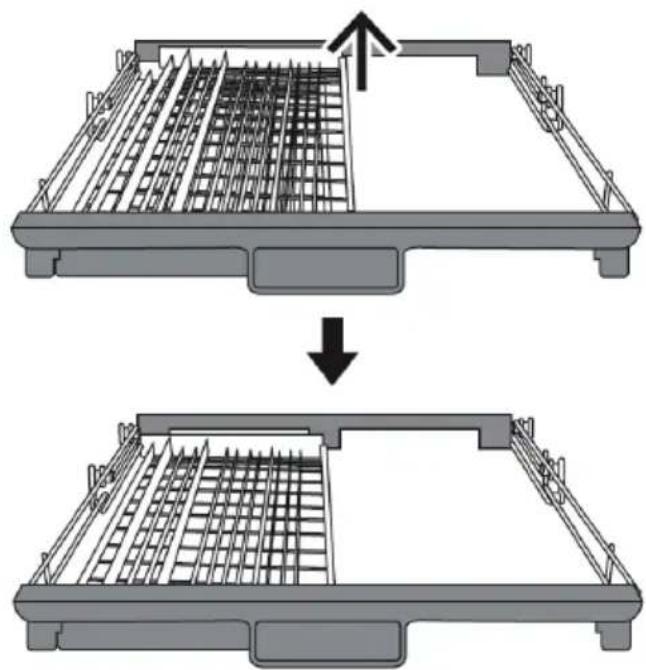

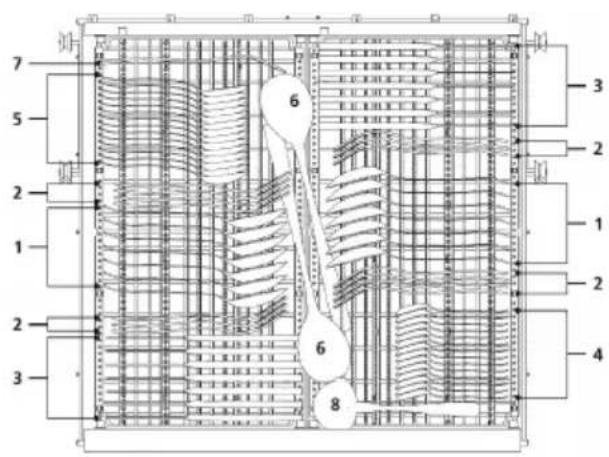

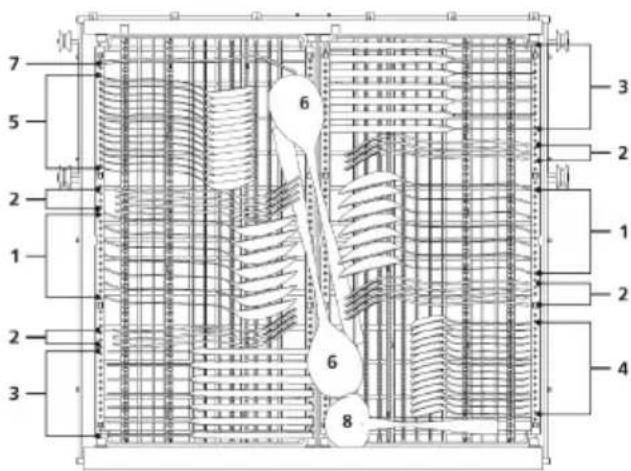

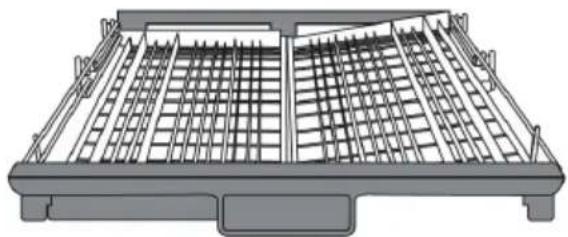

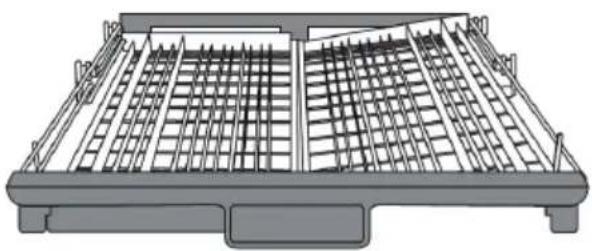

POZYCJONOWANIE KOSZA NA SZTUĆCE

Diagram of a mechanical assembly with grid-like components and an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with grid and bracket components (no text or symbols)

Diagram of a grid-patterned container with directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical assembly with grid-like components and supports (no text or symbols)

Diagram showing structural rebar grid formation before and after modification, with no text or symbols present.

Diagram showing structural rebar assembly before and after process, with no text or symbols present

OCHRONA ŚRODOWISKA

Close-up of a coiled cable or hose component mounted on a black panel, with no visible text or symbols.

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a wire mesh basket structure (no text or symbols)

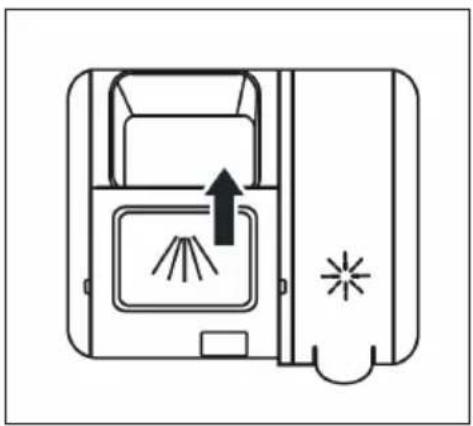

VADIBAS PANELA APRAKSTS

Diagram of a microwave oven with airflow indicators and a starburst symbol (no text or labels)

1. att 8. att. 9. att.

3D diagram of mechanical components arranged in a grid, including gears and spheres (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

Plauktiņš

Diagram showing two mechanical assembly stages with rotating components and directional arrows (no text or symbols)

1. att.

Apakšējais grozs

Diagram showing two stages of a mechanical assembly or housing, with no visible text or symbols.

1. att.

Trauku iznemšana

Simple line drawing of a cross-shaped object with vertical lines inside, resembling a stylized musical instrument or device (no text or symbols)

MAZGĀŠANAS PROGRAMMU PĀRSKATS

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

Diagram of a hand cleaning a car interior with spray and cleaning tools (no text or labels)

Diagram showing a mechanical component with arrows indicating motion, including a magnified inset of the internal structure (no text or symbols present)

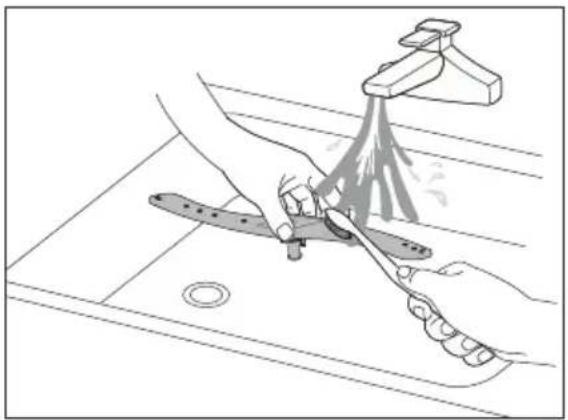

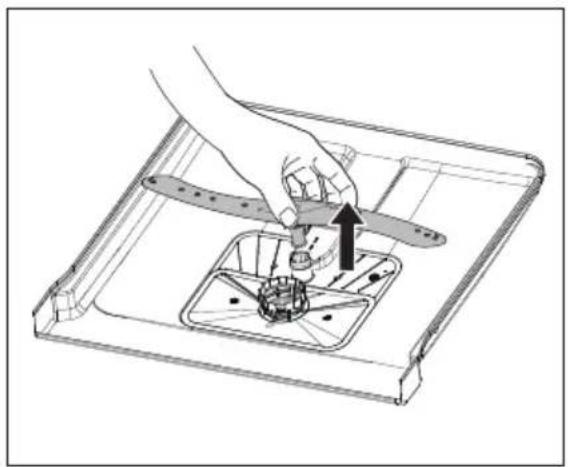

Piezime:

Technical diagram of an aircraft carrier with internal components and a close-up inset showing the rotor assembly (no text or labels)

Illustration of a hand using a propeller to lift a small mechanical component inside a tray (no text or symbols)

Illustration of hands using a kitchen sink to clean or wash water, no text or symbols present

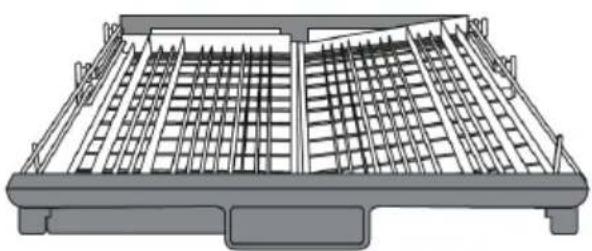

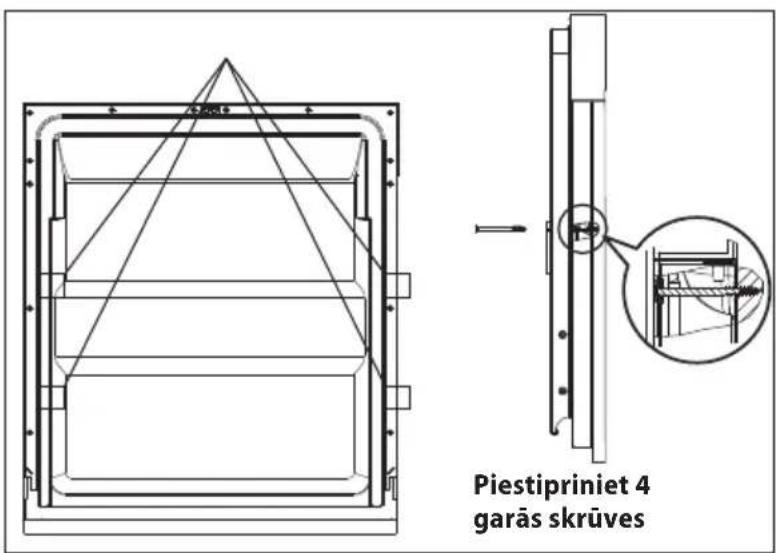

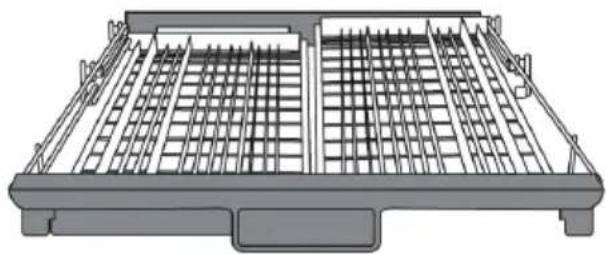

BRĪDINĀJUMS!

Close-up of a white plastic mechanical component with concentric grooves and a central hub, placed on a perforated surface (no text or symbols visible)

Close-up of a white plastic mechanical component with concentric grooves and a central groove, placed on a perforated surface (no text or symbols visible)

Close-up of a white plastic mechanical component with concentric rings and a central protrusion, mounted on a perforated metal surface (no visible text or symbols)

Isometric line drawing of two open doors with rectangular panels and a lid, no text or symbols present

Technical line drawing of a washing machine with an inset showing internal components (no text or symbols)

Diagram of a grid-patterned structure with an arrow indicating rotation or movement (no text or symbols)

↓

Technical line drawing of a mechanical assembly with grid-like components (no text or symbols)

Diagram of a grid-patterned container with two curved arrows indicating flow or movement (no text or symbols)

↓

Technical line drawing of a mechanical component with grid-like structure (no text or symbols)

Diagram showing structural rebar assembly before and after division, with no text or symbols present

1. pozicija -- iznemiet groza labo pusi, kreisā puse paliks plakana.

Diagram showing structural change of a building facade with grid patterns, no text or symbols present

VIDES AIZSARDZİBA

Thank you for purchasing the Concept product. We want you to be satisfied with everything we make every day you use it.

Please read the instructions carefully before initial use. You should retain them for future reference. Ensure that anyone using the warming drawer is familiarized with the instructions.

TABLE OF CONTENTS

Technical specifications

Important safety information

Product description

Control panel description

User manual

Loading the regenerating salt

Loading the rinse aid

Detergents

Unsuitable dishware

Loading dishware

Washing programs overview

Putting the appliance into operation

Cleaning and maintenance

Installation of the appliance

Troubleshooting

Error message

Dimensions

Example of loading dishware

Environmental protection

Technical specifications
Energy class (a)	E EEI	(a)	55,9
Cleaning performance index (a)	1,13 Drying performance index (a)		1,07
Energy consumption (kWh/cycle) (1)	0,951	Water consumption (l/ cycle) (2)	11
Program duration (h:min) (a)	3:40 Off-mode 0,49 W
Delay start 1,0 W Noise level		(a)	47 dB (A)
Airborne acoustical noise emission class (a)	C Height 815 mm
Width 598 mm Depth (closed door) 550 mm
Depth (open door) 1150 mm Capacity		(a)	14 dishware sets
Type	Built-in	Charging/frequency	230 V ~ 50 Hz
Water pressure	0.04 – 1 MPa	Weight	30,5 kg

Additional information:

(a) pro program ECO
(1) based on the eco programme using cold water fill. Actual energy consumption will depend on how the appliance is used
(2) based on the eco program. Actual water consumption will depend on how the appliance is used and on the hardness of the water

The manufacturer reserves the right to make potential technical changes, typographical errors and any differences in the representation without prior notice.

IMPORTANT SAFETY INFORMATION

Upon delivery of the dishwasher

• Immediately after delivery, check the package for any damage during shipping.
• Caution! Caution! Some edges of this appliance that are hidden after installation are sharp! Be careful not to get cut when handling an uninstalled unit.
• Do not install the appliance if it has been damaged. Contact the store where you purchased it immediately.
• Remove all the packaging and marketing materials before first use.
• Keep the packaging materials away from children or dispose of them properly.

During installation

• Do not use the appliance in any way other than as described in this manual.
  • This appliance can be used in households and similar places like:

- Kitchen cabinets in shops, offices and other workplaces.

• Appliances used in agriculture.

- Appliances used by guests in hotels and other areas in a hotel environment.

- Appliances used in a Bed and Breakfast environment.

- Do not touch the appliance with wet hands.

- Load sharp knives with the handles up or horizontally to reduce the risk of cut-type injuries.

- Use the dishwasher only for household purposes and only for washing kitchen utensils.

- Do not store anything inside the appliance.

- Do not stand or sit on the open door of the appliance.

• Water from the washing area is not drinkable.

- Do not use any solvents in the dishwasher (danger of explosion).

- Use only the products suitable for dishwashers.

- During the running washing program always open the dishwasher door very carefully, water may spurt out.

- Follow the instructions for safety and use on the packaging of the cleaning agents.

- Do not touch hot surfaces and heating elements during use or shortly after use.

- Do not allow children or unauthorized people to handle the appliance, use it out of their reach.

- Children should not play with the appliance. - Pay extra attention if the appliance is used near children.

- Do not allow the appliance to be used as a toy.

- This appliance can be used by children aged 8 years and over. Persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, should be supervised or familiarized with the instructions for use of the appliance in a safe way and have been made aware of the risks involved.

- Caution! A large amount of steam may be released from the appliance when you open the door. Be careful. Risk of scalding!

- If a malfunction occurs, turn off the appliance and unplug it from the wall outlet.

- When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

- Do not immerse the power cord or the plug in water or any other liquid.

- Check the appliance and the power cord for damage regularly.

- Do not switch on the appliance if it has been damaged.

- Do not use the appliance if the door or the door seals are damaged. Call the authorised service centre.

- Do not use the appliance without properly installed covers and without a front plate.

- The appliance is designed for washing dishware suitable for washing in the dishwasher. Avoid contact of plastic dishware with the heating elements of the appliance.

- Do not use any accessories other than those recommended by the manufacturer.

- Do not use accessories with damaged surface treatment or if it has been worn out or has other defects.

• Before cleaning of the appliance, leave it for at least 30 minutes to cool down.

- Children should not clean and maintain the appliance unless they are at least 8 years old and under supervision.

- Keep the detergents and rinse aids from children.

- Keep children away from the open dishwasher, there could still be detergent residues.

CAUTION!

To avoid injury open the door only for a short period of time to load or unload dishware. Children may lock themselves inside the appliance (risk of suffocation) or be exposed to other dangers.

Possible defects

• Only qualified service technicians should repair or perform maintenance to this appliance.
• During the repairs the appliance must be disconnected from the power. Switch off the circuit breaker or remove the plug from the wall outlet.
• When disconnecting the unit from the wall outlet, never pull the power cord, grasp the plug end and disconnect it by removing it from the receptacle.

If you fail to follow these instructions, any possible repair cannot be recognized as a warranty repair.

PRODUCT DESCRIPTION

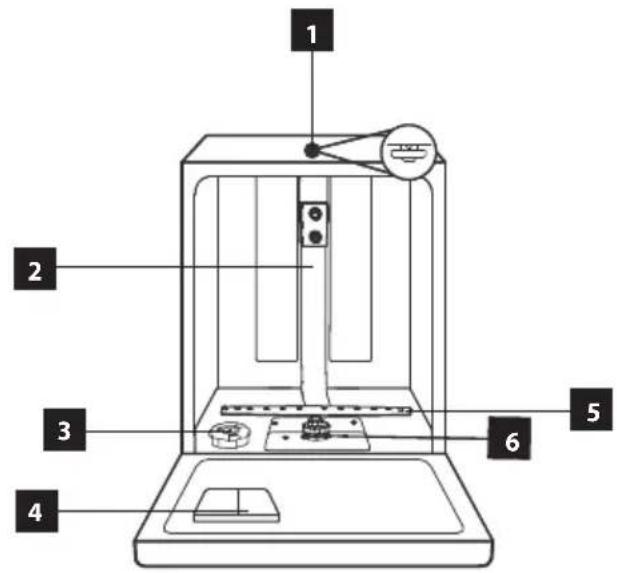

1 Upper spray nozzle
2 Inner pipe
3 Regenerating salt container
4 Detergent and rinse aid dispenser
5 Lower spray arm Lower basket
6 Filtration system Regenerating salt container
7 Cutlery basket

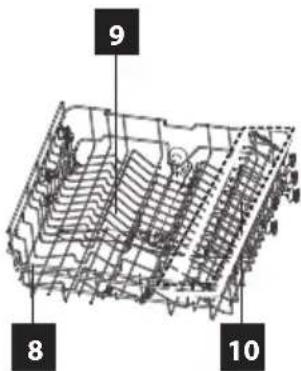

8 Upper basket
9 Upper spray arm Water supply connector
10 Cup shelf
11 Lower basket
12 Water supply connector
13 Drain hose

Rear view of a computer monitor with coiled cable and connectors (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a wire mesh basket with internal ribs and a labeled component (no text or symbols)

CONTROL PANEL DESCRIPTION

1 On/Off button
2 Program button
3 Delayed start function button
4 Half load option button
5 Extra drying button

6 Selected washing program indicators
7 Rinse aid and regenerating salt level indicators
8 Display

DESCRIPTION OF INDIVIDUAL BUTTONS OF THE CONTROL PANEL

Washing program selection button

• Press the button to select desired washing program.
• You can choose from following washing programs: Intensive, Universal, ECO, Glass, 90 Min, Rapid.
• The selected washing program is indicated by the indicator light of the respective washing program.

Delayed start function button

- Press this button to set a delayed washing. You can delay the start of the washing for up to 24 hours. Press this button once to delay the start of washing by one hour.

Half load option button

• It is suitable for half loaded dishwasher.
• Washing is performed in both (upper and lower) racks.
• The water consumption is reduced and the length of the program is shortened.

Extra drying

• For complete drying of dishes.
- It can only be used with Intensive, Universal, ECO, Glass and 90 Min programs. When this button is pressed, the corresponding indicator lights up.

Status indicator (Lights polishes complement, supplement regeneration salt)

- If the indicator status (7) LED lights up, it is needed to add the appropriate detergents.

Symbol Status indicator
	Rinse aid
	Salt

Symbol Mycí program
	IntensiveHeavily dirty dishes including pots and pans. Dried food residue.
	UniversalFor normally dirty dishes such as pots, plates, glasses and slightly dirty pans.
	ECOThis is a standard program suitable for normally dirty dishes such as pots, plates, glasses and slightly dirty pans.
	GlassFor lightly dirty dishes and glassware.
	90 MinFor normally dirty dishes that do not require long washing.
	RapidShorter washing for slightly dirty dishes that do not need drying.

USER'S MANUAL

Before first use

1. Set the appliance according to hardness of the water (see below).
2. Pour the regenerating salt into the salt container.
3. Pour the rinse aid into the rinse aid dispenser.
4. Pour the detergent or put the tablet into the detergent dispenser.

Water softeners

Soft water is required for efficient washing (water with low calcium content), otherwise limescale is created on the dishes and in the interior of the dishwasher. Tap water which exceeds the given level of water hardness must be softened before being used for washing purposes (meaning free of calcium). This is achieved by regenerating salt in the softening unit of the dishwasher. Setting the unit and the required amount of salt depend on the hardness of tap water.

Water hardness is measured in equivalent degrees of hardness, German degrees °dH, French degrees °fH, British degrees °Clarke and mmol/l (millimoles per litre - international unit for the hardness of water).

The softening unit should be set according to the hardness of the water used for the appliance. Contact your local water utility company for information about the water hardness in your area. Set the dosage regulator manually according to the table.

Setting the appliance according to the water hardness

1. Press the power button (1) to turn the appliance on.

2. Press the "Program" button (2) for more than 5 seconds, within 60 seconds after switching on the appliance, to start the water softening setting.

3. Press the "Program" button (2) again to select the correct setting according to your area, the setting will switch in the following order: H1->H2->H3->H4->H5->H6.

4. Press the power button (1) to confirm the setting.

Water-hardness				Value (combination lights)	Salt consumption (g/washing cycle)
°dH °fH °C	Clarke mmol/l
0~5	0~9	0~6	0~0,94	H1 (Rapid)	0
6–11	10–20	7–14	1.0–2.0	H2 (90 min)	9
12–17	21–30	15–21	2.1–3.0	H3 (90 min, Rapid)	12
18–22	31–40	22–28	3.1–4.0	H4 (ECO)	20
23–24	41–60	29–42	4.1–6.0	H5 (Rapid, ECO)	30
35–55	61–98	43–69	6.1–9.8	H6 (90 min, ECO)	60

Note:

• This appliance is factory preset to H3.

• It is possible to set the water softener within 60 seconds from turning the appliance on.

1^ = 1.25^ = 1.78^ = 0.178mmol / l

°dH German degrees

°fH French degrees

°Clark British degrees

LOADING THE REGENERATION SALT

The effects of salt

During the washing cycle the salt goes automatically from the container to the softening unit where it dissolves the calcium content. Dissolved calcium is washed away from the dishwasher. The softening unit is then ready again for further action. This regeneration process works only if the salt is dissolved in water.

1. Open the appliance door, remove the lower basket and proceed as shown in Fig. 1 below.
2. Remove the regenerating salt container lid.
3. Place the funnel (included in the package) on the opening of the regenerating salt container and slowly fill the container with the salt. The capacity of the empty container is about 1.5 kg.
4. Fill the rest of the container with water before first use. It is normal for a small amount of water to flow out of the container during filling.
5. Close the regenerating salt container after filling.

Fig. 1

Note:

• The regenerating salt container is located under the lower rack.
• The regenerating salt container can be refilled only when the salt status indicator is on.
  • After refilling the indicator goes off.
• If there is a spillage of regenerating salt, run a short washing cycle to wash away the salt.

Caution!

• Load the regenerating salt before running washing cycle to wash away any spilled salt residues and prevent the risk of corrosion of the appliance interior.
  • Always use regenerating salt designed for use in dishwashers. Never use table salt!
• Never pour detergents into the regenerating salt container. Detergents can destroy the softening unit!

In the event of damage caused by improper use of salt, the manufacturer assumes no responsibility or liability for any caused damage.

LOADING THE RINSE AID

The rinse aid is used in the last stage of rinsing to prevent the drops of water from staying and drying out on the dishes leaving undesirable stains on the dishes.

1. Open the appliance door.

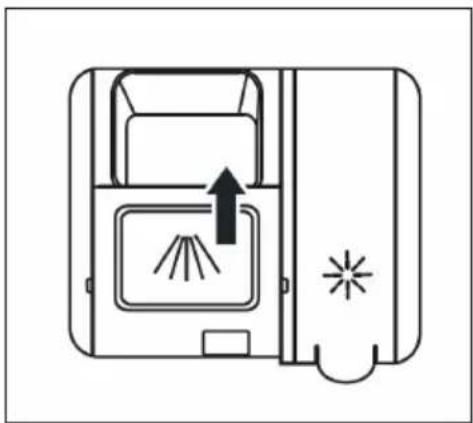

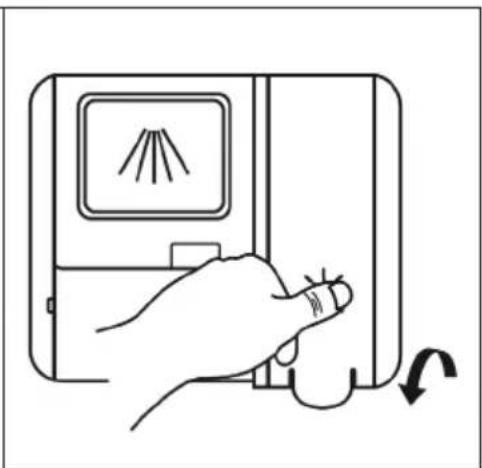

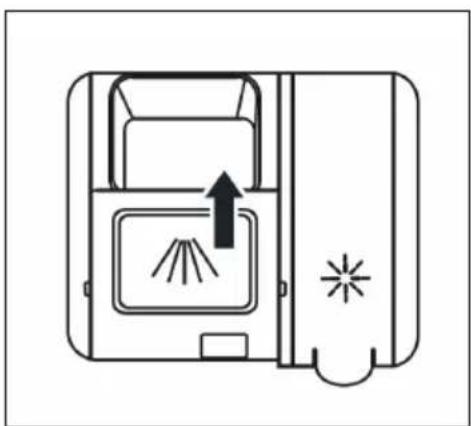

2. Open the rinse aid dispenser as shown in Fig. 3.
3. Slowly pour the rinse aid into the dispenser (Fig. 4). The capacity of the empty dispenser is about 140 ml.
4. After filling close the rinse aid dispenser cover (Fig. 5).

Simple line drawing of a refrigerator with a window and starburst symbol, no text or labels present

Fig. 3

Line drawing of a hand inserting a device into a device with a screen and plug (no text or symbols)

Fig. 4

Line drawing of a hand pressing down on a device with a slide and scroll, showing a rotation arrow (no text or symbols)

Fig. 5

If the indicator of the amount of the rinse aid lights up, you must refill the dispenser before starting a new washing cycle!

Note:

• The rinse aid dispenser is located on the door next to the detergent dispenser.
• The appliance is designed to be used only with liquid rinse aids.
• If there is a spillage of the rinse aid, wipe it out using an absorbent cloth or run a short washing cycle to wash it away.

Caution!

• Use only rinse aids designed for use in dishwashers. Never pour detergents into the rinse aid dispenser.
• Load the rinse aid before running the short washing cycle to wash away any spilled rinse aid residues and prevent the risk of corrosion of the appliance interior.

Setting the dosage of the rinse aid

For better drying results with a limited amount of rinse aid, the dishwasher is designed to adjust consumption according to user settings. Follow the steps below.

1. Close the door and switch on the dishwasher by plugging it into an electrical outlet.
2. Within 60 seconds after step 1, press the "Program" button [2] for more than 5 seconds and then press the Delayed Start" button [3] to enter one of the pre-set options, the rinse aid status indicator flashes once per second.
3. Press the "Program" button [2] to select the most appropriate setting to match your habits, the settings will change in the following order: D1->D2->D3->D4->D5->D1. The higher the number, the more rinse aid the dishwasher uses.
4. Without reaction within 5 seconds or by pressing the "On/Off" button [1], you finish the setting, the setting is completed successfully.

If you only use a detergent with the integrated rinse aid, decrease the dosage of the rinse aid to minimum.

DETERGENTS

Detergents can be divided into four groups according to the form:

a) Loose,
b) Liquid,
c) Tablets,
d) Combined detergents (e.g. 3 in 1 tablets).

Detergents can be divided into two groups according to the chemical composition:

a) Alkaline,
b) With natural enzymes.

They can be also divided into:

a) phosphate and chlorine,
b) phosphate and chlorine-free,
c) phosphate-free and chlorine-free.

• When using phosphate-free detergents with hard water, a white film can be created in the appliance interior.
• Increasing the dose of detergent will prevent the sediment and get better washing results.
• Chlorine-free detergents have less bleaching effect. This may lead to enhancement of tea residue stains or colouring of plastic dishes. In this case, use a stronger washing program, increase the dose of detergent or use a chlorine detergent.

Detergents – Tablets

• The tablets from different manufacturers dissolve at different rates.
  • Some detergent tablets cannot dissolve completely therefore they are less efficient while running short programs.
• For this reason, we recommend selecting longer washing programs to ensure the complete dissolution of the detergent tablets.

Detergent dispenser

The detergent dispenser must be refilled before every washing cycle. For regular use one tablespoon of detergent is plenty. If the dishes are heavily soiled, add more detergent. Add the detergent just before starting the washing program. If the detergent stays in the dispenser, it may get wet and it may not dissolve completely when starting a new cycle.

Filling the detergent dispenser

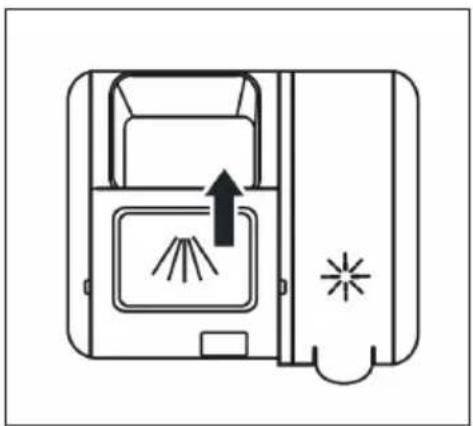

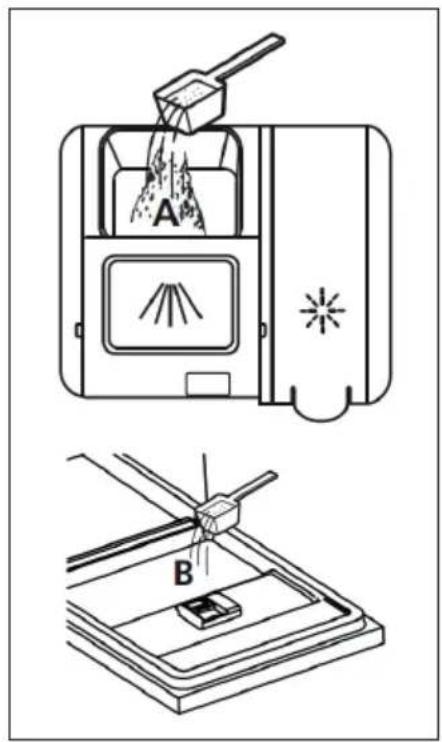

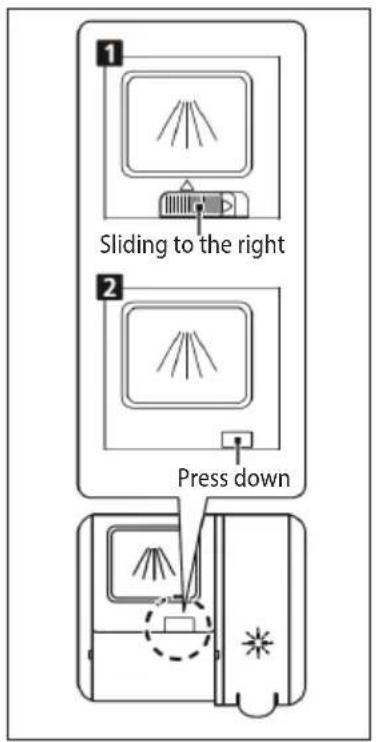

1. Choose how to open the dispenser lid according to the actual design.

- Method 1: Slide the release latch to open the lid

- Method 2: Open the lid by pushing the release latch. (Fig. 7).

1. Add detergent to the dispenser main chamber (A) just before the washing cycle (Fig. 8). For better cleaning results, especially if you have very dirty dishes, pour a small amount of detergent directly onto the inner door recess (B). The detergent thus added is already activated during the pre-wash phase.
2. Finally, close the flap by sliding it to the left (Fig. 9).

Diagram of a device with a lid, vent, and starburst symbol (no text or labels)

Fig.7 Fig. 8 Fig. 9

Tip how to save detergents

- When the dishes are soiled lightly, simply use a smaller amount of detergent than recommended.

Note:

• Add the detergent just before starting the washing program.
• Use a commercially available liquid or powder branded detergent or tablets.
• Never use detergents designed for manual washing!
• When using tablet detergents read the manufacturer's recommendations, where the tablets should be placed (detergent dispenser, cutlery basket, etc.).
• Make sure the cover of the detergent dispenser is closed, even if tablets are used.

Caution!

• Use only detergents designed for use in dishwashers.
• Keep the detergents in a dry place and out of reach of children.
• Do not leave the detergent in the detergent dispenser when the dishwasher is not intended to be used for some time.

UNSUITABLE COOKWARE

• Cutlery and dishware with wooden parts.
- Plastic dishware and dishware with glued parts that are not heat resistant.
• Glued items, cutlery or plates.
• Tin or copper dishware.
- Crystal glass.
• Steel items prone to rusting.
- Wooden bowls.
- Objects made of synthetic fibres.

Some aluminium and silver parts may change colour or fade. Certain types of glass can tarnish after several washing cycles.

Note:

• Do not put absorbent materials such as sponges and cloths in the dishwasher.
• Use detergents which are labelled by a manufacturer as gentle to dishes.
• Wash only the dishes confirmed to be suitable for washing in dishwashers.
• Do not wash dishes soiled with ash, wax, grease or paint in the dishwasher!

LOADING DISHWARE

Placing dishware

Remove large food residues from the dishes. Rinsing dishes under the tap before washing in the dishwasher is not necessary.

Load the dishes in the following manner:

• Place cups, glasses, pots, pans, etc. upside down.
• Place the dishes with hollows diagonally to allow excess water to drain and for best results of drying.
• Dishware must be loaded securely to avoid falling.
• Loaded dishes must not impede the spray arms to rotate freely.
• Dishware and cutlery should not lie on one another or cover each other.
• Glasses should not touch each other to avoid possible damage.
• Load pots and larger dishes in the lower rack.
• The upper rack is designed for loading of smaller and lighter dishware (glasses, cups, etc.).
• Long-bladed knives placed upright are very dangerous! Be careful, risk of injury!
• Long and sharp cutlery (carving knives) must be placed horizontally in the upper rack.
• Do not wash very small items in the dishwasher as they can easily slip out of the racks.
• Do not overload the dishwasher!

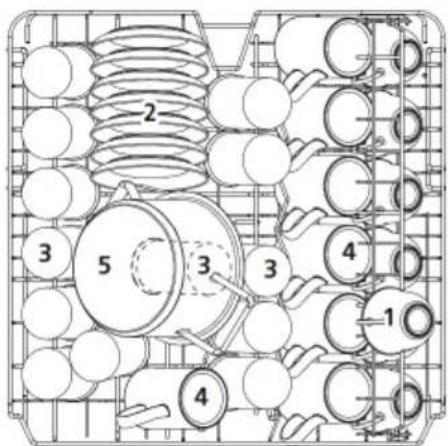

Upper rack

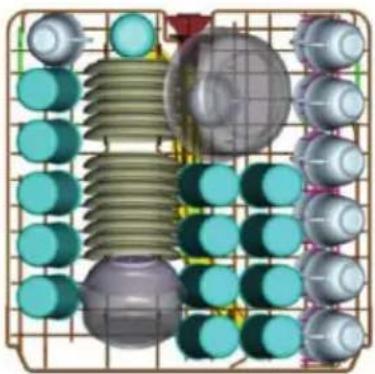

The upper rack is suitable for:

• glasses,
  • coffee and tea cups,
• saucers,
• small bowls and plates,
• shallow pans.

Make sure that the loaded dishware cannot be overturned by running water from the spray arms.

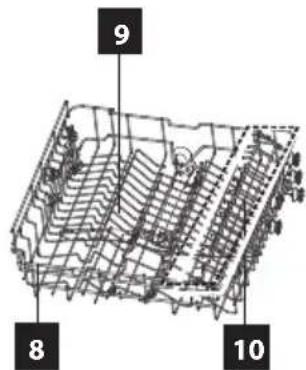

Back side of the rack

3D diagram of mechanical components arranged in a grid, including bolts, gears, and housing (no text or labels)

Front side of the rack

Adjusting the height of the upper rack

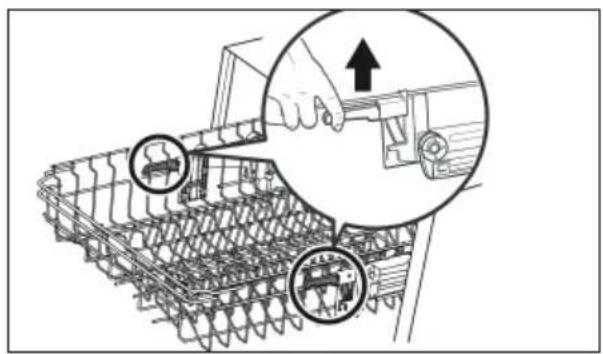

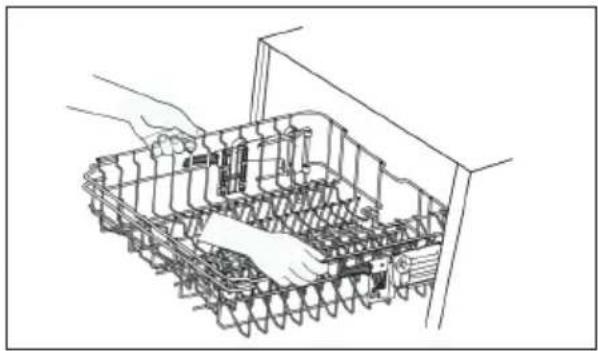

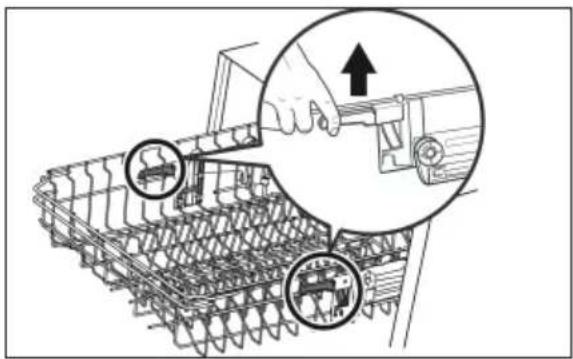

1. To adjust the height of the upper basket, grasp the upper basket in the centre of each side and simply lift it until it clicks into place in the upper position. It is not necessary to raise the adjustment handle

Technical line drawing of a mechanical assembly with no visible text or symbols

1. To lower the upper basket, raise the adjustment handles on both sides to release the basket and lower it to the lower position.

Technical illustration of a mechanical assembly with two circular insets showing tool positioning (no text or symbols)

Stand

• Glasses and tall glasses lean on the edge of the stand (not on other dishware).
- Do not put any long items, serving and salad cutlery, ladles and kitchen knives in a way that they could impede the rotation of the spray arms.
- You can tilt the stand and adjust it in height (Fig 11).

Diagram showing a structural assembly before and after rotation, with no visible text or symbols

Fig. 11

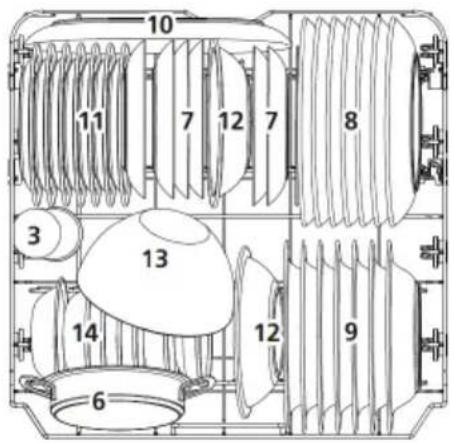

Lower rack

The lower rack is suitable for:

• pots,
  • pans,
• lids,
  • large bowls and plates.

Make sure that the loaded dishware cannot impede the rotation of the spray arms.

For washing larger items (pots, pans, etc.) tilt the plate holders in the lower rack (Fig. 12).

Diagram showing two stages of a mechanical assembly or processing process, with no visible text or symbols.

Fig. 12

Unloading dishware

We recommend unloading the lower rack first to prevent any excess water from the upper rack from flowing down onto the dishware in the lower rack.

Caution!

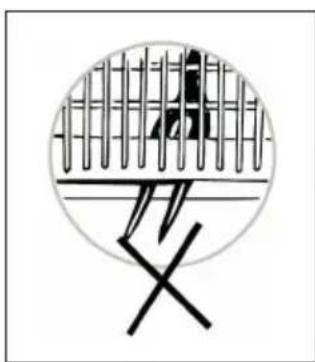

Make sure that cutlery with sharp parts or spikes do not protrude out of the basket. Risk of injury! Always put the knives with blades down!

Simple line drawing of a person sitting on a chair under a circular frame (no text or symbols)

WASHING PROGRAMS OVERVIEW

Program	Information about the washing program	Description of the washing cycle	Amount of detergent Previous/ main	Wash cycle time [min]	Power consumption [W]	Water consumption [L]	Rinse aid
Intesive	Heavily soiled dishes, dirty pots, pans, etc., dried food	Pre-wash (50°C) Washing (65°C) Rinsing Rinsing Rinsing (65°C) Drying	4/18 g Or 1-2 a tablets	205 1,621	17,8 YES
Universal	Normal dirty dishes, pots, plates, glasses and lightly soiled pans	Pre-wash (45°C) Washing (55°C) Rinsing Rinsing (65°C) Drying	4/18 g Or 1-2 a tablets	175 1,302	14,3 YES
ECO	Program is suitable for less dirty dishes	Washing (45°C) Rinsing Rinsing (60°C) Drying	4/18 g Or 1-2 a tablets	220 0,951	11 YES
[G47A] Glass	Lightly dirty dishes and glassware	Pre-wash Washing (50°C) Rinsing Rinsing (65°C) Drying	4/18 g Or 1-2 a tablets	120 1,1	14,3 YES
90 min.	Normal dirty dishes that need quick rinsing	Washing (60°C) Rinsing Rinsing (65°C) Drying	22 g Or 1 a tablet	90 1,35	11,7 YES
Rapid	Short washing for lightly soiled dishes; for quick washing	Washing (50°C) Rinsing Rinsing (45°C)	20 g Or 1-2 a tablets	30 0,751	11,2 NO

Note:

If the display does not show the temperature during the running washing program, it means that phase of the program does not heat up the water.

PUTTING THE APPLIANCE INTO OPERATION

Starting the washing program

1. Open the appliance door.
2. Check the amount of the regenerating salt and refill if needed.
3. One by one pull out the upper and lower rack, load the dishes and then slide the racks back. We recommend loading the lower rack first and then the upper rack (see „Loading dishware”).
4. Make sure that the water tap is open. Close the door of the appliance.
5. Press button (1) to turn the appliance on.
6. Select the desired washing program by pressing the button (2). The selected washing program is indicated by the indicator light of the respective washing program (6).
7. If you require a delayed start, press the delayed start function button (3) repeatedly. You can delay the start of the washing for up to 24 hours. Press this button once to delay the start of washing by one hour.
8. If the dishwasher is only half loaded with dishes, press button (4) to launch the half load option function. Washing is performed in both (upper and lower) racks, the water consumption is reduced and the length of the program is shortened.
9. After selecting the program and adjusting close the door of the appliance. The washing program or the countdown of the delayed start will start.
10. You will hear an eight-fold beep sound after the washing program is done.
11. Press button (1) to turn the appliance off.
12. Hot dishes are very fragile. We recommend leaving the dishes to cool down for about 15 minutes before unloading.
13. Unload the lower rack first and then the upper rack to prevent the excess water from the upper rack flowing down on the dishes in the lower rack.
    Caution! Be careful while opening the door of the appliance, a large amount of water vapour can be released or hot water can spurt. There is a danger of scalding!

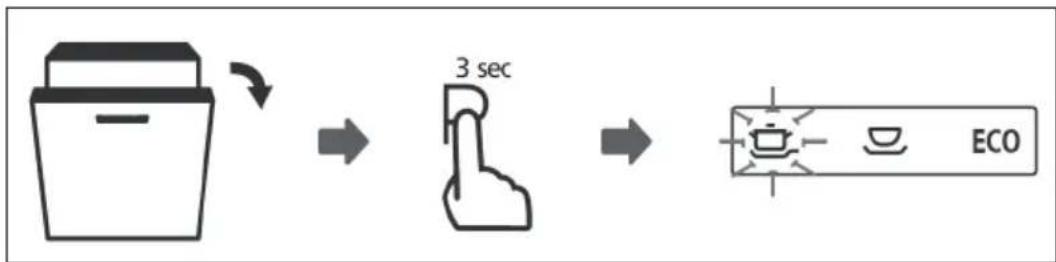

Changing the program during the running washing program

If you decide to change the currently running program, make sure there is enough detergent in the dispenser, or whether it was used and it is needed to be refilled before starting a new washing program (see „Loading the detergent“).

1. Open the door slightly to pause the running washing program. Wait until the spray arms are completely stationary.
2. Press and hold button (2) for more than 3 seconds. The appliance will switch to standby mode in which you can change the washing program setting.
3. Close the door after you are done resetting. The washing cycle will continue after a few seconds.

Note:

• If you open the appliance door during the running wash program, the program will be paused. Signal lights go off.
- A beep sound occurs every minute to warn the door is open during the running program.

Adding dishes to the dishwasher during the running washing program

1. Open the door slightly to pause the running washing program. Wait until the spray arms are completely stationary.
2. Add the dishes into the dishwasher and close the door. The washing cycle will continue after a few seconds.

Caution!

Be careful while opening the door of the appliance, a large amount of water vapour can be released or hot water can spurt. Hot water with the detergent can be of a chemically aggressive nature and may have detrimental effects on your skin or furniture.

CLEANING AND MAINTENANCE

Regular maintenance and inspection prevent malfunctions. To maintain a perfect appearance of the interior of the dishwasher, we recommend using a special dishwasher cleaner once every 4–6 months.

• Check the spray arms and make sure there are no deposits of fat and lime. If deposits occur, fill the detergent dispenser with the detergent and start the washing program on the highest set temperature.
• Wipe the door sealing with a damp cloth regularly to remove any deposits.
• Check the indicator of the amount of the regenerating salt and refill the container if needed.
• Check the indicator of the amount of the rinse aid and refill the container if needed.

Filtration system

The filtration system at the bottom of the dishwasher retains coarse dirt from the washing cycle. The accumulated coarse residues may cause clogging of the filters. Check the filters regularly and clean them under running water if necessary. Follow the steps below to clean the dishwasher filters:

1. Grasp the coarse filter and unlock it by turning it counter-clockwise. Pull the filter upwards.

Technical line drawing of a mechanical assembly with internal components and directional arrows (no text or symbols)

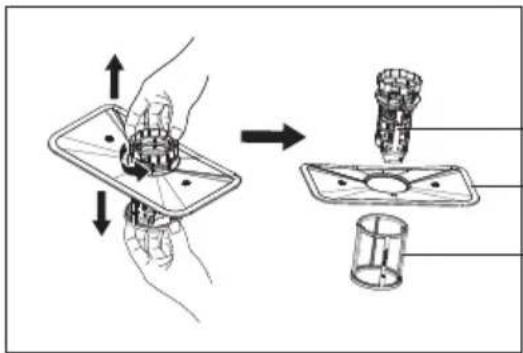

1. The fine filter can be pulled from the bottom of the filter assembly. Separate the coarse filter from the main filter by gently pressing the tabs at the top and pulling it out.

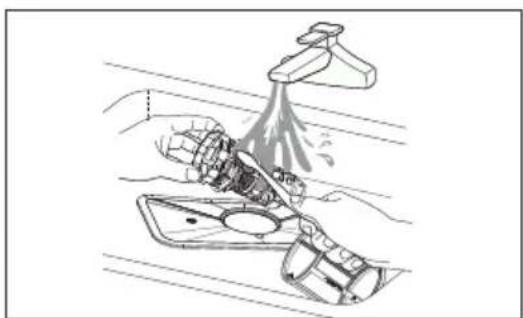

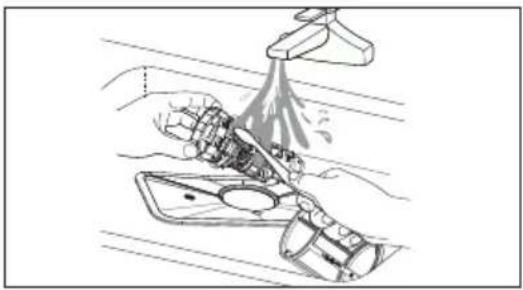

1. Larger food residues can be cleaned by rinsing the filter under running water. Use a soft cleaning brush for more thorough cleaning.

Diagram of a spray gun spraying liquid onto a boat's side panel (no text or symbols)

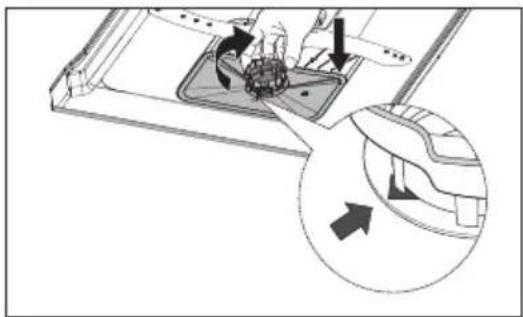

1. Then reassemble the filters. Proceed in the reverse order to their disassembly. Put the filter assembly back into the dishwasher and turn it clockwise. Check that the filter is properly closed by the position of the arrow for closed filter.

Technical diagram showing a mechanical component with internal components and directional arrows, no readable text or symbols present.

Note:

Do not over tighten the filters. Reassemble the filters in the correct order, otherwise coarse dirt may enter the system and cause clogging. Never use the dishwasher without the filters inserted properly. Improper filter placement can reduce the performance of the appliance and damage dishes and cutlery.

Cleaning the spray arms

It is necessary to clean the spray arms regularly. Calcium and dirt may block nozzles and bearings of the spray arms.

• Check the outlet nozzle of the spray arms whether they are blocked by food residues or not.

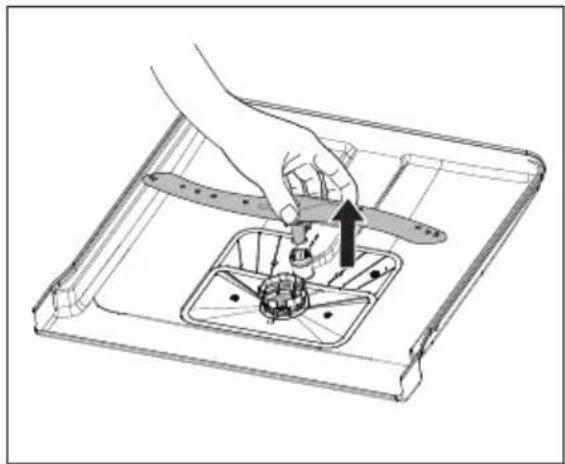

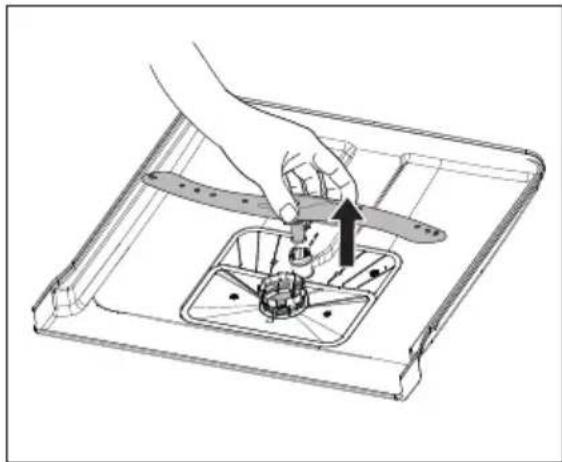

• If it is necessary, unscrew and remove the spray arms (Fig. 11). Wash them under running water and then place them back.
  • To dismantle the upper arm, hold the nut, turn the arm clockwise and remove it.
  • To dismantle the lower arm, remove the arm by lifting it upwards.

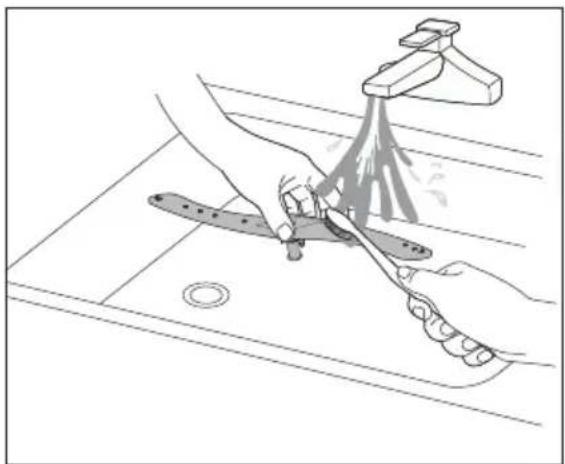

• Wash each spray arm in warm soapy water. To clean the nozzles use a fine brush.
  • Install the arms back after cleaning.

Technical diagram of an aircraft carrier with internal components and directional arrows indicating movement (no text or labels)

Illustration of a hand using a tool to adjust or install a mechanical component inside a tray (no text or symbols visible)

Line drawing of a kitchen sink with hand cleaning the surface and a spray bottle pouring liquid (no text or symbols)

CAUTION!

One of the most common malfunctions is clogged spray arms. The filter is not properly inserted. Make sure the filter system is locked properly after cleaning!

Close-up of a white plastic mechanical component with concentric grooves and a perforated base (no text or symbols visible)

Properly secured filter P

Close-up of a white plastic mechanical component with a perforated circular opening, placed on a textured surface (no text or symbols visible)

Poorly secured filter

Close-up of a mechanical component with concentric rings and a perforated base (no visible text or symbols)

Cleaning the control panel and the surface of appliance

• Use only a soft damp cloth for cleaning.
• Do not use rough and sharp objects (e.g. steel wool) or aggressive detergents.
• Do not allow water to come in contact with the door lock of the appliance.
• To clean the control panel do not use a spray cleaner. It may cause damage to the door lock and electrical parts of the appliance.
• Some paper towels can scratch the stainless steel of the control panel.

Cleaning the door of the appliance

• To clean the edges around the door, use only a soft damp cloth.
• Do not use any spray cleaners, they may damage the door lock and electrical parts of the appliance.

Frost protection

If you are not going to use the appliance for a longer period of time or to place the appliance in places with low temperatures, it is necessary to follow these steps:

1. Unplug the appliance from the mains.
2. Close and disconnect the water inlet hose from the water supply.
3. Dismantle the inlet hose and drain water from the hose and the dishwasher. To capture the water, you can use a shallow container e.g. basin.
4. Reconnect the inlet hose to the dishwasher.
5. Remove the filter system and drain/wipe the remaining water (using for example a sponge).

Note:

- If there is ice and the dishwasher cannot be turned on, contact the service centre.

Tips for maintaining

• After each washing cycle, close the water supply and leave the dishwasher door slightly open to prevent accumulation of moisture and odour.
- Before cleaning and maintenance, disconnect the power cord from the wall outlet.
- Do not use any coarse (e.g. steel wool, rough part of sponges) and sharp objects or aggressive cleaning agents, they may scratch the surface of the appliance.
- For cleaning use a damp cloth dipped in water and detergent.
- If you intend not using the dishwasher for a longer period of time, run a washing program without dishware. After each washing cycle, disconnect the power cord from the wall outlet and leave the dishwasher door slightly open to prevent accumulation of moisture and odour. Leaving the door slightly open prolongs the life of the seal.
- Keep the appliance in an upright position when manipulating. If this is not possible, lay the appliance and transport it on its back.
- Deposits on the seal are one of the sources of odours. Clean the seal to prevent that.

INSTALLATION OF THE APPLIANCE

Caution!

Risk of electric shock! Before installation, disconnect the power cord from the wall outlet. Otherwise there is a risk of death or electric shock.

Built-in dishwashers installed as a free-standing appliance must be secured against overturning. They must be for example screwed to the wall or placed under a worktop which is screwed to adjacent cabinets.

For safe operation the dishwasher must be installed by a qualified professional. Figures for the inflow and outflow of water and electrical grid parameters must match with the figures listed in the technical specifications or in the installation instructions.

• Defects caused by improper installation are not covered by the warranty.
• Installation is the responsibility of the customer not the manufacturer.
• The manufacturer bears no responsibility for damage caused to people, animals or property due to incorrect installation.

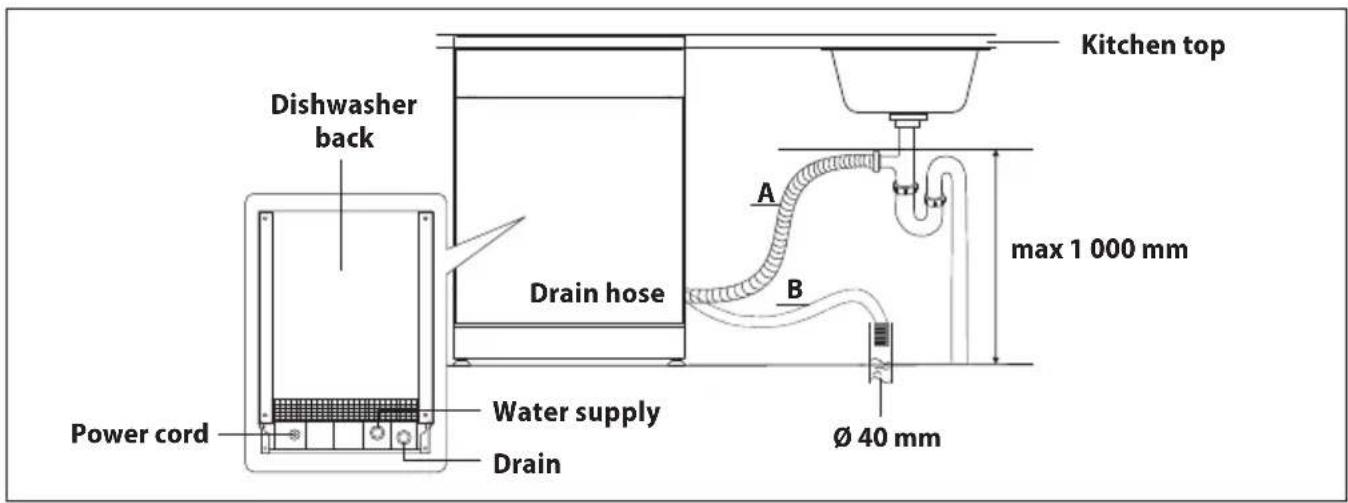

• The dishwasher should be placed near the wall outlet, water supply and waste.
• There should be a space for inlet and drain hose on one side of the lower cabinet.

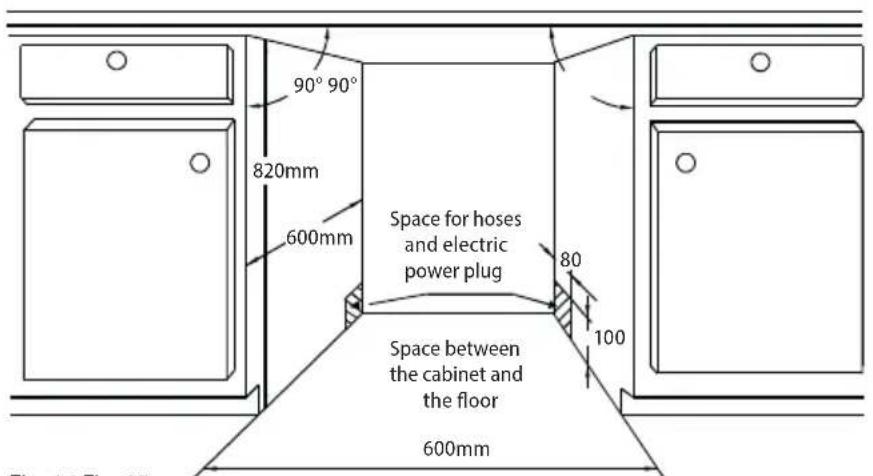

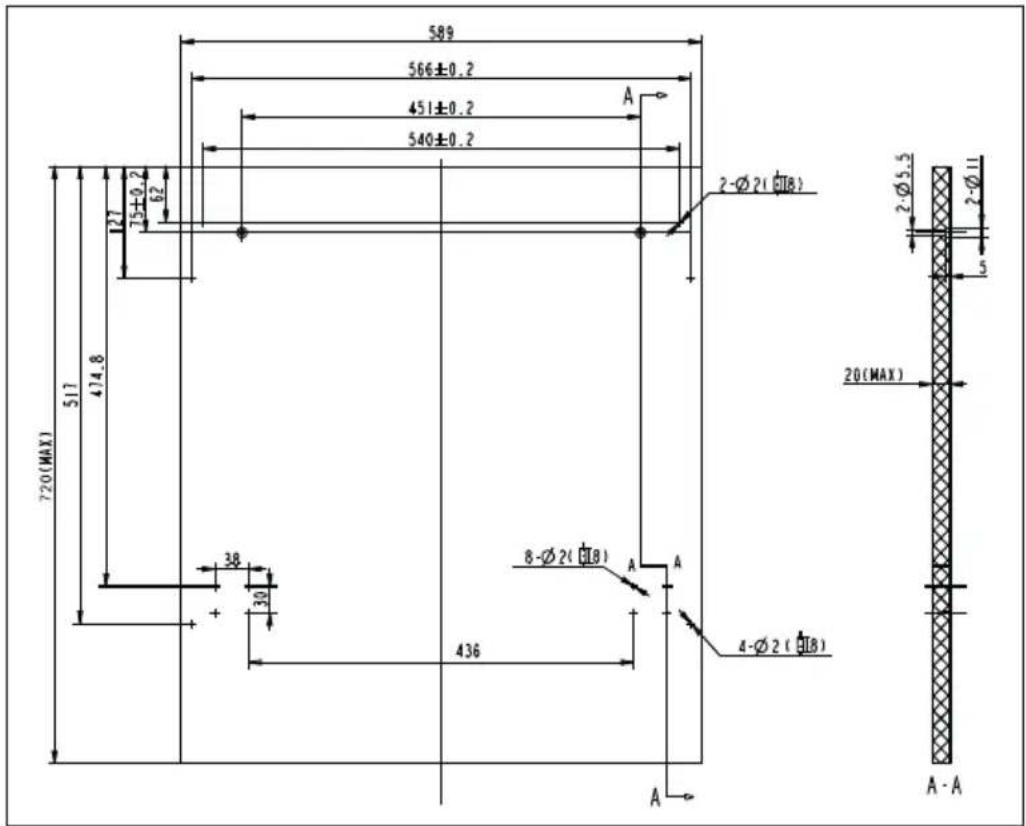

  • Dimensions for mounting the appliance are shown in Fig. 14.

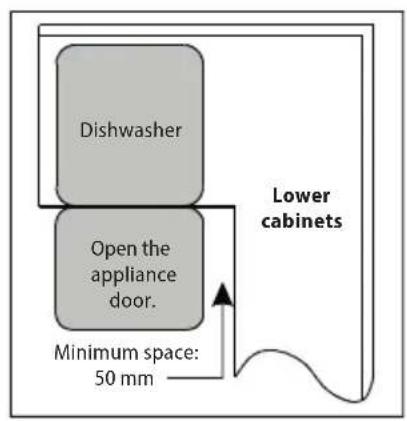

• If the dishwasher is installed in a corner of the lower cabinets, make sure there is a free space around the open dishwasher door 50 mm (Fig. 15).

Fig. 14 Fig. 15

Dimensions and fastening of the cover plate on the door of the dishwasher

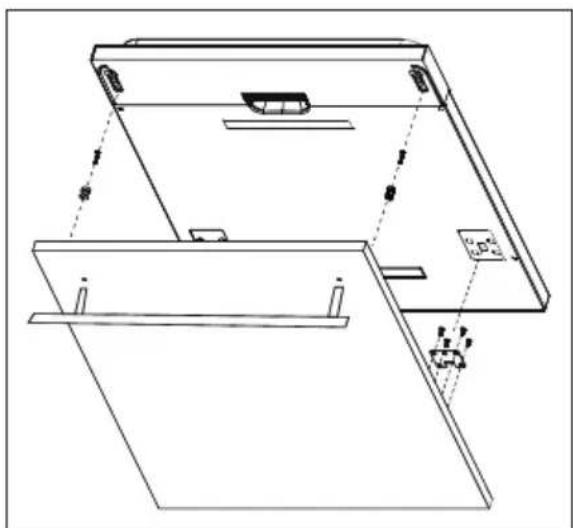

• The dimensions and location of holes on the cover plate are shown in Fig. 16. The dimensions are given in mm.
- Put the cover plate on the door of the dishwasher (Fig. 16a).
- Fasten the cover plate using the screws (Fig. 16b).

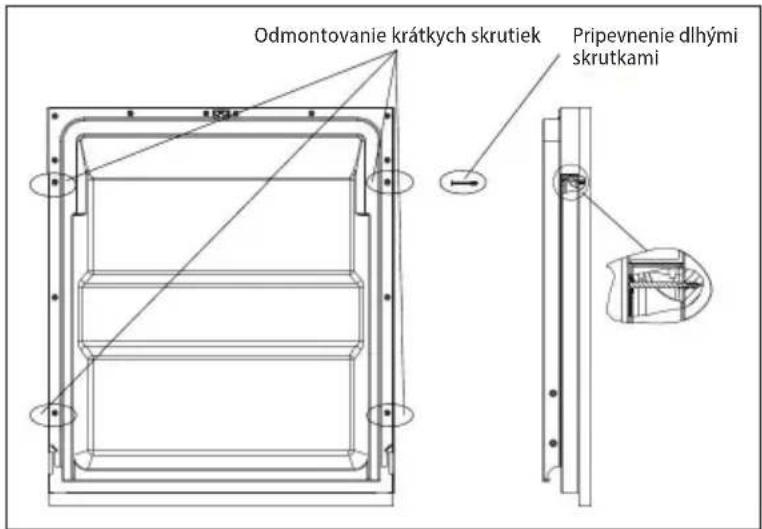

- Unscrew the four short screws from the inner side of the door (Fig. 16b).
- Screw the four long screws instead of the short ones. Now the cover plate is fastened to the appliance door

Fig. 16

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 16a Fig. 16b

Note:

1. In the upper part of the illustration for the installation of the top plate it is shown how many spacer bars and which screws must be used for installing the spacer bars to the control panel of the dishwasher.
2. The spacer bars are put together; the side without the „pins“ shall be attached to the bottom side of the dishwasher control panel.
3. The „pins“ on the bottom side of the bars must be removed (cut off). This step must be done otherwise the top plate would not fit properly.
4. After removing the „pins“, attach the spacer bars with the included screws to the bottom side of the dishwasher control panel.
5. In the upper part of the illustration for the installation of the top plate it is shown which screws must be used for the number of spacer bars.
6. After attaching the spacer bars to the bottom side of the dishwasher control panel, the head of the screw must be at the same level (it must not stick out) as the bottom side of the spacer bar.

Adjusting door spring strength

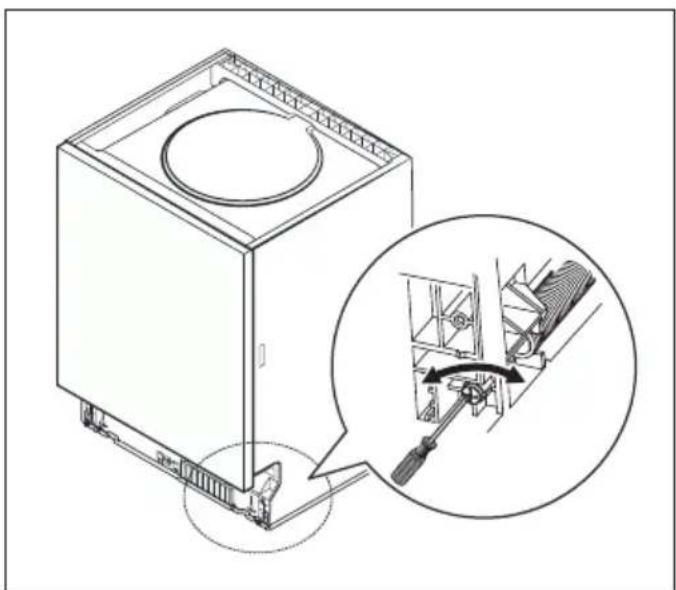

• The spring strength is preset only for the appliance door itself. After attaching the cover plate the weight of the door changes.
• You adjust the strength of the springs using the screws located on the bottom part of the front of the dishwasher (Fig. 17).
• Setting of the springs is correct when the open door stays in the position and does not fall down.

Fig. 17

Technical line drawing of a washing machine with an inset showing internal components (no text or symbols)

When installing the appliance, follow these steps:

1. Remove all the packaging and marketing materials before first use.
2. Fasten the cover plate to the appliance door. Use the fastening screws and brackets.
3. You adjust the strength of the springs (left and right) using the screws located on the bottom part of the front of the dishwasher (Fig. 17). To increase the strength turn clockwise. To decrease the strength turn counter clockwise.
4. Connect the inlet hose to the water supply according to Fig. 19.
5. Connect the drain hose according to Fig. 20.

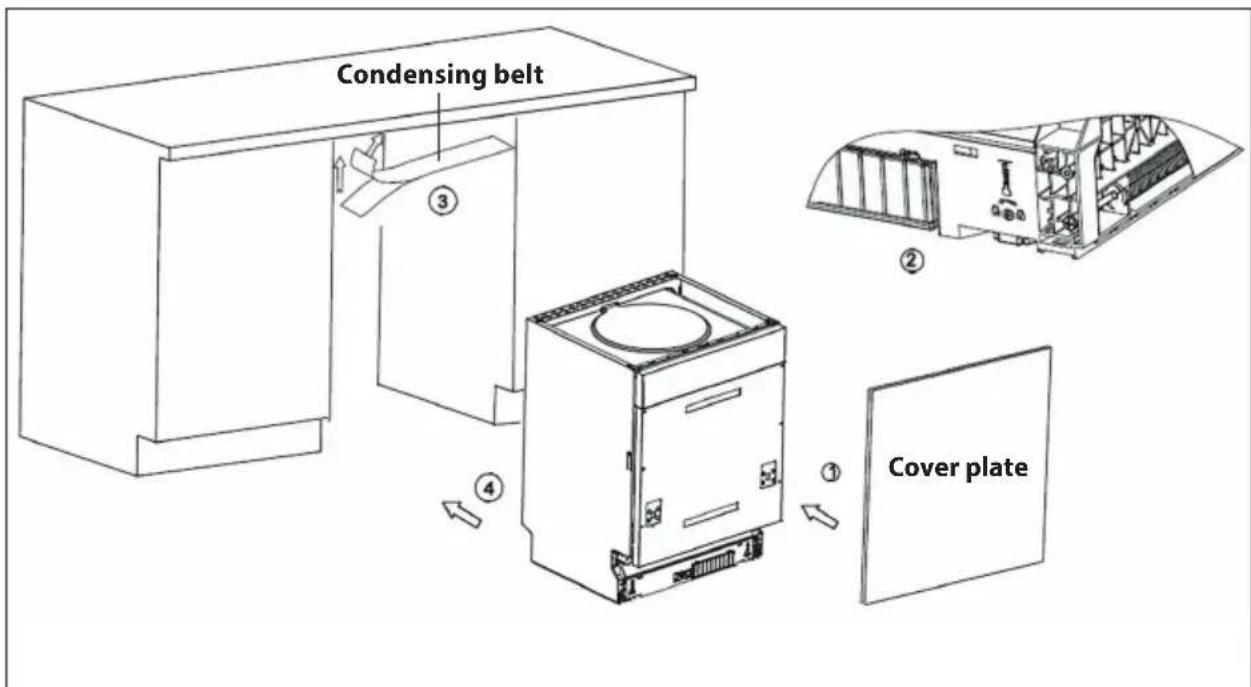

6. Stick the condensation belt under the kitchen top (step 3). Make sure that the condensation belt is stuck alongside the edge of the kitchen top.
7. Place the dishwasher into the prepared space.
8. Use the feet at the front and back of the appliance to level it to a horizontal position. Adjust the back feet by turning the screw on the bottom of the front side of the appliance (step 5). Adjust the front feet by turning screws located near the feet themselves (step 5B). Use a spirit level Fig. 18).
9. Plug the power cord in the wall outlet.

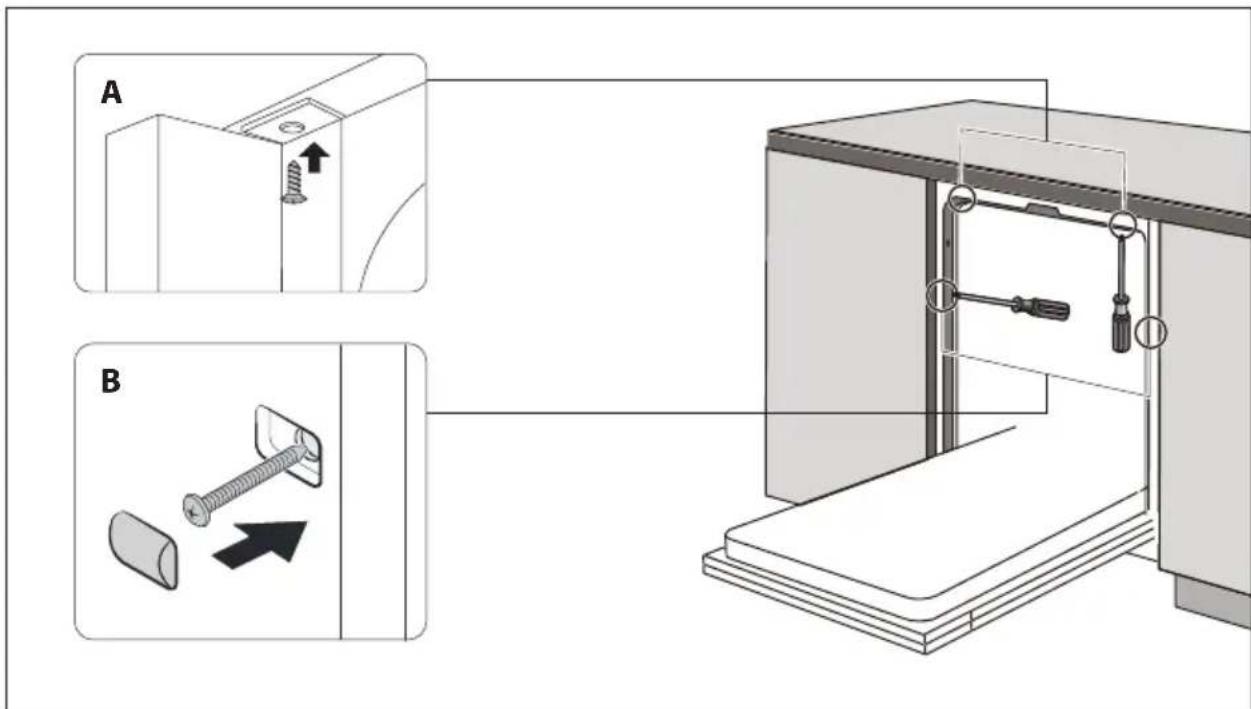

10. The appliance must be secured after placing and levelling it. Securing the appliance can be done in two ways:

A - Attaching to a standard kitchen top:

Place the installation hook into the hole located on the top of the appliance.

Screw the installation hook to the kitchen top (step 6).

B - Attaching to a marble or granite work top:

Screw the sides of the dishwasher to the cabinets (step 7).

Aligning the appliance in horizontal position

1. Place the dishwasher into the prepared space.

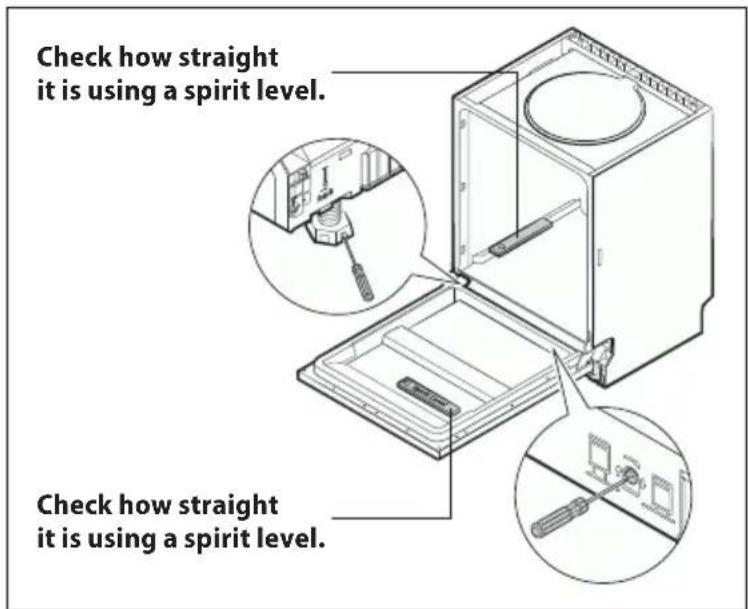

2. Place a spirit level on the fully opened door and in the interior of the appliance (Fig. 18). Make sure the dishwasher is in a horizontal position.
3. Use the adjustable feet to align the dishwasher to a horizontal position.

Note:

Maximum adjustable height of the feet is 70 mm.

Fig. 18

Connection to the mains

• Make sure the mains voltage and current protection correspond to the values on the rating plate of the appliance. We recommend using a separate outlet with a 10A circuit breaker.
• Only use grounded sockets.
• Do not use multiple sockets, plugs and extension cords. There is a risk of overheating.
  • The plug of the power cord on the appliance must be freely accessible even after the installation.
  • Changes in a connection may only be performed by a qualified professional.
• Electrical safety of the appliance can be guaranteed only if the protective terminal of the appliance is connected to the protective conductor of the mains.
• The manufacturer bears no responsibility for damage to persons or property as a result of missing or bad protective connection.

Connection of the water supply

• Before connecting the inlet hose to the water supply, make sure that the water pressure is in the range of 0.04 to 1.00 MPa. When water pressure is higher, you must install a pressure reducing valve.

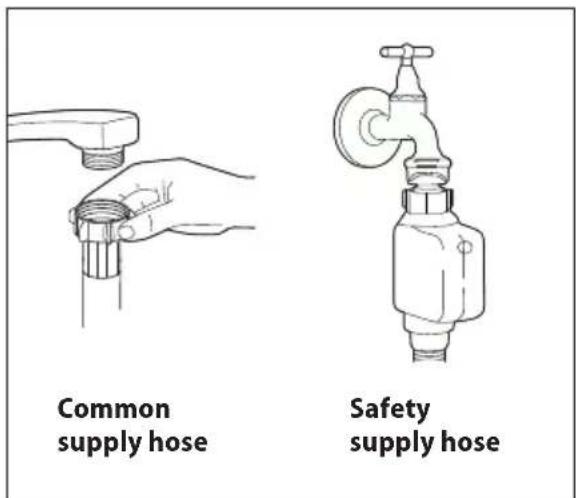

• Connect the inlet hose to the tap with 3/4" thread (Fig. 19). Make sure that the inlet hose is not bent, crushed or entangled.
• When replacing the appliance always use a new inlet hose!
• If the water pipes are new or they have not been used for a longer period of time, run off a sufficient amount of water before connecting the inlet hose to rinse the pipes and wash away any impurities.
• If these safety instructions are not observed, it may lead to blockage and damage to the appliance.

Fig. 19

Connecting the drain hose

Connect the drain hose to the waste pipe with a minimum diameter: 40 mm (Fig. 20). Make sure the drain hose is not bent or squeezed to prevent slowing down or stopping of the water flow.

The height of the waste pipe must be less than 1,000 mm (Fig. 20) and the drain hose should not be submerged in water. Secure the drain hose properly to prevent unwanted loosing from the waste pipe.

Fig. 20

Extension of the drain hose

The distance between the connection of the drain hose with the waste pipe and the bottom of the appliance should not be bigger than 1,000 mm. If you need to extend the drain hose, make sure to use the same one. The total length of the drain hose must not be longer than 4 m, otherwise it will reduce the cleaning effectiveness of the appliance.

Disassembling

If you disassemble the appliance, it is important to follow the steps in the correct order:

1. First, unplug the power cord from the mains (pull the plug or switch off the circuit breaker).
2. Close the water supply.
3. Loosen the drain and inlet hoses.
4. Loosen the fastening screws.
5. If the dishwasher is attached to the base plate, remove it.
6. Pull the dishwasher out while gently pulling the drain and inlet hoses and the power cord.

Disconnection of the water supply

1. Close the water supply (the tap).
2. Press the button to release the water pressure in the inlet hose. Water cannot accidentally spurt out when the water pressure is low.
3. Unscrew the inlet hose from the tap.

Draining excess water from hoses

If the drain hose is connected to the waste pipe at the maximum allowable height, the excess water cannot be drained completely. It is necessary to disconnect the drain hose and lay it as low as possible. To capture the water, you can use a shallow container e.g. a basin.

TROUBLESHOOTING

You can remove most of the minor malfunctions by yourself, there is no need to call the service centre. The following overview will help you find the causes of occurring errors.

Defect description Possible cause Solution
The appliance does not work	Faulty circuit breaker	Check the circuit breaker in the switchboard if it is in working condition. Unplug all other appliances that are connected to the same circuit.
	The power cord plug is not plugged in the wall outlet.	Make sure the appliance is switched on and the door is closed.Check the connection of the cord.
	Low water pressure	Make sure the water supply is open and the inlet hose is tightly connected to the water supply tap or the hose is not bent.
	Door is not closed properly. Make sure that the door is closed tightly.
Water is not pumped out of the appliance.	Broken drain hose Check the drain hose.
	Filter is clogged	Check the coarse filter (see „Cleaning the filter system“)
	Drainage is clogged	Check the drainage. If the drainage is clogged, clean it.Before contacting a qualified electrician disconnect the drain hose from the drainage and make sure water flows out of the drain hose. To catch water from the drain hose use e.g. a bucket or some other larger container.
Soapy water in the appliance interior	Unsuitable detergent or spilled rinse aid.	Use only detergent designed for use in dishwashers. If there is a soapy foam in the interior, leave the appliance open to let the foam evaporate. Pour 4.5 litres of cold water into the washing area, close the appliance and then pump out the water. Repeat the process if needed. Spilled rinse aid always wipe off as soon as possible.
	Spilled rinse aid	Spilled rinse aid always wipe off as soon as possible.
Stains in the washing area	Coloured detergent has been used	Do not use detergents with dye.
White film on the inner surface of the dishwasher.	Sedimentary minerals	Use a damp sponge with a cleaning agent and put on rubber gloves. Never use any other cleaning agents than for dishwashers.
Stains on cutlery	Used cutlery is not corrosion resistant
	The appliance was not turned on after the salt was added in the dishwasher. Pieces of salt got in the washing cycle	After adding salt, always run a quick wash cycle without dishware loaded.
	Loose cover of the softener container	Check the softener container cover and make sure it is properly tightened.
Knocking sound in the interior of the appliance during running washing program	The lower or upper spray arm is blocked by dishes or food remains	Pause the program, check the arrangement of dishes or rearrange the dishes and if necessary, clean the spray arm.
Rattling sound in the interior of the appliance during running washing program	During the running washing program Dishes move freely inside the appliance	Pause the program and rearrange the dishes to avoid spontaneous releasing of the dishes during the washing program.
Knocking noise in water pipes	It may be caused by the cross-section of the pipes.	The knocking noise does not influence the dishwasher. If you have doubts, consult it with a qualified professional.
The detergent dispenser cover cannot be closed	The dispenser is overfilled. Remove the excess amount of detergent.
	The mechanism is blocked by the detergent residues.	Clean the closing mechanism of the detergent dispenser.
Dishes are dirty	The dishes were not arranged properly	See "Loading dishware".
	The selected washing program was not strong enough	Select more intensive washing program.
	Insufficient amount of detergent	Use more detergent.
	The arm is blocked by dishes or food remains.	Check the dishes and clean the spray arm if needed.
	It is possible the filter is inserted improperly. Blockage of the arms may occur.	Clean or insert the filter properly. Clean the spray arms (see "Cleaning the spray arms").
Stains on glass	Combination of soft water and too much of detergents.	Use smaller amount of detergent and for washing glasses select the shortest washing cycle if water in your area is soft.
Black or grey stains on the dishes	Aluminium cutlery has touched the dishes during the washing cycle.	Use a gentle abrasive agent to clean such stains. Do not put this agent into the dishwasher!!!
Dishes are moist	Dishes were loaded improperly	See „Loading dishware“.
	Insufficient amount of rinse aid	Use more rinse aid.
	You unload the dishes too soon.	Do not unload the dishes immediately after the washing program is done. Open the door slightly to allow the excess steam to escape. Start unloading when the dishes are almost cold to the touch. Always unload the lower rack first and then the upper rack to prevent the excess water from the upper rack flowing down onto the dishes in the lower rack.
	Wrong washing program was selected	The short washing program is less effective than the long programs and the temperature is also lower. Select longer washing program.
	Cutlery with wooden handle	Draining water from these is more difficult. This type of cutlery is not suitable for washing in the dishwasher.

ERROR MASSAGE

If a fault occurs, the dishwasher will display the following error codes:

Code	Description of error Possible cause
E1	Longer dishwasher filling time	The water taps are not open or the water supply is limited or water pressure is too low..
E3	Failure to reach the required temperature.	Heating element malfunction.
E4	Overflowing Some parts of the dishwasher are	leaking
Ed	Loss of communication between the control unit and the display	Open circuit or broken communication line.

Note:

• In case of overflowing turn off the main water supply and then contact the service.
• Before restarting the appliance, remove the excess water from the interior of the appliance.

DIMENSIONS

Height (H) 815 mm
Width (W) 598 mm
Depth (D1) 550 mm (with door closed)
Depth (D2) 1 150 mm (with door open up to 90 °)

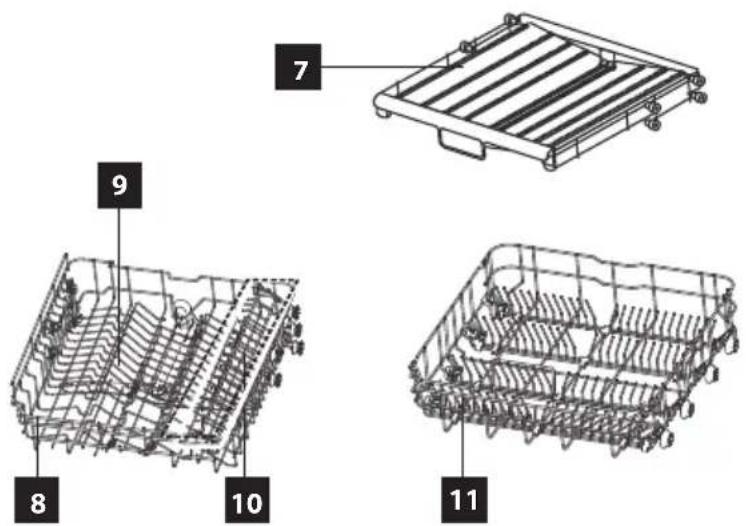

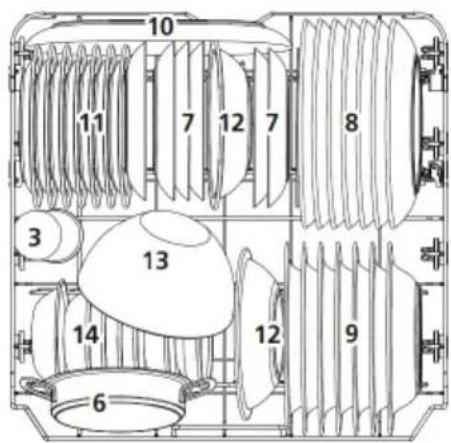

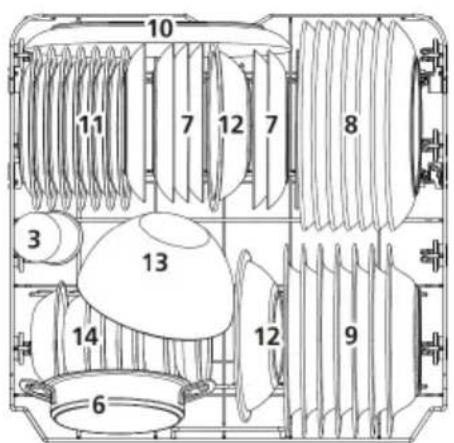

EXAMPLE OF LOADING DISHWARE

Upper rack Lower rack

Number Item Number Item
1 Cups 8 Dinner plates
2 Saucers 9 Soup plates
3 Glasses 10 Oval platter
4	Mugs	11	Melamine dessert plates
5	Small pot	12	Melamine bowls
6	Oven pot	13	Glass bowl
7	Dessert plates	14	Dessert bowls

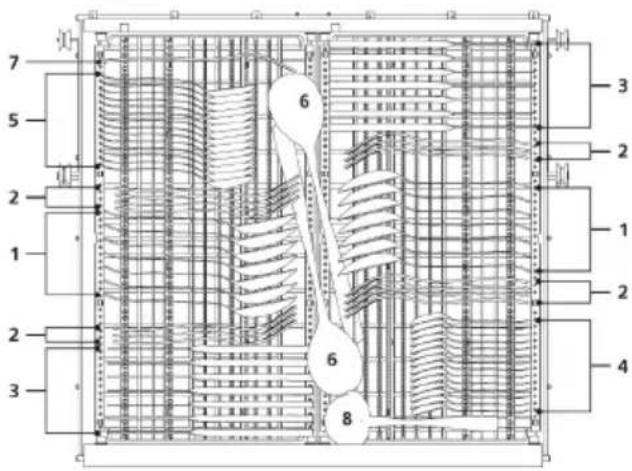

Number Item
1 Tablespoons
2 Forks
3 Knives
4 Teaspoons
5 Dessert spoons
6 Serving spoons
7 Serving forks
8 Sauce spoons

Black silhouette of various kitchen utensils and utensils arranged in rows, with corresponding numerical labels below (12, 45, 78) and a legend on the right.

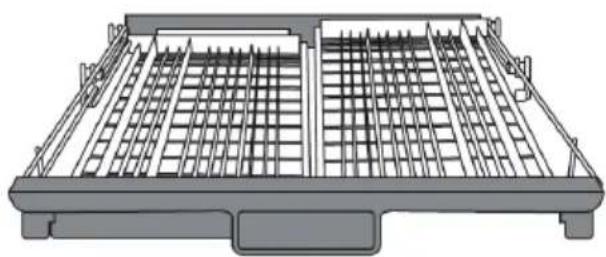

POSITIONING OF THE CUTLERY BASKET

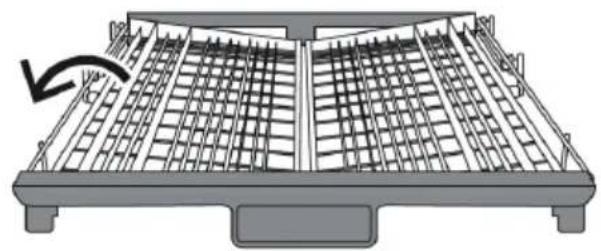

1. pozicija – Set the left side of the basket to the lower position, the left side is flat, right side is skewed.

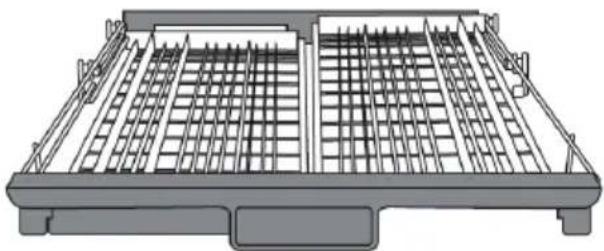

2. pozicija – Lift the left side of the basket upwards, both sides of the baskets are flat.

Diagram of a grid-patterned container with an arrow indicating rotation (no text or symbols)

↓

Diagram of a multi-level storage or rack system with grid-like compartments and supports (no text or symbols)

Diagram of a grid-patterned container with directional arrows indicating flow or movement (no text or symbols)

↓

Technical line drawing of a mechanical assembly with grid-like components (no text or symbols)

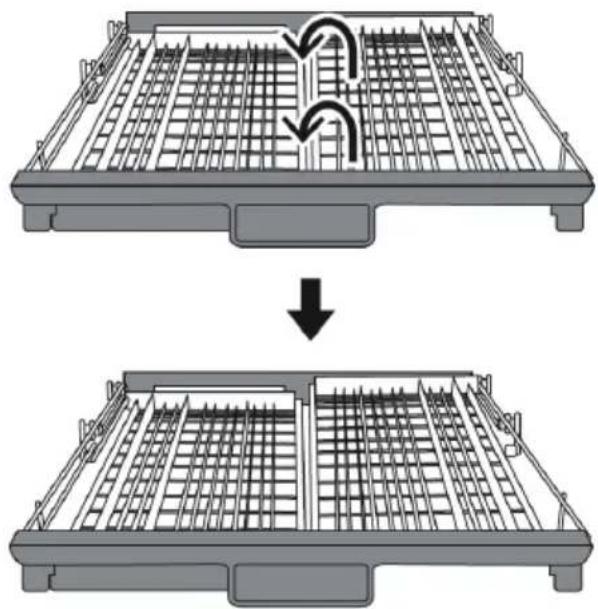

1. pozicija – Move the right side of the basket from right to left, baskets are overlapping.

Diagram showing structural rebar grid transformation from top to bottom view, with no text or symbols present.

1. pozicija – Remove the right side, left side will remain flat.

ENVIRONMENTAL PROTECTION

• Prefer recycling of packaging materials and old appliances.
• Packaging materials may be disposed of as sorted waste.
• Dispose the plastic bags made of polyethylene (PE) of as sorted waste.

Recycling of the appliance at the end of its lifespan:

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The symbol on the product or its packaging indicates that this product may not be treated as household waste. It is necessary to take it to a container park for the recycling of electrical and electronic equipment. By ensuring the correct disposal of this appliance you will help prevent potential negative consequences to the environment and human health, which could otherwise result from inappropriate disposal of this product. Disposal must be performed in accordance to the regulations for waste disposal. For more detailed information about recycling of this appliance see the authorized local office or service for household waste disposal or the shop, where you purchased the appliance.

CONCEPT POLSKA sp. z o.o.
