RCN2379LD - Fridge Romo - Free user manual and instructions

Product Type	Freestanding Refrigerator-Freezer
Brand	Romo
Model	RCN2379LD
Total Capacity	237 liters
Refrigerator Capacity	170 liters
Freezer Capacity	67 liters
Energy Class	A+ (EU 2010)
Annual Energy Consumption	220 kWh
Climate Class	SN-T (subnormal to tropical)
Noise Level	42 dB (A)
Dimensions (H x W x D)	1850 x 595 x 650 mm
Weight	72 kg
Power Supply	220-240 V, 50 Hz
Cooling System	Static with auto defrost in refrigerator
Freezer Defrost	Manual
Temperature Control	Mechanical thermostat
Interior Lighting	LED
Shelves	3 adjustable glass shelves
Door Reversibility	Yes (instructions in manual)
Maintenance	Clean condenser coils annually; defrost freezer as needed
Spare Parts Availability	Contact Romo customer service or authorized dealers
Reparability	Repairable by qualified technician; some parts user-serviceable
Warranty	2 years standard (check local regulations)

Frequently Asked Questions - RCN2379LD Romo

How do I install the Romo RCN2379LD refrigerator?

Place the appliance on a flat, stable surface. Allow 5 cm clearance on sides and back for ventilation. Level the feet. Connect to a grounded outlet (220-240 V). Wait 4 hours before loading food.

What is the recommended temperature setting?

The refrigerator compartment should be set between 3°C and 5°C. The freezer should be at -18°C or colder. Adjust using the thermostat dial.

How do I defrost the freezer?

When frost buildup exceeds 5 mm, turn off the appliance, remove food, and let ice melt naturally. Do not use sharp tools. Clean and dry before restarting.

Why is my refrigerator making noise?

Normal sounds include compressor hum, coolant flow (gurgling), and occasional clicks from the thermostat. If noise is excessive, check if the appliance is level and not touching walls.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions. You will need a screwdriver and possibly assistance due to door weight.

How do I clean the refrigerator?

Unplug the appliance. Remove shelves and drawers. Wash interior with warm water and mild soap. Do not use abrasive cleaners. Dry thoroughly before plugging back.

Does this model have an ice maker?

No, the Romo RCN2379LD does not include an automatic ice maker. You can use standard ice cube trays in the freezer.

What should I do if the refrigerator is not cooling?

Check if the power cord is connected. Ensure the thermostat is not set to 0. Verify the condenser coils are clean. If still not cooling, contact a technician.

How can I save energy with this fridge?

Keep the appliance away from heat sources. Ensure door seals are clean. Avoid frequent door openings. Set temperature to recommended levels. Defrost freezer regularly.

Where can I find spare parts for the RCN2379LD?

Contact Romo customer service or visit the Romo website. Authorized dealers may also carry parts. Provide the model number for accurate identification.

USER MANUAL RCN2379LD Romo

Simple line drawing of a refrigerator with two vertical bars on the front panel (no text or symbols)

RCN2379LD

RCN2379LX

RCN2379LW

Symbol of a trash bin crossed with no text or labels

Simple line drawing of an electric plug with a warning symbol (no text or labels)

Cartoon illustration of a smiling character inside a door, holding hands with arms outstretched (no text or symbols)

Illustration of a hand holding a smiling face, a crossed-out circle with a diagonal line, and a crossed-out fist (no text or symbols)

Simple line drawing of a bottle and bucket with a spray bottle and a droplet, no text or symbols present.

Illustration of three hands holding ropes and a tool, showing different techniques (no text or symbols present)

Simple line drawing of a hand holding a smiling face next to an electrical outlet (no text or symbols)

04°C -18°C #Super M

Poznámka:

04°C Guper -18°C M

Hand pointing at a button on a device (no text or symbols visible)

04°C -18°C M

04°C - 18°C a M

04°C - 18°C M

Illustration showing three different hand positions: a keyboard, a grid with curved arrows indicating rotation, and a crossed-out hand (no text or symbols)

Mrazicí box

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl holding a tool (no text or symbols)

Simple line drawing of a hand holding a smiling face inside a rounded square (no text or symbols)

Simple line drawing of a hand cleaning a wall-mounted device (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand holding a cup and a bag nearby (no text or symbols)

Diagram of a refrigerator with red X marks indicating no text or symbols on the refrigerator itself

Cartoon illustration of a smiling refrigerator and two baby bottles (no text or symbols)

Simple line drawing of two children playing a game with a large block (no text or symbols)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Illustration of three hands holding a cable, showing different techniques of connecting wires (no text or symbols present)

Simple line drawing of an electric plug with a warning symbol and electrical lines (no text or labels)

Cartoon illustration of a character with arms and legs emerging from a door (no text or symbols)

Simple line drawing of a hand holding a smiling face icon next to a crossed-out nozzle (no text or symbols)

Simple line drawing of two bottles and a container with a hand holding a droplet (no text or symbols)

Cartoon illustration of a sad, anthropomorphic container with arms and legs, holding a label labeled 'KG' (no text or symbols on the container itself)

Diagram showing airflow or fluid flow patterns in a vehicle or tank system with red and blue directional arrows indicating movement.

A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

04°C Cuper -18°C M

E E

Dovolenkový režim

Diagram showing a hand interacting with a device panel, with partial text visible on the left side.

04°C -18°C M

04°C -18°C M

Nastavenie teploty mrazničky

04°C -18°C a M

Illustration showing three different hand positions: a bowl on a tray, a keyboard with rotation arrows, and a hand holding a bowl with a crossed-out black cross (no text or symbols)

Schránka mrazničky

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Simple line drawing of a hand holding a smiling emoji inside a square (no text or symbols)

Simple line drawing of a hand washing a fish from a container (no text or symbols)

Cartoon illustration of a refrigerator with a smiling face, accompanied by a smaller bottle and cup (no text or symbols)

Simple line drawing of a refrigerator with a red X mark on the door (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms and legs, accompanied by two baby illustrations (no text or symbols)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Old and out-of-order fridges.... 88

Safety warnings 88

Installing and operating your fridge.... 89

Before Using your Fridge....90

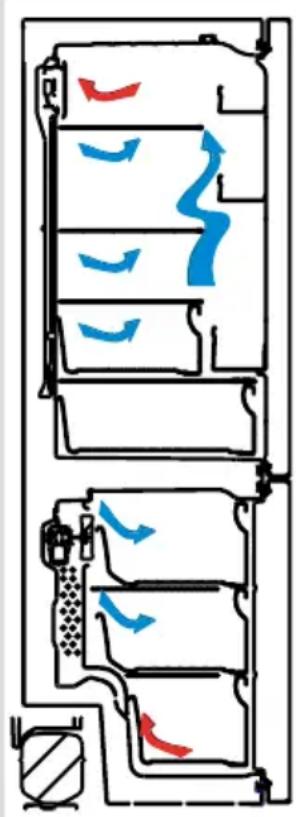

Information about New Generation Cooling Technology ..... 91

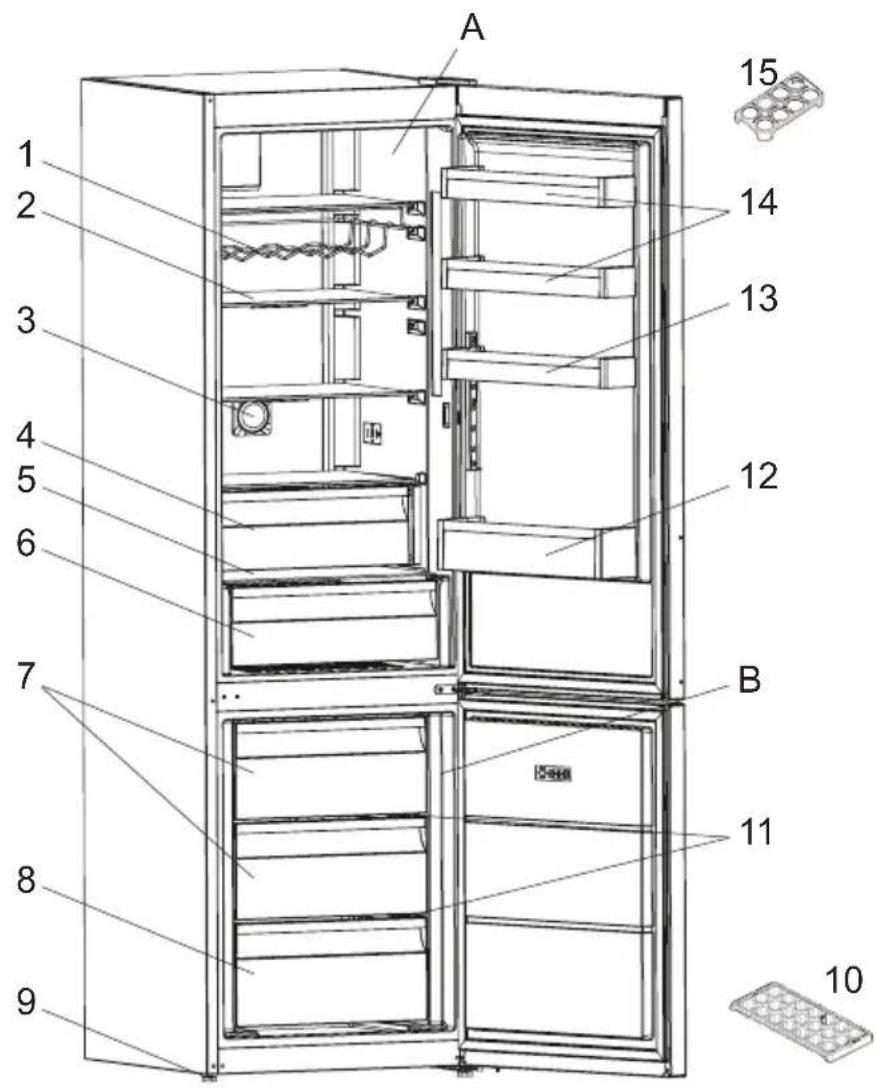

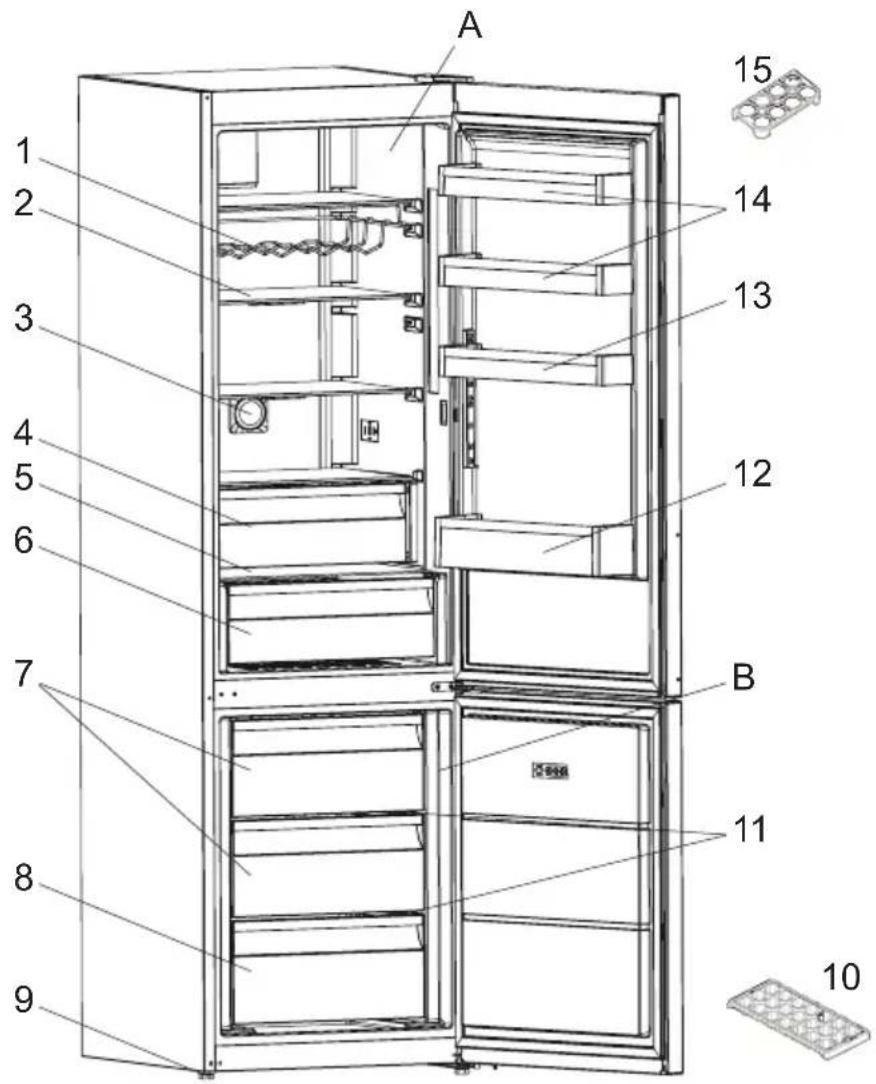

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS 92

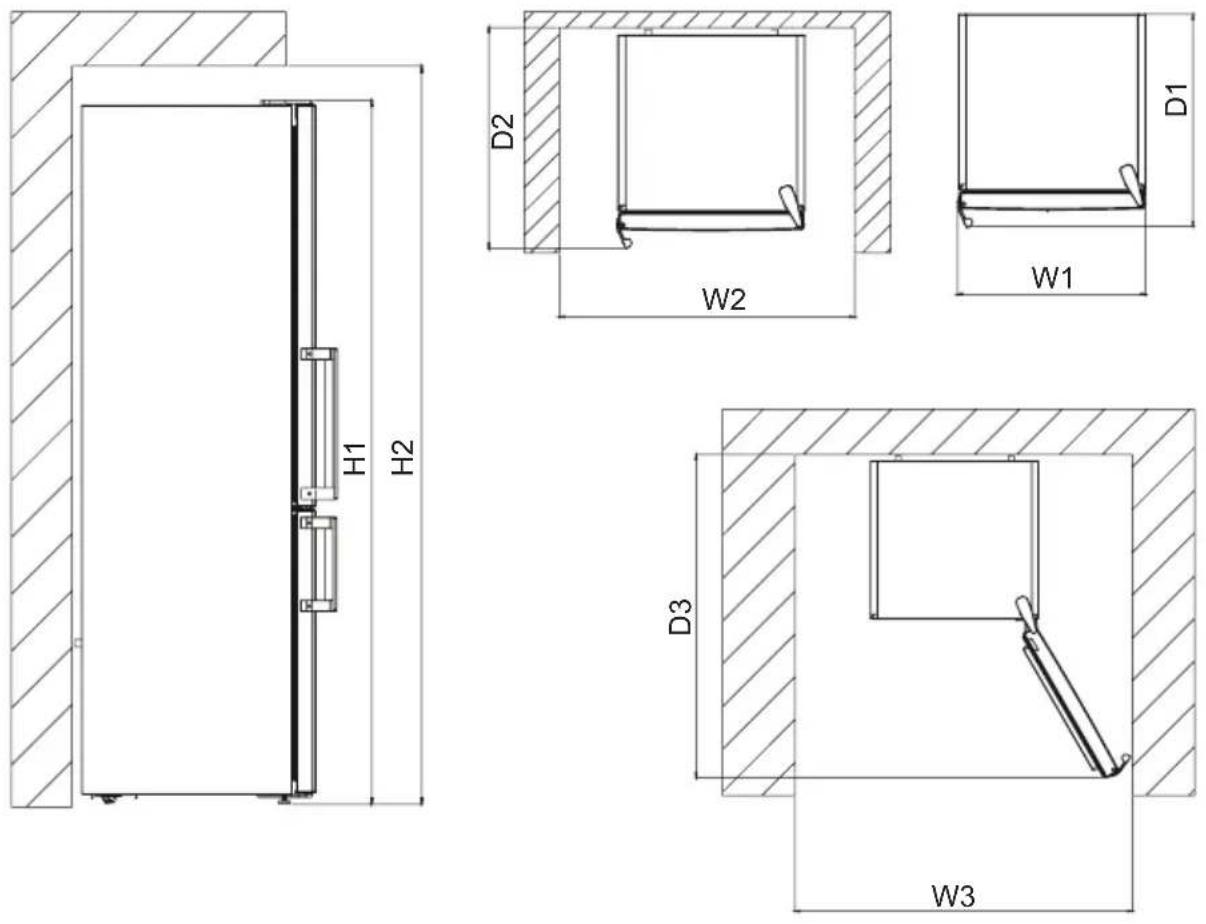

Dimensions....93

THE VARIOUS FUNCTION AND POSSIBILITIES ..... 94

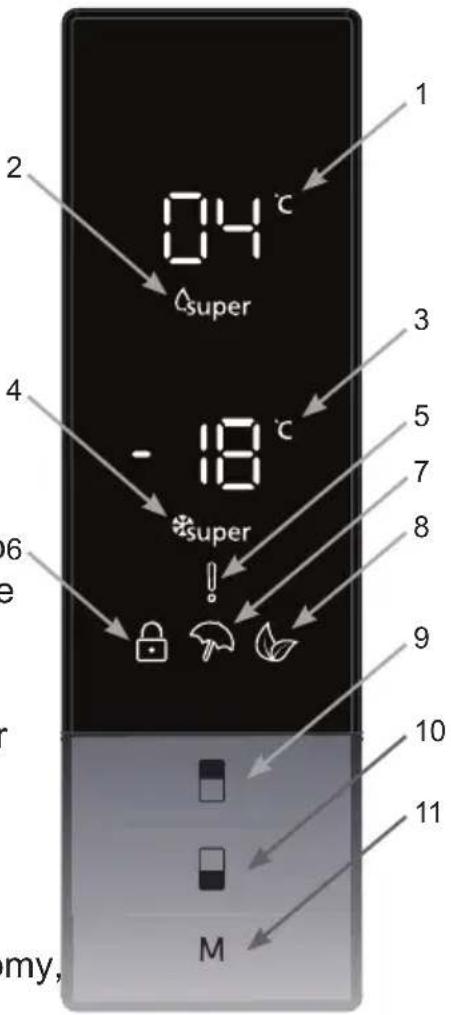

Display and control panel 94

Operating Your Fridge Freezer 95

Super Freeze Mode 95

Super Cool Mode....96

Economy Mode....96

Holiday Mode....97

Drink Cool Mode 97

Screen Saver Mode 98

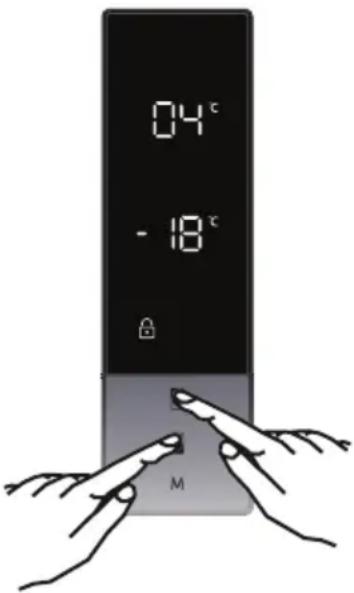

The Child Lock Function 99

Temperature Settings.... 99

Temperature Adjustment Warnings.... 100

Accessories 102

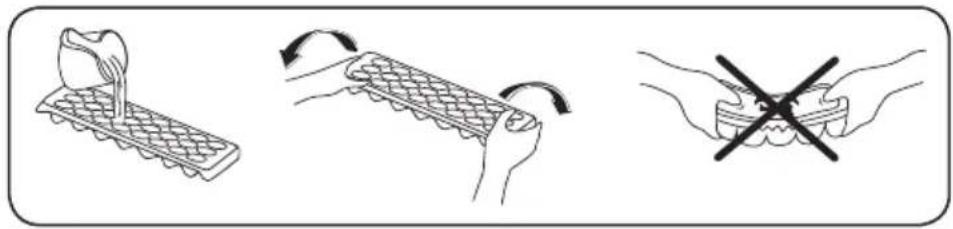

Ice Tray 102

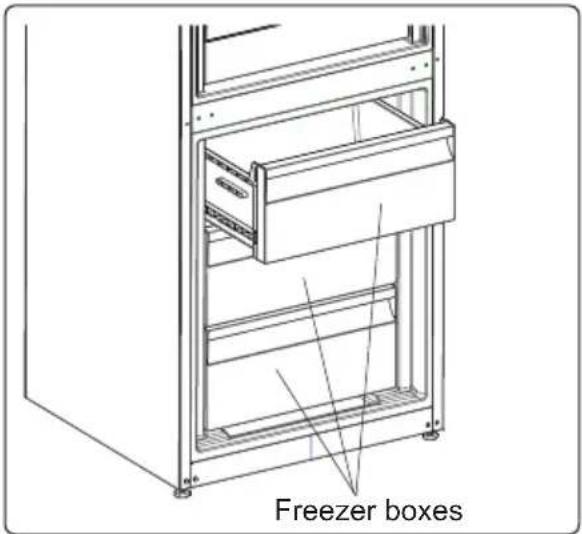

The Freezer Box....102

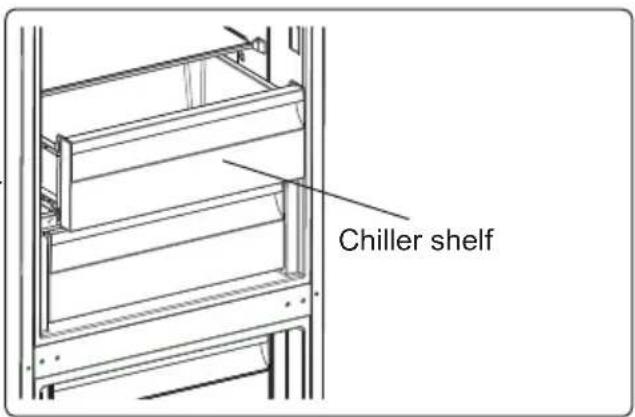

The Chiller Shelf 102

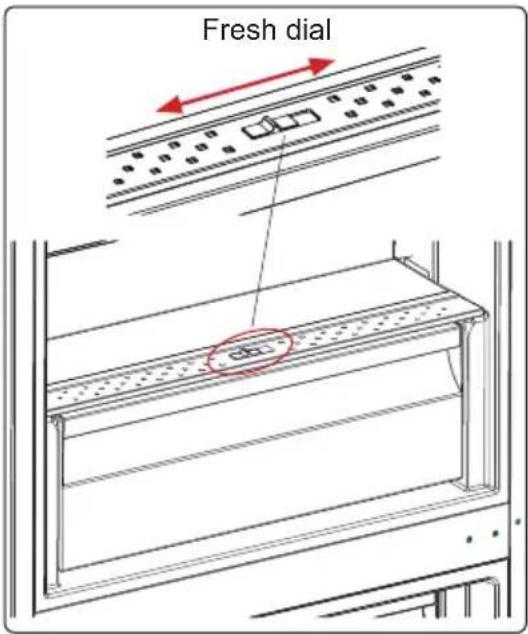

The Fresh Dial 103

CLEANING AND MAINTENANCE....104

Defrosting 105

ARRANGING FOOD IN THE APPLIANCE....106

Refrigerator compartment....106

Freezer compartment 107

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION.... 112

Repositioning the door....112

BEFORE CALLING YOUR AFTER SALES SERVICE..113

TIPS FOR SAVING ENERGY.... 117

TECHNICAL DATA.... 118

INFORMATION FOR TEST INSTITUTES......119

CUSTOMER CARE AND SERVICE....120

BEFORE USING THE APPLIANCE

General warnings

This appliance is not intended to be used as a built-in appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• This appliance is intended to be used in household and domestic applications such as:

• staff kitchen areas in shops, offices and other working environments.

• farm houses and by clients in hotels, motels and other residential type environments.
• bed and breakfast type environments;
• catering and similar non-retail applications.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not

expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.
  • One-, two- and three-star compartments are not

suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Internal lighting

WARNING!

Risk of electric shock.

- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

General notes:

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

Freezer Compartment (Freezer): Most Efficient use of energy is ensured in the configuration with the drawers and bins are on stock position.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Please ask your municipal authority about the disposal of the WEEE reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration showing three different techniques for connecting wires, with no text or symbols present.

Simple line drawing of an electric plug with a warning symbol (no text or labels)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.
• Do not re-freeze frozen goods after they have melted. This may cause health issues such as food poisoning.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
• Secure any accessories in the fridge during transportation to prevent damage to the accessories.
• Do not use plug adapter.

Installing and operating your fridge

Before using your fridge, you should pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or exposed to rain.

Cartoon illustration of a character with arms and legs, standing inside a rectangular door (no text or symbols)

Simple line drawing of a hand holding a smiling face, a crossed-out nozzle, and a square with a magnifying glass (no text or symbols)

Simple line drawing of two bottles and a container with a droplet, no text or symbols present

BEFORE USING THE APPLIANCE

Cartoon illustration of a distressed container with a bag labeled 'KG' and a sad face (no text or symbols beyond the label)

Diagram of two coiled heat exchangers with heat transfer arrows (no text or labels)

Simple line drawing of a hand reaching toward a smiling electrical outlet (no text or symbols)

• When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.
• Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm of free space is available above it.
• Use the adjustable front legs to make sure your appliance is level and stable. You can adjust the legs by turning them in either direction. This should be done before placing food in the fridge.
• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge after cleaning.
• Install the plastic distance guide (the part with black vanes at the rear) by turning it 90° (as shown in the figure) to prevent the condenser from touching the wall.
• The refrigerator should be placed against a wall with a free space not exceeding 75 mm.

Before Using your Fridge

• When using your fridge for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.
• Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

Information about New Generation Cooling Technology

Fridges with new generation cooling technology have a different working system than static fridges. In normal fridges, humid air that enters into fridge and the water vapor that comes out from the foods, accumulates frost formation in freezer compartment. In order to melt this frost, in other words defrost, the fridge has to be stopped. During the stopping period, to keep the foods cold, user has to extract the food to outside of fridge and user has to clear the ice during this period.

In the fridges with new generation cooling technology, situation in the freezer compartment is completely different. With the aid of fan, cold and dry air is blown out through many points into the freezer compartment. As a result of the homogenously blown cold air, even in the spaces between shelves, foods are frozen equally and correctly. On the other hand there will be no frost formation.

In the refrigerator compartment, there will be nearly same configuration with freezer compartment. Air, that is emitted with the fan, located at the top of refrigerator compartment, is cooled while passing through the gap behind the air duct. At the same time, air is blown out through the holes on the air duct so that cooling process is successfully completed in the refrigerator compartment. Holes on the air duct are designed such that the air distribution becomes homogenous in this compartment.

As there is no air passage between freezer and refrigerator compartment, there will be no odor mixing.

As a result of these, your fridge with new generation cooling technology, gives you, ease of use beside the huge volume and esthetic appearance.

Diagram of a vehicle air intake system with airflow indicators and component labels

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

A 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Fridge compartment
B) Freezer compartment
1) Wine rack *
2) Fridge shelves
3) Ionisier *
4) Chiller *
5) Crisper cover
6) Crisper
7) Freezer top basket

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Dimensions

Overall dimensions1

H1 mm 2010

W1 mm 595

D1 mm 650

Space required in use2

H2 mm 2060

W2 mm 596

D2 mm 739

Overall space required in use3

W3 mm 913

D3 mm 1179

Display and control panel

Using the Control Panel

1. It is cooler set value screen.
2. It is super cooling indicator.
3. It is freezer set value screen.
4. It is super freeze indicator.
5. It is alarm symbol.
6. It is child-lock symbol.
7. It is holiday mode symbol.

8. It is economy mode symbol.

9. It enables the setting value of cooler to be modified and super cool mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C super cool.

10. It enables the setting value of freezer to be modified and super freeze mode to be activated if desired. Freezer may be set to -16, -18, -20, -22, -24 °C super freeze.

11. It enables the modes (economy, holiday...) to be activated if desired.

04°C super -18°C super M my,

Operating Your Fridge Freezer

Lighting (If available)

When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.
  • To freeze prepared foods.
  • To freeze fresh food quickly to retain freshness.

How Would It Be Used?

Press freezer set button until Super freeze symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

During This Mode:

• Temperature of cooler and super cool mode may be adjusted. In this case super freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same operation of selecting.

04°C -18°C *Super M

Notes:

• The maximum amount of fresh food (in kilograms) that can be frozen within 24 hours is shown on the appliance label.
• For optimal appliance performance in maximum freezer capacity, activate Super Freeze mode 3 hours before you put fresh food into the freezer.
• At the end of this period, the fridge will sound an audible alarm notifying that it is ready.

Super freeze mode will automatically cancel after 24 hours or when the freezer sensor temperature drops below -32 °C.

Super Cool Mode

Purpose

• To cool and store a large quantity of food in the fridge compartment.
  • To quickly cool drinks.

How Would It Be Used?

Press cooler set button until super cool symbol will be seen on the screen. Buzzer will sound beep beep. Mode will be set.

04°C Cupper -18°C M

During This Mode:

• Temperature of freezer and super freeze mode may be adjusted. In this case super cool mode continues.
  • Economy and holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation of selecting.

Economy Mode

Purpose

Energy savings. During periods of less frequent use (door opening) or absence from home, such as a holiday, Eco program can provide optimum temperature whilst saving power.

How Would It Be Used?

• Push "MODE" button until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set. Eco symbol will blink 3 times. When mode is set, buzzer will sound beep beep.
• Freezer and refrigerator temperature segments will show "E".
• Economy symbol and E will light till mode finishes.

During This Mode:

• Freezer may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When economy mode will be cancelled, the selected setting values will proceed.

E E

THE VARIOUS FUNCTION AND POSSIBILITIES

• Super cool and super freeze modes can be selected. Economy mode is automatically cancelled and the selected mode is activated.
• Holiday mode can be selected after cancelling the economy mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.

Holiday Mode

How Would It Be Used?

• Push "MODE" button until holiday symbol appears
• If no button is pressed for 1 second. Mode will be set. Holiday symbol will blink 3 times. When mode is set, buzzer will sound beep beep.
• Cooler temperature segment will show "--".
• Holiday symbol and "--" will light till mode finishes.

During This Mode:

• Freezer may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When holiday mode will be cancelled, the selected setting values will proceed.

- Super cool and super freeze modes can be selected. Holiday mode is automatically cancelled and the selected mode is activated.

- Economy mode can be selected after cancelling the holiday mode. Then the selected mode is activated.

- To cancel, you will just need to press on mode button.

Drink Cool Mode

Purpose

This mode is used to cool drinks within an adjustable time frame.

How Would It Be Used?

• Press freezer button for 3 seconds.
• Special animation will start on freezer set value screen and 05 will blink on cooler set value screen.
• Press cooler button to adjust the time (05 - 10 - 15 - 20 - 25 - 30 minutes).

- 18°C ← ↻ ↓ ↓

05 + ■ M

• When you select the time the numbers will blink 3 times on screen and sound beep beep.
• If no button is pressed within 2 seconds the time will be set.
• The countdown starts from the adjusted time minute by minute.
• Remaining time will blink on the screen.
• To cancel this mode press freezer set button for 3 seconds.

Screen Saver Mode

Purpose

This mode saves energy by switching off all control panel lighting when the panel is left inactive.

How To Use?

• This mode will be activated when you press on "MODE" button for 3 seconds.
• If no button is pressed within 30 seconds when he mode is active, lights of the control panel will go off.
• If you press any button when lights of control panel are off, the current settings will appear on the screen, and then you can make the adjustment as you want. If you neither cancel screen saver mode nor press on any button in 30 seconds, the control panel will go off again.

Hand pointing at a vertical electronic device with a black screen and two square buttons (no text or symbols visible)

• To cancel screen saver mode press on "MODE" button for 3 seconds again.
• When screen saver mode is active you can also activate child lock.
• If no button is pressed within 30 seconds after child lock is activated, the lights of the control panel will turn off. You can see latest status of settings or modes after you pres any button. While control panel 's light is on, you can cancel child lock as described in the instruction of this mode.

The Child Lock Function

Purpose

Child lock can be activated to prevent any accidental or unintentional changes being made to the appliance settings.

Activating Child Lock

Press on freezer and cooler buttons simultaneously for 5 seconds.

Deactivating Child Lock

Press on freezer and cooler buttons simultaneously for 5 seconds.

04°C -8°C M

Child lock will also be deactivated if electricity is interrupted or the fridge is unplugged.

Door Open Alarm Function

If cooler door is opened more than 2 minutes, appliance sounds ‘beep beep’.

Temperature Settings

Cooler Temperature Settings

- Initial temperature value for the cooler setting indicator is +4 °C.

- Press the cooler button once.

- When you first push this button, the last value w appear on the cooler setting indicator.

- Whenever you press this button, a lower temperature will be set. (+8 °C, +6 °C, +5 °C, +4 °C, +2 °C, super cool)

- When you push the cooler set button until the super cool symbol appears, and if you do not push any button within 1 second, super cool will flash.

- If you continue to press the button, it will restart from +8 °C.

- The temperature value selected before holiday mode, super freeze mode, super cool mode or economy mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

04°C -18°C M

Freezer Temperature Settings

• The initial temperature value for the freezer setting indicator is -18^ .
• Press the set freezer button once.
• When you first push this button, the last set value will blink on the screen.
• Whenever you press this button, a lower temperature will be set (-16 °C, -18 °C, -20 °C, -22 °C, -24 °C, super freeze).
• When you push the set freezer button until the super freeze symbol appears, and if you do not push any other button within 1 second, super freeze will flash.
• If you continue to press it, it will restart from -16^ .
• The temperature value selected before holiday mode, super freeze mode, super cool mode or economy mode is activated and will remain the same when the mode is over or cancelled. The appliance continues to operate with this temperature value.

Recommended Settings for the Freezer and Cooler Compartment Temperature

Freezer Compartment	Cooler Compartment	Remarks
-18 °C	4 °C For regular use and best performance.
-20 °C, -22 °C or -24 °C	4 °C	Recommended when environmental temperature exceeds 30 °C.
Super Freeze mode 4	°C	Must be used when you wish to freeze food in a short period of time.
-18 °C, -20 °C, -22 °C or -24 °C	2 °C	These temperature settings must be used when the environmental temperature is high or if you think the refrigerator compartment is not cool enough because the door is being opened frequently.

-18°C 04°C M

Temperature Adjustment Warnings

• It is not recommended that you operate your fridge in environments colder than 10^ in terms of its efficiency.
• Do not start another adjustment while you are already making an adjustment.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the fridge and the ambient temperature in the location of your fridge.

THE VARIOUS FUNCTION AND POSSIBILITIES

• In order to allow your fridge to reach the operating temperature after being connected to mains, do not open the doors frequently or place large quantities of food in the fridge. Please note that, depending on the ambient temperature, it may take 24 hours for your fridge to reach the operating temperature.
• A 5 minute delay function is applied to prevent damage to the compressor of your fridge when connecting or disconnecting to mains, or when an energy breakdown occurs. Your fridge will begin to operate normally after 5 minutes.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

Important installation instructions

This appliance is designed to work in difficult climate conditions (up to 43 degrees C or 110 degrees F) and is powered with ‘Freezer Shield’ technology which ensures that the frozen food in the freezer will not defrost even if the ambient temperature falls as low as -15 °C. So you may then install your appliance in an unheated room without having to worry about frozen food in the freezer being spoilt. When the ambient temperature returns to normal, you may continue using the appliance as usual.

Accessories

Ice Tray

• Fill the ice tray with water and place in the freezer compartment.
  • After the water has completely frozen, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three different hand positions: a keyboard, a tray with a brush, and a hand holding a bowl with a crossed-out object (no text or symbols)

The Freezer Box

The freezer box allows food to be accessed more easily.

Removing the freezer box:

• Pull the box out as far as possible
- Pull the front of the box up and out

Carry out the opposite of this operation when refitting the sliding compartment.

Always keep hold of the handle of the box while removing it.

Freezer boxes

The Chiller Shelf

Keeping food in the Chiller compartment, instead of the freezer or refrigerator compartments, allows food to retain freshness and flavour for longer, while preserving its fresh appearance. When the Chiller tray becomes dirty, remove it and wash with water.

(Water freezes at 0^ , but food containing salt or sugar freezes at

Chiller shelf

The Chiller compartment is usually used for storing foods such as raw fish, lightly pickled food, rice, and so on.

Do not put food you want to freeze or ice trays (to make ice) in the Chiller compartment.

To remove the Chiller Shelf:

• Pull the chiller shelf towards you by sliding it on the rails.
• Pull the chiller shelf up from the rail and remove it from the fridge.

The Fresh Dial

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.

The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

Fresh dial

Visual and text descriptions on the accessories section may vary according to the model of your appliance.

- Disconnect the unit from the power supply before cleaning.

- Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

- The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water Do not clean them in the dishwasher.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

Your refrigerator performs automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container behind your refrigerator and evaporates there.

• Make sure you have disconnected the plug of your refrigerator before cleaning the vaporisation container.
• Remove the vaporisation container from its position by removing the screws as indicated. Clean it with soapy water at specific time intervals. This will prevent odours from forming.

Replacing LED Lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

Evaporating tray

Refrigerator compartment

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Store loose fruit and vegetables in the crisper.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.
• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow passage.
• Consume packaged foods before the recommended expiry date.

NOTE: Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves only distributed, position of door bins does not affect energy sumption.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.

• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.

• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.

• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
• To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food	Maximum storage time	How and where to store
Vegetables and fruits 1	week Vegetable bin
Meat and fish 2 - 3 Days		Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese 3 - 4 Days	On the designated door	shelf
Butter and margarine 1	week On the designated door	door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month On the de	signated egg shelf
Cooked food 2 Days AI	shelves

Freezer compartment

• The freezer is used for storing frozen food, freezing fresh food, and making ice cubes.
• To use the maximum capacity of the freezer compartment, use the glass shelves for the upper and middle section, and use the lower basket for the bottom section.

• Use the fast freezing shelf to freeze home cooking (and any other food which needs to be frozen quickly) more quickly because of the freezing shelf's greater freezing power. Fast freezing shelf is the bottom drawer of the freezer compartment.

• For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminum foil polythene bags and plastic containers are ideal.

• Do not store fresh food next to frozen food as it can thaw the frozen food.
• Before freezing fresh food, divide it into portions that can be consumed in one sitting.
• Consume thawed frozen food within a short period of time after defrosting
• Never place warm food in the freezer compartment as it will thaw the frozen food.
• Always follow the manufacturer's instructions on food packaging when storing frozen food. If no information is provided food, should not be stored for more than 3 months from the date of purchase.
• When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged.
• Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible.
• Do not purchase frozen food if the packaging shows signs of humidity and abnormal swelling. It is probable that it has been stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen food depends on the room temperature, the thermostat setting, how often the door is opened, the type of food, and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the packaging and never exceed the maximum storage life indicated.
• The maximum amount of fresh food (in kg) that can be frozen in 24 hours is indicated on the appliance label.

NOTE: If you attempt to open the freezer door immediately after closing it, you will find that it will not open easily. This is normal. Once equilibrium has been reached, the door will open easily.

Important note:

• Never refreeze thawed frozen food.
• The taste of some spices found in cooked dishes (anise, basilica, watercress, vinegar, assorted spices, ginger, garlic, onion, mustard, thyme, marjoram, black pepper, etc.) changes and they assume a strong taste when they are stored for a long period of time. Therefore,

add small amounts of spices to food to be frozen, or the desired spice should be added after the food has thawed.

• The storage time of food is dependent on the type of oil used. Suitable oils are margarine, calf fat, olive oil and butter. Unsuitable oils are peanut oil and pig fat.
• Food in liquid form should be frozen in plastic cups and other food should be frozen in plastic folios or bags.

The table below is a quick guide to show you the most efficient way to store the major food groups in your freezer compartment.

Meat and fish	Preparation	Maximum storage time (months)
Steak Wrap in foil 6 -	8
Lamb meat Wrap in foil 6 - 8
Veal roast Wrap in foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packaging without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/ salami	Should be kept packaged even if it has a membrane
Chicken and turkey	Wrap in foil 4 - 6
Goose and duck Wrap in foil 4 - 6
Deer, rabbit, wild boar	In 2.5 kg portions or as fillets	6 - 8
Freshwater fish (Salmon, Carp, Crane, Catfish)	After cleaning the bowels and scales of the fish, wash and dry it. If necessary, remove the tail and head.	2
Lean fish (Bass, Turbot, Flounder)		4
Fatty fishes (Tuna, Mackerel, Bluefish, Anchovy)		2 - 4
Shellfish	Clean and in a bag	4 - 6
Caviar	In its packaging, or in an aluminium or plastic container	2 - 3
Snails	In salty water, or in an aluminium or plastic container	3
	NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen.

Vegetables and Fruits	Preparation	Maximum storage time (months)
String beans and beans	Wash, cut into small pieces and boil in water	10 - 13
Beans Hull, wash and	boil in water 12
Cabbage Clean and	boil in water 6 - 8
Carrot Clean, cut into	slices and boil in water 12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Spinach Wash and	boil in water 6 - 9
Cauliflower	Remove the leaves, cut the heart into pieces and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut into pieces of 2cm after washing 10 - 12
Corn	Clean and pack with its stem or as sweet corn	12
Apple and pear Pee and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone 4 - 6
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits	Add 10 % of sugar to the container	12
Plum, cherry, sourberry	Wash and hull the stems	8 - 12

	Maximum storage time (months)	Thawing time at room temperature (hours)	Thawing time in oven (minutes)
Bread	4 - 6	2 - 3	4-5 (220-225 °C)
Biscuits 3 - 6	1 - 1,5 5-8 (190-200 °C)
Pastry	1 - 3	2 - 3	5-10 (200-225 °C)
Pie	1 - 1,5 3 - 4	5-8 (190-200 °C)
Phyllo dough	2 - 3	1 - 1,5	5-8 (190-200 °C)
Pizza	2 - 3	2 - 4	15-20 (200 °C)

ARRANGING FOOD IN THE APPLIANCE

EN

111

Dairy products Preparation		Maximum storage time (months)	Storage conditions
Packet (Homogenized) Milk	In its own packet 2 - 3		Pure Milk – in its own packet
Cheese - excluding white cheese	In slices 6 - 8		Original packaging may be used for short-term storage. Keep wrapped in foil for longer periods.
Butter, margarine In its packaging 6

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Repositioning the door

• It is not possible to change the opening direction of your refrigerator door, if the door handle on your refrigerator is installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your refrigerator may be changed, you should contact the nearest Authorised Service Agent to have the opening direction changed.

BEFORE CALLING YOUR AFTER SALES SERVICE

Errors

Your fridge will warn you if the temperatures for the cooler and freezer are at improper levels or if a problem occurs with the appliance. Warning codes are displayed in the freezer and cooler indicators.

ERROR TYPE MEANING WHY WHAT TO DO
E01	Sensor warning		Call Service for assistance as soon as possible.
E02
E03
E06
E07
E08	Low Voltage Warning	Power supply to the device has dropped to below 170 V.	- This is not a device failure, this error helps to prevent damages to the compressor.- The voltage needs to be increased back to required levelsIf this warning continues an authorised technician needs to be contacted.
E09	Freezer compartment is not cold enough	Likely to occur after long term power failure.	1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Remove any products which have thawed/ defrosted during this error. They can be used within a short period of time.3. Do not add any fresh produce to the freezer compartment until the correct temperature has been reached and the error is no longer.If this warning continues an authorised technician needs to be contacted.

ERROR TYPE MEANING WHY WHAT TO DO

E10	Fridge compartment is not cold enough	Likely to occur after: - Long term power failure. - Hot food has been left in the fridge.	1. Set the fridge temperature to a colder value or set Super Cool. This should remove the error code once the required temperature has been reached. Keep doors closed to improve time taken to reach the correct temperature.2. Please empty the location at the front area of air duct channel holes and avoid putting food close to the sensor.If this warning continues an authorised technician needs to be contacted.
E11	Fridge compartment is too cold	Various	1. Check is Super Cool mode is activated2. Reduce the fridge compartment temperature3. Check to see if vents are clear and not cloggedIf this warning continues an authorised technician needs to be contacted.

If you are experiencing a problem with your refrigerator, please check the following before contacting the after-sales service.

Your refrigerator does not operate

Check if:

• Your fridge is plugged in and switched on
• The fuse has blown
  • Is the temperature adjustment right?
• The socket is faulty. To check this, plug another working appliance into the same socket.

Your refrigerator is performing poorly

Check if:

• Is the temperature adjustment right?

• Is the door of your fridge opened frequently and left open for a long while?
  • The appliance is overloaded
  • The doors are closed properly
• Did you put a dish or food on your fridge so that it contacts the rear wall of your fridge so as to prevent the air circulation?
  • Is your fridge filled excessively?
• There is an adequate distance between the appliance and surrounding walls
• Is the ambient temperature within the range of values specified in the operating manual?

Your refrigerator is operating noisily

The following noises can be heard during normal operation of the appliance.

Cracking (ice cracking) noise occurs:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Clicking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splashing occurs: Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: During normal operation of the system due to the circulation of air.

There is a build-up of humidity inside the fridge

Check if:

• All food is packed properly. Containers must be dry before being placed in the fridge.
• The fridge doors are opened frequently. Humidity of the room will enter the fridge each time the doors are opened. Humidity increases

faster if the doors are opened frequently, especially if the humidity of the room is high.

- There is a build-up of water droplets on the rear wall. This is normal after automatic defrosting (in Static Models).

The doors are not opening or closing properly

Check if:

• There is food or packaging preventing the door from closing
• The door compartments, shelves and drawers are placed properly
• The door gaskets are broken or torn
• Your fridge is level.

The edges of the fridge in contact with the door joint are warm

Especially during summer (warm weather), the surfaces in contact with the door joint may become warmer during operation of the compressor. This is normal.

Important Notes:

• In the case of a power failure, or if the appliance is unplugged and plugged in again, the gas in the cooling system of your refrigerator will destabilise, causing the compressor protective thermal element to open. Your refrigerator will start to operate normally after 5 minutes.
• If the appliance will not be used for a long period of time (such as during holidays), disconnect the plug. Defrost and clean the refrigerator, leaving the door open to prevent the formation of mildew and odour.
• If the problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.
• This appliance is designed for domestic use and for the stated purposes only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with these instructions, we emphasise that the manufacturer and the dealer will not be responsible for any repair or failure within the guarantee period.

TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.
5. Avoid keeping the doors open for long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (such as the crisper and chiller) closed.
7. The door gasket must be clean and pliable. In case of wear, replace the gasket.

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

INFORMATION FOR TEST INSTITUTES

EN 119

Installation and preparation of the appliance for any EcoDesign verification shall be compliant with EN 62552. Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at PART 2. Please contact the manufacturer for any other further information, including loading plans.

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number.

The information can be found on the rating plate.

Visit our website to: www.romo.cz

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

Blank white image with no visible content, text, or symbols

CE

52316254
