MWP-04 - Ventilateur domestique MPM - Free user manual and instructions

Product Type	Air Circulator (Domestic Fan)
Brand	MPM
Model	MWP-04
Rated Voltage	220-240 V ~ 50 Hz
Power Consumption	70.13 W
Standby Power Consumption	0 W
Maximum Airflow	65.16 m³/min
Maximum Air Speed	3.66 m/s
Sound Power Level	64.10 dB(A)
Seasonal Electricity Consumption	22.4 kWh/year
Operating Value (SV)	0.93 (m³/min)/W
Propeller Diameter	350 mm
Total Height	430 mm
Adjustable Tilt	120° vertical
Speed Settings	3 (plus Off)
Control Type	Rotary switch on base
Guard Material	Chromium-plated steel (front and rear)
Base Features	Non-slip rubber feet, cord storage hooks
Power Cord Length	1.75 m
Carrying Handle	Yes
Safety Features	Protective guard, non-slip feet, automatic shut-off not specified
Cleaning	Removable front guard and propeller for easy cleaning
Usage	Indoor household only

Frequently Asked Questions - MWP-04 MPM

How do I clean the MPM MWP-04 air circulator?

Unplug the fan. Remove the front guard by unscrewing the locking nuts, then remove the propeller. Wipe blades with a damp cloth, wipe dry. Clean the guard with a brush and rinse with water. Dry thoroughly before reassembling. Do not immerse the motor in water.

How many speed settings does the MWP-04 have?

It has three speed settings (I, II, III) plus an off position (0). Adjust via the rotary switch on the base.

What is the noise level of this fan?

The sound power level is 64.10 dB(A), which is moderate for a domestic fan.

Can I use the fan outdoors?

No, this fan is designed for indoor household use only. Do not expose to rain or moisture.

How do I adjust the airflow direction?

Gently tilt the fan body to change the angle of the propeller. The vertical adjustment range is 120 degrees.

Is the fan safe to use around children?

Yes, but close supervision is required. The fan has a protective guard to prevent finger insertion. Ensure children do not play with the appliance or packaging.

What is the power consumption of the MWP-04?

The maximum power consumption is 70.13 W, and standby power is 0 W. It consumes about 22.4 kWh per year seasonally.

Does the fan oscillate?

No, the MPM MWP-04 does not oscillate. However, you can manually tilt the fan body to direct airflow vertically.

What is the warranty period?

The manual does not specify a warranty period. Please contact MPM service center or retailer for warranty information.

How do I store the fan when not in use?

Unplug and clean the fan. Coil the power cord around the hooks provided on the base. Store in a dry place out of reach of children.

USER MANUAL MWP-04 MPM

Close-up of a metallic multi-free fan with visible blades and grille (no text or symbols)

CYRKULATOR POWIETRZA MWP-04

Ventilátor/Luftzirkulator/Air circulator/ Циркулятор воздуха/Cirkulátor vzduchu

CZ NÁVOD K OBSLUZE....3

Close-up of a black electronic device with four cylindrical components, no visible text or symbols

Close-up of a circular fan with mesh grille and a camera lens, no visible text or symbols

Close-up of a mechanical device with four cylindrical components and a black base, no visible text or symbols.

Close-up of a circular fan with mesh grille and internal components (no visible text or symbols)

Read carefully this manual before using the appliance.
- Close supervision is necessary when using the appliance near children.
Do not hang the power cord over sharp edges and do not allow the power cord to touch hot surfaces.
▶ Always unplug the appliance when it is not in use or before cleaning.
Do not use the appliance if it is damaged, also if the power cord or plug is damaged - return the appliance for repair to an authorized service centre.
To avoid the risk of damage or injury, always use the attachments recommended by the manufacturer.
Do not immerse the appliance, its cord and plug in water or any other liquids, keep it dry at all times.

Do not leave the appliance switched on when unattended.
▶ Always switch off the appliance before unplugging it.
Do not place the appliance in vicinity of heat sources.

Do not use the appliance for the purposes different than it was designed for.

Do not use the appliance outdoors.

Never insert your fingers nor any other items through the guard when the appliance is running.

Before moving the appliance to another location disconnect it from the power source.

Do not cover the front and rear guard!

Do not place the appliance near open windows - raindrops may cause a short circuit and electrical shock! It is advisable not to place fans in rooms with high humidity, such as bathrooms.

This appliance is not intended for use by individuals (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not switch on the appliance without front and rear guard mounted.

The appliance may be switched on only after complete assembly. Partially assembled unit does not provide safe and proper operation.

The appliance shall be plugged to an outlet with a protective earth pin.

Do not plug the power cord with wet hands.
This appliance is intended for household use only.

Do not remove the plug from the mains by pulling by the cord.

- Store the appliance and its cord out of reach of children under 8 years of age.

In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Before removing the cover, make sure that the fan is disconnected from the power source.

WARNING! Do not allow small children to play with the foil as there is a danger of suffocation!

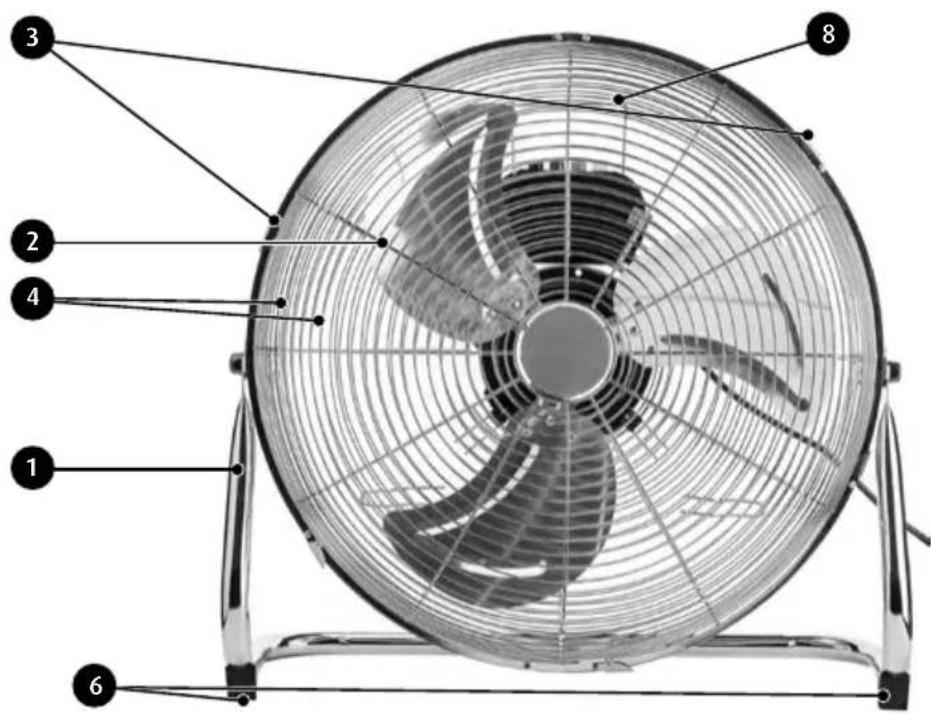

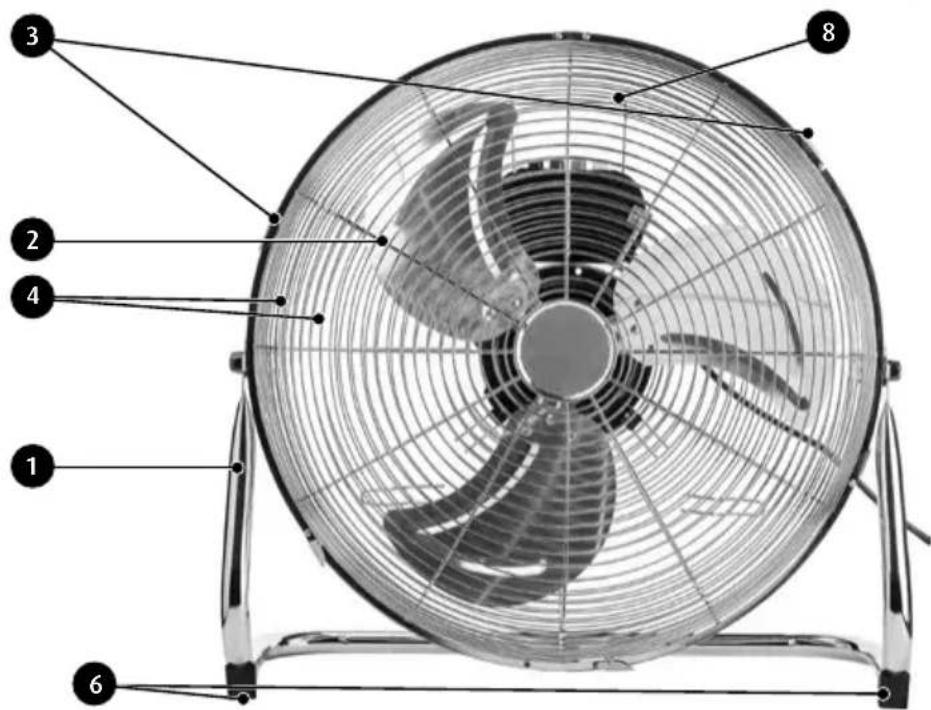

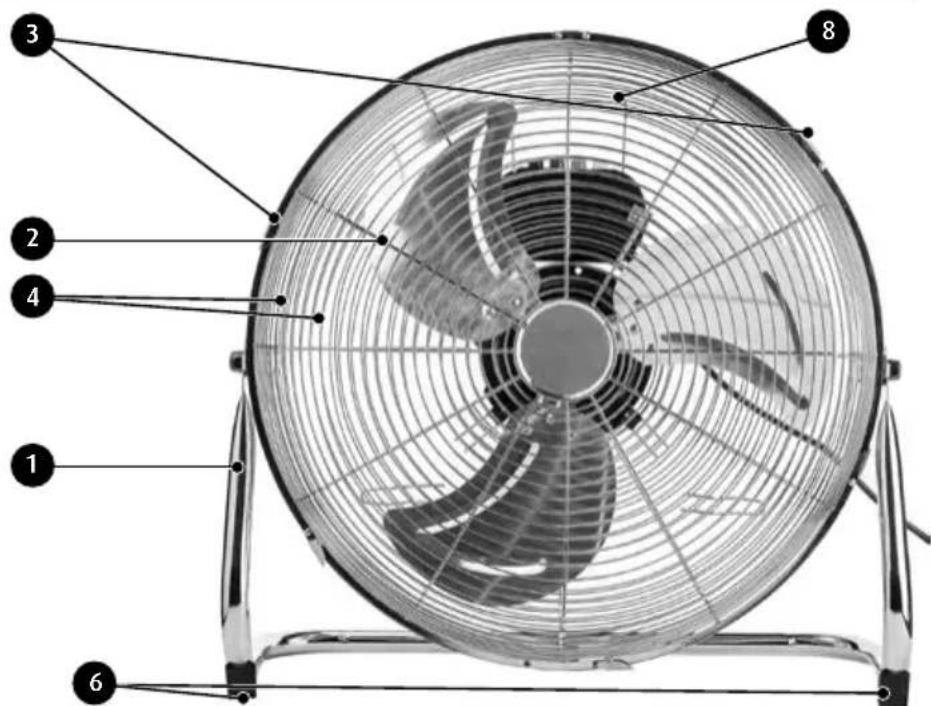

DESCRIPTION OF THE APPLIANCE:

Close-up of a black and white electronic device with cylindrical components, no visible text or symbols

Close-up of a circular fan with mesh grille and central hub, no visible text or symbols

1. Base

2. Propeller with a diameter of 350 mm

3. Guard locking nuts

4. Chromium plated front and rear guard

5. On/Off switch and speed controls

6. Non-slip feet

7. Hooks for coiling power cord

8. Carrying handle

USING THE APPLIANCE:

NOTE! Before switching on, make sure the circulator is placed on a flat, stable and dry surface!

NOTE! Before switching on, make sure the speed of the propeller is set to '0' and then plug the power cord to the wall outlet.

1. Set the desired rotation speed using controls (5):

„0“ – switched off, „1“ – speed I, „2“ – speed II, „3“ – speed III

1. To change the angle of the propeller (2), and thus the angle of the air stream, simply tilt the body. Vertical adjustment range 120^ .

2. The total height of the air circulator 430 mm.

CLEANING AND MAINTENANCE:

1. Before cleaning the appliance, unplug it from the power outlet.
2. The motor cover, controls cover (5) and the base (1) may be cleaned with a damp cloth and a mild detergent.
3. The guards (4) may be occasionally wiped with a brush to remove dust from the holes, rinse in water and dry thoroughly.
4. To clean the blades of the propeller (2) from dust, remove the front guard (4) and then remove the propeller (2) from the motor shaft, wipe it with a damp cloth and wipe dry.

Technical data sheet

MPM AGD S.A.MODEL: MWP-04
Description Symbol Value Unit
Maximum flow rate of the fan F 65,16 m			^3/min
Fan power P 70,13 W
Operating value SV 0,93 (m			^3/min)/W
Power consumption in standby mode P	SB	0	W
Fan's sound power level	LWA	64,10	dB(A)
Maximum air speed	c	3,66	m/s
Seasonal electricity consumption	Q	22,4	kWh/a
Standards used for measuring the operational values	PN-EN 50564:2011,EN 60704-1:2010 + A.11:2012EN 60704-2-7:1998
To get additional information, contact	MPM AGD S.A.ul. Brzozowa 3Milanówek 05-822, Polskatel. (22) 380-52-00BDO: 000027599

TECHNICAL DATA:

The technical parameters are given on the data plate of the product.

Noise level: L_WA = 64.10 dB

Length of power cord: 1,75 m

NOTE! MPM agd S.A. reserves its right to modify the technical data!

PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)

Poland This symbol on the product indicates that the product, after its lifetime, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.

WSKAZÓWKI DOTYCZĄCE BEZPIECZEŃSTWA UŻYTKOWANIA

Close-up of a mechanical device with cylindrical components and a numbered label '5' (no readable text or symbols beyond the number)

Close-up of a spherical industrial fan with mesh structure and a numbered label '7' (no readable text or symbols)

We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances
