USER MANUAL Gold Wing Valkyrie GL1800C (2014) Honda

Motorcycle Safety P. 2

Operation Guide P. 16

Maintenance P. 34

Troubleshooting P. 79

Information P. 99

Specifications P. 121

Index P. 125

Welcome

Congratulations on your purchase of a new Honda motorcycle. Your selection of a Honda makes you part of a worldwide family of satisfied customers who appreciate Honda's reputation for building quality into every product.

To ensure your safety and riding pleasure:

• Read this owner's manual carefully.
  ●Follow all recommendations and procedures contained in this manual.
  ●Pay close attention to safety messages contained in this manual and on the motorcycle.

To protect your investment, we urge you to take responsibility for keeping your motorcycle well serviced and maintained.

Also, observe the break-in guidelines, and always perform the pre-ride inspection and other periodic checks in this manual.

When service is required, remember that your Honda dealer knows your motorcycle best. If you have the required mechanical "know-how" and tools, you can purchase an official Honda Service Manual to help you perform many maintenance and repair tasks. P. 116

Read the warranty information thoroughly so that you understand the warranty coverage and that you are aware of your rights and responsibilities. P. 117

You may also want to visit our website at www.powersports.honda.com.

Canada www.honda.ca.

Happy riding!

California Proposition 65 Warning

WARNING: This product contains or emits chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

A Few Words About Safety

Your safety, and the safety of others, is very important. Operating this motorcycle safely is an important responsibility.

To help you make informed decisions about safety, we have provided operating procedures and other information on safety labels and in this manual. This information alerts you to potential hazards that could hurt you or others.

Of course, it is not practical or possible to warn you about all hazards associated with operating or maintaining a motorcycle. You must use your own good judgment.

You will find important safety information in a variety of forms, including:

●Safety labels on the motorcycle
●Safety Messages preceded by a safety alert symbol and one of three signal words: DANGER, WARNING, or CAUTION.
These signal words mean:

! DANGER

You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.

WARNING

You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.

CAUTION

You CAN be HURT if you don't follow instructions.

Other important information is provided under the following titles:

NOTICE

Information to help you avoid damage to your motorcycle, other property, or the environment.

Motorcycle Safety

This section contains important information for safe riding of your motorcycle. Please read this section carefully.

Safety Guidelines ......P. 3

Safety Labels ......P. 7

Safety Precautions ......P. 9

Riding Precautions ......P. 10

Accessories & Modifications......P. 14

Loading P. 15

Safety Guidelines

Follow these guidelines to enhance your safety:

●Perform all routine and regular inspections specified in this manual.
- Stop the engine and keep sparks and flame away before filling the fuel tank.
- Do not run the engine in enclosed or partly enclosed areas. Carbon monoxide in exhaust gases is toxic and can kill you.

Always Wear a Helmet

It's a proven fact: helmets and protective apparel significantly reduce the number and severity of head and other injuries. So always wear an approved motorcycle helmet and protective apparel. P. 9

Before Riding

Make sure that you are physically fit, mentally focused and free of alcohol and drugs. Check that you and your passenger are both wearing an approved motorcycle helmet and protective apparel. Instruct your passenger on holding onto the grab rails or your waist, leaning with you in turns, and keeping their feet on the footpegs, even when the motorcycle is stopped.

Take Time to Learn & Practice

Even if you have ridden other motorcycles, practice riding in a safe area to become familiar with how this motorcycle works and handles, and to become accustomed to the motorcycle's size and weight.

Safety Guidelines

We recommend that all riders take a certified course approved by the Motorcycle Safety Foundation (MSF). New riders should start with the basic course, and even experienced riders will find the advanced course beneficial. For information about the MSF training course nearest you, call the national toll-free number: [phone].

USA Other riding tips can be found in the You and Your Motorcycle Riding Tips booklet that came with your motorcycle.

Ride Defensively

Always pay attention to other vehicles around you, and do not assume that other drivers see you. Be prepared to stop quickly or perform an evasive maneuver.

Make Yourself Easy to See

Make yourself more visible, especially at night, by wearing bright reflective clothing, positioning yourself so other drivers can see you, signaling before turning or changing lanes, and using your horn when necessary.

Ride within Your Limits

Never ride beyond your personal abilities or faster than conditions warrant. Fatigue and inattention can impair your ability to use good judgment and ride safely.

Don't Drink and Ride

Alcohol and riding don't mix. Even one alcoholic drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. Don't drink and ride, and don't let your friends drink and ride either.

Keep Your Honda in Safe Condition

It's important to keep your motorcycle properly maintained and in safe riding condition. Inspect your motorcycle before every ride and perform all recommended maintenance. Never exceed load limits (P. 15), and do not modify your motorcycle or install accessories that would make your motorcycle unsafe (P. 14).

If You are Involved in a Crash

Personal safety is your first priority. If you or anyone else has been injured, take time to assess the severity of the injuries and whether it is safe to continue riding. Call for emergency assistance if needed. Also follow applicable laws and regulations if another person or vehicle is involved in the crash.

If you decide to continue riding, first evaluate the condition of your motorcycle. If the engine is still running, turn it off. Inspect for fluid leaks, check the tightness of critical nuts and bolts, and check the handlebar, control levers, brakes, and wheels. Ride slowly and cautiously. Your motorcycle may have suffered damage that is not immediately apparent. Have your motorcycle thoroughly checked at a qualified service facility as soon as possible.

Safety Guidelines

Carbon Monoxide Hazard

Exhaust contains poisonous carbon monoxide, a colorless, odorless gas. Breathing carbon monoxide can cause loss of consciousness and may lead to death.

If you run the engine in a confined or even partly enclosed area, the air you breathe could contain a dangerous amount of carbon monoxide. Never run your motorcycle inside a garage or other enclosure.

WARNING

Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.

Avoid any areas or activities that expose you to carbon monoxide.

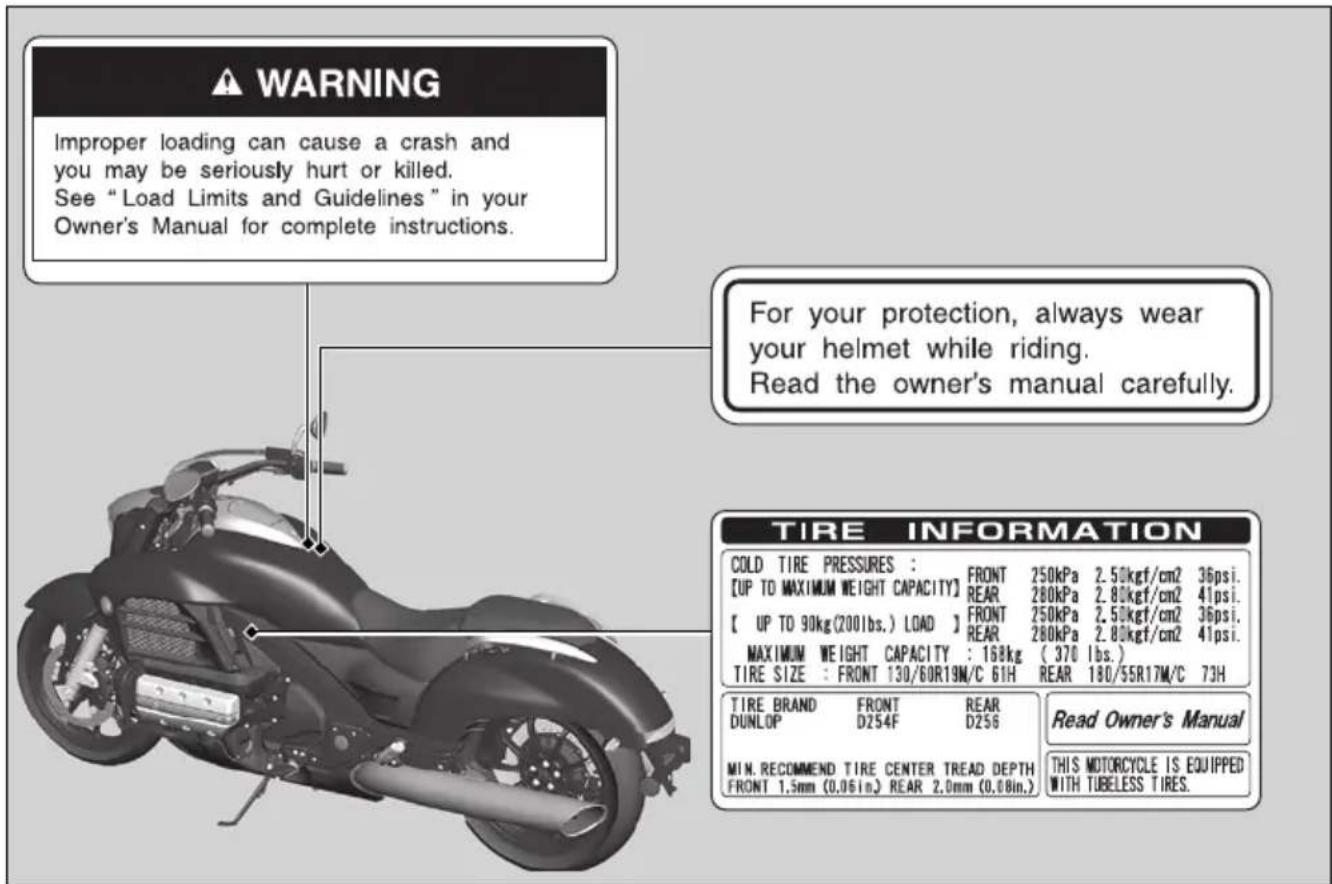

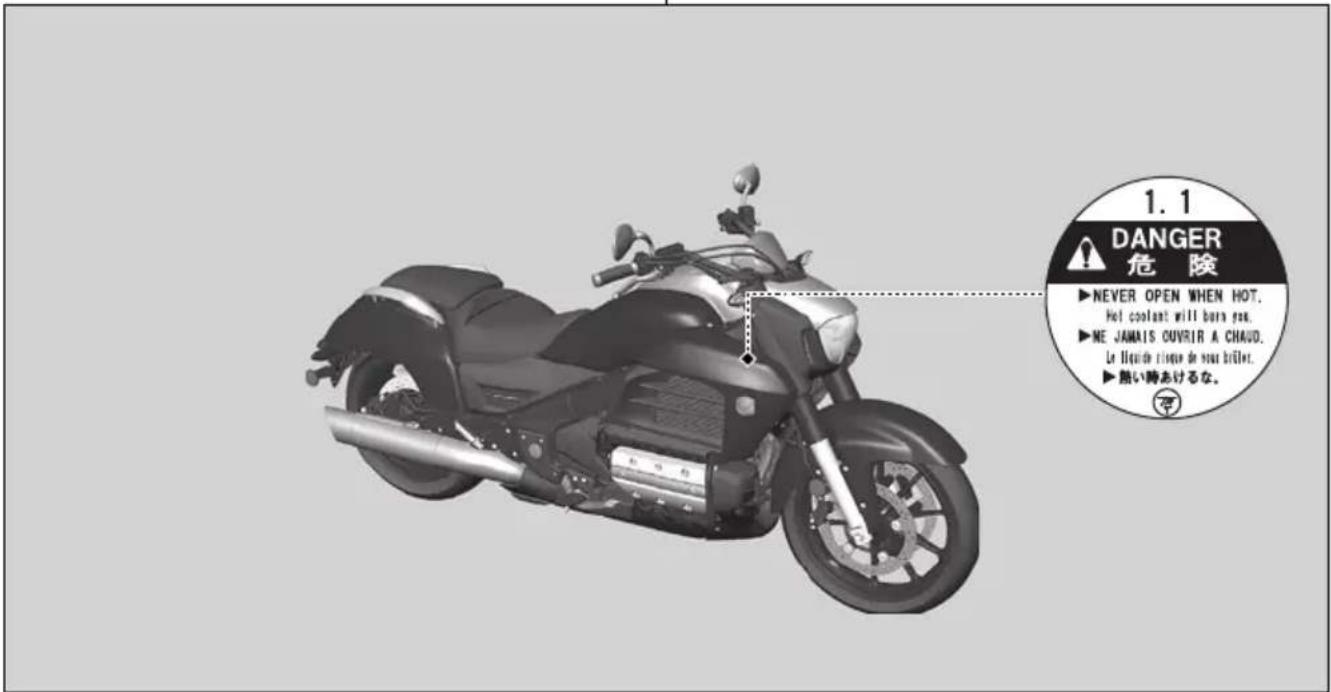

Safety Labels

Safety Labels

Safety and information labels on your motorcycle provide important safety information and may warn you of potential

hazards that could cause serious injury. Read these labels carefully and don't remove them. If a label comes off or becomes hard to read, contact your dealer for a replacement.

1.1 DANGER 危 険 ▶ NEVER OPEN WHEN HOT. Hot coolant will bea ren. ▶ ME JAMAIS OUVRIR A CHAUD. Le liquide rique de your briller. ▶ 然い時あけるな。 亨

continued

Safety Labels

WARNING Improper loading can cause a crash and you may be seriously hurt or killed. See "Load Limits and Guidelines" in your Owner's Manual for complete instructions. For your protection, always wear your helmet while riding. Read the owner's manual carefully. TIRE INFORMATION COLD TIRE PRESSURES : FRONT 250kPa 2.50kgf/cm2 36psi. [UP TO MAXIMUM WEIGHT CAPACITY] REAR 280kPa 2.80kgf/cm2 41psi. [ UP TO 90kg(200lbs.) LOAD ] FRONT 250kPa 2.50kgf/cm2 36psi. REAR 280kPa 2.80kgf/cm2 41psi. MAXIMUM WEIGHT CAPACITY : 168kg (370 lbs.) TIRE SIZE : FRONT 130/60R19M/C 61H REAR 180/55R17M/C 73H TIRE BRAND FRONT REAR DUNLOP D254F D256 MIN. RECOMMEND TIRE CENTER TREAD DEPTH FRONT 1.5mm (0.06in.) REAR 2.0mm (0.08in.) Read Owner's Manual THIS MOTORCYCLE IS EQUIPPED WITH TUBELESS TIRES.

Safety Precautions

●Ride cautiously and keep your hands on the handlebar and feet on the footpegs.
- Keep passenger's hands on to the grab rails or your waist, passenger's feet on the footpegs while riding.
●Always consider the safety of your passenger, as well as other drivers and riders.

Protective Apparel

Make sure that you and any passenger are wearing an approved motorcycle helmet, eye protection, and high-visibility protective clothing. Ride defensively in response to weather and road conditions.

Helmet

Should be safety-standard certified, high-visibility, and correct size for your head

●Must fit comfortably but securely, with the chin strap fastened

●Face shield with unobstructed field of vision or other approved eye protection

USA Look for a DOT (Department of Transportation) certification label on any helmet you buy.

WARNING

Not wearing a helmet increases the chance of serious injury or death in a crash.

Make sure that you and any passenger always wear an approved helmet and protective apparel.

Gloves

Full-finger leather gloves with high abrasion resistance

Riding Precautions

Boots or Riding Shoes

Sturdy boots with non-slip soles and ankle protection

Jacket and Pants

Protective, highly visible, long-sleeved jacket and durable long pants for riding (or a protective suit).

Riding Precautions

Break-in Period

During the first 300 miles (500 km) of running, follow these guidelines to ensure your motorcycle's future reliability and performance.

●Avoid full-throttle starts and rapid acceleration.
●Avoid hard braking and rapid down-shifts.
●Ride conservatively.

Brakes

Observe the following guidelines:

●Avoid excessively hard braking and downshifts.

Sudden braking can reduce the motorcycle's stability.
▶Where possible, reduce speed before turning; otherwise you risk sliding out.

●Exercise caution on low traction surfaces.

The tires slip more easily on such surfaces and braking distances are longer.

●Avoid continuous braking.

▶Repeated braking, such as when descending long, steep slopes can seriously overheat the brakes, reducing their effectiveness. Use engine braking with intermittent use of the brakes to reduce speed.

●For full braking effectiveness, operate both the front and rear brakes together.

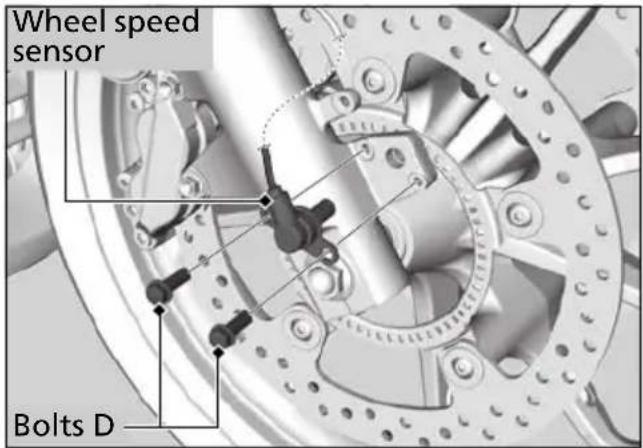

Anti-lock Brake System (ABS)

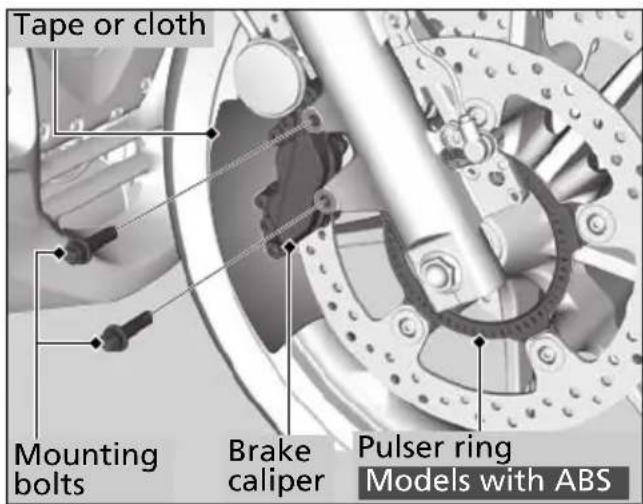

Models with ABS

This model is equipped with an Anti-lock Brake System (ABS) designed to help prevent the brakes from locking up during hard braking.

●ABS does not reduce braking distance. In certain circumstances, ABS may result in a longer stopping distance.

●ABS does not function at speeds below 6 mph (10 km/h).

●The brake lever and pedal may recoil slightly when applying the brakes. This is normal.

●Always use the recommended tires to ensure correct ABS operation.

Riding Precautions

Engine Braking

Engine braking helps slow your motorcycle down when you release the throttle. For further slowing action, downshift to a lower gear. Use engine braking with intermittent use of the brakes to reduce speed when descending long, steep slopes.

Wet or Rainy Conditions

Road surfaces are slippery when wet, and wet brakes further reduce braking efficiency.

Exercise extra caution when braking in wet conditions.

If the brakes get wet, apply the brakes while riding at low speed to help them dry.

Parking

●Park on a firm, level surface.
- If you must park on a slight incline or loose surface, park so that the motorcycle cannot move or fall over.
●Make sure that high-temperature parts cannot come into contact with flammable materials.
- Do not touch the engine, muffler, brakes and other high-temperature parts until they cool down.
●To reduce the likelihood of theft, always lock the handlebar and remove the key when leaving the motorcycle unattended.
Use of an anti-theft device is also recommended.

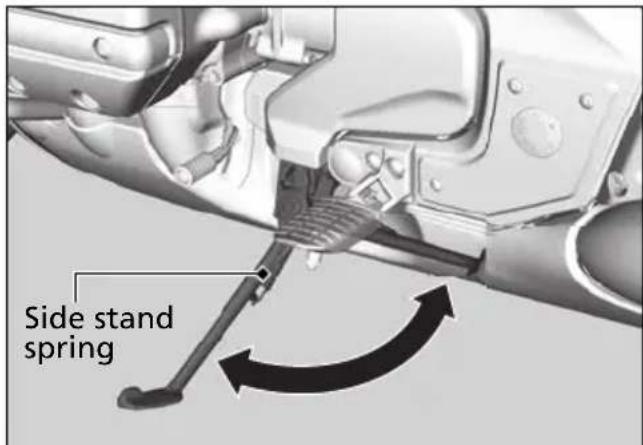

Parking with the Side Stand

1. Stop the engine.
2. Push the side stand down.
3. Slowly lean the motorcycle to the left until its weight rests on the side stand.
4. Turn the handlebar fully to the left.

▶Turning the handlebar to the right reduces stability and may cause the motorcycle to fall.

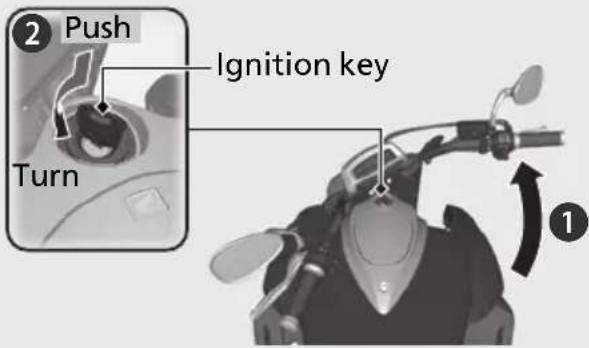

1. Turn the ignition switch to the LOCK position and remove the key. ➤P. 27

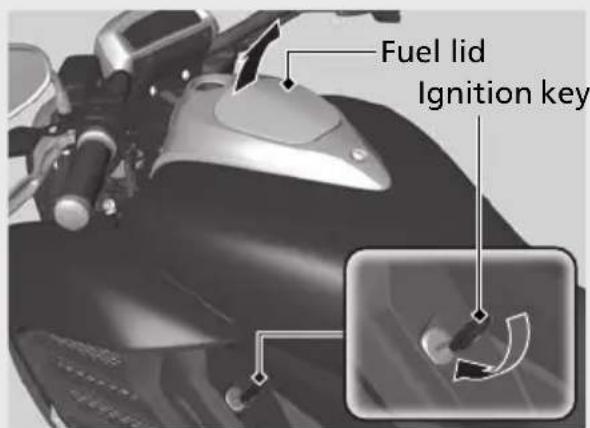

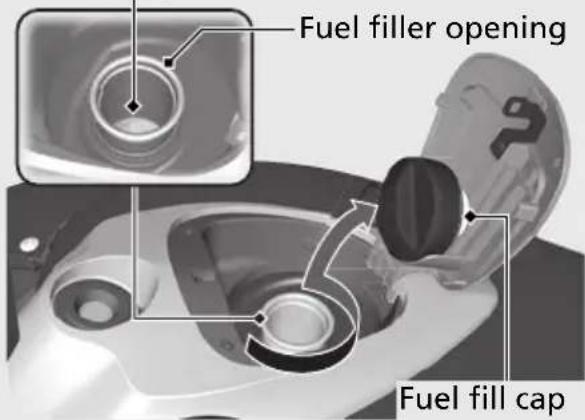

Refueling and Fuel Guidelines

Follow these guidelines to protect the engine and catalytic converter:

●Use only unleaded gasoline.
●Use recommended octane number. Using lower octane gasoline will result in decreased engine performance.
●Do not use fuels containing a high concentration of alcohol. P. 115
- Do not use stale or contaminated gasoline or an oil/gasoline mixture.
●Avoid getting dirt or water in the fuel tank.

Accessories & Modifications

We strongly advise that you do not add any accessories that were not specifically designed or approved for your motorcycle by Honda or make modifications to your motorcycle from its original design. Doing so can make it unsafe. Modifying your motorcycle may also void your warranty and make your motorcycle illegal to operate on public roads and highways. Before deciding to install accessories on your motorcycle be certain the modification is safe and legal.

WARNING

Improper accessories or modifications can cause a crash in which you can be seriously hurt or killed.

Follow all instructions in this owner's manual regarding accessories and modifications.

Do not pull a trailer with, or attach a sidecar to, your motorcycle. Your motorcycle was not designed for these attachments, and their use can seriously impair your motorcycle's handling.

Loading

• Carrying extra weight affects your motorcycle's handling, braking and stability. Always ride at a safe speed for the load you are carrying.
  ●Avoid carrying an excessive load and keep within specified load limits.
  Maximum weight capacity P. 121
  ●Tie all luggage securely, evenly balanced and close to the center of the motorcycle.
• Do not place objects near the lights or the muffler.

WARNING

Overloading or improper loading can cause a crash and you can be seriously hurt or killed.

Follow all load limits and other loading guidelines in this manual.

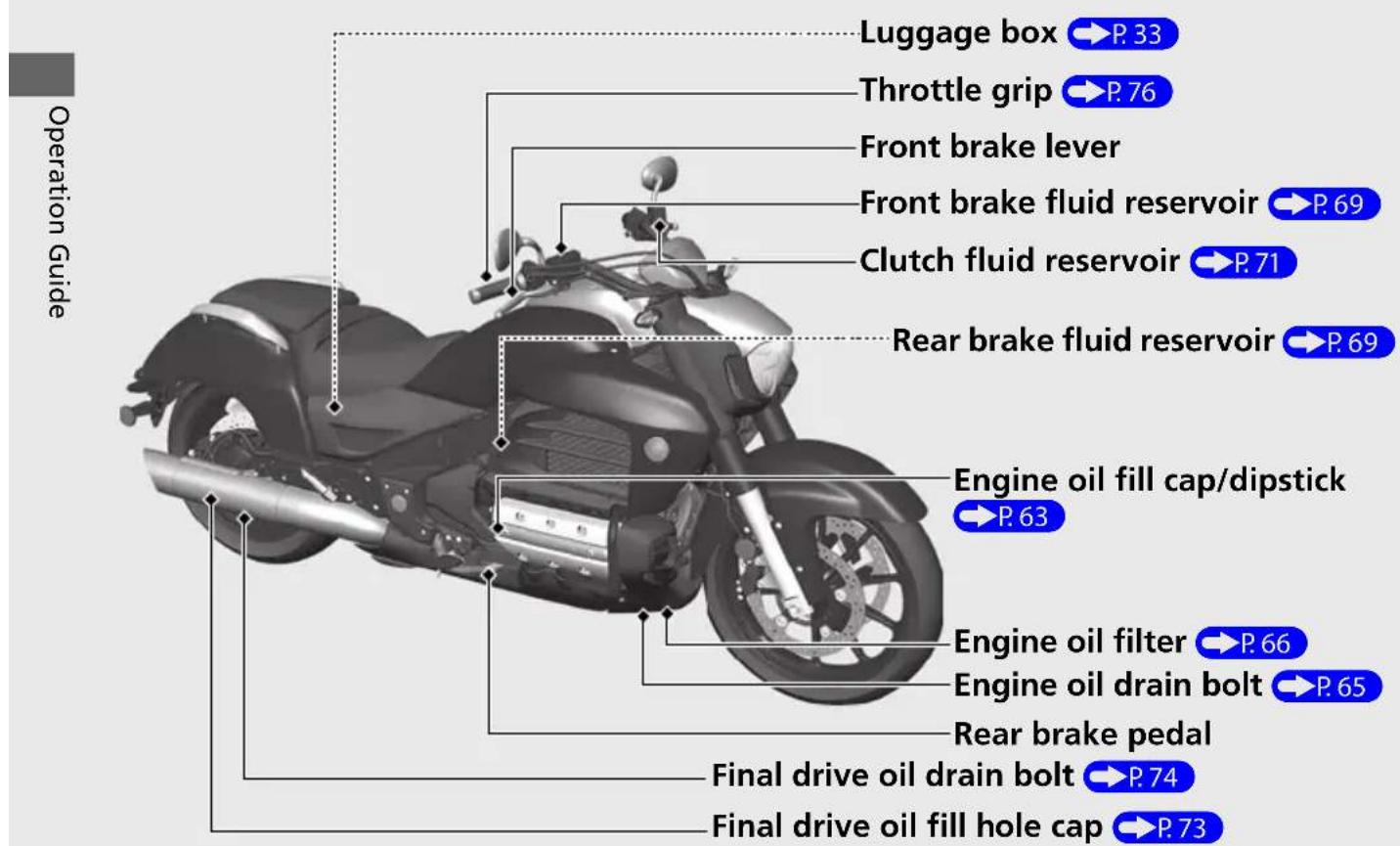

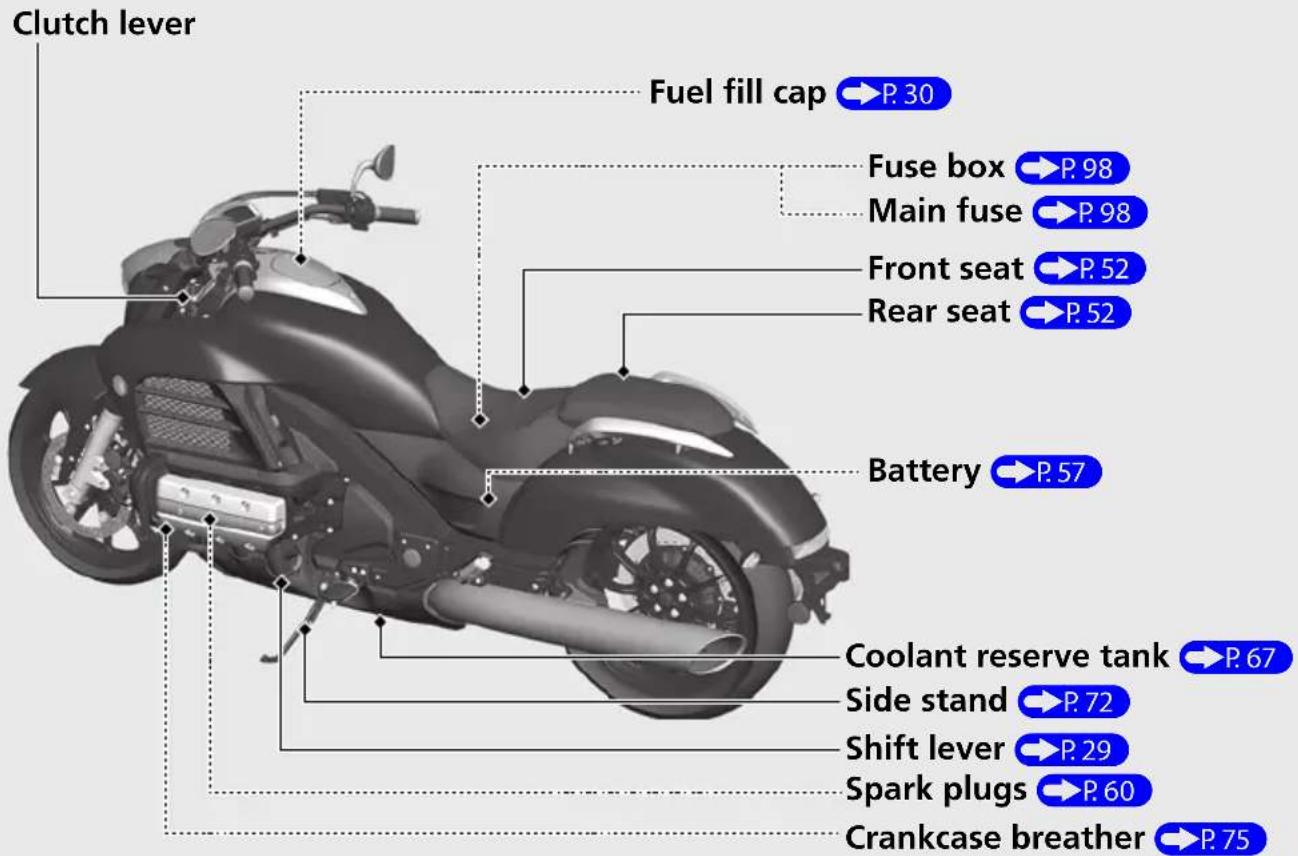

Parts Location

Luggage box →P.33 Throttle grip →P.76 Front brake lever Front brake fluid reservoir →P.69 Clutch fluid reservoir →P.71 Rear brake fluid reservoir →P.69 Engine oil fill cap/dipstick →P.63 Engine oil filter →P.66 Engine oil drain bolt →P.65 Rear brake pedal Final drive oil drain bolt →P.74 Final drive oil fill hole cap →P.73 Operation Guide

Clutch lever Fuel fill cap P.30 Fuse box P.98 Main fuse P.98 Front seat P.52 Rear seat P.52 Battery P.57 Coolant reserve tank P.67 Side stand P.72 Shift lever P.29 Spark plugs P.60 Crankcase breather P.75

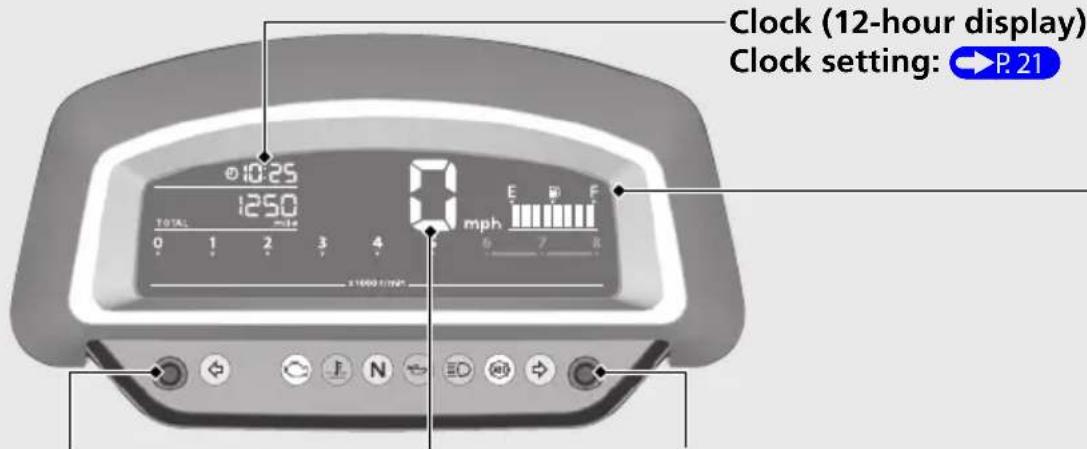

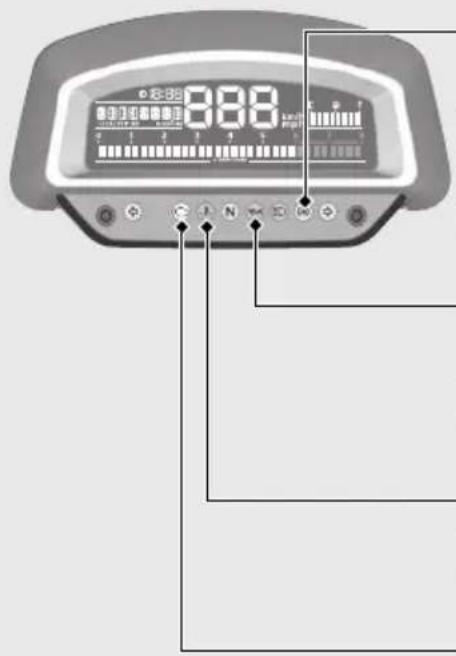

Instruments

Clock (12-hour display) Clock setting: P.21 10:25 1250 0 1 2 3 4 5 mph E W F 6 7 8 11000/1/92

SET buttonSEL button Speedometer

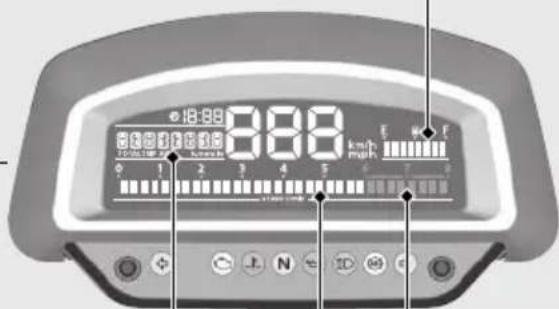

Opening/ending display

The meter has two displays: Normal "NR" and Special "SP".

When the meter is set to "NR" and the ignition switch is turned on, there is no opening/ending display.

When the meter is set to "SP" and the ignition switch is turned on, "GOLDWIND" and "VALKYRIE" appear in the opening display. When the ignition switch is turned off, "GOOD BYE" will appear in the ending display. In addition with "SP" display, the opening display can be customized following "GOLDWIND", "VALKYRIE" with characters you set.

Changing the setting of opening/ending display by selecting normal or special:

18:88 8:88 km/h E F OFF 1 2 3 4 5 6 7 C J N E T D C D

Fuel gauge

Remaining fuel when only 1st (E) segment starts flashing: approximately 1.32 US gal (5.0 liters)

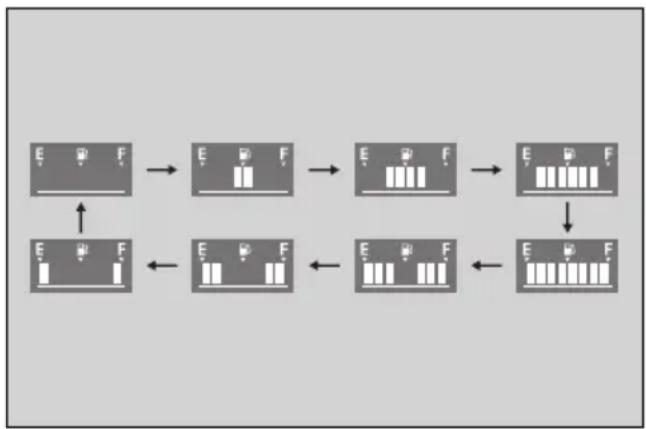

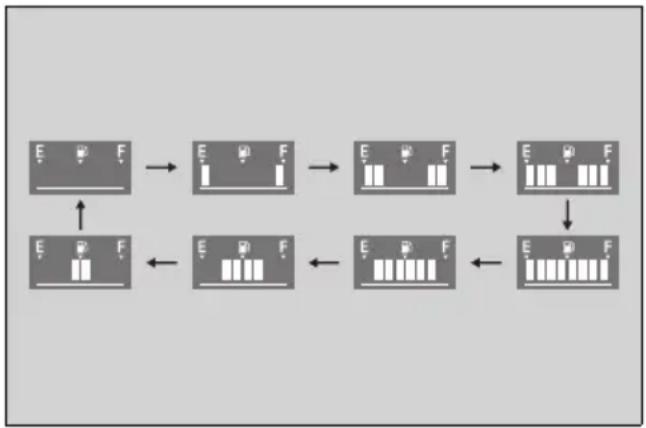

If the fuel gauge indicator repeat flashing or turned off: P.84

Odometer [TOTAL] & Tripmeter [TRIP A/B]

SEL button switches between odometer & tripmeters at the ordinary display.

• Odometer: Total distance ridden.
• Tripmeter: Distance ridden since tripmeter was reset (press and hold SET button to reset to 0.0 mile/km).

Tachometer red zone

(excessive engine rpm range)

Tachometer

NOTICE

Do not operate the engine in the tachometer red zone. Excessive engine speed can adversely affect engine life.

Odometer

Instruments (Continued)

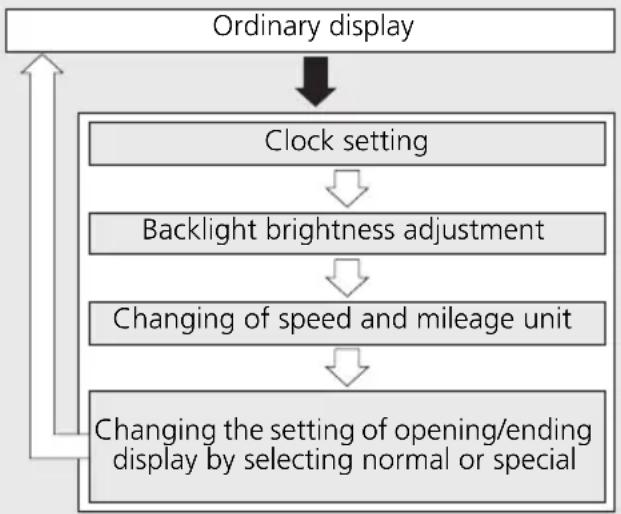

Display Setting

You can adjust the four settings.

• Clock setting
• Backlight brightness adjustment

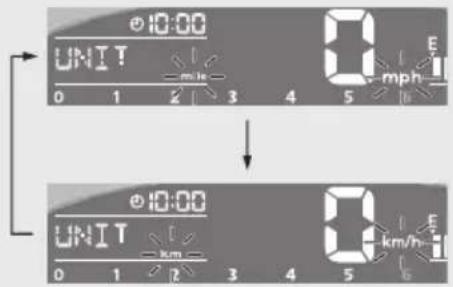

• Changing of speed and mileage unit
• Changing the setting of opening/ending display by selecting normal or special

Press and hold SEL button and SET button Press SET button

To return to the ordinary display at display setting.

• The buttons are not pressed for about 30 seconds
• Turn the ignition switch off and then on
  • After the opening/ending display setting is completed

1 Clock setting:

1 Turn the ignition switch to ON.
2 Press and hold SEL button and SET button, the hour digits start flashing.
3 Press SEL button until the desired hour is displayed.

▶Press and hold to advance the hour fast.

2:34 12:34

4 Press SET button. The minute digits start flashing.

12:34 → 12:34

5 Press SEL button until the desired minute is displayed.

▶Press and hold to advance the minute fast.

12:34 → 12:54

6 Press SET button. The clock is set, and then the display moves to the backlight brightness adjustment.

Instruments (Continued)

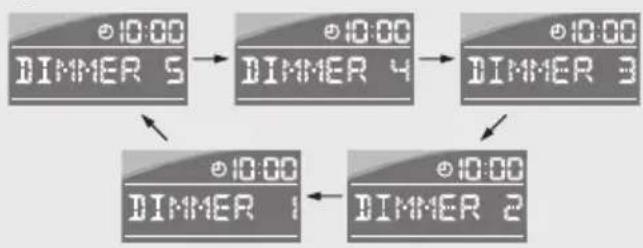

2 Backlight brightness adjustment:

You can adjust the brightness to five levels.

1 Press SEL button. The brightness is switched.

2 Press SET button. The backlight is set, and then the display moves to the changing of speed and mileage unit.

3 Changing of speed and mileage unit:

1 Press SEL button to select either "mph" and "mile" or "km/h" and "km."

UNIT 0 1 2 3 4 5 0 1 2 3 4 5 UNIT 0 1 2 3 4 5 E mph E km/h

2 Press SET button. The speed and mileage unit is set, and then the display moves to the changing the setting of opening/ending display by selecting normal or special.

4 Changing the setting of opening/ending display by selecting normal or special:

1 Press SEL button to select "OP/ED NR" or "OP/ED SP."

▶Selecting "OP/ED NR" and pushing the SET button returns to ordinary display.
▶Selecting "OP/ED SP" and pushing the SET button the first digit begins to blink.

2 Select the character you wish to enter by pressing the SEL button.

▶Pressing and holding the SEL button advance the characters fast.

10:0 10:0 A

3 Press the SET button after the character you wish to enter is appears.

The next digit blinks.

10:0 A → 10:0 AB

4 Repeat steps 2 and 3 until you finish entering characters.
▶You can enter up to 8 characters.
5 To end the selection, press SET button.

The established setting can also be set by turning the ignition switch to OFF.

The control is automatically switched from the setting mode to the ordinary display if the button is not pressed for about 30 seconds. Even in this case, established setting is maintained.

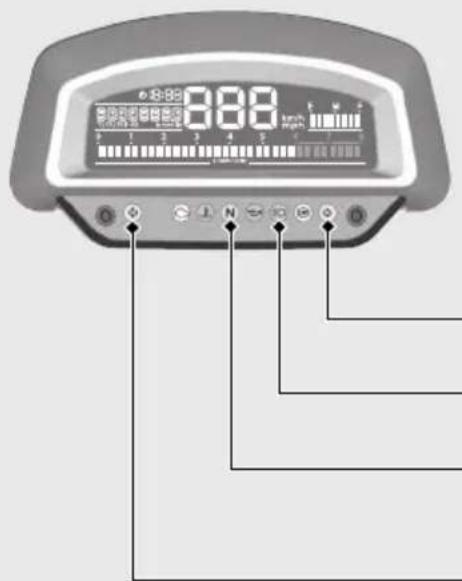

Indicators

888 888 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

ABS (Anti-lock Brake System) indicator

Models with ABS

Comes on when the ignition switch is turned on.

Goes off when your speed reaches

approximately 6 mph (10 km/h).

If it comes on while riding: P.83

Low oil pressure indicator

Comes on when the ignition switch is turned on.

Goes off when the engine starts.

If it comes on while engine is running: P.82

High coolant temperature indicator

Comes on briefly when the ignition switch is turned on.

If it comes on while riding: P.81

PGM-FI (Programmed Fuel Injection) malfunction indicator lamp (MIL)

Comes on briefly when the ignition switch is turned on with the engine stop switch in the (Run) position.

If it comes on while engine is running: P.82

8:88 8:88 1 2 3 4 5 N

Right turn signal indicator

High beam indicator

Neutral indicator

Comes on when the transmission is in Neutral.

Left turn signal indicator

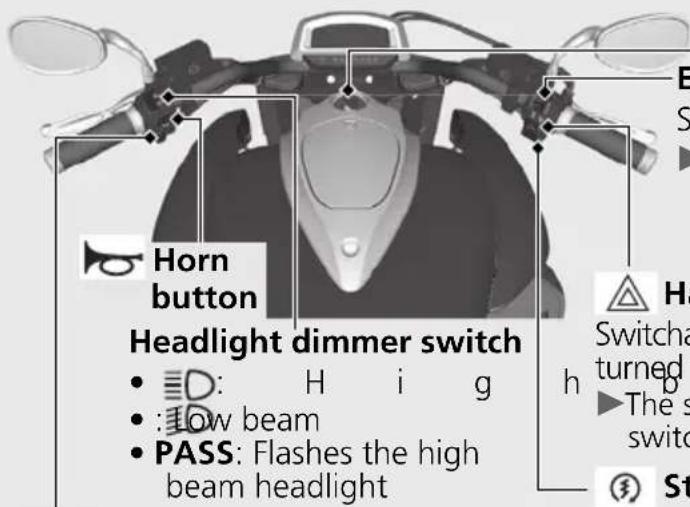

Switches

Horn button Headlight dimmer switch • D: H i g h • :low beam • PASS: Flashes the high beam headlight

Engine stop switch

Should normally remain in the (Run) position.

▶In an emergency, switch to the (Off) position (the starter motor will not operate) to stop the engine.

Hazard switch

Switchable when the ignition switch is on. Can be turned to off regardless of the ignition switch position.

The signals continue flashing with the ignition switch is OFF or LOCK after the hazard switch is on.

Start button

Turn signal switch

Models with ABS

• The turn signal will automatically stop when you complete the turn.
• When used for a lane change, the turn signal is automatically stopped in 7 seconds or after riding 131.2 yards (120 m).
  ▶You can manually cancel the turn signal by pressing the switch on.
  In some cases, the timing at which the turn signal stops is changed.
  ▶ Always use the recommended tires to ensure correct automatic cancellation operation.
  ▶Pressing the switch turns the turn signal off.

Models without ABS

Ignition Switch

Switches the electrical system on/off.

▶Key can be removed when in the OFF position.

ON

Turns electrical system on for starting/riding.

OFF Turns engine off.

LOCK

Locks steering.

OFF ON ACC LOCK ON FITTING

ACC

For the accessory circuits function.

Steering Lock

Lock the steering when parking to help prevent theft.

A U-shaped wheel lock or similar device is also recommended.

2 Push Turn Ignition key 1

Locking

1 Turn the handlebar all the way to the left.
2 Push the key down, and turn the ignition switch to the LOCK position.

Jiggle the handlebar if the lock is difficult to engage.

3 Remove the key.

Unlocking

Insert the key, push it in, and turn the ignition switch to the OFF position.

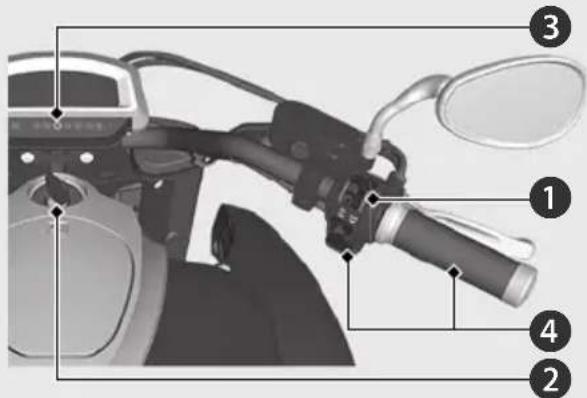

Starting the Engine

Start your engine using the following procedure, regardless of whether the engine is cold or warm.

Labeled diagram of a motorcycle's front wheel and steering wheel, showing parts numbered 1 to 4

NOTICE

• If the engine does not start within 5 seconds, turn the ignition off and wait 10 seconds before trying to start the engine again to recover battery voltage.
• Extended fast idling and revving the engine can damage the engine, and the exhaust system.
• Snapping the throttle or fast idling for more than about 5 minutes may cause exhaust pipe discoloration.

1 Make sure the engine stop switch is in the Q (Run) position.
2 Turn the ignition switch to the ON position.
3 Shift the transmission to Neutral (N indicator comes on). Alternatively, pull in the clutch lever to start your motorcycle with the transmission in gear so long as the side stand is raised.
4 Press the start button with the throttle completely closed.

If the engine does not start:

①Open the throttle fully and press the start button for 5 seconds.
②Repeat the normal starting procedure.
③ If the engine starts, open the throttle slightly if idling is unstable.
④If the engine does not start, wait 10 seconds before trying steps ① & ② again.

If Engine Will Not Start P.80

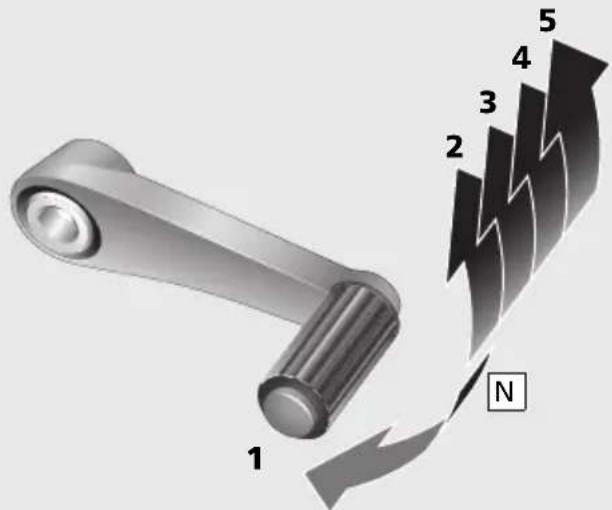

Shifting Gears

Your motorcycle transmission has five forward gears in a one-down, four-up shift pattern.

1 2 3 4 5 N

If you put the motorcycle in gear with the side stand down, the engine will shut off.

Recommended Shift Points

Shifting Up

From 1st to 2nd 12 mph (20 km/h)

From 2nd to 3rd 19 mph (30 km/h)

From 3rd to 4th 25 mph (40 km/h)

From 4th to 5th 31 mph (50 km/h)

Shifting Down

From 5th to 4th 22 mph (35 km/h)

From 4th to 3rd 16 mph (25 km/h)

NOTICE

Improper shifting can damage the engine, transmission, and drive train. Also, coasting or towing the motorcycle for long distances with the engine off can damage the transmission.

Refueling

Fuel lid Ignition key

Lower edge of the filler neck

Fuel filler opening Fuel fill cap

Do not fill with fuel above lower edge of the filler neck.

Fuel type: Unleaded gasoline only

Recommended fuel octane number:

Pump Octane Number (PON) 86 or higher.

Tank capacity: 6.05 US gal (22.9 liters)

Refueling and Fuel Guidelines → P.13

Opening the Fuel Fill Cap

1 Insert the ignition key in the fuel lid opener and turn it clockwise.
The fuel lid will pop up slightly, and open the lid by pulling it up.
2 Turn the fuel fill cap counterclockwise and remove it.

Closing the Fuel Fill Cap

① After refueling, be sure to tighten the fuel fill cap firmly by turning it clockwise until it clicks.
②Close the fuel lid.
③Remove the key from the fuel lid opener.

WARNING

Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

• Stop the engine, and keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.

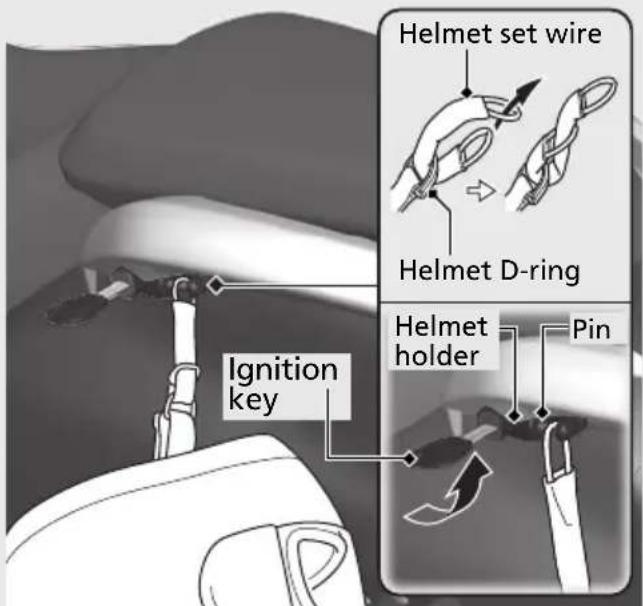

Storage Equipment

Helmet holder is located on the left side below the seat.

Helmet set wire Helmet D-ring Ignition key Helmet holder Pin

Unlocking

Insert the ignition key and turn it counterclockwise.

Locking

1 Hang your helmet on the holder pin and push it in to lock.
②Remove the key.
▶ Use the helmet holder only when parked.

WARNING

Riding with a helmet attached to the holder can interfere with the rear wheel or suspension and could cause a crash in which you can be seriously hurt or killed.

Use the helmet holder only while parked. Do not ride with a helmet secured by the holder.

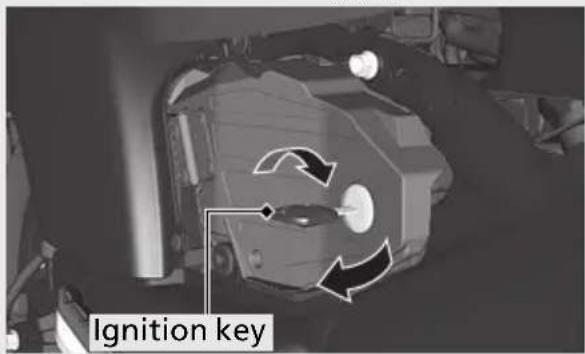

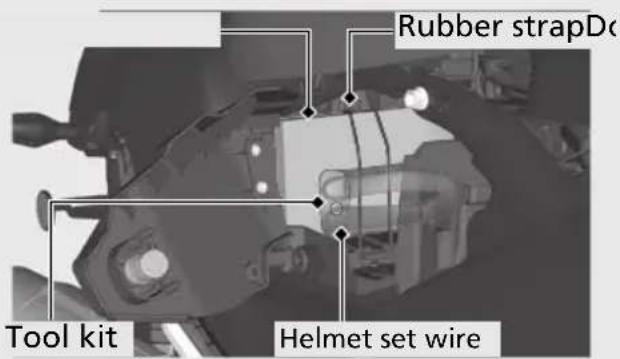

Tool Kit/Document Bag/Helmet Set Wire

The tool kit, document bag, and helmet set wire are located in the luggage box.

Ignition key

Rubber strapDc Tool kit Helmet set wire

Open

1 Remove the right side cover. ➡ P. 54
② Insert the ignition key in the luggage box lock and turn it clockwise.

Close

①Push the luggage box lid until it locks.
②Remove the key.
③Install the right side cover.

▶Do not store any items that are flammable or susceptible to heat damage.
▶ Do not store valuables in the luggage box.
▶ Be careful not to flood this area when washing your motorcycle.

Maintenance

Please read "Importance of Maintenance" and "Maintenance Fundamentals" carefully before attempting any maintenance. Refer to "Specifications" for service data.

An optional larger tool kit may be available. Check with your Honda dealer's parts department.

Importance of Maintenance ......P. 35

Maintenance Schedule....P. 37

Maintenance Fundamentals ......P. 40

Removing & Installing Body Components ...P. 52

Seat....P. 52

Side Cover.....P. 54

Front Lower Cover.....P. 55

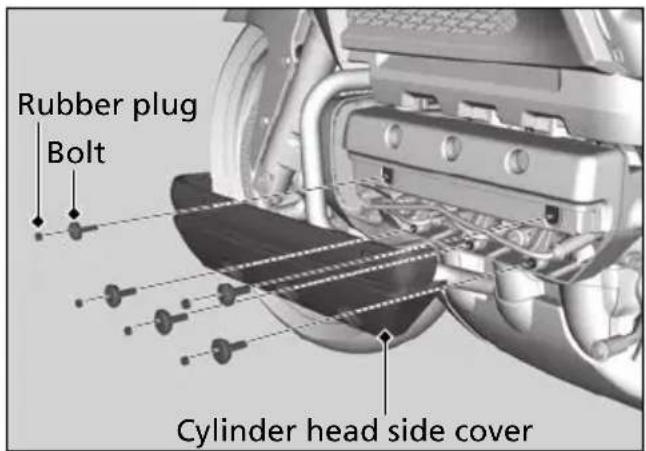

Cylinder Head Side Cover .....P. 56

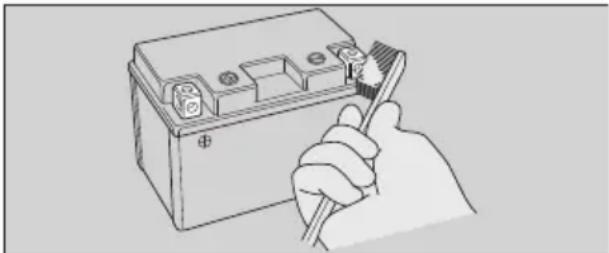

Battery P. 57

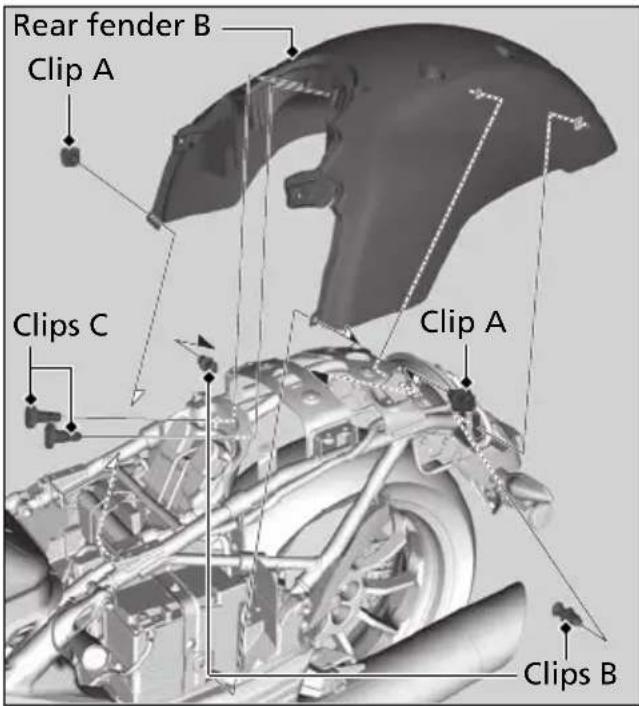

Clip A....P. 58

Clip B P. 58

Clip C....P. 59

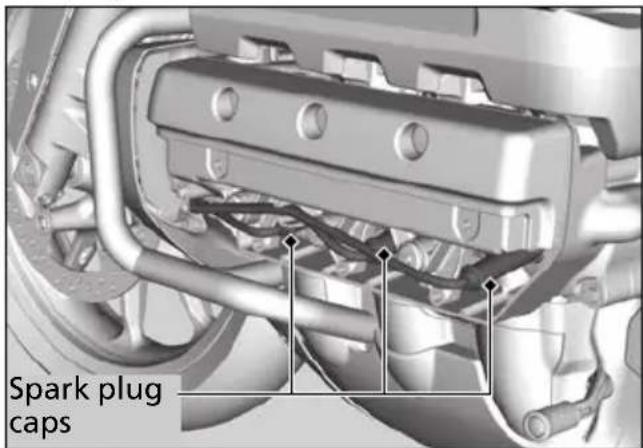

Spark Plug P. 60

Engine Oil.... P. 63

Coolant.... P. 67

Brakes/Clutch P. 69

Side Stand P. 72

Final Drive Oil P. 73

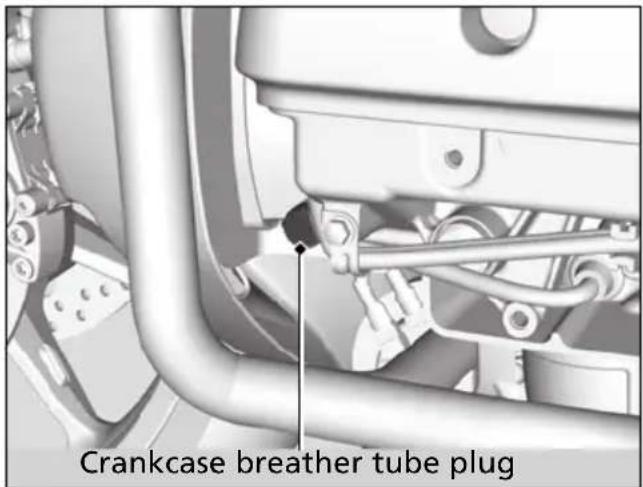

Crankcase Breather.... P. 75

Throttle.... P. 76

Other Adjustments P. 77

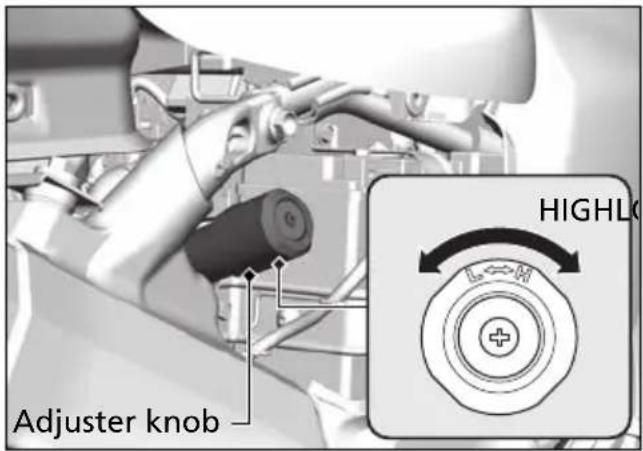

Rear Suspension.... P. 77

Headlight Aim.... P. 78

Importance of Maintenance

Importance of Maintenance

Keeping your motorcycle well-maintained is absolutely essential to your safety and to protect your investment, obtain maximum performance, avoid breakdowns, and reduce air pollution. Maintenance is the owner's responsibility. Be sure to inspect your motorcycle before each ride, and perform the periodic checks specified in the Maintenance Schedule. P. 37

WARNING

Improperly maintaining your motorcycle or failing to correct a problem before you ride can cause a crash in which you can be seriously hurt or killed.

Always follow the inspection and maintenance recommendations and schedules in this owner's manual.

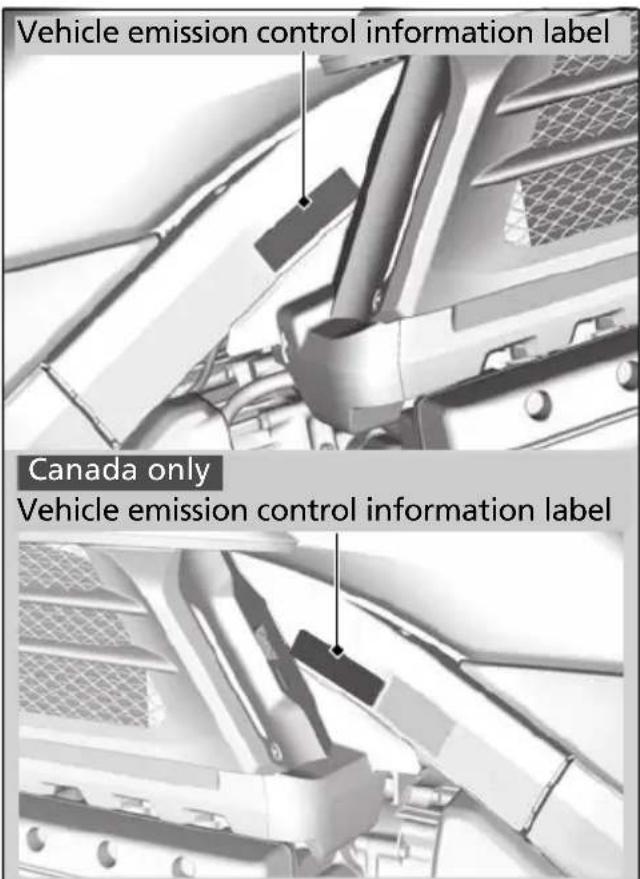

For information about the exhaust emission and noise emission requirements of the U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Environment Canada (EC). P. 109

USA

Maintenance, replacement or repair of the emission control devices and systems may be performed by any motorcycle repair establishment or individual using parts that are "certified" to EPA standards.

Importance of Maintenance

Maintenance Safety

Always read the maintenance instructions before you begin each task, and make sure that you have the tools, parts, and skills required. We cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

Follow these guidelines when performing maintenance.

• Stop the engine and remove the key.
  ●Park your motorcycle on a firm, level surface using the side stand or a maintenance stand to provide support.
• Allow the engine, muffler, brakes, and other high-temperature parts to cool before servicing as you can get burned.
  ●Run the engine only when instructed, and do so in a well-ventilated area.

Maintenance Schedule

The maintenance schedule specifies the maintenance requirements necessary to ensure safe, dependable performance, and proper emission control.

Maintenance work should be performed in accordance with Honda's standards and specifications by properly trained and equipped technicians. Your dealer meets all of these requirements. Keep an accurate record of maintenance to help ensure that your motorcycle is properly maintained. Make sure that whomever performs the maintenance completes this record.

All scheduled maintenance is considered a normal owner operating cost and will be charged for by your dealer. Retain all receipts. If you sell the motorcycle, these receipts should be transferred with the motorcycle to the new owner.

Maintenance Schedule

Items × 1,000 km 1.0 6.4 12.8 19.2 25.6 32.0 38.4			Odometer Reading *1
			× 1,000 mi 0	6 4 8 12	16 20 24						Refer to page
Emission-related Items	Fuel Line -					I		I		I
	Throttle Operation 76					I		I		I
	Air Cleaner*2						R			R	-
	Crankcase Breather *3				C	C	C	C	C	C	75
	Spark Plug		Every 16,000 mi (25,600 km): R								60
	Valve Clearance *4		Every 32,000 mi (51,200 km): I								-
	Engine Oil *6				R		R		R		63
	Engine Oil Filter				R		R		R		65
	Engine Idle Speed				I		I		I		-
	Radiator Coolant *5					I		I		R	67
	Cooling System					I		I		I	-
	Secondary Air Supply System					I		I		I	-
	Evaporative Emission Control System						I			I	-

Maintenance Level

: Intermediate. We recommend service by your Honda dealer, unless you have the necessary tools and are mechanically skilled. Procedures are provided in an official Honda Service Manual (P. 116).
✗ : Technical. In the interest of safety, have your motorcycle serviced by your dealer.

Maintenance Legend

1 : Inspect (clean, adjust, lubricate, or replace, if necessary)
c : Clean
R : Replace

Items × 1,000 km 1.0 6.4 12.8 19.2 25.6-32.0 38.4

Odometer Reading *1

x

1

,

0

0

0

m

i

0

. Refer to 4 page

Non-Emission-Related Items

Final Drive Oil 73

I

I

R

Brake Fluid*5

I

I

R

I

I

R

69

Brake Pads Wear 70

I

I

I

I

I

I

Brake System

I

I

I

Brake Light Switch

↘

I

I

I

Headlight Aim

↘

I

I

I

Clutch System

I

I

I

Clutch Fluid*5

I

I

R

I

I

R

71

Side Stand

I

I

I

Suspension

↘

I

I

I

Nuts, Bolts, Fasteners

↘

I

I

I

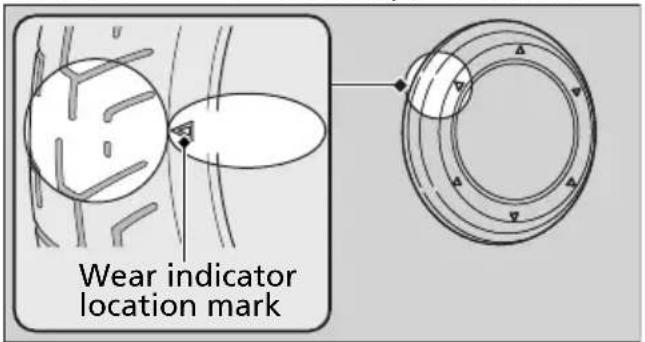

Wheels/Tires

×

I

I

I

Steering Head Bearings

×

I

I

I

Notes:

*1 : At higher odometer reading, repeat at the frequency interval established here.
*2 : Service more frequently when riding in unusually wet or dusty areas.
*3 : Service more frequently when riding in rain or at full throttle.
*4 : Service more frequently, if noisy.

*5 : Replace every 2 years, or at indicated odometer interval, whichever comes first. Replacement requires mechanical skill.
*6 : Replace at 4,000 mi (6,400 km) or 6 months, then every 8,000 mi (12,800 km) or 12 months.

Maintenance Fundamentals

Pre-ride Inspection

To ensure safety, it is your responsibility to perform a pre-ride inspection and make sure that any problem you find is corrected. A pre-ride inspection is a must, not only for safety, but because having a breakdown, or even a flat tire, can be a major inconvenience.

Check the following items before you get on your motorcycle:

●Fuel level-Fill fuel tank when necessary. P. 30
●Throttle-Check for smooth opening and full closing in all steering positions. P. 76

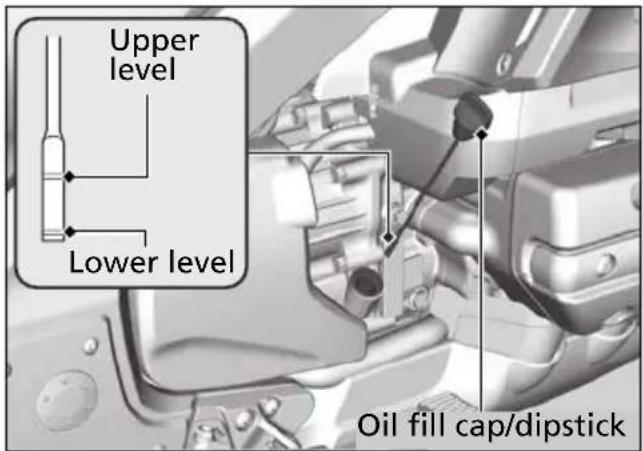

●Engine oil level-Add engine oil if necessary. Check for leaks. P. 63

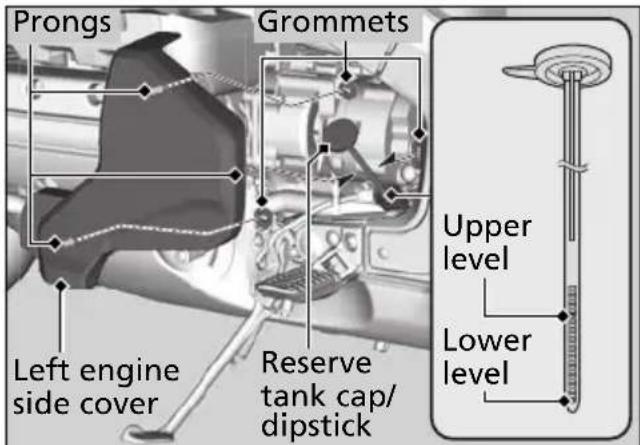

●Coolant level-Add coolant if required. Check for leaks. P. 67

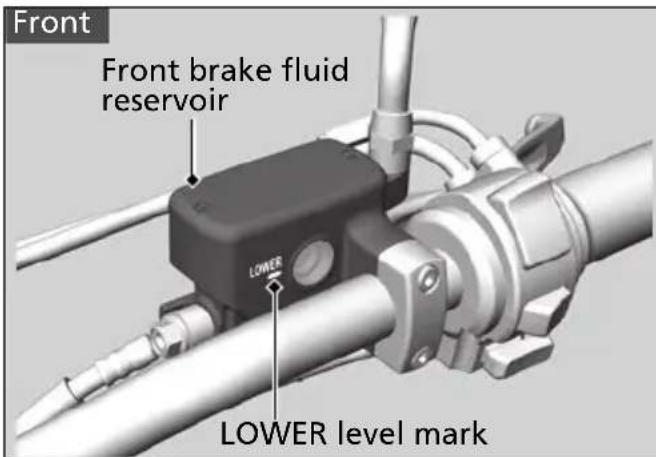

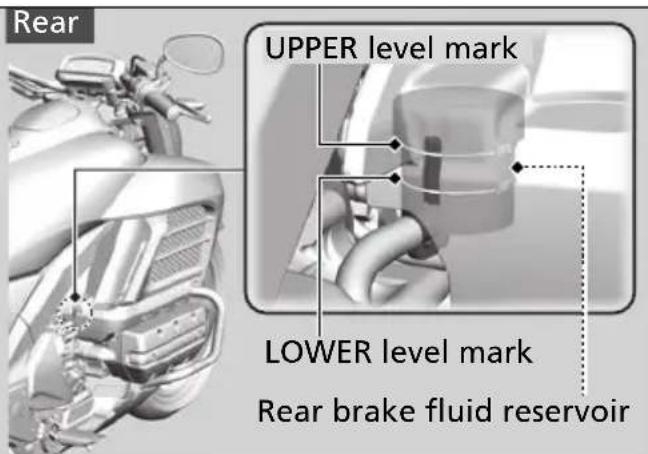

●Brakes-Check operation; Front and Rear: check brake fluid level (▶ P. 69) and pads wear. ▶ P. 70
●Lights and horn-Check that lights, indicators and horn function properly.
●Engine stop switch-check for proper function. ➤P. 26

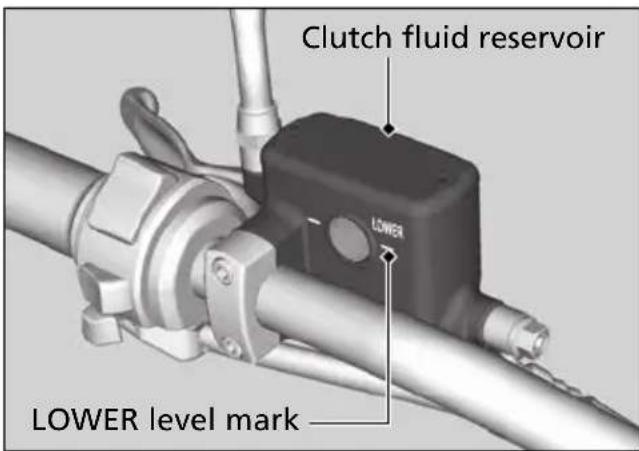

● Clutch-Check clutch fluid level. ➡ P. 71
- Side stand ignition cut-off system-check for proper function. P. 72
●Wheels and tires-Check condition, air pressure and adjust if necessary. P. 48

Periodic Checks

You should also perform other periodic maintenance checks at least once a month regardless of how often you ride, or more often if you ride frequently.

Also, check the odometer reading against the Maintenance Schedule and perform all maintenance that is due. P. 37

Tires and wheels	Check the air pressure (P. 48), examine tread for wear and damage (P. 48), and check the wheels for damage.
Fluid levels	Check the engine oil level (P. 63), engine coolant level (P. 67), clutch fluid level (P. 71), and brake fluid level (P. 69), final drive oil level (P. 73).
Lights	Check that the headlight, brake light, taillight, turn signals and license plate light are working properly.

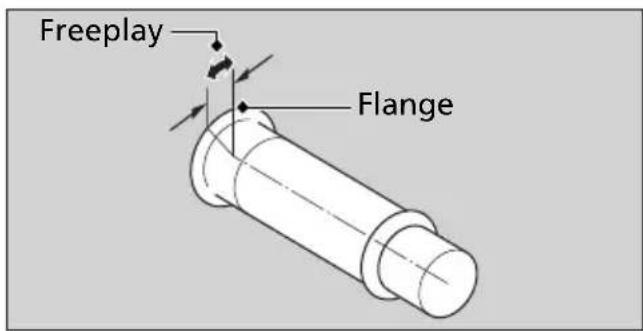

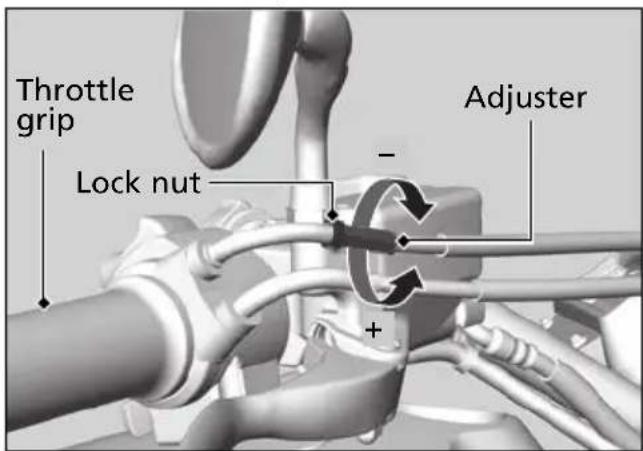

Controls Check the freeplay of the throttle grip (P. 76).
Fuses Check that you have a full supply of spare fuses.
Nuts & bolts Check the major nuts and bolts, and tighten as needed.

Maintenance Fundamentals

Replacing Parts

Always use Honda Genuine Parts or their equivalents to ensure reliability and safety. When ordering colored components, specify the model name, color, and code mentioned on the color label. The color label is attached to the back of the fuel lid.

→P.30

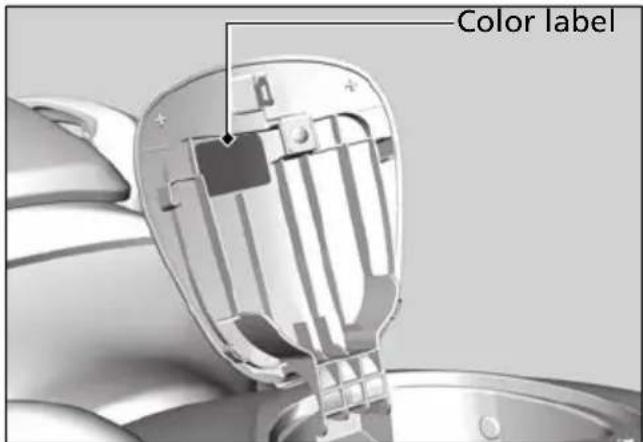

Color label

WARNING

Installing non-Honda parts may make your motorcycle unsafe and cause a crash in which you can be seriously hurt or killed.

Always use Honda Genuine Parts or equivalents that have been designed and approved for your motorcycle.

Battery

Your motorcycle has a maintenance-free type battery. You do not have to check the battery electrolyte level or add distilled water. Clean the battery terminals if they become dirty or corroded.

Do not remove the battery cap seals. There is no need to remove the cap when charging.

What to do in an emergency

If any of the following occur, immediately see your doctor.

●Electrolyte splashes into your eyes:

▶ Wash your eyes repeatedly with cool water for at least 15 minutes. Using water under pressure can damage your eyes.

●Electrolyte splashes onto your skin:

▶Remove affected clothing and wash your skin thoroughly using water.

●Electrolyte splashes into your mouth:

▶Rinse mouth thoroughly with water, and do not swallow.

WARNING

The battery gives off explosive hydrogen gas during normal operation.

A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.

Wear protective clothing and a face shield, or have a skilled mechanic do the battery servicing.

WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds.

Wash your hands after handling.

Maintenance Fundamentals

Cleaning the Battery Terminals

1. Remove the battery. ➡ P. 57
2. If the terminals are starting to corrode and are coated with a white substance, wash with warm water and wipe clean.
3. If the terminals are heavily corroded, clean the terminals with a wire brush or sandpaper. Wear safety glasses.

Illustration of a hand holding a battery with a brush, no text or symbols present

1. After cleaning, reinstall the battery.

The battery has a limited life span. Consult your dealer about when you should replace the battery. Always replace the battery with another maintenance-free battery of the same type.

Charging

If you use electrical accessories that drain the battery or you do not ride frequently, we recommend that you charge the battery every 30 days using a charger designed specifically for your Honda, which can be purchased from your dealer. Read the information that came with your battery charger and follow the instructions on the battery. Avoid using an automobile-type battery charger, as these can overheat a motorcycle battery and cause permanent damage.

Make sure the ignition switch is in the OFF position before charging the battery.

NOTICE

Improper charging can damage the battery. If you can't charge the battery or it appears unable to hold a charge, contact your dealer.

Maintenance Fundamentals

NOTICE

Jump starting using an automobile battery can damage your motorcycle's electrical system and is not recommended. Bump starting is also not recommended.

NOTICE

Installing non-Honda electrical accessories can overload the electrical system, discharging the battery and possibly damaging the system.

Fuses

Fuses protect the electrical circuits on your motorcycle. If something electrical on your motorcycle stops working, check for and replace any blown fuses. P. 98

Inspecting and Replacing Fuses

Turn off the ignition switch to remove and inspect fuses. If a fuse is blown, replace with a fuse of the same rating. For fuse ratings, see "Specifications." P. 123

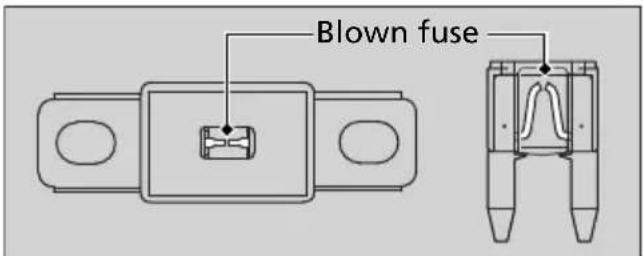

Blown fuse

NOTICE

Replacing a fuse with one that has a higher rating greatly increases the chance of damage to the electrical system.

If a fuse fails repeatedly, you likely have an electrical fault. Have your motorcycle inspected by your dealer.

Maintenance Fundamentals

Engine Oil

Engine oil consumption varies and oil quality deteriorates according to riding conditions and time elapsed.

Check the engine oil level regularly, and add the recommended engine oil if necessary. Dirty oil or old oil should be changed as soon as possible.

Selecting the Engine Oil

For recommended engine oil, see "Specifications." ➕P. 122

If you use non-Honda engine oil, check the label to make sure that the oil satisfies all of the following standards:

●JASO T 903 standard *1: MA
●SAE standard *2: 10W-30
●API classification *3: SG or higher

*1. The JASO T 903 standard is an index for engine oils for 4-stroke motorcycle engines. There are two classes: MA and MB. For example, the following label shows the MA classification.

MA Oil code Oil classification

*2. The SAE standard grades oils by their viscosity.
*3. The API classification specifies the quality and performance rating of engine oils. Use SG or higher oils, excluding oils marked as "Energy Conserving" or "Resource Conserving" on the circular API service symbol.

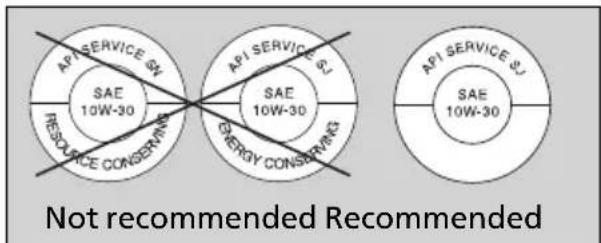

API SERVICE SW SAE 10W-30 RESOURCE CONSERVING API SERVICE SL SAE 10W-30 ENERGY CONSERVING API SERVICE SJ SAE 10W-30 Not recommended Recommended

Brake Fluid (Clutch Fluid)

Do not add or replace brake fluid, except in an emergency. Use only fresh brake fluid from a sealed container. If you do add fluid, have the brake and clutch system serviced by your dealer as soon as possible.

NOTICE

Brake fluid can damage plastic and painted surfaces. Wipe up spills immediately and wash thoroughly.

Recommended brake fluid:

Honda DOT 4 Brake Fluid or equivalent

WARNING

Clean filler cap before removing. Use only DOT 4 fluid from a sealed container.

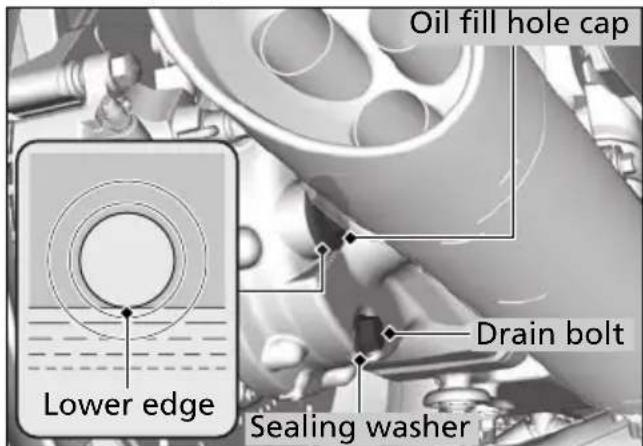

Final Drive Oil

Recommended final drive oil: Hypoid gear oil SAE 80

Recommended Coolant

Pro Honda HP coolant is a pre-mixed solution of antifreeze and distilled water.

Concentration:

50% antifreeze and 50% distilled water

A concentration of antifreeze below 40% will not provide proper corrosion and cold temperature protection. A concentration of up to 60% will provide better protection in colder climates.

NOTICE

Using coolant not specified for aluminum engines or using ordinary tap water can cause corrosion.

Maintenance Fundamentals

Air Cleaner

This motorcycle is equipped with a viscous type air cleaner element which cannot be cleaned with compressed air or otherwise without degrading its performance.

If the filter becomes dirty, replace it with a new one.

Crankcase Breather

Service more frequently when riding in rain, at full throttle, or after the motorcycle is washed or overturned. Service if the deposit level can be seen in the transparent section of the drain tube.

If the drain tube overflows, the air filter may become contaminated with engine oil causing poor engine performance. P. 75

Tires (Inspecting/Replacing)

Checking the Air Pressure

Visually inspect your tires and use an air pressure gauge to measure the air pressure at least once a month or any time you think the tires look low. Always check air pressure when your tires are cold.

Inspecting for Damage

Diagram of a cracked pipe with two circular insets showing internal structure (no text or symbols)

Inspect the tires for cuts, slits, or cracks that exposes fabric or cords, or nails or other foreign objects embedded in the side of the tire or the tread. Also inspect

for the bumps or bulges in the side walls of the tires.

Inspecting for Abnormal Wear

Diagram of a mechanical or electrical component with internal hatched pattern and circular annotation (no text or symbols)

Inspect the tires for signs of abnormal wear on the contact surface.

Inspecting Tread Depth

Inspect the tread wear indicators. If they become visible, replace the tires immediately. For your safety, you should replace the tires when the minimum tread depth is reached.

Wear indicator location mark

WARNING

Riding on tires that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.

Follow all instructions in this owner's manual regarding tire inflation and maintenance.

Maintenance Fundamentals

Have your tires replaced by your dealer.

For recommended tires, air pressure and minimum tread depth, see "Specifications."

→P. 122

Follow these guidelines whenever you replace tires.

●Use the recommended tires or equivalents of the same size, construction, speed rating, and load range.
●Have the wheel balanced with Honda Genuine balance weights or equivalent after the tire is installed.
- Do not install a tube inside a tubeless tire on this motorcycle. Excessive heat build-up can cause the tube to burst.
- Use only tubeless tires on this motorcycle. The rims are designed for tubeless tires, and during hard acceleration or braking, a tube-type tire could slip on the rim and cause the tire to rapidly deflate.

WARNING

Installing improper tires on your motorcycle can adversely affect handling and stability, and can cause a crash in which you can be seriously hurt or killed.

Always use the size and type of tires recommended in this owner's manual.

Tire Service Life

The service life of your tires is dependent on many factors, including, but not limited to, riding habits, road conditions, vehicle loading, tire air pressure, maintenance history, speed, and environmental conditions (even when the tires are not in use).

In addition to your regular inspections and maintenance, it is recommended that you have annual inspections performed once the tires reach 5 years old. It is also recommended that all tires be removed from service after 10 years from the date of manufacture, regardless of their condition or state of wear.

The last four digits of the TIN (tire identification number) indicate the date of manufacture.

Tire Identification Number (TIN)

The tire identification number (TIN) is a group of numbers and letters located on the sidewall of the tire.

①②③

DOT XXXX XXXX 22 09

DOT: This indicates that the tire meets all requirements of the U.S. Department of Transportation.

① XXXX: Factory code
② XXXX: Tire type code
③ 22 09: Date of manufacture (week & year). Example: week 22 in year 09.

Tire Labeling Example

MANUFACTURER DUT TIRE NAME

Tire identification number (TIN)

Removing & Installing Body Components

Seat

Bolts A Collar Recesses Collar Rear seat Tabs

Removal

1. Remove the seat mounting bolts A and collars.
2. Remove the rear seat.

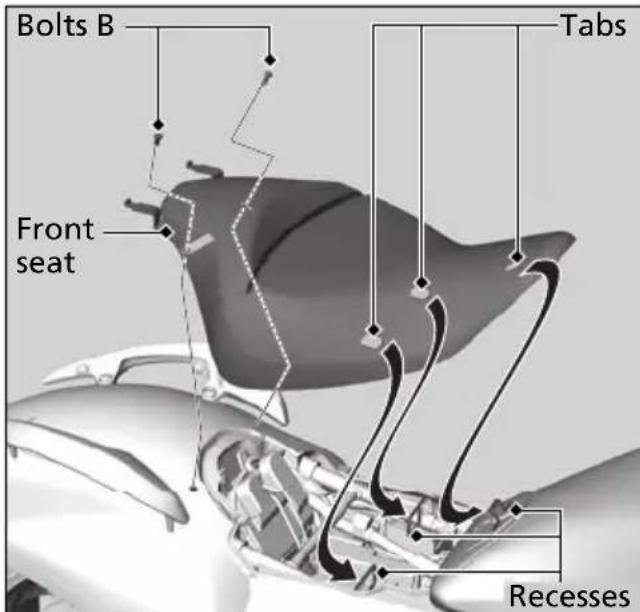

Bolts B Front seat Tabs Recesses

1. Remove the seat mounting bolts B.
2. Pull the front seat back and up.

Removing & Installing Body Components ▶ Seat

Installation

1. Insert the tabs at the back of the front seat into the recesses under the frame.

2. Install and tighten the seat mounting bolts B.

3. Insert the tabs into the recesses back of the rear seat.

4. Install the collars and seat mounting bolts A.
5. Tighten the seat mounting bolts A.
   ▶ Be careful not to scratch the rear fender during seat installation or removal.
   ▶ Be careful not to get the seat caught between the stay and bolts while installing the seat.

Removing & Installing Body Components ▶ Side Cover

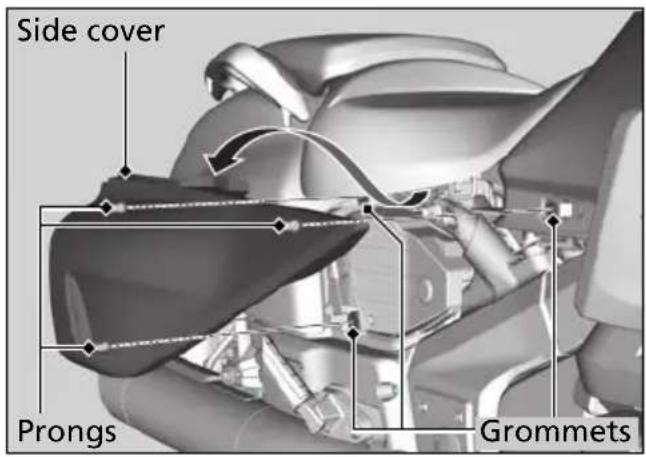

Side Cover

The right side cover must be removed to access the luggage box.

The left side cover must be removed for the rear suspension adjustment and battery maintenance.

Side cover Prongs Grommets

The right and left side covers can be removed in the same manner.

Removal

1. Remove the prongs from the grommets.
2. Remove the side cover.

Installation

Install the prongs into the grommets.

Removing & Installing Body Components ▶ Front Lower Cover

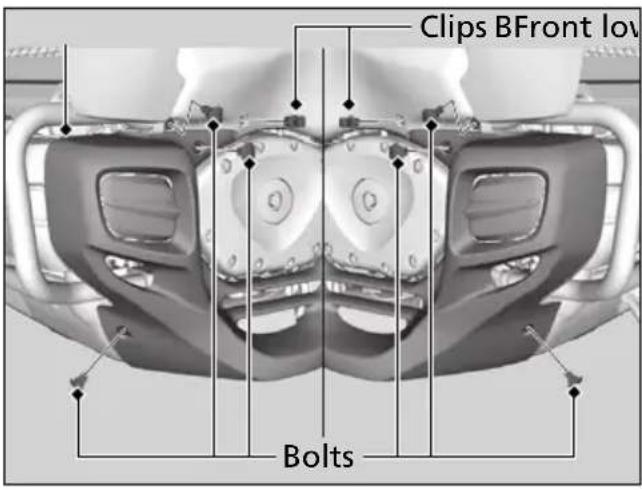

Front Lower Cover

Clips BFront low Bolts

The front lower cover must be removed to service the engine oil and the engine oil filter.

Removal

1. Remove the bolts and the clips B. P. 58
2. Remove the front lower cover.

Installation

Install the parts in the reverse order of removal.

Removing & Installing Body Components ▶ Cylinder Head Side Cover

Cylinder Head Side Cover

Rubber plug Bolt Cylinder head side cover

The left cylinder head side cover must be removed to service the spark plugs and the crankcase breather.

The right cylinder head side cover must be removed to service the spark plugs.

The right and left cylinder head side covers can be removed in the same manner.

Removal

1. Remove the rubber plugs and the bolts.
2. Remove the cylinder head side cover.

Installation

Install the parts in the reverse order of removal.

Battery

Positive terminal Negative terminal Battery bolt Battery bolt Batter y holder Stay Battery earth cable

Removal

Make sure the ignition switch is off.

1. Remove the front seat. ➡ P. 52
2. Remove the left side cover. ➞ P. 54
3. Disconnect the negative ⊖ terminal and remove the battery lead.
4. Disconnect the positive ⊕ terminal and remove the battery lead.
5. Remove the bolts and the battery holder.
6. Remove the battery taking care not to drop the terminal nuts.

Installation

Install the parts in the reverse order of removal. Always connect the positive terminal first. Make sure that bolts and nuts are tight.

Readjust the clock after the battery is reconnected since the clock goes wrong once the battery disconnected.

For proper handling of the battery, see "Maintenance Fundamentals." P. 43 "Battery Goes Dead." P. 95

Removing & Installing Body Components ▶ Clip A

Clip A

The clip A must be removed to remove the rear fender B.

Removal

1. Remove the pin by a Phillips screwdriver.
2. Pull the clip out of the hole.

Diagram showing two steps of a screw being added to a nut, labeled with numbers ① and ②.

Installation

1. Insert the clip into the hole.
2. Push the pin in.

Clip B

The clip B must be removed to remove the rear fender B.

Removal

Pull the clip straight up to remove it.

Diagram showing two mechanical components with numbered labels and directional arrows indicating process flow.

Installation

Keep the head of the clip raised when you insert it, push until it clicks.

①②← ②←

Clip C

The clip C must be removed to remove the rear fender B.

Removal

1. Press down on the center pin to release the lock.
2. Pull the clip out of the hole.

Center pin

Installation

1. Push the bottom of the center pin.

Two mechanical components with arrows indicating direction of movement (no text or symbols)

1. Insert the clip into the hole.
2. Press down on the center pin to lock the clip.

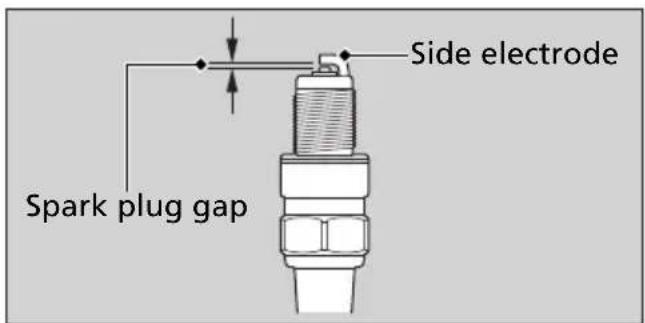

Spark Plug

Checking Spark Plug

For the recommended spark plug, see "Specifications." P. 122

Use only the recommended type of spark plug in the recommended heat range.

NOTICE

Using spark plugs with an improper heat range can cause engine damage.

1. Remove the cylinder head side cover. P. 56

2. Disconnect the spark plug cap.

3. Clean any dirt from around the spark plug base.
4. Remove the spark plug using a spark plug wrench.

Spark plug caps

Spark Plug ▶ Checking Spark Plug

1. Inspect the electrodes and center porcelain for deposits, erosion or carbon fouling.

▶If the erosion or deposit is heavy, replace the plug.

▶Clean a carbon or wet-fouled plug with a plug cleaner, otherwise use a wire brush.

1. Check the spark plug gap using a wire-type feeler gauge.

If adjustment is necessary, bend the side electrode carefully.

The gap should be: 0.039 to 0.043 in (1.00 to 1.10 mm)

Side electrode Spark plug gap

1. Make sure the plug washer is in good condition.

2. With the plug washer attached, thread the spark plug in by hand to prevent cross-threading.

Spark Plug ▶ Checking Spark Plug

1. Tighten the spark plug:

●If the old plug is good:
1/8 turn after it seats
- If installing a new plug, tighten it twice to prevent loosening:
a) First, tighten the plug:
NGK: 3/4 turn after it seats.
DENSO: 1/2 turn after it seats.
b) Then loosen the plug.
c) Next, tighten the plug again:
1/8 turn after it seats.

NOTICE

Improperly tightened spark plugs can damage the engine. If a plug is too loose, a piston may be damaged. If a plug is too tight, the threads may be damaged.

1. Reinstall the spark plug cap. Take care to avoid pinching any cables or wires.

2. Install the cylinder head side cover.

Engine Oil

Checking the Engine Oil

1. If the engine is cold, idle the engine for 3 to 5 minutes.
2. Turn the ignition switch off, stop the engine and wait 2 to 3 minutes.
3. Remove the oil fill cap/dipstick and wipe it clean.
4. Place your motorcycle in an upright position on a firm, level surface.
5. Insert the oil fill cap/dipstick until it seats, but don't screw it in.
   Check that the oil level is between the upper and lower level marks in the oil fill cap/dipstick.
6. Securely install the oil fill cap/dipstick.

Upper level Lower level Oil fill cap/dipstick

Engine Oil ▶ Adding Engine Oil

Adding Engine Oil

If the engine oil is below or near the lower level mark, add the recommended engine oil. P. 46

1. Remove the oil fill cap/dipstick. Add the recommended oil until it reaches the upper level mark.

▶ Place your motorcycle in an upright position on a firm, level surface when checking the oil level.

▶Do not overfill above the upper level mark.

▶ Make sure no foreign objects enter the oil filler opening.

▶Wipe up any spills immediately.

1. Securely reinstall the oil fill cap/dipstick.

NOTICE

Overfilling with oil or operating with insufficient oil can cause damage to your engine. Do not mix different brands and grades of oil. They may affect lubrication and clutch operation.

For the recommended oil and oil selection guidelines, see "Maintenance Fundamentals." P. 46

Engine Oil ▶ Changing Engine Oil & Filter

Changing Engine Oil & Filter

Changing the oil and filter requires special tools. We recommend that you have your motorcycle serviced by your dealer.

Use a new Honda Genuine oil filter or equivalent specified for your model.

NOTICE

Using the wrong oil filter can result in serious damage to the engine.

1. If the engine is cold, idle the engine for 3 to 5 minutes.
2. Turn the ignition switch off, stop the engine and wait for 2 to 3 minutes.
3. Park on a firm, level surface and lower the side stand.
4. Place a drain pan under the drain bolt.
5. Remove the front lower cover. ➞ P. 55

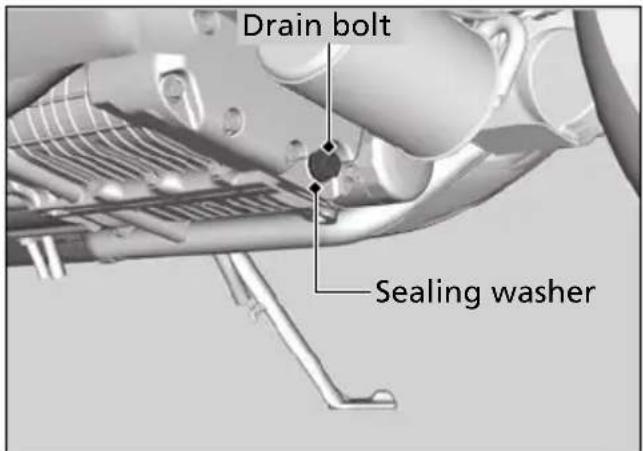

Drain bolt Sealing washer

1. Remove the oil fill cap/dipstick, drain bolt, and sealing washer to drain the oil.

Engine Oil ▶ Changing Engine Oil & Filter

1. Remove the oil filter with a filter wrench and let the remaining oil drain out. Make sure the prior seal is not stuck to the engine.

▶Discard the oil and oil filter at an approved recycling center.

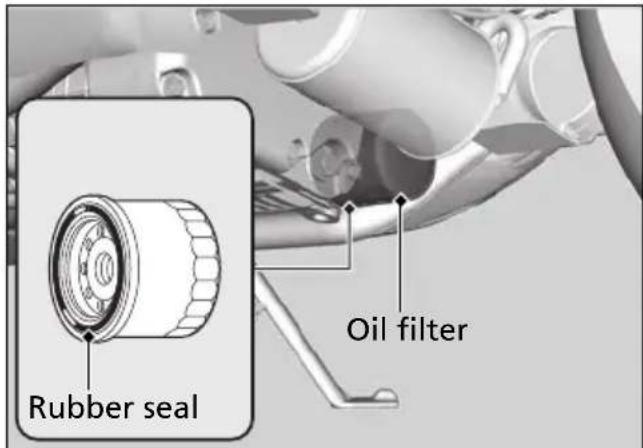

Rubber seal Oil filter

1. Apply a thin coat of engine oil to the rubber seal of a new oil filter.

2. Install a new oil filter and tighten.

Torque: 19 lbf·ft (26 N·m, 2.7 kgf·m).

1. Install a new sealing washer onto the drain bolt. Tighten the drain bolt.

Torque: 25 lbf·ft (34 N·m, 3.5 kgf·m).

1. Fill the crankcase with the recommended oil (P. 46) and install the oil fill cap/dipstick.

Required oil When changing oil & engine oil filter:

4.1 US qt (3.9 liters)

When changing oil only:

4.0 US qt (3.8 liters)

1. Check the oil level. ➡ P. 63

2. Check that there are no oil leaks.

3. Install the front lower cover.

Coolant

Checking the Coolant

1. Place your motorcycle on a firm, level surface.
2. Carefully pull the left engine side cover out until the prongs are clear of the frame grommets.
3. Remove the left engine side cover.
4. Hold your motorcycle in an upright position.
5. Remove the reserve tank cap/dipstick and check that the coolant level is between the upper and lower level marks on the level gauge.

Prongs Grommets Left engine side cover Reserve tank cap/ dipstick Upper level Lower level

If the coolant level is dropping noticeably or the reserve tank is empty, you likely have a serious leak. Have your motorcycle inspected by your dealer.

Adding Coolant

If the coolant level is below the lower level, add the recommended coolant (▶ P. 47) until the level reaches the upper level mark.

Add fluid only from the reserve tank cap/dipstick and do not remove radiator cap.

1. Carefully pull the left engine side cover out until the prongs are clear of the frame grommets.
2. Remove the left engine side cover.
3. Remove the reserve tank cap/dipstick and add fluid while monitoring the coolant level.

▶Do not overfill above the upper level mark.

▶ Make sure no foreign objects enter the reserve tank opening.

1. Securely reinstall the cap/dipstick.

WARNING

Removing the radiator cap while the engine is hot can cause the coolant to spray out, potentially scalding you.

Always let the engine and radiator cool down before removing the radiator cap.

Changing Coolant

Have your dealer change the coolant unless you have the proper tools and are mechanically qualified.

Brakes/Clutch

Checking Brake Fluid

1. Place your motorcycle in an upright position on a firm, level surface.
2. Front Check that the brake fluid reservoir is horizontal and that the fluid level is above the LOWER level mark.
3. Rear Check that the brake fluid reservoir is horizontal and that the fluid level is between the LOWER level and UPPER level marks.

If the brake fluid level in either reservoir is below the LOWER level mark or the brake lever and pedal freeplay becomes excessive, inspect the brake pads for wear. If the brake pads are not worn, you most likely have a leak. Have your motorcycle inspected by your dealer.

Front Front brake fluid reservoir LOWER LOWER level mark

Rear UPPER level mark LOWER level mark Rear brake fluid reservoir

Brakes/Clutch ▶ Inspecting the Brake Pads

Inspecting the Brake Pads

Check the condition of the brake pad wear indicators. The pads need to be replaced if a brake pad is worn to the indicator.

1. Front Inspect the brake pads from in front of the brake caliper.

▶ Always inspect both left and right brake caliper.

1. Rear Inspect the brake pads from bottom of the brake caliper.

If necessary have the pads replaced by your dealer.

Always replace both left and right brake pads at the same time.

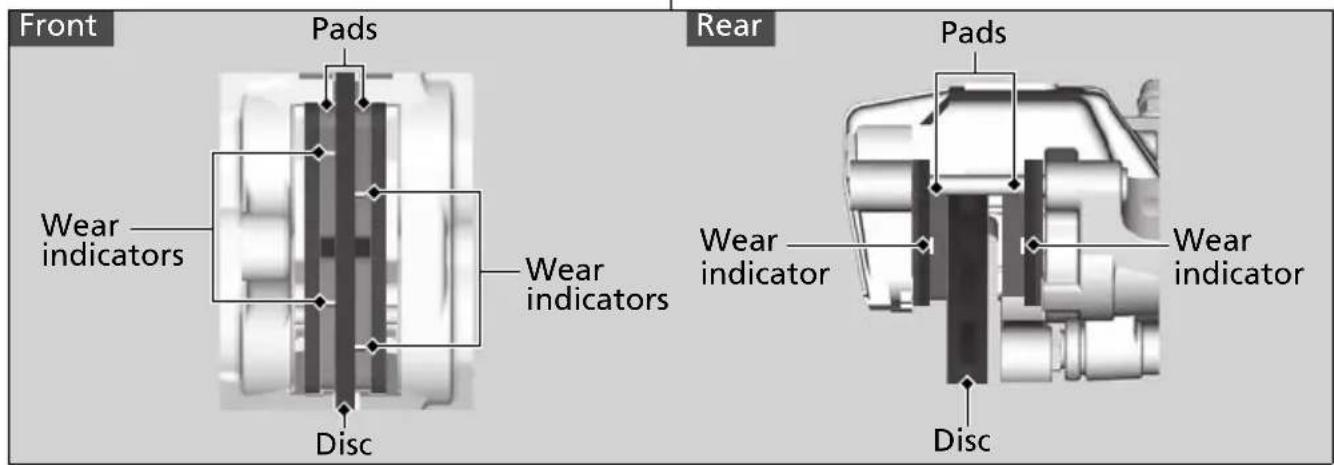

Front Pads Wear indicators Disc Wear indicators Rear Pads Wear indicator Wear indicator Disc

Checking Clutch Fluid

Clutch fluid reservoir LOWER LOWER level mark

1. Place your motorcycle in an upright position on a firm, level surface.
2. Check that the clutch fluid reservoir cap is horizontal and that the fluid level is above the LOWER level mark.

If the fluid level is low or if you find fluid leaks, or deterioration or cracks in the hoses and fittings, have the clutch system serviced by your dealer.

Side Stand

Side stand spring

1. Check that the side stand operates smoothly. If the side stand is stiff or squeaky, clean the pivot area and lubricate the pivot bolt with clean grease.
2. Check the spring for damage or loss of tension.

3. Sit on the motorcycle, put the transmission in Neutral, and raise the side stand.

4. Start the engine, pull the clutch lever in, and shift the transmission into gear.

5. Lower the side stand all the way. The engine should stop as you lower the side stand. If the engine doesn't stop, have your motorcycle inspected by your dealer.

Final Drive Oil

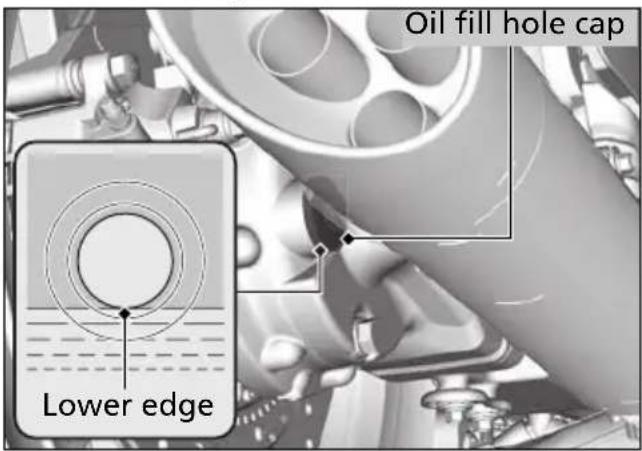

Checking the Final Drive Oil

1. Hold the motorcycle upright on firm level ground.
2. Remove the oil fill hole cap.
3. Check the oil level. It should be flush with the lower edge of the oil fill hole.

Oil fill hole cap Lower edge

Adding Final Drive Oil

If the final drive oil level is low, check for oil leaks. Add the recommended final drive oil (P. 47) until it reaches the lower edge of the opening.

1. Pour the final drive oil into the oil fill hole until it reaches the lower edge of the opening.

▶ Do not over fill above the lower edge of oil fill hole.
▶ Make sure no foreign objects enter the oil fill hole.
▶ Wipe up any spills immediately.

1. Reinstall the oil fill hole cap and tighten.

Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m).

Changing Final Drive Oil

1. Hold the motorcycle upright on firm level ground.
2. Place a drain pan under the drain bolt.
3. Remove the oil fill hole cap, drain bolt, and sealing washer to drain the oil.
   ▶Discard the oil at an approved recycling center.

Oil fill hole cap Lower edge Sealing washer Drain bolt

1. Install a new sealing washer onto the drain bolt. Tighten the drain bolt.

Torque: 15 lbf·ft (20 N·m, 2.0 kgf·m).

1. Fill the final gear with the recommended oil. P. 47

Required oil: 4.1 US oz (120 cm ^3 )

1. Check the oil level. It should be flush with the lower edge of the oil fill hole.

2. Reinstall the oil fill hole cap and tighten.

Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m).

1. Check that there are no oil leaks.

Crankcase Breather

Cleaning the Crankcase Breather

1. Remove the left cylinder head side cover. P. 56
2. Place a drain pan under the crankcase breather tube.
3. Remove the crankcase breather tube plug from the tube.
4. Drain deposits into a suitable container.
5. Install the crankcase breather tube plug.
6. Install the left cylinder head side cover.

Crankcase breather tube plug

Throttle

Checking the Throttle

With the engine off, check that the throttle rotates smoothly from fully closed to fully open in all steering positions and throttle freeplay is correct. If the throttle does not move smoothly, close automatically, or if the cable is damaged, have the motorcycle inspected by your dealer.

Freeplay at the throttle grip flange: 1/16 to 1/4 in (2 to 6 mm).

Freeplay Flange

Adjusting the Throttle Freeplay

1. Loosen the lock nut.
2. Turn the adjuster until the freeplay is 1/16 to 1/4 in (2 to 6 mm).
3. Tighten the lock nut and inspect the throttle action again.

Throttle grip Lock nut - + Adjuster

Other Adjustments

Adjusting the Rear Suspension

Spring Preload

You can adjust the spring preload by the adjuster knob to suit the load or the road surface.

1. Remove the left side cover. ➞ P. 54
2. Turn the adjuster knob clockwise to increase spring preload (hard), or turn counterclockwise to decrease spring preload (soft). The standard position is 18 clicks from the minimum setting.

Adjuster knob HIGHL

NOTICE

Do not turn the adjuster beyond its limits.

NOTICE

The rear shock absorber damper unit contains high pressure nitrogen gas. Do not attempt to disassemble, service, or improperly dispose of the damper. See your dealer.

Other Adjustments ▶ Adjusting the Headlight Aim

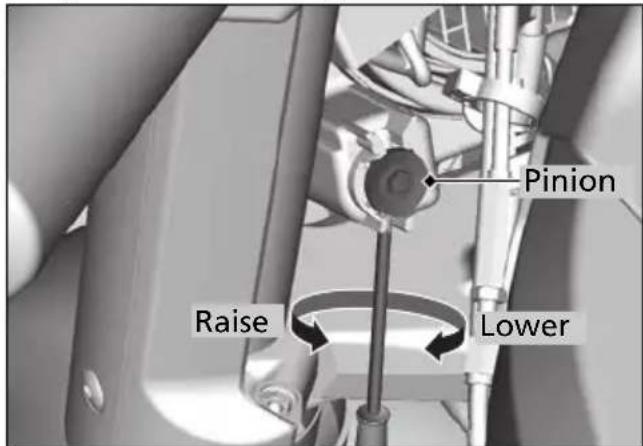

Adjusting the Headlight Aim

You can adjust vertical aim of the headlight for proper alignment. Turn the pinion using a Phillips screwdriver in or out as necessary. Obey local laws and regulations.

Pinion Raise Lower

Troubleshooting

Engine Will Not Start.... P. 80

Overheating (High coolant temperature indicator is on).... P. 81

Warning Indicators On or Flashing ..... P. 82

Low Oil Pressure Indicator P. 82

PGM-FI (Programmed Fuel Injection) Malfunction Indicator Lamp (MIL)..... P. 82

ABS (Anti-lock Brake System) Indicator..... P. 83

Other Warning Indications ...... P. 84

Fuel Gauge Failure Indications.... P. 84

Tire Puncture ......P. 85

Emergency Repair Using a Tire Repair Kit...P. 85

Removing Wheels.....P. 85

Electrical Trouble....P. 95

Battery Goes Dead ......P. 95

Burned-out Light Bulb P. 95

Blown Fuse....P. 98

Engine Will Not Start

| Starter Motor Operates But Engine Does Not Start

Check the following items:

- Check the correct engine starting sequence ➤P. 28

- Check that there is gasoline in the fuel tank

- Check if the PGM-FI malfunction indicator lamp (MIL) is on

▶If the indicator light is on, contact your dealer as soon as possible.

| Starter Motor Does Not Operate

Check the following items:

●Make sure engine stop switch is (Run) position ▶P. 26

- Check for a blown fuse ➞ P. 98

- Check for a loose battery connection or battery terminal corrosion ➞P. 57

- Check the condition of the battery ➞ P. 95 If the problem continues, have your motorcycle inspected by your dealer.

Overheating (High coolant temperature indicator is on)

The engine is overheating when the following occurs:

●High coolant temperature indicator comes on
●Acceleration becomes sluggish If this occurs, pull safely to the side of the road and perform the following procedure. Extended fast idling may cause the high coolant temperature indicator comes on.

NOTICE

Continuing to ride with an overheated engine can cause serious damage to the engine.

1. Stop the engine using the ignition switch, and then turn the ignition switch to the ON position.

2. Check that the radiator fan is operating, and then turn the ignition switch to the OFF position.

If the fan is not operating:

Suspect a fault. Do not start the engine. Transport your motorcycle to your dealer.

If the fan is operating:

Allow the engine to cool with the ignition switch in the OFF position.

1. After the engine has cooled, inspect the radiator hose and check if there is a leak.

P. 67

If there is a leak:

Do not start the engine. Transport your motorcycle to your dealer.

1. Check the coolant level in the reserve tank, and add coolant as necessary.

→P. 67

1. If 1-4 check normal, you may continue riding, but closely monitor the high coolant temperature indicator.

Warning Indicators On or Flashing

Low Oil Pressure Indicator

If the low oil pressure indicator comes on, pull safely to the side of the road and stop the engine.

NOTICE

Continuing to ride with low oil pressure can cause serious damage to the engine.

1. Check the engine oil level, and add oil as necessary. P. 63
2. Start the engine.

▶ Only continue riding if the low oil pressure indicator goes off.

Rapid acceleration may momentarily cause the low oil pressure indicator to come on, especially if the oil is at or near the low level. If the low oil pressure indicator stays on when the oil level is at the proper level, stop the engine and contact your dealer.

If the engine oil level goes down rapidly, your motorcycle may have a leak or another serious problem. Have your motorcycle inspected by your dealer.

PGM-FI (Programmed Fuel Injection) Malfunction Indicator Lamp (MIL)

If the indicator comes on while riding, you may have a serious problem with the PGM-FI system. Reduce speed and have your motorcycle inspected by your dealer as soon as possible.

ABS (Anti-lock Brake System) Indicator

Models with ABS

If the indicator operates in one of the following ways, you may have a serious problem with the brake system. Reduce your speed and have your motorcycle inspected by your dealer as soon as possible.

●Indicator comes on or starts flashing while riding
●Indicator does not come on when the ignition switch is in the on position
●Indicator does not go off at speeds above 6 mph (10 km/h)

If the ABS indicator stays on, your brakes will continue to work as a conventional system, but without the anti-locking function.

The ABS indicator may flash if you turn the rear wheel while your motorcycle is lifted off the ground. In this case, turn the ignition switch off and then on again. The ABS indicator will go off after your speed reaches 19 mph (30 km/h).

Other Warning Indications

Fuel Gauge Failure Indications

If the fuel system has an error, the fuel gauge indicators will be displayed as shown in the illustrations.

If these occur, see your dealer as soon as possible.

Tire Puncture

Repairing a puncture or removing a wheel requires special tools and technical expertise. We recommend you have this type of service performed by your dealer.

After an emergency repair, always have the tire inspected/replaced by your dealer.

Emergency Repair Using a Tire Repair Kit

If your tire has a minor puncture, you can make an emergency repair using a tubeless tire repair kit.

Follow the instructions provided with the emergency tire repair kit.

Riding your motorcycle with a temporary tire repair is very risky. Do not exceed 30 mph (50 km/h). Have the tire replaced by your dealer as soon as possible.

WARNING

Riding your motorcycle with a temporary tire repair can be risky. If the temporary repair fails, you can crash and be seriously injured or killed.

If you must ride with a temporary tire repair, ride slowly and carefully and do not exceed 30 mph (50 km/h) until the tire is replaced.

Removing Wheels

Follow these procedures if you need to remove a wheel in order to repair a puncture.

Tire Puncture ▶ Removing Wheels

Models with ABS

When removing and installing the wheel, be careful not to damage the wheel speed sensor and pulser ring.

Front Wheel

Removal

1. Park on a firm, level surface.

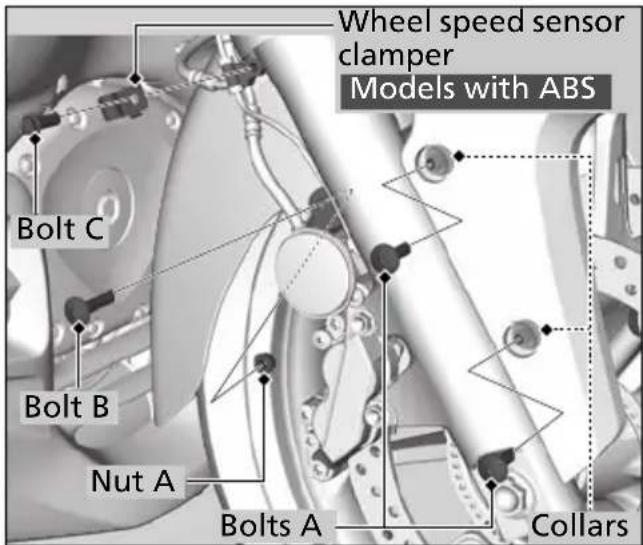

Wheel speed sensor clamper Models with ABS Bolt C Bolt B Nut A Bolts A Collars

1. On the right side, remove the bolts A, bolt B, bolt C and nut A.

Models with ABS

Remove the wheel speed sensor clamper.

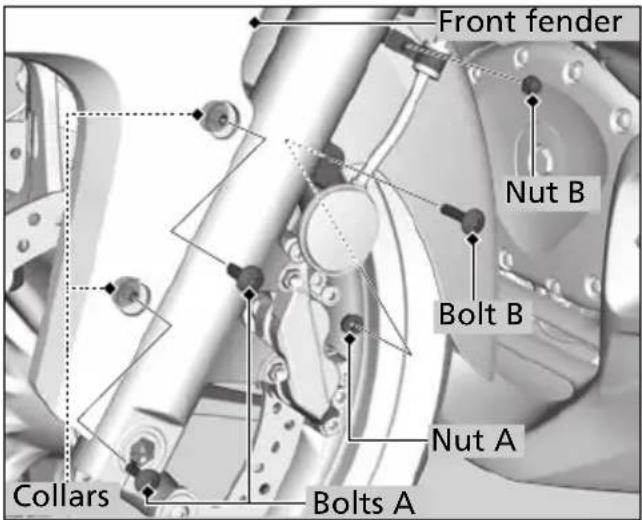

Front fender Nut B Bolt B Nut A Collars Bolts A

1. On the left side, remove the bolts A, bolt B, nut A and nut B.
2. Remove the front fender and collars.

Wheel speed sensor Bolts D

5. Models with ABS

On the right side, remove the bolts D and the wheel speed sensor.

Tire Puncture ▶ Removing Wheels

Tape or cloth Mounting bolts Brake caliper Pulser ring Models with ABS

1. Cover both sides of the front wheel and brake caliper with protective tape or cloth.
2. On the right side, remove the mounting bolts and remove the brake caliper.

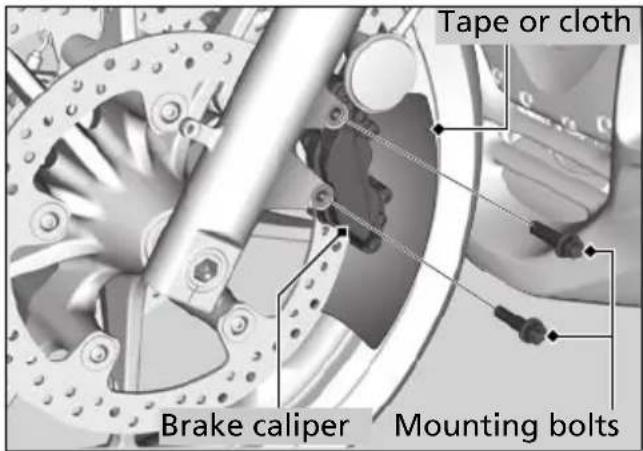

Tape or cloth Brake caliper Mounting bolts

1. On the left side, remove the mounting bolts and remove the brake caliper.

▶Support the brake caliper assembly so that it doesn't hang from the brake hose. Do not twist the brake hose.
▶ Avoid getting grease, oil, or dirt on the disc or pad surfaces.
▶ Do not pull the brake lever while the brake caliper is removed.
▶ Take care to prevent the brake caliper from scratching the wheel during removal.

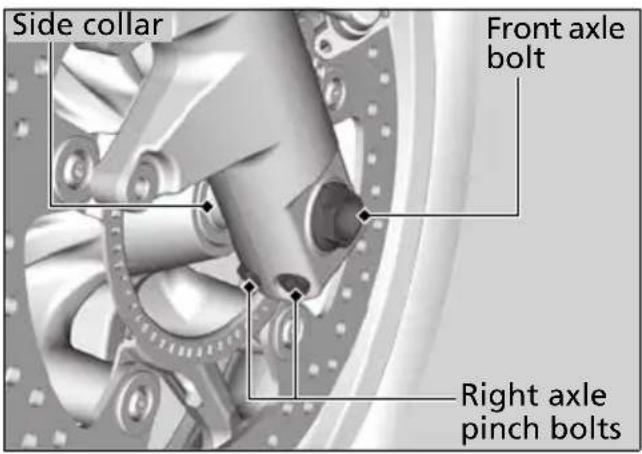

Side collar Front axle bolt Right axle pinch bolts

1. Remove the front axle bolt.
2. Loosen the right axle pinch bolts.
3. Support your motorcycle securely and raise the front wheel off the ground using a maintenance stand or a hoist.

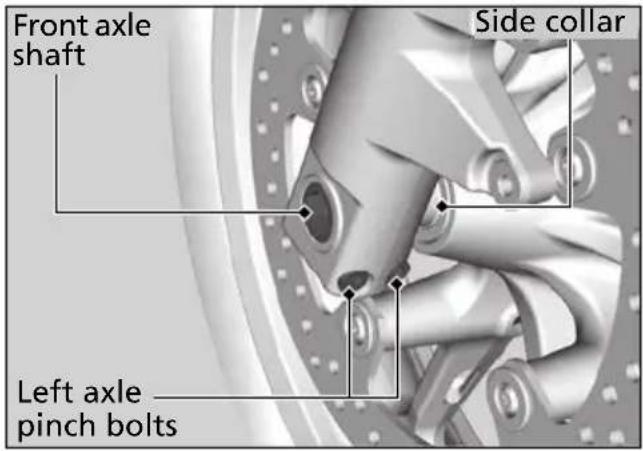

Front axle shaft Side collar Left axle pinch bolts

1. Loosen the left axle pinch bolts.
2. On the left side, withdraw the front axle shaft, and remove the side collars and wheel.

Tire Puncture ▶ Removing Wheels

Installation

1. Attach the side collars to the wheel.
2. On the left side, place the wheel between the fork legs and insert the lightly greased front axle shaft to the end, through the left fork leg and wheel hub.
3. Align the end of the front axle shaft with the surface of the fork leg.

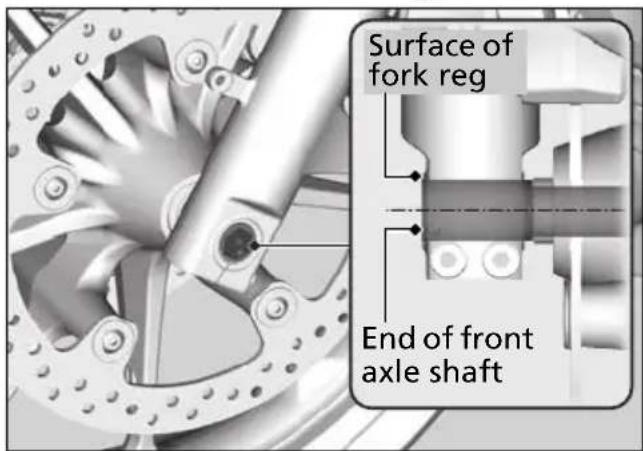

Surface of fork reg End of front axle shaft

1. Tighten the left axle pinch bolts to hold the axle.
2. Tighten the axle bolt.

Torque: 44 lbf·ft (59 N·m, 6.0 kgf·m).

1. Loosen the left axle pinch bolts.
2. Tighten the right axle pinch bolts.

Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m).

1. Install the right brake caliper and tighten the mounting bolts.

Torque: 23 lbf·ft (31 N·m, 3.2 kgf·m).

Tire Puncture ▶ Removing Wheels

1. Install the left brake caliper and tighten the mounting bolts.

Torque: 23 lbf·ft (31 N·m, 3.2 kgf·m).

▶Take care to prevent the brake caliper from scratching the wheel during installation.
▶ Use new mounting bolts when installing the brake caliper.

NOTICE

When installing the brake calipers into position on the fork legs, carefully fit the brake disc between the pads to avoid scratching them.

1. Lower the front wheel on the ground.
2. Apply the brake lever several times. Then, pump the fork several times.
3. Retighten the left axle pinch bolts.

Torque: 16 lbf·ft (22 N·m, 2.2 kgf·m).

1. Raise the front wheel off the ground again, and check that the wheel rotates freely after you release the brake.
2. Remove the protective tape or cloth.
3. Models with ABS
   Install the wheel speed sensor and tighten the bolts D.

Torque: 9 lbf·ft (12 N·m, 1.2 kgf·m).

1. Install the front fender.

If a torque wrench was not used for installation, see your dealer as soon as possible to verify proper assembly. Improper assembly may lead to loss of braking capacity.

Tire Puncture ▶ Removing Wheels

Rear Wheel Removal

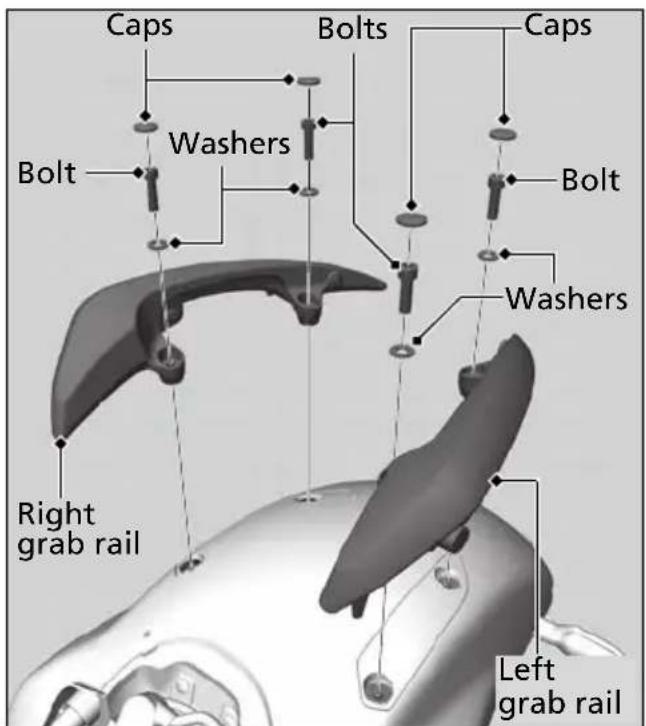

Caps Bolts Caps Washers Bolt Bolt Washers Right grab rail Left grab rail

1. Park on a firm, level surface.
2. Support your motorcycle securely and raise the rear wheel off the ground using a maintenance stand or a hoist.
3. Remove the rear and front seat. ➞ P. 52
4. Remove the right and left side covers. P. 54
5. Remove the caps, bolts and washers.
6. Remove the right and left grab rails.

Tire Puncture ▶ Removing Wheels

Rear fender B Clip A Clips C Clip A Clips B

1. Remove the clips A, clips B and clips C. P. 58, 59

2. Remove the rear fender B.

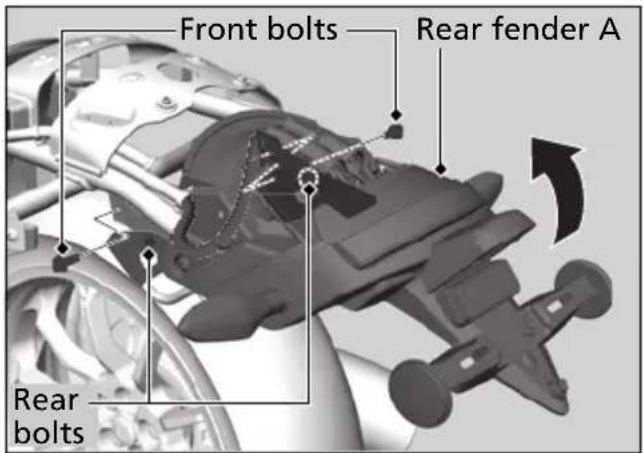

Front bolts Rear fender A Rear bolts

1. Remove the front bolts.
2. Loosen the rear bolts, and lift the rear fender A up, then tighten the rear bolts slightly.

Tire Puncture ▶ Removing Wheels

Rear wheel nuts

1. Remove the wheel nuts and rear wheel.

Installation

1. Install the rear wheel and tighten the rear wheel nuts in the order indicated in the image. Go around, tightening the nuts, two or three times in this order.

Torque: 80 lbf·ft (108 N·m, 11.0 kgf·m).

1. Loosen the rear bolts, and put the rear fender A back into its original place, then tighten the rear bolts slightly.
2. Install the front bolts.
3. Tighten the front and rear bolts.
4. Install the rear fender B.
5. Install the right and left grab rails.
6. Install the right and left side covers.
7. Install the front and rear seats.

If a torque wrench was not used for installation, see your dealer as soon as possible to verify proper assembly. Improper assembly may lead to loss of braking capacity.

Electrical Trouble

Battery Goes Dead

Charge the battery using a motorcycle battery charger.

Remove the battery from the motorcycle before charging.

Do not use an automobile-type battery charger, as these can overheat a motorcycle battery and cause permanent damage.

If the battery does not recover after recharging, contact your dealer.

NOTICE

Jump starting using an automobile battery is not recommended, as this can damage your motorcycle's electrical system.

Burned-out Light Bulb

All light bulb on the motorcycle are LEDs. If there is a LED which is not turned on, see your dealer for this service.

Electrical Trouble ▶ Burned-out Light Bulb

Headlight Bulb

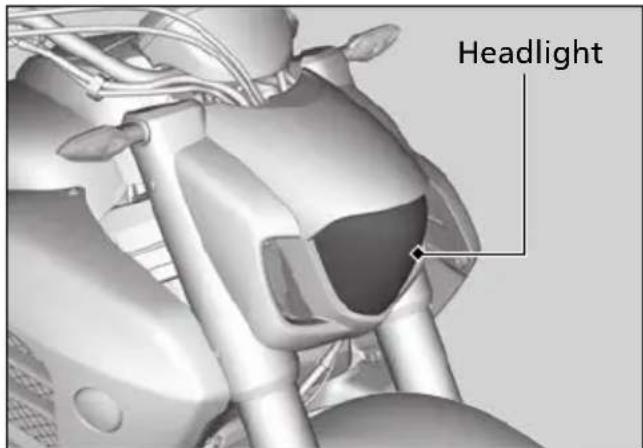

Headlight

The headlight uses several LEDs. If there is a LED which is not turned on, see your dealer for this service.

Brake/Taillight Bulb

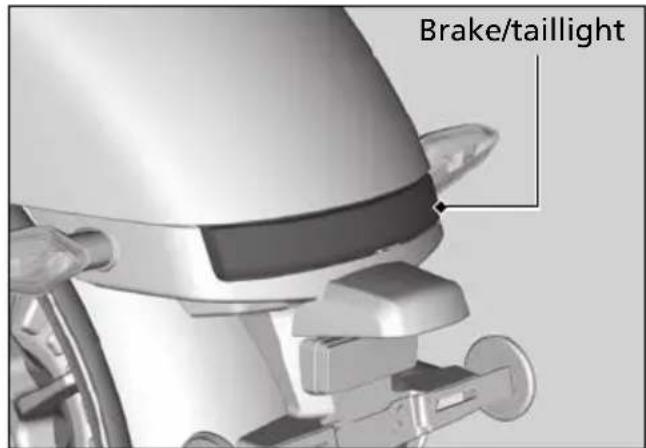

Brake/taillight

The brake/taillight uses several LEDs. If there is a LED which is not turned on, see your dealer for this service.

Electrical Trouble ▶ Burned-out Light Bulb

Front/Rear Turn Signal Bulb

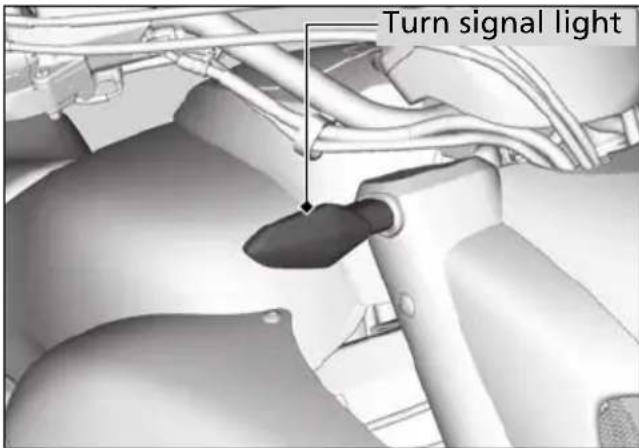

Turn signal light

The front/rear turn signal uses several LEDs. If there is a LED which is not turned on, see your dealer for this service.

License Plate Light Bulb

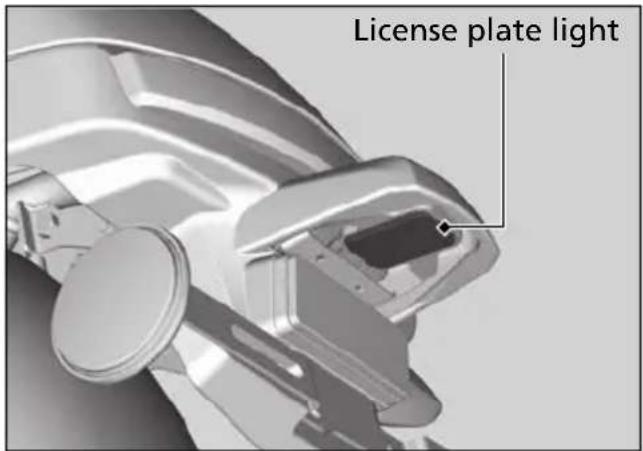

License plate light

The license plate light uses several LEDs. If there is a LED which is not turned on, see your dealer for this service.

Electrical Trouble ▶ Blown Fuse

Blown Fuse

Before handling fuses, see "Inspecting and Replacing Fuses." P. 45

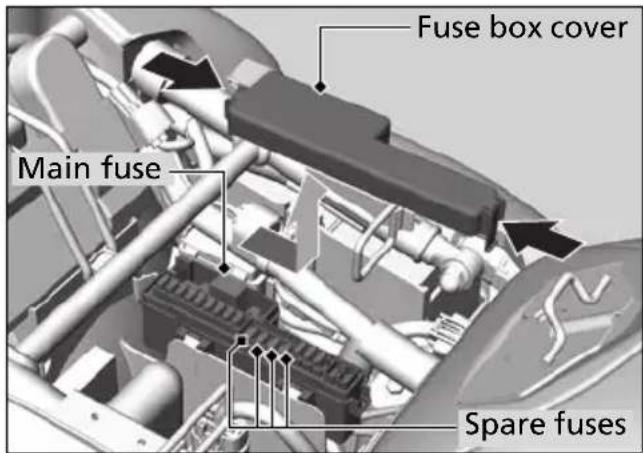

Fuse Box Fuses

Main fuse Fuse box cover Spare fuses

1. Remove the rear and front seats. ➡ P. 52
2. Remove the fuse box cover.
3. Pull the fuses out one by one check for a blown fuse. Always replace a blown fuse with a spare of the same rating.
4. Reinstall the fuse box cover.
5. Reinstall the front and rear seats.

NOTICE

If a fuse fails repeatedly, you likely have an electrical problem. Have your motorcycle inspected by your dealer.

Information

Keys P. 100

Instruments, Controls, & Other Features ...P. 101

Caring for Your Motorcycle ...... P. 102

Storing Your Motorcycle.... P. 105

Transporting Your Motorcycle ...... P. 106

You & the Environment ...... P. 107

Vehicle Identification Number...... P. 108

Emission Control Systems ...... P. 109

Catalytic Converter.... P. 114

Oxygenated Fuels.... P. 115

Authorized Manuals.... P. 116

Warranty Coverage and Service.... P. 117

Honda Contacts ......P. 118

USA Reporting Safety Defects.....P. 120

Keys

Keys

Ignition key

Be sure to record the key number provided with the key number plate. Store the spare key and recorded key number in a safe location.

To make a duplicate, take the spare key or the key number plate to a locksmith.

If you lose all keys and the key number plate, the ignition switch assembly will probably have to be removed by your dealer to determine the key number.

A metal key holder may cause damage to the area surrounding the ignition switch.

Instruments, Controls, & Other Features

Ignition Switch

The headlight is always on when the ignition switch is on. Leaving the ignition switch on with the engine stopped will drain the battery. Do not turn the key while riding.

Engine Stop Switch

Do not use the engine stop switch except in an emergency. Doing so when riding will cause the engine to suddenly turn off, making riding unsafe. If you stop the engine using the engine stop switch, turn the ignition switch off. Failing to do so will drain the battery.

Odometer

The display locks at 999,999 when the readout exceeds 999,999.

Tripmeter

The tripmeter A, B returns to 0.0 when the read-out exceeds 9,999.9.

Document Bag

The owner's manual, registration, and insurance information can be stored in the plastic document bag located in the luggage box. P. 33

Ignition Cut-off System

A banking (lean angle) sensor automatically stops the engine and fuel pump if the motorcycle falls over. To reset the sensor, you must turn the ignition switch to OFF and back to the ON position before the engine can be restarted.

Caring for Your Motorcycle

Caring for Your Motorcycle

Frequent cleaning and polishing is important to ensure the life of your Honda. A clean motorcycle makes it easier to spot potential problems.

In particular, seawater and salts used to prevent ice on roads promote the formation of corrosion. Always wash your motorcycle thoroughly after riding on coastal or treated roads.

Washing

Allow the engine, muffler, brakes, and other high-temperature parts to cool before washing.

1. Rinse your motorcycle thoroughly using a garden hose to remove loose dirt.
2. If necessary, use a sponge or a soft towel with mild cleaner to remove road grime.
   ▶Clean the headlight lens, panels, and other plastic components with extra care to avoid scratching them.

Avoid directing water into the air cleaner, muffler, and electrical parts.

1. Thoroughly rinse your motorcycle with plenty of clean water and dry with a soft, clean cloth.
2. After the motorcycle dries, lubricate any moving parts.

▶Make sure that no lubricant spills onto the brakes or tires. Brake discs, pads, drum or shoes contaminated with oil will suffer greatly reduced braking effectiveness and can lead to a crash.

1. Apply a coat of wax to prevent corrosion.

▶Avoid products that contain harsh detergents or chemical solvents. These can damage the metal, paint, and plastic on your motorcycle.
Keep the wax clear of the tires and brakes.

▶If your motorcycle has any matte painted parts, do not use wax or polishing compounds on the mat painted surface. These can damage or discolor the matte finish.

Caring for Your Motorcycle

Washing Precautions

Follow these guidelines when washing:

●Do not use high-pressure washers:

▶High-pressure water cleaners can damage moving parts and electrical parts, rendering them inoperable.

●Do not direct water at the muffler:

▶Water in the muffler can prevent starting and causes rust in the muffler.

●Dry the brakes:

▶Water adversely affects braking effectiveness. After washing, apply the brakes intermittently at low speed to help dry them.

- Do not direct water inside the right side cover:

▶Water in the inside side cover can damage your documents and other belongings.

●Do not direct water at the air cleaner:

▶Water in the air cleaner can prevent the engine from starting.

●Do not direct water near the headlight:
▶ Any condensation inside the headlight should dissipate after a few minutes of running the engine.
- Do not use wax or polishing compounds on matte painted surface:
▶Use a soft cloth or sponge, plenty of water, and a mild detergent to clean matte painted surfaces. Dry with a soft clean cloth.

Aluminum Components

Aluminum will corrode from contact with dirt, mud, or road salt. Clean aluminum parts regularly and follow these guidelines to avoid scratches:

• Do not use stiff brushes, steel wool, or cleaners containing abrasives.
  ●Avoid riding over or scraping against curbs.

Panels

Follow these guidelines to prevent scratches and blemishes:

Caring for Your Motorcycle

●Wash gently using a soft sponge and plenty of water.
●To remove stubborn stains, use diluted detergent and rinse thoroughly with plenty of water.
●Avoid getting gasoline, brake fluid, or detergents on the instruments, panels, or headlight.

Exhaust Pipe and Muffler

The exhaust pipe and muffler are stainless steel but may become stained by mud or dust. To remove mud or dust, use a wet sponge and a liquid kitchen abrasive, then rinse well with clean water. Dry with chamois or a soft towel. If necessary, remove heat stains by using a commercially available fine texture compound. Then rinse by the same manner as removing mud or dust.

When the exhaust pipe and muffler are painted, do not use a commercially available abrasive kitchen cleaning compound. Use a neutral detergent to clean the painted surface on the exhaust pipe and muffler. If you are not sure if your exhaust pipe and muffler are painted, contact your dealer.

NOTICE

Even though the exhaust is made of stainless steel, it can become stained. Remove all marks and blemishes as soon as they are noticed.

Storing Your Motorcycle

Storing Your Motorcycle

If you store your motorcycle outdoors, you should consider using a full-body motorcycle cover.

If you won't be riding for an extended period, follow these guidelines:

●Wash your motorcycle and wax all painted surfaces (except matte painted surfaces). Coat chrome pieces with rust-inhibiting oil.

- Place your motorcycle on a maintenance stand and position a block so that both tires are off the ground.

●After rain, remove the body cover and allow the motorcycle to dry.

- Remove the battery to prevent discharge. Charge the battery in a shaded, well-ventilated area.

▶If you leave the battery in place, disconnect the negative ⊖ terminal to prevent discharge.

After removing your motorcycle from storage, inspect all maintenance items required by the Maintenance Schedule.

USA For more information about storage, refer to the Honda Winter Storage Guide, available from your dealer.

Transporting Your Motorcycle

Transporting Your Motorcycle

If your motorcycle needs to be transported, it should be carried on a motorcycle trailer or a flatbed truck or trailer that has a loading ramp or lifting platform, and motorcycle tie-down straps. Never try to tow your motorcycle with a wheel or wheels on the ground.

NOTICE

Towing your motorcycle can cause serious damage to the transmission.

You & the Environment

Owning and riding a motorcycle can be enjoyable, but you must do your part to protect the environment.

Choose Sensible Cleaners

Use a biodegradable detergent when you wash your motorcycle. Avoid aerosol spray cleaners that contain chlorofluorocarbons (CFCs) which damage the atmosphere's protective ozone layer.

Recycle Wastes

Put oil and other toxic wastes in approved containers and take them to a recycling center. Call your local or state office of public works or environmental services to find a recycling center in your area, and to get instructions on how to dispose of non-recyclable wastes. Do not place used engine oil in the trash, or pour it down a drain or on the ground. Used oil, gasoline, coolant, and cleaning solvents contain poisons that can hurt refuse workers and contaminate drinking water, lakes, rivers, and oceans.

Vehicle Identification Number

Vehicle Identification Number

The VIN and engine serial numbers uniquely identify your motorcycle and are required in order to register your motorcycle. They may also be required when ordering replacement parts.

The VIN is stamped on the right side of the steering head and also appears on the Safety Certification Label attached to the left side of the frame.

The engine number is stamped on the right side of the crankcase.

You should record these numbers and keep them in a safe place.

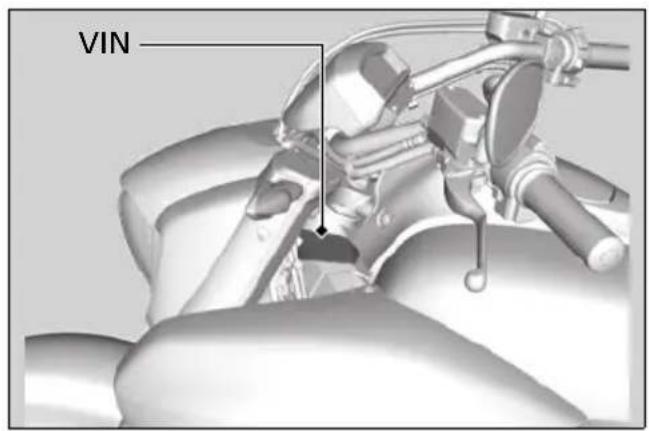

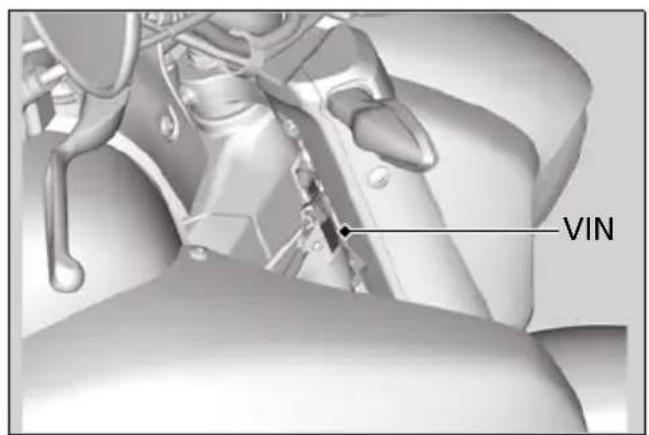

VIN

VIN

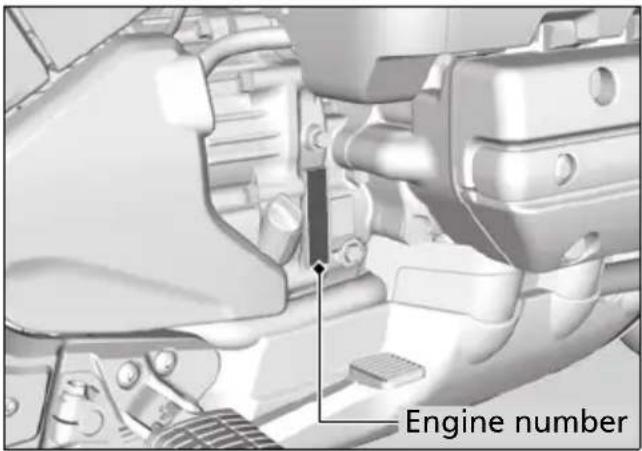

Engine number

Emission Control Systems

Your motorcycle engine emits combustion byproducts, including carbon monoxide (CO), oxides of nitrogen (NOx), and hydrocarbons (HC). Gasoline evaporation also emits hydrocarbons. Controlling the production of NOx, CO, and HC is important for the environment.

Emission Control Systems

Exhaust Emission Requirements

The U.S. Environmental Protection Agency (EPA), the California Air Resources Board (CARB), and Environment Canada (EC) require that your motorcycle comply with applicable exhaust, crankcase, and fuel permeation emission standards during its useful life, when operated and maintained according to the instructions provided.

CARB also requires that your motorcycle comply with applicable evaporative emission requirements during its useful life, when operated and maintained according to the instructions provided.

Compliance with the terms of the Distributor's Warranties for Honda Motorcycle Emission Control Systems is necessary in order to maintain a valid emissions system warranty (USA only). The Vehicle Emission Control Information label is attached to the right and left (Canada only) side of the frame.

Noise Emission Requirements

The EPA requires that motorcycles built after January 1, 1983 comply with applicable noise emission standards for one year or 3,730 miles (6,000 km) after the time of purchase when operated and maintained according to the instructions provided.

Exhaust Emission Control System

The exhaust emission control system includes the following components that should not need adjustment, although periodic inspection by your Honda dealer is recommended.

PGM-FI System

The PGM-FI (programmed fuel injection) system uses sequential multiport fuel injection, and is comprised of air intake, engine control, fuel control, and exhaust control subsystems. The engine control module (ECM) uses sensors to determine how much air enters the engine, and then controls how much fuel to inject.

Ignition Timing Control System

The ignition timing control system adjusts the ignition timing to reduce the amount of HC, CO, and NOx produced.

Secondary Air Injection System

The secondary air injection system adds filtered air into the exhaust gas to help improve emission control performance.

Catalytic Converters

The exhaust system contains one or more catalytic converters. Catalytic converters use a catalyst to convert most of the harmful exhaust gas compounds into harmless compounds.

Evaporative Emission Control System

An evaporative emissions control system uses a canister filled with charcoal to absorb fuel vapor from the fuel tank while the engine is off. The vapor is drawn into the engine and burned while riding.

Emission Control Systems

Crankcase Emissions Control System

The engine is equipped with a closed crankcase system to prevent discharging crankcase emissions into the atmosphere. Blow-by gas is returned to the combustion chamber through the front cylinder head, air cleaner housing and throttle body.

Fuel Permeation Emission Control

The fuel tank, fuel hoses, and fuel vapor charge hoses use fuel permeation control technologies to prevent fuel vapor emissions.

Tampering with these components to reduce or defeat the effectiveness of the fuel permeation technologies is prohibited.

Noise Emission Control System

TAMPERING WITH THE NOISE CONTROL SYSTEM IS PROHIBITED:

U. S. federal law prohibits, and Canadian provincial laws may prohibit, the following acts or the causing thereof: (1) The removal or rendering inoperative by any person, other than for purposes of maintenance, repair or replacement, of any device or element of design incorporated into any new vehicle for the purpose of noise control prior to its sale or delivery to the ultimate purchaser or while it is in use; or (2) the use of the vehicle after such device or element of design has been removed or rendered inoperative by any person.

AMONG THOSE ACTS PRESUMED TO CONSTITUTE TAMPERING ARE THE FOLLOWING ACTS:

●Removal of, or puncturing the muffler, baffles, header pipes or any other component which conducts exhaust gases.
●Removal of, or puncturing of any part of the intake system.
●Lack of proper maintenance.
- Removing or disabling any emissions compliance component, or replacing any compliance component with a non-compliant component.

Problems Affecting Motorcycle Exhaust Emissions

Have your motorcycle inspected and repaired by your Honda dealer if you experience any of the following symptoms:

●Hard starting or stalling after starting
●Rough idling
●Misfiring or backfiring during acceleration
●Poor engine performance and poor fuel economy

Catalytic Converter

Catalytic Converter

This motorcycle is equipped with a three-way catalytic converter. The catalytic converter contains precious metals that serve as catalysts in high temperature chemical reactions that convert hydrocarbons (HC), carbon monoxide (CO), and oxides of nitrogen (NOx) in the exhaust gasses into safe compounds.

A defective catalytic converter contributes to air pollution and can impair your engine's performance. A replacement unit must be an original Honda part or equivalent.

Follow these guidelines to protect your motorcycle's catalytic converter.

●Always use unleaded gasoline. Leaded gasoline will damage the catalytic converter.

- Keep the engine in good running condition. A poorly running engine can cause the catalytic converter to overheat causing damage to the converter or the motorcycle.

- If your engine is misfiring, backfiring, stalling, or otherwise not running properly, stop riding and turn off the engine. Have your motorcycle serviced as soon as possible.

Oxygenated Fuels

Oxygenated Fuels

Some conventional fuels blended with alcohol or an ether compound are available in some locales to help reduce emissions to meet clean air standards. These gasolines are collectively referred to as oxygenated fuels. If you plan to use oxygenated fuel, check that it is unleaded and meets the minimum octane rating and blend requirement.

The following fuel blends are EPA-approved and have been approved for use in your motorcycle:

●Ethanol (ethyl alcohol) up to 10% by volume.

▶ Gasoline containing ethanol may be marketed under the name Gasohol.

●Methanol (methyl alcohol) up to 5% by volume that contain cosolvents and corrosion inhibitors to protect the fuel system. Never use a blend containing more than 5%.

If you accidentally fill your fuel tank with an oxygenated fuel containing higher percentages, you may experience performance problems. To resolve the problem, have your dealer drain the fuel tank and replace with the correct fuel. Fuel system or performance problems resulting from the use of an oxygenated fuel containing higher percentages are not covered by your warranty.

NOTICE

Improper use of oxygenated fuels can damage metal, rubber, and plastic parts of your fuel system. Oxygenated fuel can also damage paint. Damage caused by spilled fuel is not covered by warranty.

If you notice any undesirable operating symptoms or performance problems, try a different brand of gasoline.

Authorized Manuals

Authorized Manuals

The Service Manual used by your authorized Honda dealer is available from your Honda dealer or Helm, Inc.

(USA only, Canada: See your Honda dealer to order authorized manuals.)

Also available, but not necessary to service your model, is the Honda Common Service Manual, which explains basic service information for various systems on Honda motorcycles, scooters, and all-terrain vehicles.

These Honda manuals are written for the professional technician. However, if you possess the proper tools, observe the safety standards, and are mechanically capable, you should find them easy to use.

Special Honda tools are necessary for some procedures.

Order On-Line: www.helminc.com

Order Toll Free: 1-888-CYCLE93

(1-888-292-5393)

(NOTE: For Credit Card Orders Only)

Monday – Friday 8:00 AM – 6:00 PM EST

Publication Item No.	Description
61MJR00 2014 GL1800C	Service Manual
61CSM00 Common Service	Manual
31MJR600 2014 GL1800C	Owner’s Manual

Warranty Coverage and Service

Warranty Coverage and Service

Coverage

Your new Honda is covered by the following warranties:

●Motorcycle Limited Warranty
●Emission Control System Warranty
●Noise Control Warranty (USA only)

The responsibilities, restrictions, and exclusions that apply to these warranties are explained in the Warranties Booklet given to you by your Honda dealer at the time of purchase. Always keep your Honda owner's card with your Warranties Booklet.

Canada Please refer to the Warranty Booklet posted on our web site at www.honda.ca.

It is important to realize that your warranty applies only to defects in material or

workmanship of your Honda. Your warranty coverage does not apply to the normal wear and deterioration associated with use of the motorcycle.

Your warranty coverage is not voided if you perform your own maintenance. However, failures that occur due directly to improper maintenance are not covered by these warranties.

You can extend almost all of your warranty coverage through the Honda Protection Plan (USA only). For more information, see your Honda dealer.

Service

Please remember that maintenance recommended in the Maintenance Schedule is not included in your warranty coverage.

Honda Contacts

If you believe you have a problem with your motorcycle, call the service department of your Honda dealer. Make an appointment for an inspection and diagnosis. You will be asked to authorize that inspection, and your dealer will return the results of the inspection. If a problem exists and is covered under warranty, your dealer will perform the warranty repairs. If you have any questions about your warranty coverage or the nature of the repair, talk to the Service Manager of your Honda dealer.

If a misunderstanding occurs and you aren't satisfied with your dealer's handling of the situation, we suggest you discuss your problem with the appropriate member of the dealership's management team. If you are still not satisfied, contact the owner of the dealership or their designated representative.

Honda Contacts

American Honda Motor Co., Inc.

If you wish to contact Honda directly to comment on your experiences with your motorcycle or with your dealer, please send your comments to the following address:

Motorcycle Division,

American Honda Motor Co., Inc.,

P.O. Box 2200, Torrance,

CA 90509-2200

Mailstop: 100-4C-7B,

Telephone: [phone].

Canada Honda Canada Inc., Customer

Relation Dept, 180 Honda Boulevard,

Markham, Ontario L6C 0H9, telephone: (888)

946-6329, facsimile: [phone]

E-mail: [e-mail]

Honda Contacts

Please include the following information in your letter:

●Name, address, and telephone number
●Product model, year, and VIN
●Date of purchase
●Dealer name and address

We will likely ask your Honda dealer to respond, or possibly acknowledge your comments directly.

Your Honda Dealer

The service department of your Honda dealer offers trained personnel to perform regular maintenance and most repairs. It has the latest available service information from Honda and also handles warranty inspections and repairs.

The parts department offers Honda Genuine Parts, Pro Honda products, Honda Genuine Accessories (USA only), and Honda accessories and products (Canada only) that provide the same quality that went into your motorcycle.

The sales department offers the Honda Protection Plan to extend almost all of your warranty coverage (USA only).

Your Honda dealer can also supply information about, riding events, and information about safety training available in your local area, and the Honda Rider's Club of America (USA only).

Honda Rider's Club of America (HRCA)

The Honda Rider's Club of America (HRCA) sponsors local riding chapters at Authorized Honda Dealerships across the country. You can log on to the HRCA Clubhouse website for more information at www.hrca.honda.com.

Reporting Safety Defects

USA Reporting Safety Defects

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at: 1-888-327-4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE., Washington, DC 20590. You can also obtain other information about motor vehicle safety from: http://www.safercar.gov.

Specifications

Main Components

Type SC68
Overall length 97.2 in (2,470 mm)
Overall width 37.0 in (940 mm)
Overall height 45.5 in (1,155 mm)
Wheelbase 67.1 in (1,705 mm)
Minimum ground clearance	5.7 in (145 mm)
Caster angle 29° 54'
Trail 4.5 in (114 mm)
Curb weight	Models without ABS752 lb (341 kg)
	Models with ABS756 lb (343 kg)
Maximum weight capacity*1	370 lb (168 kg)

*1 Including rider, passenger, all luggage, and accessories

Passenger capacity	Rider and 1 passenger
Minimum turning radius	12.1 ft (3.7 m)
Displacement 111.8 cu-in (1,832 cm ^3 )
Bore x stroke 2.91 x 2.80 in (74.0 x 71.0 mm)
Compression ratio	9.8:1
Fuel	Unleaded gasolineRecommended fuel octane number:Pump Octane Number (PON) 86 or higher.
Tank capacity 6.05 US gal (22.9 liters)
Battery	GYZ20L12V-20Ah (10 HR)
Gear ratios	1st 2.3752nd 1.4543rd 1.0684th 0.8435th 0.685
Reduction ratios(primary /secondary / final)	1.591 / 1.028 / 2.750

Specifications

Service Data

Tire size	Front 130/60R19M/C 61H
	Rear 180/55R17M/C 73H
Tire type Radial, tubeless
Recommended Tires	Front DUNLOP D254F
	Rear DUNLOP D256
Tire air pressure	Front 36 psi (250 kPa, 2.50 kgf/cm)	2)
	Rear 41 psi (280 kPa, 2.80 kgf/cm)	2)
Minimum tread depth	Front 0.06 in (1.5 mm)
	Rear 0.08 in (2.0 mm)
Spark plugs	(standard)	BKR6E-11 (NGK) or K20PR-U11 (DENSO)
	(high speed riding)	BKR7E-11 (NGK) or K22PR-U11 (DENSO)
	(cold climate)	BKR5E-11 (NGK) or K16PR-U11 (DENSO)
Spark plug gap		0.039 to 0.043 in (1.00 to 1.10 mm)
Idle speed 700 ± 100 rpm

Recommended engine oil	API Service Classification SG or higher except oils labeled as energy conserving or resource conserving on the circular API service label, SAE 10W-30, JASO T 903 standard MA, Pro Honda GN4 4-stroke oil (USA & Canada) or Honda 4-stroke oil, or an equivalent motorcycle oil
Engine oil capacity	After draining 4.0 US qt (3.8 liters)
	After draining & filter change 4.1 US qt (3.9 liters)
	After disassembly 5.0 US qt (4.7 liters)
Recommended final drive oil	Hypoid gear oil SAE 80
Final drive oil capacity	After draining 4.1 US oz (120 cm 3)
	After disassembly 5.4 US oz (160 cm 3)
Recommended brake fluid	Honda DOT 4 Brake Fluid
Cooling system capacity	4.08 US qt (3.84 liters)
Recommended coolant	Pro Honda HP Coolant

Specifications

Bulbs

Headlight LED

Brake/Taillight LED

Front turn signal lights LED

Rear turn signal lights LED

License plate light LED

Fuses

Main fuse 120A

Other fuses 30A, 20A, 15A, 10A

Torque Specifications

Engine oil drain bolt 25 lbf·ft (34 N·m, 3.5 kgf·m)

Oil filter 19 lbf·ft (26 N·m, 2.7 kgf·m)

Final drive oil fill hole cap 9 lbf·ft (12 N·m, 1.2 kgf·m)

Final drive oil drain bolt 15 lbf·ft (20 N·m, 2.0 kgf·m)

Front wheel axle bolt 44 lbf·ft (59 N·m, 6.0 kgf·m)

Front wheel axle pinch bolts 16 lbf·ft (22 N·m, 2.2 kgf·m)

Front wheel caliper mounting bolts 23 lbf·ft (31 N·m, 3.2 kgf·m)

Wheel speed sensor bolts 9 lbf·ft (12 N·m, 1.2 kgf·m)

Rear wheel nuts 80 lbf·ft (108 N·m, 11.0 kgf·m)

Information Record

VIN
Engine No.
Color Label & Code
Owner's Name
Address
City/State
Phone
Dealer's Name
Address
City/State
Phone
Service Manager

Index

A

ABS (Anti-lock Brake System) Indicator.. 24, 83

Accessories.... 14

Authorized Manuals 116

B

Battery 43,57

Brakes

Fluid....69

Pad Wear 70

Braking 10

Bulb

Brake/Taillight 96

Front/Rear Turn Signal.... 97

Headlight 96

License Plate Light 97

C

Caring for Your Motorcycle 102

Clutch

Fluid....71

Color Label 42

Coolant 47,67

D

Digital Clock Adjustment.... 21

E

Electrical Trouble.... 95

Emission Control Systems.... 109

Engine

Number.... 108

Oil 46,63

Overheats....81

Starting 28

Stop Switch 26, 101

Stopping 101

Environment 107

Equipment

Tool Kit 33

F

Final Drive Oil.... 47, 73

Flooded Engine 80

Fuel

Gauge 19

Recommended 30

Remaining 19

Tank Capacity.... 30

Fuses.... 45, 98

G

Gasohol 115

Gasoline 30

H

Hazard Switch.... 26

Headlight Aim 78

Headlight Dimmer Switch.... 26

Helmet Holder 32

High Beam Indicator 25

High Coolant Temperature Indicator.... 24, 81

Honda Contacts 118

Horn Button 26

I

Ignition Cut-off System

Banking Sensor 101

Side Stand 72

Ignition Key......100

Ignition Switch....27

Indicators....24

Information Record 124

Instruments....18

L

Labels....7

Load Limits 15

Loading Guidelines....15

Low Oil Pressure Indicator 24, 82

Luggage Box 33

M

Maintenance

Fundamentals 40

Importance 35

Safety 36

Schedule 37

Maximum Weight Limit.... 15

Modifications 14

N

Neutral Indicator.... 25

0

Odometer 19, 101

Oil

Engine 46,63

Final Drive 47,73

Other Warning Indications.... 84

Overheating 81

Oxygenated Fuels 115

P

Parking.... 12

Parts Location.... 16

PGM-FI (Programmed Fuel Injection) malfunction indicator lamp (MIL) .... 24, 82

Protective Apparel 9

R

Recommended

Final Drive Oil 47

Fuel 30

Refueling 30

Removal

Clip 58,59

Cylinder Head Side Cover 56

Front Lower Cover.... 55

Seat.... 52

Side Cover.... 54

Reporting Safety Defects (U.S.) 120

Riding Precautions 10

S

Safety Labels....7

Safety Precautions....9

Shifting Gears.... 29

Side Stand 72

Side Stand Ignition Cut-off System ..... 72

Specifications.... 121

Speedometer 18

Start Button 26

Starting the Engine 28

Steering Lock 27

Stopping Engine.... 101

Storage

Tool Kit 33

Storing Your Motorcycle.... 105

Switches 26

T

Tachometer.... 19

Throttle 76

Tires

Air Pressure....48

Puncture 85

Replacing....50

Tool Kit....33

Transporting Your Motorcycle......106

Tripmeter 19, 101

Turn Signal Indicator 25

Turn Signal Switch 26

V

Vehicle Identification Number......108

W

Warning Indicators ON....82

Warranty Coverage and Service .....117

Washing Your Motorcycle....102

Weight Limit 15, 121

Wheels

Front removal 86

Rear removal....92
