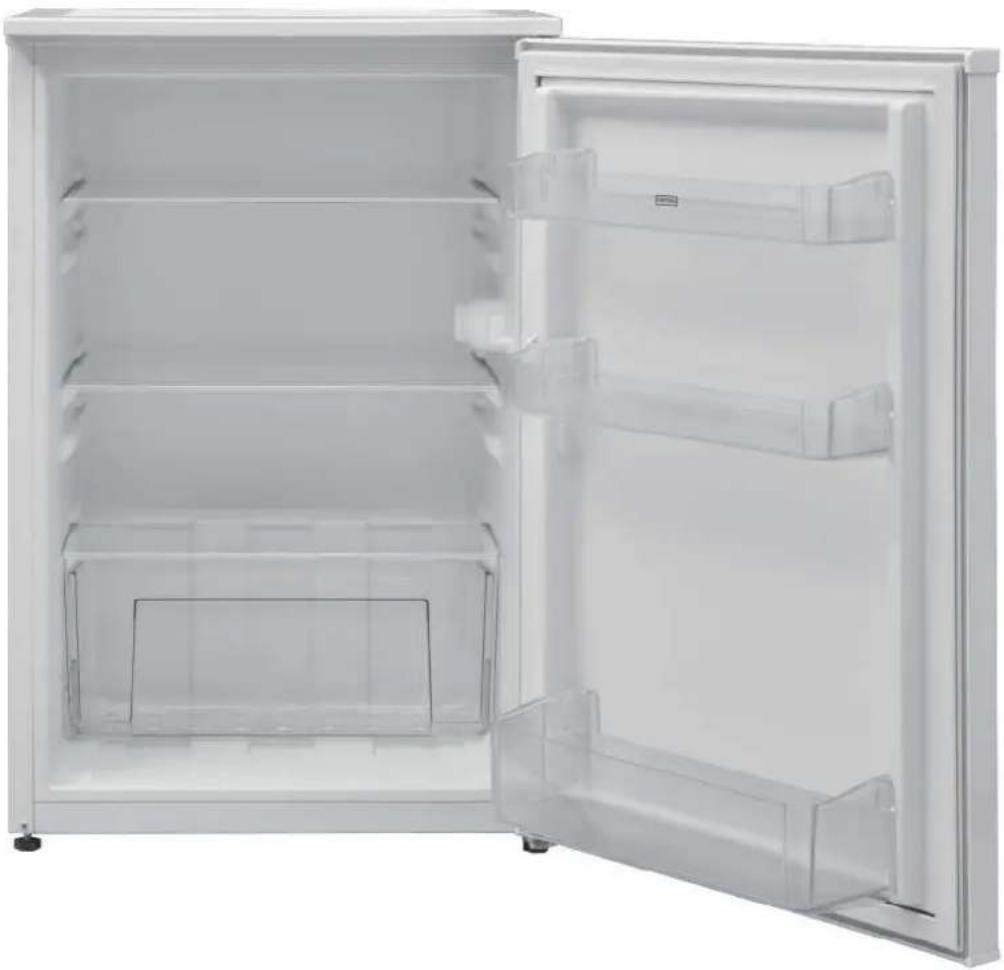

USER MANUAL KFR 08253.1 W Kernau

Interior view of a white refrigerator with open doors and internal compartments (no visible text or symbols)

www.kernau.com

SZANOWNY KLIENCIE

Illustration of three hands performing a cable stripping operation, showing hand positioning and tool path (no text or symbols)

Cartoon illustration of a distressed refrigerator with arms and legs, showing facial expression (no text or symbols)

PRZED ROZPOCZĘCIEM KORZYSTANIA Z LODÓWKI

Technical line drawing of a mechanical control panel with no visible text or symbols

NASTAWIANIE TERMOSTATU CHŁODZIARKO-ZAMRAŻARKI:

Technical line drawing of a mechanical component with no visible text or symbols

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Simple line drawing of a structural beam or support with a notch (no text or symbols)

Diagram showing a hand holding a circular object over a mechanical component, with an arrow indicating direction (no text or symbols present)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Technical diagram of an open refrigerator with numbered parts for identification and assembly reference.

Interior view of a white refrigerator with open doors and internal compartments (no visible text or symbols)

www.kernau.com

INDEX

PART 1. BEFORE USING THE APPLIANCE ...... 19

GENERAL WARNINGS 19

SAFETY WARNINGS 21

INSTALLING AND OPERATING YOUR FRIDGE 22

THERMOSTAT SETTING 23

SETTING THE THERMOSTAT OF THE REFRIGERATOR 23

IF YOUR FRIDGE IS NOT COOLING ENOUGH 23

PART 3. FOOD STORAGE IN THE APPLIANCE ...... 25

PART 4. CLEANING AND MAINTENANCE ...... 26

DEFROSTING REFRIGERATOR COMPARTMENT 26

REPLACING LED LIGHTING 26

PART 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 27

REPOSITIONING THE DOOR 27

PART 6. BEFORE CALLING FOR AFTER SALES SERVICE ...... 28

RECOMMENDATIONS 29

TIPS FOR SAVING ENERGY 29

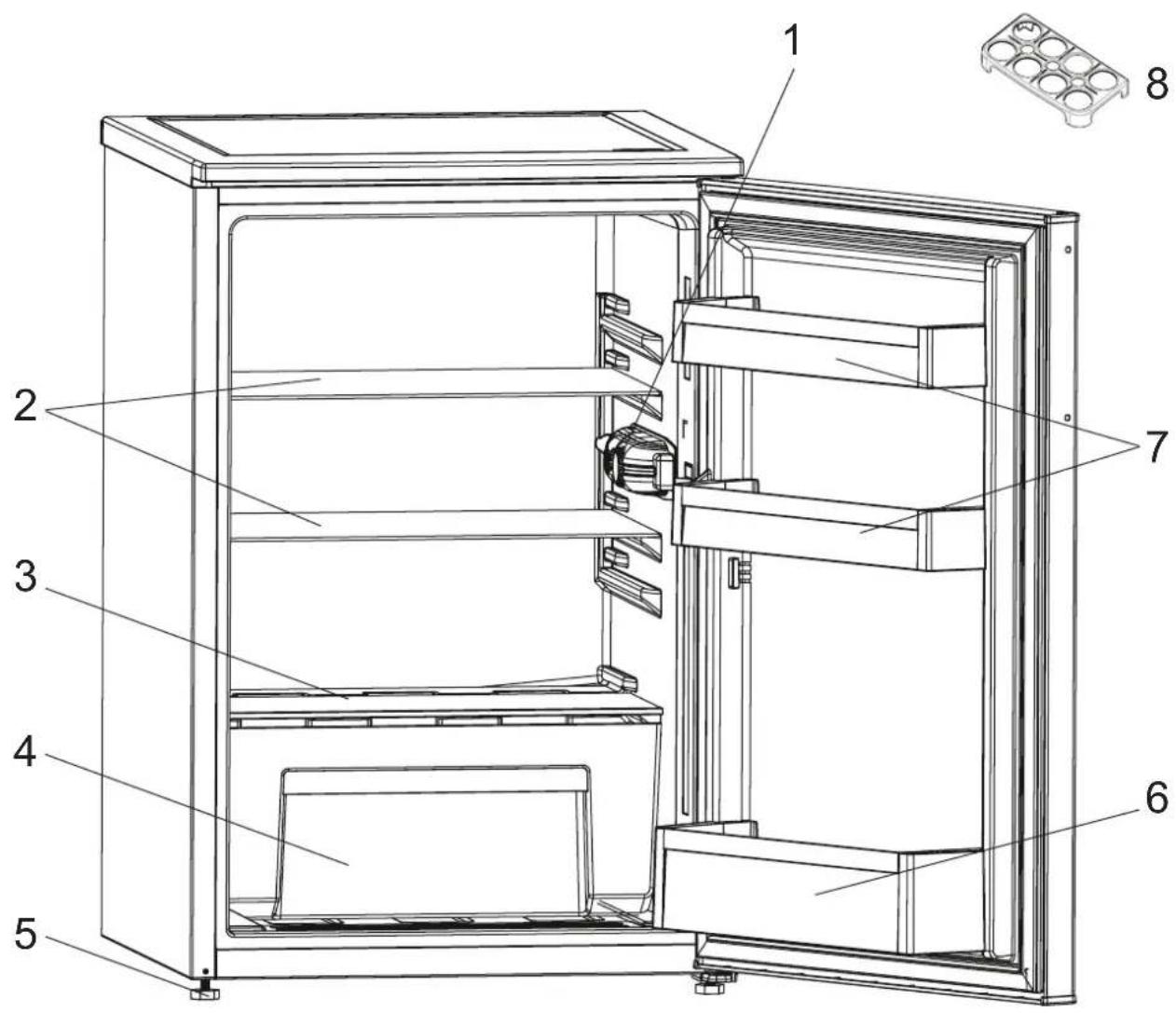

PART 7. PARTS OF THE APPLIANCE AND THE COMPARTMENTS .... 30

PART 8. DISPOSAL OF USED EQUIPMENT ...... 31

PART 1. BEFORE USING THE APPLIANCE

GENERAL WARNINGS

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the following instructions:

If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to home use only.

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) are vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.

- If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

- This appliance is not intended for use at altitudes exceeding 2000m .

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes.

- One-, two- and three-star compartments are not suitable for the freezing of fresh food.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

NOTES:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

SAFETY WARNINGS

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.

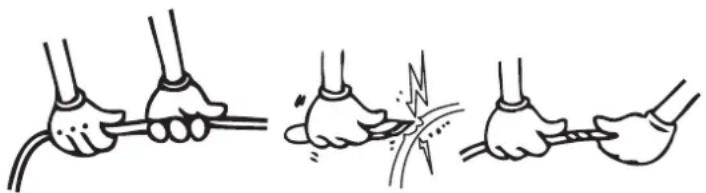

• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a cable or wire manipulation technique (no text or symbols present)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you have taken them out of the freezer department!
• Do not touch frozen goods with wet hands. Do not eat ice-cream or immediately after you have taken them out of the ice-making compartment.
• Do not cover the body or top of fridge with lace. This affects the performance of your fridge.
• Secure any accessories in the fridge during transportation to prevent damage to the accessories.
• Do not use plug adapter.

ice cubes

INSTALLING AND OPERATING YOUR FRIDGE

Before starting to use your fridge freezer, you should pay attention to the following points:

- Operating voltage for your fridge is 220-240 V at 50Hz. - We do not take the responsibility of the damages that occur due to ungrounded usage.

- Place your fridge in a place that it would not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or left under the rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15cm is available on the upper side.

- The adjustable front legs should be adjusted to make sure your appliance is level and stable. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts back with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

- Install the plastic distance guide (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.

- Refrigerator should be placed against a wall with a free distance not 75 mm.

Cartoon illustration of a distressed refrigerator with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

exceeding

- When using your fridge freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

- Your fridge freezer may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge starts to cool.

PART 2. HOW TO OPERATE THE APPLIANCE

THERMOSTAT SETTING

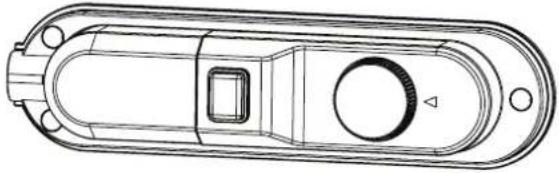

The fridge freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to

5, colder temperatures can be obtained.

Technical line drawing of a mechanical component with no visible text or symbols

IMPORTANT NOTE:

Do not try to rotate knob beyond 1 position it will stop your appliance.

SETTING THE THERMOSTAT OF THE REFRIGERATOR

1 - 2 : For short-term storage of food in the freezer compartment, you can set the knob between the minimum and medium position.

3-4: For long-term storage of food in the freezer compartment, you can set the knob to the medium position.

5: For freezing fresh food. The appliance will work for longer. So, after the desired condition is reached, return the knob to the previous setting.

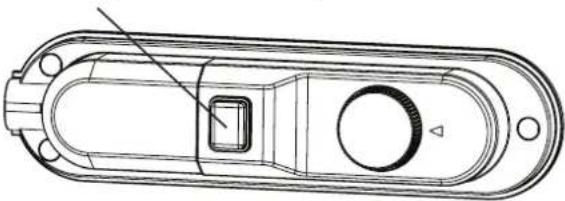

If Super Switch is available:

Super switch (In some models)

Technical line drawing of a mechanical device with no visible text or symbols

• Normally set this switch to '0' position. Except when the ambient temperature is low like in winter. (ie.below 16°C) or when the freezer temperature needs to be maintained lower. In that case, turn the switch to '1' position ON.
• To set super switch ON that is on the thermostat box, press the switch down to '1' position. The switch will lit.
• When the freezer compartment is cooled down to sufficient temperature, or the weather gets hot, turn the super switch off to save electrical consumption.
• When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.

If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

Super freezing: This switch shall be used as superfreeze switch. For maximum freezing capacity, please turn on this switch before 24 hours placing fresh food. After placing fresh food in the freezer, 24 hours ON position is generally sufficient. In order to save energy, please turn off this switch after 24 hours from placingfresh food.

TEMPERATURE SETTING WARNINGS:

• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the refrigerator compartment. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10^ C in terms of its efficiency.
• When setting the thermostat, take into consideration how often the appliance doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• When the appliance is first switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.
• Unplug your appliance during a power cut to prevent damage to the compressor. Once power is restored, delay plugging in your appliance for 5 to 10 minutes. This will help prevent damage to the appliance's components.
• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.
• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C -43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness.

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

PART 3. FOOD STORAGE IN THE APPLIANCE

Refrigerator compartment

For normal operating conditions, set the temperature of the cooler compartment to +4 or +6°C.

- To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.

- Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.

- Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.

- We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.

- Store loose fruit and vegetable items in the crisper containers.

- Store loose fruit and vegetables in the crisper.

- Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).

- Do not put wet vegetables into the refrigerator.

- Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.

- To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.

- Do not put food in front of the air flow passage.

- Consume packaged foods before the recommended expiry date.

- For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.

- The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.

- Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.

- Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)

- To prevent cross contamination, meat products and fruit vegetables are not stored together.

- Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

FOOD	MAXIMUM STORING TIME	WHERE TO PLACE IN THE FRIDGE DEPARTMENT
Vegetables and fruits	1 week Vegetable bin
Meat and fish	2 - 3 Days	Wrapped in plastic foil or bags or in a meat container (on the glass shelf)
Fresh cheese	3 - 4 Days In special	door shelf
Butter and margarine	1 week	In special door shelf
Bottled products milk and yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs	1 month In the egg shelf
Cooked food	—	All shelves

PART 4. CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not clean the appliance by pouring water.

Make sure that no water enters the lamp housing and other electrical components.

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

Clean the accessories separately with soap and water Do not clean them in the dishwasher.

Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

THE POWER SUPPLY MUST BE DISCONNECTED DURING CLEANING AND MAINTENANCE.

Illustration of a hand holding a tool over a grid-patterned object (no text or symbols)

DEFROSTING REFRIGERATOR COMPARTMENT

Simple line drawing of a structural beam or support with a notch (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

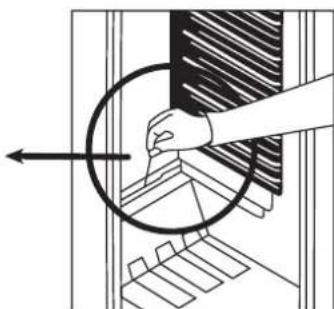

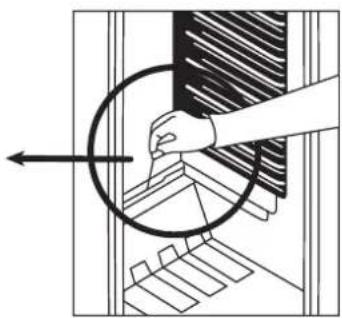

• The defrosting process is fully automatic, and it is conducted during appliance operation. Water from the defrosting process accumulate in the vaporizing gutter and is automatically vaproized.

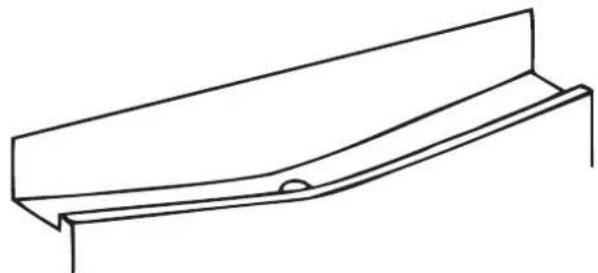

• The vaporing gutter and the drain hole (in the back of the friut drawer) should be periodically cleaned, to ensure freed fluxion of the water to the vaporing gutter.

REPLACING LED LIGHTING

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.
• Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

Carry your fridge in the upright position.

Simple line drawing of two children playing a board game (no text or symbols)

REPOSITIONING THE DOOR

• It is not possible to change the opening direction of your refrigerator door, if the door handles on your refrigerator are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your refrigerator may be changed, you should contact the nearest authorised service agent to have the opening direction changed.

PART 6. BEFORE CALLING FOR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate.

Check if

• There is no power.
• The general switch in your home is disconnected.

- The socket is not faulty. To check this, plug the appliance in to another socket which you know is working.

What to do if your appliance performs poorly.

Check that:

• You have overloaded the appliance.
• The thermostat setting is on position "1" (if so set the thermostat dial to a suitable value).
  • The doors are closed properly.
  • There is no dust on the condenser.
• There is enough space at the rear and side walls.

Normal Noises:

Cracking (Ice cracking) Noise:

• During automatic defrosting.
- When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking:

- Heard when the thermostat switches the compressor on/off.

Compressor noise (Normal motor noise):

- This noise means that the compressor operates normally Compressor may cause more noise for a short time when it is activated.

Bubbling noise and splash:

- This noise is caused by the flow of the refrigerant in the tubes of the system.

Water flow noise:

- Normal flow noise of water flowing to the evaporation container during defrosting. This noise can be heard during defrosting.

Air Blowing Noise (Normal fan noise):

- This noise can be heard in No-Frost refrigerator during normal operation of the system due to the circulation of air.

If there is water in the lower part of the refrigerator:

Check if:

- The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).

RECOMMENDATIONS

If the appliance is not used for long time (for example during the summer holidays) set te thermostat knob to “•” position. Defrost and clean the refrigerator leaving the door open to prevent the formation of midew and smell.

TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow ward food and drinks to cool down outside the appliance.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4. When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5. When placing food and drinks, open the appliance door as briefly as possible.
6. Keep close the covers of any different temperature compartment in the appliance (crisper, chiller ...etc).

7. Door gasket must be clean and pliable. In case of wear, if your gasket is detachable, replace the gasket. If not detachable, you have to replace the door.

8. The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks.

9. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.
   • Repairs may be carried out by technicians only.
10. If a component has to be replaced, ensure that only original spare parts are used.
11. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.
12. Contact information for your customer service can be found on the back of this document.
13. Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Customer service

PL: [phone]

Mon 7:00 - 17:00

Tue-Fri 9:00 - 17:00

[e-mail]

PART 7. PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Technical diagram of an open refrigerator with numbered parts labeled for identification.

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Thermostat box
2) Fridge shelf
3) Crisper cover
4) Crisper
5) Levelling feet
6) Bottle shelf
7) Chese / Butter shelves
8) Egg holder

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

PART 8. DISPOSAL OF USED EQUIPMENT

Fig. A

Fig. B

This device has been designed and manufactured of high-quality reusable materials and components.

The symbol of the crossed waste container placed on the product (Fig. A) means that the product is subject to selective collection in accordance with the provisions of Directive 2012/19/EU of the European Parliament and of the Council. A crossed-out wheelie bin symbol (Fig. B) placed on the product means that the product contains batteries that are subject to separate collection in accordance with the provisions of Directive 2006/66/EC of the European Parliament and of the Council. Such marking informs that electrical and electronic equipment and batteries (if any) must not be disposed of with other household waste after the period of use.

The user is obliged to return waste equipment and batteries (if any) to collection points for waste electrical and electronic equipment and batteries (if any). Collectors of such waste, including waste equipment collectors, treatment plants, distributors (shops), municipal waste separate collection points (municipal units), and other entities specified by law form an appropriate system to return this kind of equipment.

Correct disposal of waste equipment and batteries (if any) allows avoiding consequences that may be harmful to health and the environment, caused by the possible presence of hazardous components in the equipment and batteries, and inappropriate storage and processing of such equipment and batteries. Households play an important role in contributing to the reuse and recovery, including recycling, of waste equipment. At this stage, attitudes are formed, affecting the common good, which is a clean natural environment.

Moreover, households are one of the largest users of small equipment and the rational management thereof at this stage affects the recovery of secondary raw materials.

Penalties may be imposed in accordance with national legislation for improper disposal of this product. If the device has a lock, please remove it for the safety of all persons who may later come into contact with the device.

Some refrigerators and freezers contain insulation material and CFC refrigerant. Therefore, be careful not to pollute the environment when you dispose of your old refrigerator.

NÁVOD K OBSLUZE LEDNIČKA KFR 08253.1 W

Interior view of a white refrigerator with open doors and internal compartments (no visible text or symbols)

www.kernau.com

OBSAH

ČÁST 1. PŘED POUŽITÍM SPOTŘEBIČE ...... 33

VŠEOBECNÁ UPOZORNĚNÍ 33

VAROVÁNÍ 34

INSTALACE A PROVOZ VAŠÍ CHLADNIČKY 36

PŘED POUŽITÍM VAŠÍ CHLADNIČKY 36

ČÁST 2. POUŽÍVÁNÍ SPOTŘEBIČE ...... 37

NASTAVENÍ TERMOSTATU 37

VAROVÁNÍ OHLEDNĚ NASTAVENÍ TEPLOTY 37

ČÁST 3. ROZMÍSTĚNÍ POTRAVIN VE SPOTŘEBIČI ...... 39

ČÁST 4. ČIŠTĚNÍ A ÚDRŽBA 40

ODMRAZOVÁNÍ CHLADICÍHO PROSTORU 40

VÝMĚNA LED OSVĚTLENÍ 40

ČÁST 5. PŘEPRAVA A ZMĚNA MÍSTA INSTALACE ...... 41

ZMĚNA OTEVÍRÁNÍ DVÍŘEK 41

ČÁST 6. NEŽ KONTAKTUJETE ZÁKAZNICKÝ SERVIS ...... 42

DŮLEŽITÉ POZNÁMKY 42

TIPY PRO ÚSPORU ENERGIE 43

ČÁST 7. ČÁSTI A SOUČÁSTI ZAŘÍZENÍ ...... 44

ČÁST 8. LIKVIDACE OPOTŘEBOVANÝCH ZAŘÍZENÍ ...... 45

ČÁST 1. PŘED POUŽITÍM SPOTŘEBIČE

VŠEOBECNÁ UPOZORNĚNÍ

Illustration showing three different hand positions (no text or symbols present)

INSTALACE A PROVOZ VAŠÍ CHLADNIČKY

Diagram showing two coil-like structures with directional arrows indicating motion or force (no text or symbols)

PŘED POUŽITÍM VAŠÍ CHLADNIČKY

Technical line drawing of a mechanical component with no visible text or symbols

DŮLEŽITÁ POZNÁMKA:

Technical line drawing of a mechanical component with no visible text or symbols

Cartoon illustration of a smiling refrigerator with sunglasses and a bowl of food (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with an arrow indicating direction (no text or symbols present)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Technical diagram of an open refrigerator with numbered parts labeled 1 through 8

Interior view of a white refrigerator with open doors and internal compartments (no visible text or symbols)

www.kernau.com

3MICT

Illustration showing three different techniques for using a cable or wire to interact with a tool, no text or symbols present.

Diagram showing two curved heat exchanger-like structures with internal components and directional arrows (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

Illustration of a hand holding a tool over a grid-patterned object (no text or symbols)

Simple line drawing of a structural beam or support bracket (no text or symbols)

Diagram showing a hand pressing down a mechanical component with an arrow indicating direction (no text or symbols present)

Simple line drawing of two children holding a large rectangular object (no text or symbols)

Technical diagram of an open refrigerator with numbered parts labeled 1 through 8
