Product Type	Electric Raclette Grill with Side Pans
Brand	Eta
Model	Raclet 4162 90000
Dimensions (mm)	570 x 220 x 145
Weight (kg)	Approx. 4.5
Material	Metal and plastic
Color	Black
Number of Pans Included	7 (6 small, 1 larger)
Heating Surface	Grilling plate with fat outflow groove
Temperature Control	Adjustable thermostat with indicator light
Safety Features	Thermostat cycling, hot surface warning, auto shut-off not specified
Cleaning Instructions	Wipe with damp cloth; pans washable in hot water. Do not immerse grill or use dishwasher.
Storage	Store in dry place after cooling
Protection Class	I
Usage	Household use only, indoor

Frequently Asked Questions - Raclet 4162 90000 Eta

How do I assemble the grill?

Place the side rack A3 into the grill base A1, then put the grilling surface A2 on top so that the plate openings match the base projections. Place the pans B into the recesses of the side rack if needed.

How do I clean the grill?

Before cleaning, unplug the appliance and let it cool down. Wipe the grill surfaces with a soft damp cloth and soap. Do not use abrasive cleaners or immerse the grill in water. Wash the pans in hot water with detergent and dry thoroughly.

What should I do if food is not cooked enough?

Check if the temperature is set too low or the cooking time is too short. Increase the temperature or cooking time. Also ensure you are not overloading the grill with too much food.

Why is the grill emitting an unpleasant odour?

This may be due to food or fat residues on the grill. Clean the grill thoroughly according to the maintenance instructions (see section V). A short mild smoke during first use is normal.

Can I use the grill on an uneven surface?

No, the grill should be placed on a dry and even surface (e.g. kitchen table) at a height of at least 85 cm, out of reach of children.

How long should I preheat the grill?

Preheat the grill for approximately 10 minutes without food. The working temperature is achieved when the indicator light turns off.

Can I cook frozen food on the grill?

It is recommended to use fresh foods only. Cooking frozen meat may take significantly longer and is not advised.

How should I cut food for grilling?

Cut food into small thin slices for even cooking. Remove sinew and fat from meat, and bones from fish.

How do I store the grill after use?

Make sure the grill and all parts have cooled down. Store in a safe, dry location out of reach of children and incapacitated persons.

Is the grill safe for children to use?

Children aged 8 years and above can use the appliance under supervision. Children should not play with the appliance or perform cleaning without supervision. Pay special care to avoid burns from hot surfaces.

USER MANUAL Raclet 4162 90000 Eta

Black rectangular kitchen grater with slatted grates and a flat top, no visible text or symbols

CZ I. BEZPEČNOSTNÍ UPOZORNĚNÍ 3

II. POPIS SPOTŘEBIČE (obr. 1) 5

III. PŘÍPRAVA A POUŽITÍ 6

IV. POKYNY K OBSLUZE 6

V. ÚDRŽBA 7

II. DESCRIPTION OF THE APPLIANCE (pic. 1) 19

III. PREPARATION AND USE 20

IV. OPERATING INSTRUCTIONS 20

V. MAINTENANCE 21

VI. TROUBLESHOOTING 22

VII. ENVIRONMENTAL PROTECTION 22

VIII. TECHNICAL DATA 22

HU I. BIZTONSÁGI FIGYELMEZTETÉSEK 23

A2 A A1 A3 A5 A6 A4

Black square baking pan with handle, labeled '6x' (no other text or symbols)

B

Black square baking pan with handle, labeled '1x' (no other text or symbols)

Close-up of a mechanical component with slats and a grid-like structure (no visible text or symbols)

III. PŘÍPRAVA A POUŽITÍ

A2 A A1 A3 A5 A6 A4 ①

Black plastic tray with handle and side clip, labeled '6x' (no other text or symbols)

B

Black square baking pan with handle, labeled '1x' on the side (no other text or symbols)

Close-up of a mechanical component with slats and a rectangular housing (no visible text or symbols)

III. PRÍPRAVA A POUŽITIE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY NOTICE

- Carefully read the user's manual before putting the appliance into operation, see the illustrations and save the manual for future use. Consider the instructions in the user's manual as a part of the appliance and provide it to other users of the appliance.

- Never use the appliance if the power cord or power plug are damaged, if it is not functioning correctly or if it has fallen on the floor and been damaged or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

– Pay careful attention when handling the grill to avoid injury, (e.g. burns, scalding).

- If the power cord of this appliance is damaged, the cord must be replaced by the manufacturer, their service technician or by a similarly qualified person, this will prevent the creation of a dangerous situation.

- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

-Always unplug the appliance from power supply if you leave it unattended.

- CAUTION: Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- Before every connection to the power grid make sure that the temperature control dial is in the position 0. After finishing work and before any maintenance always turn the temperature control dial to the position 0 and disconnect the appliance from the electrical grid by pulling the power cord plug from the power socket.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Never immerse the appliance (or its part) in water and do not clean it in running water!

- Check that the voltage on the type label corresponds to the voltage in your electric power socket. The power plug must be connected to a properly installed and grounded power socket.

- Do not use the grill if it is wet, your hands are wet or on a wet surface!

- The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).

- NOTICE – Some parts of this product may become very hot and cause burns. Take special care when children or handicapped persons are present.

- Do not use the grill unless correctly assembled.

– Before changing accessories (A1, A2, A3) allow the appliance to cool down.

– Always use quality oil or shortening recommended by the manufacturer for cooking on the grill.

- When grilling fatty meat or sausages, be careful about splashing fat.

- Do not insert the power plug into the electric power socket and do not pull it out of the electric power socket with wet hands or by pulling on the power cord!

- Do not use the grill outdoors! Do not use the grill to heat a room!

- Do not leave the grill on without supervision and supervise it for the entire time that food is being prepared.

- Do not use the grill for other purposes (e.g. for drying textile products, shoes, etc.) than those recommended by the manufacturer.

- Do not place the grill on unstable, fragile or flammable surfaces (e.g. glass, paper, plastic, wooden-varnished boards and various fabrics/tablecloths).

- Use the grill only in the working position in places, where there is no risk of it being knocked over and at a sufficient distance from flammable objects (e.g. curtains, drapes, wood, etc.), sources of heat (e.g. fire stoves, stoves, etc.) and wet surfaces (kitchen sinks, wash basins etc.).

– Before frying remove any food packaging (e.g. paper, PE-bag, etc.).

- When grilling spontaneous combustion of foods is possible. If sudden combustion (fire) occurs, disconnect the appliance from the power grid and put the fire out.

- Do not carry or disassemble the appliance when it is hot, if by chance it is tipped over there is a danger of a burn injury. Due to high temperature, the pad under the appliance may heat up. Do not touch it until it cools down.

- The power cord must not be damaged by sharp or hot objects, by an open flame and it must not be submerged under water. Never place it on hot surfaces and do not leave it hanging over the edge of a table or a work bench. If the cord is brushed against or tripped over or pulled by for example children the appliance may tip over or be pulled down and lead to serious injuries!

- In terms of fire safety the grill conforms to the norm EN 60 335-2-6. According to this norm this is an appliance that may be operated on a table or a similar surface under the condition that in the direction of the main heat radiation, i.e. above the hotplate, a safe distance of 500mm must be maintained from flammable materials and at least 100mm in the other directions.

- If the use of an extension cord is necessary, then it must not be damaged and must meet the valid norms in force.

- Regularly check the condition of the appliance's power cord.

• Only use the appliance with original accessories from the manufacturer. The use of other accessories may present a danger for the user.
• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.
• WARNING: There is a risk of injury when the appliance is not used correctly (not in accordance with the manual).
• All texts in foreign languages and pictures shown on the packaging or the product itself, are translated and explained at the end of this language mutation.
• The manufacturer takes no responsibility for damages caused by the incorrect use of this appliance and accessories (e.g. ruining of foods, injury, burns, scalding, fire) and takes no responsibility arising from the warranty on the appliance in the case that the above safety notices were not followed.

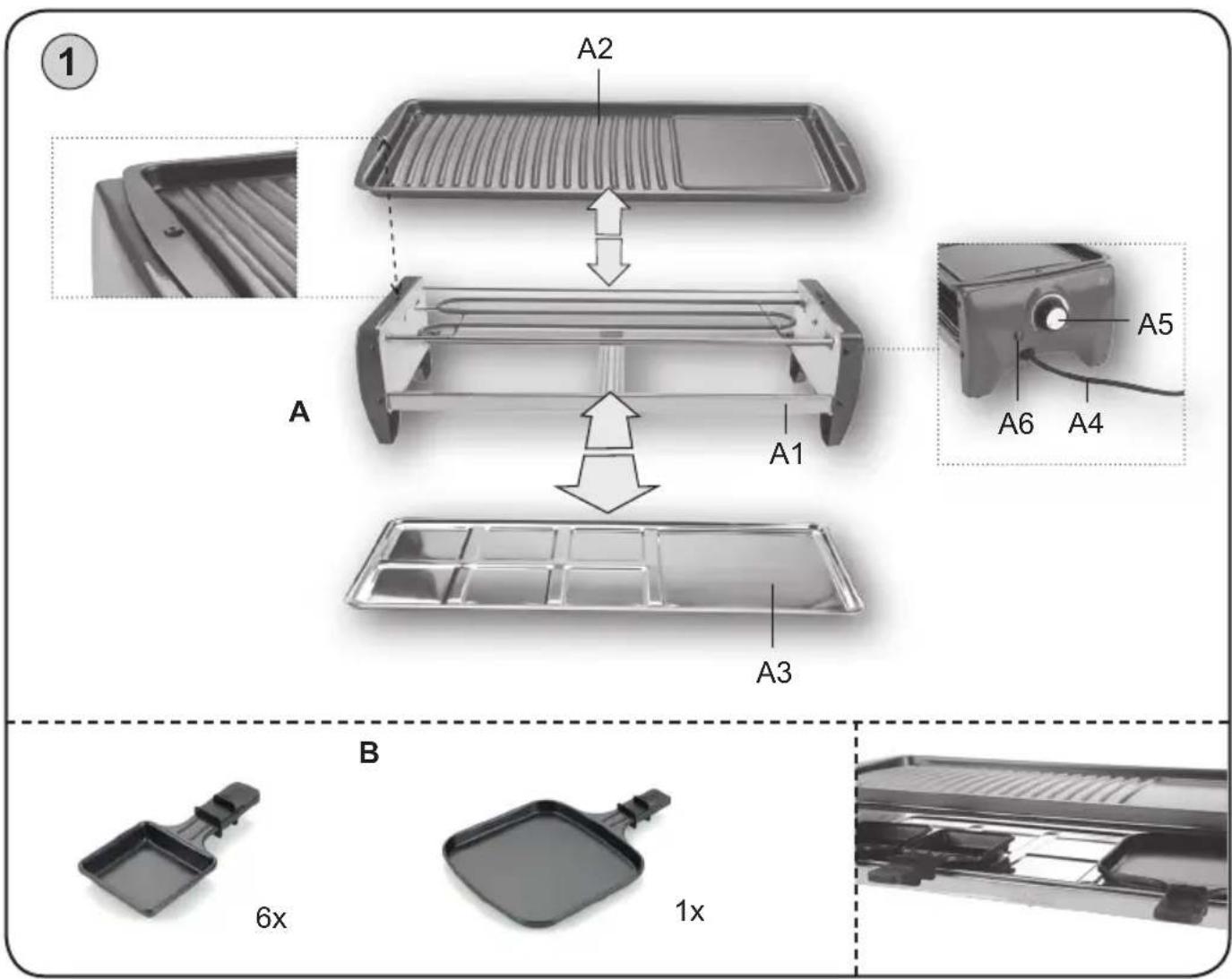

II. DESCRIPTION OF THE APPLIANCE (pic. 1)

A - grill

A1 – grill base A4 – supply cord

A2 – grilling surface A5 – temperature regulator

A3 – side rack A6 – operation setting indicator

B – pans

A2 A A1 A3 A5 A6 A4 B 6x 1x

III. PREPARATION AND USE

Remove all packaging materials and take out the grill with its accessories. Remove all adhesive foils, stickers or paper from the grill. When using the grill for the first time, put the pans with a little oil in them (without food) on the side rack A3 and place the grilling surface A2 (without the food) on the supporting laths. Set the maximum temperature and let an grill in operation with a window open for about 10 minutes, then turn it off and let it cool down. Short mild emission of smoke is not a defect and is no reason for complaint. After it has cooled down clean the parts that will come in contact with food using hot water with detergent, thoroughly rinse with clean water and wipe dry, if necessary allow to dry (see paragraph V. MAINTENANCE). The appliance is now ready for use.

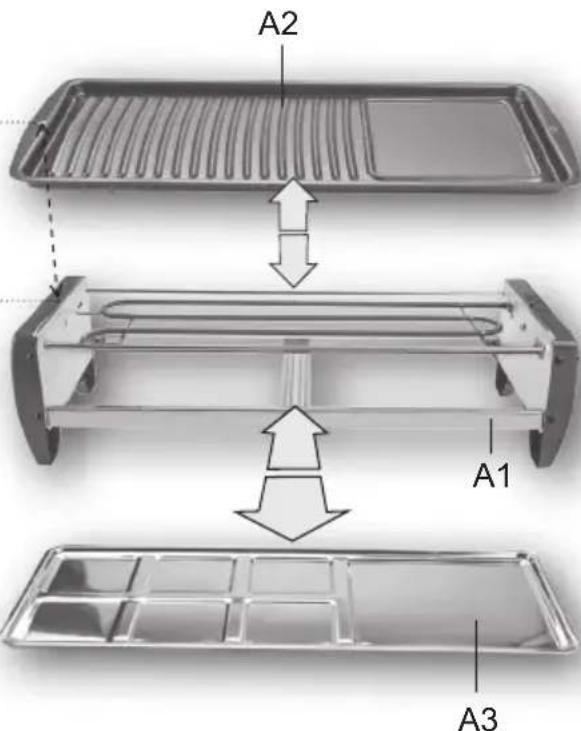

Grill assembly

Grill assembly is easy and intuitive. Put the grill plate A2 and the bottom panel A3 in the grill base A1, and if necessary, place the pans B in the recesses of bottom panel A3. First, put the bottom panel A3 in the base A1, and then put the grill plate A2 on the grill base A1 so that the plate openings will match the base projections.

IV. OPERATING INSTRUCTIONS

Place the grill on a dry and even surface (e.g. kitchen table) at a height of at least 85 cm, out of the reach of children. Insert the power plug A4 into the power socket and check that it does not lead under the grill. Make sure that the power supply cord is not damaged and that it is not led underneath the appliance or over any sharp or hot surfaces. The socket must be readily accessible so that the appliance could be easily disconnected from the mains in case of danger. Set the temperature regulator A5 to the MAX position. The operation setting indicator A6 will turn on. Allow the grill to heat up for approximately 10 minutes without placing any food (or pans) on it. Working temperature is achieved when the indicator light A6 turns off. Place the food on grilling surface A2. Turn off the grill by turning the temperature regulator A5 to position 0 (and unplug supply cord from el. socket) a few minutes before finishing grilling because the hotplate is sufficiently hot to complete the grilling of the food.

Note

• When the temperature is changed using the temperature regulator A5 during the course of grilling it will take approx. 5 to 10 minutes for the hotplate to achieve the set temperature.
• When a large amount of food is processed, the capacity of the fat outflow groove may be insufficient. In order to empty it, first switch off the appliance, let the grill plate A2 cool down, and then remove the fat.
• The recesses on the sides of the grill base A1 are intended to hold and move the grill set.
• While heating the thermostat may cycle (the indicator light turns on and off). This is not considered to be a defect.

Important notice

• Always allow the hotplates to heat up to working temperature before placing food on them.
• Do not touch the metal parts of the grill or the hotplate during grilling, because these parts are HOT! Pay special care to ensure that children do not touch the hotplate!
• Never place frozen or heavy foods on a hotplate.
• Do not leave an empty grill turned on for longer than 30 minutes.
• Never cut food that is being prepared on the grilling surface!
• Household pets (e.g. exotic birds) may have sensitive reactions to smells/odours, steam and smoke created while food is being cooked. For this reason we recommend that food is cooked in a different room.

All recommended cooking times for foods recommended in expert literature (cookbooks) assume that meat has the temperature as when taken from the refrigerator. Cooking frozen meat may take significantly longer.

Consider the following cooking tips as examples and inspiration, the purpose of which is not to provide instructions but to show various ways of cooking food. Cooking (processing) times for foods are only approximations and are in the range of minutes. The cooking time will change depending on the temperature of the grill, the surrounding area and the type of food being cooked. You may adjust the cooking time depending on your preference, the longer the food is cooked the more well done it will be, crunchier. Carefully monitor the food while cooking on the grill and adjust the cooking time as you see necessary. Turning the food over more regularly will achieve more even cooking. Before grilling vegetables, fish or lean meat, we recommend that you grease the hotplate with vegetable oil or spray it with a special spray that prevents foods from sticking. When cooking meat containing fat or foods that have been marinated it is not necessary to treat the hotplate in this way. Use only fresh foods (not frozen). Remove sinew and fat from the meat. Remove bones from fish. Cut the food you wish to grill into small thin slices. If you will be cooking various types of food after each other (e.g. meat, fish, fruit), we recommend that you clean the remains from the hotplate between the individual stages using wooden tongs or spatula. Do not clean the hotplate with water when hot!

You may use the following table as a guide for determining the approximate grilling time:

Food

Cooking time (min.)

Status check

Chicken breasts, slice about 1 cm thick 5 – 6 the meat must not be pink

Neck of pork, slice about 1cm thick 8 – 9 the meat must not be pink

Beef rump, slice about 1cm thick 4 – 5 to taste

Pans (B)

They are intended for preparation/heating up of other side dishes (cheese, eggs, vegetables, etc.). during the preparation of the meat. Place a slice/piece of cheese into the pans (e.g. edam, camembert etc.) and place the pans on the side rack A3. The cheese melts nicely in approx. 5 minutes. Do not leave empty pans on the side rack.

V. MAINTENANCE

Before carrying out any maintenance disconnect the appliance from the power grid by pulling out the plug on the power cord from the el. socket! Only clean the grill once it has cooled down! Clean regularly after every use by wiping with a soft damp cloth and with soap! Do not use abrasive or aggressive cleaning agents (e.g. sharp objects, caustic pipe cleaning agents etc.). Also do not use any pressure cleaning equipment (e.g. dishwasher, pressure or steam cleaner)! After each use, remove all residues of fat or food stuck on the grilling surface A2, on the side rack A3 and the grill base A1. Wash the pans B in hot water with soap and wipe dry. If the power cord is soiled, wipe it with a wet cloth. It is normal for the colour of surfaces to change over time. This change in no way changes the properties of the surface and is not a reason for complaint about the appliance!

Storage

Before storage, make sure that the pot and any of its parts have cooled down. Store the grill in a safe and dry location that is out of reach of children and incapacitated persons.

VI. TROUBLESHOOTING

Problem Cause Solution

Foods are not cooked enough	The set temperature is too low	Information about temperature and time can be found on the food label
	Short cooking time
	Too much food on the hotplate	Reduce the amount of food
The grill is emitting an unpleasant odour	The grill is soiled (food and fat remains)	Clean the grill according to paragraph V. MAINTENANCE
The grill doesn't work	The power is not connected Check the power cord, plug and el. socket
	The control dial is se to 0	Set the control dial to MAX temperature

VII. ENVIRONMENTAL PROTECTION

If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electric or electronic products must not be disposed of together with municipal waste. For proper disposal of the product, hand it over at special collection places where it will be taken over free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or in the nearest collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation for good, after disconnecting it from power supply we recommend cutting off the power cord and thus it will not be possible to use the appliance again.

More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to warranty repair!

VIII. TECHNICAL DATA

Voltage (V) / Input power (W) shown on the type label of the appliance

Weight (kg) approx. 4.5

Protection class of the appliance I.

Size of the product (mm) 570 x 220 x 145

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS,

CARRIAGES OR PLAYPENS.

THIS BAG IS NOT A TOY.

WARNING: HOT SURFACE
