USER MANUAL Electronic 0762 90000 Eta
The electric foil welder is a practical appliance for welding polypropylene and polyethylene foils at home. It is designed primarily for making packaging for food such as meat, fruit, vegetable and ready meals that we want to cook or keep them fresh by freezing. When using medically unsound foils, you may defrost frozen contents, heat up and cook in water in the package. The welder may further be used for making packages for laundry, flowers, presents and long-term storage of various objects.
I. SAFETY INSTRUCTIONS
- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
- Check whether the data on the type label corresponds with the voltage in your socket. The power cord plug may only be connected to the electrical socket complying with the applicable standards.
- This appliance may only be used by children aged 8 years or older, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
- Do not leave the appliance running without attendance and check it during the whole process of welding!
- Before replacing accessories or accessible parts, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!
- Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.
- Never use the appliance if the power cord or power plug are damaged, if the appliance is not correctly operating or if it has fallen on the floor and been damaged, or if it has fallen into water. In such cases take the appliance to a professional service centre to verify its safety and correct function.
- Pay careful attention when handling the appliance to avoid injury, (e.g. burns).
- The appliance has a hot surface. Persons insensitive to heat must be careful when using the appliance.
- When the appliance is in operation, prevent pets, plants or insects from getting in contact with it.
- The appliance is intended for home use and for similar purposes (in shops, offices and similar sites, in hotels, motels and other residential premises, or in facilities providing bed and breakfast service). It is not intended for commercial use!
- Do not plug the power cord in the electrical socket and do not unplug it with wet hands or by pulling the power cord!
- Do not place any objects on the appliance.
- Never immerse the appliance into water or any other liquid (even its parts)!
- Holes for air ventilation must not be covered. Do not insert or throw any objects into the holes.
- Avoid contact with the sealing wire when hot.
- If the appliance was stored at lower temperatures, acclimatize it first, by which you remove stiffness and mechanical resistance of the plastic parts will be kept.
- It is not permissible to adjust the surface of the extra attachment (e.g. self-adhesive paper, foils, etc.)!
- CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.
- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.
- WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.
- The producer does not undertake any responsibility for damage caused by improper use of the appliance (e.g. deterioration of food, injury, burning, scalding, fire, etc.) and its guarantee does not cover the appliance in the case of failure to comply with the safety warning above.
USE OF THE APPLIANCE:
- After completion of the vacuum process leave the cover of the appliance open for the welding part to cool down.
- CAUTION – The appliance is not designed for constant operation. Do not use the welder constantly for longer than 15 minutes, then leave it to cool down for approx. 10 minutes.
- It is not intended for outdoors use.
- The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion (spaces where chemicals, fuels, oils, gases, paints and other flammable or volatile materials are stored).
- Prevent penetration of liquid inside the air exhaustion section A4!
- Do not seal fluids in liquid state. If you want to store liquid food (such as soups), first freeze the food in an appropriate container, cut the food into pieces, put in bags and seal/vacuum them. Put the individual bags into freezer.
- Do not place the appliance on unstable, fragile or flammable surfaces (e.g. glass, paper, plastic, wooden varnished boards and various fabric/table cloths).
- Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).
POWER CORD:
- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
- Never put the power cord on hot surfaces and never let it hang over table edge or worktop edge. If the cord is caught or pulled, e.g. by children, the appliance may overturn and fall down, causing a serious injury!
- The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
- If you need to use an extension cord for justified reasons, it must be undamaged and comply with the applicable standards.
- Check the condition of the power cord of the appliance regularly.
- In order to ensure safety and proper function of the appliance, use only original spare parts and accessories approved by the manufacturer.
- Only use this appliance for the purpose it was designed for, as specified in this manual. Never use the appliance for any other purpose.

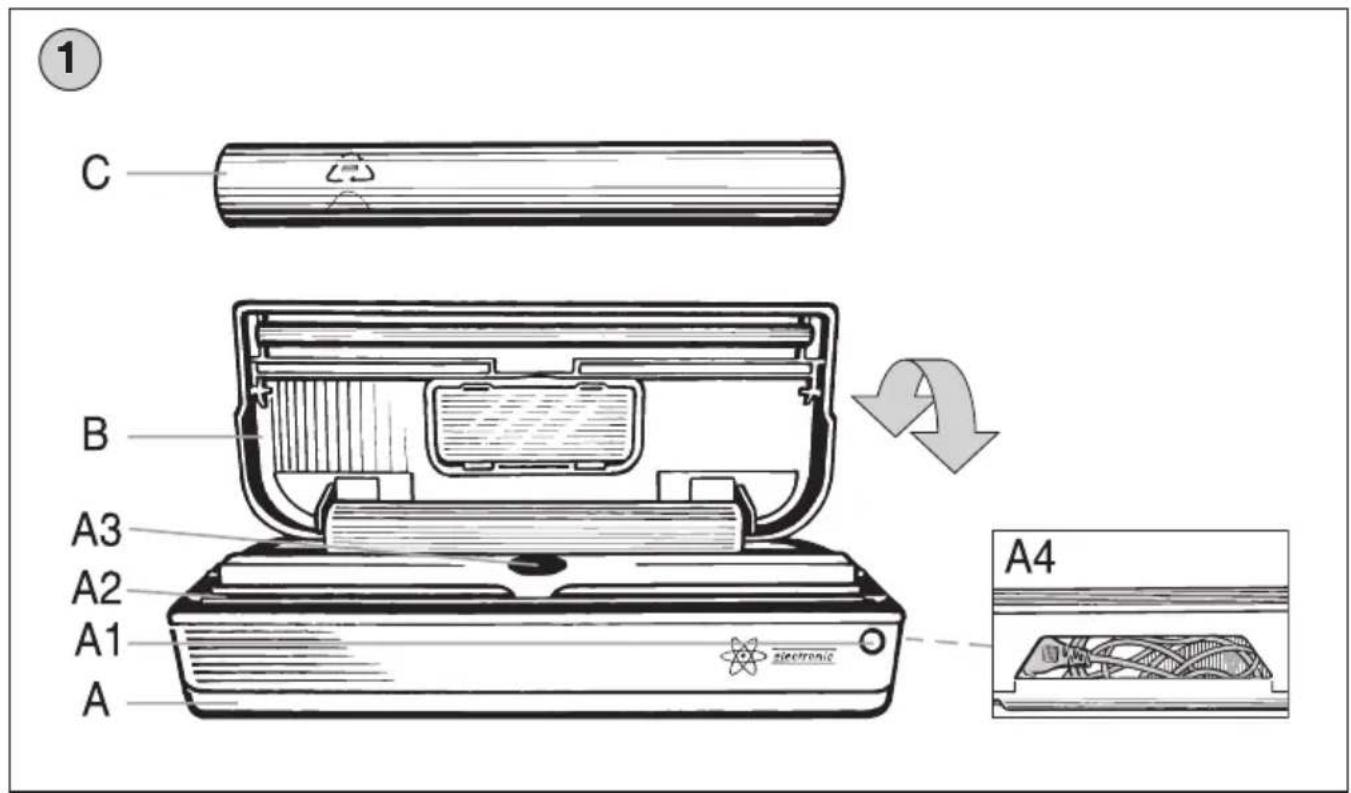

II. FEATURES (pic. 1)
A - case of the welder
A1 – indicator light A3 – air exhauster nozzle
A2 – welding wire A4 – power cord
B – foldable lid
C – PE foil roll
III. INSTRUCTIONS FOR USE
Remove all packaging, take out the appliance and connect the fork of the supply chord to a socket. The welder is supplied with a roll of PE foil. When welding the first bag, it is necessary to follow the following process:
- Fold back the B lid and unwind a sufficient amount of the foil C so that it exceeds the welder by 2 to 4 ~cm . Check if the welded spot is dry and clean, fold the lid B back afterward. Make sure the foil is stretched straight without any creases on the welding wire A2 before welding.

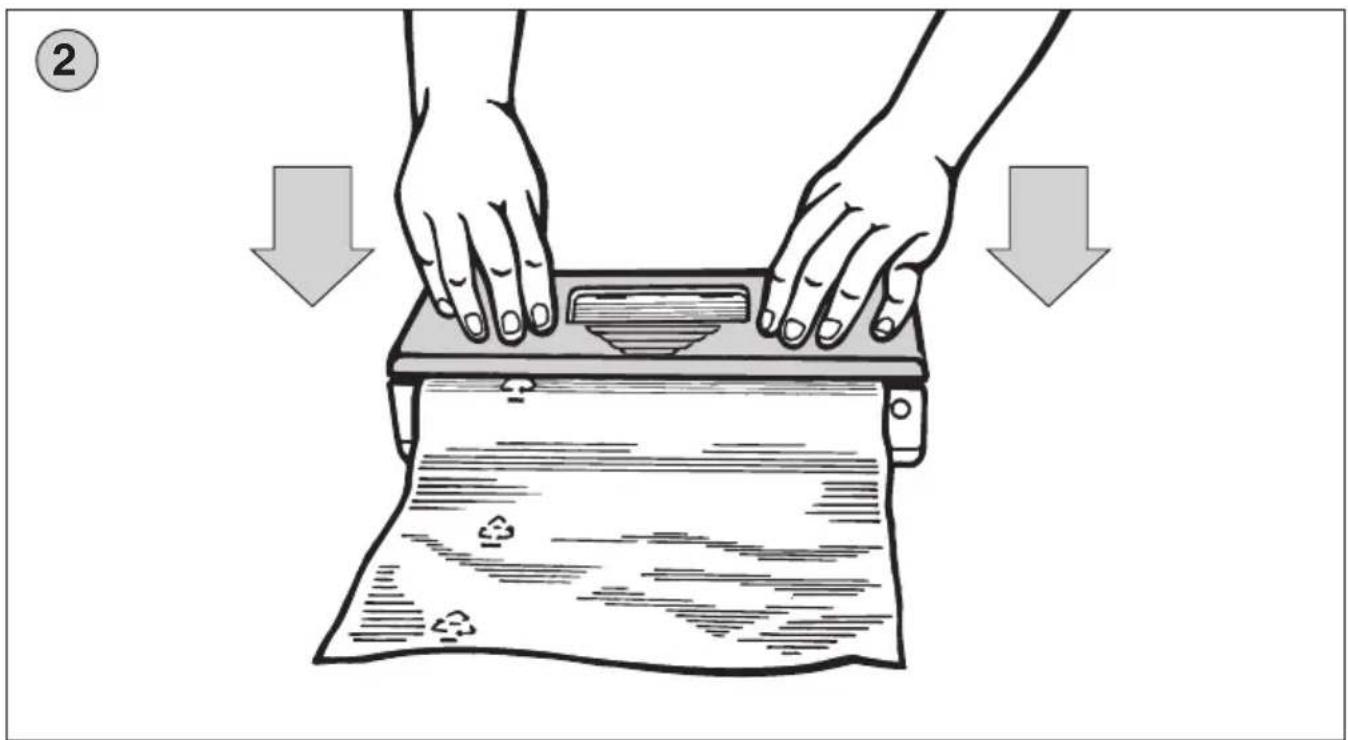

- Press on the lid B with both hands in order to make a perfect weld (pic. 2) and wait for the indicator light A1 to turn off (approx. 10 sec). The indicator light signals the PE foil is being welded.
- Remove the rest of the foil by tearing before folding back the lid B.
Air suction and bag welding
Fill the prepared bag to 3/4 max. of its length (capacity) with food or anything you want to keep fresh. Place the open end of the bag on the welding wire A2 so that the air suction nozzle A3 is inside the bag's opening. Check for creases or folds in place of the future weld. The straighter this area is, the better. Fold the lid B on and push lightly on the right corner of the lid, which will trigger the air suction (you will hear the motor), hold the lid in this position but do not push it all the way down.
Place both hands on the lid and press hard after the suction of air from the bag is completed (pic. 2). The weld is done after the indicator light A1 turns off.
Operating times
suction welding pause
30 sec. 10 sec. 80 sec.
Welding without suction
Place the open end of the bag on the welding wire A2 and make sure there are no folds or creases in place of the weld. Press on the lid B with both hands in order to make a perfect weld (pic. 2).
Attention:
Do not use the welder longer than 15 minutes at a time. Turn it off for 30 ~min . afterwards to let the appliance cool off. The firmness of the weld depends on the pressure exerted on the lid B. Strong pressure = good weld. Weak pressure = bad weld. After some practice you will be able choose the right pressure to achieve a good quality weld.
IV. TROUBLESHOOTING
| Malfunction Cause Solution | ||
| weld on the foil is not tight | insufficient pressure the lid must be | pressed strongly with both hands |
| creases in the seal smooth out the | foil then repeat welding | |
| welds follow too fast after each other | keep the 30 second break between individual welds | |
| food leftovers or moisture in the weld | remove the food leftovers and dry the foil | |
| not keeping the time necessary for processing the weld | wait until the control light turns off | |
| pressing only one side of the lid press the lid tight with both hands | ||
| the welder does not suck air | the bag is not in the sucking nozzle (area) | place the bag correctly |
| the bag is stuck together before the nozzle | lift the bag slightly and stretch | |
| the sucking nozzle of the exhauster is clogged | clean the nozzle | |
Storing the supply cord (A4)
Store the supply cord in the compartment in the back part of the appliance (pic. 1).
V. MAINTENANCE
Disconnect the appliance from the el. outlet by pulling out the fork of the supply cord from the socket before each maintenance. Wipe the outer surface with a soft damp cloth after each use. Do not use any rough and abrasive cleaning agents!
Never dry the plastic die-cast over a heat source (e.g. stove, el./gas cooker). Remove residues of the foil from the welding wire by making one weld without using foil. Store the appliance thoroughly clean on a dry, dustless place out of reach of children and persons sui juris.
VI. ENVIRONMENTAL PROTECTION
If the dimensions allow, there are labels of materials used for production of packing, components and accessories as well as their recycling on all parts. The symbols specified on the product or in the accompanying documentation mean that the used electric or electronic products must not be disposed of together with municipal waste. For proper disposal of the product, hand it over at special collection places where it will be taken over free of charge. Suitable disposal of the product can help to maintain valuable natural resources and to prevent possible negative impacts on the environment and human health, which could be the possible consequences of improper waste disposal. Ask for more details at the local authorities or in the nearest collection site. Fines can be imposed for improper disposal of this type of waste in agreement with the national regulations. If the appliance is to be put out of operation for good, after disconnecting it from power supply we recommend cutting off the power cord and thus it will not be possible to use the appliance again.
More extensive maintenance or maintenance requiring intervention in the inner parts of the appliance must be carried out by professional service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to warranty repair!
VII. TECHNICAL SPECIFICATIONS
Voltage (V) specified on the type label of the appliance
Input (W) specified on the type label of the appliance
Size of the bag l x v (mm) 285 x 5 000
Weight (kg) 1,5
Input in standby mode is < 0,00 W
The manufacturer reserves the right to change the technical specifications and accessories for the respective models.
WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:
HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.
TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.
The symbol indicates a WARNING.
WARNING: HOT SURFACE
