Product Type	Disc-brake lock for electric scooters
Brand	Blaupunkt
Model	ACE400 Lock
Material	Aluminium alloy + ABS plastic
Dimensions (kit)	90 x 60 x 40 mm
Net Weight (kit)	0.18 kg
Color	Black lock body/handle + red security wire
Package Contents	Disc-brake lock, 2 keys, lock handle, security wire, screw, screw washer, manual
Locking Mechanism	Key-operated, clockwise to open, counter‑clockwise to lock
Key Quantity	2
Security Wire Length	Approx. 1.2 m (typical)
Compatible Brake Disc Thickness	Up to 5 mm (standard for scooters)
Installation	Attach lock handle to handlebar stem with supplied screw and washer
Use	Place lock on brake disc, insert security wire ends, turn key to lock
Audible Confirmation	“Click” sound indicates correct locking
Security Feature	Can be fastened to fixed objects via security wire
Maintenance	Keep lock clean and dry; lubricate keyhole occasionally with graphite powder
Warranty	Standard manufacturer warranty (check local regulations)
Country of Origin	China (typical)

Frequently Asked Questions - ACE400 Lock BLAUPUNKT

What is included in the Blaupunkt ACE400 Lock package?

The package includes the disc-brake lock, two keys, a lock handle, a security wire, one screw, one screw washer, and the instruction manual.

How do I install the lock handle on my scooter?

Loosen one of the screws on the vertical handlebar stem using a suitable wrench, place the lock handle onto the stem, then tighten the supplied screw and washer securely.

How do I lock the disc-brake lock?

First, open the lock by turning the key clockwise. Insert both ends of the security wire into the lock body, place the lock over the brake disc, then turn the key counter‑clockwise. A click sound confirms successful locking. Remove the key.

Can I use this lock on any scooter?

This lock is designed for electric scooters and light electric vehicles with a disc brake. Ensure the brake disc thickness does not exceed 5 mm and the disc has sufficient clearance for the lock body.

What should I do if I lose the key?

Contact Blaupunkt customer support or a certified locksmith. You may need to provide the lock serial number. Consider ordering a replacement key from the manufacturer if available.

How do I clean and maintain the lock?

Wipe the lock with a dry cloth; avoid using water or solvents. For smooth operation, apply a small amount of graphite powder to the keyhole periodically. Do not use oil-based lubricants as they attract dust.

Can I use the lock without the security wire?

Yes, the lock can be used solely to immobilize the brake disc, preventing the wheel from turning. The security wire adds the option to secure the vehicle to a fixed object.

What is the maximum security wire length?

The supplied security wire is approximately 1.2 meters long. You can wrap it through the lock and around a pole, railing, or other fixed anchor.

Is the lock weather-resistant?

The lock is made of aluminium alloy and ABS plastic, which offer some resistance to rain and dust. However, prolonged exposure to harsh weather should be avoided. Keep it dry when not in use.

How do I know the lock is correctly secured?

When you turn the key counter‑clockwise, you will hear a distinct click sound. Additionally, try to rotate the lock on the disc; it should not move. Always remove the key after locking.

USER MANUAL ACE400 Lock BLAUPUNKT

Mechanical assembly with red and black cables, no visible text or symbols

Technical illustration of a scooter and its internal components, including a circular inset view and mechanical assembly (no text or symbols)

DE

Bedienungsanleitung

Thank you for purchasing the BLAUPUNKT ACE400LOCK disc-brake lock for electric vehicles. Read and keep this manual for future reference. The information in this manual will help you to become familiar with its basic operation and to learn how to use the disc-brake lock.

Package content

ACE400LOCK disc-brake lock - 1 pc; key for disc brake lock- 2 pcs.; instructions manual - 1 pc; lock handle - 1 pc; security wire - 1 pc; screw - 1 pc; screw washer - 1 pc

Product description

The disc-brake lock is made of durable aluminium alloy, and can be used to protect any scooters or lightweight electric vehicles equipped with a disc brake against theft. In addition to locking the brake disc, it is possible to fasten the vehicle to any stand, handrail, bracket, or pillar, using the supplied security wire.

Installation

A. Lock-handle installation,

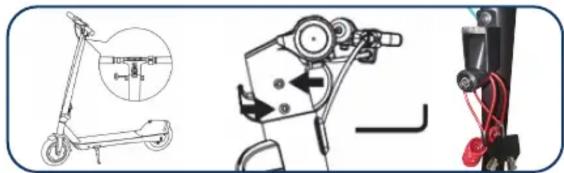

The lock handle can be attached to the vertical handlebar stem of an electric scooter, as shown on figure 1. Use a suitable wrench to unloose one of the screws on the stem, then install the lock handle and tighten the screw and screw washer. See figure 1.

B. Applying the disc-brake lock

Open the lock with the key (clockwise), using the supplied wire, attach the vehicle to a stand or other fixed component; insert both ends of the wire into the lock body, put the lock on the brake disc and press the key (counter-clockwise) to secure the lock; the "click" sound indicates correct locking. Take the key out of the lock.

The functions and specifications of the disc-brake-lock kit

Material: aluminium alloy + ABS plastic

Dimensions: 90x60x40 mm / kit

Net weight: 0.18 kg / kit

Colour: black lock body / lock handle + red security wire
