HMM601 - Mixer BLAUPUNKT - Free user manual and instructions

Product Type	Hand Blender / Stand Mixer
Brand	Blaupunkt
Model	HMM601
Power Supply	220-240 V~ 50/60 Hz
Maximum Power	750 W
Rated Power	500 W
Speed Settings	5 levels + Turbo (pulse)
Maximum Working Time	3 minutes continuous
Interval Between Uses	30 minutes
Sound Level	78 dB
Attachments Included	2 beaters + 2 dough hooks
Construction Materials	Plastic body, stainless steel attachments
Color	White
Stand	Yes, with rotating bowl and mixer holder
Attachment Release Button	Yes, for easy removal
Cleaning Method	Wipe body with damp cloth; wash attachments and bowl in dish soap
Safety Features	Automatic cut-off if overheated (estimated), non-slip feet
Approximate Weight	1.6 kg
Approximate Dimensions (HxWxD)	30 x 25 x 20 cm

Frequently Asked Questions - HMM601 BLAUPUNKT

Can I mix hot liquids with this hand blender?

No, do not mix hot or boiling food. The mixer is designed for cold or lukewarm ingredients only. Mixing hot liquids can cause splashing and damage the appliance.

What is the maximum continuous operating time?

The maximum uninterrupted working time is 3 minutes. After that, allow the device to cool down for at least 30 minutes before next use.

How should I clean the attachments?

Wash the beaters and hooks in warm water with dishwashing liquid and rinse thoroughly. They can also be cleaned in a dishwasher, but hand washing is recommended.

Can I immerse the mixer body in water?

No, never immerse the mixer body, motor housing, plug, or power cord in water or any other liquid. Only wipe the body with a slightly moistened cloth.

What attachments are included with the Blaupunkt HMM601?

The mixer includes two beaters (for creams, eggs, light batters) and two dough hooks (for heavier doughs like bread or pastry).

How do I change the speed?

Use the rotary switch on the mixer body. Speed settings range from 1 (low) to 5 (high), plus a Turbo pulse mode for short bursts of maximum power.

What is Turbo mode used for?

Turbo mode provides a short burst of maximum power for tasks like crushing ice or quickly mixing hard ingredients. Press and hold the Turbo button; release to stop.

Can I use this mixer for kneading dough?

Yes, use the included dough hooks for heavy doughs. However, do not mix for more than 3 minutes continuously to avoid overheating.

Is it safe to use the mixer in a damp environment?

No, do not use the appliance in humid conditions such as bathrooms or outdoors. It is designed for dry indoor use only.

How should I store the mixer?

Place the mixer in the holder on the stand after use. Ensure attachments are clean and dry. Store in a cool, dry place away from heat sources.

USER MANUAL HMM601 BLAUPUNKT

White BAUPUNKT blender with mixing bowl and stand mixer (no visible text or symbols)

Enjoy it.

Hand blender Stabmixer Blender ręczny Tyčový mixér Ponorné mixéry Botmixerek Palični mešalnik

Štapni mikser Ραβδομπλέντερ Παςατορ Mixer de mână Rankinis maišytuvas Saumikser Roku maisījums

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.

- The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs

performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Do not touch the device with wet hands.

- Use the device only for mixing food products.

- Before replacing accessories, make sure the device is switched off and disconnected from the power supply.

- Do not use the device for longer than the duration indicated in the technical data.

- Do not use the mixer to mix hot or boiling food.

- While mixing products, do not put any cutlery or other objects between the rotating agitators.

- Do not immerse the mixer's body in water or other liquids, or wash it under running water.

- Start the mixer only after placing the attachments inside the dish.

- Do not use two different types of attachment at the same time.

- The beaters or hooks with a toothed wheel should only be connected to the marked socket.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD) - Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power Supply: 220-240V\~50/60Hz

Maximum power: 750W

Rated power: 500W

Maximum uninterrupted working time: 3 minutes

Maximum interval between subsequent uses of device: 30 minutes

Sound power LWA: 78dB

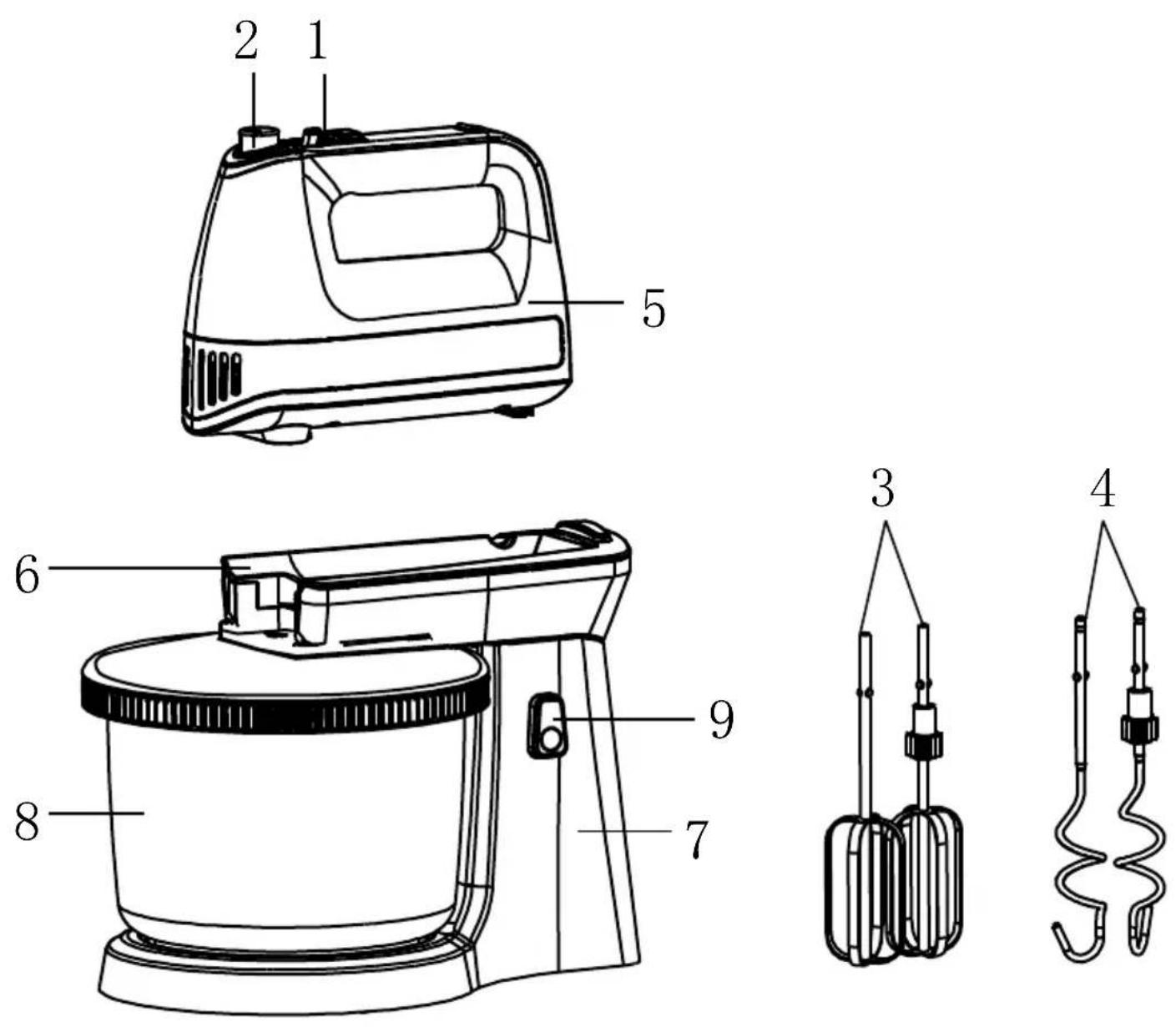

1. A switch with speed controller (Turbo, 0, 1, 2, 3, 4, 5)
2. Attachment-release button
3. Beaters
4. Hooks

5. Mixer body with motor

6. Mixer holder

7. Stand
8. Rotary bowl
9. Release button for mixer holder

BEFORE THE FIRST USE

1. Remove all paper, cardboard, and film protecting the device and its parts.
2. Clean the device according to the recommendations provided in the CLEANING AND MAINTENANCE section.

USE

1. Make sure the device is disconnected from the power supply. Insert either one or two selected attachments (beaters or hooks) into the sockets.
2. Place the attachments in a bowl or other vessel filled with products for mixing. Do not immerse the attachments deeper than halfway (mixed products can climb up the attachment into the engine section and flood the engine).
3. Start the mixer with the switch and set the speed from 1 to 5, or select the turbo-pulse mode.
4. When the mixing is complete, disconnect the mixer from the power supply. Press the attachment-release button to remove the mixing attachments.

The mixer may be placed in the holder on the stand. Once the attachments are in place (pay attention to the location of the attachment with the toothed gear), place the mixer on the holder, if the latter is in the open position. Place the bowl.

The holder will open and close after pressing the release button for the mixer holder.

CLEANING AND MAINTENANCE

Wipe the body with the motor with a slightly moistened cloth. Do not immerse the device in water. Wash the beaters and hooks in water mixed with a dishwashing liquid. Rinse thoroughly.

Wash the bowl in water mixed with a dishwashing liquid. Rinse thoroughly.

Wipe the mixer's holder and stand with a slightly moistened cloth. Do not immerse in water.
