Product Type	Micro Audio System with CD, FM, Bluetooth, and USB playback
Power Source	AC 110-240V, 50/60 Hz
Power Consumption	20W (standby < 0.5W)
RMS Output Power	2 x 5W
CD Compatibility	CD, CD-R/RW, MP3, WMA
FM Frequency Range	87.5 - 108.0 MHz
USB Interface	USB 2.0, 5V 500mA, supports up to 32GB
Bluetooth Version	V4.2 with operating range up to 10m
Speaker Connection	Spring-loaded speaker terminals for passive speakers
Audio Inputs	Line in (RCA), 3.5mm headphone jack
Audio Outputs	Line out (RCA), headphone jack
Remote Control	Yes, with battery (1 x AAA included)
Equalizer Modes	Jazz, Rock, Pop, Classic, Off
Playback Modes	Repeat (One/All/Off), Random, Programmable (up to 20/99 tracks)
Additional Features	Auto standby after 30 min (ERP2), mute, loudness
Cleaning	Wipe with dry cloth; do not use chemical solvents
Safety Features	Overload protection, polarized plug, laser class 1
Environmental Conditions	Operating temperature up to 35°C; avoid moisture

Frequently Asked Questions - MS7BT BLAUPUNKT

How do I pair my phone via Bluetooth?

Press SOURCE repeatedly until 'BT' appears on display. On your phone, enable Bluetooth and search for devices. Select 'BP MS7BT' to pair. If prompted, confirm pairing. You can now play music wirelessly.

Why is there no sound?

Check if the unit is powered on and the volume is turned up. Ensure the correct source is selected (CD, FM, BLUETOOTH, LINE IN). If using external devices, verify connections and that the device is playing.

How do I preset FM stations?

In FM mode, press and hold the SEARCH or PLAY/PAUSE button for auto-scan (saves up to 40 stations). For manual memory, tune to a station, press MEMORY, select preset number with PREV/NEXT, then press MEMORY again to save.

What types of discs can I play?

The system supports CD, CD-R/RW, and discs with MP3 or WMA audio files. Do not use DVD or other formats. Ensure discs are clean and free of scratches.

Why does the USB drive not play?

Make sure the USB drive is formatted in FAT32 and contains only MP3 or WMA files. Maximum capacity is 32GB. Connect directly to the unit (extension cables may cause issues). If still not playing, try another USB device.

How do I reset the unit?

If the unit malfunctions (e.g., due to electrostatic discharge), unplug it from the power outlet, wait a few seconds, and plug it back in. You may also need to remove the remote battery and reinsert it.

Can I connect external speakers?

Yes, the unit has spring-loaded speaker terminals for connecting passive speakers. Use the provided speaker wires, ensuring correct polarity (red to +, black to -). Do not exceed the rated impedance.

Why does the remote not work?

Replace the AAA battery with a fresh one. Ensure there are no obstacles between the remote and the sensor (located near the display). The remote works best within 7 meters.

How do I clean the unit?

Unplug the unit before cleaning. Use a soft, dry cloth to wipe the exterior. For stubborn dirt, slightly dampen the cloth. Do not use chemical solvents, aerosol sprays, or allow moisture to enter openings.

What does the auto standby feature do?

To save energy, the unit automatically switches to standby mode after 30 minutes of no audio input. To resume, press any button or reactivate the audio source. This is compliant with ERP2 regulations.

USER MANUAL MS7BT BLAUPUNKT

Enjoy it.

Important Safety Instructions

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution:

To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference.

• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.

• Do not install the product in the following areas:

- Places exposed to direct sunlight or close to radiators.

• On top of other stereo equipment that radiate too much heat.

- Blocking ventilation or in a dusty area.

• Areas where there is constant vibration.

• Humid or moist places.

• Do not place near candles or other naked flames.

• Operate the product only as instructed in this manual.

• Before turning on the power for the first time, make sure the power adaptor is properly connected.

• Plug-in the USB stick directly or use an USB-extension cable which is not longer than 25 cm.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.
8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.
9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.
10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to rain, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
14. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
15. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.
16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.
17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.
18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.
19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug from the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 35°C.
27. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.
28. Battery

a. The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

b. The batteries should be drawn to the environmental aspects of battery disposal.

c. Battery usage CAUTION - to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

. Install all batteries correctly, + and - as marked on the apparatus.

. Do not mix batteries (old and new or carbon and alkaline, etc.)

. Remove batteries when the unit is not used for a long time.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment. After 30 minutes without any audio input, the device will automatically switch into standby mode. Follow up the instruction manual to resume the operation.

Important note:

This device is equipped with an energy saving mode: if no signal is given during 30 minutes the device will switch automatically into standby mode in order to save energy (ERP 2 standard). Please note that low volume setting in the audio source may be recognized as "no audio signal": this will affect the capability of signal detection from the device and can also originate an automatic switch into standby mode. If this happens please reactivate the audio signal transmission or increase the volume setting on the audio source player (MP3 player, etc.), in order to resume playback. Please contact the local service center if the problem remains.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.
6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on an amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. Depending on the electromagnetic waves used by a television broadcast, if a TV is turned on near this unit while it is also on, lines might appear on the TV screen. Neither this unit nor the TV is malfunctioning. If you see such lines, keep this unit well away from the TV set.
16. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.
17. To keep the laser pickup clean, do not touch it, and always close the disc tray.
18. During playback, the disc rotates at high speed. DO NOT lift or move the unit during playback, doing so may damage the disc or the unit.
19. When changing places of installation or packing the unit for moving, be sure to remove the disc and return the disc tray to its closed position in the player. Then, press switch to turn the power off and disconnect the power cord. Moving this unit with the disc loaded may result in damage to this unit.
20. Put discs back in their case after playing them. Never expose discs to direct sunlight or heat sources. Never leave discs inside a car parked in full sunlight.
21. Do not touch the playback side of disks. Hold discs by the edges to avoid leaving fingerprints on the surface. Any dust, fingerprints or scratches may cause a malfunction. Never attach a label or sticky tape to the disc.
22. Use a clean soft lint-free cloth to clean the disc, working from the center outwards in a straight line, thinners, commercially available cleaners or anti static sprays for vinyl discs.
23. To prevent possible hearing damage, do not listen at high volume levels for long periods.

WARNING: DANGER OF RADIATION

CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

This label means that this unit contains a laser component. Opening the CD compartment lid and defeating the safety interlocks will expose the user to radiation from the laser beam. Do not stare into the laser while it is operating.

BEFORE OPERATION

Notes: Concerning compact discs.

Since dirty, damaged or warped discs may damage the appliance, care should be taken of the following items:

a. Usable compact discs. Use only compact discs with the mark shown below.

b. CD compact discs only with digital audio signals.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health. Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Bluetooth™

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

Thank you for purchasing our model. Please read and reference this manual carefully before operating the unit. Please keep the manual for future operation reference.

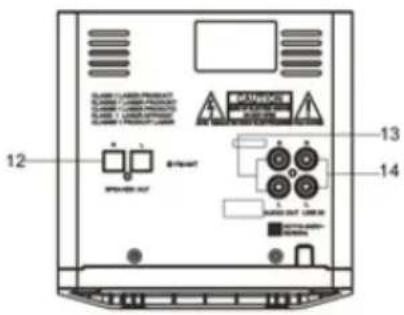

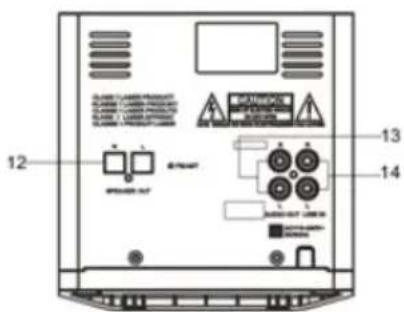

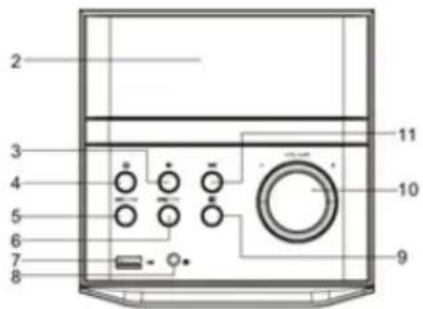

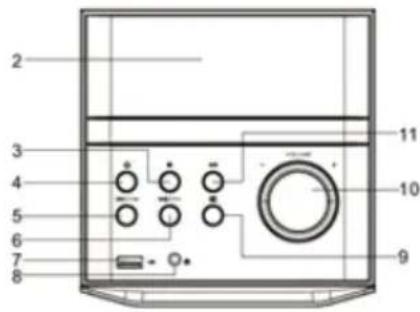

Control locations

1—eject button; 6—next / channel +; 11—play / pause;

2—display; 7—USB port;

12—speaker out terminal;

3—stop; 8—headphone jack;

4—power on/off; 9—source; 13—line out/audio out;

5—previous / channel -; 10—volume knob; 14—line in.

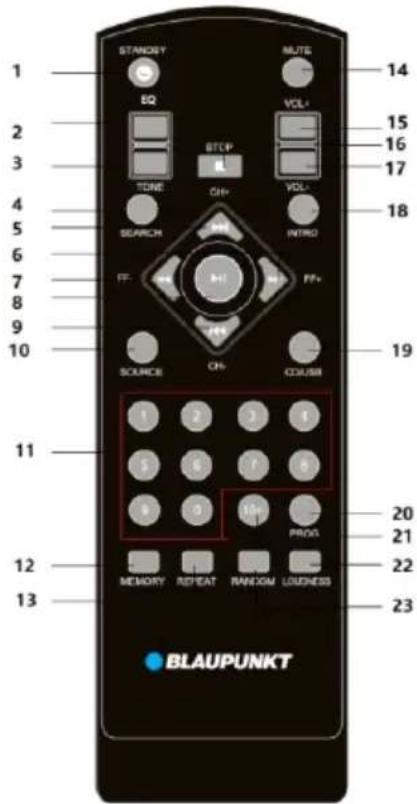

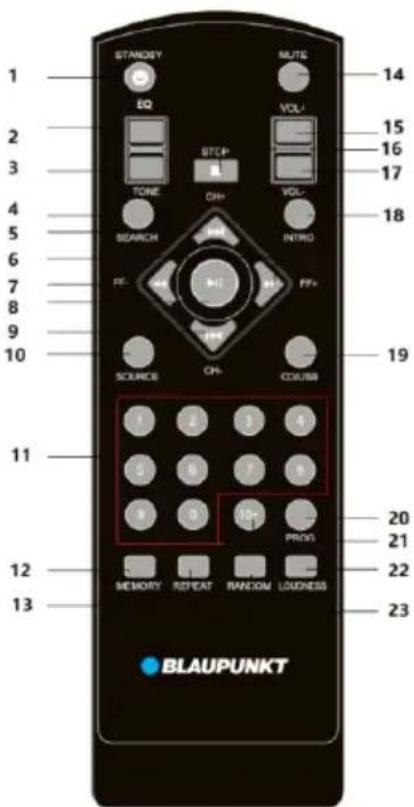

Remote control

1—power on/off; 2—EQ (JAZZ/ROCK/POP/CLASSIC/OFF); 3—tone (treble/bass); 4—search for FM scanning; 5,9—next/channel +, previous/channel -; 6,7—fast-forward / fast-rewind; 8—play/pause; 10—source; 11—digits button; 12—memory; 13—repeat (repeat all/repeat one/off); 14—mute; 15,17—volume +/-; 16—stop; 18—introduce play; 19—CD/USB; 20—program; 21—10+; 22—loudness; 23—random on/off;

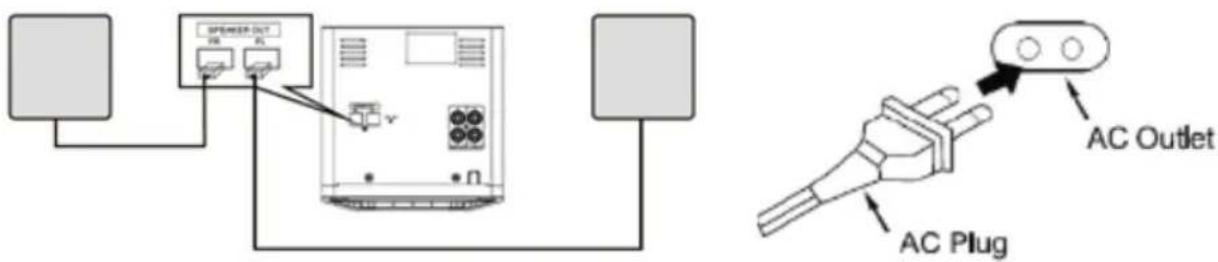

System and power setting

1. Using the attached speaker wire of satellite speaker, connect with the speaker output terminal of the main unit. Then connect another satellite speaker with the same method.
2. Please check if the power source corresponds to the rating voltage spec which is located on the back panel of the main unit. If it does not match, please consult your dealer or service center.
3. Insert the attached AC power plug into the wall outlet to get power. The front panel power LED will light up in red when the power is ready.

Remote control battery installation

Open the battery door and insert 1 x AAA battery (included) into the compartment; make sure the battery polarity matches the positive and negative symbols engraved in the compartment. Then close the battery door.

Notes:

a. The best working distance for the remote control is within 7 meters without any obstacles in between. Aim the remote control at the sensor located on the left corner of the display during operation. b. The sensitivity of the remote control will weaken when the battery power is low. Replace it with a fresh one for operation. c. Remove the battery if the unit will not be used for a long time. d. Dispose of the battery in an environmentally friendly way. Please refer to local government regulations for details.

General operation

1. Power on/off and standby: The red power LED will light up when you connect it to AC power successfully; remove the AC plug for complete power off. Press the power button on the front panel or remote control to switch between standby and on.
2. Mute: Press the MUTE button on the remote control to silence the sound output; press it again to resume playback. You can also resume playback by pressing the volume +/- button. There may still be a very small sound output from the unit in mute state; please note this is not a malfunction.
3. Play mode selection: Press the SOURCE button repeatedly to switch between CD, USB, FM radio, LINE IN, and Bluetooth modes. Press the CD/USB button on the remote control to switch between CD and USB playback modes.
4. Volume adjustment: Press the VOL+/- button on the remote control or turn the volume knob on the front panel to increase or decrease the output volume.
5. Sound equalizer: Press the EQ button to switch the equalizer mode between Jazz, Rock, Pop, Classic, and off.
6. Treble & bass adjustment: Short press the tone button repeatedly to start the bass and treble setting, then press the volume+/- button immediately to adjust the parameter, and press the tone button again to confirm.
7. Digits 0-9 and 10+ button: Enter the relative digits and press the play/pause button to confirm, then the unit will skip to the relative track from the current one. Press the 10+ button to skip the playing track by 10 tracks if there are more than 10 tracks, for fast selection. This function is available in CD and USB playback modes.
8. Play, pause, and stop: In CD/USB/Bluetooth mode, press the play/pause button to pause or resume playback. In CD and USB modes, press the stop button to stop playback, and press the play button to resume music playback.
9. Previous and next, fast-forward and fast-rewind: short press previous/next button skip to last or next track for playing; Press and hold fast-forward / fast-rewind button to fast-forward or fast-rewind current playing track, and resume to normal playing after release the button.
10. Repeat playback: In CD and USB mode, press repeat button repeatedly for repeat one, repeat all and repeat off selection;
11. Random playback: press random button for random and random off playback.
12. CD disc loading: Press the eject button to open the CD door, and load a CD disc. Press it again to close the CD door.
13. Loudness: short press the button to enhance the bass for sound output.
14. Introduce playback: the unit will play the first 10 seconds of the track, then skip to next track.

CD playback operation

This product includes CD playback function which can play with CD disc under CD/CD-R-RW/MP3/WMA audio format (DVD not included). Before start the CD playback, please check if there have any dirty dot or scratch on the CD disc, otherwise the CD may cannot read out or create noise sound.

1. Press the source button repeatedly or CD/USB button to enter the CD mode. In USB mode, the unit switch to CD playback mode automatically in case of no available USB device but CD disc available. It is same that will switch to USB playback automatically in CD mode.
2. Press the eject button to open the CD door, and load the CD disc; press the eject button again to close the CD door. The unit will start to read and play the CD automatically.
3. Create your own playlist (max programmed 20 track for CD and MP3 disc, and up to 99 tracks for WMA/MP3 disc)

a. In CD playback mode, press the stop button first, then press program button to start the program operation.

b. The display will show "PXX XXX". Press the previous/next or 10+ button to select the track you want to program, then press the program button again to confirm.

c. The display will then show the programmed track and skip to the next program track setting. For example, "P01 006" means track number 6 was programmed as track number 01.

d. Repeat steps b and c to set up the remaining tracks until the display shows "FULL".

e. Then press the play button to start playing the programmed tracks.

f. To cancel and remove the programmed playlist, press the stop button again, or eject the CD disc.

1. You can also use the play/pause, stop, mute, repeat, random, track selection, EQ, fast-forward, fast-rewind, and intro functions during CD playback. Please refer to the general operation section of this manual.

FM radio operation

Before starting FM radio listening, fully extend the FM antenna or move the unit near a window to get better FM reception.

1. Auto scan and preset radio stations: Press the source button repeatedly to enter FM radio mode. Briefly press the search button on the remote control or the play/pause button on the front panel to automatically scan and save available radio stations. The unit can save up to 40 preset stations. Briefly press the previous or next button on the remote control or the front panel of the main unit to select a preset station.
2. Manual tuning or auto scan: Briefly press the FF+/- button to increase or decrease the frequency by 0.05 MHz per step from the current station. Press and hold the FF+/- button, or the previous/next button on the front panel, for 2 seconds to auto scan for available FM stations in the upward or downward frequency direction. The unit will stop and play the available station automatically.
3. Manual station memory: When you tune to a favorite station using manual tuning or auto scan and wish to save it, first press the memory button on the remote control. The preset station numbers will flash on the display. Use the previous and next buttons to select the preset location where you want to save the station. Then press the memory button again to confirm. The current FM station will be saved. Repeat this process to save other stations. If you press the memory button for manual saving, the unit will automatically expand and add a new preset number based on the current preset station.

Note: The unit will only show the available preset stations.

USB operation

The product includes a USB playback function that can decode and play music from a USB storage device. Before starting, copy MP3/WMA format music onto a USB stick. The maximum supported USB stick capacity is 32 GB.

1. Before starting USB playback, make sure the USB stick is properly plugged into the USB port. Then switch to USB playback mode by pressing the source or CD/USB button. The unit will decode and start playing the music automatically after a few seconds.
2. In USB mode, you can use functions such as play/pause, stop, mute, repeat, track selection, EQ, fast-forward, and fast-rewind. Please refer to the general operation section of this manual for instructions.

Notes:

a. Using a USB extension cable to connect the USB stick for playback is not recommended, as it may cause noise or intermittent sound due to audio data loss during transfer.

b. Decoding and playing all MP3/WMA format music is not guaranteed.

c. The maximum supported USB device capacity is 32GB.

d. Some USB sticks may take a little longer to start playback; please note that this is not a malfunction.

Bluetooth operation

This product includes Bluetooth function which can wirelessly play music from other Bluetooth devices.

1. Press the source button repeatedly to enter Bluetooth mode; the display will show "BT" in Bluetooth mode. Enable the Bluetooth function and start searching for available devices on your Bluetooth device (please reference the device manual for operation), then check the available Bluetooth device list on your device.
2. Select "BP MS7BT" for pairing.
3. Select and play the music from your Bluetooth device, then the music will output from the micro system.
4. Press the previous/next button to select the last and next track during playing. Press and hold the play/pause button for 2 seconds to disconnect and quit the unit with the current paired Bluetooth device.
5. In Bluetooth mode, you can achieve play/pause, mute, EQ, etc. functions. Please reference the operation from the general operation part of this manual.

Notices:

a. All Bluetooth devices are not guaranteed for pairing successfully due to different design and brand.

b. The best working distance of Bluetooth is within 10 meters without any obstacle in between.

c. The unit only can pair and work with one Bluetooth device at a time.

d. Please quit the current Bluetooth pairing before pairing with another device, otherwise the "BP MS7BT" will not show on the device list.

AUX IN/line in/MP3 link and headphone operation

In order to wire connect and playback music from another player or source, please follow the steps below.

1. Using the supplied audio cable (3.5mm stereo to RCA), connect the LINE IN jack (RCA type) on the rear panel of the main unit, and the other 3.5mm stereo connector to the line-out or headphone jack of the external player. Then switch to LINE IN mode by pressing the source button.
2. Select the music and play it on your player, then the sound will output from the micro system.
3. In AUX IN playback mode, the main control is on the external player side. However, you can also control the volume, EQ, and mute the sound on the micro system side.

Headphone: plug the headphone connector into the headphone jack on the front panel, then the sound will be silenced in the micro system but output from the headphone. Adjust the volume setting on the micro system or headphone to get a comfortable sound level for listening.

Line out: using the supplied audio cable (3.5mm stereo to RCA), connect the LINE OUT jack (RCA type) on the rear panel of the main unit, and the other terminal to the AUX IN jack of an external active speaker. Select and play the music on the micro system side, then there will be sound output both on the micro system and the external active speaker.

Troubleshooting

1. Cannot power on the unit: a. Please check if the AC power cord is connected to the wall outlet properly. b. Please contact the service center if the problem remains.
2. No sound output.

a. Please try to adjust the volume. b. Please check if you selected the correct play mode. c. Please contact the service center if the problem remains.

1. The CD disc cannot be read, or there is intermittent sound during playback.

a. Please try replacing the disc and playing another CD with CD/CD-R-RW/MP3/WMA format music. b. Please try cleaning the CD disc due to dirty spots or scratches. c. Please contact the service center if the problem persists.

1. Background noise during FM playback.

a. Please fully extend the FM antenna and try adjusting its direction. b. Please move the unit closer to a window. c. Please switch to another station for listening.

1. Intermittent sound during Bluetooth playback.

a. Please try moving your Bluetooth device closer to the unit. b. Please try turning off the Bluetooth function and pairing it again.

1. The remote control does not work well.

a. Please close and point the remote control at the sensor for operation. b. Please replace the battery with a fresh one due to weak battery power.

Specifications

Power source: AC 110-240V, 50/60 Hz. CD compatible: CD/CD-R-RW/MP3/WMA. FM frequency: 87.5-108.0 MHz. USB rating: 5V, 500mA, 2.0 versions, supports up to 32GB storage devices. Bluetooth: V4.2, within 10 meters for operation. RMS output power: 2 x 5W. Power consumption: 20W. Standby power consumption: < 0.5W. (Note: The above specifications may be revised without prior notice.)

FM frequency: 87.5-108.0 MHz

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

RISK OF ELECTRIC SHOCK DO NOT OPEN

Caution:

To reduce the risk of electric shock, do not remove the cover or the back of the unit. There are no user-serviceable parts inside. Maintenance and repair should be performed only by qualified service personnel.

Explanation of graphic symbols:

The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle alerts the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance.

WARNING: RADIATION SOURCE

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

This label indicates that laser components are present inside the device. Opening the CD compartment cover and bypassing the interlocks may expose the user to laser radiation. Do not stare into the laser beam while it is operating.

BEFORE OPERATION

Notes on discs.

Dirty, damaged, or deformed discs may cause damage to the device. Please pay attention to the following:

1—CD door open button; 2—display; 3—stop button; 5—previous / channel-, 6—next / channel +; 7—USB port; 9—source selection; 10—volume button; 11—play/pause; 12—speaker outputs; 13—audio output; 14—audio input (AUX).

4—power on/off; 8—headphone jack;

Remote control

1—power on/off; 2—EQ (JAZZ/ROCK/POP/CLASSIC/OFF); 3—tone control (treble/bass); 4—FM frequency scan; 5,9—next/channel +, previous/channel -; 6,7—fast forward / fast reverse; 8—play/pause; 10—source selection; 11—numeric buttons; 12—memory button; 13—repeat (all/one song/off); 14—mute; 15,17—volume +/-; 16—stop; 18—intro mode; 19—CD/USB; 20—program button; 21—10+; 22—loudness; 23—random playback on/off.

FM frequency: 87.5-108.0 MHz

WARNING: RADIATION SOURCE

CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT

BEFORE STARTING WORK

FM frequency: 87.5-108.0 MHz

FM frequency: 87.5-108.0 MHz

USB parameters: 5 V, 500 mA, version 2.0, supports devices up to 32 GB

Bluetooth: V4.2, operating range up to 10 meters.

Notes:

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
