USER MANUAL XPC SH97R6 Shuttle

©2014 by Shuttle® Inc. All Rights Reserved.

No part of this publication may be reproduced, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means such as electronic, mechanical, magnetic, optical, chemical, photocopy, manual, or otherwise, without prior written permission from Shuttle® Inc.

Other brands and product names used herein are for identification purposes only and may be trademarks of their respective owners.

Disclaimer

Shuttle ^® Inc. shall not be liable for any incidental or consequential damages resulting from the performance or use of this product.

Shuttle ^® Inc. makes no representation or warranty regarding the contents of this manual. Information in this manual had been carefully checked for accuracy; however, no guarantee is given as to the correctness of the contents. For continuing product improvement, Shuttle ^® Inc. reserves the right to revise the manual or make changes to the specifications of this product at any time without notice and obligation to any person or entity regarding such change. The information contained in this manual is provided for general use by customers.

This device complies to Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must withstand any background interference including those that may cause undesired operation.

Trademarks

Shuttle is a registered trademark of Shuttle Inc.

Intel and Pentium are registered trademarks of Intel Corporation.

PS/2 is a registered trademark of IBM Corporation.

AWARD is a registered trademark of Award Software Inc.

Microsoft and Windows are registered trademarks of Microsoft Corporation.

General Notice

Other brand and product names used herein are for identification purposes only and may be trademarks of their respective owners.

Safety Information

Read the following precautions before setting up a Shuttle XPC.

CAUTION

Incorrectly replacing the battery may damage this computer. Replace only with the same or equivalent as recommended by Shuttle. Disposal of used batteries according to the manufacturer's instructions.

Laser compliance statement

The optical disc drive in this server is a laser product. The drive's classification label is lacated on the drive.

CLASS 1 LASER PRODUCT

CAUTION : NVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM.

Installation Notices

Do not place this device underneath heavy loads or in an unstable position.

Cartoon illustration of an elephant holding a sign with a crossed-out 'Bened' symbol (no text or numbers present)

Do not use or expose this device around magnetic fields as magnetic interference may affect the performance of the device.

Illustration of a USB flash drive with a U-shaped magnet above it, surrounded by starburst background (no text or symbols)

Do not expose this device to high levels of direct sunlight, high-humidity or wet conditions.

Illustration of a sun shining over a window with a door, no text or symbols present

Do not block the air vents to this device or impede the airflow in any way.

Simple line drawing of a container with a handle, surrounded by waves and a rounded square frame (no text or symbols)

TABLE OF CONTENTS

Driver and Software Installation....1

■ Motherboard Driver DVD....1
■ User Manuals ......2

Appendix....3

Starting BIOS ....3

BIOS Setup Menu ....3

Main Setup 5
Advanced 6

➢ CPU Configuration ....7
➢ SATA Configuration ......9
USB Configuration ....10
Onboard Device Configuration 11
Power Management Configuration ....13
Hardware Health Configuration ....15
➢ Frequency & Voltage Configuration .....16

Boot 17
Security 18
Save & Exit 20

■ Motherboard Driver DVD

The DVD contents attached in SH97R6 Series motherboard are subject to change without notice.

The Motherboard Driver DVD contains all the motherboard drivers necessary to optimize the performance of this Shuttle Xvision in a Windows® OS. Install these drivers after installing Microsoft® Windows®.

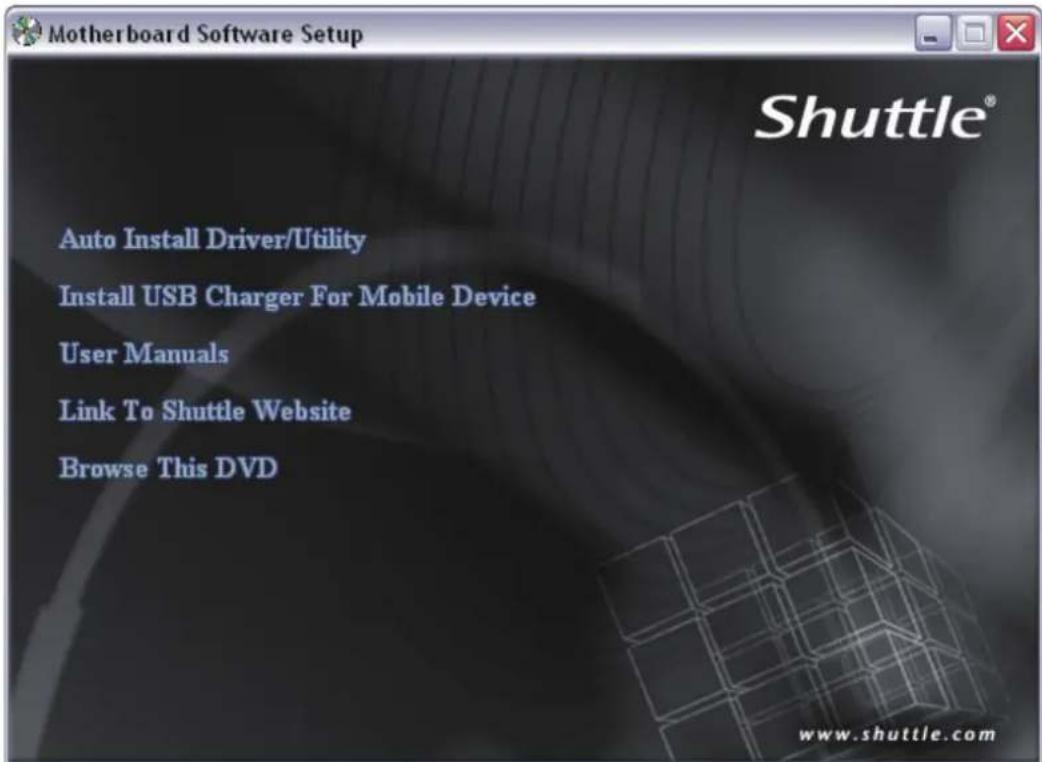

Insert the attached DVD into your DVD-ROM drive. The DVD AutoRun screen should appear. If the AutoRun screen does not appear, double click on Autorun icon in My Computer to bring up Shuttle Mainboard Software Setup screen.

Navigation Bar Description :

Auto Install Driver/Utility
Install USB Charger For Mobile Device
User Manuals - Motherboard Manual, Quick Guide.
Link To Shuttle Website - Link to shuttle website homepage.
Browse This DVD - Allows you to see contents of this DVD.

Motherboard Software Setup Shuttle® Auto Install Driver/Utility Install USB Charger For Mobile Device User Manuals Link To Shuttle Website Browse This DVD www.shuttle.com

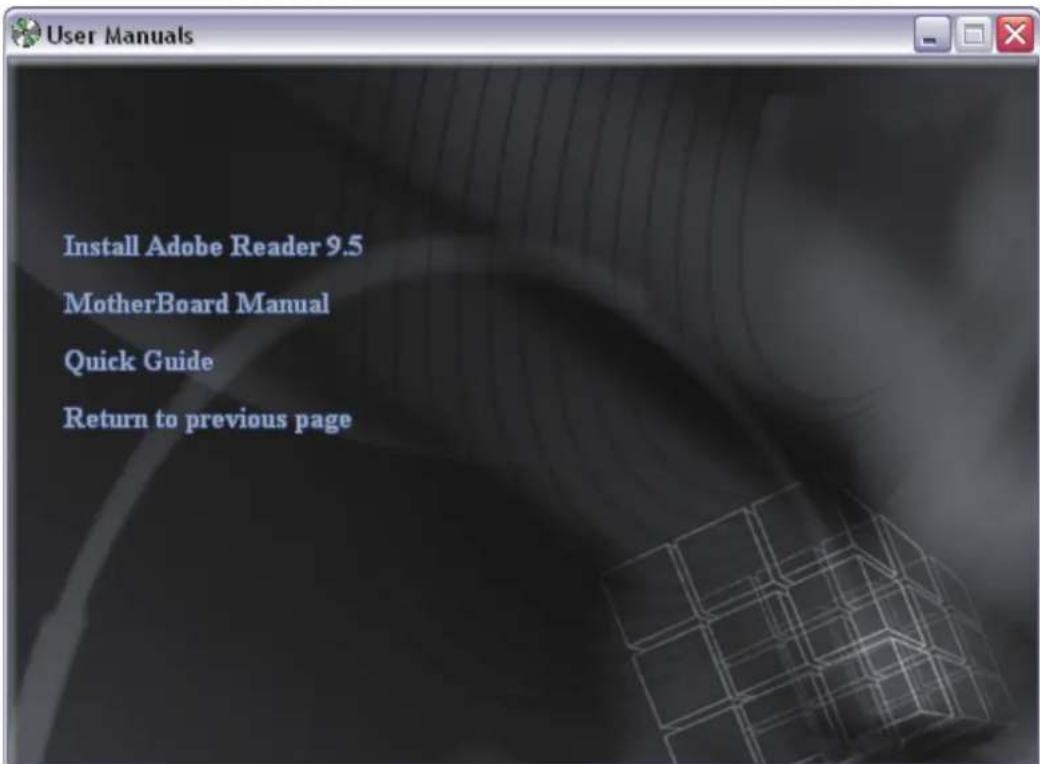

■ User Manuals

Install Adobe Reader 9.5
Motherboard Manual
Quick Guide

User Manuals Install Adobe Reader 9.5 MotherBoard Manual Quick Guide Return to previous page

Starting BIOS

AMIBIOS has been integrated into many motherboards for over a decade. In the past, people often referred to the AMIBIOS setup menu as BIOS, BIOS setup, or CMOS setup.

American Megatrends refers to this setup as BIOS. Specifically, it is the name of the AMIBIOS BIOS setup utility. This chapter describes the basic navigation of the BIOS setup screens.

Enter the BIOS

To enter the BIOS setup screens, follow the steps below:

Step1. Power on the motherboard.

Step2. Press the key on your keyboard when you see the following text prompt: Press DEL to run Setup.

Step3. After you press the key, the main BIOS setup menu displays. You can access the other setup screens from the main BIOS setup menu, such as the Chipset and Power menus.

This manual describes the standard look of the BIOS setup screen. The motherboard manufacturer has the ability to change any and all of the settings described in this manual. This means that some of the options described in this manual do not exist in your motherboard's AMIBIOS.

In most cases, the key is used to invoke the BIOS setup screen. There are a few cases that other keys are used, such as ,, and so on.

BIOS Setup Menu

The main BIOS setup menu is the first screen that you can navigate. Each main BIOS setup menu option is described in this user's guide.

The Main BIOS setup menu screen has two main frames. The left frame displays all the options that can be configured. "Grayed-out" options cannot be configured. Options is blue can be.

The right frame displays the key legend. Above the key legend is an area reserved for a text message. When an option is selected in the left frame, it is highlighted in white.

Often a text message will accompany it.

AMIBIOS has default text messages built into it. The motherboard manufacture retains the option to include, leave out, or change any of these text messages. They can also add their own text messages. Because of this, many screen shots in this manual are different from your BIOS setup screen.

The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include , , , , keys, and so on.

There is a hot key legend located in the right frame on most BIOS setup screens.

Hot Key Description
→ Left← Right	The Left and Rightkeys allow you to select a BIOS setup screen. For example: Main screen, Advanced screen, Chipset screen, and so on.
↑ Up↓ Down	The Up and Downkeys allow you to select an BIOS setup item or sub-screen.
+- Plus/Minus	The Plus and Minuskeys allow you to change the field value of a particular setup item. For example: Date and Time.
Tab Thekey allows you to select BIOS setup fields.
F1	Thekey allows you to display the General Help screen. Press thekey to open the General Help screen.
F4	Thekey allows you to save any changes you have made and exit BIOS Setup. Press thekey to save your changes. Press thekey to save the configuration and exit. You can also use thekey to select Cancel and then press thekey to abort this function and return to the previous screen.
ESC	Thekey allows you to discard any changes you have made and exit the BIOS Setup. Press thekey to exit the BIOS setup without saving your changes. Press thekey to discard changes and exit. You can also use thekey to select Cancel and then press thekey to abort this function and return to the previous screen.
Enter	Thekey allows you to display or change the setup option listed for a particular setup item. Thekey can also allow you to display the setup sub-screens.

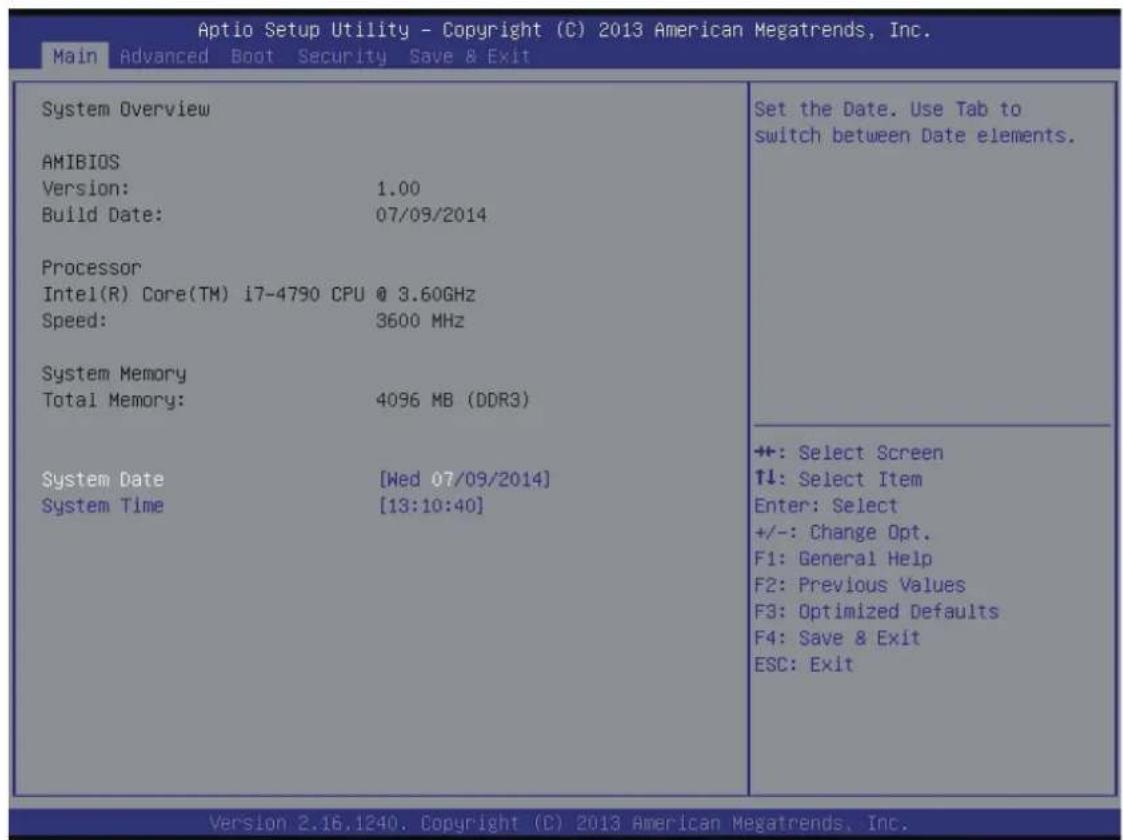

Main Setup

When you first enter the BIOS Setup Utility, you will enter the Main setup screen.

You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below.

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Boot Security Save & Exit System Overview AMIBIOS Version: 1.00 Build Date: 07/09/2014 Processor Intel(R) Core(TM) i7-4790 CPU @ 3.60GHz Speed: 3600 MHz System Memory Total Memory: 4096 MB (DDR3) System Date [Wed 07/09/2014] System Time [13:10:40] Set the Date. Use Tab to switch between Date elements. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1240. Copyright (C) 2013 American Megatrends, Inc.

System Time/System Date

Use this option to change the system time and date. Highlight System Time or System Date using the keys. Enter new values through the keyboard. Press the key or the keys to move between fields. The date must be entered in MM/DD/YY format. The time is entered in HH:MM:SS format.

The time is in 24-hour format. For example, 5:30 A.M. appears as 05:30:00, and 5:30 P.M. as 17:30:00.

Advanced

Select the Advanced tab from the BIOS setup screen to enter the Advanced BIOS Setup screen. You can select any of the items in the left frame of the screen, such as CPU Configuration, to go to the sub menu for that item.

You can display an Advanced BIOS Setup option by highlighting it using the keys. All Advanced BIOS Setup options are described in this section.

The Advanced BIOS Setup screen is shown below. The sub menus are described on the following pages.

Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Boot Security Save & Exit
Advanced Settings WARNING:Setting wrong values in below sections may cause system function. ►CPU Configuration ►SATA Configuration ►USB Configuration ►OnBoard Device Configuration ►Power Management Configuration ►Hardware Health Configuration ►Frequency & Voltage Configuration	CPU Configuration Parameters
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version:2.14.1219. Copyright (C) 2011 American Megatrends, Inc.

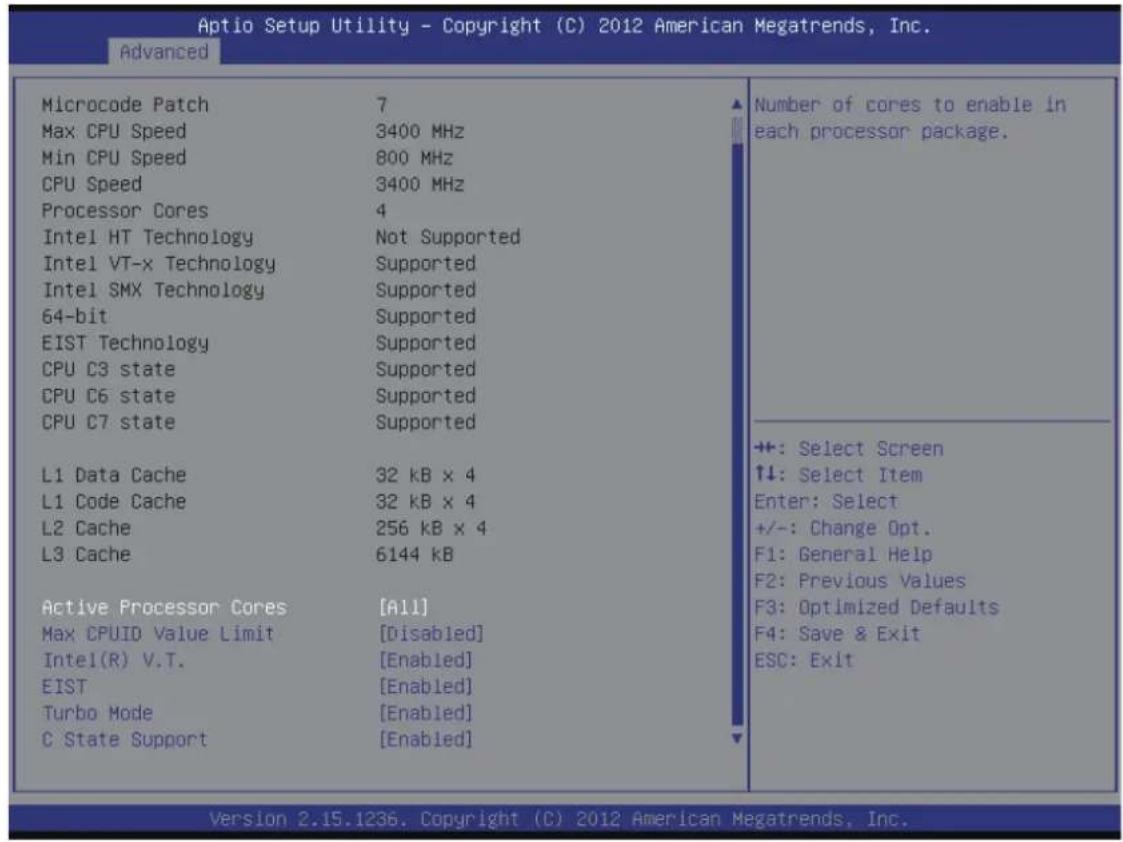

CPU Configuration

You can use this screen to select options for the CPU Configuration Settings. Use the up and down keys to select an item. Use the and keys to change the value of the selected option. A description of the selected item appears on the right side of the screen. The settings are described on the following pages. An example of the CPU Configuration screen is shown below.

The CPU Configuration setup screen varies depending on the installed processor.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Advanced Microcode Patch 7 Max CPU Speed 3400 MHz Min CPU Speed 800 MHz CPU Speed 3400 MHz Processor Cores 4 Intel HT Technology Not Supported Intel VT-x Technology Supported Intel SMX Technology Supported 64-bit Supported EIST Technology Supported CPU C3 state Supported CPU C6 state Supported CPU C7 state Supported L1 Data Cache 32 kB x 4 L1 Code Cache 32 kB x 4 L2 Cache 256 kB x 4 L3 Cache 6144 kB Active Processor Cores [All] Max CPUID Value Limit [Disabled] Intel(R) V.T. [Enabled] EIST [Enabled] Turbo Mode [Enabled] C State Support [Enabled] Number of cores to enable in each processor package. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.

Max CPUID Value Limit

This item allows you to enable or disable the Max CPUID Value Limit.

This should be enabled in order to boot legacy OSes that cannot support CPUs with extended CPUID functions.

Set Limit CPUID MaxVal to 3, Should Be "Disabled" for WinXp.

The choice: Enabled or Disabled.

Some older O.S.'s (Win98,WinMe..) cannot handle a CPUID MaxVal greater than 3. Please choose "Enabled" if you use one of those O.S. If your O.S. is WinXP or Win2000, we suggest you "Disabled" the item.

Intel(R) V. T.

When enable, a VMM can utilize the additional hardware capabilities provided by vanderpool Technology.

The choice: Enabled, Disabled.

CPU support, item appear.

Active Processor Cores

This item allows you to determine how many cores to be enabled.

The choice: ALL,1,2,3.

EIST

This item allows you to enable or disable Enhanced Intel SpeedStep® Technology.

The choice: Enabled, Disabled.

Turbo Mode

This item allows you to enable or disable Intel ^® Turbo Boost Technology.

The choice: Enabled, Disabled.

The CPU Configuration setup screen varies depending on the installed processor.

C State Support

This item allows you to enable or disable CPU C State.

The choice: Enabled, Disabled.

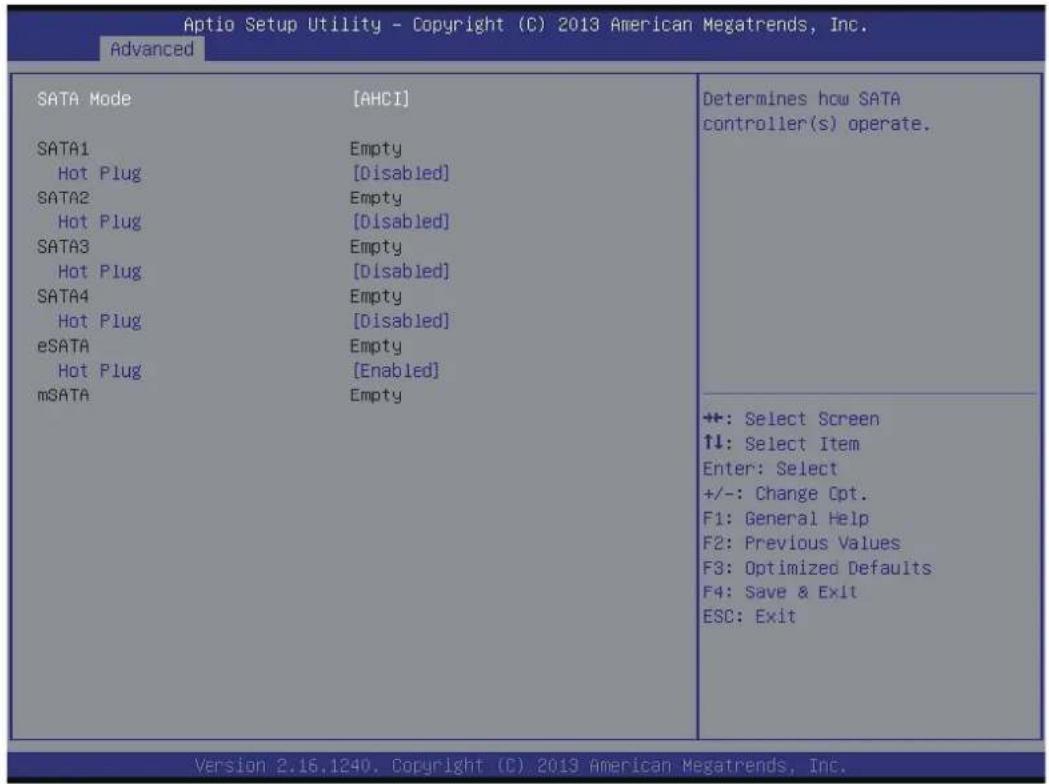

SATA Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced SATA Mode [AHCI] SATA1 Empty Hot Plug [Disabled] SATA2 Empty Hot Plug [Disabled] SATA3 Empty Hot Plug [Disabled] SATA4 Empty Hot Plug [Disabled] eSATA Empty Hot Plug [Enabled] mSATA Empty Determines how SATA controller(s) operate. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1240. Copyright (C) 2013 American Megatrends, Inc.

SATA Mode

This item allows you to set the SATA Mode.

The choice: IDE, AHCI or RAID.

Hot Plug

This item allows you to enable or disable Hot Plug capability.

The choice: Enabled, Disabled.

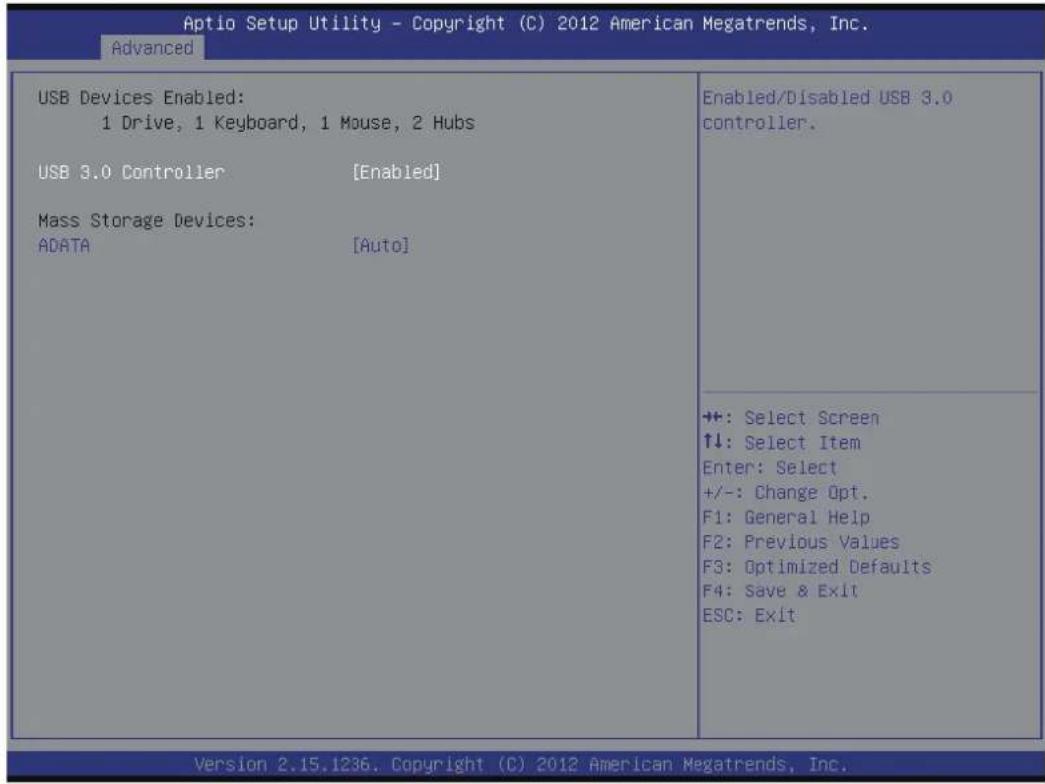

USB Configuration

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Advanced USB Devices Enabled: 1 Drive, 1 Keyboard, 1 Mouse, 2 Hubs USB 3.0 Controller [Enabled] Mass Storage Devices: ADATA [Auto] Enabled/Disabled USB 3.0 controller. +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.

USB 3.0 Controller

This item allows you to enable or disable USB 3.0 Controller.

The choice: Enabled, Disabled.

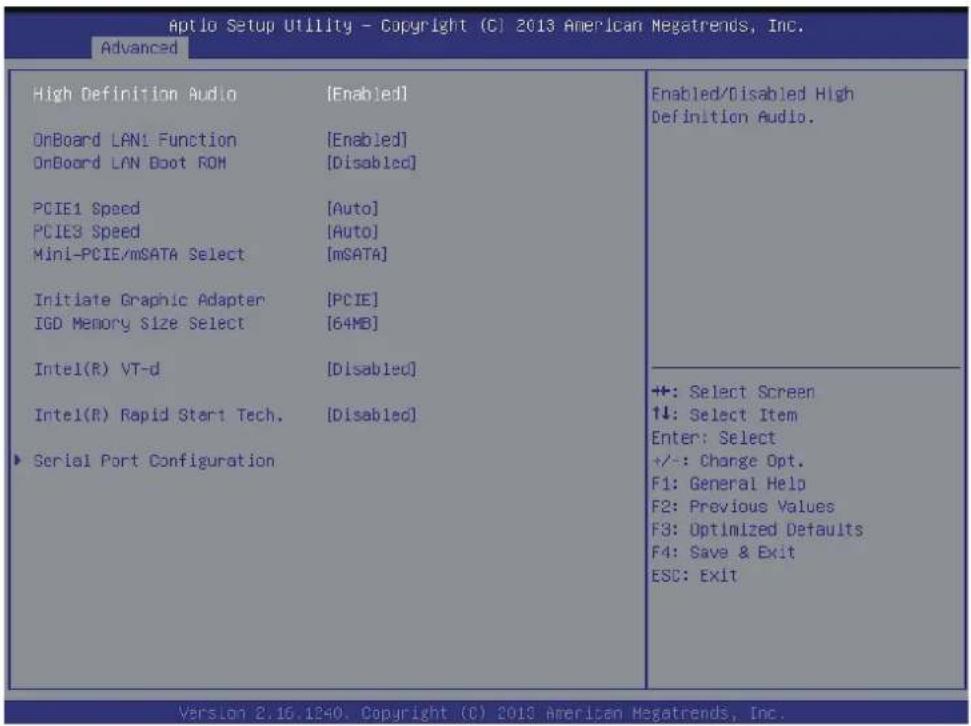

Onboard Device Configuration

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Advanced High Definition Audio [Enabled] OnBoard LAN1 Function [Enabled] OnBoard LAN Boot ROM [Disabled] PCIE1 Speed [Auto] PCIE3 Speed [Auto] Mini-PCIE/mSATA Select [MSATA] Initiate Graphic Adapter [PCIE] IGD Memory Size Select [64MB] Intel(R) VT-d [Disabled] Intel(R) Rapid Start Tech. [Disabled] Serial Port Configuration Enabled/Disabled High Definition Audio. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1240. Copyright (C) 2013 American Megatrends, Inc.

High Definition Audio

This item allows you to enable or disable system High Definition Audio.

The choice: Enabled, Disabled.

Onboard LAN Function

This item allows you to enable or disable LAN Function.

The choice: Enabled, Disabled.

Onboard LAN BOOT ROM

This item allows you to enable or disable Onboard LAN BOOT ROM.

The choice: Enabled, Disabled.

PCIE1/3 Speed

This item allows user to select PCIE Speed.

The choice: Auto, Gen1, Gen2.

Mini-PCIE/mSATA Select

This item allows user to select Mini-PCIE or mSATA port.

The choice: mSATA, Mini-PCIE.

Initiate Graphic Adapter

Select which graphics controller to use as the primary boot device.

Set Initiate Graphic Adapter to "Switchable" and enable Multi-Monitor feature.

The choice: PCIE, onboard, Switchable.

IGD Graphics Memory Size Select

Allows you to select the size of system memory used by the internal graphics device.

The choice: 64MB, 128MB, 256MB, 512MB, 1024MB.

Intel(R) VT-d

This item allows you to enable or disable Intel(R) VT-d.

The choice: Enabled, Disabled.

Intel(R) Rapid Start Technology

This item allows you to enable or disable Intel(R) Rapid Start Technology.

The choice: Enabled, Disabled.

Serial Port Configuration Controller

Option are in its sub-menu.

Pressto enter the sub-menu of detailed options.

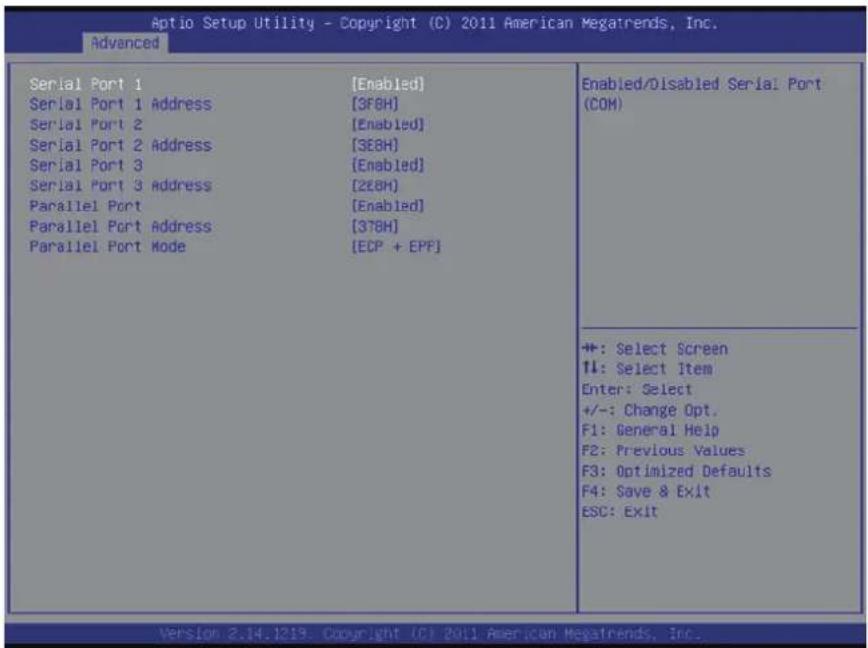

Serial Port 1

This item allows you to enable or disable Serial Port.

The choice: Enabled, Disabled.

Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Advanced Serial Port 1 [Enabled] Serial Port 1 Address [3F8H] Serial Port 2 [Enabled] Serial Port 2 Address [3E8H] Serial Port 3 [Enabled] Serial Port 3 Address [2E8H] Parallel Port [Enabled] Parallel Port Address [378H] Parallel Port Mode [ECP + EPF] Enabled/Disabled Serial Port (COM) +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.

Power Management Configuration

Suspend Mode [S3(STR)] Wake Up by USB (S3) [Enabled] EuP Function [Enabled] Power-On after Power-Fail [Power Off] Wake Up by Ring [Disabled] Wake Up by LAN [Disabled] PowerOn by RTC Alarm [Disabled]	Select the highest ACPI sleep state the system will enter when the SUSFEND button is pressed.
	+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.

Suspend mode

Select the highest ACPI Sleep state the system will enter when the SUSPEND button is pressed.

The choice: S1 (POS), S3 (STR).

Wake Up By USB (S3)

This item allows you to enable or disable system wake up by USB (S3).

The choice: Enabled, Disabled.

EuP Function

This item allows you to enable or disable system EuP function in S4/S5.

The choice: Enabled, Disabled.

PowerOn after Power-Fail

This item allows you to set system power on automatically after AC power restored.

The choice: Power On, Former-sts, Power Off.

Wake Up By Ring

This item allows you to enable or disable system wake up by Ring.

The choice: Enabled, Disabled.

Wake Up By LAN

This item allows you to enable or disable system wake on by onboard LAN chip.

The choice: Enabled, Disabled.

PowerOn by RTC Alarm

When enabled, System will wake on the hr::min::sec specified.

The choice: Enabled, Disabled.

Hardware Health Configuration

Hardware Health Configuration FAN1 Speed Control [Smart Fan Mode] FAN2 Speed Control [Smart Fan Mode]		Fan Control Select
System Temperature : +28 C CPU Temperature : +46 C
FAN1 Speed : N/A FAN2 Speed : 1650 RPM
CPU Core : +1.788 V DRAM : +1.500 V
		+: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.15.1234. Copyright (C) 2012 American Megatrends, Inc.

FAN1/FAN2 Speed Control

This item allows you to set CPU Fan Speed.

The choice: Smart Fan Mode, Ultra-Low Speed, Low Speed, Mid Speed, Full Speed.

➢ Frequency & Voltage Configuration

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Advanced DRAM Frequency [Auto] ▶ XMP Configuration DIMM Voltage Setting [Auto] Maximum Memory Frequency Selections in Mhz. ++: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.

DRAM Frequency

This item allows user to adjust DRAM Frequency.

The choice: Auto, 1066mhz, 1333mhz, 1600mhz.

DIMM Voltage Setting

This item allows user to adjust DIMM Voltage parameter.

The choice: Auto, +50mv, +100mv, +150mv, -50mv, -100mv, -150mv

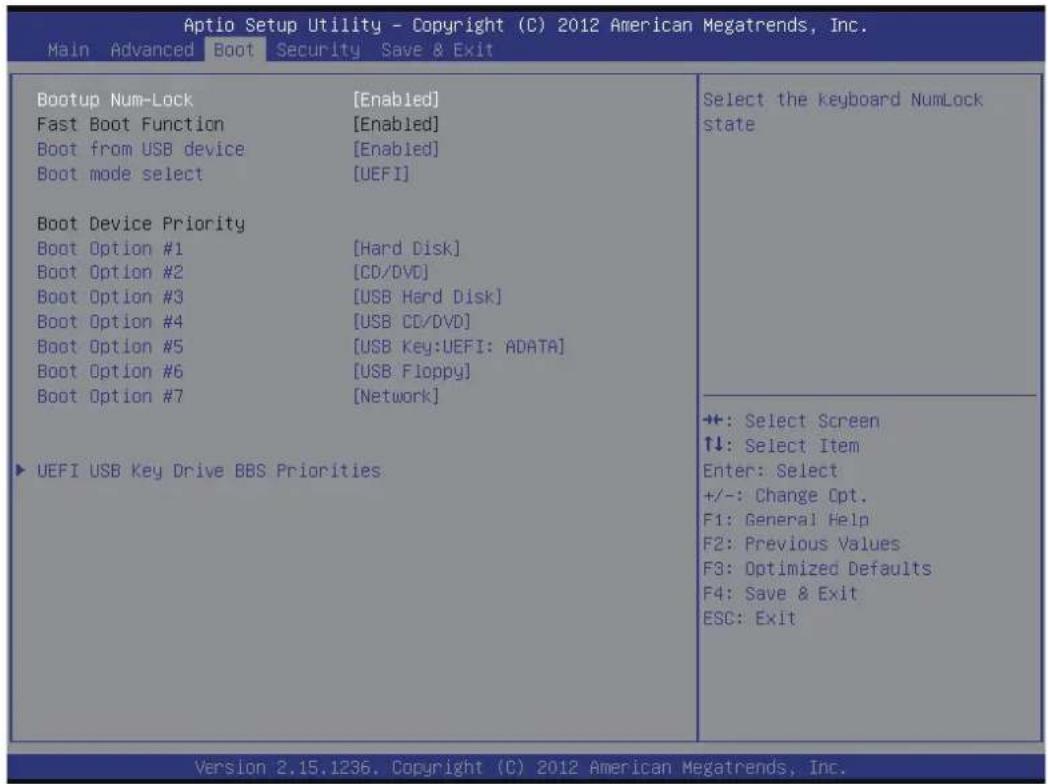

Boot

Select the Boot tab from the BIOS setup screen to enter the Boot BIOS Setup screen. You can select any of the items in the left frame of the screen, such as Boot Settings Configuration, to go to the sub menu for that item.

You can display an Boot BIOS Setup option by highlighting it using the keys. All Boot BIOS Setup options are described in this section.

The Boot BIOS Setup screen is shown below. The sub menus are described on the following pages.

Aptio Setup Utility - Copyright (C) 2012 American Megatrends, Inc. Main Advanced Boot Security Save & Exit Bootup Num-Lock [Enabled] Fast Boot Function [Enabled] Boot from USB device [Enabled] Boot mode select [UEFI] Boot Device Priority Boot Option #1 [Hard Disk] Boot Option #2 [CD/DVD] Boot Option #3 [USB Hard Disk] Boot Option #4 [USB CD/DVD] Boot Option #5 [USB Key:UEFI: ADATA] Boot Option #6 [USB Floppy] Boot Option #7 [Network] ► UEFI USB Key Drive BBS Priorities Select the keyboard NumLock state +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.15.1236. Copyright (C) 2012 American Megatrends, Inc.

Bootup Num-Lock

This item allows you to enable or disable keyboard Num-Lock state.

The choice: Enabled, Disabled.

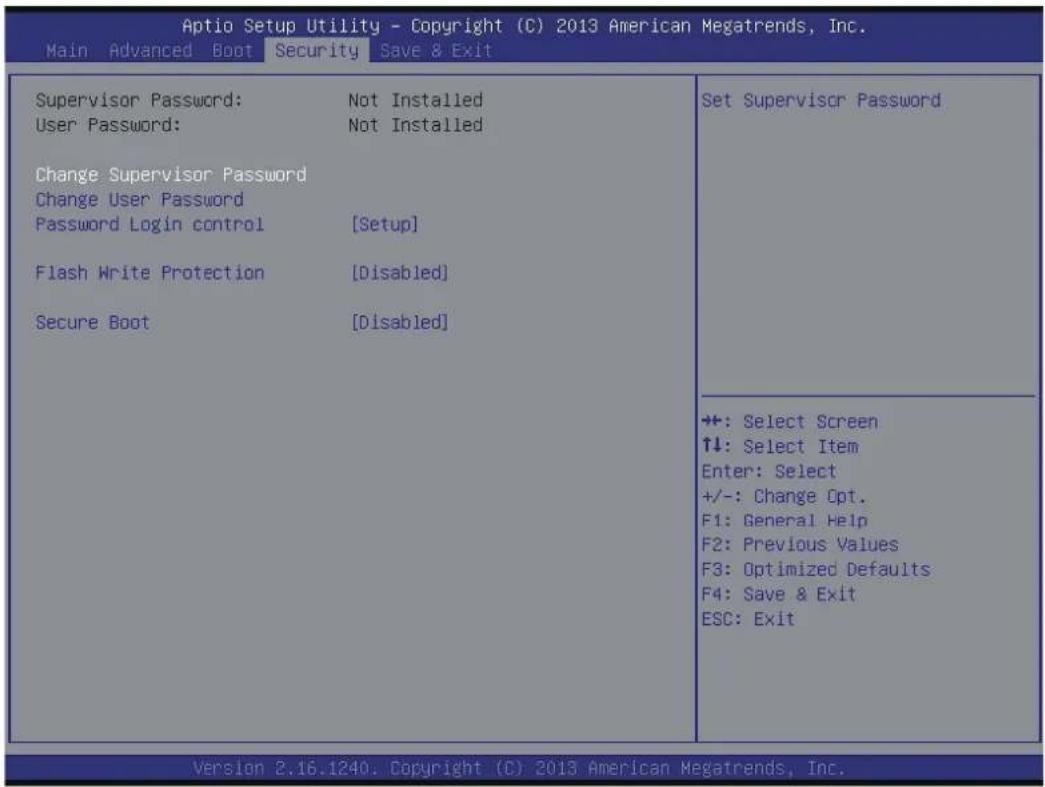

Security

Select the Security tab from the BIOS setup screen to enter the Security BIOS Setup screen. You can display an Security BIOS Setup option by highlighting it using the keys. All Security BIOS Setup options are described in this section.

The Security Setup screen is shown below. The sub menus are documented on the following pages.

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc. Main Advanced Boot Security Save & Exit Supervisor Password: Not Installed User Password: Not Installed Change Supervisor Password Change User Password Password Login control [Setup] Flash Write Protection [Disabled] Secure Boot [Disabled] Set Supervisor Password +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.16.1240. Copyright (C) 2013 American Megatrends, Inc.

Supervisor Password

Indicates whether a supervisor password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

User Password

Indicates whether a user password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

Change Supervisor Password

Select Change Supervisor Password from the Security Setup menu and press .

Enter New Password:

appears. Type the password and press . The screen does not display the characters entered. Retype the password as prompted and press . If the password confirmation is incorrect, an error message appears. The password is stored in NVRAM after BIOS completes.

Change User Password

Select Change User Password from the Security Setup menu and press .

Enter New Password:

appears. Type the password and press . The screen does not display the characters entered. Retype the password as prompted and press . If the password confirmation is incorrect, an error message appears. The password is stored in NVRAM after BIOS completes.

Flash Write Protection

Choose [Enabled] to avoid virus destroy BIOS. If you want to flash BIOS, you must set it [Disabled].

The choice: Enabled or Disabled.

Secure Boot

This item allows user to enable/disable Secure Boot function.

Save & Exit

Select the Exit tab from the BIOS setup screen to enter the Exit BIOS Setup screen.

You can display an Exit BIOS Setup option by highlighting it using the keys. All Exit BIOS Setup options are described in this section.

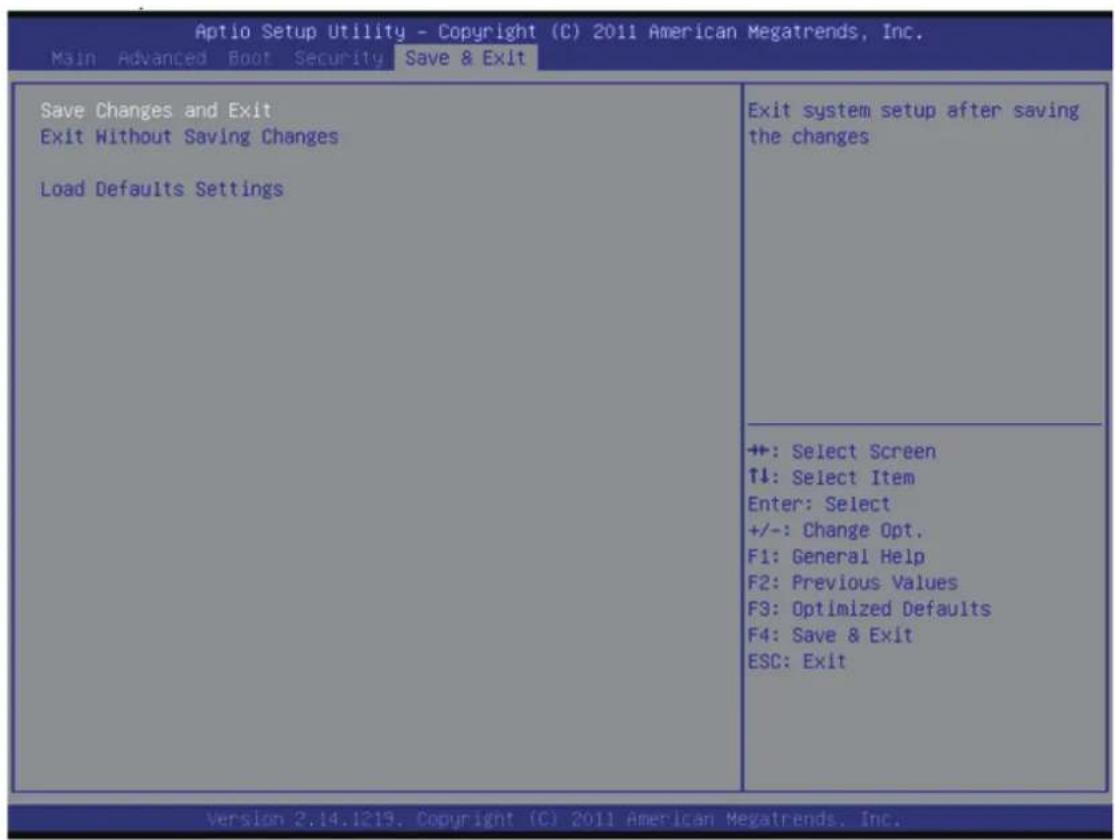

The Exit BIOS Setup screen is shown below.

Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc. Main Advanced Boot Security Save & Exit Save Changes and Exit Exit Without Saving Changes Load Defaults Settings Exit system setup after saving the changes +: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit Version 2.14.1213. Copyright (C) 2011 American Megatrends, Inc.

Save Changes and Exit

When you have completed the system configuration changes, select this option to leave BIOS Setup and reboot the computer so the new system configuration parameters can take effect.

Select "Save Changes and Exit" from the Exit menu and press .

Save Configuration Changes and Exit Now?

[Ok] [Cancel]

appears in the window. Select Ok to save changes and exit.

Exit Without Saving Changes

Select "Exit without Saving Changes" from the Exit menu and press . Select Ok to discard changes and Exit.

Load Defaults Settings

BIOS automatically sets all BIOS Setup options to a complete set of default settings when you Select this option. The Optimal settings are designed for maximum system performance, but may not work best for all computer applications. In particular, do not use the Optimal BIOS Setup options if your computer is experiencing system configuration problems.

Select Load Optimal Defaults from the Exit menu and press .

Select Ok to load optimal defaults.
