Brand	CRIVIT
Model	Ultimate Catch surf 360-3
Product Type	Surf Casting Fishing Reel Set
Rod Length	Approx. 360 cm
Max Lead Weight	250 g
Fishing Line Diameter	0.40 mm
Load Capacity	10 kg
Reel Size	7000
Bearings	1 BB
Transmission Ratio	4.1:1
Scope of Delivery	Surf casting set, double paternoster with ground weight, carrying bag, instructions
Intended Use	Fishing on seabed from beach, jetties, or piers for cod, flatfish, etc.
Safety Notes	Avoid power lines and storms; handle sharp hooks with care; use protective gear
Maintenance	Rinse with lukewarm water after saltwater use; oil moving parts when dry
Storage	Keep clean and dry, avoid extreme temperatures
Warranty	3 years from date of purchase
IAN	278715
Service Hotline (GB)	0871 5000 720 (£0.10/min)
Email Service	[e-mail]
Spare Parts	www.delta-sport.com, category Service - Lidl Spare Parts Service

Frequently Asked Questions - Ultimate Catch surf 360-3 CRIVIT

What is the maximum casting weight for the Ultimate Catch surf 360-3?

The maximum casting weight is 250g, allowing you to reach the seabed even in wavy conditions or strong currents.

How do I assemble the fishing rod and reel?

Insert the reel foot into the reel holders and tighten the screw lock clockwise. Adjust the crank position by loosening the crank fixing bolt, then re-tighten. Insert rod segments securely, aligning the rings.

What type of fishing line does the reel come with?

The reel is equipped with a monofilament fishing line of 0.40mm diameter and a load capacity of 10kg.

How do I perform an overhead cast?

Engage the non-return device, hold the rod with the reel foot between your middle and ring fingers, press the line with your index finger, open the bail arm, swing the rod backward then forward, releasing the line when the rod tip points to the target.

What safety precautions should I take when fishing?

Never fish near high-voltage power lines or during storms. Wear protective glasses and head protection due to sharp hooks. Keep children away and maintain safe distance from others.

How should I maintain the reel after saltwater use?

Rinse the rod and reel briefly with lukewarm water. Once dry, add one or two drops of oil to all moving parts to maintain functionality and lifespan.

What is the warranty period for this product?

The product comes with a 3-year warranty from the date of purchase, covering material and workmanship defects. Statutory rights are not affected.

What accessories are included in the scope of delivery?

The set includes the surf casting reel and rod, a double paternoster with ground weight, a carrying bag, and the instruction manual.

How do I store the fishing set?

Keep the product clean and dry in a space not exposed to very hot or cold temperatures. Use only water for cleaning, and dry with a cloth.

Can I use the reel for freshwater fishing?

While designed for saltwater surf casting, it can be used in freshwater. However, rinse thoroughly after use in saltwater to prevent corrosion.

USER MANUAL Ultimate Catch surf 360-3 CRIVIT

Instructions for use

IAN 278715

Top-down schematic of a mechanical component with concentric rings and a central base (no text or symbols)

DE

Lieferumfang 6

Teilebeschreibung 6

Technische Daten 6

Bedienung 6

Angel montieren 6 - 7

Scope of delivery 10

Description of parts 10

Technical data 10

Use 10

Assembling the fishing rod 10 - 11

Correct use / Tips for successful angling ..... 11

Sportsmanlike conduct 11

Safety notes 11 - 12

Use the QR code 12

Maintenance and cleaning 12

Care & storage 12

Disposal 12

3-year warranty 12

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

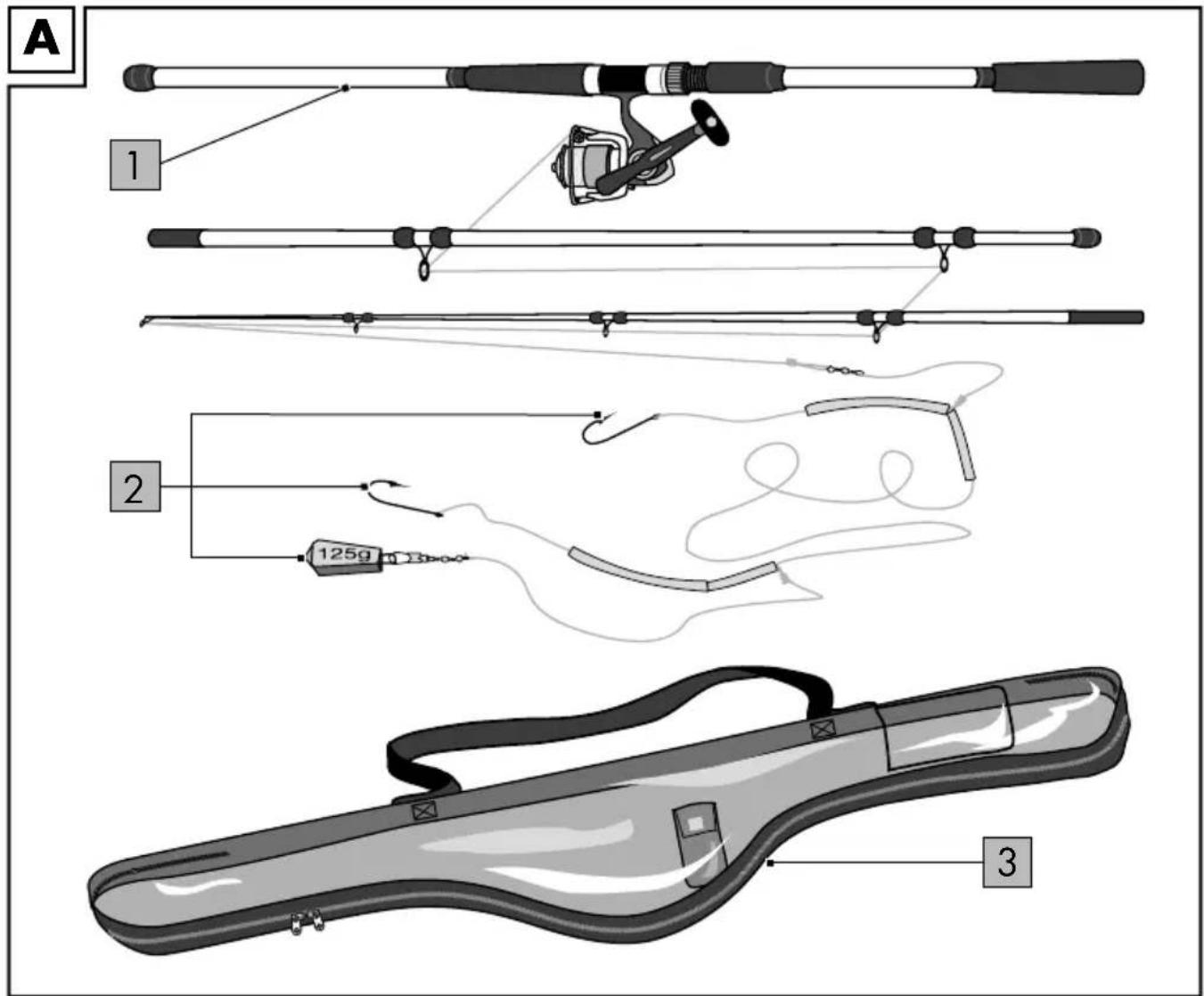

Scope of delivery (figure A)

1 x Surf casting set (1)

1 x Double paternoster with ground weight (2)

1 x Carrying bag (3)

1 x Instructions for use

Description of parts (figure B)

Reel holder (1A)

Screw lock (1B)

Reel foot (1C)

Bail arm (1D)

Reel spool (1E)

Crank fixing bolt (1F)

Crank (1G)

Brake (1H)

Non-return device (11)

Fishing line (1J)

Technical data

Rod length: approx. 360cm

Lead weight: up to 250g

∅ Fishing line: 0.40mm

Load carrying capacity: 10kg

Reel size 7000 - 1 BB

Transmission: 4.1:1

Use

Before initial use

Caution: Find out about national laws and local regulations before fishing. These instructions describe the most important notes on the article.

Angling is a very varied sport. We therefore recommend reading additional specialist literature on the subject and/or getting advice from clubs and associations.

Assembling the fishing rod

Even if this angling set is already assembled, you must still check the following assembly points prior to first use in order to ensure safe interaction between the rod and the reel.

1. The reel foot (1C) must be inserted in the reel holders (1A) and the screw lock (1B) is fixed in a clockwise direction.

2. Bring the crank (1G) to the desired position by releasing the opposite crank fixing bolt (1F) in an anti-clockwise direction and then tightening it again once the corresponding position is reached. Insert the individual segments of the fishing rod into one another so that the joints are fixed securely. Make sure that the rings in the individual segments are aligned (see figure C).

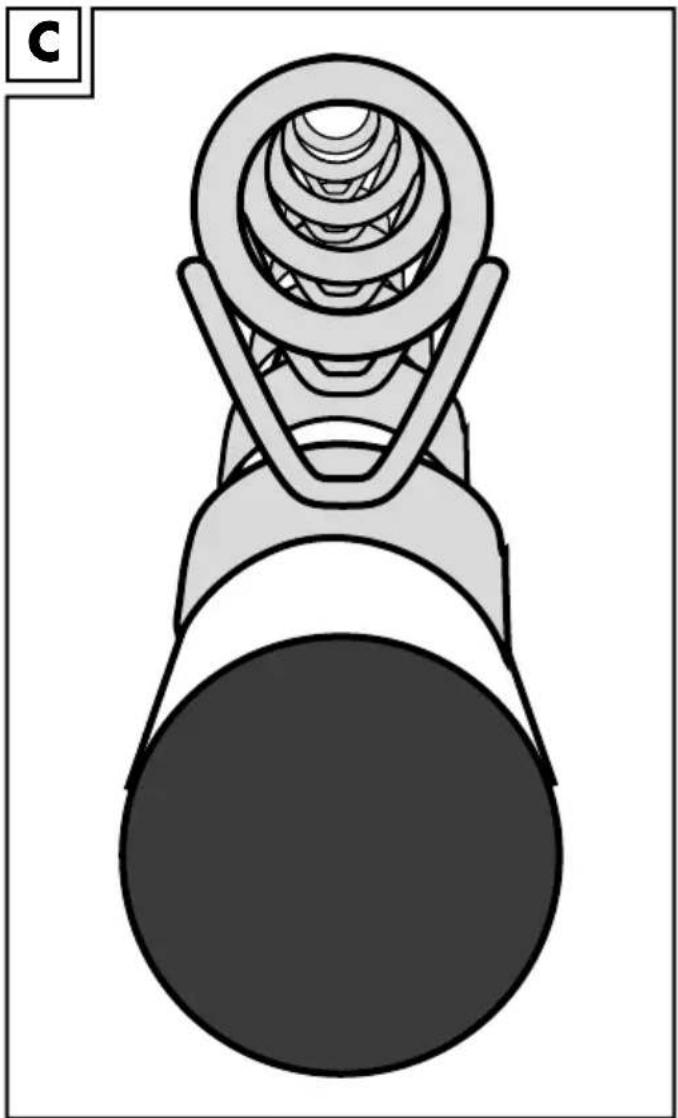

3. Release the brake (1H) by turning it anti-clockwise. Pull sufficient fishing line (1J) from the reel spool (1E) and feed it under the bail arm (1D) through all the rings on the rod. Re-tighten the brake by turning it in a clockwise direction.

Deliver the bait with an overhead cast

Make sure that the non-return device (11) is engaged. Grip the rod by the handset, whereby the reel foot must be between your middle and ring fingers.

Your index finger holds the fishing line while the operating lever is closed and presses it down onto the fishing rod. Open the bail arm and guide the rod backwards past the side of your head: your free hand is holding the grip end of the fishing rod, thus giving additional stability and control.

The fishing rod with the bait should no longer swing and the distance between the bait/ground weight and the tip of the rod should be sufficient to produce a harmonious swing.

Look at the place in the water you wish to cast to and swing the fishing rod forwards with steadily increasing speed. Your index finger should release the fishing line at the moment when the tip of the fishing rod is pointing to the target point.

Close the bail arm when the bait touches the water or it reaches the desired water depth.

Correct use / Tips for successful angling

The surf casting set was developed specifically for fishing on the seabed for fish species such as cod and flatfish from the beach or from jetties and piers. With a maximum casting weight of 250g, it can securely reach the seabed due to the heavy ground weights that allow for casting far out even in wavy conditions or strong currents.

The reel is equipped with a monofilament fishing line with a diameter of 0.40mm, and the maximum load capacity has been calculated at 10kg. In practice, however, it has been shown that substantially heavier fish can often be landed safely.

Equip the double paternoster (also called a ground angling system) with natural bait such as worms, mollusc flesh, or shrimps and place the rod as vertically as possible in a special rod holder or for example on a bridge railing after casting.

Bring tension to the fishing line by turning the crank several times so that both lures are just above the seabed, where most sea fish search for food.

Once a fish has bitten this will be indicated by a shaking / wobbling of the tip of the fishing rod. 'Set' the hook by pulling the fishing rod up quickly and smoothly and play the hooked fish.

Bells and glow sticks attached to the tip of the fishing rod have proven to be reliable acoustic and optical bite signals at dusk or in the dark.

Sportsmanlike conduct

While enjoying your angling please remain respectful of the fish and of nature. You must observe some important basic rules of angling alongside the national laws and local regulations.

• Bring the necessary fishing accessories with you in order to safely land the fish, gently remove the fishing hook, and throw the fish back, or kill it quickly and in accordance with hunting principles. The particular items of equipment for this are, for many types of angling, a landing net, measuring tape, a stunning device, knife, protection spreader, disgorger, and fishing pliers.
• Do not pull the caught fish above the ground or through the sand on the fishing line as such quickly leads to injury to the sensitive mucous membranes. This is why you must always hold the fish with wet hands.
• Gently return undersized fish and fish that are in the spawning phase.
• Fish that are taken for consumption must be professionally stunned immediately and killed with a knife thrust.
• Even if you have an 'hour of glory' at the waterside and the fish are biting well do not be over indulgent and do not take more fish than is really necessary.
  • Always leave the fishing location as clean as you would like to find it.

! Safety notes

Risk to life!

Do not fish near high-voltage power lines.

Pay attention to any low overhead lines while fishing and avoid contact. Otherwise there is risk to life through electric shock.

Risk to life during storm!

Do not fish during storms. If lightning strikes the fishing rod or fishing line it can lead to life-threatening injury or even to death. Otherwise there is risk to life through electric shock.

Risk of injury!

Examine the article for damage before each use. Never use a damaged article. Otherwise safe use is no longer guaranteed.

Risk of injury and accident!

This article contains sharp hooks that can cause substantial injury to the angler and other persons. You must therefore handle the article with care.

• Pay attention to other anglers and persons and maintain a safe distance. If the line is cast incorrectly then an energetically swung hook represents a certain risk of injury.
• Wear suitable glasses and head protection to protect yourself from injury from the hook.
• Do not carry out repairs yourself. Contact a service office.
• Store the article out of the reach of children.
• Only allow children to use the article with the instruction and supervision of an adult.

Use the QR code

The angling set in use.

Please scan the QR code for a video on deployment and use.

1. Open the QR code app.
2. Hold your mobile/tablet and scan the displayed QR code.

Maintenance and cleaning

Rinse the rod and reel briefly with lukewarm water after use in salt water. Once the reel is dry please add one or two drops of oil to all moving parts in order to maintain functionality and lifespan.

Care & storage

Always keep the product clean and dry in a space unexposed to very hot or cold temperatures.

IMPORTANT! Clean using water only - never with harsh cleaning agents. Afterwards, dry with a cleaning cloth or duster.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 278715

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at: www.delta-sport.com, category Service - Lidl Spare Parts Service

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • D-22397 Hamburg

Version: 01/2017
