BXUP1100XDE - Pump BLACK & DECKER - Free user manual and instructions

Product type	Drainage pump for clear or dirty water
Brand	Black & Decker
Model	BXUP1100XDE
Power	1100 W
Supply voltage	230 V ~ 50 Hz

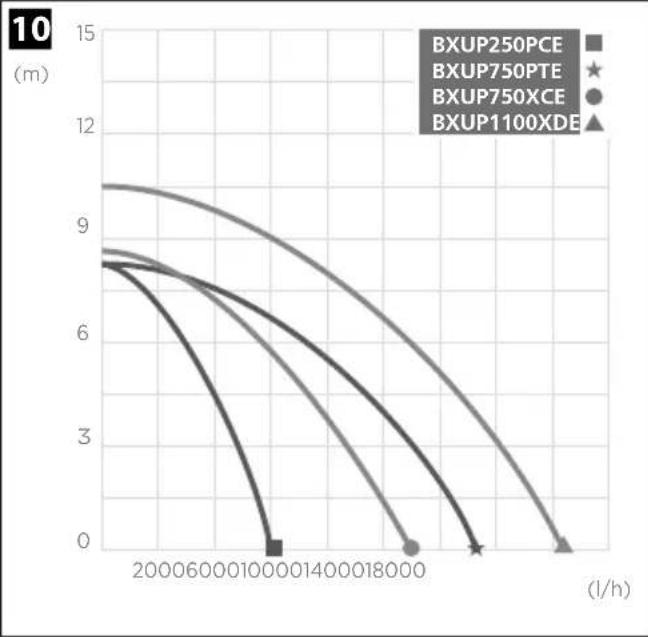

Maximum delivery head	10.5 m
Maximum flow rate	16500 l/h
Maximum water temperature	35 °C
Maximum immersion depth	7 m
Residual water level	45 mm
Maximum solid particle size	35 mm
Protection rating	IPX8
Electrical protection class	I (with earth)
Motor insulation	Class F
Net weight	6.6 kg
Total weight (with packaging)	7.2 kg
Cable length	10 m
Connection diameter	25.4 – 31.75 – 38.1 mm
Float switch type	Adjustable level float switch
Intended use	Pumping clean or dirty water (up to 35 mm solids) for domestic use
Safety	Dry running protection (max 10 s), 30 mA residual current device recommended
Maintenance	Rinse with clean water after each use, protect from frost
Warranty	24 months (12 months for professional use)

Frequently Asked Questions - BXUP1100XDE BLACK & DECKER

What is the power of the Black & Decker BXUP1100XDE pump?

The pump has a power of 1100 W and operates at 230 V ~ 50 Hz.

What maximum delivery head can it achieve?

The maximum delivery head is 10.5 meters. The maximum flow rate is 16500 l/h, but it decreases with head.

Can I use this pump for drinking water?

No, this pump is not designed to convey drinking water. The water can be contaminated by lubricant leaks. It is intended for rainwater, flood drainage, or wastewater.

How to bleed the pump before use?

Immerse the pump obliquely in water to expel air from the pump body. Hold this position until no air bubbles come out. The bleed valve (A7) lets air out slowly. When water comes out, the pump is ready.

What to do if the pump does not work?

First check the power supply and that the plug is properly connected. If the residual current device has tripped, reset it. If the impeller is blocked, clean the suction strainer. If the problem persists, contact an authorized dealer.

What is the maximum particle size of solids the pump can handle?

The pump can handle suspended solids up to 35 mm in diameter. Note: sand and stones are not allowed, only soft materials like leaves.

How to adjust the level float switch?

The level float switch (A5) is adjusted by shortening the cable in the clip (A5b). A shorter cable activates the pump later and stops it earlier. You can also lock it for continuous operation (supervision required).

What kind of maintenance is needed after use?

After each use, rinse the pump with clean water to remove residues. Clean the suction strainer. Protect the device from frost by storing it in a dry, frost-free place if the temperature drops below 5 °C.

What safety measures should be observed?

Never run the pump dry for more than 10 seconds. Use a 30 mA residual current device. Do not direct the jet at persons or electrical devices. Disconnect before any intervention. The water temperature must not exceed 35 °C.

What is the warranty period for this pump?

The warranty is 24 months for private individuals (12 months for professionals) from the date of purchase, against material and manufacturing defects. The original invoice is required. The warranty does not cover damages due to misuse.

USER MANUAL BXUP1100XDE BLACK & DECKER

Line drawing of a portable water purifier with attached hose and connector (no text or symbols)

Line drawing of a square water heater with attached pipe fitting (no text or symbols)

BXUP750XCE

Line drawing of a cylindrical water heater with attached sensor and control panel (no text or symbols)

BXUP1100XDE

Line drawing of a portable industrial pump with attached piping and valve (no text or symbols)

BXUP250PCE

BXUP750PTE

BXUP750XCE

BXUP1100XDE

EN	Please read these instructions carefully before use. Please retain these instructions for future reference.In case of problems or difficulties, please contact the consumer helpline:www.2helpu.com	Page:5-12
IT	Leggere attentamente queste istruzioni prima dell'uso. Conservare queste istruzioni per future consultazioni.In caso di problemi o difficoltà, contattate l'helpline consumatori:www.2helpu.com	Pagina:13-22
BG	Прочетеме внимателно тези указания преди употреба. Запазете тези указания за справка.При проблеми или затруднения се обърнете към отдела за обслужване на клиенти:www.2helpu.com	Страница:23-32
CS	Před použitím si pozorně přečtěte tento návod. Laskavě si uložte tento návod pro budoucí použití.V případě jakýchkoli problémů nebo potíží laskavě kontaktujte linku pomoci zákazníkům:www.2helpu.com	Strana:33-40
DA	Læs disse instruktioner omhyggeligt inden brug. Opbevar disse instruktioner til senere brug.Kontakt kundeservicetelefonen i tilfælde af problemer eller vanskeligheder:www.2helpu.com	Side:41-49
DE	Lesen Sie bitte diese Bedienungsanleitung vor Gebrauch aufmerksam durch.Bewahren Sie diese Bedienungsanleitung sorgfältig auf, damit Sie sie auch später zu Rate ziehen können.Wenden Sie sich im Falle von Problemen bitte an die Verbraucher-Hotline:www.2helpu.com	Seite:50-59
EL	Διαβάστε προσεκτικά autές τις odňyίες πριν από τη χρήση. Φυλάξτε autές τις odňyίες για μελλοντικές αναφορές.Σε περίπτωση προβλημάτων ή δυσκολιών, επικοινωνήστε με τη γραμμή helpline υποστήριξης καταναλωτών:www.2helpu.com	Σελίδα:60-69
ES	Leer atentamente estas instrucciones antes de usar el equipo. Guardar estas instrucciones para poder consultarlas en el futuro.En caso de problemas o dificultades, ponerse en contacto con el servicio de asistencia al cliente:www.2helpu.com	Página:70-78
ET	Enne kasutamist lugege see juhend tähelepanelikult läbi. Hoidke juhend hilisemaks kasutamiseks alles.Probleemide või raskuste ilmnemisel pöörduge klienditoe poole:www.2helpu.com Lk:79-86
FI	Lue ohjeet huolellisesti ennen käyttöä. Säilytä ohjeet huolellisesti tulevaa käyttöä varten.Jos kohtaat ongelmia, ota yhteys kuluttajien helpline-palveluun:www.2helpu.com Sivu:87-94
FR	Lire attentivement ces instructions avant emploi. Conserver ces instructions pour toute consultation à venir.En cas de problèmes ou de difficultés, contacter l'assistance consommateur :www.2helpu.com	Page:95-104
HR	Molimo vas da prije uporabe pažljivo pročitate ovaj priručnik. Sačuvajte ove upute za buduće korištenje.Ako naïdete na kakve probleme ili poteškoće, molimo vas da se obratite službi za podršku korisnicima:www.2helpu.com	Stranica:105-112
HU	A készülék használatba vétele előtt gondosan olvassa el az útmutatót. A későbbi hivatkozások érdekében örizze meg az útmutatót.Kérdés vagy probléma esetén forduljon ügyfélszolgálatunkhoz:www.2helpu.com 113-121. oldal
LT	Prieš pradėdami naudoti jrenginį, atidžiai perskaitykite šias instrukcijas. Išsaugokite šias instrukcijas, kad bet kada galėtumėte jas vėl perskaityti.Jei kyla problemų arba sunkumų, kreipkitės į klientų pagalbos liniją:www.2helpu.com	Puslapiai:122-129
LV	Pirms lietošanas, lūdzu, rūpigi izlasiet šo pamācibu. Lūdzu, saglabājiet šos norādijumus turpmākai uzziņai.Ja rodas kādas problémas vai grūtības, lūdzu, sazinieties ar klientu palidzības dienestu:www.2helpu.com	Lappuse:130-137
NL	Lees deze gebruiksaanwijzing vóór het gebruik aandachtig door. Bewaar deze gebruiksaanwijzing voor latere raadpleging.Contacteer bij problemen of moeilijkheden de hulplijn voor de gebruikers:www.2helpu.com	Pagina:138-147
NO	Les disse instruksjonene nøye før bruk. Ta vare på instruksjonene for senere bruk.Ved problemer eller vanskeligheter, kontakt kundeservice:www.2helpu.com	Side:148-155
PL	Przed użyciem należy uważnie przeczytać niniejszą instrukcję obsługi. Instrukcję należy zachować na przyszłość.W razie jakichkolwiek problemów lub trudności można skontaktować się z działem pomocy technicznej pod adresem:www.2helpu.com	Strona:156-165
PT	Leia atentamente estas instruções antes de utilizar o aparelho. Conserve estas instruções para consultas futuras.Em caso de problemas ou dificuldades, contacte a helpline de atendimento aos consumidores:www.2helpu.com	Página:166-175
RO	Vă rugăm să citiți cu atenție aceste instrucțiuni înainte de utilizare. Vă rugăm să păstrați aceste instrucțiuni pentru consultarea pe viitor.În caz de probleme sau dificultăți, vă rugăm să contactați linia de asistență a clienților:www.2helpu.com	Pagina:176-184
RU	Внимательно прочитайте эти инструкции до начала использования. Сохраните инструкции для пользования ими в будущем.При появлении проблем или затруднений обращайтесь в отдел обслуживания клиентов:www.2helpu.com Страница:185-194
SK	Pred použitím si, prosím, pozorne prečítajte tento návod. Tento návod si odložte na použitie v budúcnosti.Ak narazíte na akékolvek problémy alebo tažkosti, obrátte sa na linku pomoci pre zákazníkov:www.2helpu.com	Strana:195-202
SL	Pred uporabo pazljivo preberite ta navodila. Ta navodila shranite za prihodnjo uporabo.Če naletite na težave, se obrnite na službo za pomoč kupcem:www.2helpu.com	Stran:203-210
SV	Läs bruksanvisningen noggrant före användning. Förvara bruksanvisningen för framtida bruk.Vid ev. problem eller frågeställningar, kontakta kundtjänst påwww.2helpu.com	Sid.:211-219
TR	Kullanmadan önce, bu talimatları dikkatlice okuyunuz. Bu talimatları, ileride danışmak için saklayiniz.Problem veya zorluk durumunda, tüketici yardım hattina başvurunuz:www.2helpu.com	Sayfa:220-228
UK	Перед експлуатацією уважно прочитайте цю інструкцию. Зберігаўте цю інструкцию для подальшого використання вдовідкових цілях. У разі виникнення проблем або трудношів звертайтеся до нашої служби підтримки:www.2helpu.com	Сторінки:229-238

1

1 SAFETY INSTRUCTIONS

1.1 The appliance you have purchased is produced by one of Europe's top manufacturers of household and gardening pumps. Our appliances are not designed to withstand the stresses typical of commercial or industrial use, or for continuous duty. You must know and comply with the instructions provided in this manual to get the most from your pump. During connection, use and servicing of the appliance, take all possible precautions to protect your own safety and that of the people in the immediate vicinity. Read the safety regulations carefully and comply with them strictly; failure to do so may put health and safety at risk or cause expensive damage. The manufacturer is not responsible for any damage caused by incorrect or improper use.

2 SAFETY DECALS / INFORMATIVE DECALS

2.1 Comply with the recommendations of the decals affixed to the appliance. Check that they are present and legible; otherwise, fit replacements in the original positions.

⚠ Warning - Danger

Please read these instructions carefully before use.

Symbol E1. The appliance must not be disposed of as household waste; it may be returned to the dealer on purchase of a new appliance. The appliance's electrical and electronic parts must not be reused for improper uses because they contain substances which constitute health hazards.

Symbol E3. Indicates that the appliance is intended for household use.

CE CE Symbol. Indicates that the appliance complies with the relevant EU directives.

This produce is rated in insulation class I. This means that it is equipped with a protective earthing conductor (only if the symbol appears on the appliance).

3 SAFETY RULES / RESIDUAL RISKS

3.1 SAFETY PRECAUTIONS: DO NOTS

3.1.1 Injury hazard! DO NOT allow the appliance to be used by children or persons with impaired physical, sensory or mental capabilities, or who do not have the necessary experience and knowledge. Children must not use the appliance as a toy. Cleaning and user maintenance must not be carried out by children.
3.1.2 Explosion or poisoning hazard! Never use the appliance with flammable, toxic or aggressive liquids, or liquids with characteristics incompatible with its proper operation.
3.1.3 Injury hazard! Do not point the water jet at people or animals.
3.1.4 Electrocution hazard! Do not point the water jet at the appliance, electrical parts or other electrical devices.
3.1.5 Short-circuit hazard! Do not use the appliance outdoors in the rain. This does not apply to submersible pumps, which may also be used in the rain; however, it is essential to ensure that the connections of the plug (A12) and any extension leads used are protected from water splashes and flooding.
3.1.6 Injury hazard! Do not allow the appliance to be used by children, persons with impaired physical, sensory or mental capabilities, or any unauthorised persons.
3.1.7 Electrocution hazard! Do not touch the plug (A12) and/or socket with wet hands.

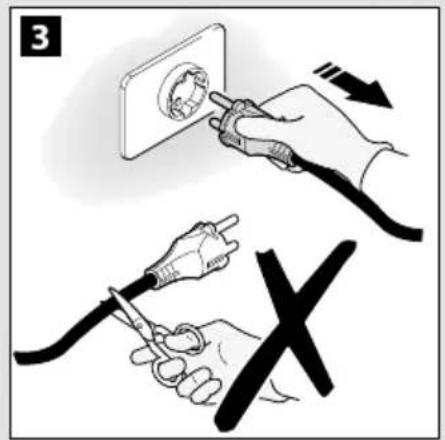

3.1.8 Electrocution and short-circuit hazard! If the power cable (A8) is damaged, it must be replaced by the manufacturer, one of its authorised Service Centres or similarly qualified persons in order to prevent all risks.
3.1.9 Explosion hazard! Do not use the appliance if the suction or delivery hose is damaged.
3.1.10 Injury hazard! Place the appliance in a stable position; when using the appliance in the vicinity of swimming-pools, garden ponds or other outdoor bodies of water, keep it at least 2 m from the water's edge and protect it from falling into the water or flooding. This does not apply to submersible pumps, since they can be used immersed in water.
3.1.11 Injury hazard! Check that the appliance is fitted with the data plate which carries its specifications; contact your dealer at once if it is missing. Appliances without data plate must not be used, since they cannot be identified and are potentially hazardous.
3.1.12 Explosion hazard! No adjustment of control valves, safety valves or other safety devices, or tampering with their settings, is permitted.

3.1.13 Scalding hazard! In the event of a pressure switch malfunction or water supply failure, the water left inside the pump body (A4) may overheat and cause scalding when discharged.

3.1.14 Injury hazard! Do not use the appliance unattended if there is the risk of fouling.

3.1.15 Short-circuit hazard! Do not move the appliance around by pulling the plug (A12), the power cables (A8) or other connection fixtures; use the handle (A4 b).

3.1.16 Explosion hazard! Do not allow vehicles to drive over the suction or delivery hose. Do not drag or transport the appliance by the suction or delivery hose.

3.1.17 Injury hazard! Do not use the appliance when people or pets are in the pumped liquid, or may come into contact with it.

3.2 SAFETY PRECAUTIONS: MUSTS

3.2.1 Short-circuit hazard! All electrical conductors must be protected from splashes of water.
3.2.2 Electrocution hazard! Only connect the appliance to an electrical power source compliant with the relevant standards (IEC 603641-1); during start-up, the appliance may generate interference on the electrical system. Only connect the appliance to a socket fitted with a residual current device rated at 30 mA or less. Use only electrical extension leads compliant with the relevant regulations, approved for outdoor use and with gauge at least equal to that of the appliance's power cable. Power cables wound onto reels must be completely unwound.
3.2.3 Danger! The appliance must never operate dry; always fill the pump body (A4) with water before starting it. Even a short period of operation without water may cause damage.
3.2.4 Accidental switch-on hazard! Always disconnect the plug (A12) from the power socket before carrying out any work on the appliance.
3.2.5 Danger! To guarantee the appliance's safety, the maximum temperature of the pumped liquid must not exceed 35^ C. The ambient temperature must not drop below +5^ C.
3.2.6 Danger! The appliance is not designed to pump drinking water or water for human consumption. The pumped water may be contaminated by lubricant leaks.
3.2.7 Injury hazard! Maintenance and/or repair of the appliance or electrical components must only be carried out by specialist staff.
3.2.8 Injury hazard! Discharge residual pressure before disconnecting the hose from the appliance; to do this, disconnect the appliance from the electricity supply and open a user outlet.
3.2.9 Injury hazard! Before use, and at regular intervals, inspect the accessories and check the appliance's components for signs of failure and/or wear.

4 GENERAL INFORMATION

4.1 Use of the manual

This manual forms an integral part of the appliance and should be kept for future reference. Please read the manual carefully before installing/ using the appliance. If the appliance is sold, the seller must pass on this manual to the new owner along with the appliance. Ensure that every user has access to the manual before the appliance is started up, and is able to find out about the safety and operating instructions.

4.2 Delivery

The appliance is delivered in a cardboard box.

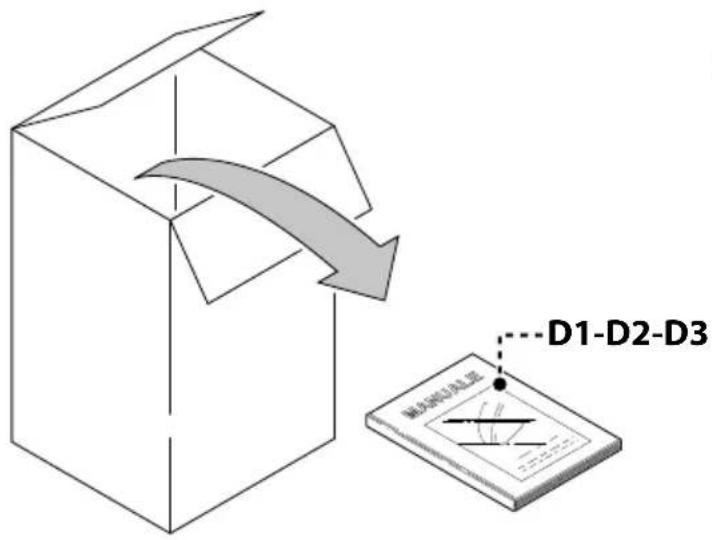

The supply package is illustrated in fig.1.

4.2.1 Informative material supplied with the appliance

D1 Use and maintenance manual

D2 Safety instructions

D3 Warranty regulations

4.3 Disposing of packaging

The packaging materials are not environmental pollutants but must still be recycled or disposed of in compliance with the relevant legislation in the country of use.

5 TECHNICAL INFORMATION

5.1 Intended use

These appliances are suitable for pumping clean water or soiled water containing suspended solids no more than 35 mm in size (e.g. for pump-out in the event of flooding, or for use in rainwater holding tanks or reservoirs). Bear in mind the permitted particle size for the type of appliance used; particle sizes and additional technical data are provided in the safety data table in this manual.

Appliances for particle sizes up to 5 mm are suitable for clean water, and those for particles of 25 mm and over are for use with soiled water. Sand and gravel are not included in references to particles and/or solids! The reference is to soft, flexible materials (e.g. lint or leaves) which will not jam inside the pump body (A4) and therefore will not block the impeller and damage the motor. If it is not possible to ensure that the pumped liquid does not contain sand or gravel, the appliance must not be run unattended. If the impeller jams, the appliance must be switched off at once and the impeller must be freed from obstructions by flushing it with clean water.

The appliance conforms to the EN 60335-2-41 European standard.

5.2 Improper use

Use by unskilled persons or those who have not read and understood the instructions in the manual is forbidden.

Supplying the appliance with flammable, explosive, toxic or chemically aggressive liquids is forbidden.

Use of the appliance in a potentially flammable or explosive atmosphere is forbidden.

All modifications to the appliance are prohibited. Any modifications made to the appliance render the warranty null and void and relieve the manufacturer of all liability under civil and criminal law.

Grinding and polishing substances, or other substances which attack materials, damage the appliance. These appliances are not suitable for pumped liquids containing abrasive sand, mud or clay. These appliances are suitable for pumping water for sanitary purposes, but not for pumping drinking water!

Faecal substances may not be pumped with these appliances.

Appliances are not suitable for use as fountain pumps, as filter pumps for garden ponds or for continuous operation (e.g. the continuous recycling of water in swimming-pool filter systems, or industrial use).

Do not run the appliance when dry, or pump liquids with a valve closed!

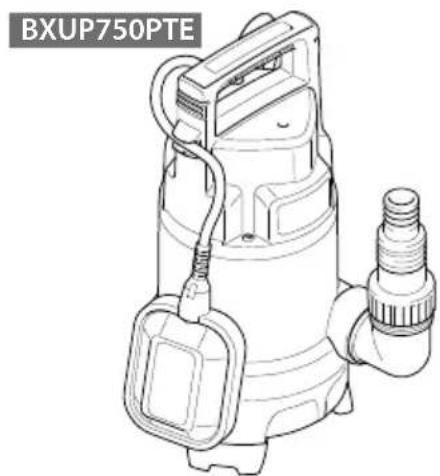

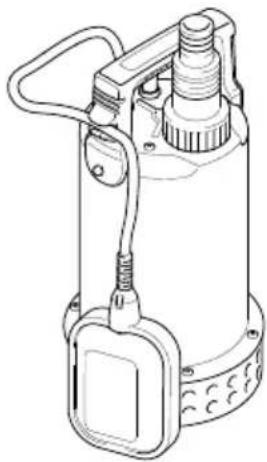

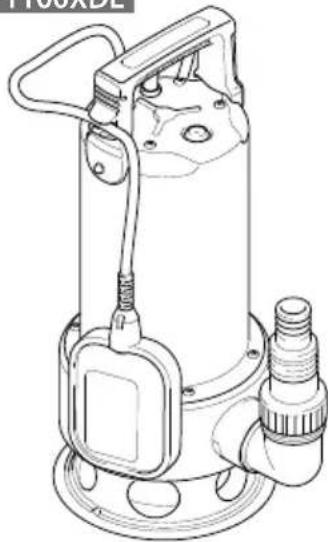

5.3 Main components (fig. 1)

A1 Suction strainer

A2 Delivery fitting

A3 Delivery sleeve

A4 Pump body

A4b Handle

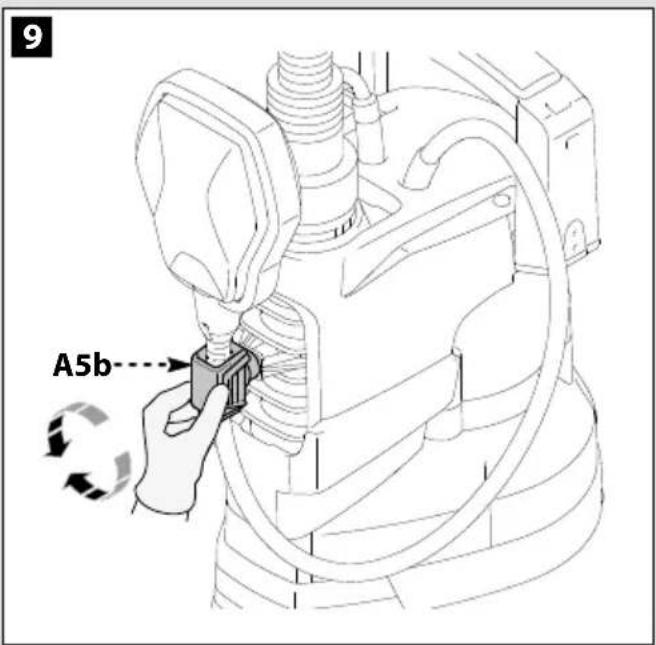

A5 Float switch

A5b Float switch cable clip

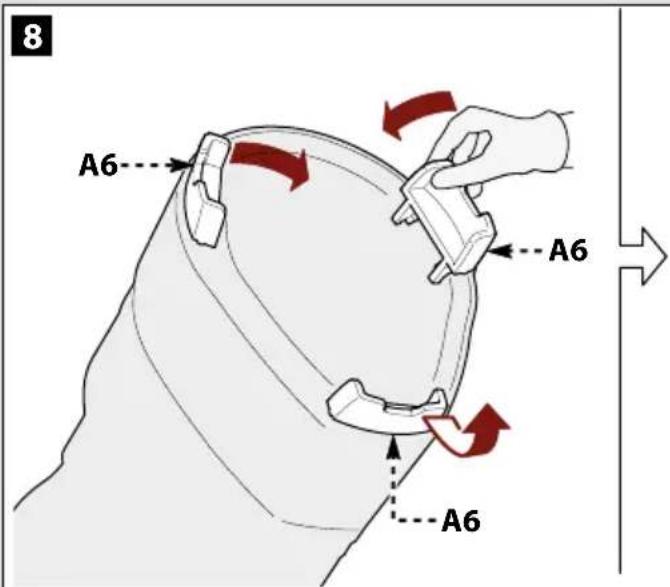

A6 Folding feet (if installed)

A7 Bleeder hole

A8 Power cable

A12 Plug

6 INSTALLATION

Warning - danger!

All installation and assembly operations must be performed with the appliance disconnected from the mains power supply (fig. 3).

Warning - danger!

Before use, always perform a visual check on the appliance, and especially the plug (A12) and power cable (A8), for damage. A damaged appliance must not be used; in the event of damage, have the appliance inspected by the Service Centre or an authorised electrician.

Warning - danger!

If the power cable (A8) is cut, the warranty becomes null and void and a replacement genuine power cable (A8) must be installed during the repair, at the customer's expense (even in case of repair under warranty). If it is necessary to extend the power cable (A8), only use an extension with gauge at least equal to that of the original power cable (A8). Never lift the appliance or remove the plug (A12) from the socket by means of the power cable (A8).

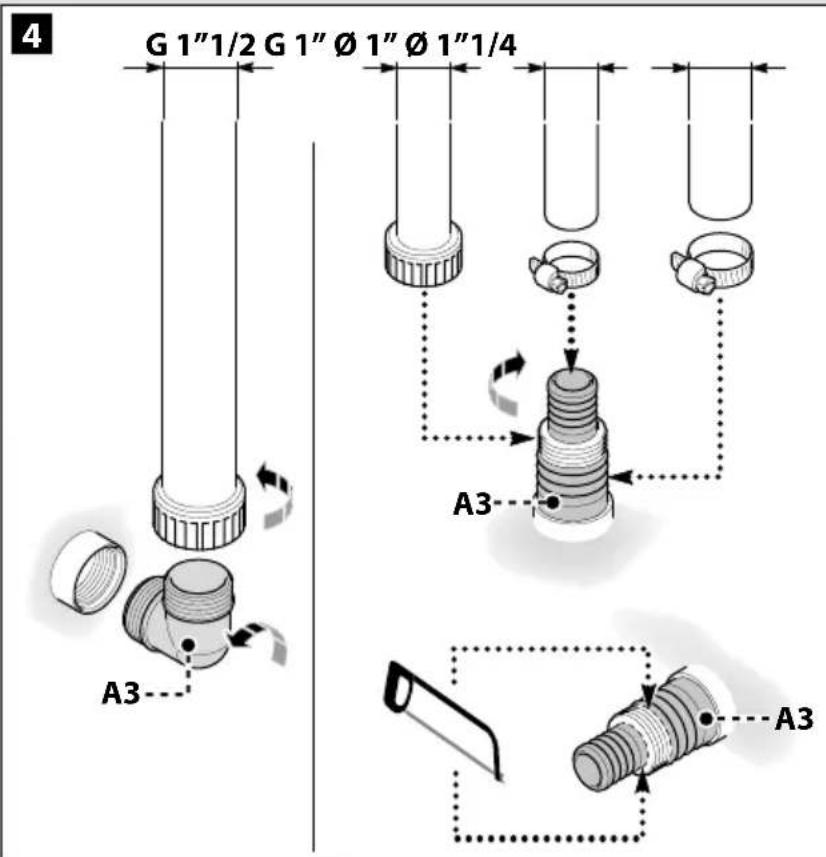

6.1 Fitting the delivery hose

Before connecting the delivery hose, cut the delivery sleeve (A3) and shape it so that it will guarantee the highest possible flow rate in combination with the hose used (fig. 4).

Ideally, the hose diameter should be larger than the approved particle size for the appliance. Smaller hose diameters drastically reduce the flow rate. Screw the sleeve onto the pump body (A4), then connect the delivery hose to the delivery sleeve (A3, fig. 4).

6.2 Bleeding the appliance

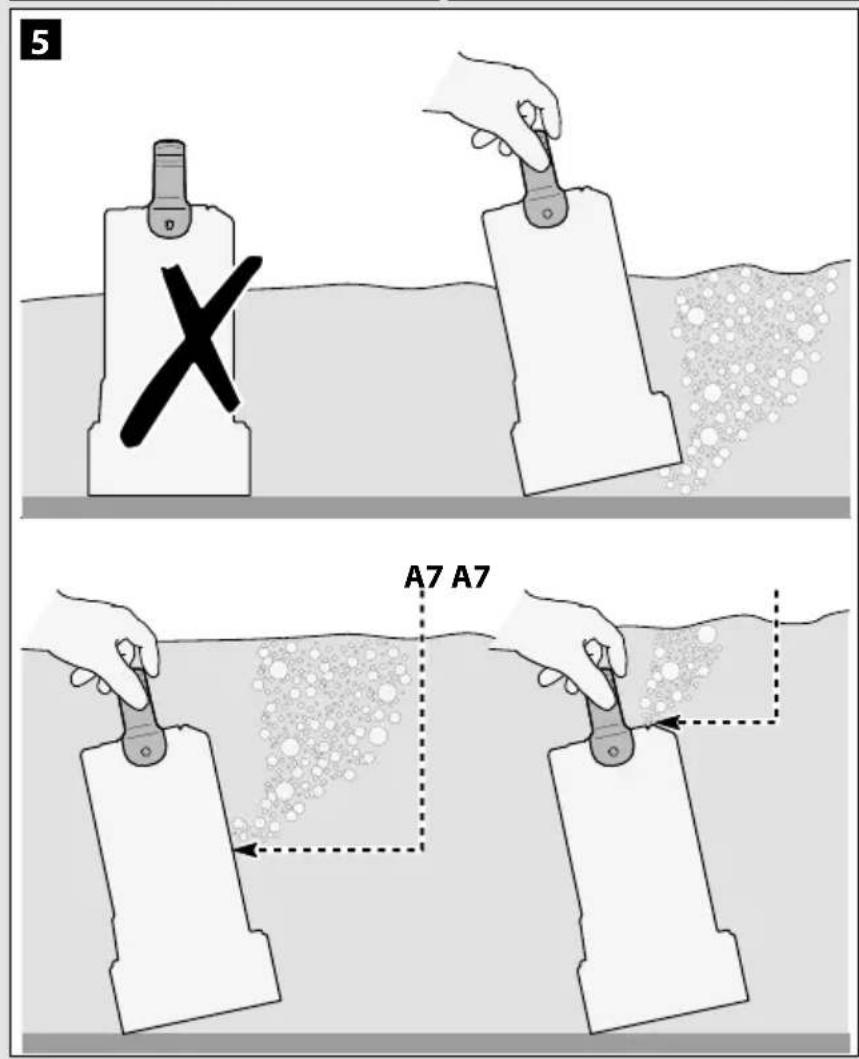

Immerse the appliance in the pumped liquid, tilted, to expel all the air from the body (fig. 5). Hold the appliance in this tilted position until no more air bubbles come out; the appliance is therefore ready for use.

There is a bleeder hole (A7) between the top and bottom parts of plastic appliances to allow the air to escape slowly. When all the air has escaped, water comes out of this hole; this is necessary for technical reasons and is not a defect. The flow rate stated in the technical data allows for this leak!

In steel pumps, this bleeder hole (A7) is in the top of the appliance.

6.3 Notes on the place of installation

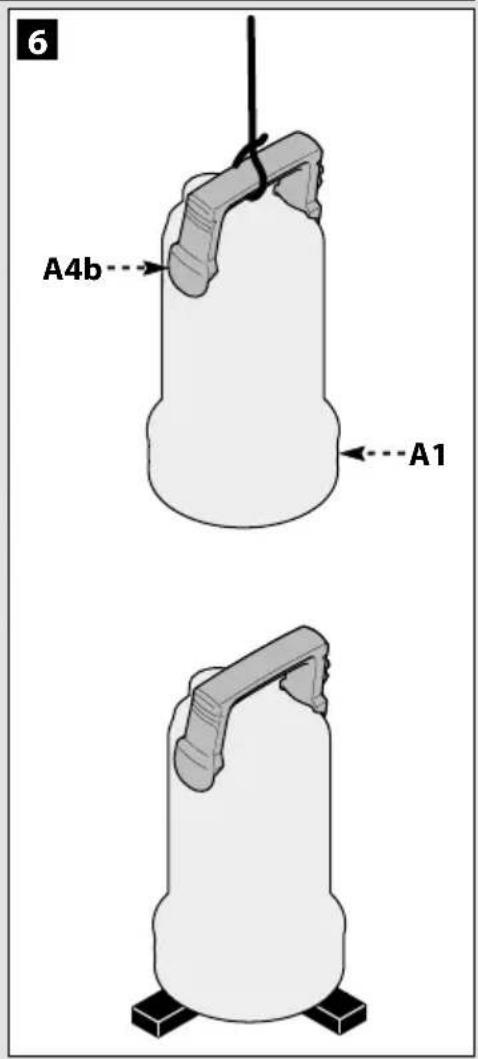

Before installing the appliance, a recovery rope must be fitted to the handle (A4 b) to allow it to be lowered into place/recovered easily (fig.6).

If possible, the appliance should be suspended in the pumped liquid, far enough off the bottom to prevent it from sucking in solids of inappropriate size which may foul the suction strainer (A1) or jam the impeller (fig. 6). Otherwise, the appliance can also be slightly raised above the bottom (e.g. placed on bricks, fig. 6); however, in this case it will suck in more dirt particles, which may eventually obstruct it

Once the appliance has been switched off, the water in the hose flows back; this can be prevented by fitting a check valve. Installing a quick shut-off valve to disconnect the hose in a suitable point simplifies cleaning and maintenance. If the appliance is used in a drain sump or pump pit, the holding reservoir must be large enough in volume to ensure that the appliance is able to operate.

The appliance's float switch (A5) must be able to float freely, with no restrictions, as otherwise normal operation cannot be assured. If it is not certain that the float switch (A5) is able to trip on and off correctly, the appliance must only be run under supervision.

6.4 Safety Measures

The user must prevent damage arising from the flooding of premises or other causes in the event of a failure of the appliance or external components by adopting suitable measures (e.g. installation of an anti-flooding protection circuit, alarm system, backup pump, collection tank or similar features), which must be connected to a separate, fail-safe electrical circuit. The safety measures must be suited to the specific conditions of use and must be able to reduce and/or prevent the damage caused by water leaks.

The user must also install a spray guard to prevent water leaks or splashes due to a pump failure from causing damage. A backup pump or a floor drain must be installed to ensure that any water from leaks is promptly removed. Otherwise, an alarm system can be installed to trigger an alarm and/or an emergency shut-down of the appliance and water supply in the event of a water leak, before damage to the equipment or property can occur.

We also recommend raising all equipment in appliance installation rooms about 5-10 cm above the floor so that any water leaks will not cause immediate damage. The manufacturer accepts no liability for damage caused by failure to comply with this recommendation.

Warning - danger! Dry operation

If the appliance runs for more than 5 minutes with the water suction point closed, it may be damaged due to overheating. Switch off the appliance when the normal water flow is obstructed.

Dry operation will damage the appliance beyond repair, so never allow it to run dry for more than 10 seconds.

7 ADJUSTMENTS

7.1 Preliminary adjustments

The appliance is ready for operation; the only setting required is adjustment of the float switch (A5) on and off tripping points to suit the specific application.

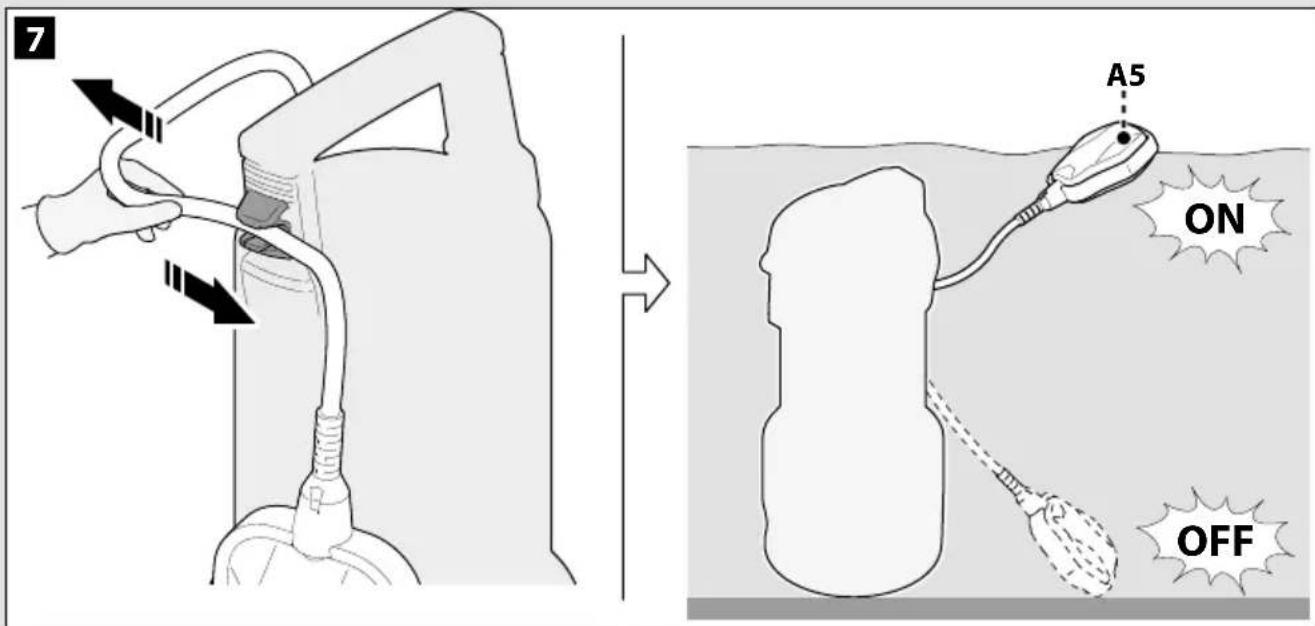

7.2 Float switch adjustment

To adjust the float switch tripping point, shorten the cable of the float switch in its clip (A5 b, fig. 7). The shorter the cable, the longer before the switch trips on and the sooner it will trip off.

7.3 Special functions

7.3.1 Base variable for clean water or wastewater

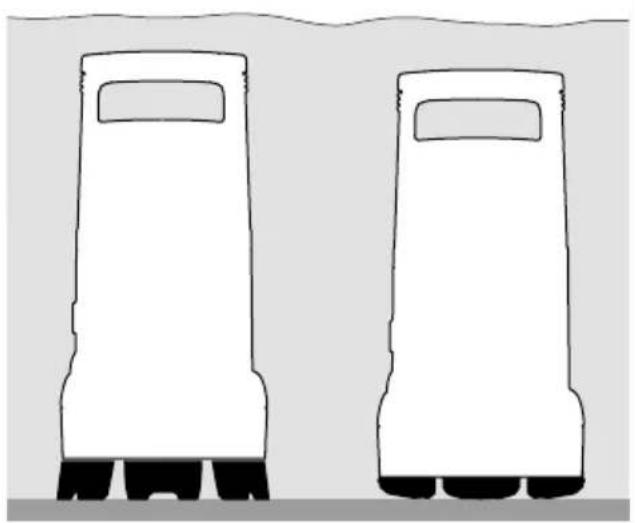

In multi-purpose models, the feet on the base of the appliance can be folded (A6) to switch the pump from wastewater to clean water mode. In this case, the appliance sucks in water down to a residual depth of 5 mm, but it is only able to deal with suspended solids with particle size up to max. 5 mm (fig. 8).

7.3.2 Locking the float switch (A5)

In some models, the float switch (A5) can be locked in the vertical position in a support (A5 b, fig. 9). When the float switch is locked, the appliance operates continually, regardless of the water level, and it must only be operated under supervision to prevent dry running.

8 START-UP AND PRIMING

Warning - danger!

All installation and assembly operations must be performed with the appliance disconnected from the mains power supply (fig. 3).

8.1 Start-up

After connecting the appliance as described in point 6 and after implementing all safety instructions, the plug (A12) can be connected. The appliance then starts automatically when the water level reaches the height set for tripping of the float switch, and switches off again when the switch-off level is reached.

8.2 Priming the pump

For priming / start-up, the appliance needs a water level about 30 - 50 mm above the minimum suction level. Once the appliance has been primed, it is then able to pump down to the minimum level set. The appliance sucks in water through the suction strainer (A1) in its base and conveys it along a delivery hose connected to the delivery sleeve (A3).

If water is not sucked in even though the water level is sufficient and the motor is running, there may still be air in the pump body (A4). Proceed as described in point 6.2 and bleed the appliance again.

8.3 Priming the pump

The appliance's stated flow rate values are maximum values, which are reduced if external components (e.g. delivery hose, elbows, restrictors, etc.) are used. This should be borne in mind when choosing the appliance. The actual flow rate for specific installation conditions is stated in the flow rate graph (fig. 10).

9 MAINTENANCE

Warning - danger!

Before any maintenance procedure and/or during troubleshooting, disconnect the power cable (A8) from the socket. All maintenance and cleaning work can then be carried out.

9.1 Cleaning

After each use, sluice the appliance and all external components with clean water. Remove hard deposits with a jet of water. Dirt and clay inside the pump body (A4) cause jamming of the impeller, leading to malfunctions when the pump is restarted.

In the event that this procedure is overlooked, the appliance can be immersed in water at up to 35^ C for several days to dissolve the dirt.

9.2 Operating check

Check tripping of the float switch (A5) regularly to prevent malfunctions.

10 STORAGE

It is essential to protect the appliance from frost, and in case of temperatures of +5°C or below it must be uninstalled and stored in a dry place, protected from frost.

11 TROUBLESHOOTING

Problems Possible causes	Remedies
The appliance does not pump water because the motor is not running	1. Mains voltage too low.	1. Check that mains power is present and that the plug (A12) is firmly connected.
	2. Plug (A12) not properly connected. 2. Firmly connect the plug (A12).
	3. Residual current device tripped.	3. Reset the residual current device. If the device trips again, consult an electrician.
	4. Impeller jammed. 4. Free the impeller from possible obstructions.
	5. Motor or capacitor damaged. 5. Notify the dealer.
The appliance does not pump water even though the motor is running	1. Suction strainer (A1) fouled. 1. Clean the suction strainer (A1).
	2. Check valve jammed (if installed). 2. Clean or replace the valve	(if installed).
	3. Air bubble in pump body (A4).	3. Tilt the appliance under water to allow the air to escape from the pump body (A4).
The appliance only delivers a small amount of water	1. Suction strainer (A1) partially fouled. 1. Clean the suction strainer (A1).
	2. Hose obstructed. 2. Remove the obstruction.
	3. Delivery hose too small. 3. Use hoses of at least ø25 mm (1").
	4. Water discharge point too high in relation to appliance. 4. Remember that excessive head will reduce the flow rate.
Uneven operation	1. Solids are obstructing free rotation of the impeller. 1. Remove the dirt!
	2. Liquid too hot.	2. The maximum temperature of the pumped liquid must not exceed 35°C.
	3. Electrical voltage outside tolerance range.	3. Connect the appliance to an electrical system which meets the requirements stated on the nameplate.
	4. Motor faulty. 4. Notify the dealer.
Water leaking from pump body (A4)	1. Water leaks from the bleeder hole (A7) between the top and bottom parts.	1. No action needed; the bleeder hole is a technical necessity.

EN

WARRANTY

The warranties relating to the appliances described in this manual are conditional on compliance with all the recommendations it contains, especially those relating to use, installation and operation.

We grant a warranty of 24 months (12 months for professional sales) from the date of purchase for the product described, covering defects in material or workmanship in accordance with current legislation. Requests for service under warranty must be accompanied by the original proof of purchase.

The warranty does not cover the costs of dismantling and installing the appliance concerned in the place of use, travel costs to and from the place of use for repair staff, or transport costs.

Claims arising from incorrect installation or operation, unsuitable conditions of use, negligence, commercial use or inappropriate repair attempts are not covered by the warranty and no responsibility is accepted for them; normal wear and tear is also excluded.

The resulting costs, and especially inspection and transport costs, will be charged to the sender and/or the appliance's operator. This also applies, in particular, when a warranty request is submitted but the appliance is found to be operating perfectly with no defects, or the problem is not due to defects in materials or workmanship.

Before return to the user, every product undergoes strict technical inspection. Repairs under warranty must only be performed by one of our Service Centres or an authorised repair workshop. Attempted repairs by the customer or unauthorised third parties during the warranty period will result in the loss of all warranty entitlement.

Cutting off the power plug and/or shortening the power cable result in loss of warranty entitlement.

Work done by us under warranty does not extend the duration of the warranty, or give rise to a new warranty period for the parts replaced or repaired.

All further entitlement, including the right to discounts, changes or compensation, or consequent damage of any kind, is excluded.

In the event of malfunction, contact the point of sale where the product was purchased, showing proof of purchase.

Technical Data Unit BXUP250F	CE BXUP750F	TE BXUP750XCE BXUP1100XDE
Voltage V/Hz		230 V ~ 50 Hz 230 V ~ 50 Hz 230 V ~ 50 Hz
Power W 250 750 750 1100
Max. head (Hmax)	m	6 8 8.5 10.5
Max. flow rate (Qmax) l/h		6000 13000	11000	6500
Max. water temperature (Tmax)	°C	35	35	35	35
Max. immersion depth	m	7 7 7 7
Residual water level	mm	5	5 / 32	14	45
Max. particle size	∅ mm	5 5 / 30 5	35
Protection class	-
Motor insulation	-	Class F	Class F	Class F	Class F
Motor protection	-	IPX8	IPX8	IPX8	IPX8
Net weight	kg	3.7	5.2	5.0	6.6
Gross weight	kg	4.4	5.8	5.6	7.2
Fitting diameter	mm	25.4 – 31.75 – 38.1	25.4 – 31.75 – 38.1	25.4 – 31.75	25.4 – 31.75 – 38.1
Cable length	m	10	10	10	10

Subject to technical modification!

1 ISTRUZIONI PER LA SICUREZZA

Palun lugege need juhised enne kasutamist hoolikalt

Phoenicia Business Center

Turturelelor Street, No 11A, 6th Floor, Module 15, 3rd District

Bucharest

Romania

Tel. [phone].

[e-mail]

Česká Republika

Stanley Black & Decker Czech Republic s.r.o.

Chodov Türkova 2319/5b

149 00 Praha 4

Česká Republika

Tel: [phone]

www.blackanddecker.cz

[e-mail]

Danmark

Stanley Black & Decker Denmark

Roskildevej 22

2620 Albertslund

Tel. [phone]

Fax. [phone]

Via Energypark 6 c/o Energypark Building 3 sud

20871 Vimercate (MB)

Tel. [phone]

Fax [phone]

www.blackanddecker.it

[e-mail]

Nederland

Stanley Black & Decker Netherlands BV

Holtum Noordweg 35

6121 RE BORN

Postbus 83

6120 AB BORN

Tel. [phone]

Fax [phone]

www.blackanddecker.nl

[e-mail]

Norge

Stanley Black & Decker Norway AS

[e-mail]

Polska

Stanley Black & Decker Polska SP.z.o.o

ul. Postepu 21D

02-676 Warszawa

Polska

Tel: [phone]

www.blackanddecker.pl

[e-mail]

Portugal

Black & Decker Limited SARL

Phoenicia Business Center

Turturelelor Street, No 11A, 6th Floor, Module 15, 3rd District

Bucharest

Romania

Tel. [phone].

[e-mail]

Slovenija

G-M&M, proizvodnja in marketing, d.o.o.

Brvace 11

1290 Grosuplje

Slovenija

Tel. [phone]

Fax. [phone]

[e-mail]

Suomi

Stanley Black & Decker Finland Oy

Kumpulantie 13B, 00520 Helsinki

PL 47, 00521 Helsinki

Puh. 010 400 43 33

Faksi 0800 411 340

www.blackanddecker.fi

United Kingdom & Republic Of Ireland

Black & Decker

Slough, Berkshire SL1 3YD

210 Bath Road

Tel. [phone]

www.blackanddecker.co.uk

[e-mail]

Two identical white rectangular objects with black base supports, viewed from the side (no text or symbols)

BLACK+DECKER™

is a registered trademark of The Black & Decker Corporation used under license.

The product is manufactured and distributed by:

Annovi Reverberi S.p.A. Via M.L. King, 3 - 41122 Modena (Italy).

All the rights reserved.

© 2017 Black & Decker
