PROFFSIG - Dishwasher IKEA - Free user manual and instructions

Product type	Built-in dishwasher
Brand	IKEA
Model	PROFFSIG
Place settings	13 place settings (standard)
Energy efficiency class	E (EU energy label)
Annual energy consumption (kWh)	294 kWh
Annual water consumption (L)	3080 L
Noise level (dB(A))	49 dB(A) re 1 pW

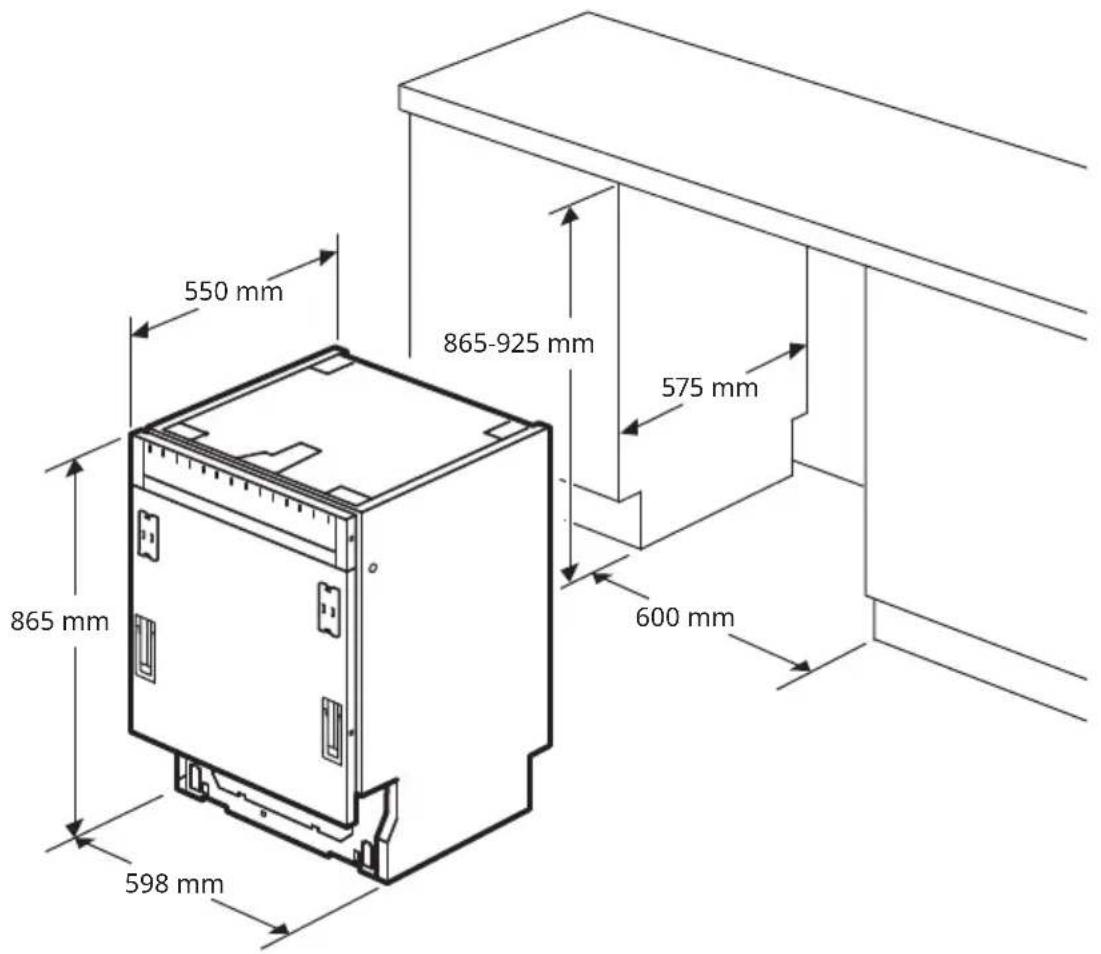

Width (cm)	60 cm
Height (cm)	86.5 cm (adjustable)
Depth (cm)	55 cm (without door)
Weight (kg)	42 kg
Power supply	220-240 V, 50 Hz, 10 A
Programs	Eco, Auto, Intensive, Quick, Glass
Safety features	Aquastop hose, child lock, anti-flood system
Materials	Stainless steel interior, plastic door panel
Maintenance	Clean filters regularly; use dishwasher salt and rinse aid
Spare parts availability	Available from IKEA or authorized service partners
Repair index (1-10)	7.2 / 10 (repairable by user for common issues)

Frequently Asked Questions - PROFFSIG IKEA

How do I install the PROFFSIG dishwasher?

The PROFFSIG is a built-in dishwasher. Installation must be carried out by a qualified professional. Refer to the manual for detailed steps, including adjusting the height and connecting water/electricity.

What should I do if the dishwasher does not start?

Check that the door is fully closed, the power cord is plugged in, and the water supply is turned on. Also ensure the child lock is not activated. If it still doesn't start, reset by unplugging for 30 seconds.

How often should I clean the filters?

Filters should be cleaned every 1-2 months depending on usage. Remove large food residues and rinse under running water. A clogged filter reduces washing performance.

What detergents should I use?

Use only dishwasher-specific detergents (tablets, powder, or gel). Avoid hand dish soap as it causes excessive foam. Always add rinse aid for better drying.

How do I activate the child lock?

Press and hold the Start/Stop button for 3 seconds until the indicator lights up. To deactivate, repeat the same action. This prevents accidental door opening or button presses.

Why is the dishwasher not drying properly?

Ensure rinse aid is filled and the setting is appropriate. Check that the heating element is not obstructed. For plastic items, use the Extra Dry option if available. Opening the door slightly at the end helps.

Can I install the dishwasher myself?

It is recommended to use a qualified installer due to water and electrical connections. Improper installation may void warranty and cause leaks or electric shock.

What does the Aquastop hose do?

The Aquastop system automatically shuts off water supply if a leak is detected, preventing water damage. Do not shorten or extend the hose; use only the original one.

How do I replace the spray arms?

Turn off power and water. Unscrew the spray arm nut (counterclockwise), remove the arm, and clean debris. Reattach or replace with a new one. Ensure it spins freely.

What is the warranty period for PROFFSIG?

IKEA offers a 5-year warranty covering manufacturing defects. Save your receipt. For service, contact IKEA customer service or an authorized repair center.

USER MANUAL PROFFSIG IKEA

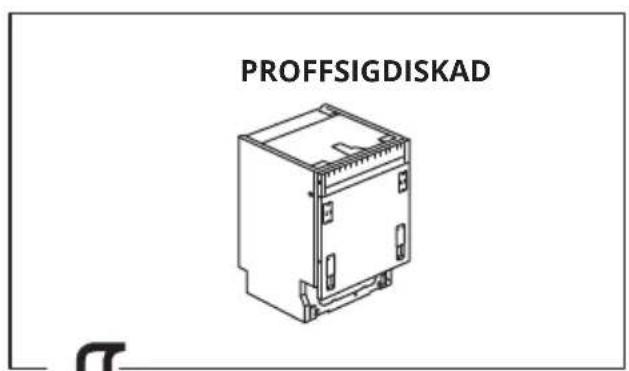

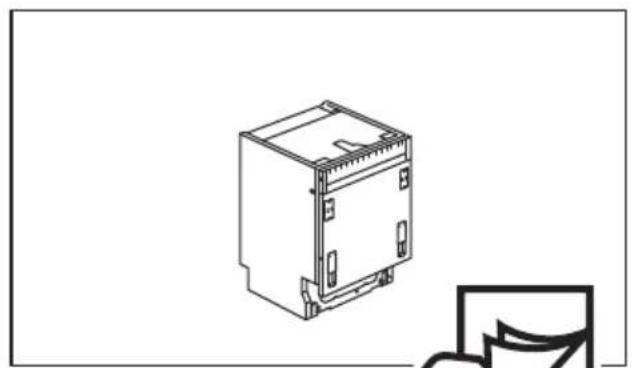

Technical line drawing of a 3D rectangular box or enclosure with internal components and mounting holes (no text or symbols)

ENGLISH

Warning! Before proceeding with installation, read the safety information in the User Manual.

DEUTSCH

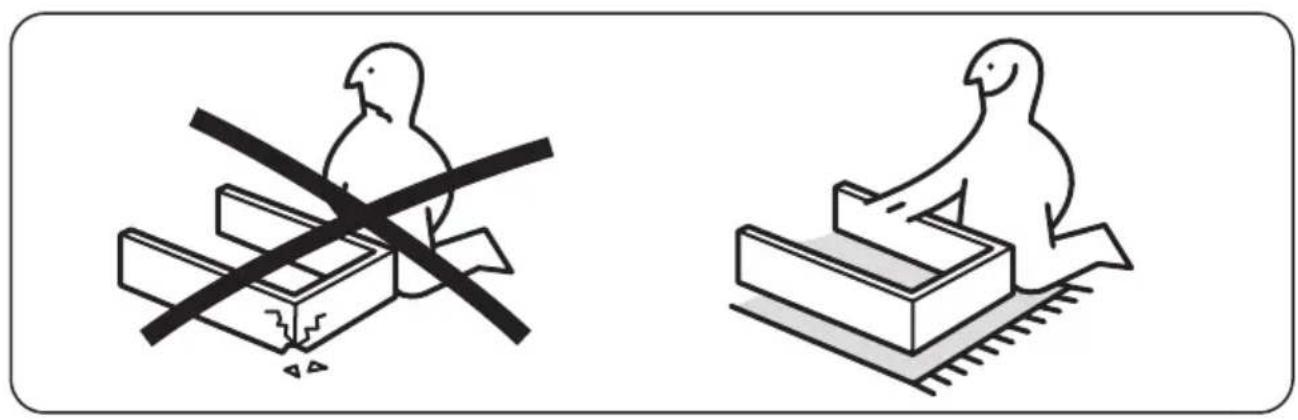

Two stylized human figures standing on wooden blocks, one crossed with a diagonal line and the other holding a hammer (no text or symbols)

Two technical illustrations showing a bird crossing over a box and another bird sitting on a platform (no text or symbols)

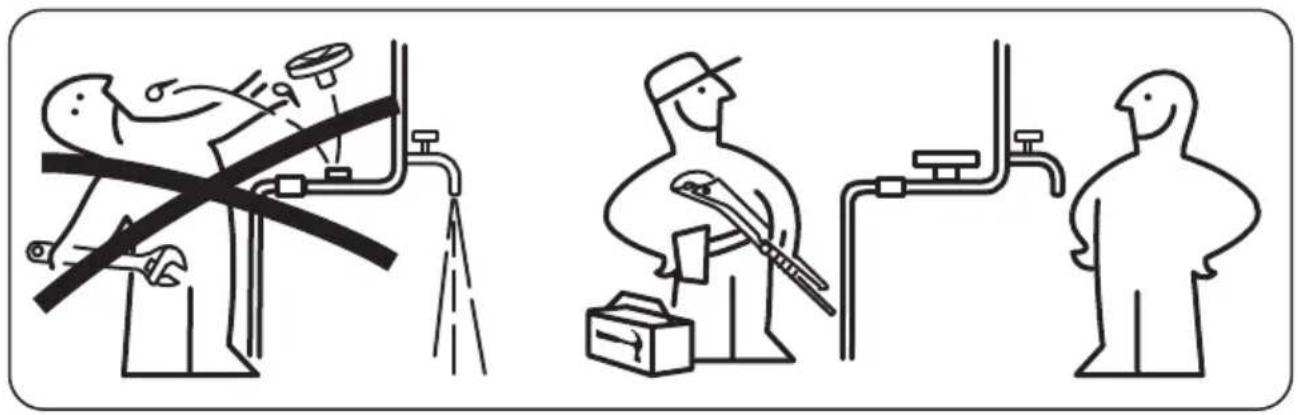

Three line-drawn illustrations showing different scenes of a person operating industrial pipes and using tools (no text or symbols present)

Line drawing of a person assembling or repairing a mechanical device with an arrow indicating rotation (no text or symbols)

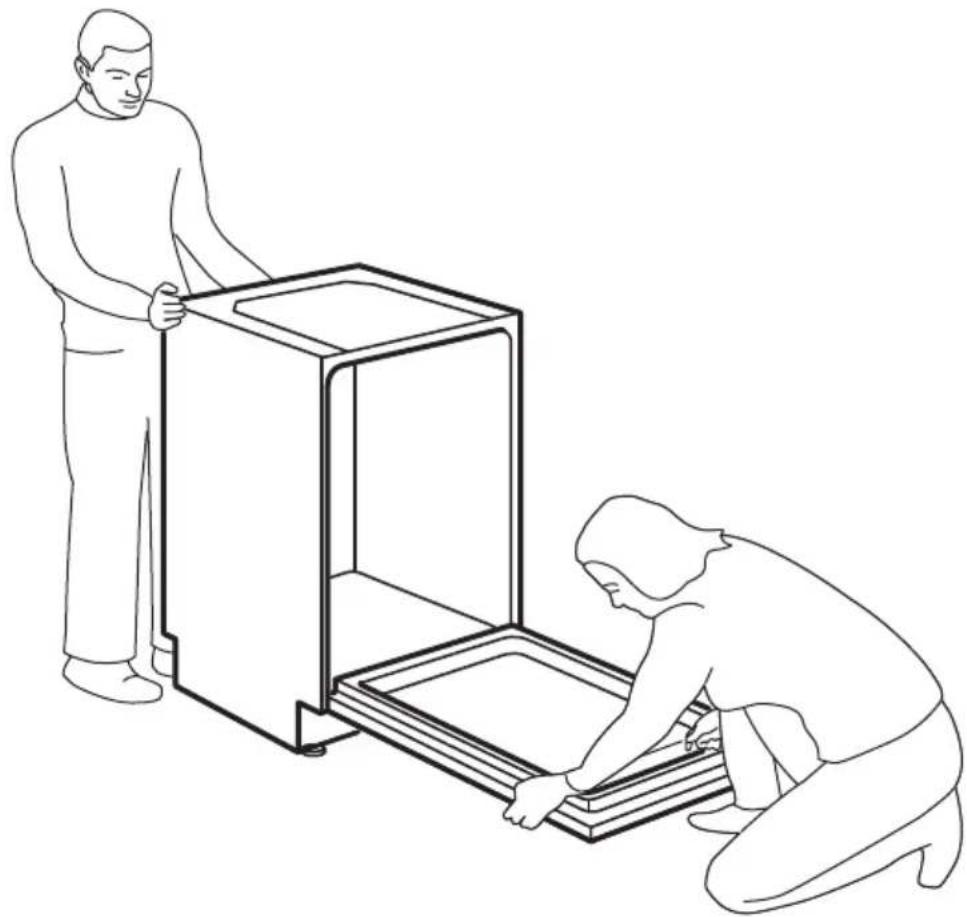

Line drawing of two people assembling a large appliance into a tray (no text or symbols)

i

i

i

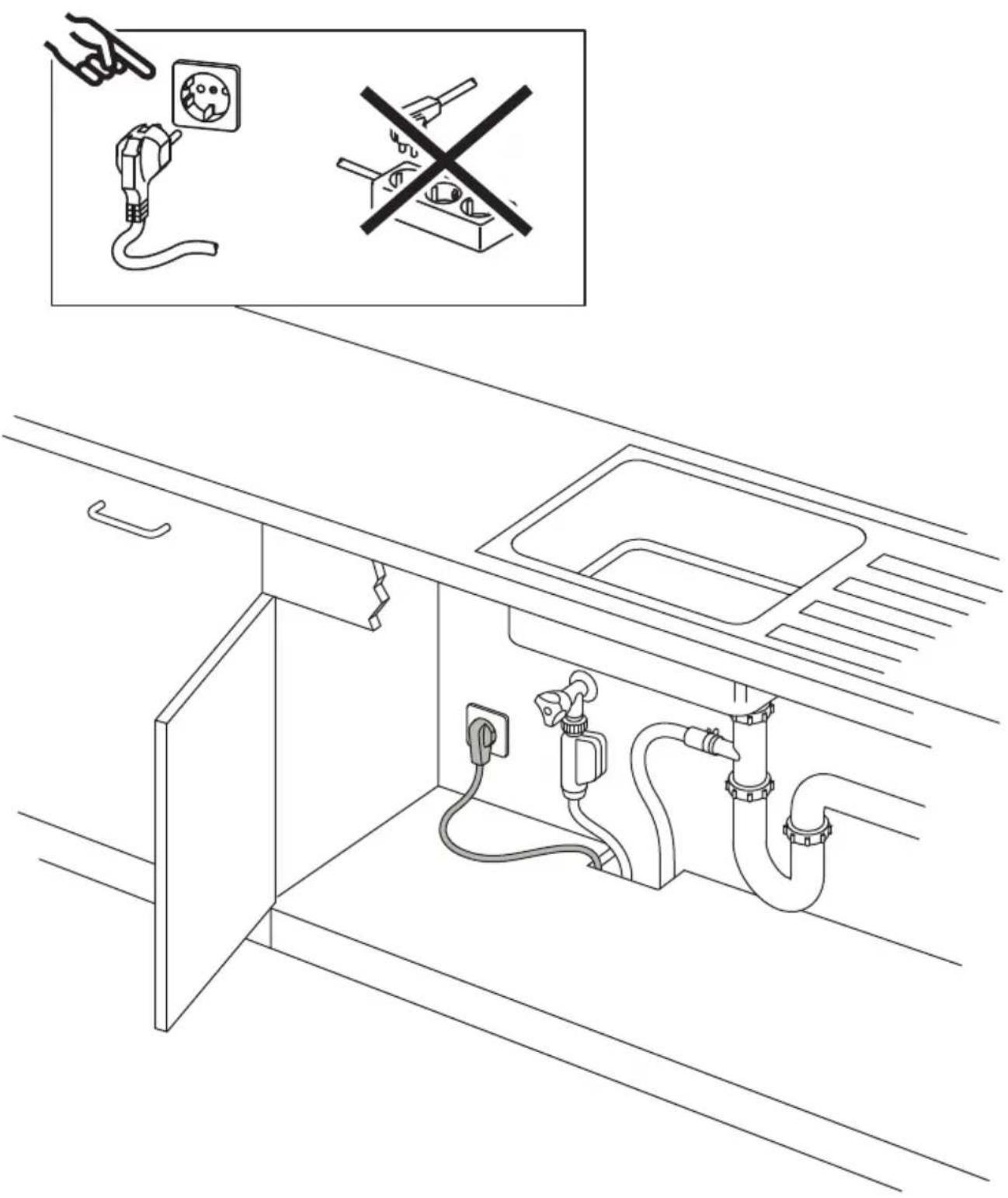

Simple line drawing of an electrical plug and a wall socket with a ground symbol (no text or labels)

Pure electrical circuit lines without any symbols

Illustration of a person using a phone to interact with an IKEA store (no text or symbols present)

Illustration of a person using a phone to interact with an IKEA store, next to a laptop and tablet (no text or symbols on the main elements)

1

2

3

6

i

Pure architectural line drawing of a cabinet or shelf unit (no text or symbols)

ET-Nr. 622456

Two identical L-shaped metal bracket components with mounting holes (no text or symbols)

Illustration of a person using a phone to interact with an IKEA store (no text or symbols present)

7

8

9

Simple line drawing of a hand holding a document with a diagonal line and the number 18 below (no text or symbols on the diagram itself)

i

Simple line drawing of a blank rectangular frame with an inset showing a 3D cube (no text or symbols)

11

12

13

14

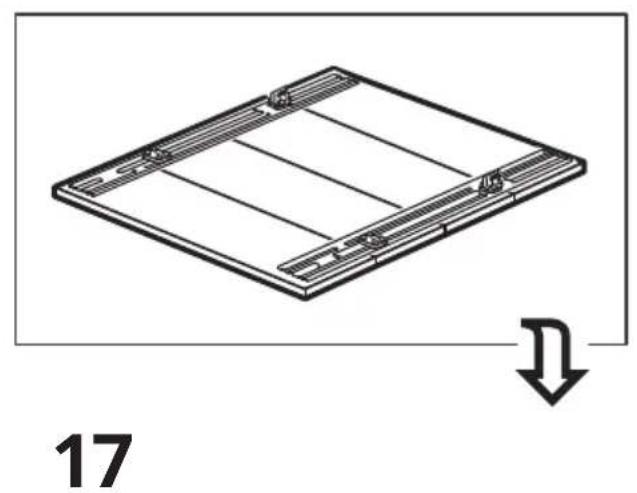

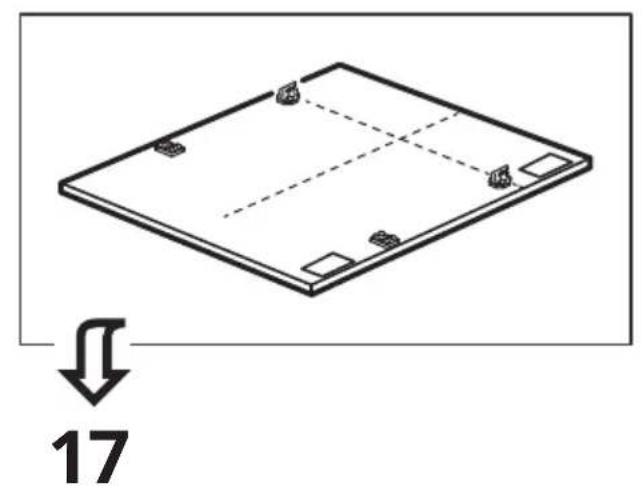

Isometric diagram of a rectangular electronic component with internal parallel lines and mounting holes, labeled with number 17 (no text or symbols on the component itself)

18

19

20

21

Line drawing of a mechanical device with no visible text or symbols

Simple line drawing of a hand holding a sheet of paper with a diagonal line (no text or symbols)

22

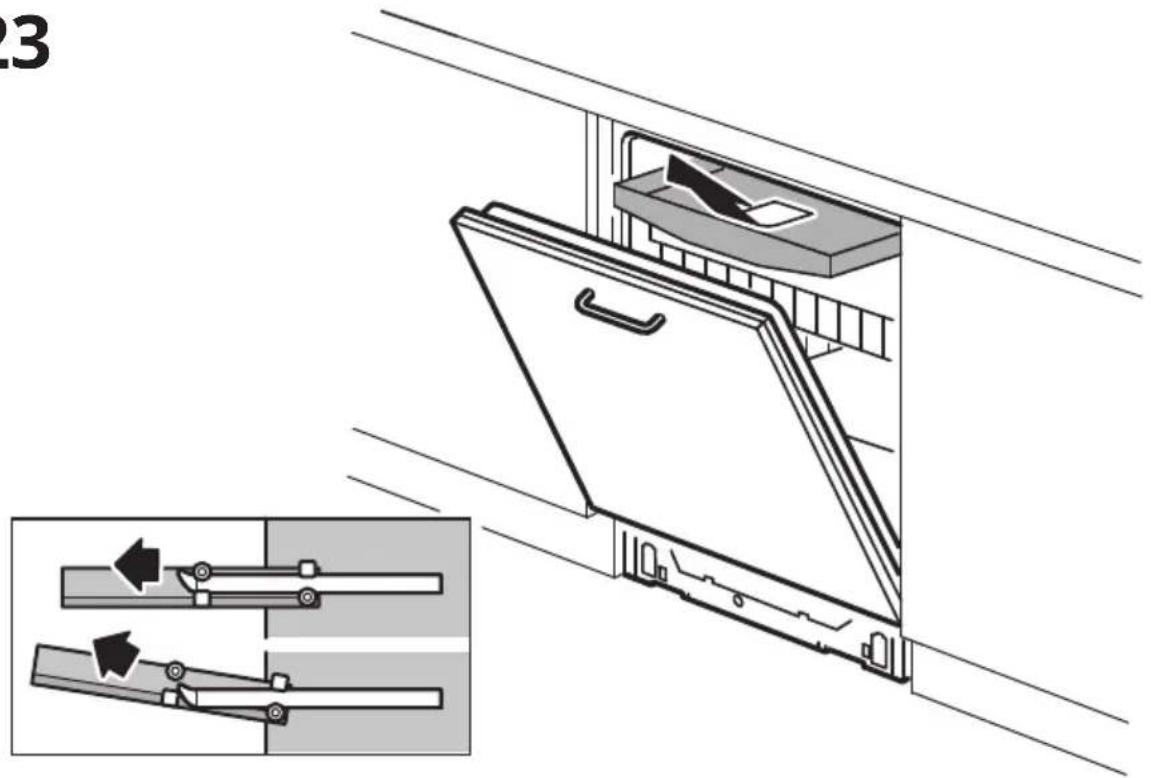

23

25

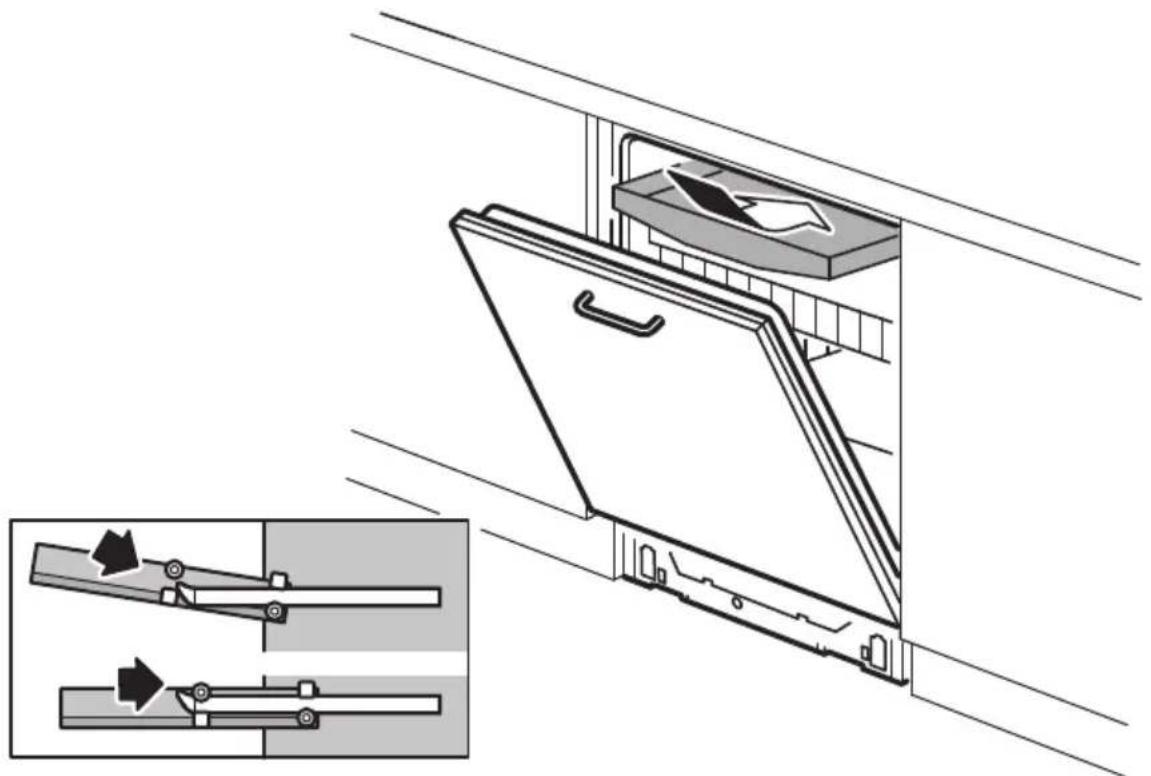

Technical illustration of a multi-level kitchen or laundry cabinet with an inset showing a close-up of the mechanism (no text or symbols present)

26

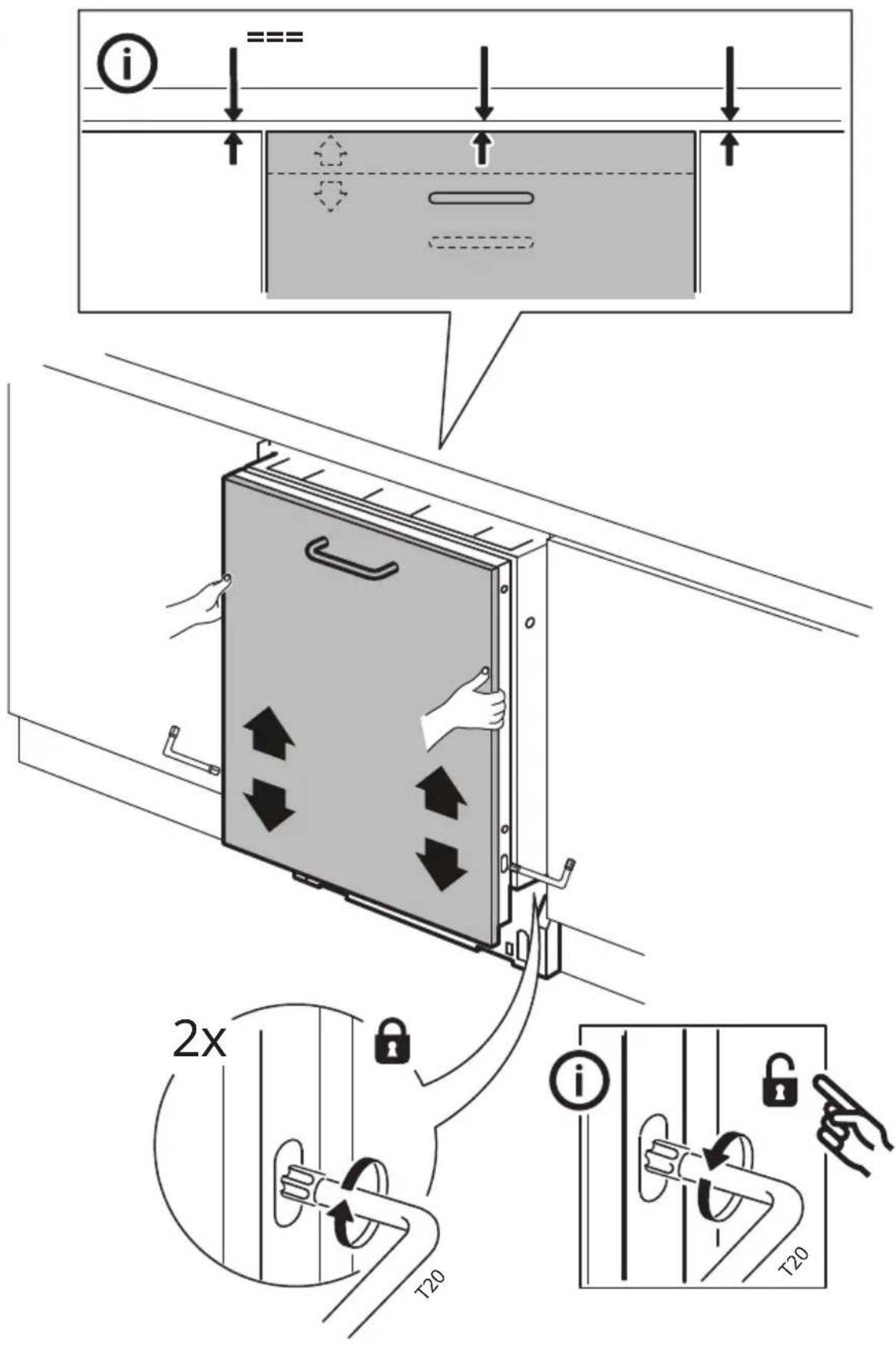

Diagram showing a door latch with a magnified inset illustrating the internal mechanism of a switch or screwdriver (no text or symbols present)

Illustration of a person examining an IKEA store with a phone and laptop (no text or symbols on the main elements)

27

i

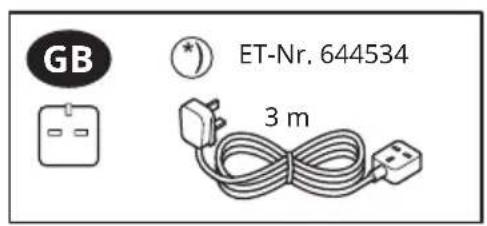

GB
123

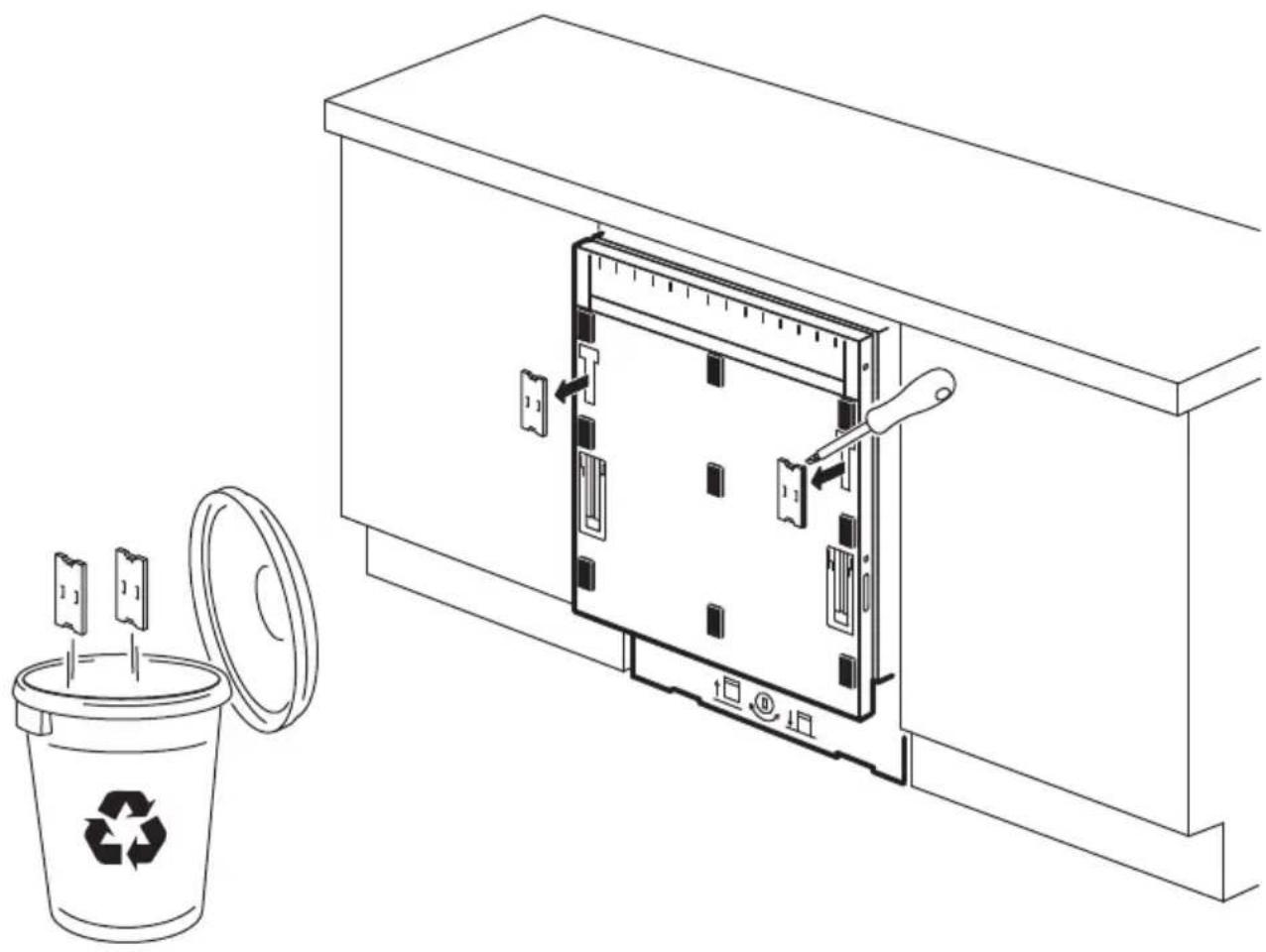

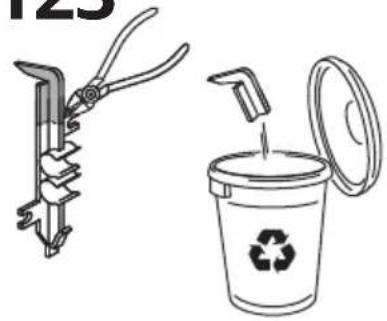

Illustration of two waste management tools: a tool holder and a recycling bin with recycling symbol (no text or labels)

Diagram of a coiled pipe with attached clamping device (no text or symbols)

28

29
