S 1000 XR (2020) - Motorcycle BMW - Free user manual and instructions

Product Type	Motorcycle
Brand	BMW
Model	S 1000 XR (2020)
Engine Type	Liquid-cooled, 4-stroke inline-four
Displacement	999 cc
Power Output	165 hp (121 kW) at 11,000 rpm
Torque	114 Nm at 9,250 rpm
Transmission	6-speed constant mesh
Final Drive	Chain
Frame	Aluminum composite bridge frame
Front Suspension	45 mm Upside-down fork, compression and rebound adjustable
Rear Suspension	Aluminum swing arm, central spring strut, rebound and preload adjustable
Front Brakes	Dual floating discs, 320 mm, 4-piston radial calipers
Rear Brakes	Single disc, 265 mm, twin-piston floating caliper
ABS	BMW Motorrad ABS Pro (cornering optimized)
Displacement (cc)	999
Fuel Capacity	20 L
Seat Height	840 mm
Wet Weight	Approx. 226 kg
Length	2,180 mm
Width	940 mm
Height	1,310 mm
Wheelbase	1,541 mm
Riding Modes	Rain, Road, Dynamic, Dynamic Pro
Display	6.5-inch TFT color screen with BMW Motorrad Connectivity
Key Features	Dynamic Traction Control (DTC), Wheelie Control, Engine Brake Control, Hill Start Control, Shift Assistant Pro, Keyless Ride, Tire Pressure Monitor (RDC), Emergency Call
Manual Pages	308
Manual Language	English (original), multilingual support

Frequently Asked Questions - S 1000 XR (2020) BMW

What is the recommended tire pressure for the BMW S 1000 XR (2020)?

The recommended tire pressure for the BMW S 1000 XR (2020) is typically 2.5 bar (36 psi) front and 2.9 bar (42 psi) rear for solo riding. Always check the tire pressure label on the swingarm for specific values.

How do I reset the service indicator on my S 1000 XR?

To reset the service indicator, navigate to the vehicle settings via the TFT display. Go to 'My Vehicle' > 'Service' and follow the on-screen prompts. Alternatively, a BMW specialist can reset it using the diagnostic tool.

What type of oil does the BMW S 1000 XR use?

The BMW S 1000 XR requires a high-quality 4-stroke engine oil meeting BMW specifications. Recommended viscosity is SAE 5W-40 or 10W-40, API SL/JASO MA2. Use BMW Motorrad ADVANTEC Ultimate or equivalent.

How do I adjust the suspension on my S 1000 XR?

The front fork has adjustable compression and rebound damping via knobs at the top. The rear shock has adjustable rebound damping and spring preload via a hydraulic adjuster. Refer to the manual for detailed settings and recommended clicks.

Can I use Bluetooth headphones with the S 1000 XR?

Yes, the S 1000 XR's TFT display supports Bluetooth connectivity. You can pair Bluetooth headphones for audio, navigation prompts, and phone calls. Pair via the 'Connectivity' menu on the display.

What is the fuel tank capacity and recommended fuel grade?

The fuel tank holds 20 liters. BMW recommends using premium unleaded gasoline with a minimum octane rating of 95 RON (91 AKI). Higher octane may be used but is not necessary.

How do I change the battery in the remote key?

To change the remote key battery, remove the mechanical key from the fob. Use a coin to turn the back cover counterclockwise. Replace the CR2032 battery with the positive side facing up. Reassemble by snapping the cover back on.

What are the common warning indicators on the display?

Common warning indicators include: ABS failure (yellow/red), low tire pressure, low battery, engine fault, and service due. Each triggers a specific message on the TFT display. Refer to the manual's warning light section for full details.

How do I activate Hill Start Control?

Hill Start Control (HSC) is automatically active when the motorcycle is on an incline. Simply apply the brake firmly, then release the brake lever; the system holds the brake for about 2 seconds to allow you to start smoothly. No additional button needed.

What is the service interval for the S 1000 XR?

The BMW S 1000 XR has a service interval of every 10,000 km (6,000 miles) or 12 months, whichever comes first. This includes oil change, filter replacement, and inspection. Valve clearance check is typically every 20,000 km.

USER MANUAL S 1000 XR (2020) BMW

Údaje o vozidlu

Model

Dialog Check-Control

Remote key not in range. Not possible to switch on ignition again.

Možná příčina:

Remote key battery at 50%. No functional impairment.
Remote key battery weak. Limited central locking function. Change battery.

Možná příčina:

b- Vehicle voltage low. Switch off unnecessary consumers.

Vehicle voltage critical! Consumers

were switched off. Check battery condition.

40 UKAZATELE

VAROVÁNÍ

Front right turn indicator faulty!

Vehicle voltage critical! Battery is

Low-beam headlight faulty!

not being charged. Check battery status.

Front side light faulty!

Daytime riding light faulty!

Tail light faulty!

Brake light faulty!

Rear left turn indicator faulty!, popř.

Rear right turn indicator faulty!

Number plate light faulty!

-Have it checked by a specialist workshop.

bliká žlutě.

Active headlight faulty. Have it

checked by a specialist workshop.

VAROVÁNÍ

Alarm system batt. capacity weak. No restrictions. Make an appointment at a specialist workshop.

Alarm system battery empty. No independent alarm. Make an ap- pointment at a specia- list workshop.

Coolant temperature too high! Check coolant level. Continue driving in part. load to cool down.

POZOR

Engine! Have it checked by a specialist workshop.

Možná příčina:

No communication with engine cont- Multiple sys. af- ted. Ride carefully the next specialist workshop.

Fault in the engine control. Onwardney possible Ridefully to next specialist workshop.

VAROVÁNÍ

Serious fault in the engine control! Riding at mod. speed pos. Damage possible. Have checked by workshop.

VAROVÁNÍ

Tyre pressure does not match setpoint

Check tyre pressure.

Možná příčina:

Tyre pressure does not match setpoint

Stop immediately! Check tyre pressure.

Tyre press. control. Loss of pres-

sure. Stop immediately! Check tyre pressure.

VAROVÁNÍ

RDC sensor battery weak. Function limited. Have it checked by a specialist workshop.

Drop sensor faulty. Have it checked by a specialist workshop.

Možná příčina:

Cannot start engine.

Stand motorcycle

upright. Switch ignition on/off. Start the engine.

Možná příčina:

Emergency call failure. Make an appointment at a specialist workshop.

Možná příčina:

Side stand monito- ring faulty. Onward journey possible. Engine stop. when stationary! Have checked by workshop.

Možná příčina:

Limited ABS availa-bility! Onward jour-possible. Ride care-ly to next specialist kshop.

Možná příčina:

ABS failure! Onward journey possible.

Ride carefully to next specialist workshop.

50 UKAZATELE

Možná příčina:

possible. Ride carefully to next specialist workshop.

Možná příčina:

Traction control de-activated.

Možná příčina:

Traction control failure! Onward

journey possible.

Ride carefully to next specialist workshop.

Možná příčina:

Traction control limited! Onward journey possible. Ride carefully to next specialist workshop.

Možná příčina:

Spring strut adjustment faulty! Onward journey possible. Ride carefully to next specialist workshop.

Možná příčina:

Service due! Have service performed by a specialist workshop.

Možná příčina:

Remote key battery weak. Limited cen-locking function.

Change battery.

ESA Pro required. Can- not adjust damping.

1

- Vyvolejte menu Settings, Vehicle settings.

and time, Set time. Nastavte Hour a Minute.

-

[Non-Text]

[Non-Text]

[Non-Text]

- Zvolte Start route guidance.

-At current location

-At destination

-Along the route

• Vyvolejte menu Navigation, Active route guidance.
  • Vyberte a potvrd'te End route guidance.

Vyvolejte menu Navigation, Active route guidance.

• Vyvolejte menu Navigation, Active route guidance.
• Vyberte a potvrd'te Current instruction.

MÉDIA

Předpoklad

•Vyvolejte menu Media.

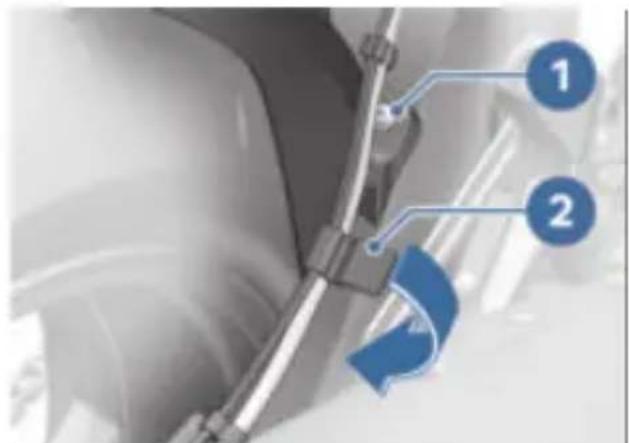

Povolte šroub 2.

mech RAIN, ROAD a DYNAMIC.

POZOR

POZOR

POZOR

1 15 A

OŠETŘUJÍCÍ PROSTŘEDKY

MYTÍ MOTOCYKLU

ELEKTRICKÁ INSTALACE 218

VÝSTRAŽNÝ SYSTÉM PROTI KRÁDEŽI 219

ROZMĚRY 219

HMOTNOSTI 221

JÍZDNÍ VÝKONY 221

208 TECHNICKÉ ÚDAJE

TABULKA ZÁVAD

ELEKTRICKÁ INSTALACE

Declaration of Conformity

Radio equipment electronic immobiliser (EWS)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 134 kHz (Transponder: TMS37145 / TypeDST80, TMS3705 Transponder Base Station IC) Output Power: 50 dBμV/m

Manufacturer and Address

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53 The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Greece

Hereby, BECOM Electronics GmbH declares that the radio equipment type EWS4 is in compliance with Directive 2014/53/EU53.

The full text of the EU declaration of conformity is available at the following internet address: http://www.becom.at/de/download/

Italy

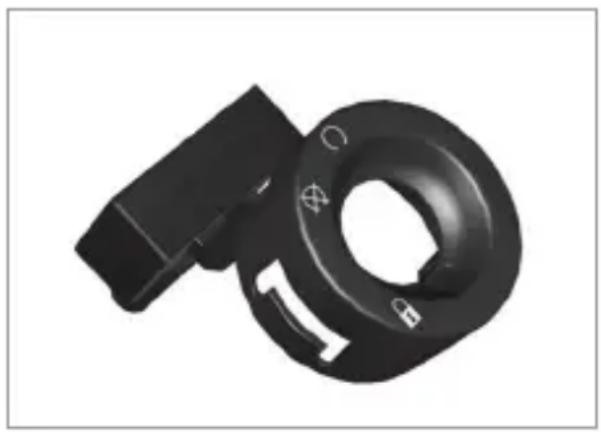

Ring aerial in the ignition switch

To verify the authorization of the ignition key, the electronic immobilizer exchanges information with the ignition key via the ring aerial.

This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly

approved by the party responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Radio equipment Keyless Ride

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency band: 434,42 MHz Maximum Transmission Power: 10 mW

Manufacturer and Address

Manufacturer: Huf Hülsbeck & Fürst GmbH & Co. KG Adress: Steeger Str. 17, 42551 Velbert, Germany

Bülgarski

Hereby, Huf Hülsbeck & Fürst GmbH & Co. KG declares that the radio equipment type HUF5750 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.huf-group.com/eudoc

Español

USA, Canada:

Product name: BMW Keyless Ride ID

Device FCC ID: YGOHUF5750

IC: 4008C-HUF5750

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

Canada:

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

USA:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

Argentina:

Declaration Of Conformity

We declare under our responsibility that the product

BMW Keyless Ride ID Device (Model: HUF5750)

camplies with the appropriate essential requirements of the article 3 of the R&TIE and the other relevant provisions, when used for its intended purpose. Applied Standards:

1. Health and safety requirements contained in article 3 (1) a)

- EN 60950-1:2006+A11:2009+A1:2010+A12:2011; Information technology equipment-Safety

1. Protection requirements with respect to electromagnetic compatibility article 3 (1) b)

- EN 301 489-1 (V1 .9.2, 09/2011 ), Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services;

Part 1: Common technical requirements

- EN 301 489-3 (V1.4.1, 08/2002) Electromagnetic compatibility and radio spectrum matters (ERM); Electromagnetic compatibility (EMC) standard for radio equipment and services; Part 3: Specific conditions for short range devices (SRD) operating on frequencies between 9 kHz and 40 GHz

1. Means of the efficient use of the radio frequency spectrum article 3 (2)

- EN 300 220-1 & -2 (V2.4.1, 05/2012), electromagnetic compatibility and radio spectrum matters (ERM); Short range devices (SRD); Radio equipment to be used in the 25 MHz to 1000 MHz frequency range with power levels ranging up to 500 mW;

Part 1: Technical characteristics and test methods.

Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TIE directive

The product is labeled with the CE marking:

CE

Velbert, October 15 ^th , 2013

Benjamin A. Müller

Product Development Systems

Car Access and Immobilization -

Steeger Straße 17, D-42551

Velbert

Declaration of Conformity

Radio equipment tyre pressure control (RDC)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band: 433.895 - 433.945 MHz Output Power: <10 mW e.r.p.

Manufacturer and Address

Manufacturer: Schrader Electronics Ltd. Adress: Technology Park, Antrim, N. Ireland BT41 1QS, United Kingdom

Austria

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/

documents/

declaration_conformities

Greece

Hereby, Schrader Electronics Ltd. declares that the radio equipment type BC5A4 is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://www.tpmseuroshop.com/documents/declaration_conformities

Italy

http://www.tpmseuroshop.com/documents/declaration_conformities

Malta

B'dan, Schrader Electronics Ltd., niddikjara li dan it-tip ta' taghmir tar-radju BC5A4 huwa konformi mad-Direttiva 2014/53/UE. Ittest kollu tad-dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li gej: http://www.tpmseuroshop.com/documents/declaration_conformities

Netherlands

Certification Tire Pressure Control (TPC)

FCC ID: MRXBC54MA4 IC: 2546A-BC54MA4

This device complies with Part 15 of the FCC Rules and with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

FCC ID: MRXBC5A4 IC: 2546A-BC5A4

WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term "IC:" before the radio certification number only signifies that Industry Canada technical specifications were met.

Declaration of Conformity

Radio equipment TFT instrument cluster

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

BT operating frq. Range: 2402 – 2480 MHz BT version: 4.2 (no BTLE) BT output power: < 4 dBm WLAN operating frq. Range: 2412 – 2462 MHz WLAN standards: IEEE 802.11 b/g/n WLAN output power: < 20 dBm

Manufacturer and Address

Manufacturer: Robert Bosch Car Multimedia GmbH Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Austria

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type ICC6.5in is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Greece

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type ICC6.5in is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Italy

Declaration of Conformity

Radio equipment TFT instrument cluster

For all Countries without EU

Technical information

BT operating frq. Range: 2402 – 2480 MHz BT version: 4.2 (no BTLE) BT output power: < 4 dBm WLAN operating frq. Range:: 2412 – 2462 MHz WLAN standards: IEEE 802.11 b/g/n WLAN output power: < 20 dBm

Manufacturer and Address

Manufacturer: Robert Bosch Car Multimedia GmbH Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Turkey

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

(This telecommunication equipments is in compliance with NTC requirements)

United States (USA)

This device complies with Industry Canada's licence-exempt RSSs and part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Declaration of Conformity

Radio equipment intelligent emergency call

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Antenna internal: Frequency Band: 880 MHz - 915 MHz Radiated Power [TRP]: < 22 dBm Not acessable by user: Frequency Band: 1710 MHz - 1785 MHz Radiated Power [TRP]: < 26 dBm Frequency Band: 1920 MHz - 1980 MHz Radiated Power [TRP]: < 22 dBm Frequency Band: 880 MHz - 915 MHz Radiated Power [TRP]: < 23 dBm

Manufacturer and Address

Manufacturer: Robert Bosch Car Multimedia GmbH Adress: Robert Bosch Str. 200, 31139 Hildesheim, GERMANY

Austria

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Greece

Hereby, Robert Bosch Car Multimedia GmbH declares that the radio equipment type TPM E-CALL EU is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: http://cert.bosch-carmultimedia.net

Italy

Declaration of Conformity

Radio equipment anti-theft alarm (DWA)

Simplified EU Declaration of Conformity acc. Radio Equipment Directive 2014/53/EU after 12.06.2016 and during transition period

Technical information

Frequency Band:

433.05-434.79 MHz

Output Power: 10 mW e.r.p.

Manufacturer and Address

Manufacturer: Meta System S.p.A.

Adress: Via Galimberti 5 42124

Reggio Emilia - Italy

Austria

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/8 The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Greece

Hereby, Meta System S.p.A. declares that the radio equipment type TXBMWMR is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://docs.metasystem.it/

Italy

s Keyless Ride, 133, 134

Technické údaje

Akumulátor, 218

Brzdy, 216

Hill Start Control, 52, 53

Moje vozidlo, 103

Please note the following in addition to the information provided in the Owner's Handbook.

WARNING

The battery inside the vehicle key is a button cell. Batteries or button cells can be swallowed, causing serious or even fatal injuries within two hours, e.g. due to internal burns or cauterisations. There is a danger of injury or danger to life. Keep vehicle keys and batteries out of the reach of children. Seek medical assistance immediately if you suspect that a battery or button cell has been swallowed or has got into a part of the body.

NOTE

Using unsuitable batteries in a vehicle key can damage the vehicle key. There is a risk of material damage. Discharged batteries should only ever be replaced with batteries of the same voltage, same size and same specification.

Not to be reproduced, wholly or in part, without written permission from BMW AG, Munich.

Order No.: 01 40 9 831 840

12.2020

Printed on environmentally friendly paper, bleached without chlorine, suitable for recycling.
