WM-5265 - Microphone TOA - Free user manual and instructions

Product Type	Dynamic microphone
Brand	TOA
Model	WM-5265
Category	Microphone
Polar pattern	Cardioid
Frequency response	50 Hz - 15 000 Hz
Impedance	300 ohms
Sensitivity	-55 dB (±3 dB) at 1 kHz
Connector	XLR 3-pin
Integrated cable	No, male XLR connector
Power supply	None (passive dynamic microphone)
Dimensions (L × Ø)	185 mm × 54 mm
Weight	310 g
Body material	Die-cast metal
Colour	Matt black
Usage	Speech, singing, public address
Included accessories	Microphone clip, stand adapter
Care and cleaning	Clean with a soft, dry cloth. Protect from moisture.
Safety	Do not expose to extreme temperatures or moisture.
Spare parts and repairability	Replaceable grille and capsule. Contact an authorized TOA service center.

Frequently Asked Questions - WM-5265 TOA

How to connect the WM-5265 microphone?

Connect the microphone to a microphone input (XLR) on your mixer or amplifier. Use a good quality male-to-female XLR cable.

Does this microphone require phantom power?

No, the WM-5265 is a passive dynamic microphone. It operates without power. Do not enable phantom power, as it may damage the microphone.

How to reduce the risk of feedback?

Place the microphone behind the speakers, point the capsule towards the sound source, and reduce gain. The cardioid polar pattern attenuates rear sounds.

Which cable to use with the WM-5265?

Use a standard 3-pin XLR cable. The optimal length is 3 to 15 meters for good signal transmission.

How to clean the microphone?

Wipe the body with a slightly damp soft cloth. For the grille, you can unscrew it and wash it in warm soapy water, then dry it completely before reattaching.

Is the WM-5265 suitable for singing?

Yes, its frequency response and cardioid polar pattern make it an excellent choice for live or studio singing.

What to do if the sound is too low?

Check the connections and cable. Increase the gain on the mixer. Make sure the microphone is correctly oriented towards the sound source.

Does the microphone come with a stand?

Yes, it comes with a microphone clip suitable for standard diameter and a stand adapter.

How to avoid handling noise?

Use the provided clip to mount the microphone on a stand. Avoid touching the grille during use. A pop filter can reduce breath noises.

Where to find spare parts for the WM-5265?

Contact an authorized TOA dealer or TOA after-sales service. Parts such as the grille and capsule are available.

USER MANUAL WM-5265 TOA

Thank you for purchasing TOA's Wireless Microphone.

Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

1. SAFETY PRECAUTIONS

• Be sure to read the instructions in this section carefully before use.
• Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included.
  • We also recommend you keep this instruction manual handy for future reference.

Safety Symbol and Message Conventions

Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. Before operating your product, read this manual first and understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.

WARNING

Indicates a potentially hazardous situation which, if mishandled, could result in death or serious personal injury.

CAUTION

Indicates a potentially hazardous situation which, if mishandled, could result in moderate or minor personal injury, and/or property damage.

WARNING

When the Unit is in Use

• To prevent the electromagnetic wave from badly influencing medical equipment, make sure to switch off the unit's power when placing it in close proximity to the medical equipment.
• Use TOA's BC-5000 Battery Charger when recharging.
• The wireless microphone can be powered by WB-2000 Battery. But, if use of any other than the counter specified battery into the BC-5000 Battery Charger, it may cause fire, personal injury, or environmental contamination due to battery rupture or leakage.
• The use of any other than the specified charger could result in fire, personal injury, or environmental contamination due to battery rupture or leakage.
• Stop charging, if the batteries are not fully charged within 3 hours. Failure to do so may cause the batteries to fi re, explode, leak, or heat.

- Never short-circuit the charging terminals on the bottom of the microphone with metal objects. Doing so could result in electric shocks or burns.

CAUTION

When the Unit is in Use

• When the unit is not in use for 10 days or more, be sure to take the battery out of the unit because battery leakage may cause personal injury or contamination of environment.
• Make sure to observe the following handling precautions so that a fire or personal injury does not result from leakage or explosion of the battery.

- Do not short, disassemble, heat nor put the battery into a fire.

- Never charge batteries of the type which are not rechargeable.

- Do not solder a battery directly.

- Be sure to use the specified type of battery.

• Note correct polarity (positive and negative orientation) when inserting a battery in the unit.
• Avoid locations exposed to the direct sunlight, high temperature and high humidity when storing batteries.

Do not place the dry cell battery into charger.

Placing non-rechargeable batteries in the charger may cause the battery to crack resulting in a fire and/or harm to the body.

When recharging, please only use the BC-5000 Battery Charger and WB-2000 Battery.

Do not use other battery types.

When the battery becomes inflated or leaks, discontinue use and replace with new one immediately. If there's any burning and/or peculiar smell while charging the battery, please switch off the power immediately.

The frequencies between 865 MHz and 867 MHz do not comply with "CE."

CAUTION TO USER: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, no change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user's authority to operate the device.

License requirement

The term "IC:" before the radio certification number only signifies that Industry specifications were met. Operation is subject to the following two conditions;

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

The TOA's WM-5225 Wireless Microphone employs an electret condenser microphone element of high sensitivity and intelligible sound quality, and is suitable for speech use.

WM-5265 is a vocal microphone, employing a fine, powerful dynamic microphone unit.

3. FEATURES

• An optimized PLL-synthesizer minimizes the oscillation frequency drift resulting from the ambient temperature or voltage fluctuation.
• Power/Battery lamps indicate battery consumption to prevent the unit from malfunctioning when the battery level remarkably decreases.
• Operates on a single AA battery.
  • Employs a built-in antenna.
• The state of battery consumption can be displayed on the tuner's indicator when the unit is used in conjunction with the optional WT-5800, WT-5805 or WT-5810 Wireless Tuner.

4. HANDLING PRECAUTIONS

• Do not expose the unit to rain or an environment where it may be splashed by water or other liquids, as doing so may result in unit failure.
• Never open nor remove the unit case to modify the unit. Refer all servicing to your nearest TOA dealer.
  • Take care not to drop the unit onto the floor nor bump it against a hard object as the unit could fail.
• Do not place the unit in locations of high temperature (ex. in an ill-ventilated car in summer) or high humidity as the unit could fail.
• Do not use the unit in locations where it is exposed to seawater.
• To clean, use a dry cloth. When the unit gets very dirty, wipe lightly with a cloth damped in a dilute neutral cleanser, then wipe with a dry cloth. Never use benzine, thinner, or chemically-treated cleaning towel.
• Avoid using a mobile telephone near the wireless microphone in use. Noise could be picked up.
• When using two or more wireless microphones, keep them at least 50 cm away from each other to avoid malfunctions or noise.
• Keep the wireless microphone at least 3 m away from the receiving antenna. Using the microphone in close proximity to the antenna could result in malfunctions or noise.

5. NOMENCLATURE

Keep the switch in the "L" position (factory-preset).
Leave the switch setting to qualified service technicians.

6. BATTERY INSERTION

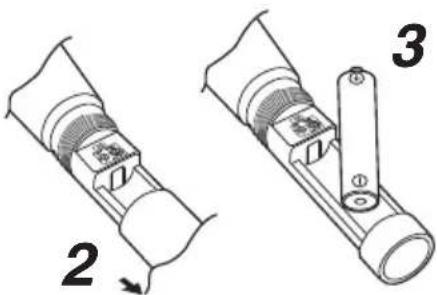

Step 1. Turn off the power switch.

Step 2. Hold the microphone body and rotate the microphone grip counterclockwise to remove it.

Step 3. Insert an AA battery according to (+) and (−) indications on the battery compartment.

Step 4. Replace the microphone grip by sliding and rotating it clockwise.

Battery replacement

• A brand-new AA alkaline battery will continuously operate the unit for about 10 hours.
• When the battery capacity becomes low, the green LED of the Power/Battery lamps starts to dim, while the red LED to light.

When only the red LED lights, replace the battery with a new one. In this condition, the unit transmits the remaining battery capacity information to the tuner, causing the tuner's BATT indicator to light.

Green LEDRed LED

7. WHEN OPERATING ON RECHARGEABLE BATTERY

CAUTION

When charging, never insert rechargeable batteries other than the specified WB-2000 battery in the wireless microphone (transmitter). Charging any other than the WB-2000 battery may result in fire or personal injury due to battery rupture.

Notes

• When operating on rechargeable batteries, the optional BC-5000 Battery Charger is required.
• For rechargeable batteries, be sure to use the optional WB-2000 battery. Do not use other batteries.

7.1. How to Charge

Step 1. Set the wireless microphone's power switch to the OFF position.

Note

Be sure to turn off the microphone's power switch when charging. Batteries cannot be correctly charged if the power switch is ON.

Step 2. Place the WB-2000 rechargeable battery in the wireless microphone.

(Refer to p. 4 "Battery insertion.")

Step 3. Fully insert the wireless microphone into the microphone receptacle of the BC-5000 Battery Charger.

In this case, place the microphone with its power ON/OFF switch facing the charger's front or back.

The BC-5000's charging indicator lights red and charging begins.

Charging is completed in approximately 3 hours and the BC-5000's full-charge indicator lights green.

(When charging the WM-5225/5265 microphone, attach the mounting adapter supplied with the charger.)

Notes

• If the red charging indicator does not light even if the wireless microphone has been inserted into the charger, check to see if the microphone has been correctly inserted.
• The wireless microphone becomes warm after charging completion, however this is not a failure.

Note: For more information, please read the instruction manual enclosed with the BC-5000 Battery Charger.

7.2. Charging Timing

Please charge the equipment immediately when green LED light is off and red light is on during use.

When the battery alarm lamp on the receiver is on, the battery level of the microphone is low as well.

The microphone will not be able to operate within a few minutes.

Even though the battery remains enough, both green and red lights might be on at the same time.

[Guidelines on the rechargeable battery operation time]

Continuous usage time: Approx. 13 hours

Notes

• When using the WB-2000 rechargeable battery for the first time or when using it after it has been stored for a long period of time, be sure to charge it before use.
• The WB-2000 battery is designed to cycle through about 500 charges and discharges. When the microphone operation interval becomes extremely short after prolonged repeated use, change the battery with a new one.

8. CHANNEL NUMBER SETTING

Step 1. Switch off the power. Rotate the microphone grip counterclockwise to remove it.

Step 2. Using the supplied screwdriver, set the Channel setting switch pointer to the desired channel number.

Step 3. Replace the microphone grip.

Note: Make sure that the wireless microphone is identical to the wireless tuner in the channel number. Should the microphone's setting differ from that of the tuner, the tuner does not receive the microphone signal.

9. OPERATION

Step 1. Confirm that the wireless microphone and the wireless tuner are identical in the channel number. If not identical, turn the power ON/OFF switch to the OFF position, then set the channel number to the same channel number as the tuner.

Step 2. Turn the Power ON/OFF switch to the ON position. Then, confirm the green LED of the Power/Battery lamps will light.

Step 3. Turn the Power ON/OFF switch to the OFF position after use.

10. OPERATIONAL HINTS

• The microphone's service distance is 3 – 120 m. When the microphone user moves in a facility, signal dropouts (momentary losses of signal reception) may be encountered. These dropouts are caused by building's architectural designs or materials which block the travel of or reflect the radio signal. If this occurs, the user needs to change locations for better signal reception.
• The proper operation of your wireless system may be interfered with by other system operating on the same frequency. In such cases, change the operating frequency of your system. (As to dealing with the interference, refer to the operating instructions of the wireless tuner.)
• Should you have any questions regarding the use or availability of TOA wireless products, please contact your local TOA dealer.

11. SPECIFICATIONS

Model No. WM-5225	WM-5265
Microphone Element	Electret condenser microphone unit: Unidirectional	Dynamic microphone unit: Unidirectional
Modulation	Frequency
Frequency Range 506 – 867	MHz(506 – 538 MHz, 576 – 606 MHz, and 614 – 698 MHz for USA/Canada, 614 – 698 MHz for Brazil, 865 – 867 MHz for India)
Channel Selectable 64 channels (the number of channels may differ from country to country)
RF Carrier Power Less than 50 mW (Factory preset 10 mW ERP)
Tone Frequency 32.768 kHz
Oscillator PLL synthesized
Maximum Input Level 126 dB	SPL 132 dB SPL
Maximum Deviation ±40 kHz
Audio Frequency Response 100 Hz – 15 kHz
Dynamic Range 95 dB or more (with WT-5800)
Battery	WB-2000 rechargeable battery (option) or AA alkaline dry cell battery
Battery Life	Approx. 13 h (when the WB-2000 rechargeable battery is used) Approx. 10 h (when the alkaline battery is used)
Indicator	Power/Battery lamps
Antenna	Built-in type
Operating Temperature	-10°C to +50°C (14°F to 122°F) (except battery)
Operating Humidity	30 % to 85 %RH
Finish	Resin, coating
Dimensions	ø43.6 x 231.5 mm (ø1.72" x 9.11")	ø50 x 229 mm (ø1.97" x 9.02")
Weight	180 g (0.4 lb) (with battery)	205 g (0.45 lb) (with battery)

Note: The design and specifications are subject to change without notice for improvement.

- Accessories

Microphone holder (with stand adapter) ..... 1

Storage case 1

Screwdriver (for setting) 1
