Free II - Earphones JBL - Free user manual and instructions

Product Type	True Wireless Earbuds
Model	Free II
Brand	JBL
Dimensions (Earbuds)	Approx. 23 x 15 x 14 mm each
Dimensions (Charging Case)	Approx. 62 x 42 x 27 mm
Weight (Earbuds)	Approx. 5 g each
Weight (Charging Case)	Approx. 45 g
Driver Size	5.8 mm
Frequency Response	20 Hz – 20 kHz
Impedance	16 ohms
Bluetooth Version	5.0
Battery Life (Earbuds)	Up to 6 hours
Battery Life (with Case)	Up to 24 hours
Charging Time	Approx. 2 hours
Battery Capacity (Earbuds)	80 mAh each
Battery Capacity (Case)	1000 mAh
Water Resistance	IPX4 (sweat and splash proof)
Controls	Touch controls (play/pause, track skip, volume, voice assistant)
Available Colors	Black, White, Blue, Red
Maintenance	Clean with a dry, soft cloth. Avoid moisture and harsh chemicals.
Safety	Do not disassemble. Keep away from children. Avoid excessive heat.
Spare Parts	Ear tips (S/M/L), charging cable (USB-C)

Frequently Asked Questions - Free II JBL

How to pair JBL Free II with my phone?

Remove both earbuds from the charging case; they will automatically enter pairing mode. On your phone, enable Bluetooth and select 'JBL Free II' from the list. If prompted, confirm pairing. You can also press and hold the touch sensor on both earbuds for 3 seconds to manually enter pairing mode.

How to reset JBL Free II?

Place both earbuds in the charging case and keep the lid open. Press and hold the touch sensors on both earbuds for about 10 seconds until the LED indicators flash white three times. Close the lid. Then take them out to re-pair.

What is the battery life of JBL Free II?

The earbuds provide up to 6 hours of playback on a single charge. The charging case holds additional charges, giving a total of up to 24 hours of listening time.

Are JBL Free II waterproof?

The earbuds have an IPX4 rating, meaning they are resistant to sweat and light splashes. They are not suitable for swimming or heavy rain. The charging case is not water-resistant.

How to control music and calls on JBL Free II?

Use the touch sensors on each earbud: single tap for play/pause or answer/end call; double tap for next track; triple tap for previous track or voice assistant; long press for volume control (right for volume up, left for volume down).

What to do if one earbud is not working?

First, put both earbuds back in the case and close the lid for 10 seconds. Then take them out again. If the issue persists, reset the earbuds (see reset procedure). Ensure both earbuds are charged. If one earbud still doesn't work, contact JBL support.

How to charge JBL Free II?

Place the earbuds in the charging case; they will start charging automatically. Connect the case to a USB-C power source using the provided cable. The LED on the case indicates charging status. A full charge takes about 2 hours.

Can I use JBL Free II with a single earbud?

Yes, you can use either earbud independently for mono audio. Simply remove one earbud from the case and it will connect automatically. To switch to stereo, take out the other earbud.

How to clean JBL Free II?

Wipe the earbuds and charging case with a soft, dry cloth. For ear tips, remove them and rinse with water, then dry completely before reattaching. Avoid using alcohol or abrasive cleaners. Do not insert objects into the charging ports.

What replacement parts are available?

JBL offers replacement ear tips in different sizes (S/M/L) and replacement USB-C charging cables. Contact JBL support or check the official website for purchase. The earbuds and case batteries are not user-replaceable.

USER MANUAL Free II JBL

OTHERS ANDROID 6.0+

CHOOSE "JBL FREE II" TO CONNECT

Fast Pair

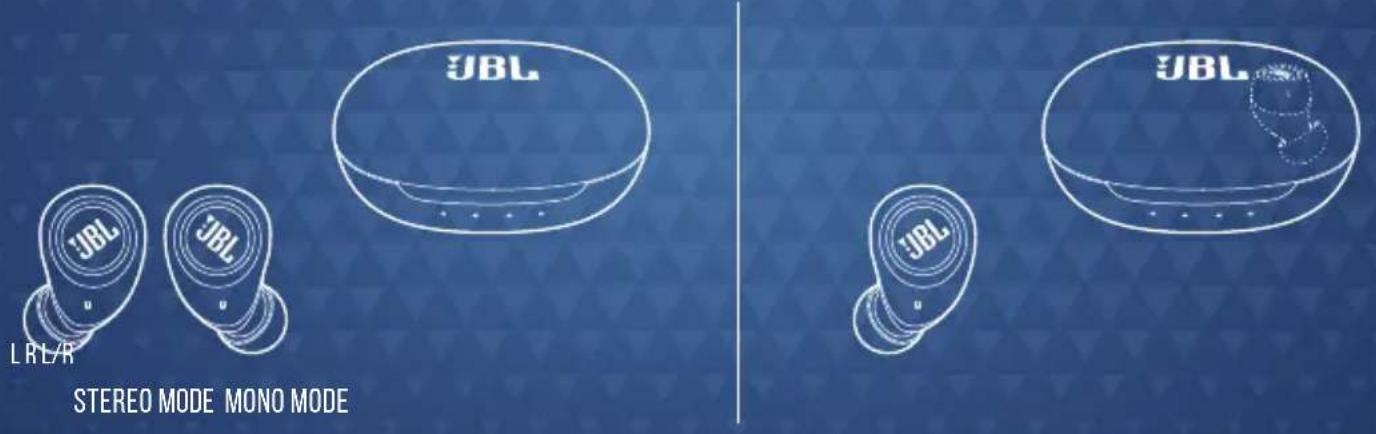

DUAL CONNECT

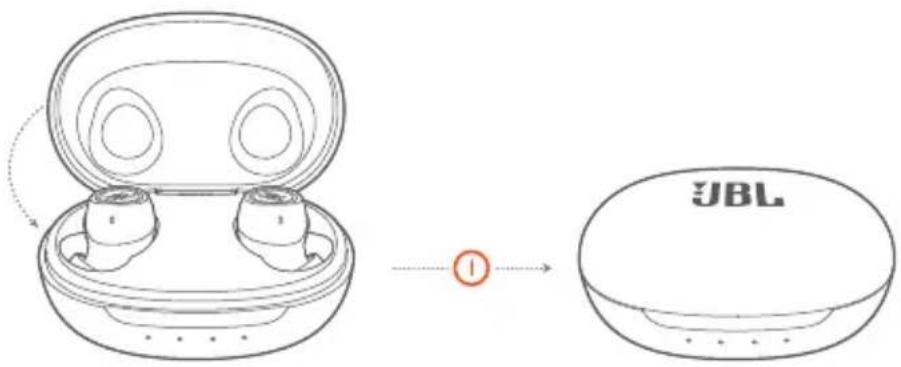

POWER OFF

MANUAL CONTROLS

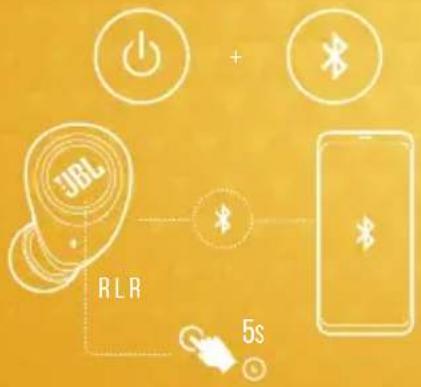

POWER ON & CONNECT TO DEVICE

TECH SPEC

Model:

Driver size:

Power supply:

Weight:

Earpiece:

Charging case:

Headset battery type:

Charging case battery type:

Charging time:

Music playtime with BT on:

Frequency response:

Impedance:

Sensitivity:

Maximum SPL:

Microphone sensitivity:

Bluetooth version:

Bluetooth profile version:

Bluetooth transmitter frequency range:

Bluetooth transmitter power:

Bluetooth transmitter modulation:

Maximum operation temperature:

FREE II

5.6 mm / 0.22" Dynamic driver

5V=1A

61.6 g/0.135 lbs

4.8 g/0.011 lbs/pc (9.6 g /0.021 lbs combined)

52 g/0.114 lbs

Lithium-ion Battery (55 mAh / 3.7 V)

Lithium-ion Battery (650 mAh / 3.8 V)

< 2 hrs from empty

up to 6 hrs

20 Hz - 20 kHz

16 ohm

100 dB SPL@1 kHz / 1 mW

95 dB

- 38 dBV@1 kHz / Pa

5.0

A2DP 1.3, AVRCP 1.6, HFP 1.7

2.4 GHz - 2.48 GHz

< 12 dBm

GFSK, π/-4DQPSK, 8DPSK

45°C

DA

HYAD ER DER IÅSKEN SÅDAN BÆRÉS DE	SLUK MANUEL STYRING	NEMT AUTOMATISK SKIFTE OPLADER
BRUG F∅RSTE GANG TÄND OG FORBIND ANDRE	TÄND OG OPRET FORBINDELSE TIL ENHEDEN TILSLUT VENSTRE OG H∅JRE IGEN TÄND	LED-SIGNALER TÄNDT BLUETOOTH OPRETTER FORBINDELSE BLUETOOTH FORBUNDEIT LAVT BATTERI
ANDROID 6.0+ VÄLG "JBL FREE II" FOR AT FORBINDE	SLUK STYRING MED KNAP 1. STREOTILSTAND 2. MONOTILSTAND	OPLADER

TEKNISKE SPECIFICATIONER

Model:	Free II
Enhedstørrelse:	5,6 mm / 0,22" dynamisk enhed
Strømforsyning:	5 V ± 1 A
Vægt:	61,6 g
∅restykke:	4,8 g pr. stk. (9,6 g kombineret)
Opladningsetul:	52 g
Batteritype (headset):	lithium-ion batteri (55 mAh / 3,7 V)
Batteritype (opladningsetul):	lithium-ion batteri (650 mAh / 3,8 V)
Opladningstid:	< 2 timer fra tom
Musikspilletid med Bluetooth aktiveret:	opt til 6 timer
Frekvensområde:	20 Hz – 20 kHz
Impedans:	16 ohm
Felsomhed:	100 dB SPL@1 kHz / 1 mW
Maksimal SPL: 95 dB
Mikrofonfelsomhed: -38 dBV@1 kHz / Pa
Bluetooth-version:	5.0
Bluetooth-profilversion:	A2DP 1.3, AVRCP 1.6, HFP 1.7
Bluetooth-senders frekvensområde:	2,4 GHz - 2,48 GHz
Bluetooth-sendeeffekt: < 12 dBm
Bluetooth-sendemodulation:	GFSK, /-4DQPSK, 8DPSK
Maksimal driftstemperatur:	45 °C

DE

1. MODALITÀ STEREO

2. MODALITÀ MONO

BY TILKOBLING BY TILKOBLING

B TILKOBLET

LAVT

LADER

PL

ZAWARTOŚĆ ZESTAWU

JAK KORZYSTAĆ ZE

SŁUCHAWEN

PRZED PIERWSZYM UZYCIEM

WŁĄCZANIE ZASILANIA I

ŁACZENIE

INNE ANDROID 6.0+

ANDROID 0.0+ ARV NAWIA71/2 POLACZENIE

ABY NAWIAZAC POŁĄCZENIE, IWIYRIĘŻ. IRL EFRG III

WYDIERZ „JBL FREE II DUAL CONNECT

DUAL CONNECT TOVR DZHILEKIL STI

TRYD DZWIĘRO STEREO | TRYD DZWIEKU MONO

DEVIÇO MONO

WYŁ. ZASILANIA

STEROWANIE RĘCZNE

WEŁĄCZANIE ZASILANIA

Earpiece: 4.8 g/0.011 lbs/buah (total 9.6 g/0.021 lbs)

Casing pengisi daya: 52 g/0,114 lbs

Tipe baterai headset: Baterai Lithium-ion (55 mAh/3.7 V)

Tipe baterai casing pengisi daya: Baterai Lithium-ion (650 mAh/3,8 V)

4.8g/0.011lbs/피스(층9.6g/0.021lbs)

The source image contains no legible text or symbols. According to Rule 4 (Edge Noise Strategy), since the ground truth is not clearly visible, the OCR should output nothing.

Therefore, the corrected OCR text is:

```text [No text detected]

###

The SAR limit of Canada (C) is 1.6W/kg averaged over one gram of tissue. Device types: (IC: 6132A-JBLFREE2) has also been tested against this SAR limit. According to this standard, the highest SAR value reported during product certification for head use is 0.673 W/kg. The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user's head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not meet these requirements may not comply with IC RF exposure requirements and should be avoided.

Head operation

The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the users ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.

IC: 6132A-JBLFREE2
