Rapid System Kit 1417 - Accessoires auto THULE - Free user manual and instructions

Product Type	Roof Rack Kit
Brand	Thule
Model	Rapid System Kit 1417
Compatible Vehicles	Audi A3 3-door Hatchback (2003-2012), Audi A3 Sportback 5-door Hatchback (2004-2012, North America 2004-2015)

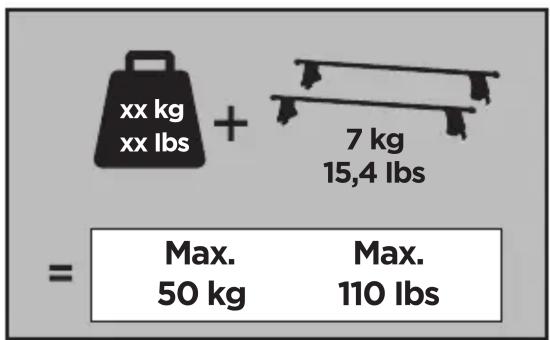

Maximum Load Capacity	50 kg (110 lbs)
Weight (approx.)	5 kg (11 lbs)
Dimensions X	1011 mm (39 3/4 in)
Dimensions Y	981 mm (38 5/8 in)
Dimensions W	260 mm (10 1/4 in)
Dimensions Z	700 mm (27 1/2 in)
Material	Aluminum / Steel
Color	Silver / Black
Required Base System	Thule Rapid System 754 Foot Pack

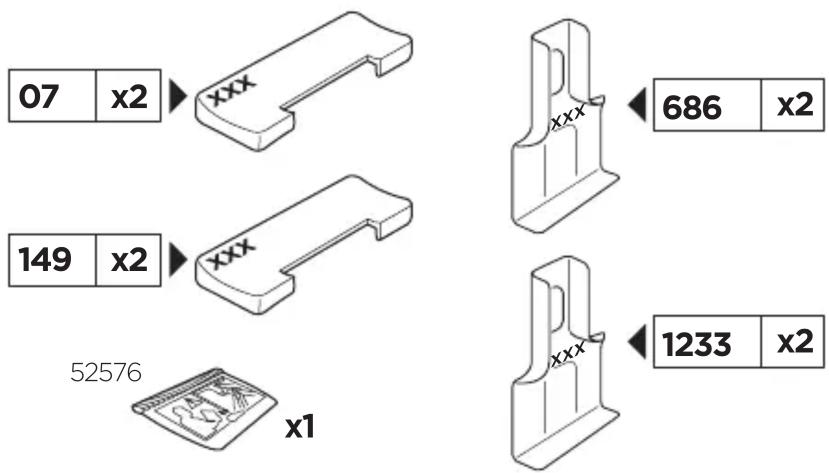

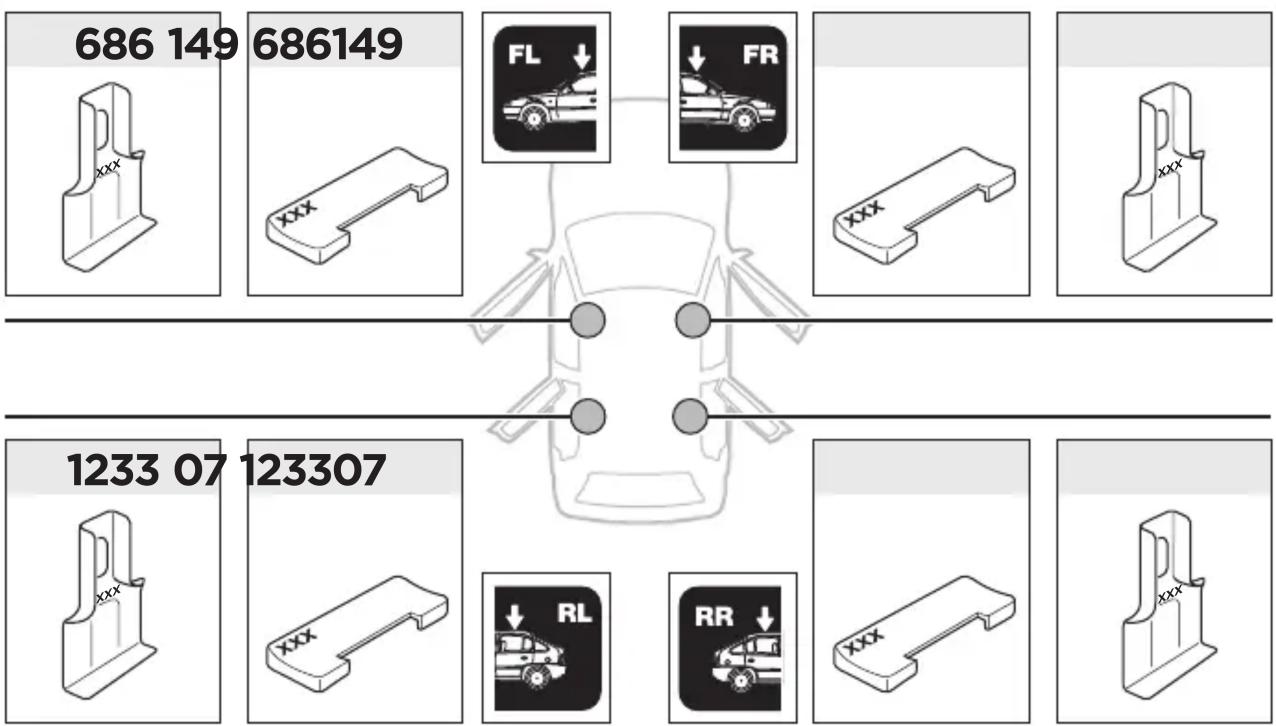

Included Components	Kit 1417: 1x part 52576, 2x part 686, 2x part 1233, 1x part xxx, 2x part 149, 2x part 07, and hardware

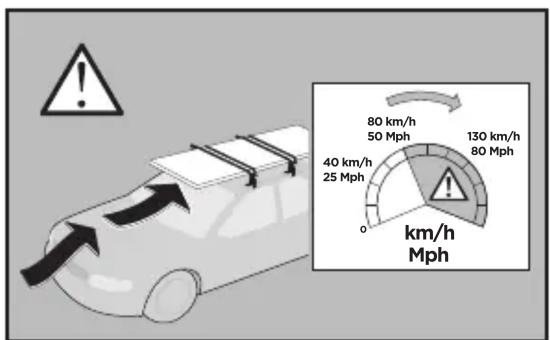

Maximum Speed with Load	80 km/h (50 mph)
Maximum Speed without Load	130 km/h (80 mph)
Certification	ISO 11154-E
Installation	Requires measurement of X, Y, W, Z distances; includes instructions
Maintenance	Clean with mild soap and water; periodically check bolt tightness
Warranty	Thule limited lifetime warranty

Frequently Asked Questions - Rapid System Kit 1417 THULE

Is the Thule Rapid System Kit 1417 compatible with my Audi A3?

Yes, it is designed for the Audi A3 3-door Hatchback (2003-2012) and Audi A3 Sportback 5-door Hatchback (2004-2012, North America 2004-2015).

What is the maximum load capacity of this roof rack kit?

The maximum load capacity is 50 kg (110 lbs), including the weight of any accessories such as roof boxes or bike carriers.

Do I need additional parts to install this kit?

Yes, you need the Thule Rapid System 754 Foot Pack to attach the kit to your vehicle's roof.

How do I install the Rapid System Kit 1417?

Follow the included instructions: measure the distances X, Y, W, and Z as per the vehicle-specific table, then assemble the components onto the foot pack.

Can I use this kit with a roof box or bike carrier?

Yes, but ensure the total weight of all accessories does not exceed the 50 kg (110 lbs) maximum load limit.

What is the weight of the kit itself?

The kit weighs approximately 5 kg (11 lbs).

Is the kit compatible with other car models?

No, the Thule Rapid System Kit 1417 is specifically designed for the Audi A3 models listed above. For other vehicles, use a different kit.

What tools are required for installation?

You will need a torque wrench and the included Allen keys. Some steps may require a Phillips screwdriver.

How should I maintain the roof rack?

Clean the rack with mild soap and water. Regularly check and retighten bolts and screws to ensure secure mounting.

Does Thule offer a warranty for this product?

Yes, Thule provides a limited lifetime warranty against defects in materials and workmanship.

USER MANUAL Rapid System Kit 1417 THULE

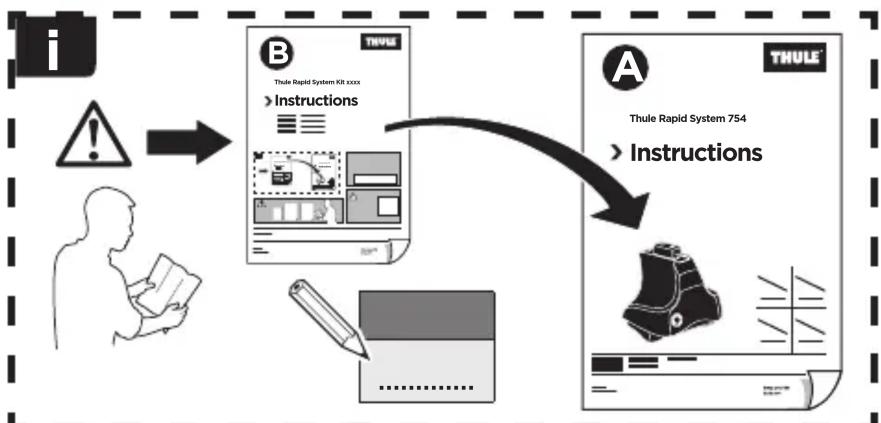

Thule Rapid System Kit 1417

> Instructions

AUDI A3, 3-dr Hatchback, 03-12

AUDI A3 Sportback, 5-dr Hatchback, 04-12 / *06-15

*North America

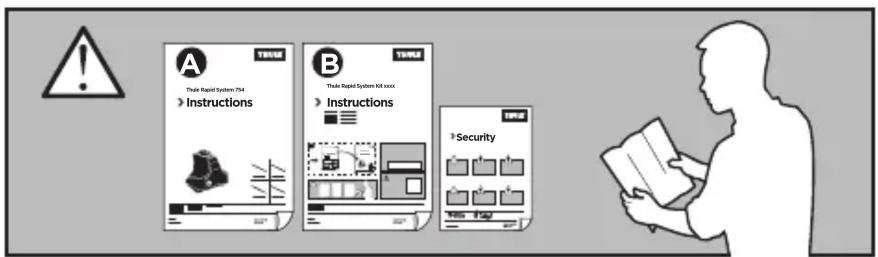


ISO 11154-E

x1

x1

1

	X (scale)	X (mm)	X (inch)
AUDI A3, 3-dr Hatchback, 03-12	36	1011	39^3/_4
AUDI A3 Sportback, 5-dr Hatchback, 04-12 / *06-15	36	1011	39^3/_4

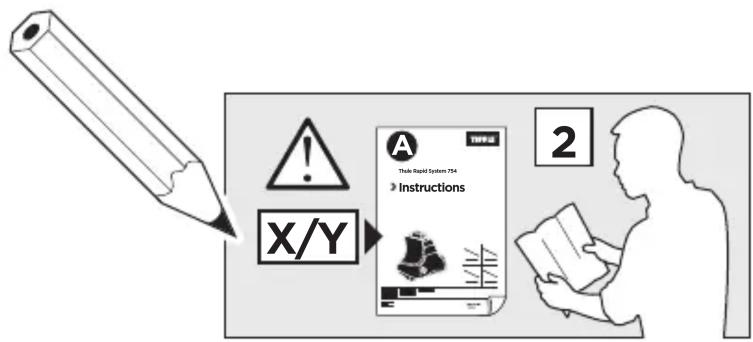


	Y (scale)	Y (mm)	Y (inch)
AUDI A3, 3-dr Hatchback, 03-12 33 981 38			^5/8
AUDI A3 Sportback, 5-dr Hatchback, 04-12 / *06-15	33	981	^5/8

AUDI A3, 3-dr Hatchback, 03-12

AUDI A3 Sportback, 5-dr Hatchback, 04-12 / *06-15

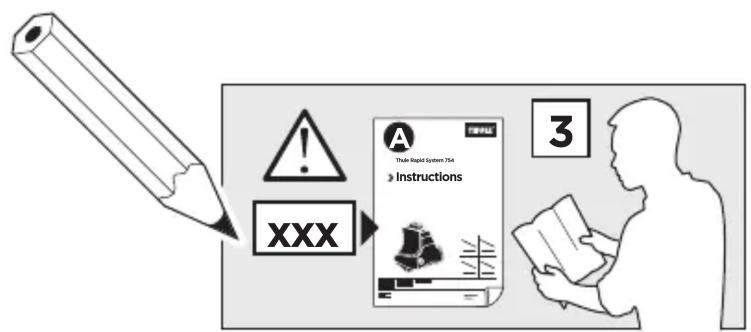

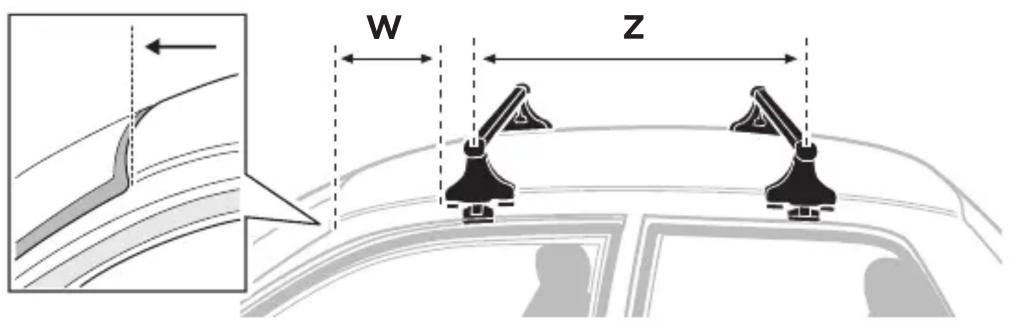

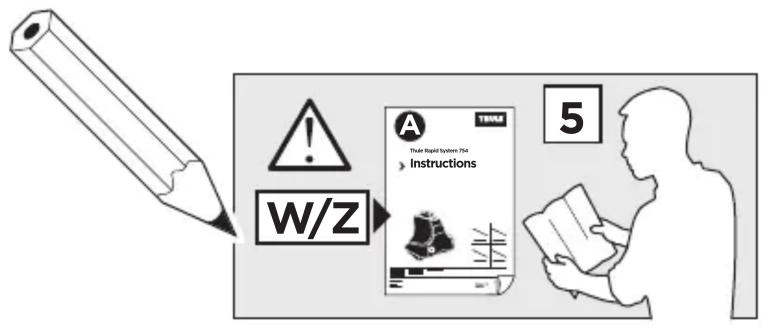

	W (mm)	Z (mm)	W (inch)	Z (inch)
AUDI A3, 3-dr Hatchback, 03-12	260	700	1014	2712
AUDI A3 Sportback, 5-dr Hatchback, 04-12 / *06-15	260	700	1014	2712

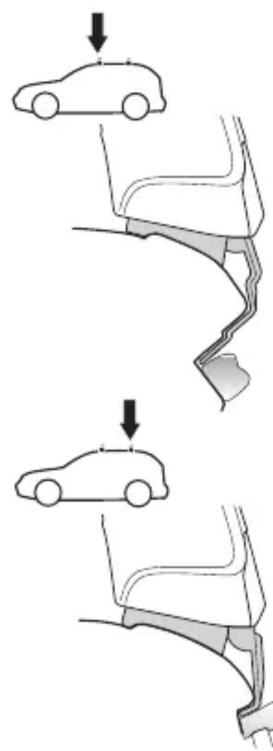

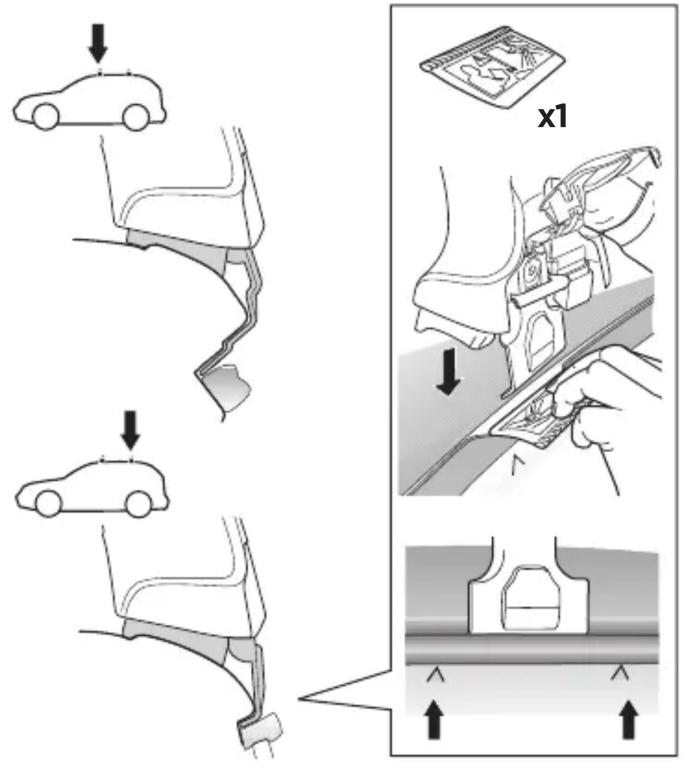

AUDI A3,
3-dr Hatchback, 03-12

AUDI A3 Sportback,
5-dr Hatchback, 04-12 / *06-15
