Product Type	Roof Rack System
Brand	Thule
Model	Fixpoint XT 3069
Compatible Vehicles	Cars with raised longitudinal roof rails
Dimensions (L x W x H)	135 x 10 x 8 cm (per bar)
Weight (per bar)	4.5 kg per bar (pair: 9 kg)

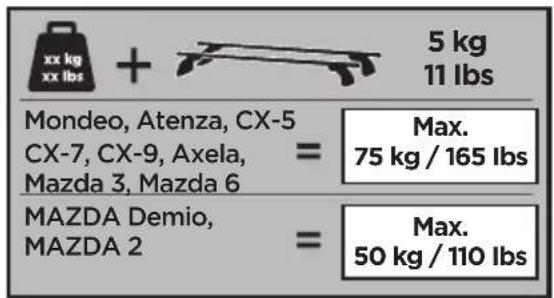

Load Capacity	Up to 75 kg per pair (max 100 kg on roof)
Material	Aluminum and reinforced plastic
Finish	Black anodized aluminum with plastic end caps
Locking System	Integrated key lock (1 key per bar)
Mounting Style	Clamp-on for raised rails
Tool-Free Installation	Yes, with quick-adjust lever
Aerodynamic Design	Yes, low profile to reduce wind noise
T-Slot Channel	Yes, for accessory mounting
Load Stop Included	Yes, rubberized stop for cargo
Care Instructions	Clean with mild soap and water; avoid abrasive cleaners
Maintenance	Periodically check bolt tightness and lubricate locks with graphite
Safety Notes	Do not exceed weight limit; ensure cargo is tied down
Spare Parts Available	Yes, lock cores, end caps, rubber pads via Thule dealer
Warranty	Limited lifetime warranty (repair/replace on defects)

Frequently Asked Questions - Fixpoint XT 3069 THULE

How do I install the Thule Fixpoint XT 3069 roof bars?

Installation is tool-free. Open the clamp lever, place the bar on the roof rail, adjust the foot to fit, close the lever to tighten, and lock with the provided key. Refer to vehicle-specific instructions for exact rail positioning.

What is the maximum weight capacity of the Fixpoint XT 3069?

The maximum load capacity is 75 kg per pair, but the total roof load (including the bars) must not exceed the vehicle's roof load limit, typically 100 kg. Always check your car's manual.

Are these bars compatible with my car?

The Fixpoint XT 3069 is designed for vehicles with raised longitudinal roof rails. Check Thule's fit guide online or contact support to confirm compatibility with your specific make and model.

Can I attach a bike carrier or cargo box to these bars?

Yes, the bars have a T-slot channel and are compatible with most Thule accessories (bike carriers, cargo boxes, etc.). Ensure accessories are rated for the combined weight.

How do I lock the roof bars?

Each bar includes an integrated lock. Use the supplied key to turn the lock cylinder clockwise to lock, counterclockwise to unlock. Keep the key in a safe place; spare keys can be ordered.

Do the bars cause wind noise?

The Fixpoint XT 3069 has an aerodynamic profile to minimize wind noise. At high speeds some noise is normal, but it should be low. If excessive, check that bars are properly aligned and end caps are secure.

How do I clean and maintain the roof bars?

Clean with a mild soap and water solution. Do not use abrasive cleaners or pressure washers. Lubricate the lock mechanism with graphite powder yearly. Check bolts and clamps for tightness before each trip.

What spare parts are available for this model?

Spare parts include replacement lock cores, end caps, rubber pads, and clamp levers. Contact Thule customer service or an authorized dealer to order.

Is the Fixpoint XT 3069 safe to use in winter conditions?

Yes, the aluminum construction resists corrosion. However, remove ice and snow from bars before use, and avoid using in extreme weather. Ensure locks are not frozen; use a de-icer spray if needed.

How do I know if the load is secured properly?

Always use straps or tie-downs to secure your load. Attach cargo using the rubberized load stops and straps. Never exceed the weight limit, and recheck tie-downs after driving a few minutes.

USER MANUAL Fixpoint XT 3069 THULE

This kit is only for vehicles with fixpoint mounting.

ISO 11154-E

Technical line drawing of a metal bracket with four holes (no text or symbols)

Line drawing of a rectangular plastic housing or enclosure with internal cutouts (no text or symbols)

Line drawing of a mechanical component with no text or symbols

16 mm x8

Line drawing of a rectangular mechanical part with cutouts (no text or symbols)

Line drawing of a metal bracket with mounting holes and a circular symbol on top (no text or labels)

1

Line drawing of a metal bracket with mounting holes (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical component or bracket (no text or symbols)

Simple line drawing of a metal bracket with mounting holes (no text or symbols)

Top-down line drawing of a car's front view showing four circular components (no text or symbols)

Technical line drawing of a metal bracket with mounting holes (no text or symbols)

Line drawing of a mechanical component with no text or symbols

Line drawing of a rectangular mechanical part with cutouts (no text or symbols)

A

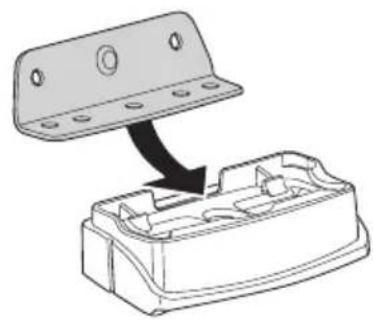

Diagram showing a metal bracket being inserted into a plastic housing (no text or symbols present)

B

EN Only a few turns

Diagram of a car body with arrows indicating downward force or movement (no text or symbols)

A
FORD MAZDA

Diagram showing two parallel lines with a curved arrow indicating direction, no text or symbols present

Diagram showing two rectangular blocks with arrows indicating movement or flow, no text or symbols present

B
FORD MAZDA

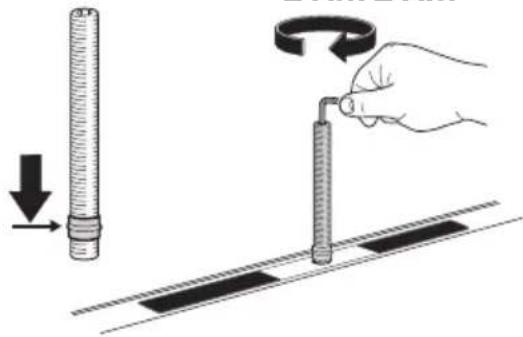

Illustration showing a hand holding a cylindrical tool with a rotating arrow, next to a vertical rod and a flat track (no text or symbols)

Illustration of a hand holding a tool with a circular arrow indicating rotation (no text or symbols)

B
FORD MAZDA

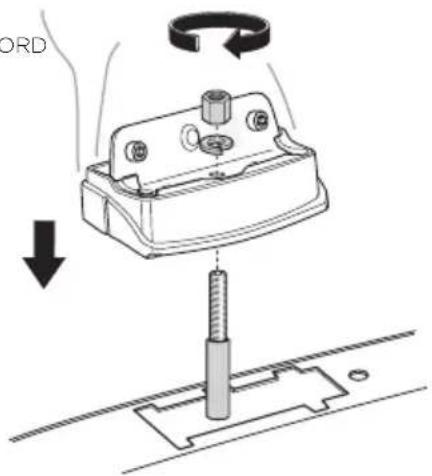

Diagram showing a mechanical assembly with a cylindrical component inserted into a base, no text or symbols present

x4 x4

D

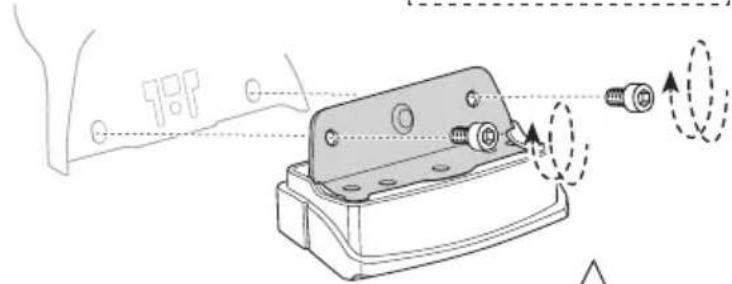

Diagram showing a mechanical assembly with a rotating component and a screw, no text or symbols present

MAZDAFORD

A

FORD 6 Nm

B

FORD 4 Nm

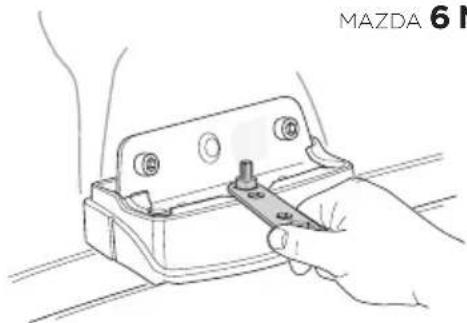

MAZDA 6 Nm

Line drawing of a hand using a tool to adjust or install a vehicle component (no text or symbols visible)
