USER MANUAL Aromatic Bliss Melaleuca

White cylindrical object with a small mark on the side, resembling a battery or filter (no visible text or symbols)

AROMATIC BLISS

2-in-1 Ultrasonic Diffuser & Humidifier

Instructions for use

2-in-1 Ultrasone diffuser en luchtbevochtiger

Gebruiksaanwijzing

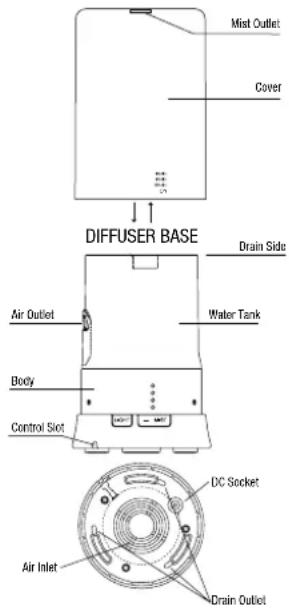

There may be a difference between the actual diffuser and the diagram. Please refer to the diffuser.

WATER TANK COVER

Mist Outlet Cover DIFFUSER BASE Drain Side Air Outlet Water Tank Body Control Slot DC Socket Air Inlet Drain Outlet

AROMA DIFFUSER INSTRUCTION MANUAL

EN

Precautions to ensure the safety when you use the diffuser, please pay attention to the following points:

DO NOT Disassemble, alter, or repair the diffuser. If the product needs repairing, please return to the retailer or the manufacturer.

DO NOT Twist, puncture, or stretch the cord of the power adapter, place hot items on the wire, or apply heavy pressure that may bend or squash the cord.

DO NOT Use the product if the external power cord has been damaged or the socket is loose. The device should only be used with the supplied adapter. In case of damage of the cord, please scrap.

DO NOT Use the product when there is an abnormal odour or noise coming from the diffuser or if the diffuser is overheating abnormally.

DO NOT Soak the diffuser in water or use in a wet area such as a bathroom or greenhouse.

AROMA DIFFUSER INSTRUCTION MANUAL
EN

DO NOT	Cover the diffuser or block the mist outlet or air inlet.
DO NOT	Use inferior essential oils, which may damage the product. Use 100% pure essential oils.
DO NOT	Take off the cover of the diffuser during operation.
DO NOT	Place on an electric device such as a computer, TV, or audio equipment.
DO NOT	Use hot water, distilled water, or mineral water, or refill while the diffuser is in operation. Please use only cold tap water.
DO NOT	Use as a medical respirator.
DO NOT	Use chlorine or acidic based detergents for cleaning outside or inside of the diffuser. Please use neutral detergents like diluted kitchen detergents.For instance use 5 ml of white vinegar to clean tartar.

6

AROMA DIFFUSER INSTRUCTION MANUAL
EN

DO NOT	Place the diffuser on an unstable surface or move it during operation.
DO NOT	Allow children to play with the appliance. Do not allow children to use, clean, nor maintain without supervision. Keep out of reach of children and pets.
DO NOT	Pour the remaining water from the outlet side. Pour from the drain side.
DO NOT	Press on the ultrasonic mechanism in the water tank.
DO NOT	Keep the adaptor connected to the power supply during filling, cleaning or maintenance (see page 11).
DO NOT	Scratch the ultrasonic mechanism in the water tank.
DO NOT	Operate the device on other safety extra low voltage than the one indicated on the rating label of the diffuser.

7

AROMA DIFFUSER INSTRUCTION MANUAL

EN

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

The symbol above means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. When this product reaches its end of life, take it to a collection point designated by local authorities. The separate collection and recycling of your product and/or its battery at the time of disposal will help conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

AROMA DIFFUSER INSTRUCTION MANUAL

EN

Thank you for choosing our aroma diffuser. In order to have a pleasant experience, please read the instruction manual carefully to ensure proper use. Please retain this manual for reference in the event any problems or questions arise. This manual can be used as proof of guarantee with the attached guarantee card.

Specifications

[ Product ] Aroma Diffuser

[Size] 80 x 140 mm (H)

[Weight (excl. adapter)] Approx. 260 g

[Power] Special Adapter

Input: AC 100\~240V 50/60Hz

Output: DC24V 650mA

Length of power line: Approx. 170 cm

Power: Approx. 13W

[Timer] 30/60/120 minutes, ON (continuous diffusion)

[ Aromatherapy ] Combination of water (using the water cup) and essential oil creates an ultra-fine mist using high ultrasonic vibration.

Ultrasonic Frequency: 2.4MHz

[Applicable Area] 40 Square Metres

[Water Capacity] 100 ml

[ LED Light ] 6 colours

[ Material ] PP, ABS

[Accessories] AC adapter, water cup, instruction manual

Quick Start Guide

1 Attach the DC plug of the adapter to the diffuser, then insert the power cord into the slot. Plug the adapter into the power source.
2 Remove the cover from the water tank. Carefully add clean, cold tap water and pure essential oil (dosage is about 2-3 drops) to the water tank. Replace cover.

3 To turn on, press and hold the "Mist" button for about three seconds. Once on, press the "Mist" button repeatedly to select the timer setting.

Light Control

Press the "Light" button to turn on the LED light. Six light colour options at varying brightnesses are available. Press the "Light" button repeatedly to select your desired colour/ brightness. To turn off light completely, press and hold the button for about three seconds.

Cover Light Button Cord Slot Timer Mist Button

AROMA DIFFUSER INSTRUCTION MANUAL AROMA DIFFUSER INSTRUCTION MANUAL

ENI

1 Remove the water tank cover by carefully twisting counterclockwise, and then pulling upwards while keeping the diffuser stable. DO NOT tip the diffuser.
2 Attach the DC plug of the adapter to the diffuser, then insert the power cord into the slot.
3 Add clean, cold tap water to the water tank using a measuring cup, without exceeding the maximum water line. DO NOT spill any water outside the tank. DO NOT use hot water, distilled water, or refill while the diffuser is in operation.
4 Plug adapter into power source.
5 Add pure essential oil (DO NOT add more than 6 drops of essential oil to the appliance).
6 Replace the cover on the water tank and twist clockwise. Align circle indicators on the base and cover. To avoid spillage, DO NOT tip the diffuser.

7 Press and hold the "Mist" button for about three seconds to turn on diffuser. Set the desired time to 30, 60, 120 minutes, ON, or OFF by pushing the "Mist" button repeatedly – green signal indicates which setting is on. To turn off diffuser completely, press and hold the "Mist" button for about three seconds.

8 Press the "Light" button to turn on the LED light. Six light colour options at varying brightnesses are available. Press the "Light" button repeatedly to select your desired colour/ brightness. To turn off light completely, press and hold the button for about three seconds.

9 In between uses, drain any remaining water from water tank and clean properly [maintenance instructions on next page]. Store in a cool dry place.

Clean the diffuser with a neutral detergent before reusing.

If the water level inside the diffuser runs too low, it will automatically stop operating even if you attempt to turn it on.

The LED light will also turn off when the preset time has elapsed.

MaintenanceHow to Operate

To help ensure a long working life, please properly maintain the diffuser. It's necessary to maintain the diffuser as outlined below once it has been used 5-6 times or for 2-3 consecutive days.

STEP 1: Disconnect the AC adapter from the power supply. Take off the cover while keeping the diffuser completely level. DO NOT tip from side to side.
STEP 2: Disconnect the DC plug from the diffuser base.
STEP 3: If there's water left in the tank, pour it from the drain side. DO NOT pour from the air outlet side, as water may flow into the base of the diffuser.
STEP 4: Use a gentle diluted mild kitchen detergent on a damp cloth to remove any essential oil residue, ensuring no detergent remains. IMPORTANT: DO NOT press heavily or scratch the ultrasonic mechanism in the water tank during cleaning.
STEP 5: Add water into the tank with the water cup, activate the diffuser, and set the timer for 30 minutes. After 30 minutes, pour out remaining water and gently wipe clean the water tank.

AROMA DIFFUSER INSTRUCTION MANUAL

EN

Warranty

1. Warranty service is provided by the manufacturer.
2. This product is guaranteed for a period of 24 months from the date of purchase.
3. Please read the instruction manual carefully before using the diffuser to ensure correct operation.
4. If a defect occurs under normal usage and within 24 months from date of purchase, it will be eligible for repair or exchange.
5. This guarantee is not valid if the defect is due to accidental damage, misuse, neglect, alteration, or any damage caused by using other accessories not included in the package.
6. Please retain your guarantee card and purchase receipt. Service under the guarantee is only provided upon
   presentation of the card and receipt.

Dist. by Melaleuca of Europe (Germany) GmbH

Hessenring 13a · 64546 Mörfelden-Walldorf

Germany

[phone]-旦+49(0)61059802402

Freephone number for your country eu.melaleuca.com

Name		Telephone
Email		Date of purchase
Address
Product
Item no.
Remarks
