USER MANUAL S-2 QUAD
Important Safety Caution
This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarised or grounding plug. A polarised plug has two blades with one wider than the other. A grounding plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into you outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart or rack is used, use caution when moving the cat/apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all serving to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been exposed to rain or moisture, does not operate normally, or has been dropped.
CAUTION: These serving instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any serving other than that contained in the operating instructions unless you are qualified to do so.
WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that objects filled with liquids, such as vases, shall not be places on apparatus.
No naked flame sources, such as lighted candles, should be placed on the apparatus.
CAUTION: Changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this device.
WARNING: The mains power switch for this appliance is located on the rear panel. To permit free access to this switch, the apparatus must be located in an open area without any obstruction.
IAG-QUAD
Correct disposal of this products. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
INTRODUCTION
QUAD has always prided itself as providing the complete solution to music lovers. Each QUAD component marries perfectly to other parts of the hi-fi system and is designed with one target – to be 'The Closest Approach To The Original Sound'.
QUAD S Series loudspeakers fulfil that objective admirably. Sporting a new ribbon treble unit aligned, through sophisticated crossover networks, to QUAD's advanced bass-midrange drivers, each and every loudspeaker in the range delivers all the nuances and passion of the original performance.
Whatever your musical taste you will find that QUAD S Series speakers create a believable musical presence in your listening room that will have you discovering your music collection anew.
Please read the following notes carefully. They will help you to install your loudspeakers correctly and safely.
Switch off the amplifier and all sources before making connections to your sound system. When you switch on the system or change sources, set the volume control to minimum and turn up the level gradually.
The position of your volume control is NOT a reliable guide as to the maximum capabilities of your sound system. Playing the system with extreme settings of volume and tone controls may damage the amplifier and loudspeakers.
Do not connect loudspeaker terminals to the mains supply.
Ensure that your loudspeakers are correctly wired and are in phase.
Do not subject your loudspeakers to excessive cold, heat, or sunlight.
WARNING: To reduce the risk of fire or electrical shock, do not expose this product to rain or moisture. The product must not be exposed to dripping and splashing and no object filled with liquids - such as a vase of f lowers - should be placed on the product.
No naked flame sources - such as candles - must be placed on the product.
Do not place heavy objects on top of loudspeaker cabinets. If you play them with the grilles removed be careful to protect the drive units from children and pets.
Do not use makeshift stands. Always fit a manufacturer's approved stand using the instructions and the fixings provided. Your dealer will advise you.
Do not attempt to dismantle the loudspeaker. There are no user serviceable parts inside and you will invalidate the warranty.
Site your loudspeakers at least 0.5m away from TV sets and magnetic storage media.
UNPACKING THE EQUIPMENT
Unpack the loudspeakers carefully. Be especially careful not to damage the loudspeaker cabinets when removing the polythene sleeves. Please retain the packing materials for future transportation. Retain the user manual and the information concerning the date and place of purchase of this equipment for future reference.

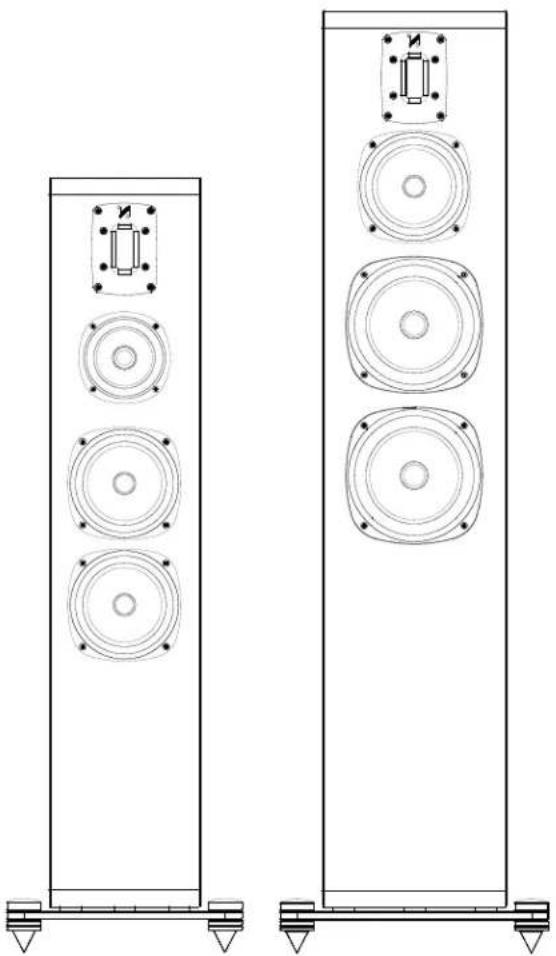

Quad S4 and S5: These models are floor standing and should be fitted with spikes for better stability and performance.
Fitting Spikes: Carefully invert the loudspeaker. Take care to protect the top surface from scratches or damage when the loudspeaker is in the inverted position. Each speaker is supplied with a set of four spike assemblies. Screw a spike into each of the pre-drilled holes in the bottom of each loudspeaker cabinet. Return the loudspeaker to its normal position taking care not to cause damage with the spikes. Adjust the spikes so that the speakers are stable. The top surfaces should be level and the same height above the floor.
When moving speakers, be particularly careful not to let the spikes pierce objects or cables which may be concealed under the carpet. Never drag the loudspeakers. If you cannot lift them easily, get someone to assist you.
Quad S1 and S2: These loudspeakers should ideally be stand mounted though they may may be placed on a rigid shelf separate from the rest of the system.
The most uncoloured sound will be obtained when the loudspeakers are at least 200mm from the rear walls and 300mm from the side walls. If the loudspeakers are operated closer to the rear walls the bass extension will increase but if they are placed too close to the walls the bass may boom and become indistinct. If the loudspeakers are placed further away from the walls, the inward angle may be increased by up to 40%, although this may restrict the width of the optimum listening position.
As personal taste plays a large role, please experiment with different configurations and play a wide range of music before finalising the position of your loudspeakers.
CONNECTIONS AND TERMINALS
Crossover Network
Quad crossover networks separate the treble and bass networks into two distinct sections, each connected by a dedicated pair of terminal posts. This enables the treble and bass components to be separately driven for optimum performance. The upper pair of terminals is connected to the treble network and the lower pair to the bass network.
As supplied, the treble terminal pair is connected to the bass terminal pair by removable metal straps. These should be left in place for standard installations.
Choosing and Preparing Cable
Specialist audio cable will usually offer better performance than general purpose 'bell' or 'zip' wire. Audio cable is polarised, with two cores of different colours, or often, in the case of twin cable, a coloured tracer or ridge along one wire to indicate polarity.
Choose a cable of suitable diameter - cable that is too thin will limit the dynamics of the sound and may impair the bass response. Split the twin cores to a depth of about 40mm. Carefully strip the insulation from each end, leaving about 10mm of bare wire. If the cable is stranded, lightly twist to gather any loose strands.
Connecting Speaker Terminals
Unscrew the terminal. Thread the bared end of each cable through the hole in the bottom of the terminal post. Ensure that there are no loose strands which may touch adjacent terminals. Retighten the terminal securely.
CONNECTING THE LOUDSPEAKERS

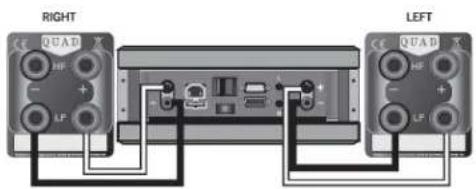

Standard Connections
Connect the positive(+) terminal of the Left loudspeaker to the corresponding positive(+) amplifier terminal. Connect the negative(-) terminals similarly. Repeat this procedure for the Right Channel. Note that the positive(+) terminals are located on the right.
CONNECTING THE LOUDSPEAKERS

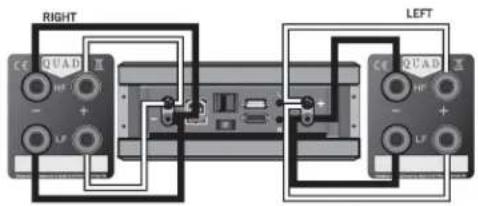

Bi-Wiring
Unscrew each terminal a few turns and remove the metal straps. The upper pair of terminals on the crossover panel feeds the treble units and the lower terminals feed the bass unit. Connect the cables between the amplifier and the loudspeakers as indicated above and retighten all the terminals securely.
Where feasible, we strongly advocate bi-wiring.

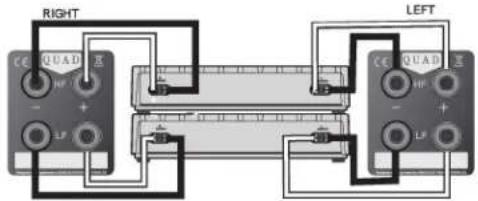

Bi-Amplifying (Bi-Amping)
By connecting each loudspeaker drive unit to its own dedicated amplifier the advantages of Bi-Wiring can be extended. If you own two identical stereo power amplifiers, you may wish to try bi-amping your QUAD loudspeakers. For further details please consult your dealer.


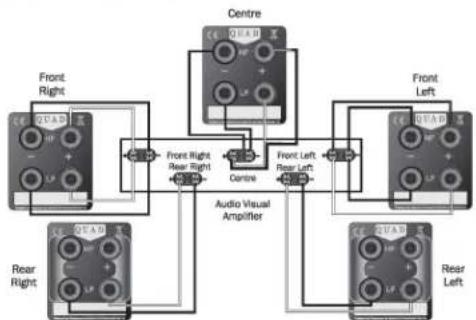

The Quad SC is a dedicated centre channel loudspeaker, voiced to blend seamlessly with the other loudspeakers in the S Series, though it can be used with any high performance loudspeakers, including Quad ESLs. When partnered with the Quad S4 or S5 as front channels, and the S1, S2 as rear effects channels, a Home Theatre system of outstanding performance can be built up.
The S1 is a versatile small loudspeaker. It can be used as the front channels, its diminutive size makes it ideal for use as the rear effects channel in multichannel systems. It can be used for the front channels and its diminutive size.
The connections for a typical Home Theatre system are shown below. We suggest that the Front and Centre Channels are bi-wired. The rear effects speakers should be connected using the standard connection as described above, though you may bi-wire them if you prefer.
If the sound lacks definition or the bass is indistinct, this could be because you have inadvertently misconnected your loudspeakers. Please check the wiring to both loudspeakers carefully, especially if they are bi-wired.
Ancillary Equipment
QUAD loudspeakers are compatible with the great majority of audio-visual and high fidelity equipment. Your amplifier should have ample reserves of power - a low powered amplifier can run out of steam quite easily and the resulting distortion is unpleasant to listen to and could damage your speakers. A larger amplifier will usually sound better and enhance the reliability and performance of your loudspeakers.
Running In
Loudspeakers are electro-mechanical and, like all mechanical systems, they need a 'running in' period. For the first 50 hours or so exercise care and play your system at reasonable volume levels. After running in, you will notice a significant sonic improvement.
Care and Maintenance
Little maintenance is required. The cabinets can be occasionally wiped with a damp (not wet) cloth. Spray polish, if used, should be applied sparingly - spray the polish onto a cloth and then apply it to the speaker. NEVER spray at the grille cloth or the speaker drive units. To clean the grilles, remove them first before gently brushing with a soft brush. Never use solvent cleaners, minor stains are best removed with soap and lukewarm water. Avoid touching the drive units as they can easily be damaged.
SERVICE & INFORMATION
Product service enquiries should instantly be referred to the supplying dealer. If you need to return your loudspeakers for servicing, please return them as a pair even if only one unit appears to be faulty. For safety, we recommend that they be shipped in their original packing.
In cases of difficulty or for other product enquiries, please contact the appointed QUAD distributor for your country. Service Centre in the UK can be found below.
Authorised QUAD Service Centre in the U.K.
IAG House,
13/14 Glebe Road,
Huntingdon, Cambridgeshire,
PE29 7DL
UK
Tel: +44 (0)1480 452561
Fax: +44 (0)1480 413403
A worldwide distributor list is available on the QUAD website: www.quad-hifi.co.uk
SPECIFICATIONS
| Model | S1 | S2 |
| General Description | 2-way bookshelf speaker | 2-way bookshelf speaker |
| Enclosure Type | vented box loudspeaker | vented box loudspeaker |
| Transducer Complement | 2-way | 2-way |
| Midrange Driver | 4"(100mm) Woven Kevlar Cone | 5"(125mm) Woven Kevlar Cone |
| Treble Driver | 12 x 45 mm True Ribbon | 12 x 45 mm True Ribbon |
| AV Shield | No | No |
| Sensitivity (2.83V @ 1m) | 84dB | 87dB |
| Recommended Amplifier Power | 25-100W | 25-100W |
| Peak SPL | 96dB | 98dB |
| Nominal Impedance | 8Ω Compatible | 8Ω Compatible |
| Minimum Impedance | 4.2Ω | 4.5Ω |
| Frequency Response (+/-3dB) | 58Hz - 20kHz | 48Hz - 22kHz |
| Bass Extension (-6dB) | 55Hz | 37Hz |
| Crossover Frequency | 3.2kHz | 3kHz |
| Cabinet Volume (in litres) | 10.7L | 8.15L |
| Dimensions (mm) | ||
| Height (on plinth) | 285mm | 330mm |
| Width | 156mm | 180mm |
| Depth (with terminals) | (240+30)mm | (260+30)mm |
| Carton Size | 448*345*385mm | 496*365*430mm |
| Net Weight | 5.2 KG | 6.1 KG |
| Gross Weight | 12.12 KG | 14.32 KG |
| Model | S4 | S5 | SC |
| General Description | 3-way floorstanding speaker | 3-way floorstanding speaker | 2-way centre speaker |
| Enclosure Type | ABR | ABR | vented box loudspeaker |
| Transducer Complement | 3-way | 3-way | 2-way |
| ABR | 125mm x 2 | 165mm x 3 | |
| Bass Driver | 125mm Woven Kevlar Cone | 165mm Woven Kevlar Cone x 2 | 100mm Woven Kevlar Cone x 2 |
| Midrange Driver | 100mm Woven Kevlar Cone | 125mm Woven Kevlar Cone | |
| Treble Driver | 12 x 45 mm True Ribbon | 12 x 45 mm True Ribbon | 12 x 45 mm True Ribbon |
| AV Shield | No | No | No |
| Sensitivity (2.83V @ 1m) | 88dB | 90dB | 86dB |
| Recommended Amplifier Power | 25-100W | 25-100W | 25-100W |
| Peak SPL | 100dB | 105dB | 97dB |
| Nominal Impedance | 6Ω | 6Ω | 8Ω Compatible |
| Minimum Impedance | 3.5Ω | 3.2Ω | 4.4Ω |
| Frequency Response (+/-3dB) | 44Hz - 23kHz | 42Hz - 23kHz | 65Hz - 20kHz |
| Bass Extension (-6dB) | 37Hz | 35Hz | 60Hz |
| Crossover Frequency | 520Hz & 3.9kHz | 570Hz & 3.2kHz | 2.8kHz |
| Cabinet Volume (in litres) | 47.0L | 72.4L | 12.8L |
| Dimensions (mm) | |||
| Height (on plinth) | (870+55)mm | (1070+55)mm | (160+5)mm |
| Width | 180mm | 205mm | 400mm |
| Depth (with terminals) | (300+30)mm | (330+30)mm | (200+30)mm |
| Carton Size | 1055*424*308mm | 1265*454*333mm | 495*304*258mm |
| Net Weight | 16.4 KG | 21.85 KG | 6.3 KG |
| Gross Weight | 22.24 KG | 28.90 KG | 8.36 KG |
| Initials: | ☐ ESL2805 ☐ ESL2905 | ||
| Surname: | ☐ QC24 ☐ QC24P | ||
| Address: | ☐ Quad II-40 | ||
| ☐ Quad II-Classic | |||
| ☐ Quad II-80 | |||
| County: | ☐ Quad II-Classic Integrated | ||
| Post Code: | ☐ Elite Pre Amplifier | ||
| Email: | ☐ Elite CDS Player | ||
| ☐ Elite CDP Player | |||
| ☐ Elite FM Tuner | |||
| Retailer Name: | ☐ Elite Integrated AMP | ||
| Town/City: | ☐ Elite Stereo Power Amplifier | ||
| Existing system: | ☐ Elite Mono Amplifier | ||
| ☐ 9L ☐ 9L Active | |||
| ☐ 11L Active ☐ 12L Active | |||
| L Classic: ☐ 11L ☐ 12L ☐ 23L ☐ 25L | |||
| Further Comments: | ☐ L Centre ☐ L2 Subwoofer | ||
| ☐ L-ITE 2 System | |||
| ☐ L-ITE Plus LCR | |||
| ☐ Other |
