Brand	Anslut
Model	411-086
Product Type	Patio Heater
Max Output	900 W
Mains Voltage	230 V / 50 Hz
Enclosure Class	IP20
Heating Element Temperature	Up to 60°C
Oscillating Function	Yes, via TURN switch
Timer Function	Yes, up to 60 minutes
Power Switch Settings	0 (off) and 1000 W (continuous)
Overheat Protection	Yes, automatic shut-off and reset
Tilt Protection	Yes, automatic shut-off if tipped
Safety Warning	Do not cover; keep away from flammable materials
Cleaning Instructions	Dry cloth or vacuum; do not expose electrical parts to water
Intended Use	Outdoor or well-ventilated areas
Disposal	Must not be discarded with household waste; recycle at designated station

Frequently Asked Questions - 411-086 Anslut

What is the maximum power output of the Anslut 411-086 heater?

The heater has a maximum power output of 900 W.

Can the heater be used indoors?

The heater is designed for outdoor use or well-ventilated areas. Do not use in bathrooms, showers, or pools.

How does the timer function work?

Turn the timer dial to the desired time, up to 60 minutes. The heater will automatically shut off after that time.

What should I do if the heater overheats?

The overheat protection will shut off the element. Set the power switch to 0, unplug, and investigate the cause. It will reset when cooled.

Is the heater safe if it tips over?

Yes, it has tilt protection that automatically turns the heater off if it falls over.

How should I clean the heater?

Use a dry cloth or vacuum cleaner. Do not expose electrical parts to water.

What is the required clearance from flammable objects?

Place the heater at least 1 metre away from flammable items.

Can children use this heater?

Children aged 8+ can use it only under supervision. Keep children under 8 away from the heater and its cord.

What does the IP20 rating mean?

IP20 means the heater is protected against solid objects larger than 12.5 mm (e.g., fingers) but not protected against water ingress.

How do I use the oscillating function?

Set the switch to TURN to activate oscillation. This allows the heater to rotate and cover a wider area.

USER MANUAL 411-086 Anslut

Värna om miljön!

Care for the environment!

Must not be discarded with household waste! This product contains electrical or electronic components that should be recycled. Leave the product for recycling at the designated station e.g. the local authority's recycling station.

SE - Bruksanvisning i original

EN - Operating instructions (Translation of the original instructions)

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Tillverkare/ Produsent / Produenci/ Manufacturer

Jula AB, Box 363, 532 24 SKARA

Importör/ Importör/ Importer/ Importer

Överhettningsskydd

Overopphetingsvern

Read the Operating Instructions carefully before use!

- This appliance can be used by children aged from 8 years and above and people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children less than 8 years.

- WARNING: Certain parts of the appliance can become extremely hot and cause burns. Special attention must be given when children and people with reduced physical, sensory or mental capabilities are present. This electric patio heater conforms to current requirements for technical safety and electromagnetic compatibility.

- Keep the heater out of the reach of children.

• The power cord and plug must not be damaged or routed over sharp edges and corners.

• Never pull the power cord to remove the plug from the mains socket.

- Never use a damaged extension cord.

- Never use near baths, showers or pools.

- The heater must not be positioned close to flammable items.

- The heater must not be positioned immediately below a wall socket. The heater must not be covered.

• Air intakes and outlets must not be blocked.

• Maintenance and repair work must only be performed by an authorised service technician.

- Use a dry cloth or vacuum cleaner to clean the heater.

- Do not use the heater near flammable liquids or substances.

- Do not insert items into the heater.

• Make sure the heater is not connected to the mains supply when being moved.

• Children and people with a mental disability may only use the heater under supervision.

- The element must not be connected if it has visible damage, if the power cord has visible damage or if damage is suspected (such as in the event of a fall).

- Check that the rated voltage corresponds with the mains voltage.

- The appliance must not be installed or used in vehicles.

- The element's opening can reach a temperature of 60° C .

- Do not touch the patio heater when it is lit. Risk of burns.

- Do not touch the patio heater with damp or wet hands.

• Always turn off the patio heater after use, if a fault is indicated and before cleaning.

- Do not use the patio heater if it is damaged, has tipped over or is not working correctly in some other way.

- The patio heater must not be dismantled. If it is assembled or repaired incorrectly, this can entail a hazard. Contact your dealer in the event of any problems.

- The heater must never be left unattended when in use. The heater must not be positioned close to flammable materials.

- Do not expose the heater to moisture or the risk of corrosion during storage.

- Do not expose the heater to moisture, rain or snow.

TECHNICAL DATA

Model:

Max. output:

Mains voltage:

CFH-9A

900 W

230 V/50 Hz

Enclosure class:

IP20

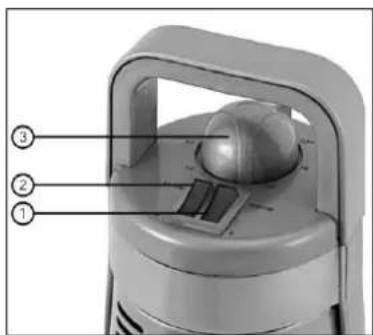

OPERATION

• Place the heater on a flat surface, at least 1 metre from flammable items.
  • Make sure the power switch is set to 0 (1) before connecting the heater to the mains supply.
• Start the heater by setting the power switch to 1000 W.
• For oscillating function, set the switch (2) to TURN.
  • The timer function is activated by setting the timer dial (3) to the required time, max. 60 minutes.
• The heater must be disconnected from the mains voltage when not in use.

Overheat protection

The heater is equipped with overheat protection that switches off the element in the event of a technical fault or incorrect use. If this happens, the power switch must be set to 0 and the plug disconnected from the wall socket. Investigate the cause of the fault. The overheat protection automatically resets when the element has cooled.

The heater is equipped with tilt protection. If the heater should tip over, the tilt protection is tripped and the heater is turned off.

MAINTENANCE

The outside of the patio heater requires no particular maintenance other than regular vacuuming and wiping off. The electrical parts must not be exposed to water.
